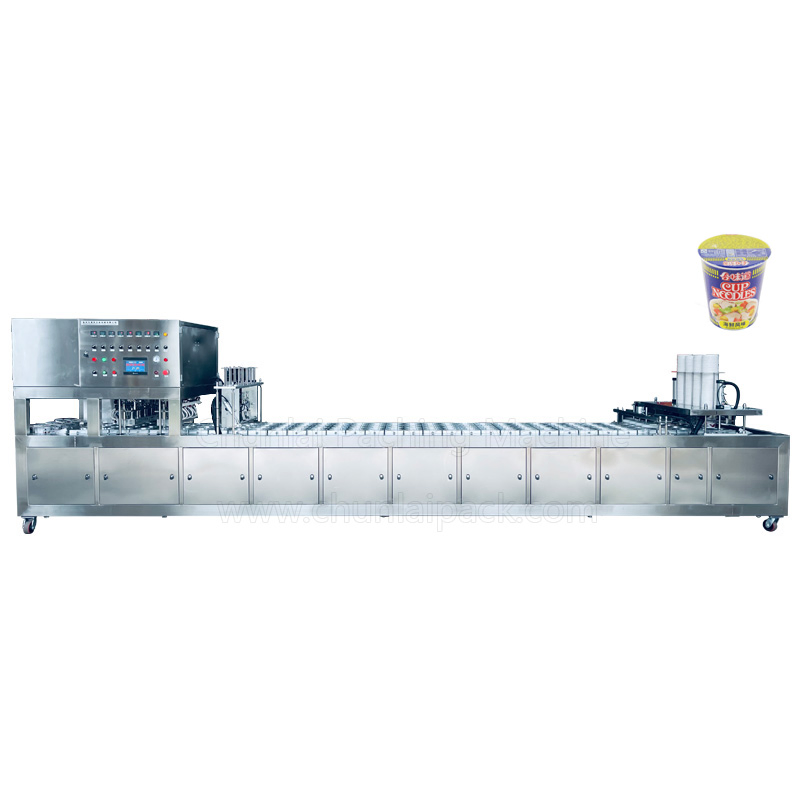

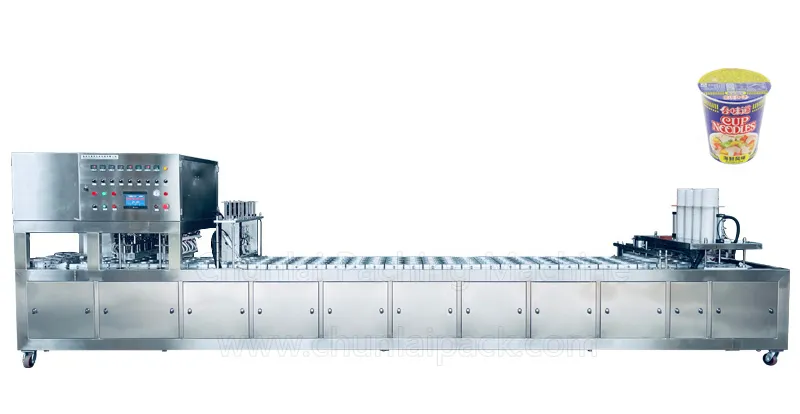

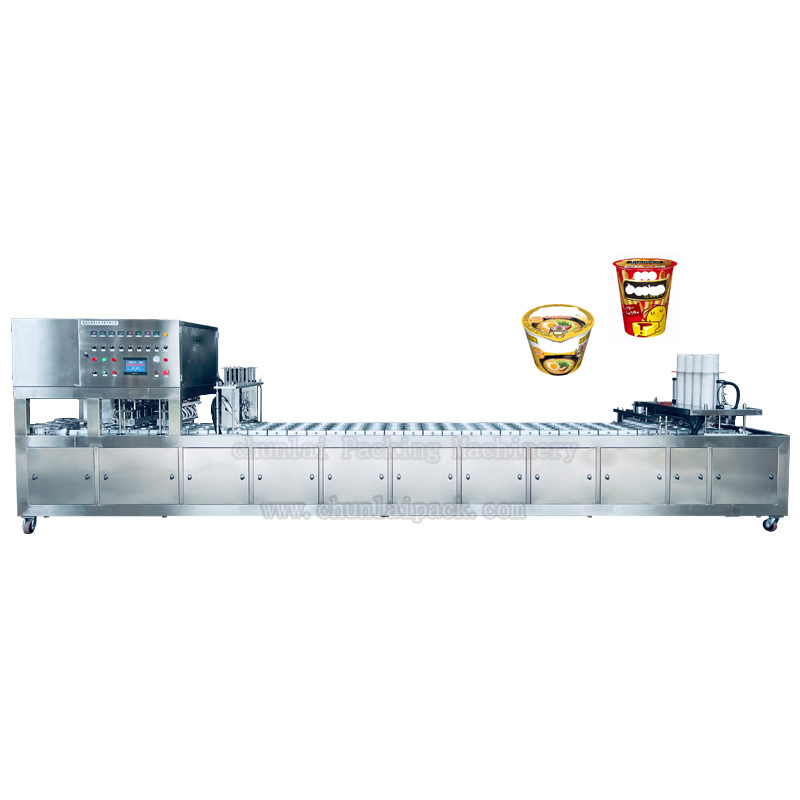

BG60 Series Automatic Instant Noodles Cup Sealing Machine
• Can be customized according to customer's demand
• Cup material available: PS, PP, PE, PET, paper and so on
• Sealing film: roll film or pre-cut foil
• Filling: liquid, paste, powder, granule
The BG60 Series instant noodle cup sealing machine adopts a cam index transmission system. It is suitable for packaging a wide range of liquid, paste, granulated, and powdered products into pre-formed containers of various sizes and shapes. This packaging machine can be used for hummus, dip, dairy products, salads, dressings, desserts, ready meals, instant noodles, dry soups, frozen dishes, cosmetics, and much more.
| Model | BG60A-4C | BG60A-6C | BG60A-8C | BG60A-10C |
|---|---|---|---|---|
| Production Capacity | 3000-4000 cups/h | 5000-6000 cups/h | 7000-8000 cups/h | 9000-10000 cups/h |
| Filling Range | 50~300ml (can be customized) | |||
| Filling Accuracy | <±1.5% | |||
| Power Consumption | 3.5Kw | 5 Kw | 6 Kw | 7.5 Kw |
| Dimensions (mm) | 3000×650×1700 | 3000×700×1700 | 3000×750×1700 | 4000×800×1700 |
| Weight | 700Kg | 800Kg | 1000Kg | 1200Kg |

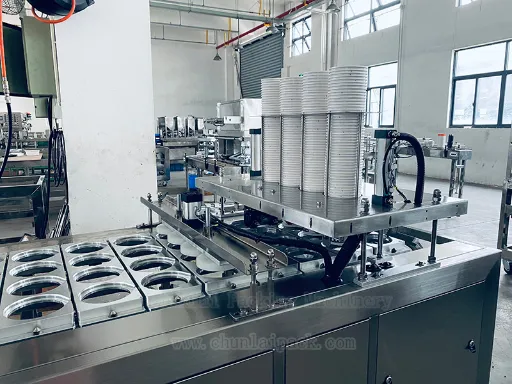

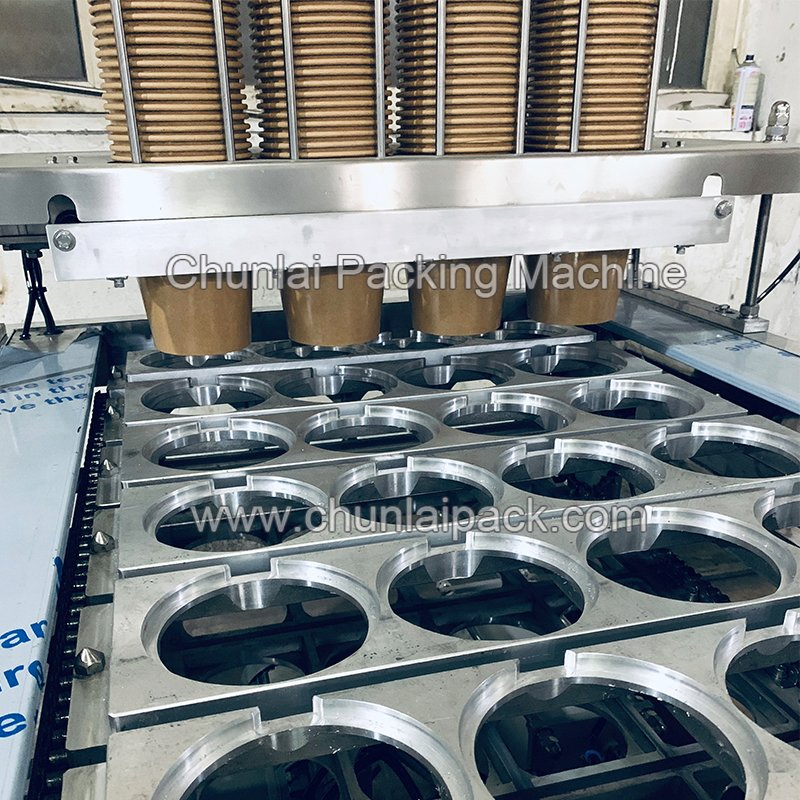

Automatic Cup Dropping

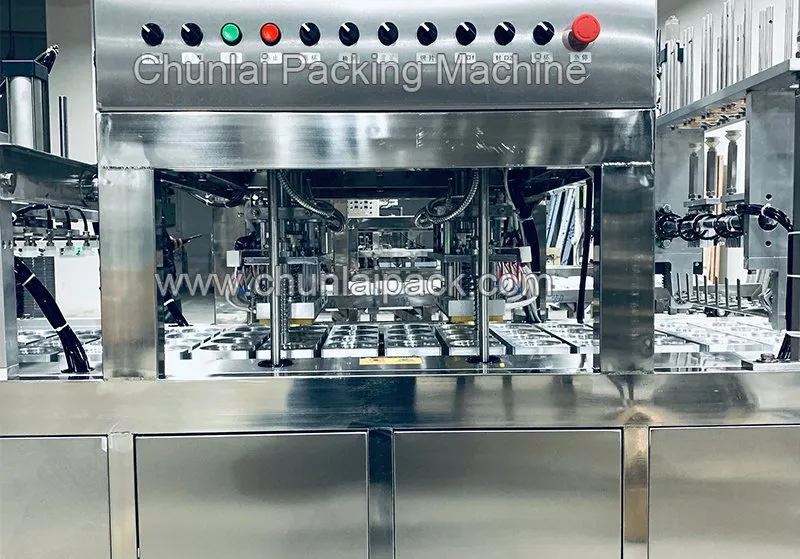

Automatic Sealing

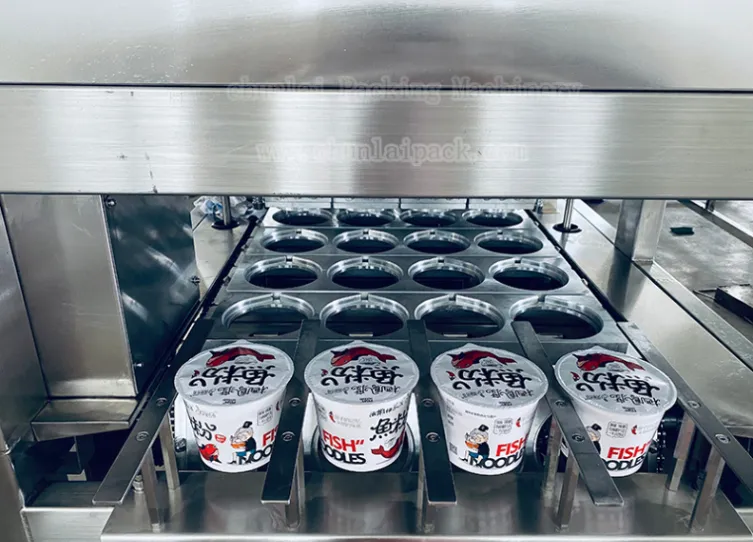

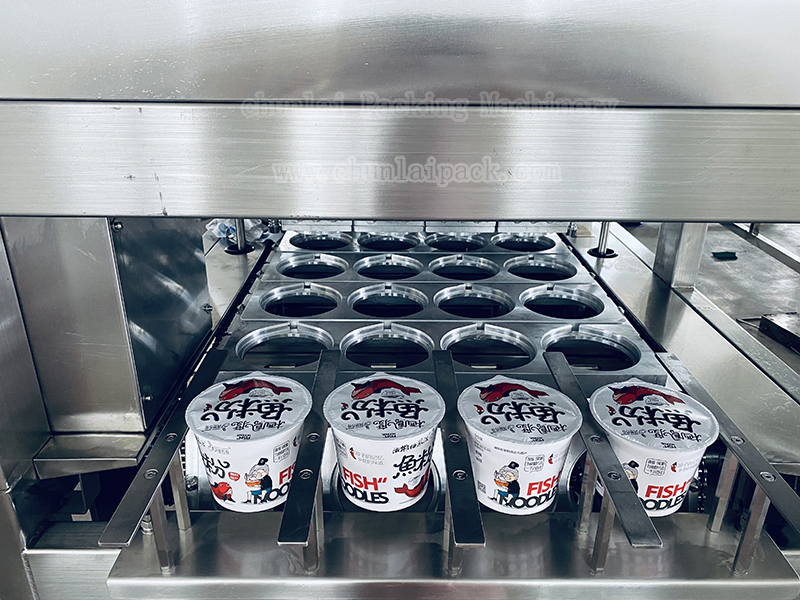

Automatic Cup Exiting

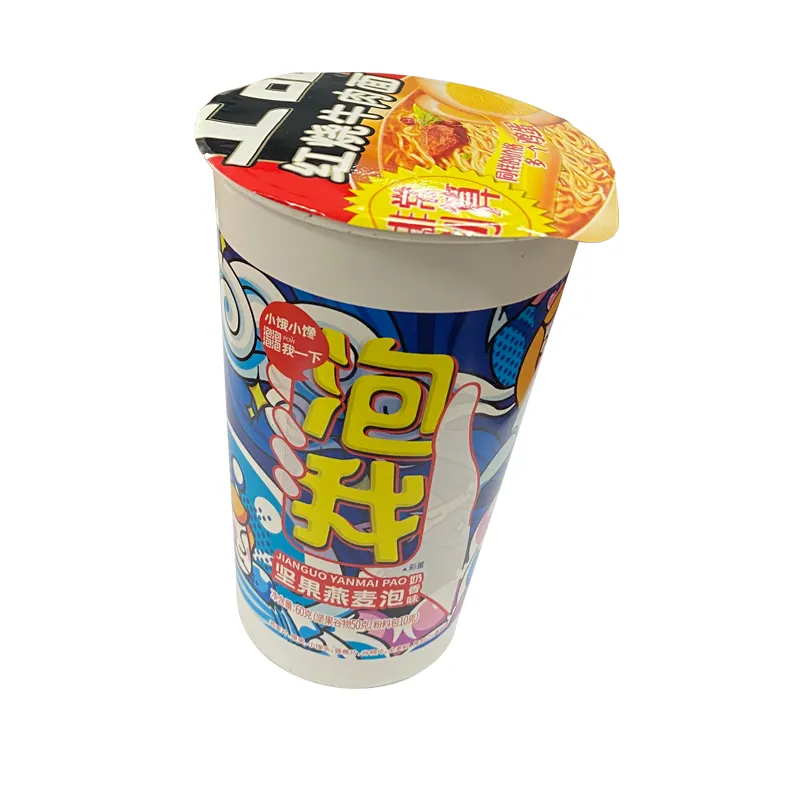

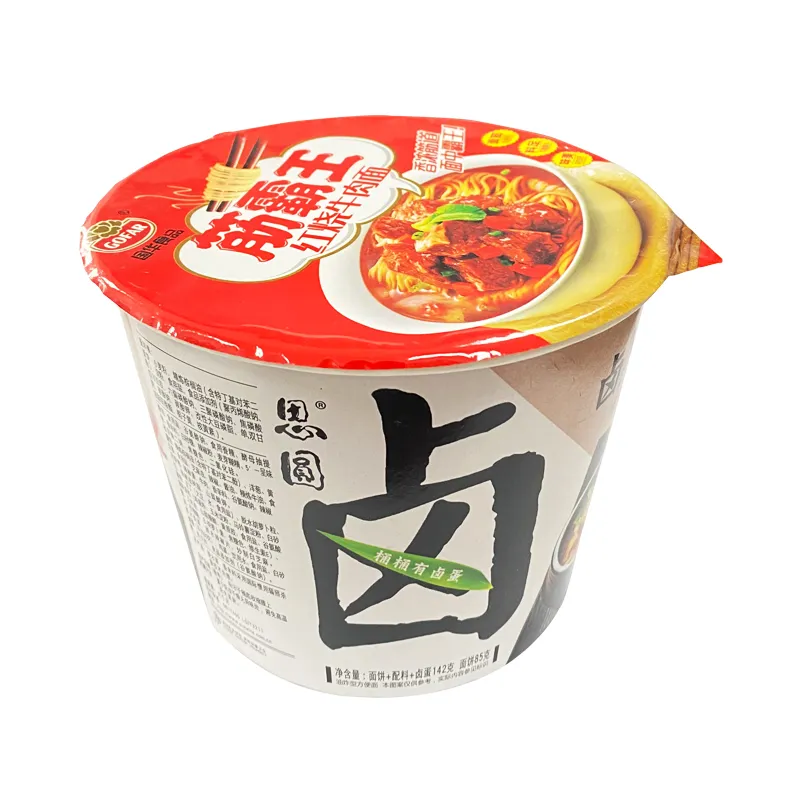

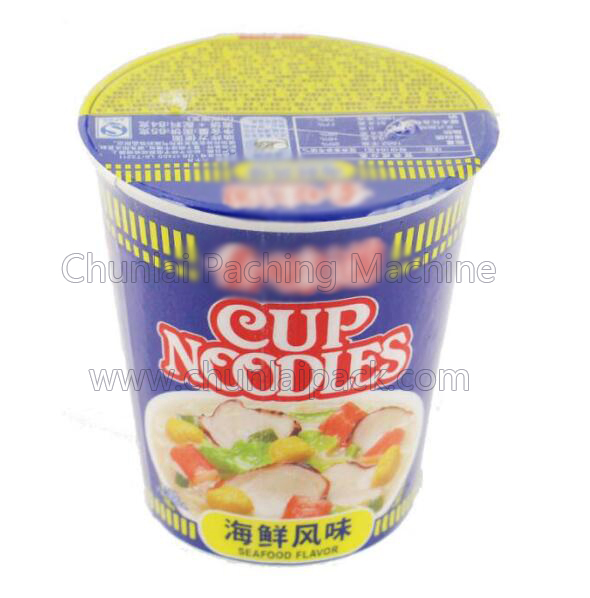

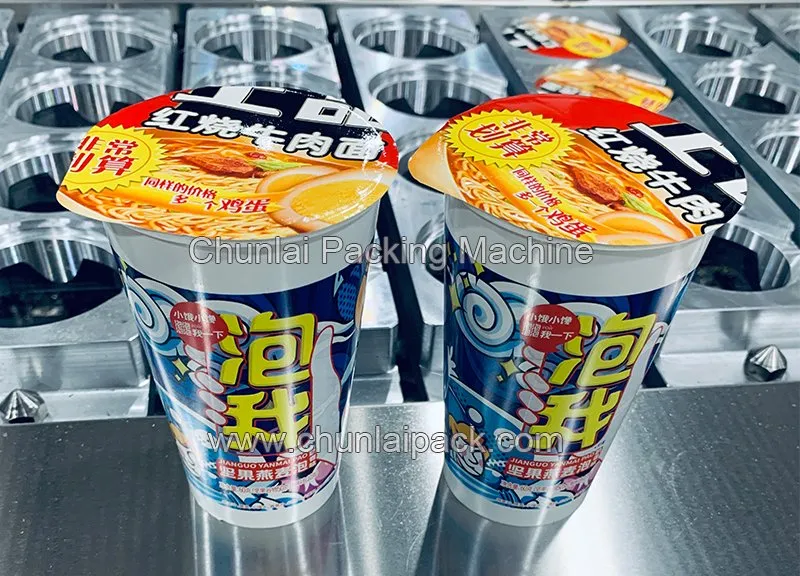

Finished Samples
| Packaging Process | Shipping Process |
|---|---|
| 1. Rust inhibitor application | 1. Final machine inspection and testing |
| 2. Protective wrap film | 2. Logistics coordination and pickup |
| 3. Standard plywood case packing | 3. Secure plywood casing |
| 4. Container loading | 4. Container shipment |
