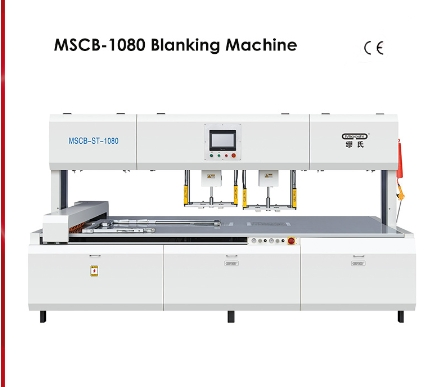

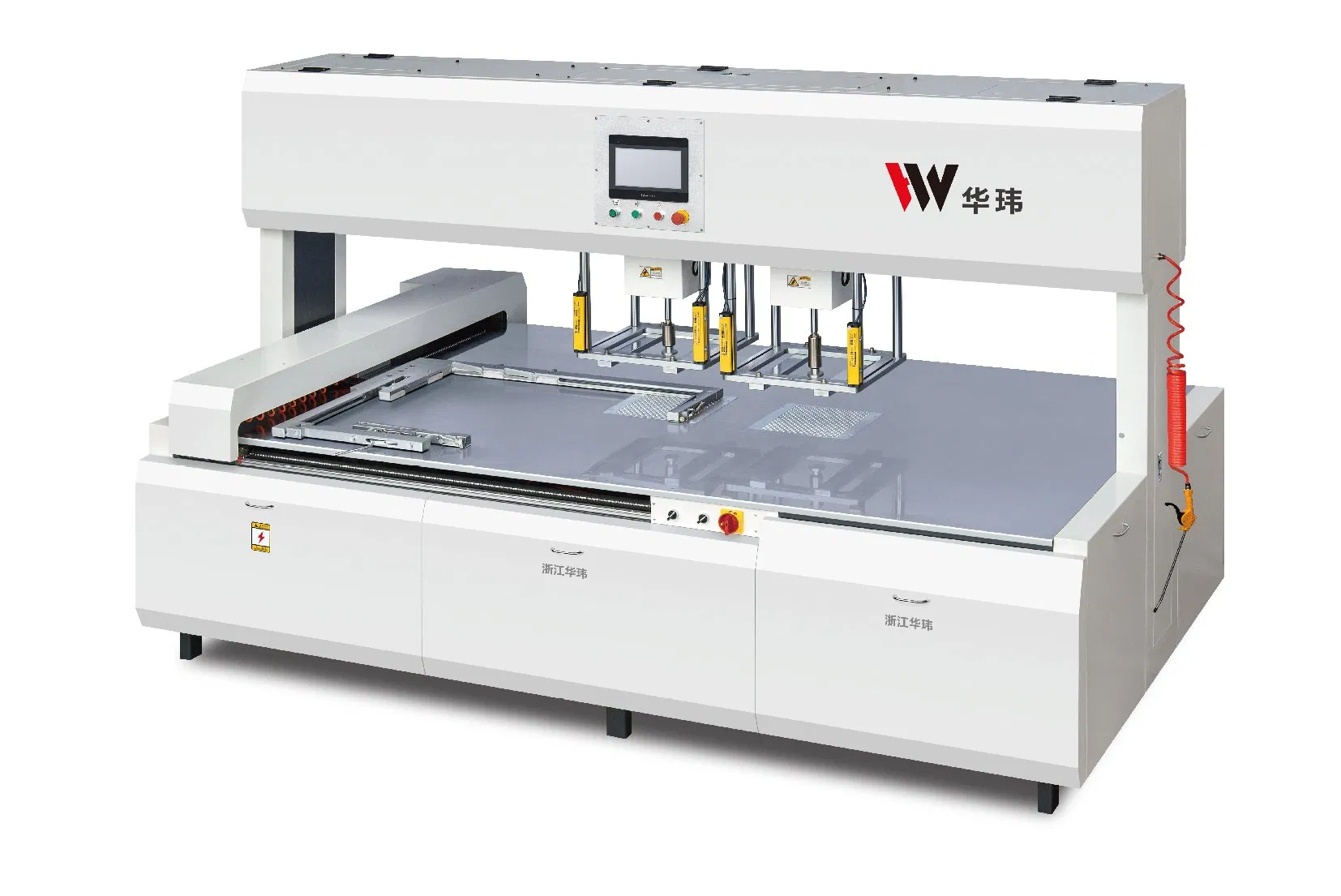

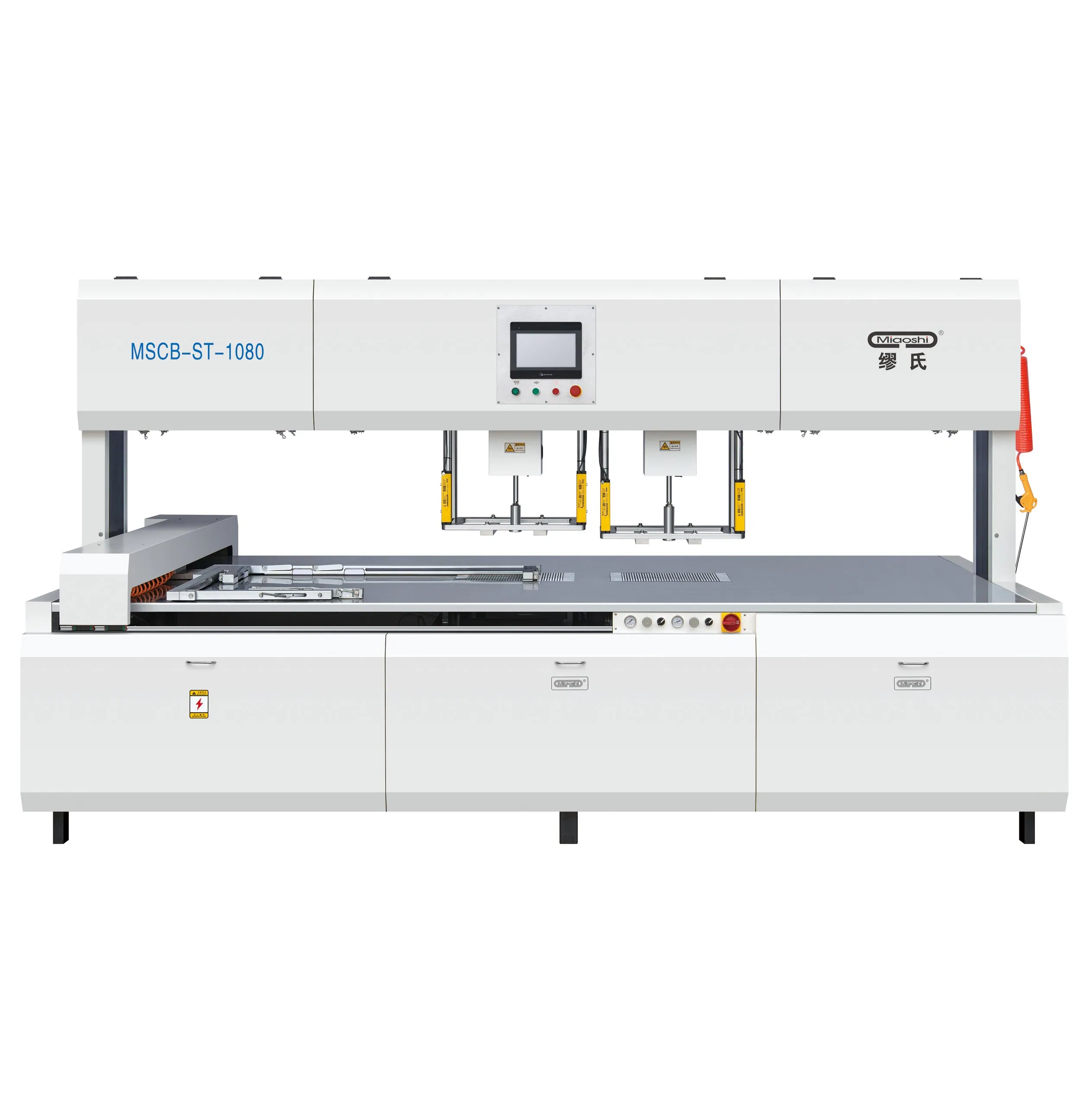

The MS series automatic blanking machine is a high-precision solution designed for the short-run production of packaging, cards, mounts, and labels. Engineered with a robust frame for maximum stability, the system integrates advanced servo motors and ball-screw drives to achieve exceptional accuracy.
Featuring a versatile blanking pin system, the machine allows for quick adjustments to accommodate various sizes and shapes without the need for custom-made tools, significantly enhancing operational flexibility.
| Description | MS-1080S (Single Head) | MS-1080T (Twin Head) |
|---|---|---|
| Max. Sheet Size | 1080 * 780 mm | 680 * 450 mm |
| Min. Sheet Size | 450 * 320 mm | 450 * 320 mm |
| Max. Blank Size | 420 * 280 mm | 220 * 220 mm |
| Min. Blank Size | 30 * 30 mm | 30 * 30 mm |
| Pile Height | 40 - 120 mm | 40 - 120 mm |
| Blanking Speed | 15 - 20 times/min | 15 - 20 times/min |
| Main Power | 4 kw | 4 kw |
| Voltage | 380V / 50Hz | 380V / 50Hz |
| Weight | 1900 kg | 3200 kg |
| Dimension | 2900 x 1800 x 1900 mm | 3500 x 1800 x 1900 mm |

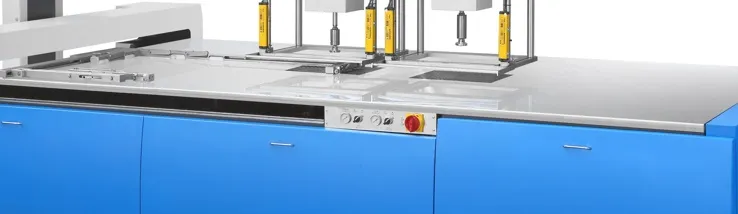

Second-generation stainless steel platform. Chrome-plated to prevent paper spots, rust-proof, and designed with a lower height to save labor and protect paper piles.
Multistage speed control allows the oil cylinder to descend slowly for precise inching, making job changeovers more convenient.

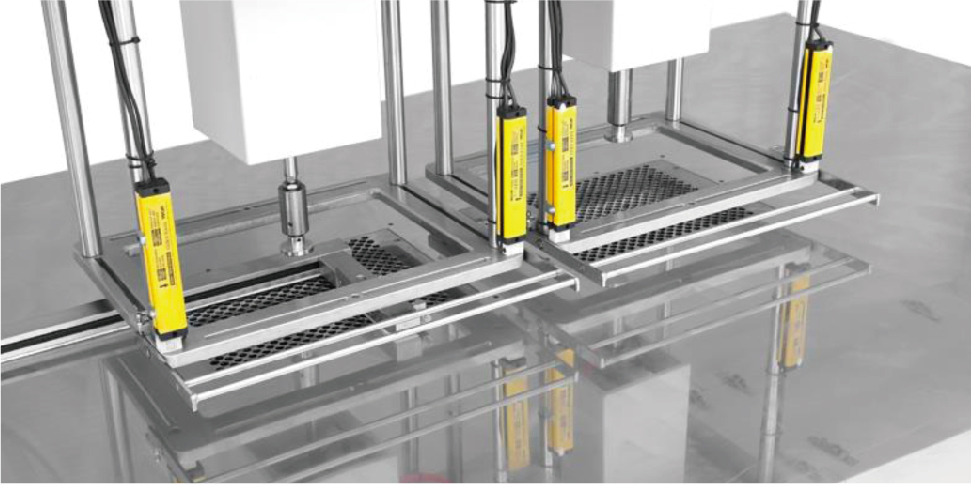

Equipped with dual safety measures: Mechanical protection and high-density safety light curtains to ensure operator security.
Utilizes Double Servo, Ball-Screw, and LM Rail Drive systems for smooth, quiet operation and high product precision.
Wear-resistant and dirty-proof. Ensures bottom paper won't be scratched. No separate blanking tools required.

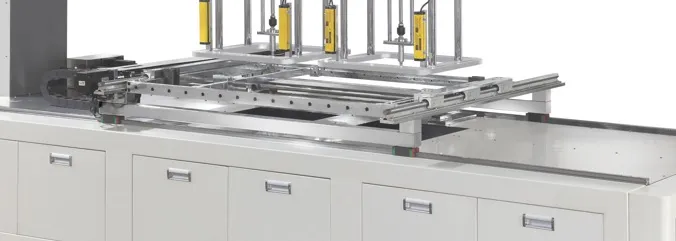

Traditional design requiring standard tool setups and manual adjustments.
