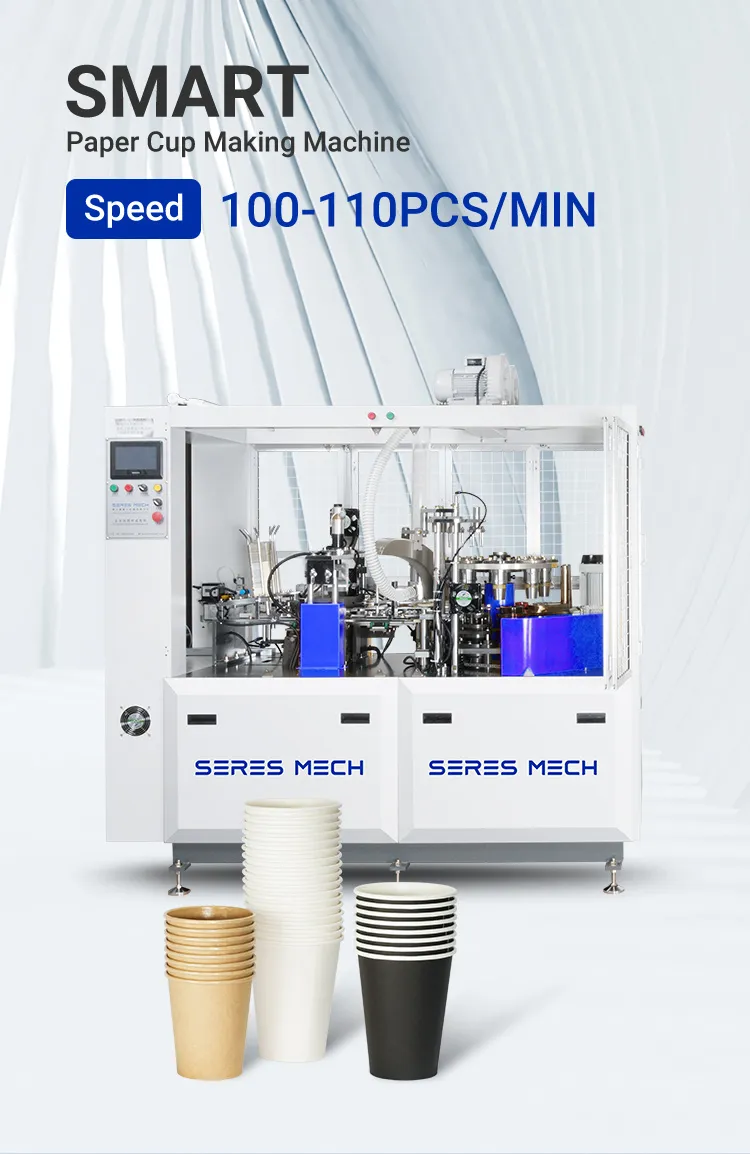

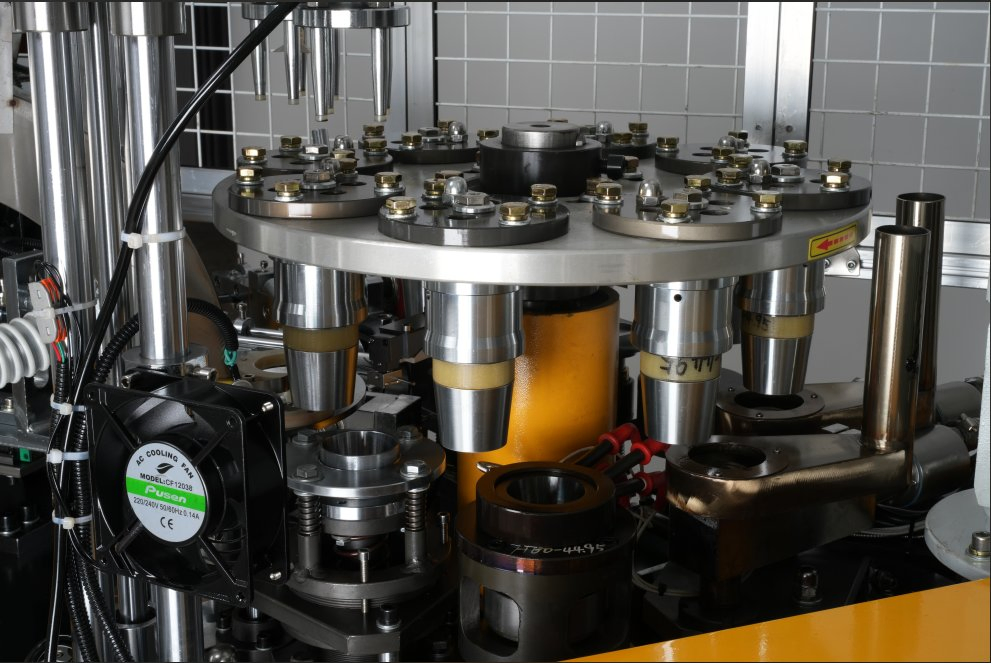

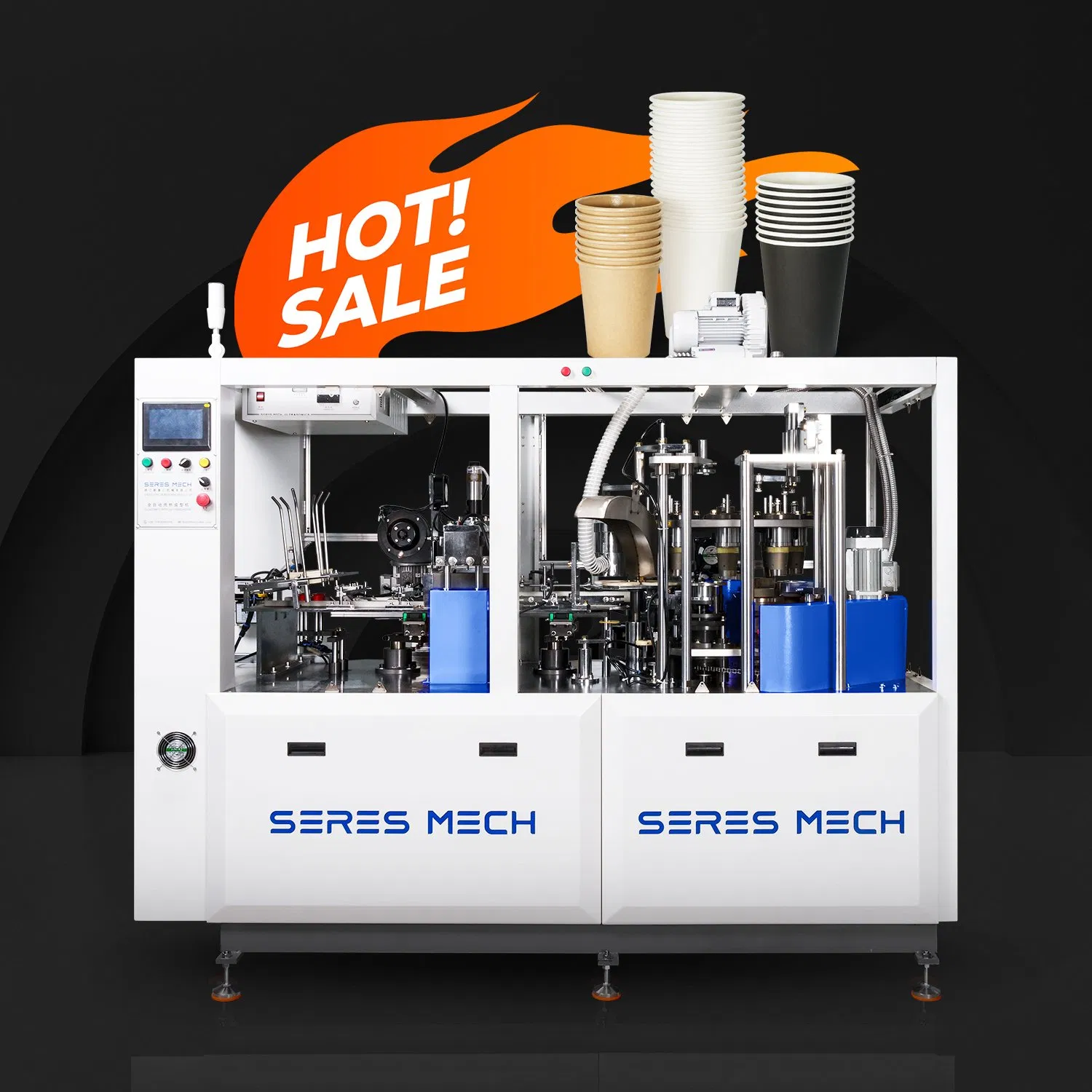

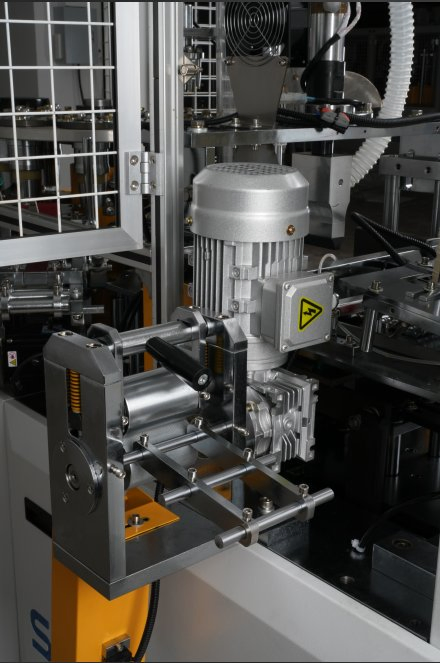

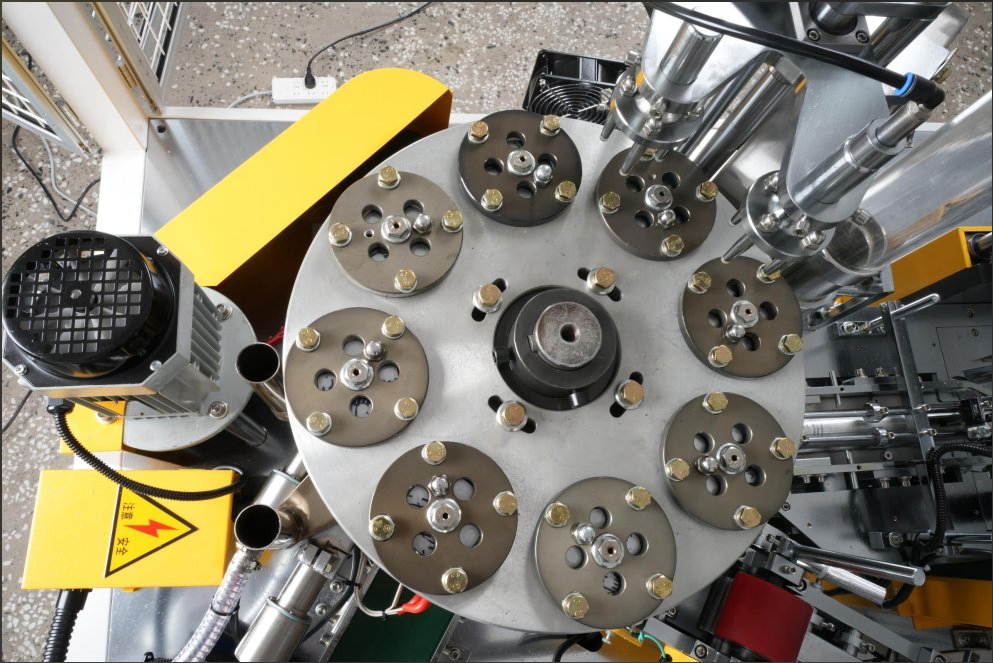

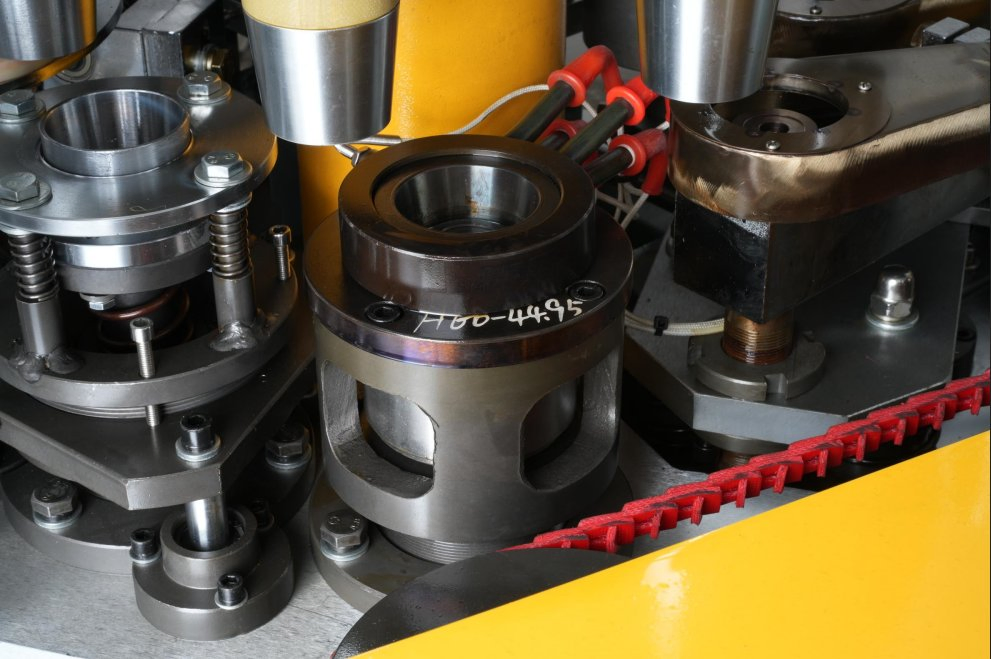

Fully Automatic Single/Double PE Disposable Paper Cup Machine

Customization:	Available
Warranty:	1 Year
Applicable Objects:	Hotels, Garment Shops, Manufacturing Plant

Send Inquiry

Product Description

Basic Information

Model NO. SMART

Cup Size 1.5-16oz

Speed 70-90 PCS/Min

Required Paper Single/Double PE Coated

Automation Automatic

Certification CE

Power 7.8KW

Weight 2500kgs

Technical Specifications

Model	SM-PC-120
Paper Glass Size	1.5-16oz
Speed	70-90pcs/min
Raw Material	One-side or Two-side PE film coated/laminated paper (Ultrasonic system)
Material Weight	160~350gsm
Package Size (LxWxH)	225012001850mm
Total Weight	2500KGS
Power Source	380V 3-Phase 50Hz
Air Requirement	0.4Mpa (4bar); Output: 0.6m3/min

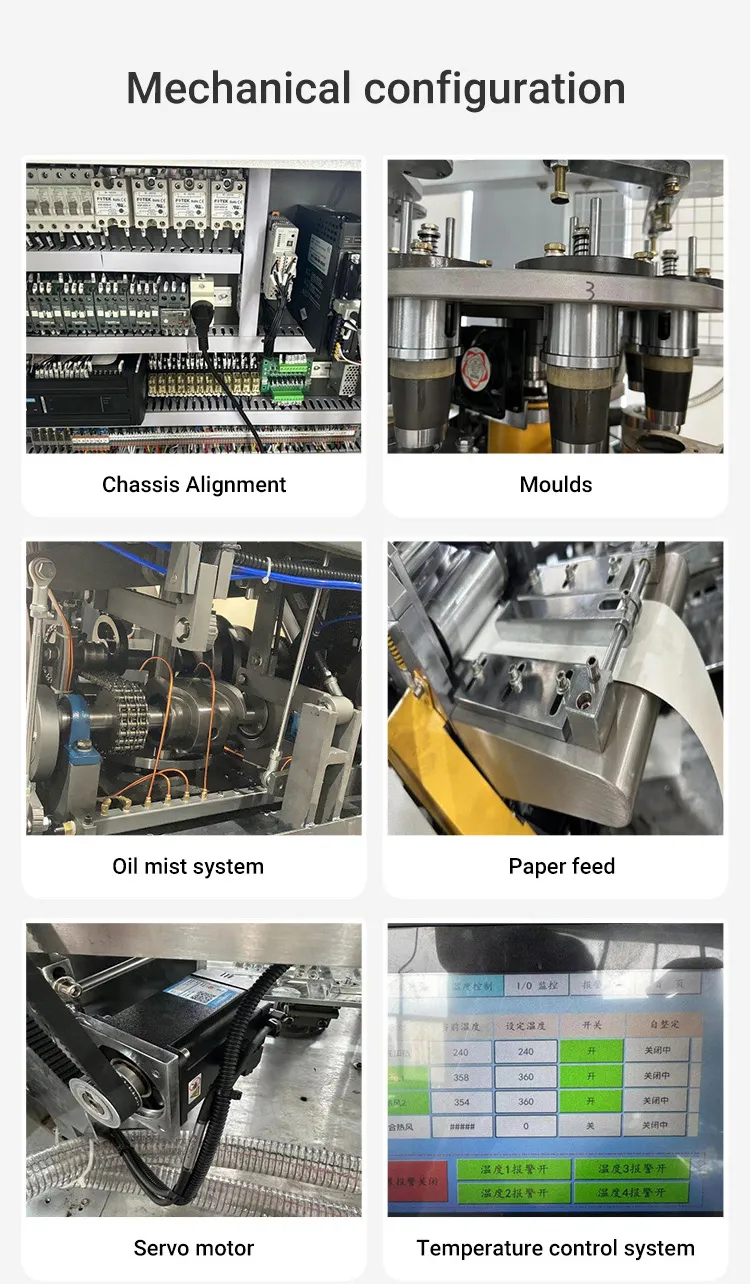

Product Visuals

Frequently Asked Questions

1. What is the production speed of the SMART paper cup machine?

The machine operates at a high-speed capacity of 70 to 90 pieces per minute, ensuring efficient production for various business needs.

2. What range of cup sizes can this machine produce?

It is highly versatile and can manufacture paper cups ranging from small 1.5oz sizes up to large 16oz containers.

3. What type of paper material is required for operation?

The machine is compatible with both single-side and double-side PE (polyethylene) film coated paper, with a recommended weight of 160 to 350gsm.

4. Does the machine support double-sided PE coating?

Yes, thanks to its integrated ultrasonic system, it can process both single and double PE laminated paper effectively.

5. What are the power and air requirements for installation?

The machine requires a 380V 3-Phase 50Hz power source (7.8KW) and an air pressure of 0.4Mpa with an output of 0.6m3/min.

6. Is the machine certified for international standards?

Yes, the SMART paper cup machine is CE certified, meeting essential health, safety, and environmental protection standards.
