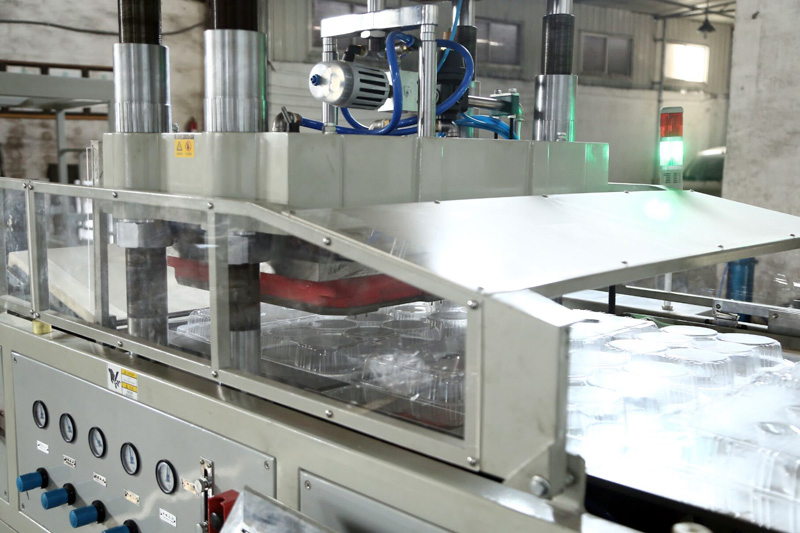

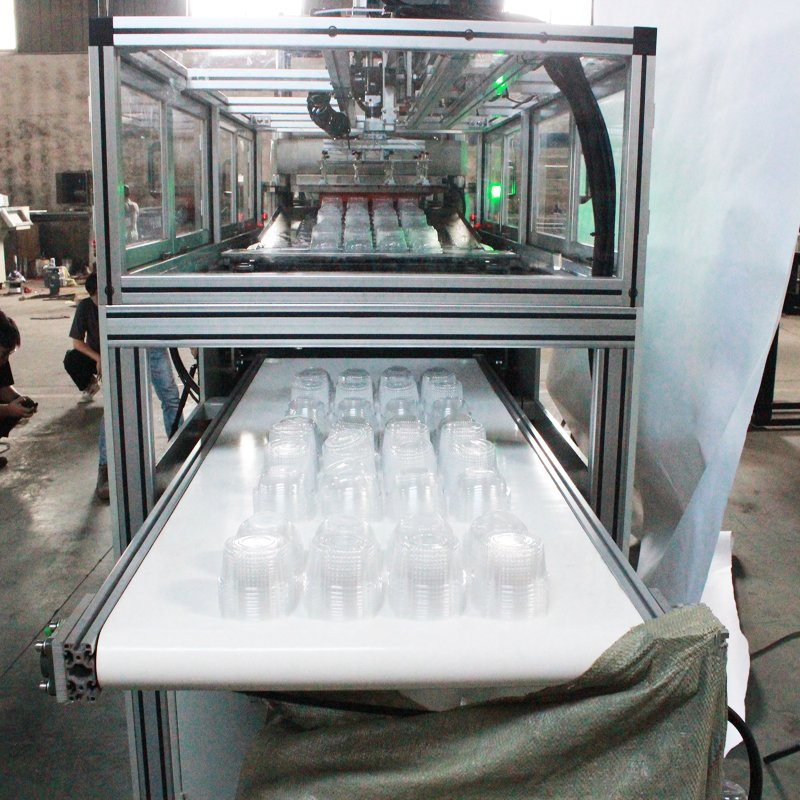

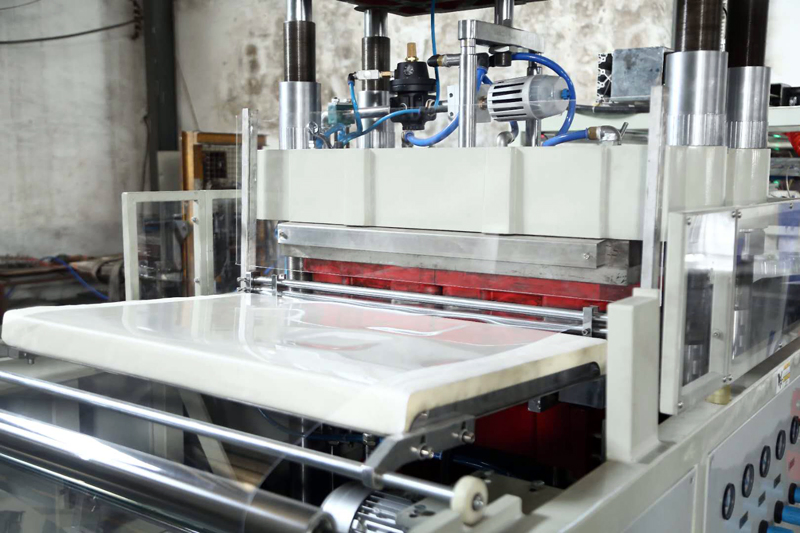

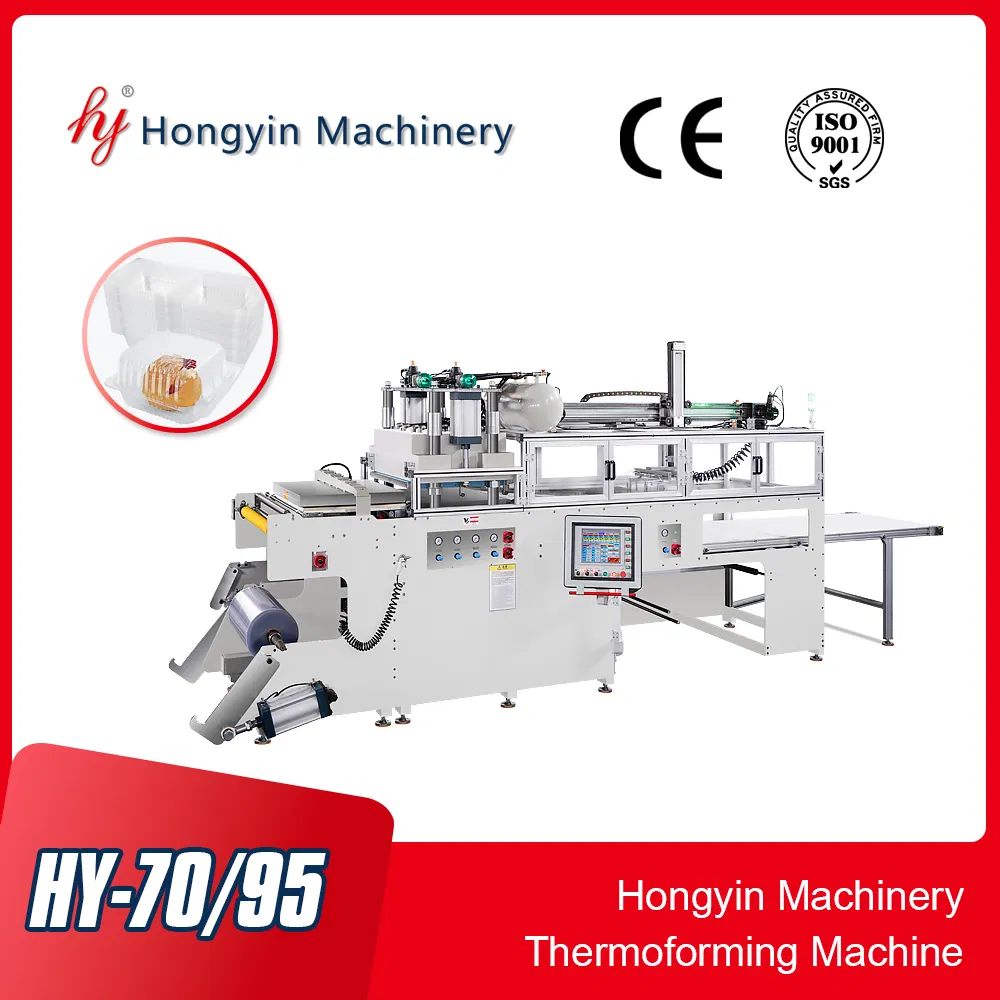

Full-Automatic Plastic Covers of Paper Bowl Thermoforming Machine Pet Lids Packaging Making Machine
Full-Automatic Plastic Covers of Paper Bowl Thermoforming Machine Pet Lids Packaging Making Machine
Full-Automatic Plastic Covers of Paper Bowl Thermoforming Machine Pet Lids Packaging Making Machine
Full-Automatic Plastic Covers of Paper Bowl Thermoforming Machine Pet Lids Packaging Making Machine
Full-Automatic Plastic Covers of Paper Bowl Thermoforming Machine Pet Lids Packaging Making Machine
1 / 5
Full-Automatic Plastic Covers of Paper Bowl Thermoforming Machine Pet Lids Packaging Making Machine
Full-Automatic Plastic Covers of Paper Bowl Thermoforming Machine Pet Lids Packaging Making Machine
Full-Automatic Plastic Covers of Paper Bowl Thermoforming Machine Pet Lids Packaging Making Machine
Full-Automatic Plastic Covers of Paper Bowl Thermoforming Machine Pet Lids Packaging Making Machine
Full-Automatic Plastic Covers of Paper Bowl Thermoforming Machine Pet Lids Packaging Making Machine

Full-Automatic Plastic Covers of Paper Bowl Thermoforming Machine Pet Lids Packaging Making Machine

After-sales Service: Video Technical Support, Free Spare Parts
Warranty: 1 Year
Certification: CE, ISO
Send Inquiry

Product Description

Basic Specifications

Model NO.
HY-70/95
Column number
Four Column
Molding Method
Pressing
Automatic Grade
Automatic
Forming Area
700X 950 mm
Forming Depth
125mm
Suitable Material
OPS/PVC/HIPS/Pet
Sheet Thickness
0.15-1mm
Knife Length
APET:12000mm / OPS:18000 mm
Max Roll Width
1000mm
Voltage
AC380V±15V, 50Hz
Working Speed
600-1400 Cycles/Hr
Air Pressure
0.7MPa
Air Consumption
2000 Litres/Min
Motor Power
13kw
Heating Power
38kw
Weight
6800kg
Dimensions
6590X1760X2720mm

Product Description

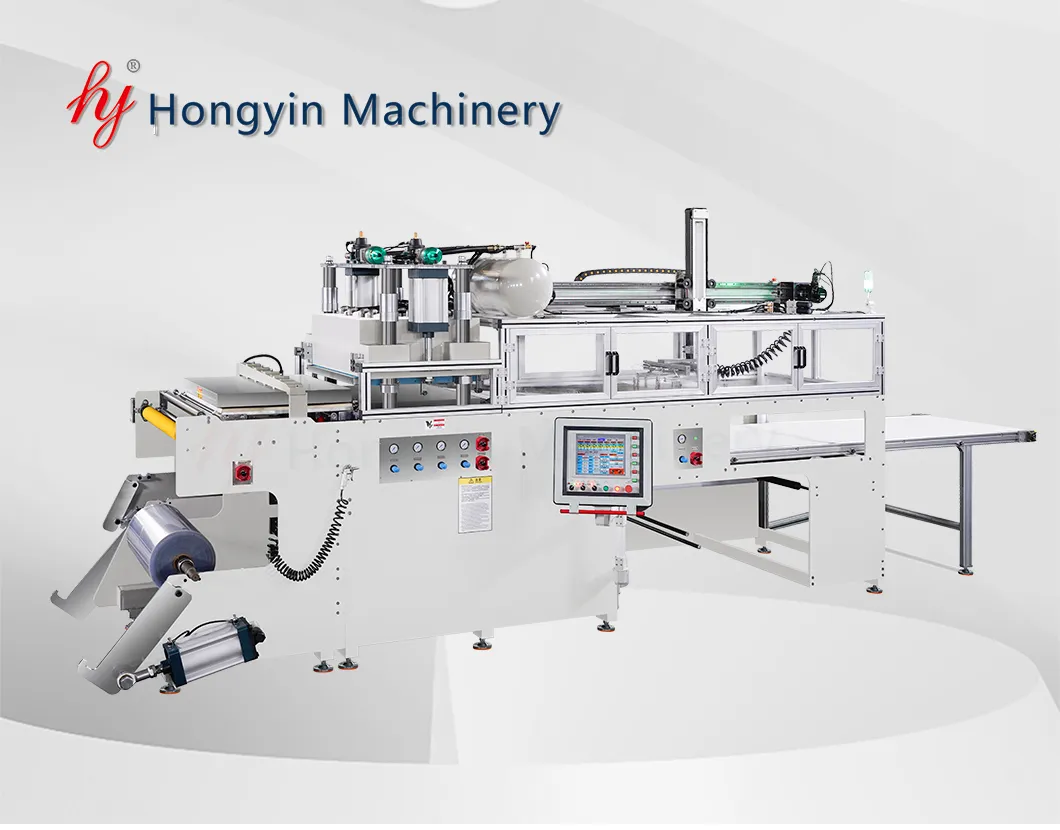

Thermoforming Machine

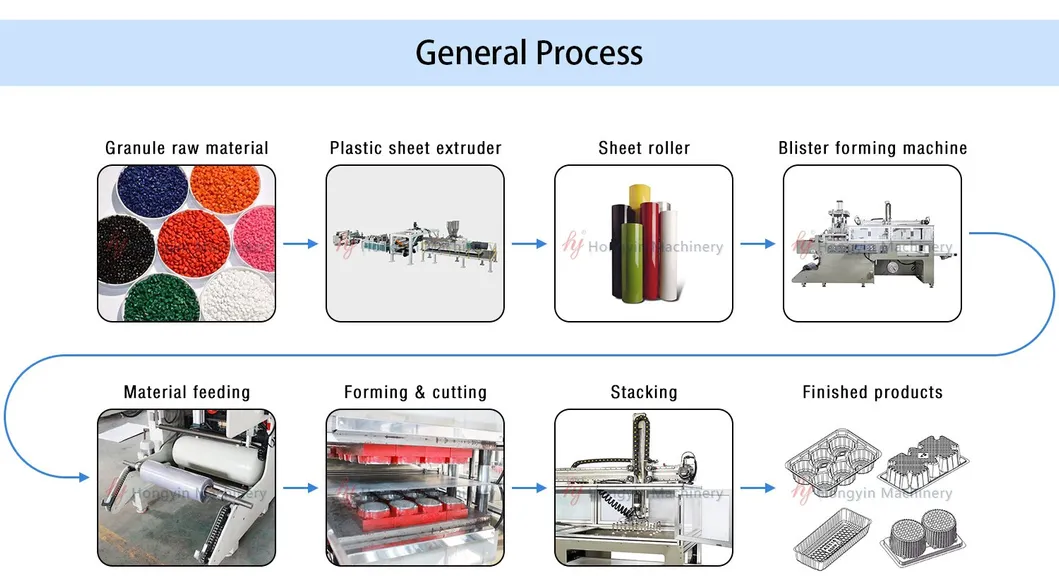

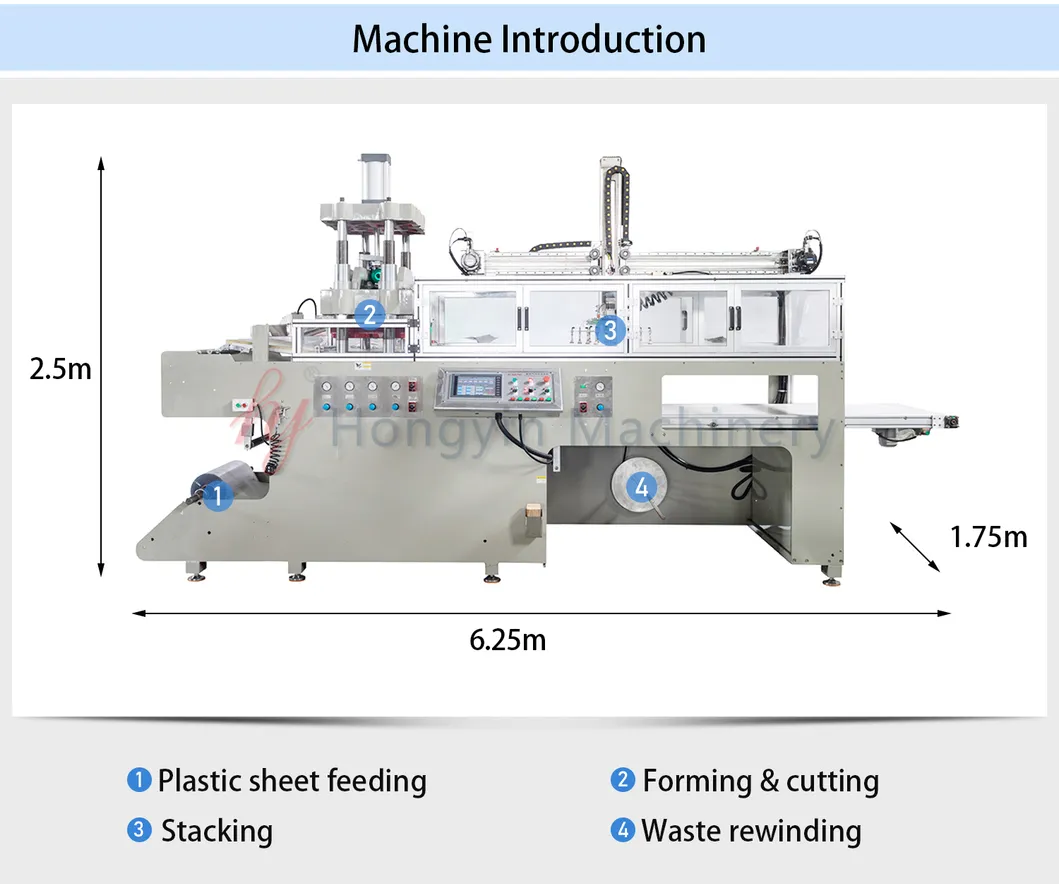

Introduction: This series of machine is a plastic thermoforming equipment with integrated design of machine, electricity and gas, PLC control system, touch screen operation, sheet feeding-heating-molding-cutting-stacking one-time.

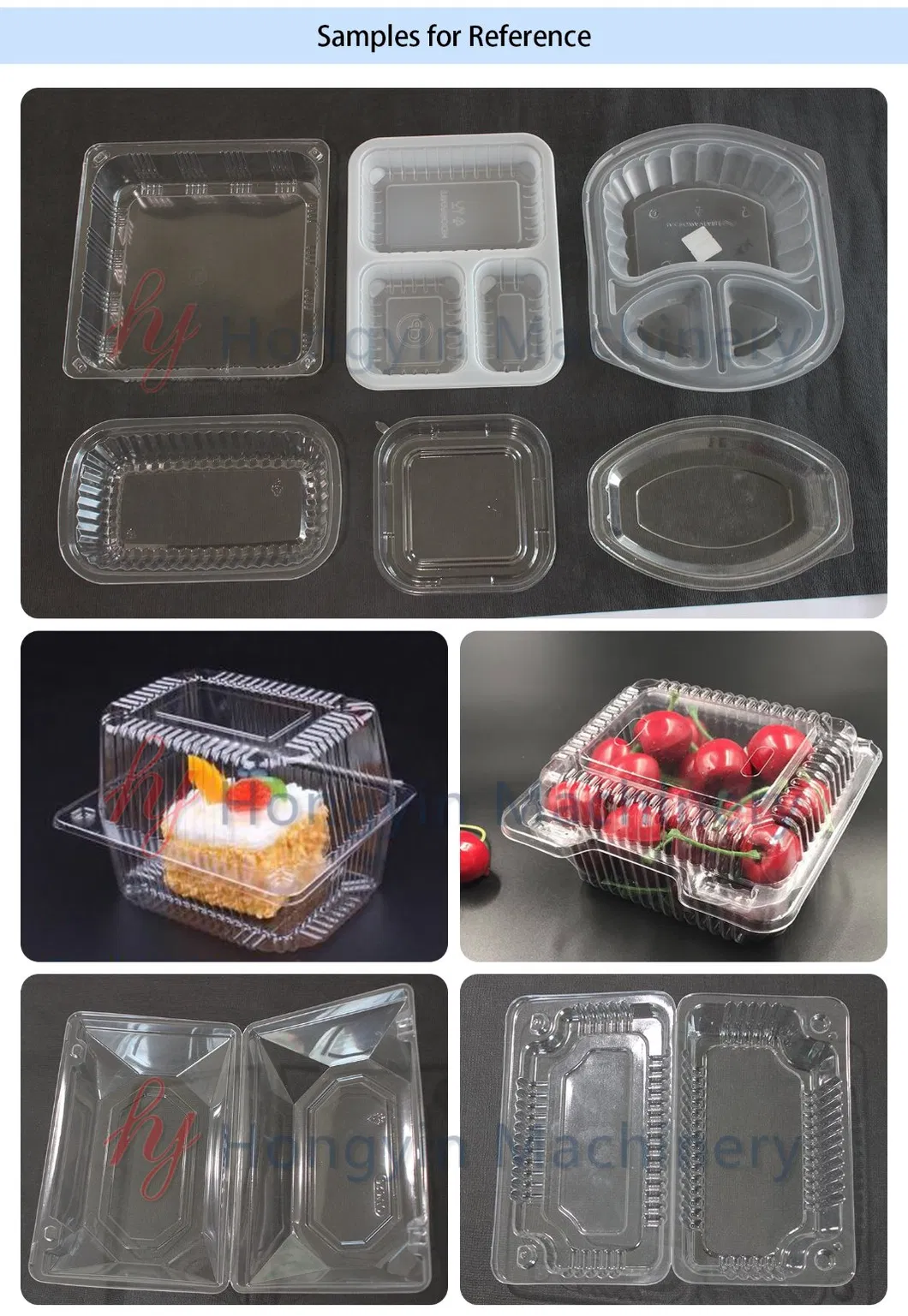

HY-63/78 is suitable for BOPS, PS, APET, PVC, PLA and other thermoplastic materials. It can form a variety of lids, boxes, dishes, trays, such as the lids of fast food box, sushi, paper bowl, aluminum foil, the trays of moon cake, pastry, supermarket, and it also can produce medical device packaging, like oral liquid tray, medicine injection tray.

Machine Details
Forming Area700x 950 mm (27.6"x37.4")
Depth of Draw125mm (5") maximum
Knife LengthAPET:12000mm / OPS:18000 mm
Material Thickness Range0.15-1.0mm (0.006"-0.040")
Air Pressure / Consumption0.7Mpa / 2000 Litres/min
Power SupplyAC 380V 50/60HZ
Working speed600-1200 Cycles/hr
Machine Weight6800kg

Key Features

01
Versatile use for forming BOPS/HIPS/PS/PVC/PET plastic sheets into various boxes, dishes, trays, bowls and lids.
02
Advanced combination of mechanical, electrical and pneumatic components for integrated material sending, heating, forming and cutting.
03
Micro PLC control system with man-interface for reliable, safe, and precise operation with minimal errors.
04

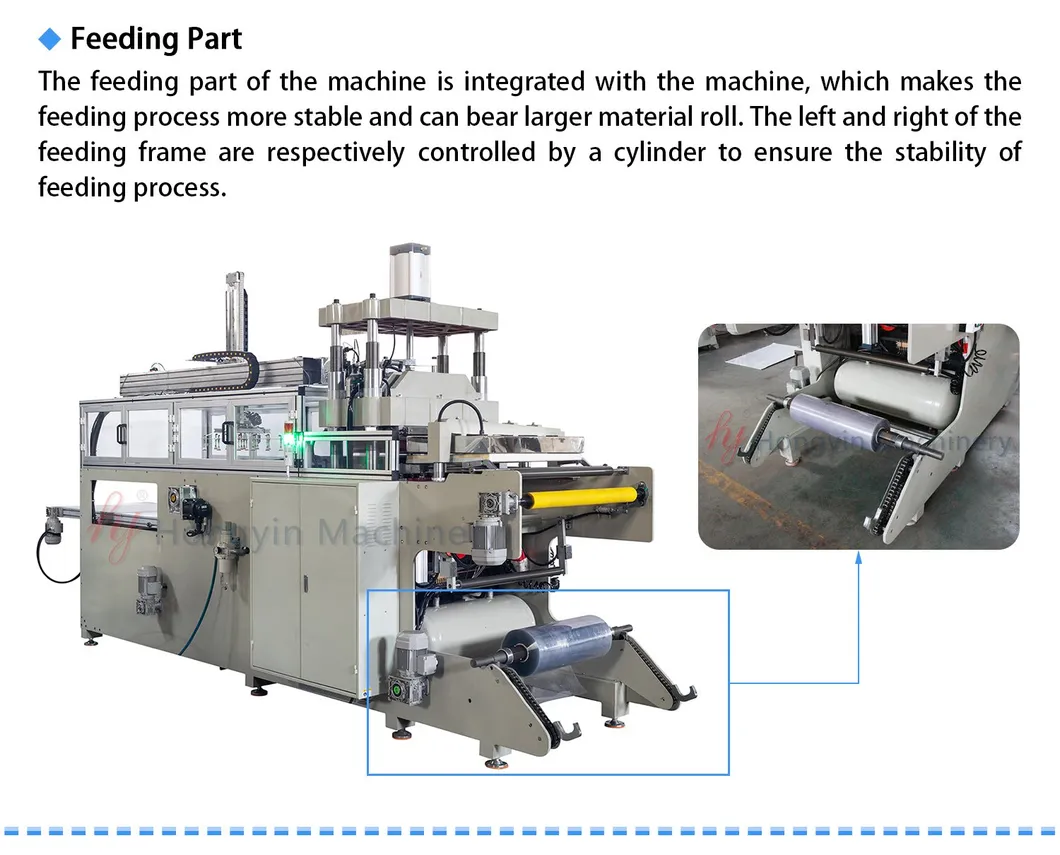

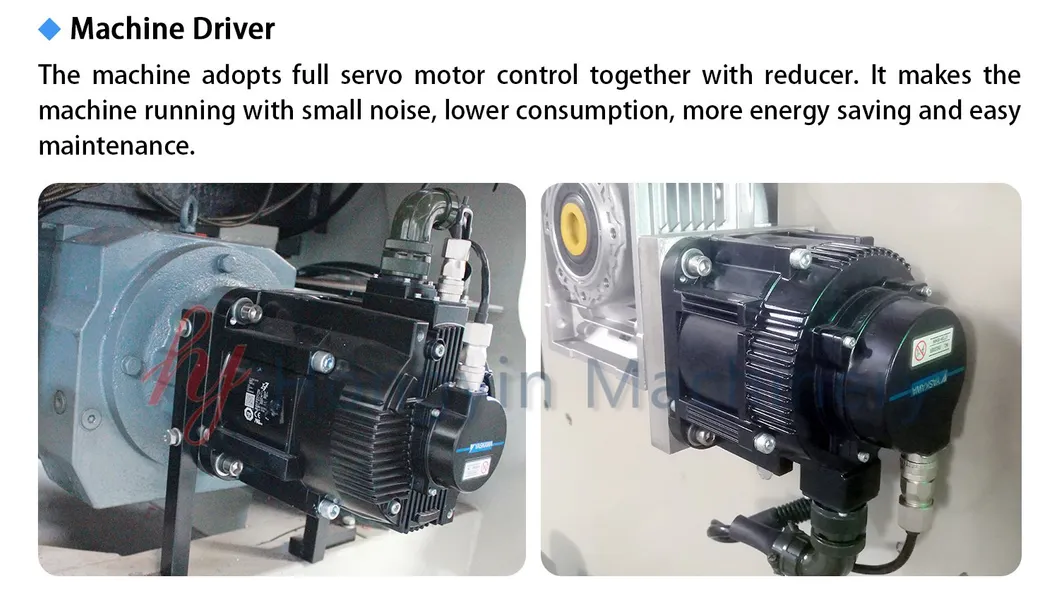

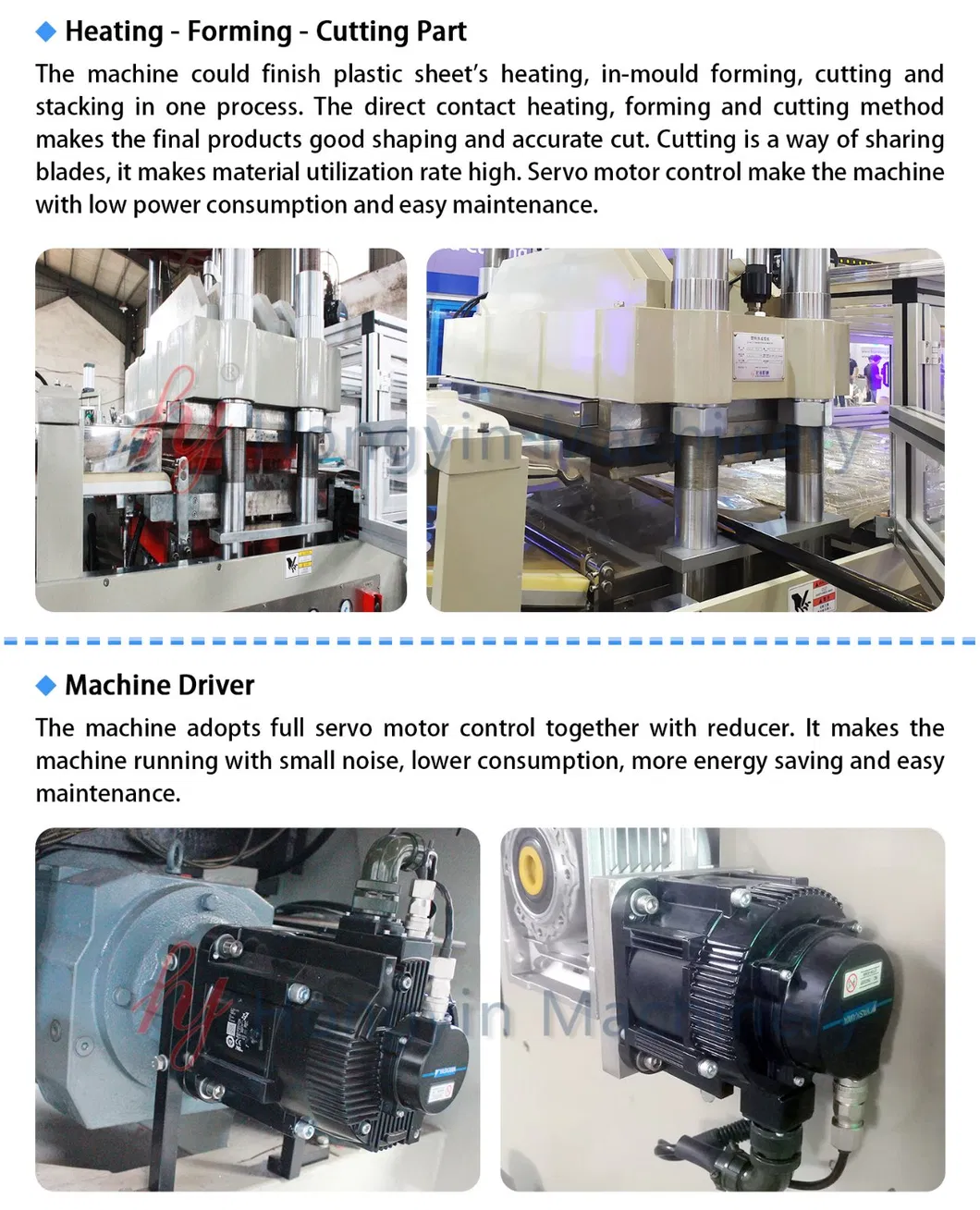

High-precision Servo motor drives the sheet transport system.
05
Rapid production capacity with high material utilization, low air consumption, and easy maintenance.
06
Equipped with telecommuting and memory reserve functions for smart production management.
Gallery Image 1 Gallery Image 2 Gallery Image 3 Gallery Image 4 Gallery Image 5 Gallery Image 6 Gallery Image 7 Gallery Image 8 Gallery Image 9

Frequently Asked Questions

What is the typical delivery timeframe for this machine?
Production is usually completed within 30 days after receiving the 30% advanced payment, subject to current stock and production scheduling.
What are the accepted payment terms?
We accept T/T (30% in advance and 70% balanced against B/L copy) and L/C at sight.
How long does the installation and training process take?
Our team typically completes the full installation and operator training within a 30-day period.
What is the warranty period for the equipment?
All machines come with a one-year guarantee, which begins once the installation is finalized.
What support is available after the warranty period expires?
We continue to provide technical support. If overseas on-site service is required, customers are responsible for the technician's daily service fee.
How are replacement parts handled if a breakdown occurs during warranty?
We provide free replacement parts via express delivery for any components that fail under normal use during the warranty period.
