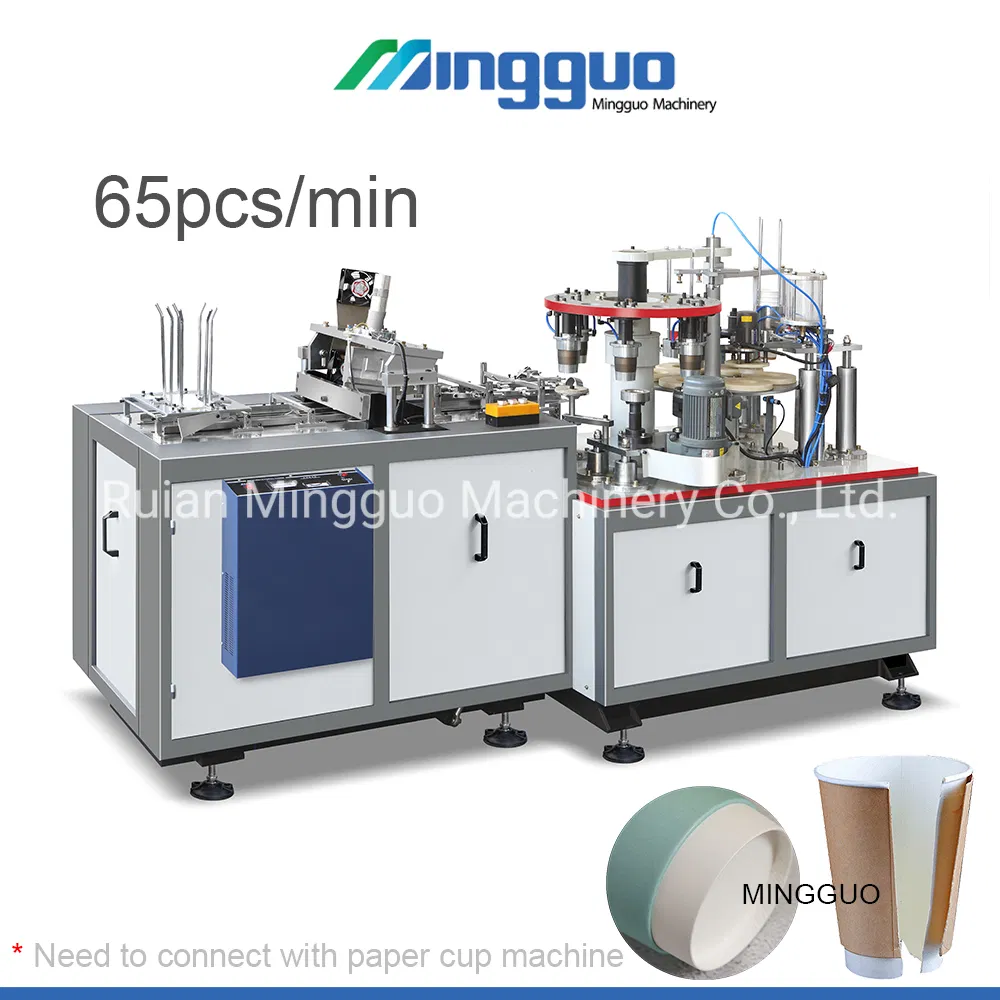

Fully Automatic Ripple Double Wall Paper Cup and Paper Bowl Forming Coating Machine
Fully Automatic Ripple Double Wall Paper Cup and Paper Bowl Forming Coating Machine
Fully Automatic Ripple Double Wall Paper Cup and Paper Bowl Forming Coating Machine
Fully Automatic Ripple Double Wall Paper Cup and Paper Bowl Forming Coating Machine
Fully Automatic Ripple Double Wall Paper Cup and Paper Bowl Forming Coating Machine
1 / 5
Fully Automatic Ripple Double Wall Paper Cup and Paper Bowl Forming Coating Machine
Fully Automatic Ripple Double Wall Paper Cup and Paper Bowl Forming Coating Machine
Fully Automatic Ripple Double Wall Paper Cup and Paper Bowl Forming Coating Machine
Fully Automatic Ripple Double Wall Paper Cup and Paper Bowl Forming Coating Machine
Fully Automatic Ripple Double Wall Paper Cup and Paper Bowl Forming Coating Machine

Fully Automatic Ripple Double Wall Paper Cup and Paper Bowl Forming Coating Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Double Wall Paper Cup Machine
📊 Basic Information
Model NO.
MG-HC
Speed
50-65PCS/Min
Required Paper
Single/Double PE Coated
Automation
Automatic
Certification
CE
Product Type
Double Wall Cup Machine
Warranty
1 Year
HS Code
84414000
⚙️ Product Description

MG-HC double wall paper cup outer machine is a multi-functional automatic veneer equipment. It passes through continuous processes such as multi-row automatic paper feeding, ultrasonic welding, robotic paper tube transfer, oil filling, bottom folding, knurling, cup falling, servo glue feeding, cylinder two-stage blanking and fitting, pressing, and cup/bowl unloading veneer.

This machine adopts frequency conversion stepless speed regulation and light-controlled non-contact switches to detect abnormalities. It features automatic shutdown on failure to protect components and improve stability. The holding tube station utilizes independent cams for noise-free, stable, and reliable operation.

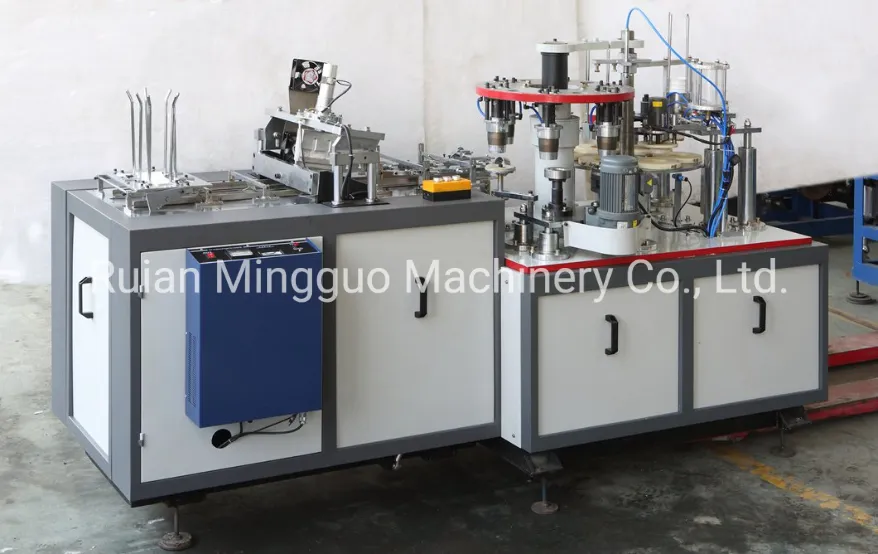

Machine Overview

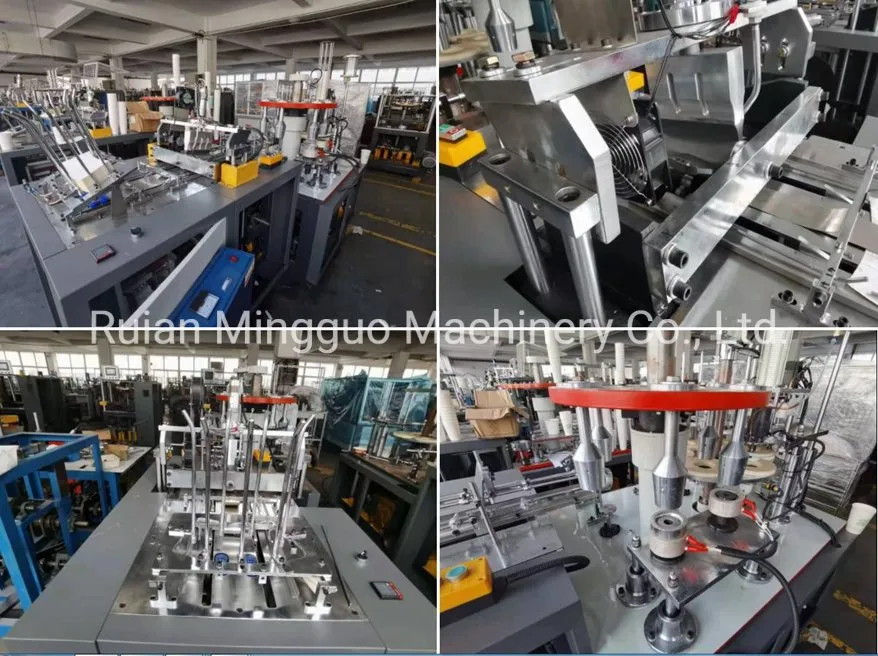

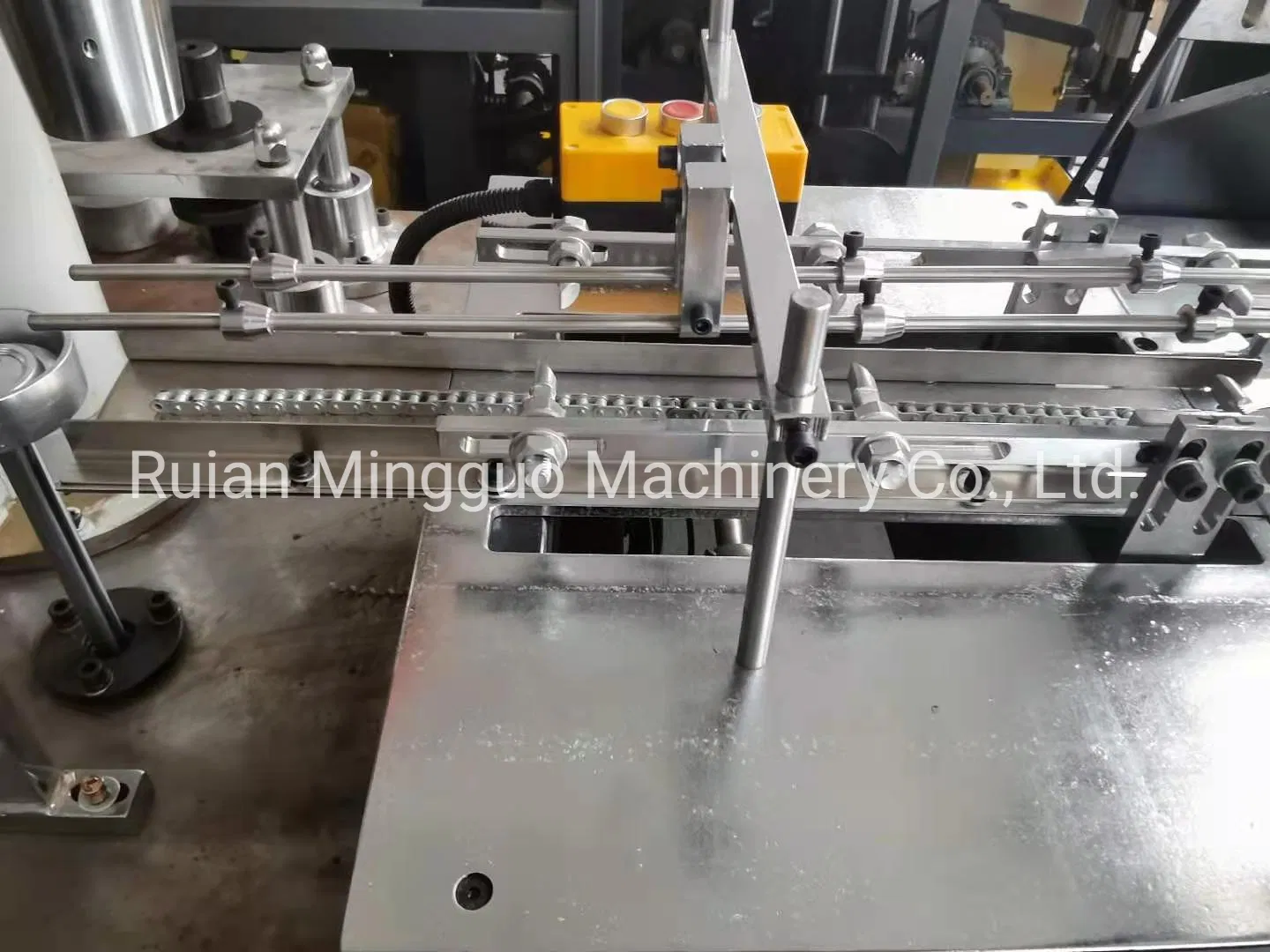

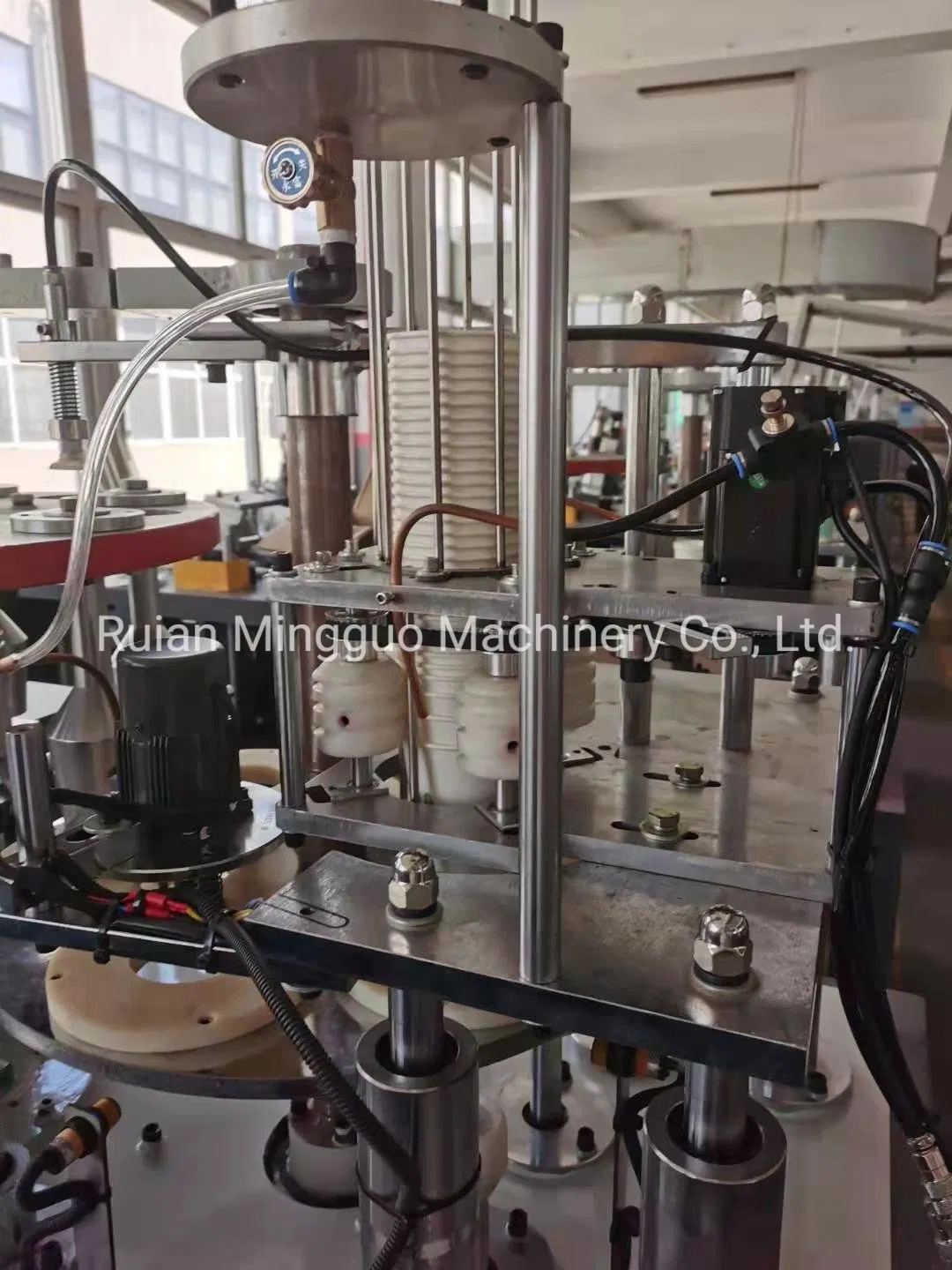

🔍 Machine Details
Machine Details
📋 Technical Specification
Parameter Specification Details
ModelMG-HC
Cups Specifications8-35oz
Paper Specifications200-350GSM single/double PE coated paper
Production Capacity50-65pcs/min
Voltage220V/380V 50HZ
Total Power2.5KW
Total Weight1000KG
Dimensions2000*1200*1500mm (L*W*H)
Paper Cup UsageCoffee cups, hollow cups, ripple cups, corrugated cups

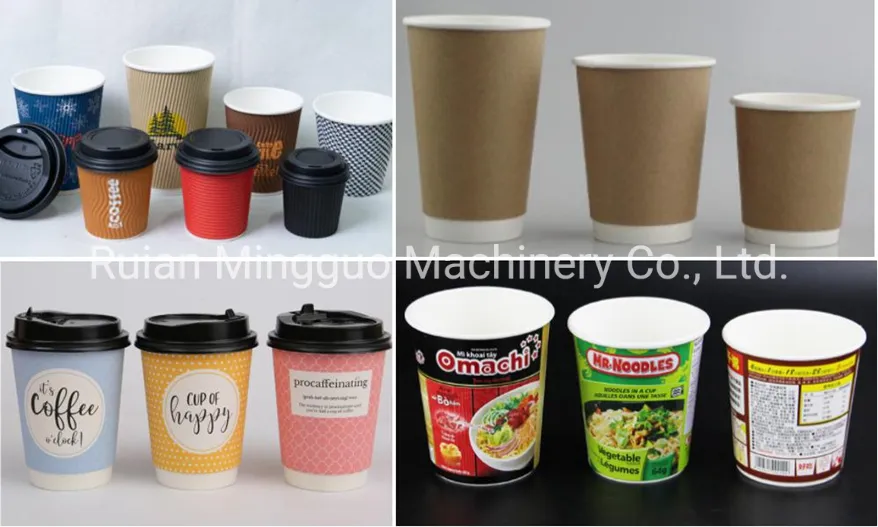

☕ Product Samples
Paper Cup Samples
🛠️ Professional Service

Pre-sales Service

✓ Provide products and related consultation.
✓ Free provision of paper cup samples (excluding freight).
✓ Factory visit appointments for machine inspection.

After-sales Service

✓ Machine warranty: 1 year.
✓ Dispatch technologists for installation and adjustment.
✓ Supply consumable spare parts for one year of use.
📦 More Products

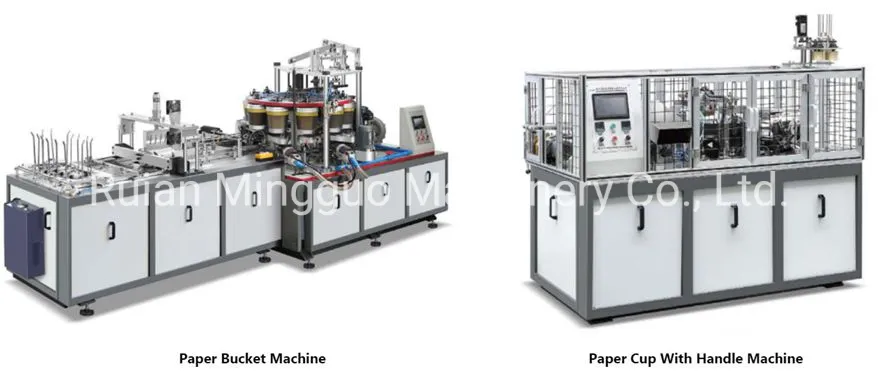

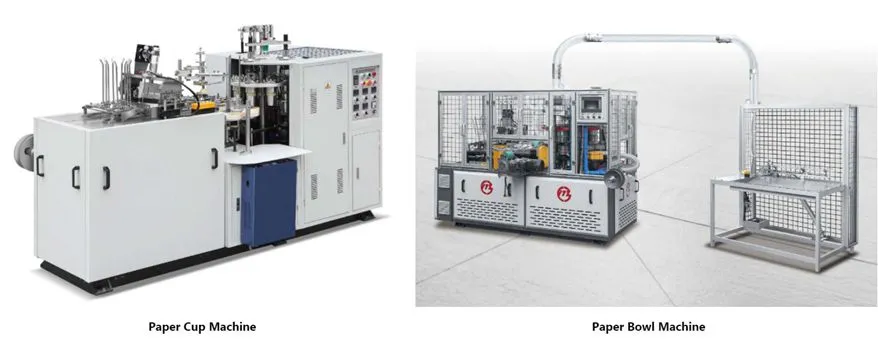

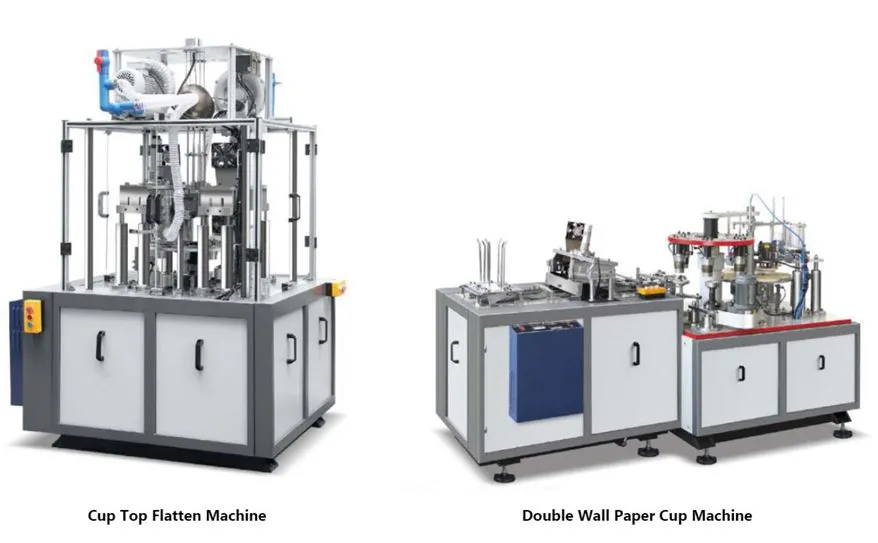

Product 1
Product 2
Product 3
📜 Certifications
Certifications

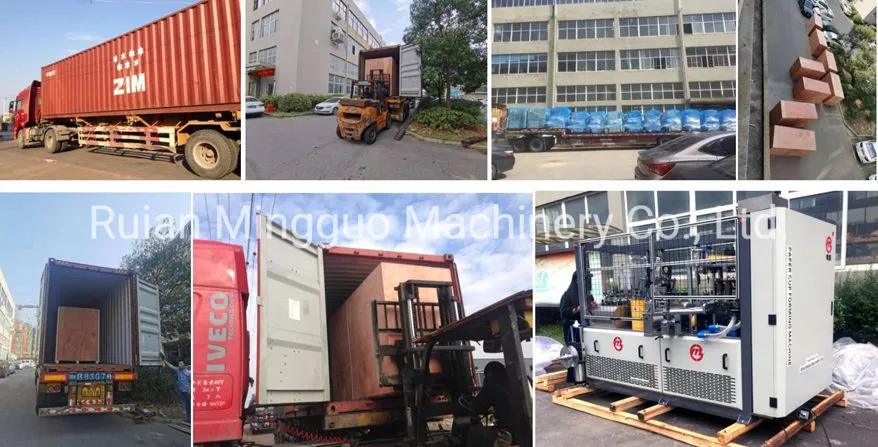

🚢 Loading and Shipping
Shipping
❓ Frequently Asked Questions
What products can be made by your machines?
Tea cups, coffee cups, ice cream cups, noodle bowls, salad bowls, and KFC-style buckets. It handles almost all regular or irregular paper containers for food and drinks.
What volume range can the machines produce?
The machines can produce containers from 2oz to 190oz, which is approximately 50ml to 5000ml in volume.
Are you a direct source manufacturer?
Yes, we are a source manufacturer. We warmly welcome factory visit appointments at any time.
What are the standard payment terms?
Usually, we require a 30% T/T deposit in advance, with the remaining 70% balance paid before shipping.
What information is needed for an accurate quotation?
Please provide sample pictures, cup specifications (Top/Bottom diameter and Height), and the GSM of the PE coated paper you intend to use.
What is the warranty and after-sales support?
We provide a 1-year warranty, free consumable spare parts for the first year, and can dispatch technologists for on-site installation and guidance.
