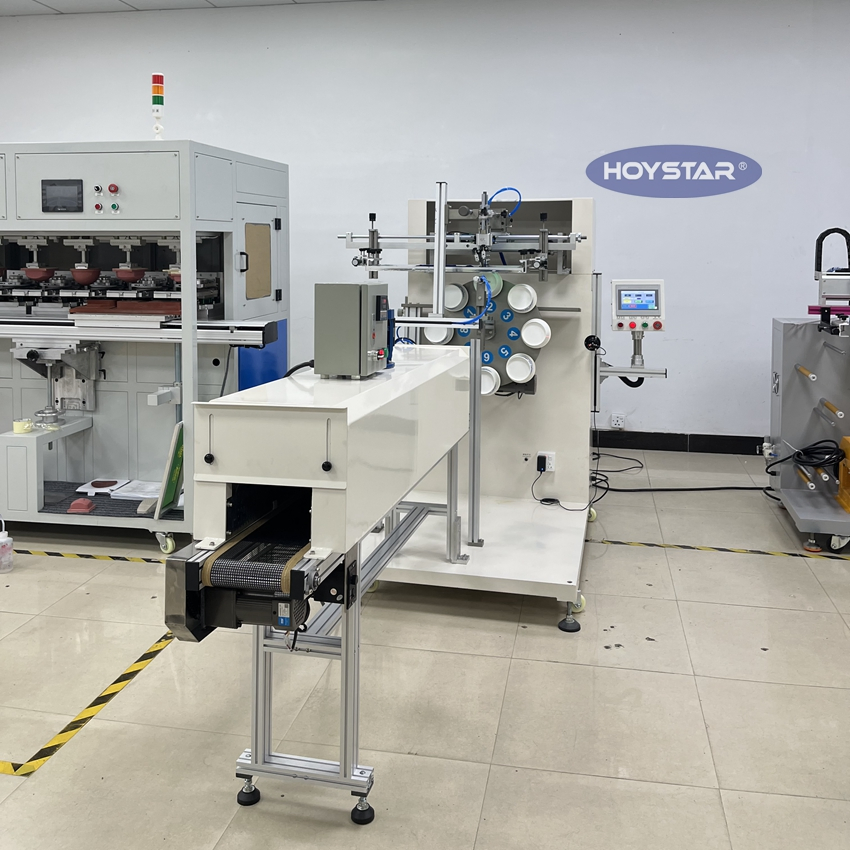

Automatic Screen Printing Machine for Paper Plastic Bowls and Cups
Automatic Screen Printing Machine for Paper Plastic Bowls and Cups
Automatic Screen Printing Machine for Paper Plastic Bowls and Cups
Automatic Screen Printing Machine for Paper Plastic Bowls and Cups
Automatic Screen Printing Machine for Paper Plastic Bowls and Cups
1 / 5
Automatic Screen Printing Machine for Paper Plastic Bowls and Cups
Automatic Screen Printing Machine for Paper Plastic Bowls and Cups
Automatic Screen Printing Machine for Paper Plastic Bowls and Cups
Automatic Screen Printing Machine for Paper Plastic Bowls and Cups
Automatic Screen Printing Machine for Paper Plastic Bowls and Cups

Automatic Screen Printing Machine for Paper Plastic Bowls and Cups

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.GW-2A-S
TypeAutomatic Screen Printing Machine
StyleScreen-process Printing Press
StructureRotary Printing Press
Color & PageSingle-Colour Printing Press
ApplicationPackaging Printing
Print InterfaceUSB2.0
System SupportedWindowsxp64
Max Printing Diameter130mm
Max Length of Product200mm
Power220V 50Hz
Air Pressure5-7 Bar
IR Drying System500W/PC*8PCS(IR Lamp)
Transport PackageWooden Case
Specification2950*1400*1650mm
OriginChina
HS Code8443192900
Production Capacity100PCS/Year
🚀

Product Description

Product Name: Automatic Single Color Bowl Screen Printing Machine

Application: This screen printing machine is specially designed for printing Disposable Cups. It is a 3/4 automatic system featuring: manual loading, automatic printing, automatic unloading, and IR drying.

01Manual feeding with laser point alignment device.
02Automatic locating to maintain high printing precision.
03No-product-no-printing system for stable operation.
04High-strength vacuum system to secure products.
05PLC and touch screen control for easy parameter setting.
06Adjustable four-angle screen frame holder for even ink layers.
07Precision-controlled squeegee and flood bar for vertical accuracy.
08Equipped with an emergency switch for safety and stability.
09High-precision rotary locating with multiple workstations.
10Rotary type loading system to maximize time efficiency.
⚙️

Product Parameters

Max. Printing Speed1200pcs/Hr
Max Printing Diameter¢130mm
Max Length of Products200mm
Power Supply220V 50-60MHZ | 7KW
Air Pressure Range5-7bar
📸

Detailed Photos

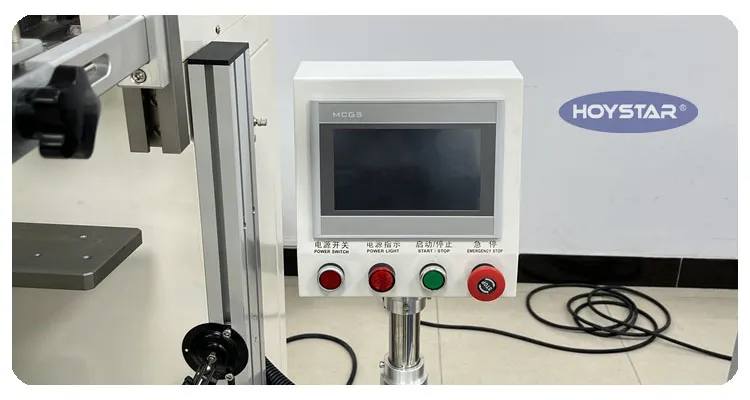

PLC Touch Screen Panel
PLC + Touch Screen Panel

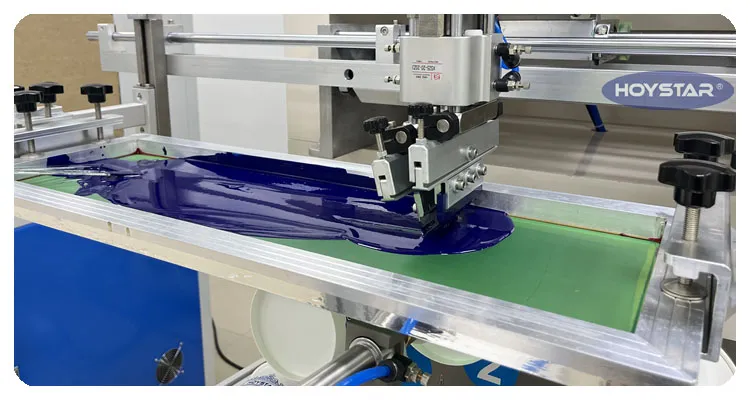

Printing Part
Printing Part Detail

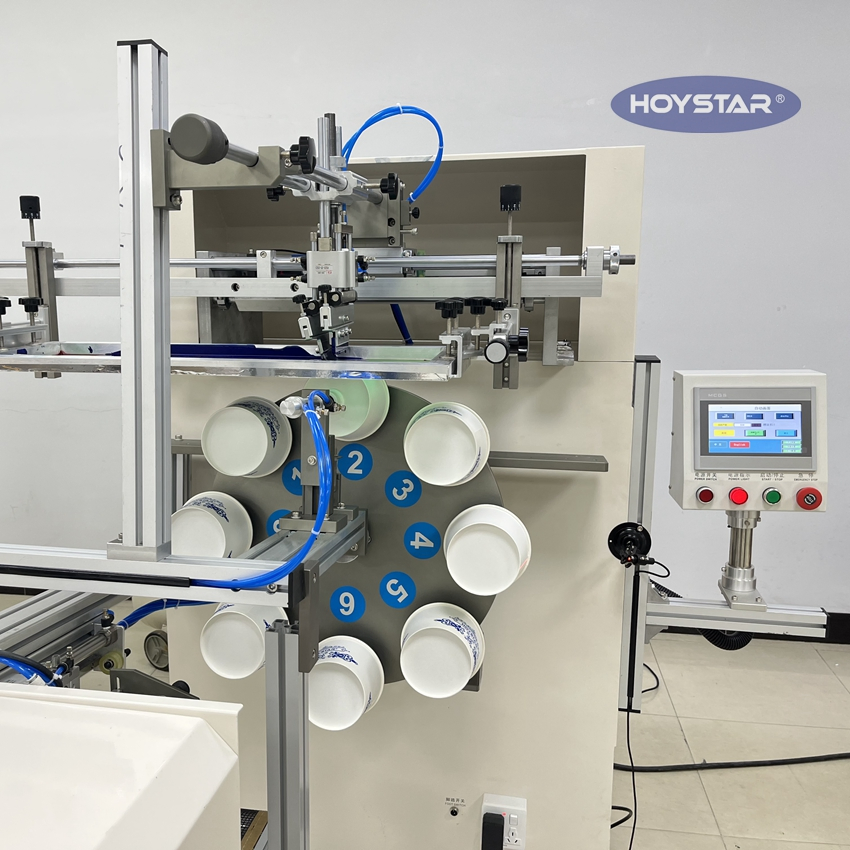

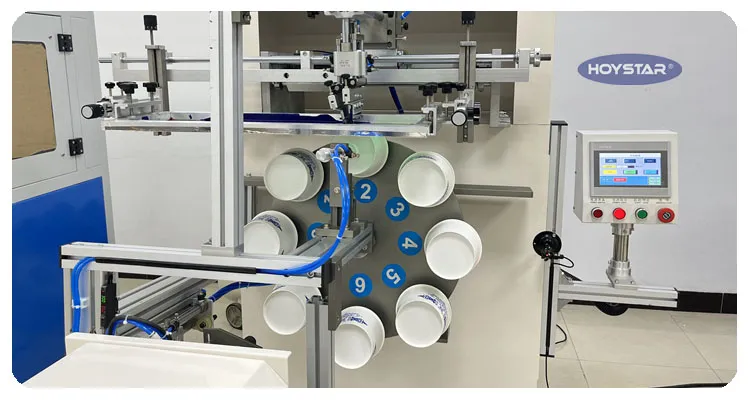

Rotary Worktable
Rotary Worktable (8 Workstations)

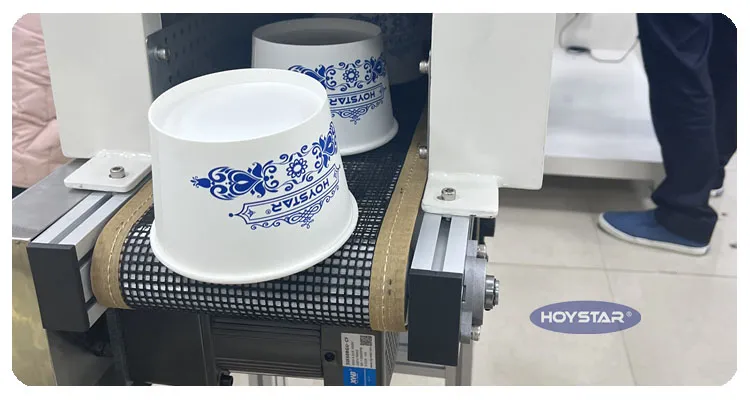

Drying Tunnel
Integrated Drying Tunnel

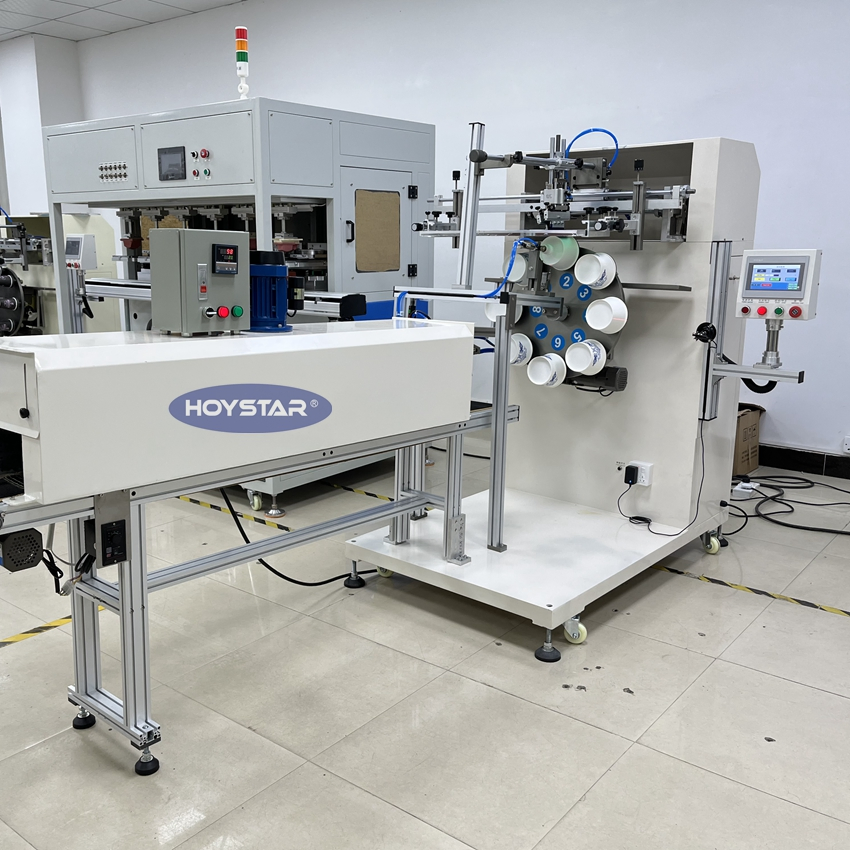

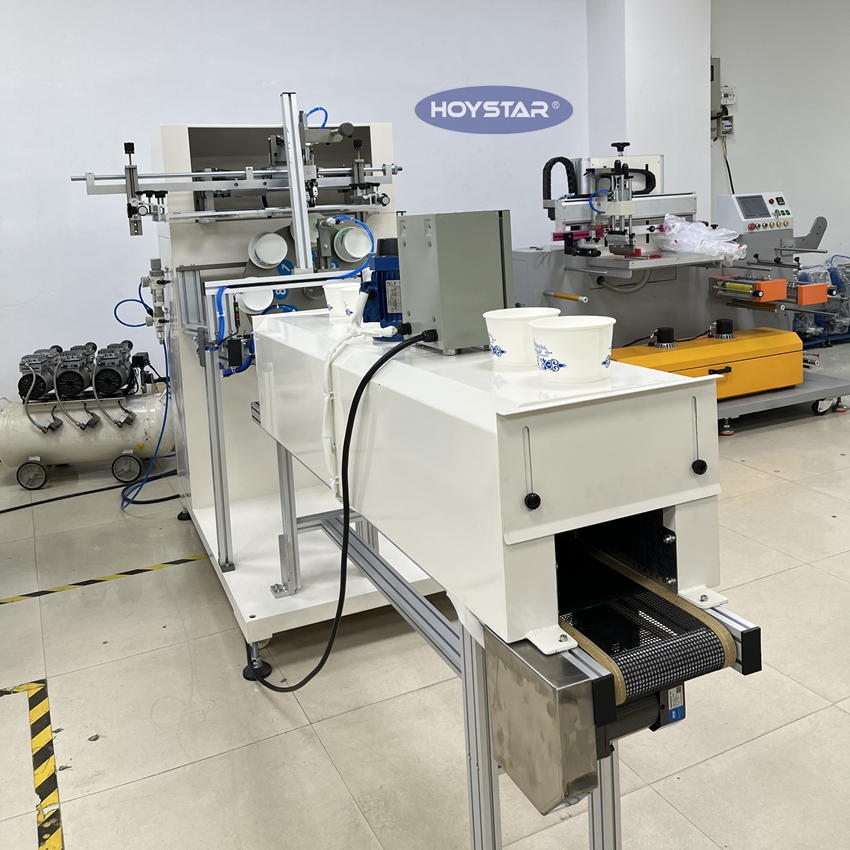

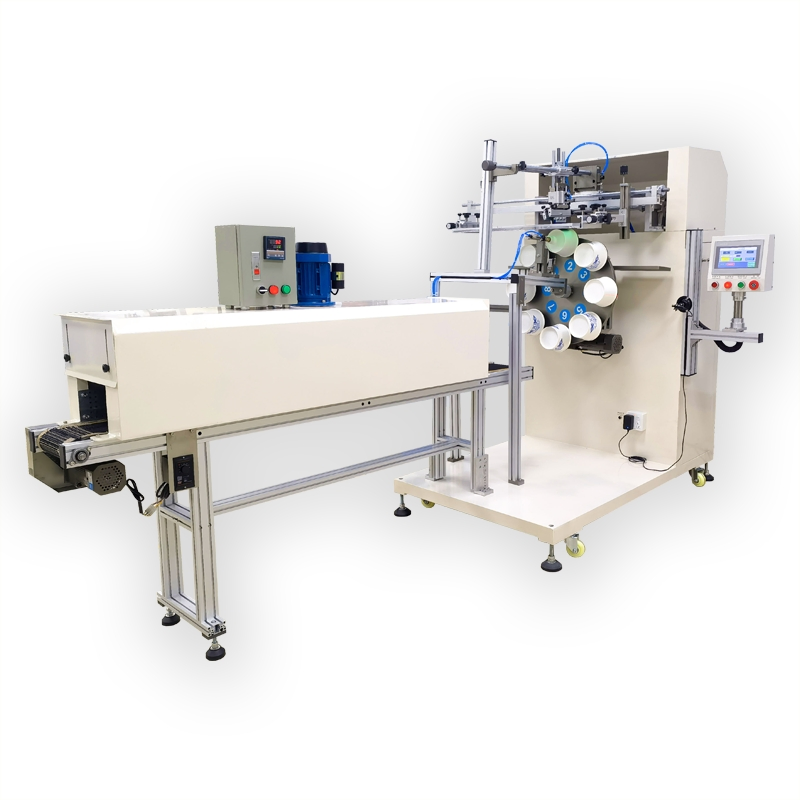

Machine Overview
Machine Overview
❓

Frequently Asked Questions

What is the maximum production speed of this machine?
The GW-2A-S can reach a maximum printing speed of 1200 pieces per hour.
What types of products are suitable for printing?
It is specifically designed for disposable cups and bowls made of paper or plastic with a maximum diameter of 130mm.
Does the machine include a drying system?
Yes, the machine is equipped with an integrated IR (Infrared) drying tunnel featuring 8 IR lamps (500W each).
How is the machine controlled?
The machine uses a PLC and touch screen control system, allowing for easy digital parameter adjustments and operation.
What are the power and air pressure requirements?
The machine requires a 220V 50-60Hz power supply and an air pressure of 5-7 bar to operate correctly.
Are there any safety features included?
Yes, the machine includes an emergency switch to ensure safe operation and immediate stopping if required.
