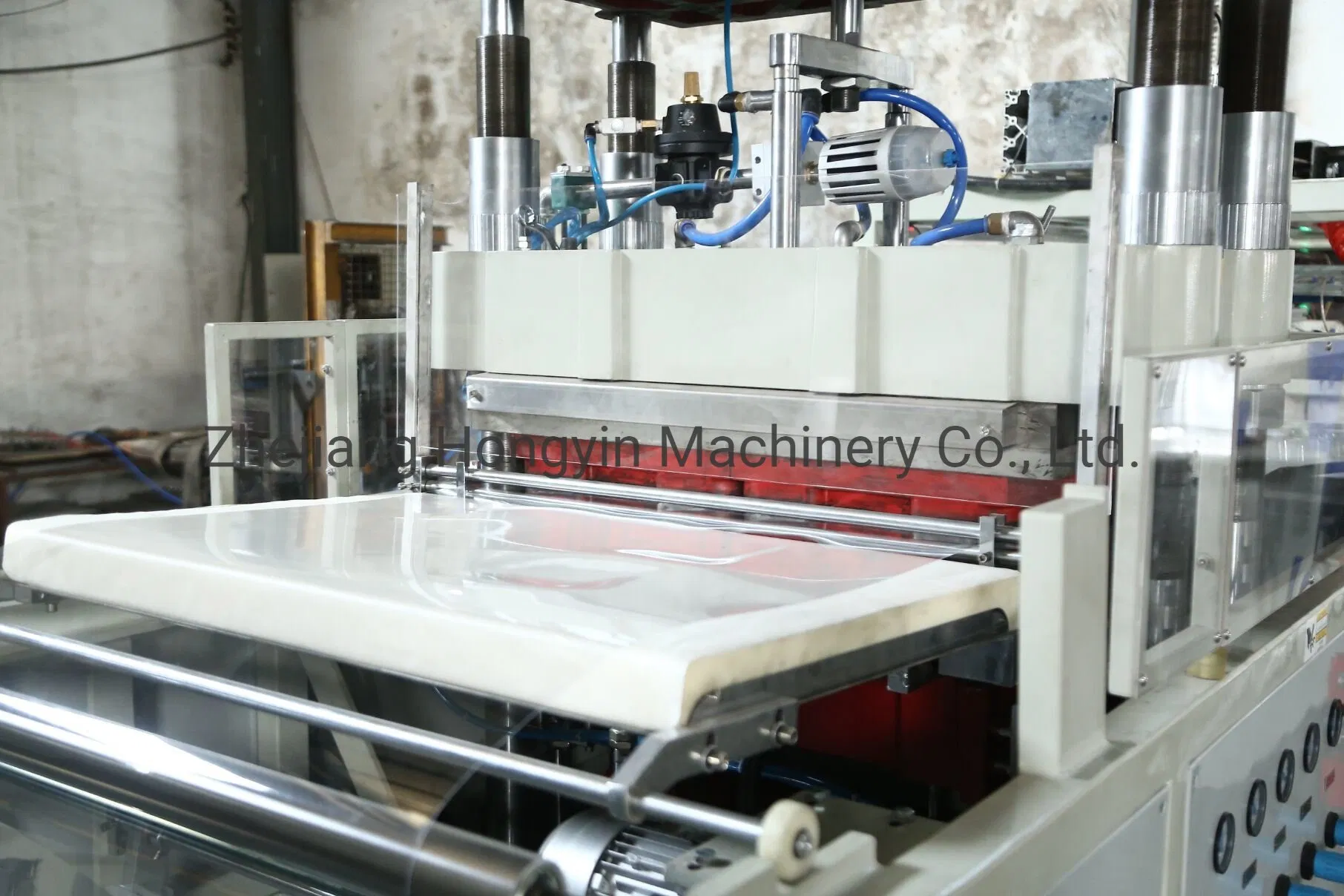

I. Machine Introduction

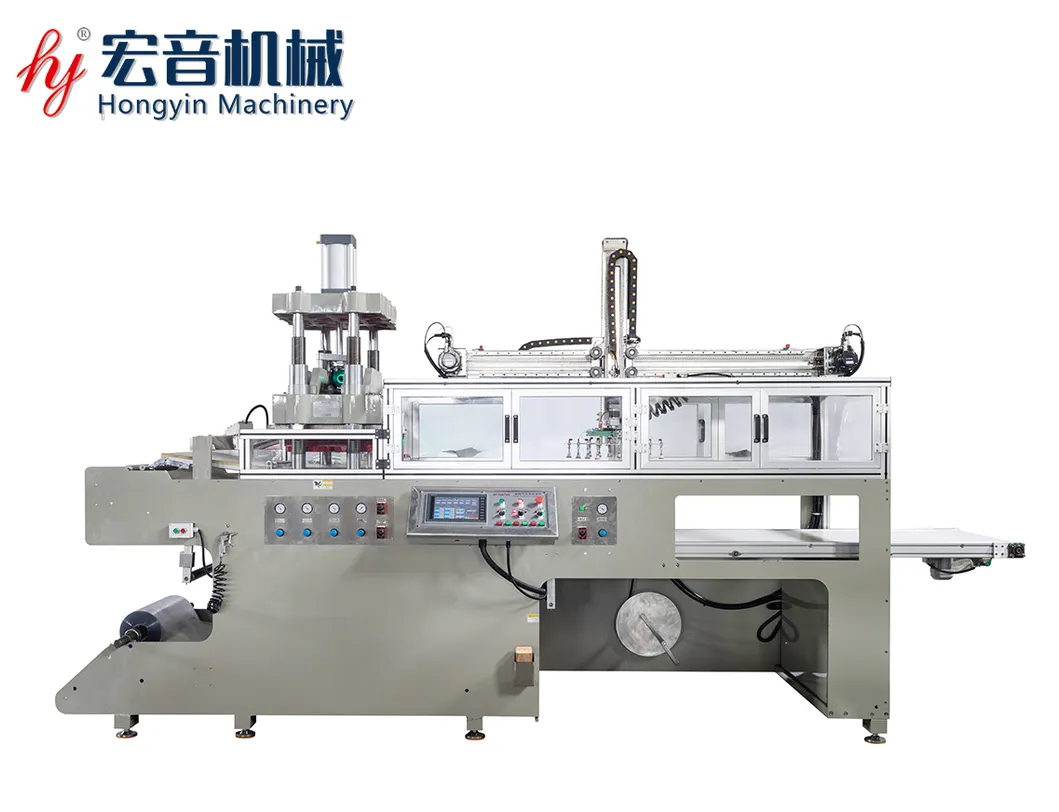

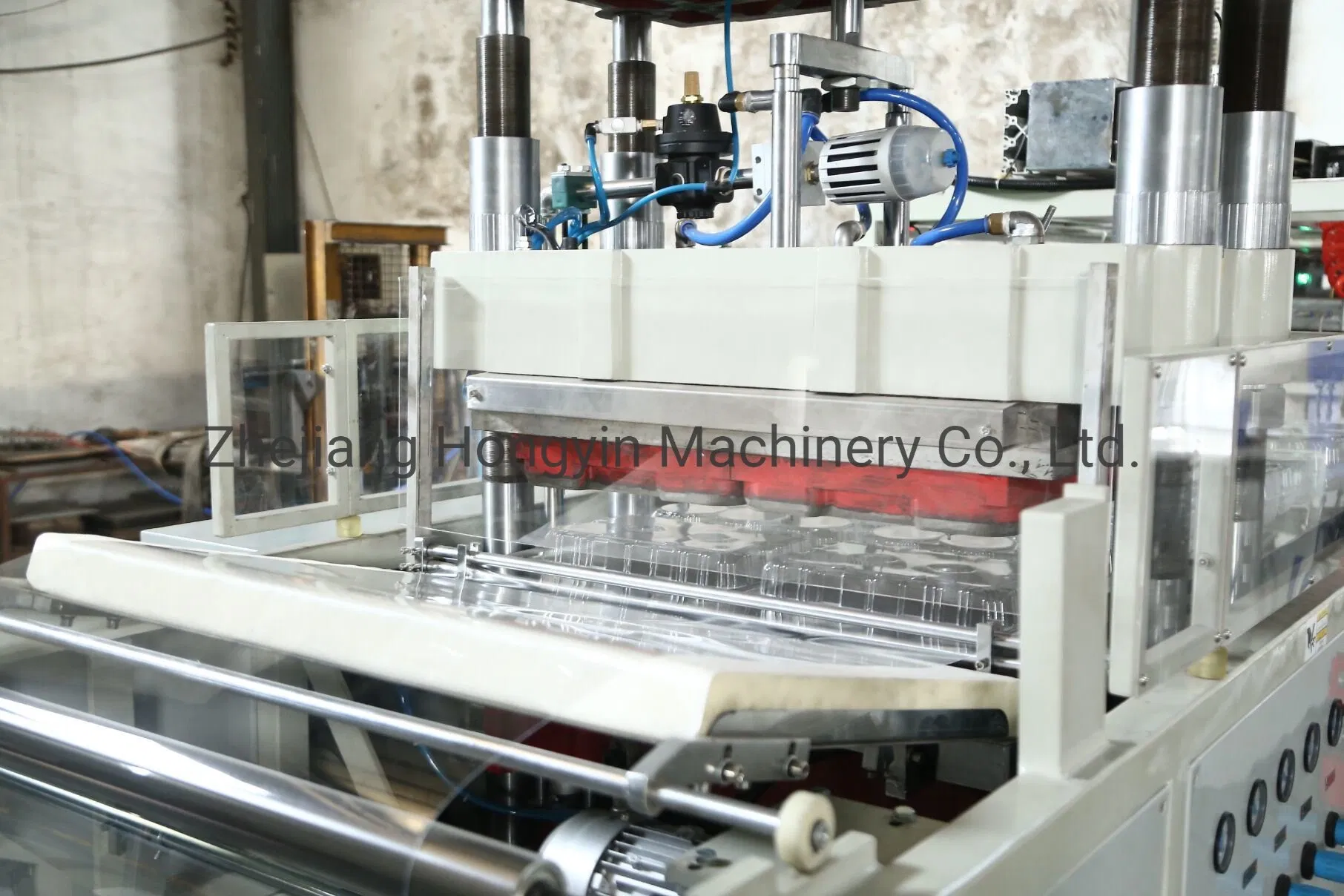

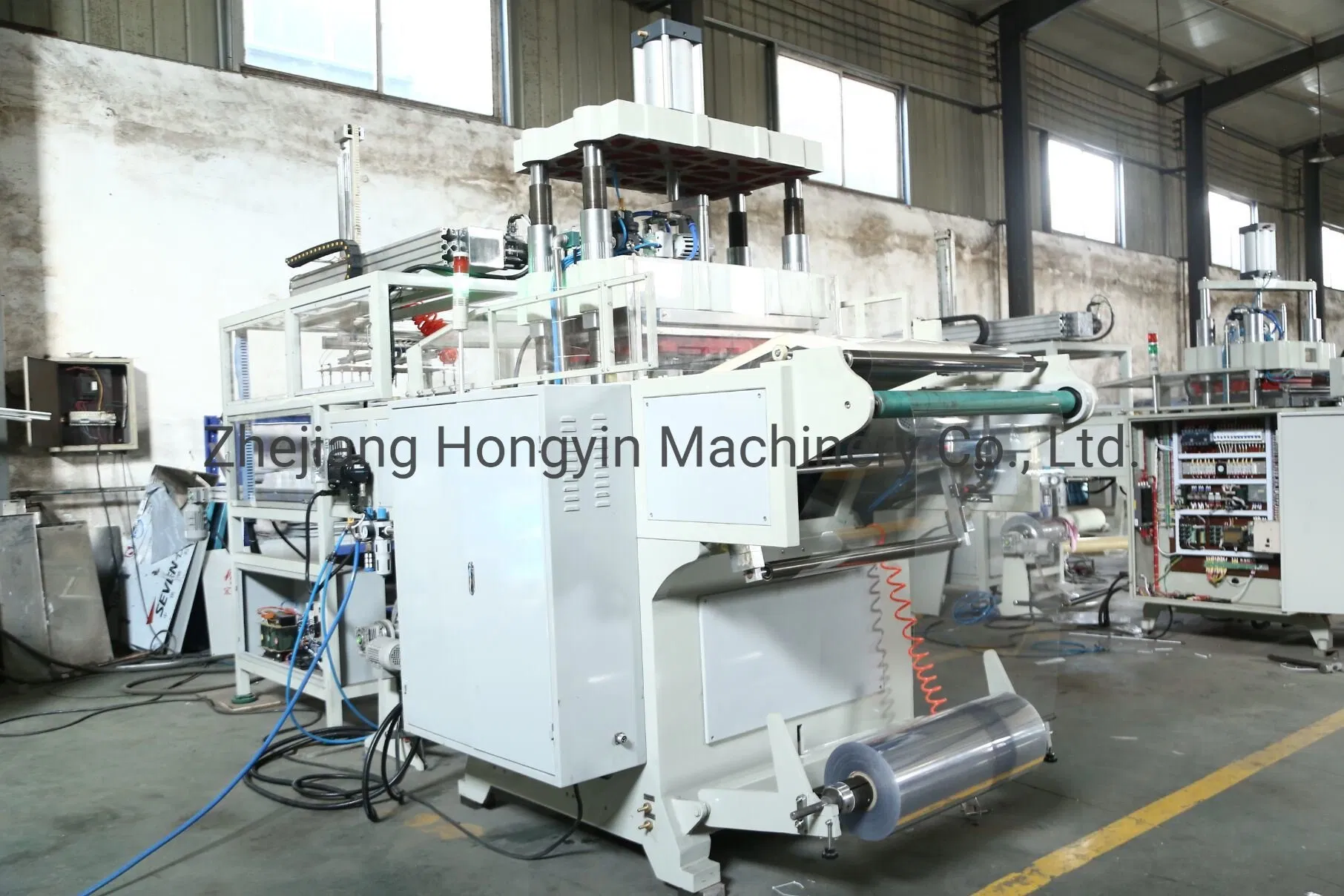

HY-63/78 is a combination of mechanical, electrical and pneumatic components, and the whole system is controlled by a micro PLC, which can be operated in man-interface. It combines the material sending, heating, forming, cutting and stacking into one process. It has three operation models: "manual", "semi-automatic" and "automatic", making it a new generation ideal package equipment with telecommuting and memory reserve functions.
II. Application Area

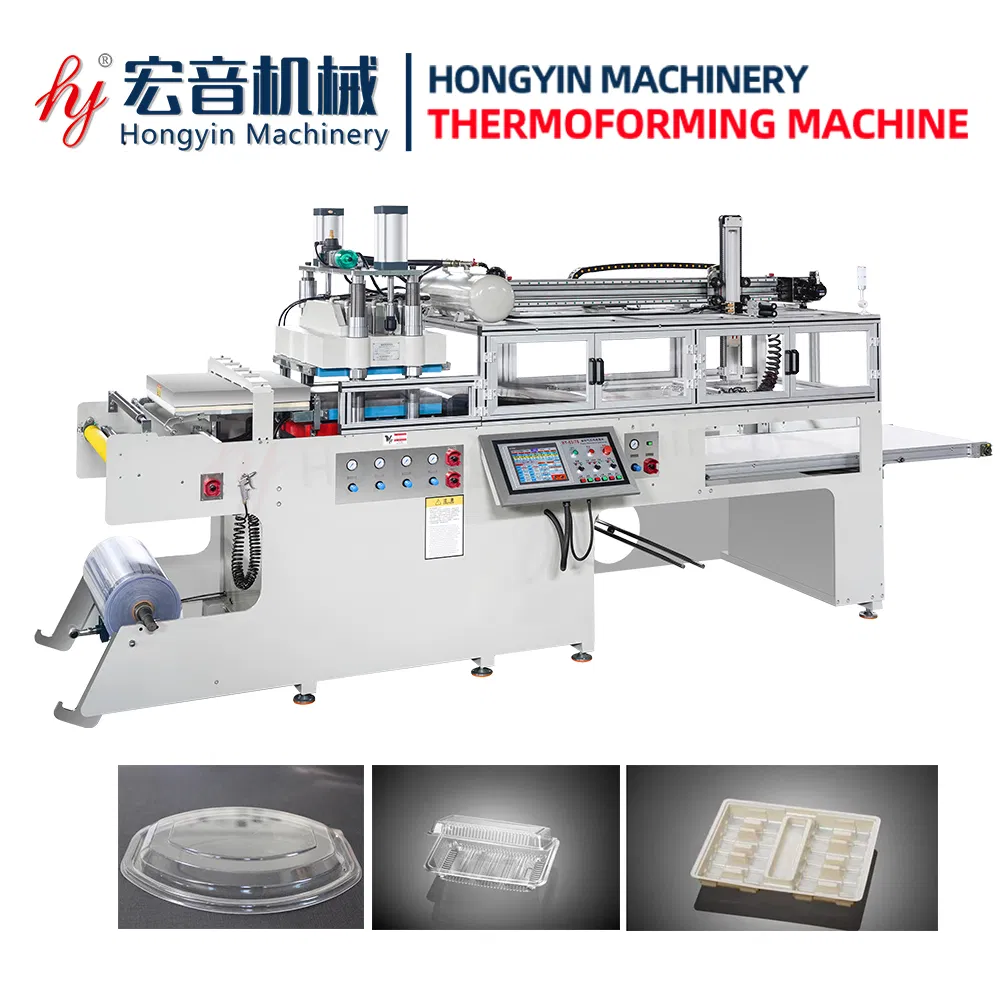

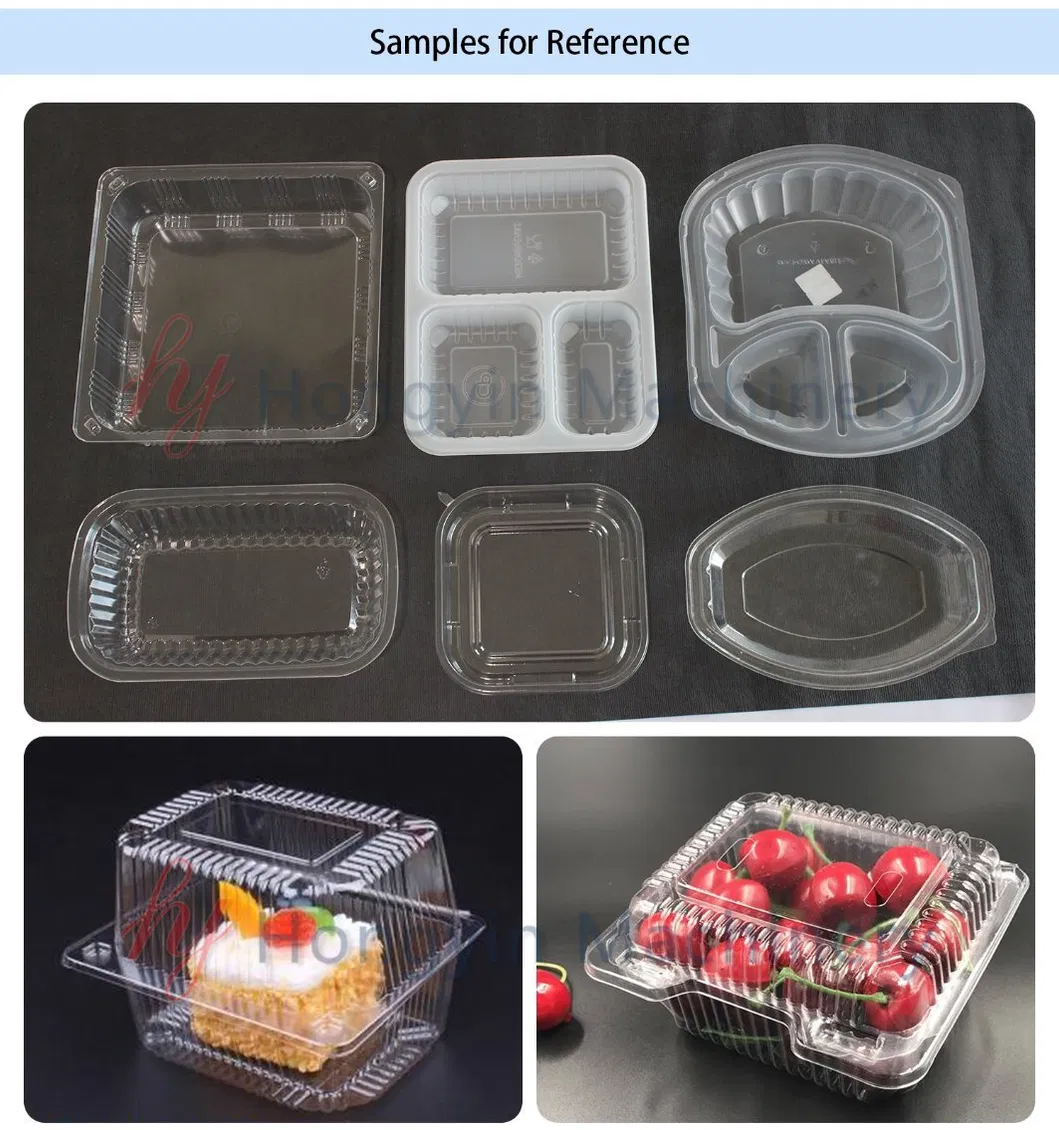

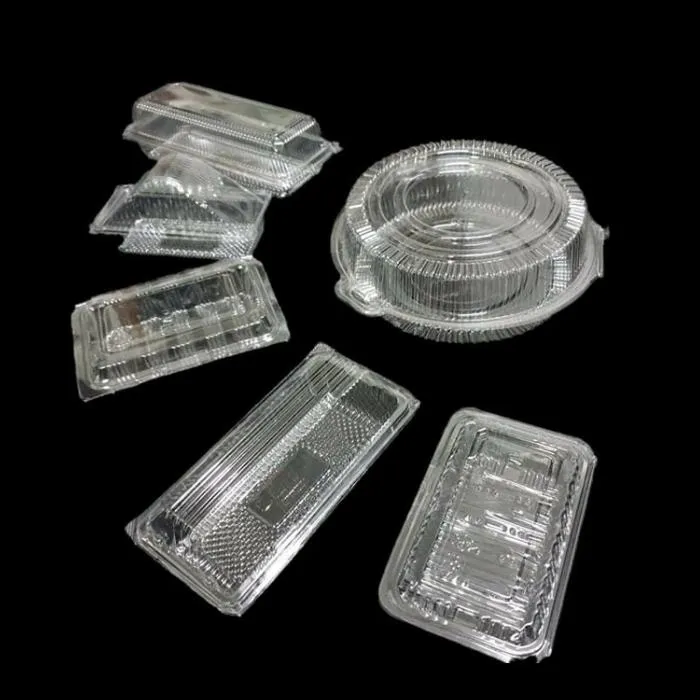

This fully automatic plastic forming machine is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc. It can produce various boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, and oral liquids trays.
Technical Specifications
| Forming area | 630*780mm |
| Forming depth | 125mm |
| Sheet thickness range | 0.15-1.2 mm |
| Sheet roller diameter | 800mm |
| Air pressure | 0.7 Mpa |
| Water consumption | 9 Liters/min(15-20ºC) |
| Air consumption | 1500 Liters/min |
| Production Speed | 600-1200 recycles/hr. |
| Voltage | Tri-phase, AC380V±15V, 50HZ |

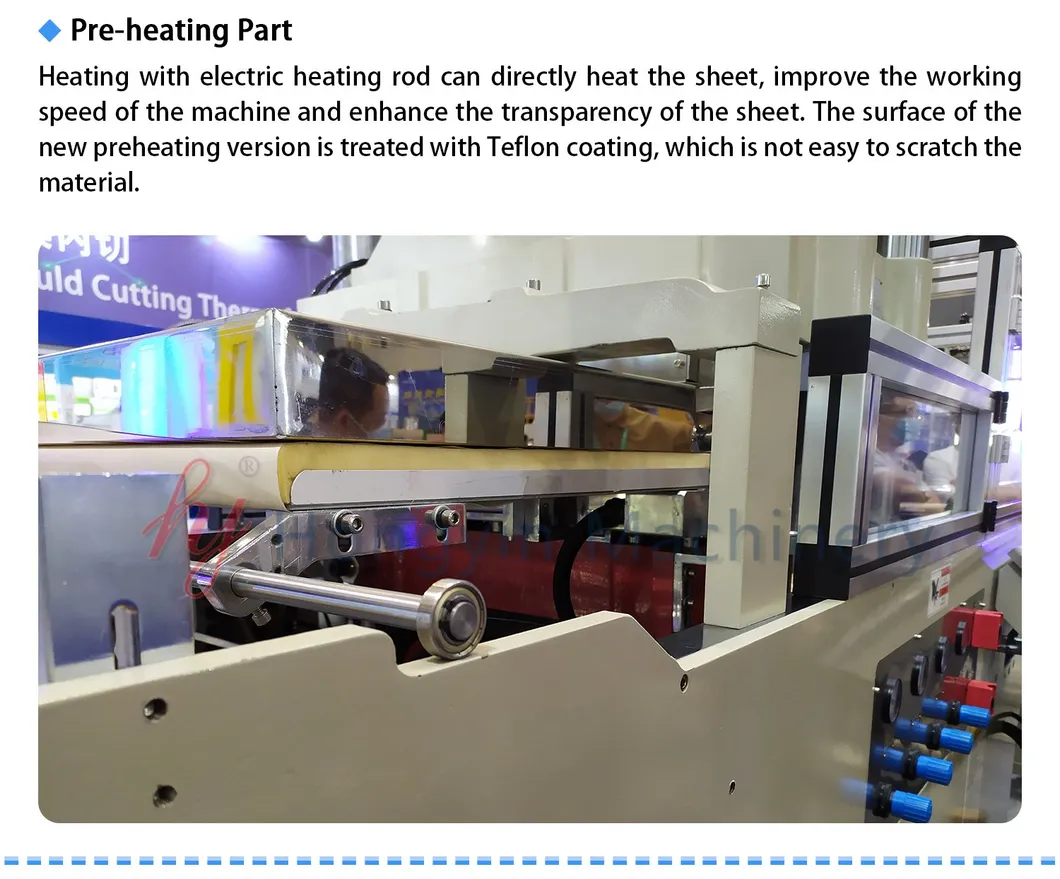

| Preheating power | 4 kw |
| Mould plate heating power | 9 kw |
| Heating plate power | 30 kw |
| Weight | 5200kg |

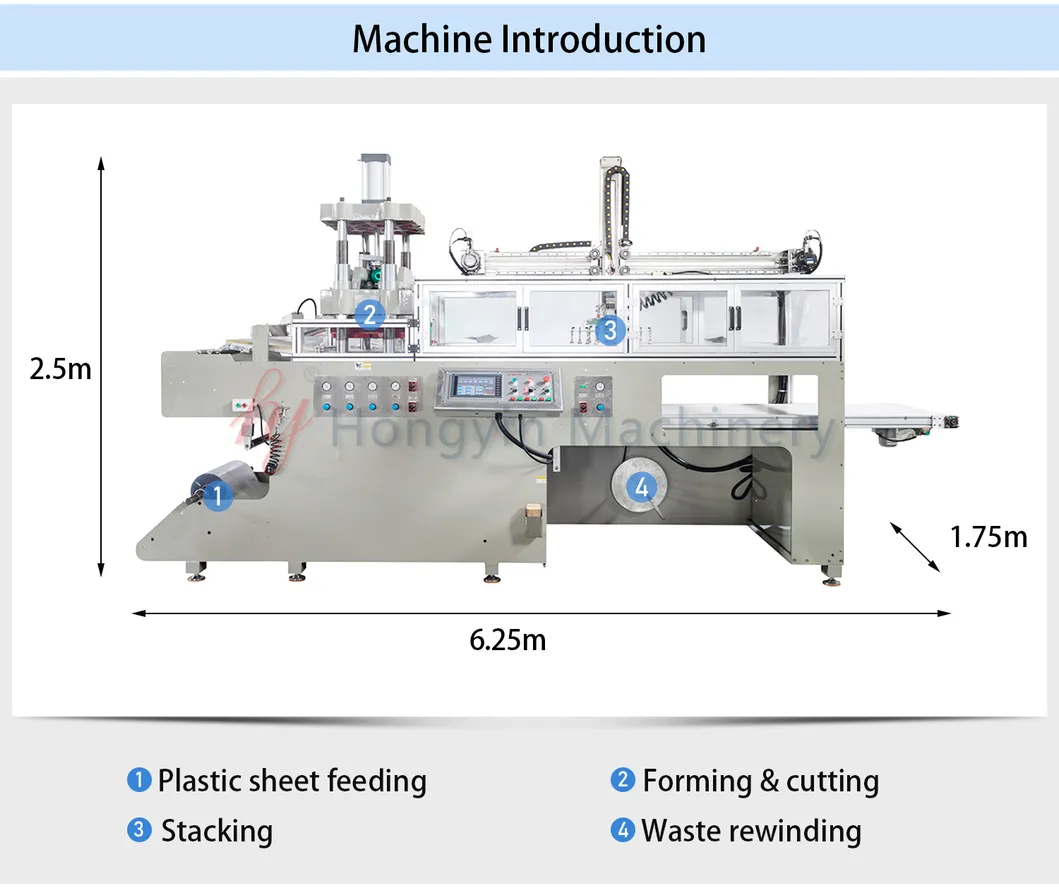

| Dimensions(L×W×H) | 6250×1750×2500 mm |
1 Pre-sales Service
We have a specialized and efficient working team. If you are new to the plastic forming machine area, we are glad to provide specialized suggestions for the entire project.
2 Shipping Service
We have a specialized and independent department to arrange shipments. We prepare all necessary documents to ensure smooth delivery and cooperate with leading shipping companies for economic routing.
3 Installation Services
Installation services are available for all machines. We can dispatch technicians to the buyer's factory for installation and preparation.
4 Clients Training Services
Buyers can send their own technicians to our factory to learn machine operation. Our technicians will provide hands-on training until the learner can operate the machine independently.
5 After Sales Service
The machine guarantee period is one year. Essential spare parts are prepared in the tool box along with the machines.
Frequently Asked Questions
Q1: What materials can the HY-63/78 thermoforming machine process?
The machine is designed to process a wide range of plastic sheets including BOPS, HIPS, PS, PVC, and PET.
Q2: What are the available operation modes?
The system supports three operation models: Manual, Semi-Automatic, and Fully Automatic, controlled via a micro PLC interface.
Q3: What is the maximum forming area and depth?
The machine offers a maximum forming area of 630*780 mm and a maximum forming depth of 125 mm.
Q4: Does the machine handle the entire production process?

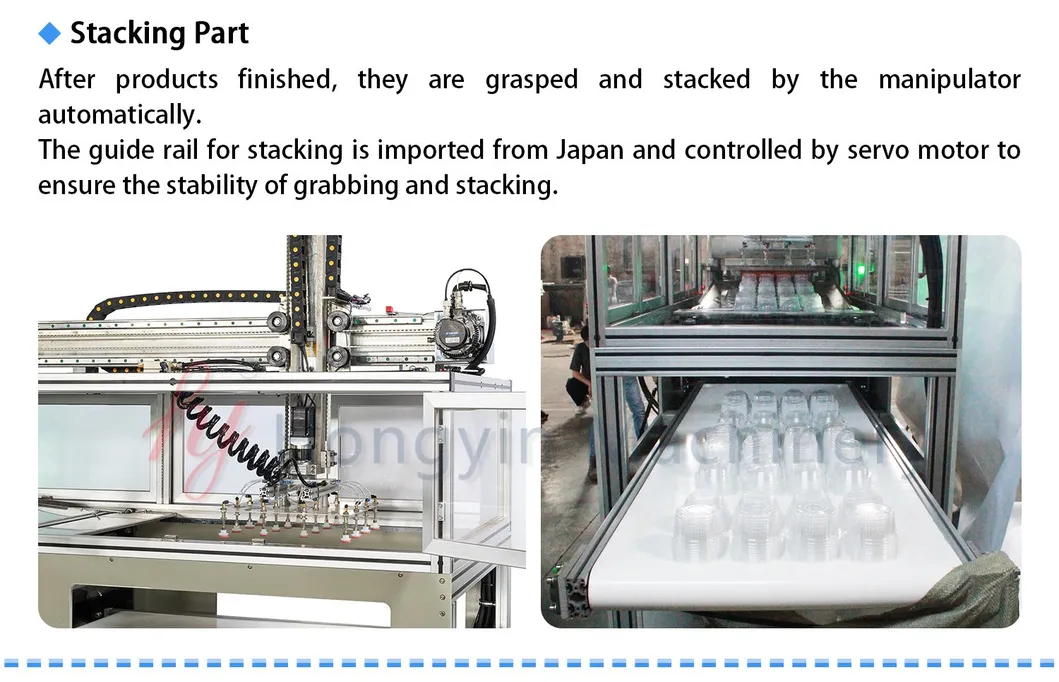

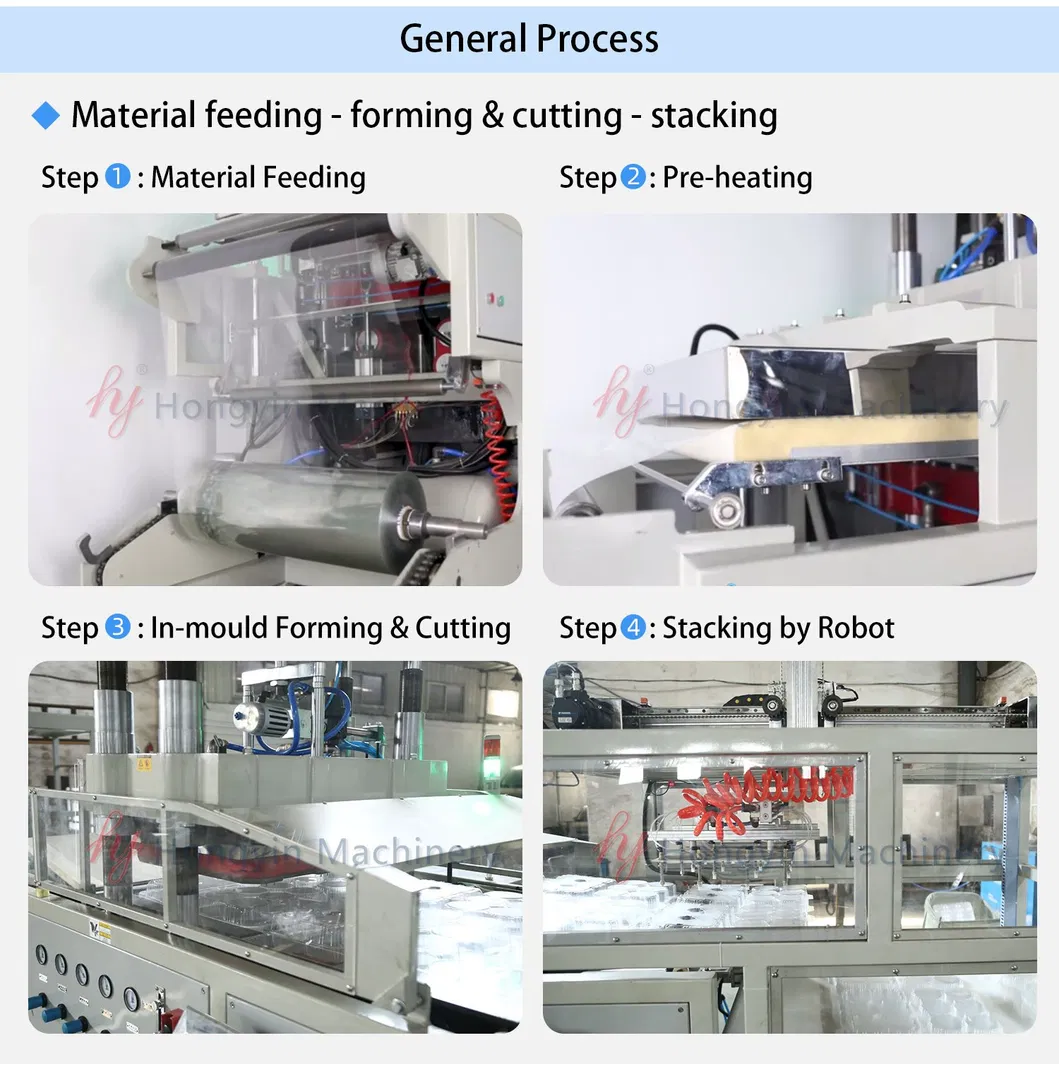

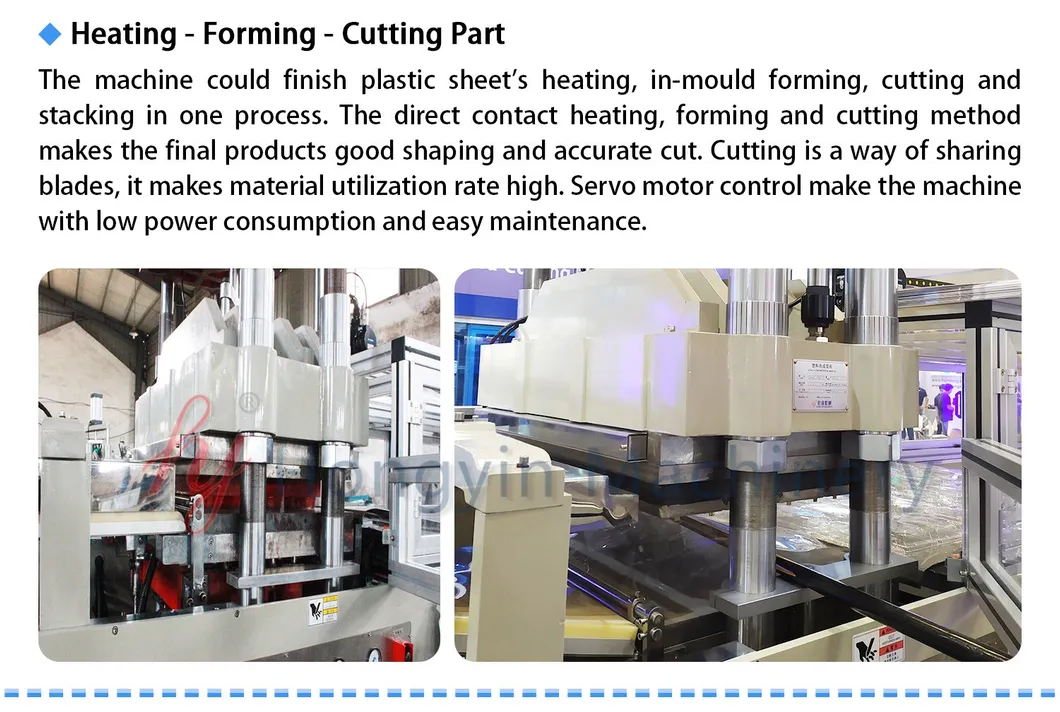

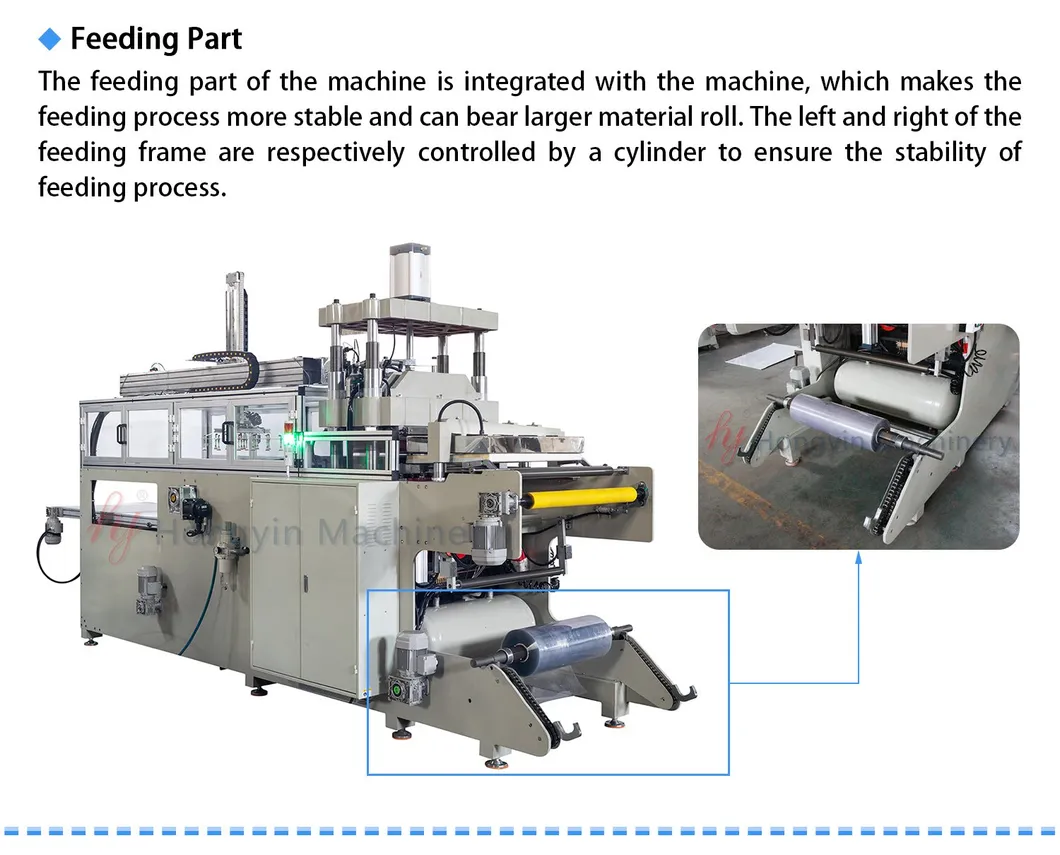

Yes, it integrates material feeding, heating, forming, cutting, and stacking into a single continuous process.
Q5: What is the production speed of this equipment?
The production speed ranges from 600 to 1200 recycles per hour, depending on the material and product complexity.

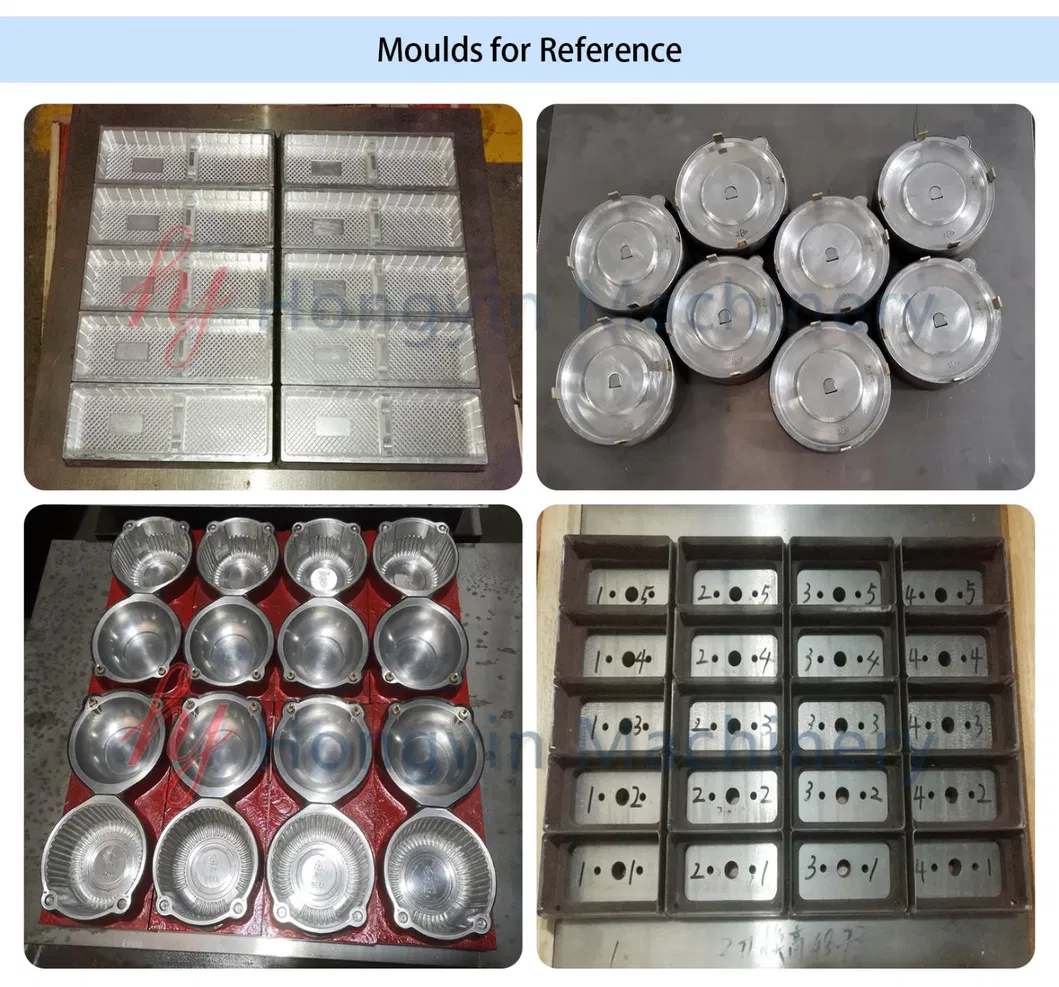

Q6: What kind of products can be manufactured?
It is ideal for producing food containers, cake boxes, fast-food trays, supermarket packaging, and various lids or bowls.
