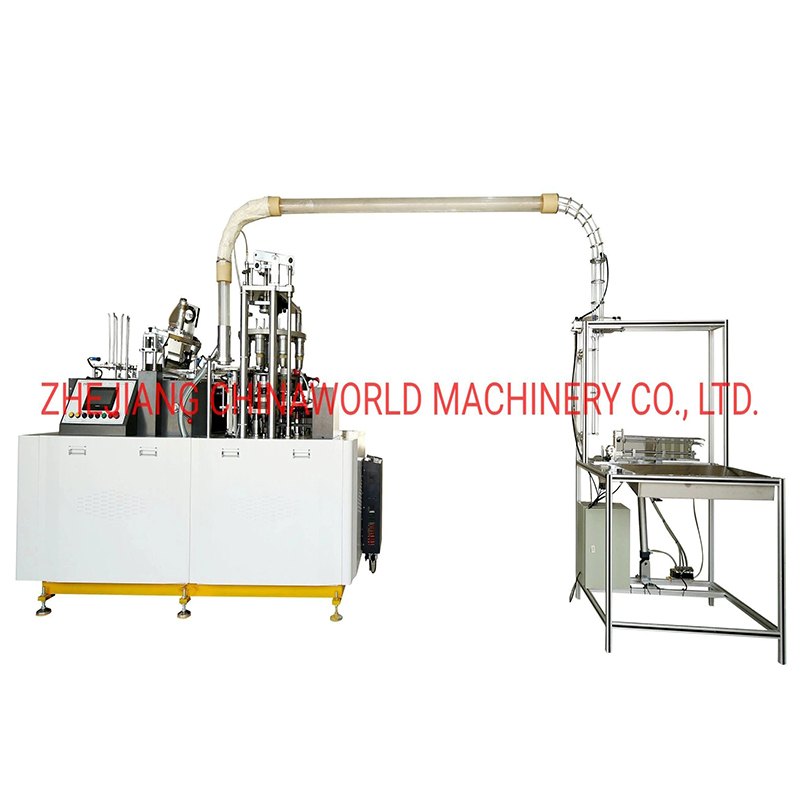

Full Automatic Debao Ruida Ultrasonic Paper Cup Making Machine Price China High Speed Coffee Paper Cup Forming Machine
Full Automatic Debao Ruida Ultrasonic Paper Cup Making Machine Price China High Speed Coffee Paper Cup Forming Machine
Full Automatic Debao Ruida Ultrasonic Paper Cup Making Machine Price China High Speed Coffee Paper Cup Forming Machine
Full Automatic Debao Ruida Ultrasonic Paper Cup Making Machine Price China High Speed Coffee Paper Cup Forming Machine
Full Automatic Debao Ruida Ultrasonic Paper Cup Making Machine Price China High Speed Coffee Paper Cup Forming Machine
1 / 5
Full Automatic Debao Ruida Ultrasonic Paper Cup Making Machine Price China High Speed Coffee Paper Cup Forming Machine
Full Automatic Debao Ruida Ultrasonic Paper Cup Making Machine Price China High Speed Coffee Paper Cup Forming Machine
Full Automatic Debao Ruida Ultrasonic Paper Cup Making Machine Price China High Speed Coffee Paper Cup Forming Machine
Full Automatic Debao Ruida Ultrasonic Paper Cup Making Machine Price China High Speed Coffee Paper Cup Forming Machine
Full Automatic Debao Ruida Ultrasonic Paper Cup Making Machine Price China High Speed Coffee Paper Cup Forming Machine

Full Automatic Debao Ruida Ultrasonic Paper Cup Making Machine Price China High Speed Coffee Paper Cup Forming Machine

Customization: Available
Warranty: 1 Year
Applicable Objects: Beverage
Send Inquiry

Product Description

Basic Information
Model NO.
CW-85S
Cup Size
2-12OZ
Speed
80-100pcs/min
Required Paper
Double Side PE Coated Paper
Automation
Automatic
Certification
CE
Paper Material
140-320G/M2
Total Power
7.5kw
Weight
2200kg
Overall Size
2.23X1.14X1.8m
Product Description

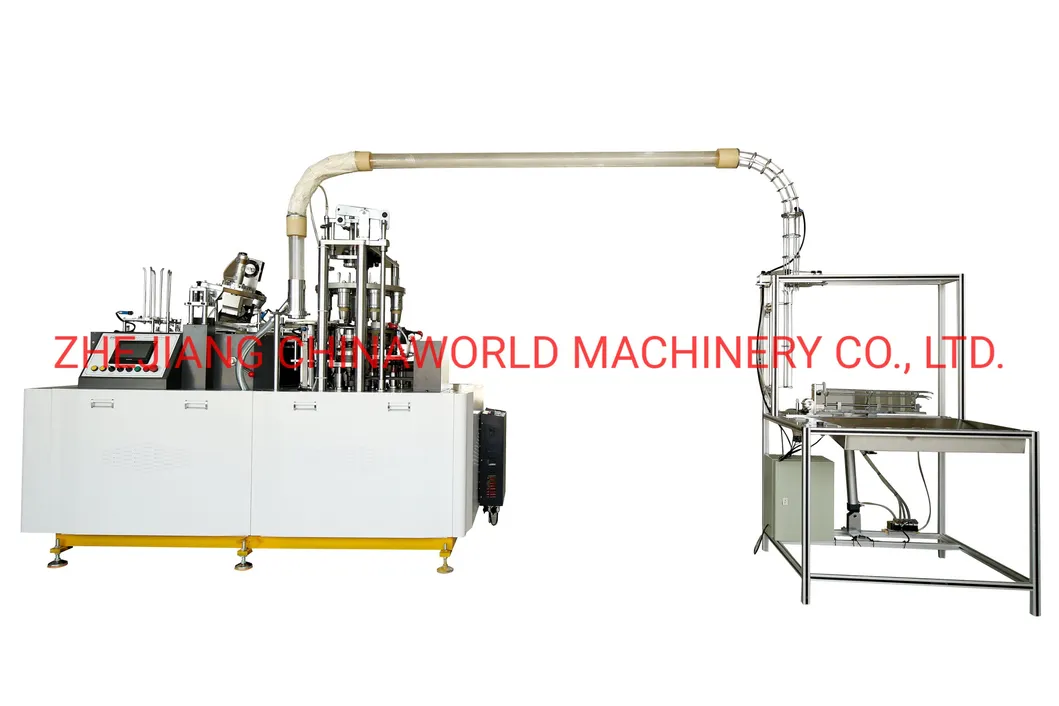

Automatic High Speed Paper Cup Making Machine

This machine is equipped with Ultrasonic sealing, a collecting table, PLC control, and a Touch screen interface for easy operation.

One disk, direct bottom design
Auto bottom paper feeding system
Auto waste bottom paper conveyor
Automatic lubrication system
High speed: Max 105pcs/min
Stable speed: 85pcs/min
No cup fan material alarm
No cup cone alarm & Drop cup alarm
Product Parameters
Parameter Specification
Paper Cup Size2-12oz
Paper Material140-320g/m2, One Side or Double PE Coated
SpeedMax: 105pcs/min, Stable: 85pcs/min
Power Source380V 50HZ
Heating Total Power5KW
Main Motor1.5KW
Total Power7.5kw
Weight2200kg
Overall Size2.23X1.14X1.8m
Air Pressure≤0.4MPa (for auto bottom feeding)
Operation SpaceAbout 3000*3000mm
Configuration List
Name Model Origin Remarks QTY
Main motorCH-25-1.5TaiwanChenggang1
Frequency converterEm60-1.5kwJapanPanasonic1
PhotoelectricityPSE17-5DNKoreaOttonico3
AC contactor0910FranceSchneider3
Temperature controlAI-208GDomesticYudian5
Switching power supplyLRS-200-24TaiwanMing Wei1
Circuit breakerDZ47-60DomesticChint7
Detailed Photos

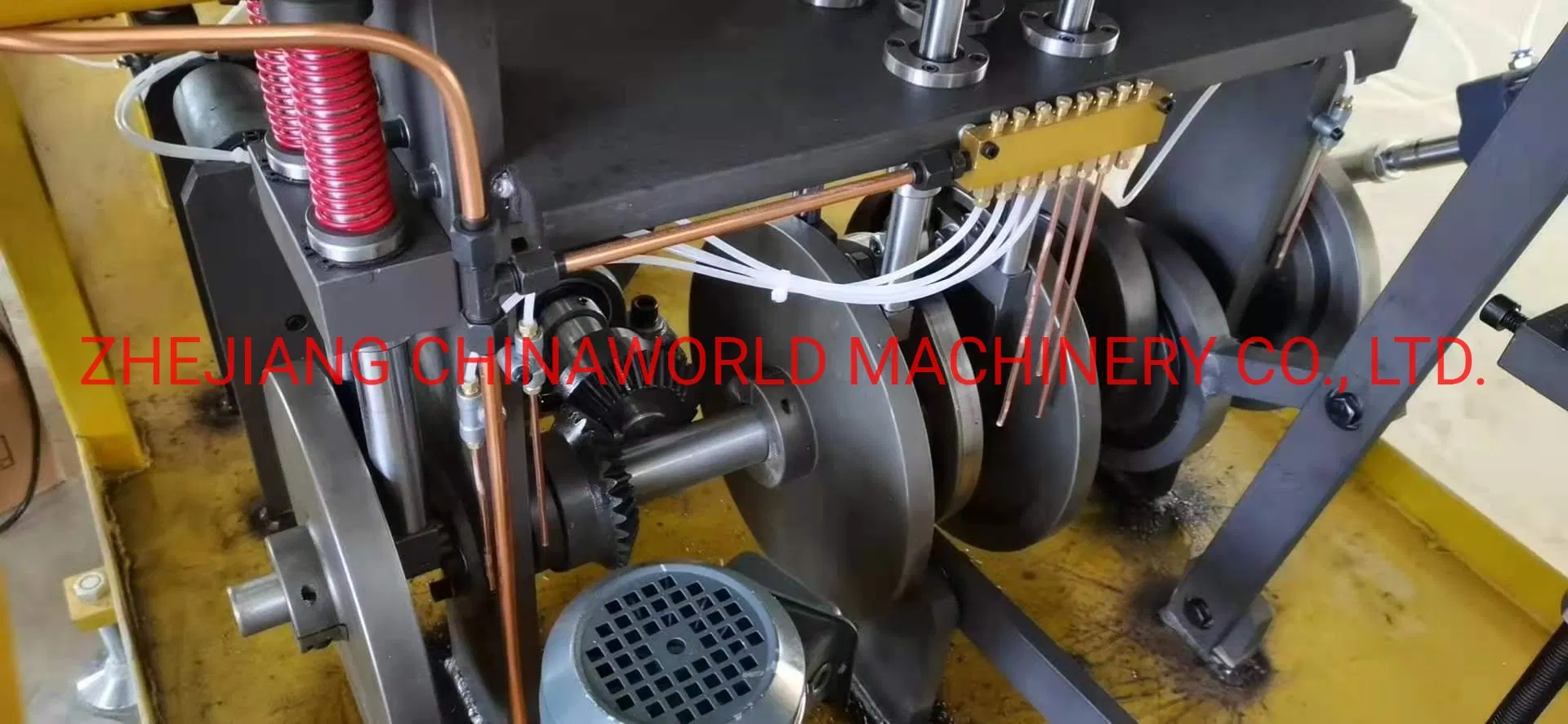

Machine Detail 1

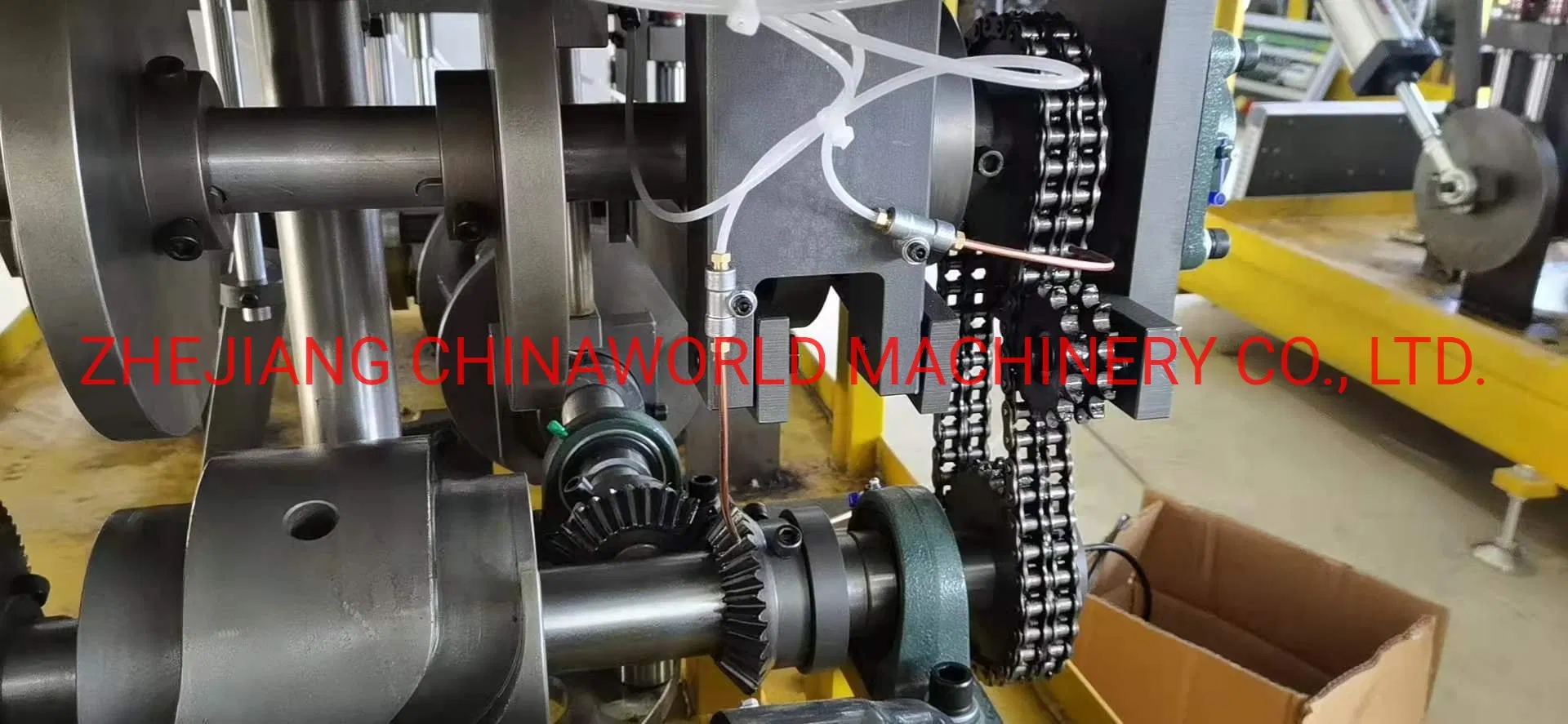

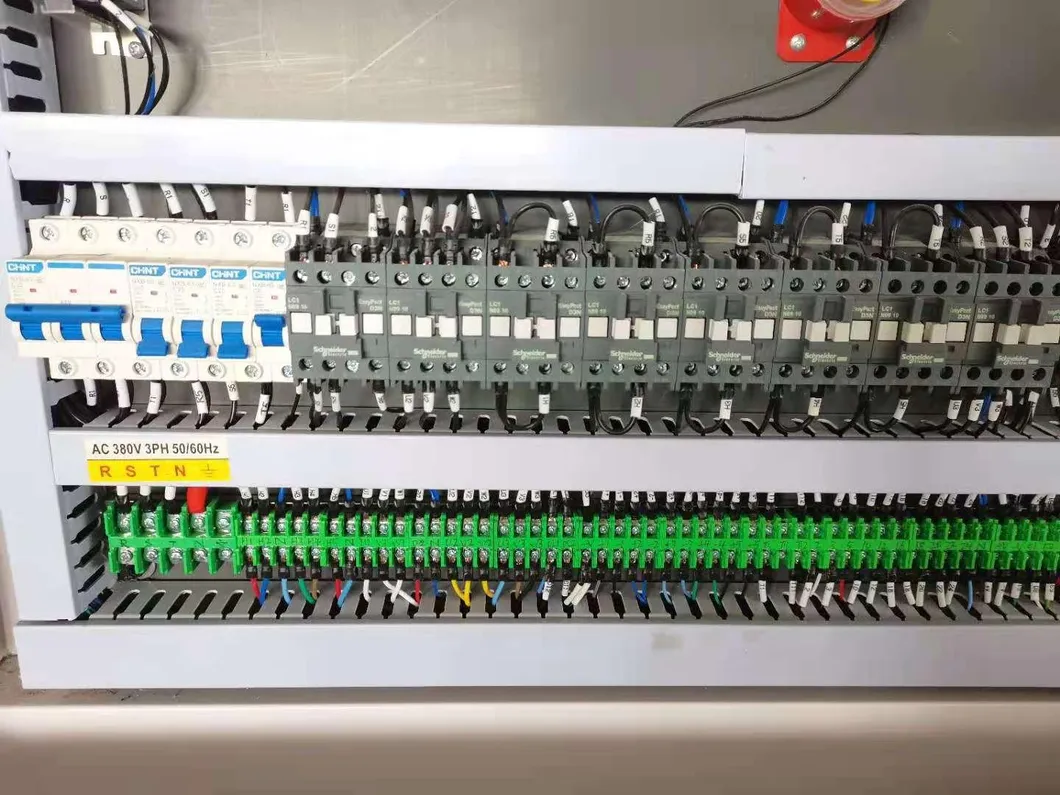

Machine Detail 2

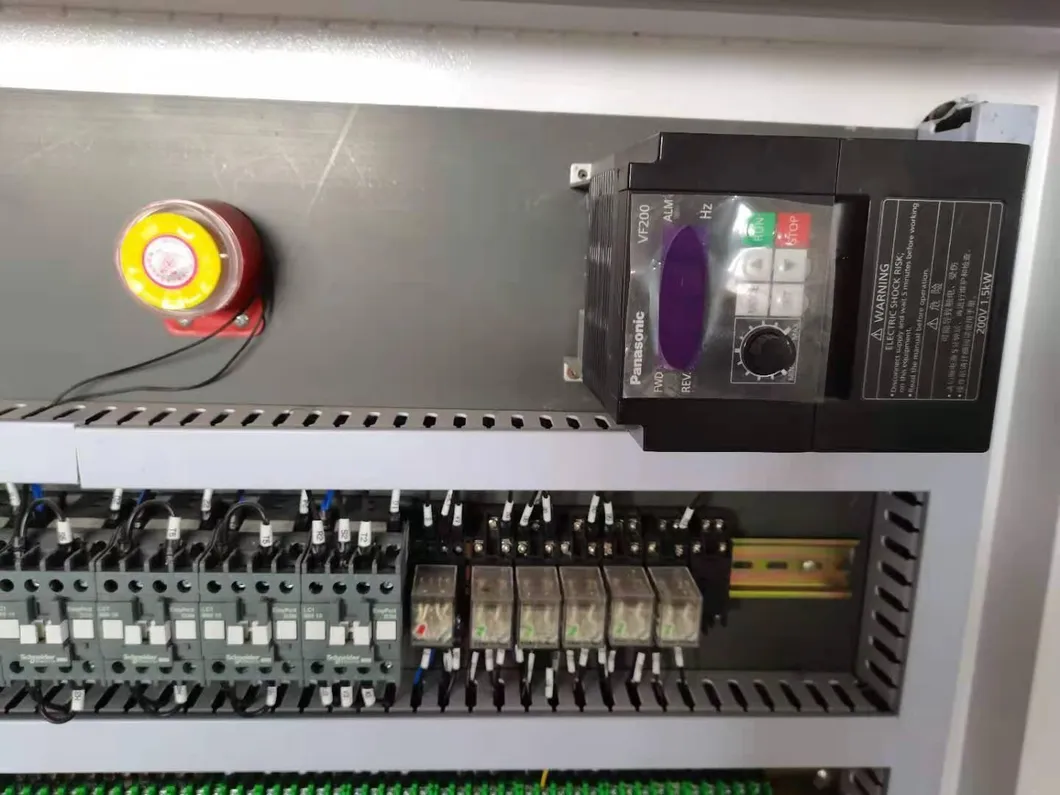

Machine Detail 3
Hot Sales Models

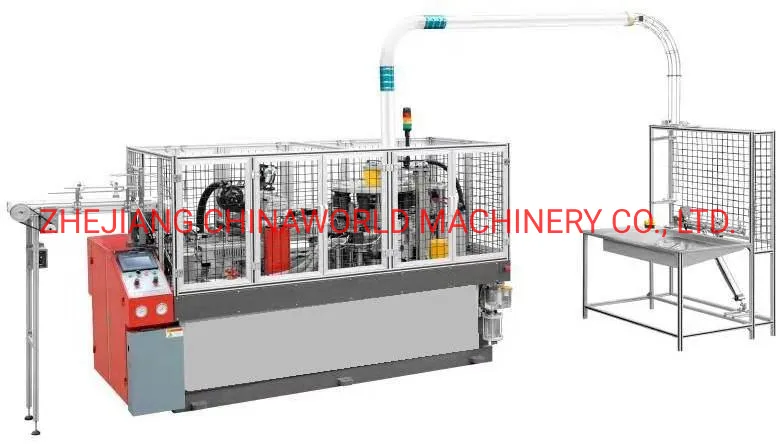

Hot Sale 1

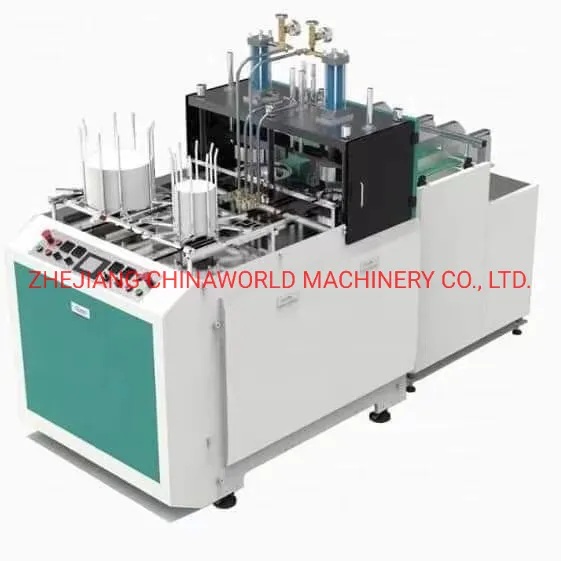

Hot Sale 2

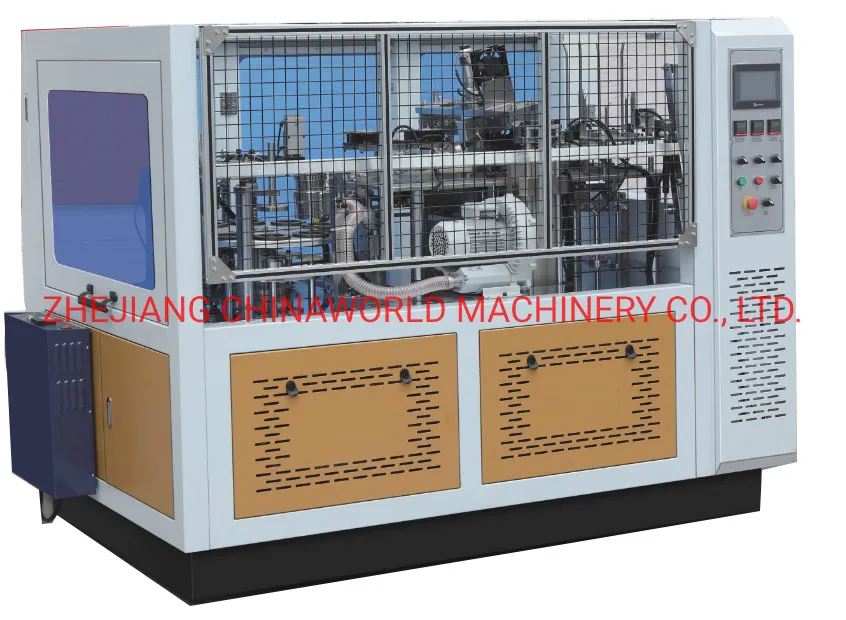

Hot Sale 3
Production Capability
Production Process
Factory Overview
Frequently Asked Questions
What is the maximum production speed of the CW-85S?
The machine can reach a maximum speed of 105 pcs/min, with a highly stable operating speed of 85 pcs/min.
What range of cup sizes can this machine produce?
The CW-85S is designed to produce paper cups ranging from 2oz to 12oz in size.
Does the machine support double-sided PE coated paper?
Yes, the machine is compatible with both single-side and double-side PE coated paper ranging from 140 to 320g/m2.
What are the key safety and alarm features?
It includes automatic alarms for "no cup fan material," "no cup cone," and "drop cup" issues to ensure smooth production and minimize waste.
What kind of control system does the machine use?
The machine is equipped with a high-quality PLC and a user-friendly touch screen interface for precise control.
Is the lubrication process manual or automatic?
The CW-85S features an automatic lubrication system, which reduces maintenance time and ensures long-term mechanical reliability.
