| Model NO. | YG-SDM90 | Cup Size | 2-12OZ |
| Speed | 80-100pcs/min | Required Paper | Single and Double Side PE Coated Paper |
| Automation | Automatic | Certification | CE |
| Product Name | Paper Cup Making Machine | Type | Ultrasonic Automatic Paper Cup Forming Machine |
| Suitable Material | PP/PS/ Pet/ HIPS/Paper | Suitable Paper Weight | 140~350GSM |
| Working Air Source | 0.4MPa | Cup Side Welding | Copper Heater or Ultrasonic Heater |
| Specification | 2500*1800*1700mm | Origin | China |

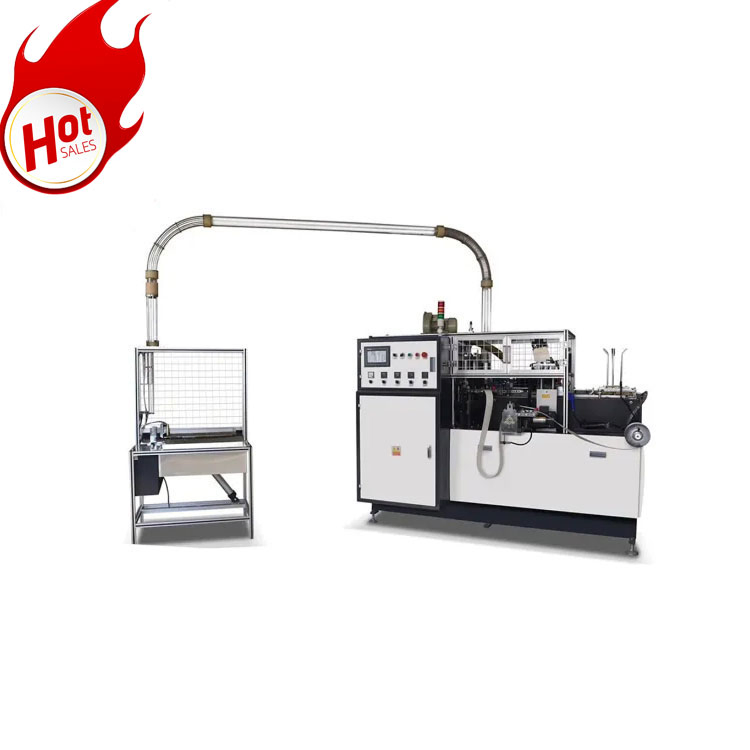

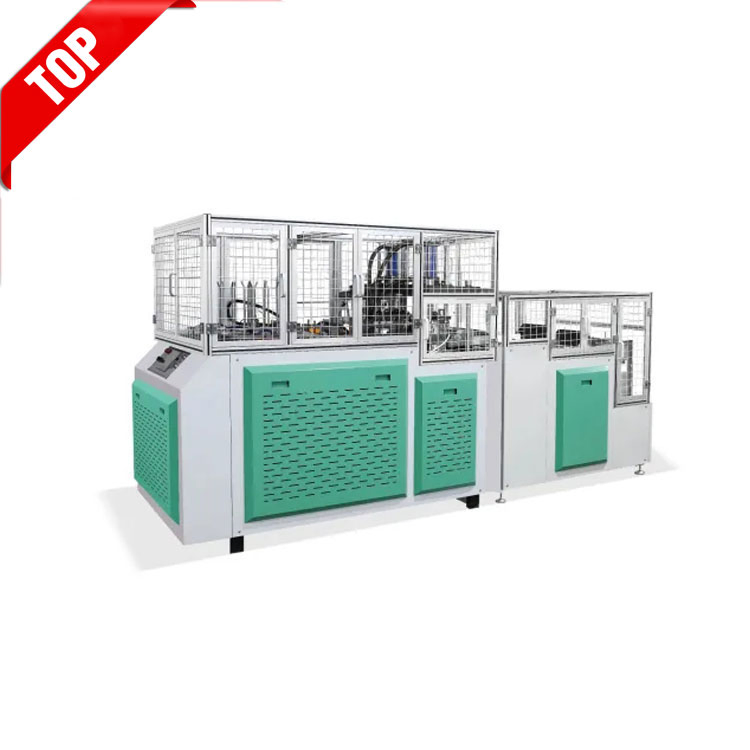

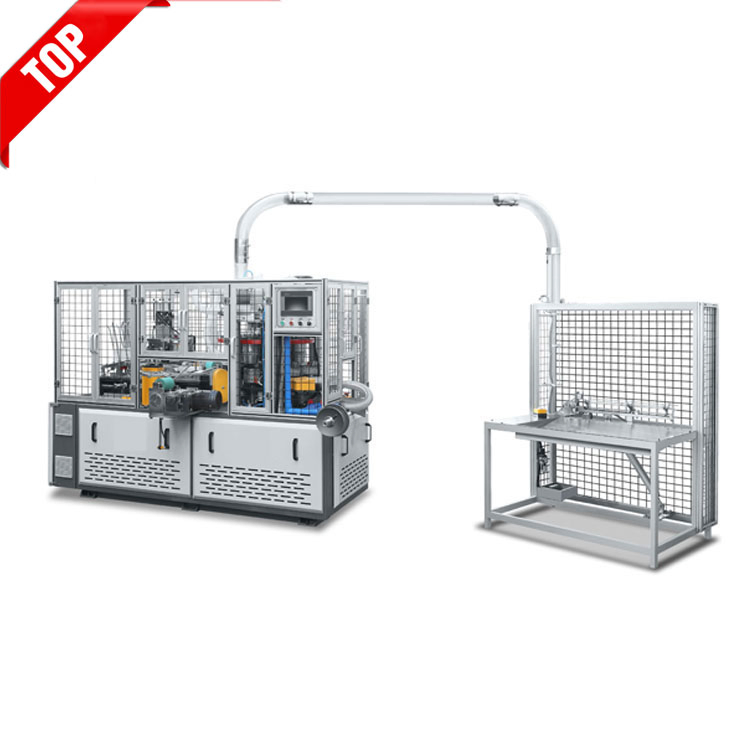

High Speed Paper Bowl Forming & Paper Cup Making Machine
This automatic environmental machine features multi-running positions. It manages the entire procedure including paper-feeding, cup-fan-wall sealing, oiling, bottom-punching, heating, rolling, rimming, rounding, and tripping. It is ideal equipment for producing drinking cups, ice-cream cups, and other food cone-shaping containers.
The latest model incorporates high-level technical improvements, utilizing interval paper feeding, ultrasonic (heater) sealing, and a single shaft driving system with an open cam system. It includes a sensor alarming system for stable operation.
| Parameter Item | Specification Details |
|---|---|
| Mould Driving Method | Cam |
| Max. Forming Area | 660 x 300 mm |
| Running Speed | 15-30 Stroke / min |
| Sheet Width Required | 500 - 660 mm in rolls |
| Sheet Thickness Range | 0.20 - 2.0 mm |
| Compatible Materials | PP, PS, PET, PVC, PLA |
| Max. Draw Depth | 140 mm |
| Oil Pump Motor Power | 11KW, 6P |

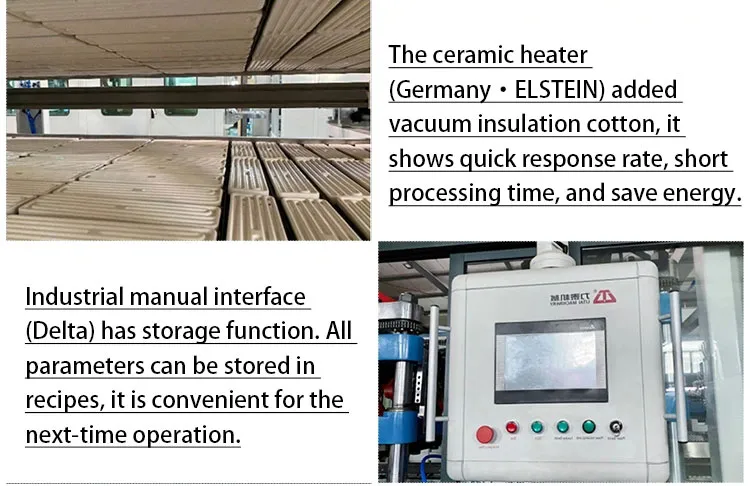

| Heating Arrangement | Top + bottom with IR Ceramic Heater |
| Approximate Weight | 4000Kg |
| Dimension | L3100×W1500×H2500 (mm) |

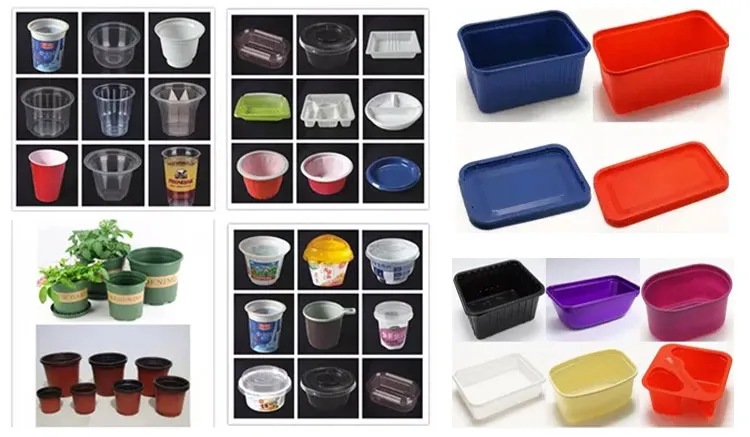

This machine is primarily used to produce disposable containers such as water cups, beverage cups, jelly cups, yogurt cups, packing bowls, instant noodle bowls, and plastic lids. It is suitable for a wide range of raw materials including PS, PP, PVC, PET, and ABS.
