Technical Specifications
Required Paper
Single/Double PE Coated
Voltage Supply
380V 50Hz 3-Phase
Lead Time
25-30 Working Days
Packaging
Seaworthy Wooden Case
Dimensions
3000*1550*2000mm
Product Description

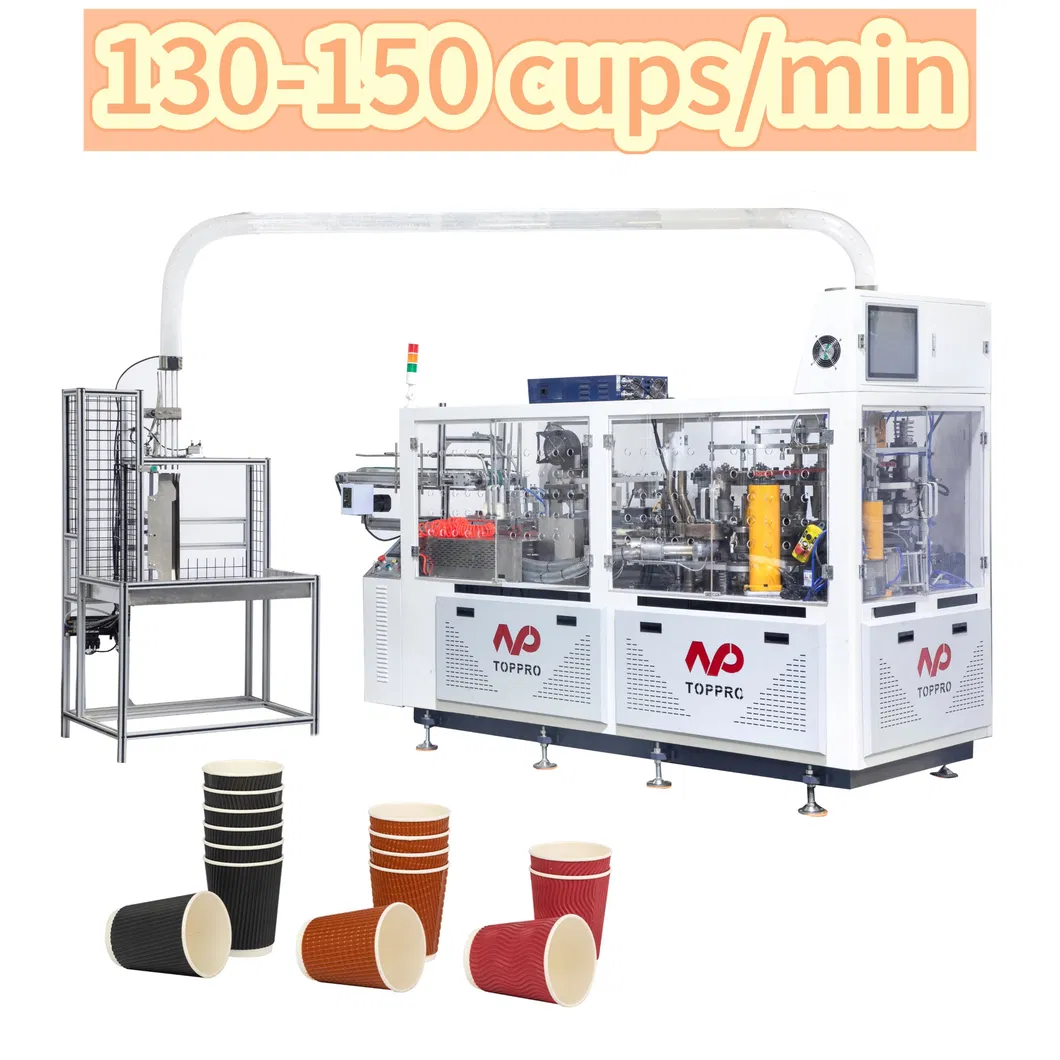

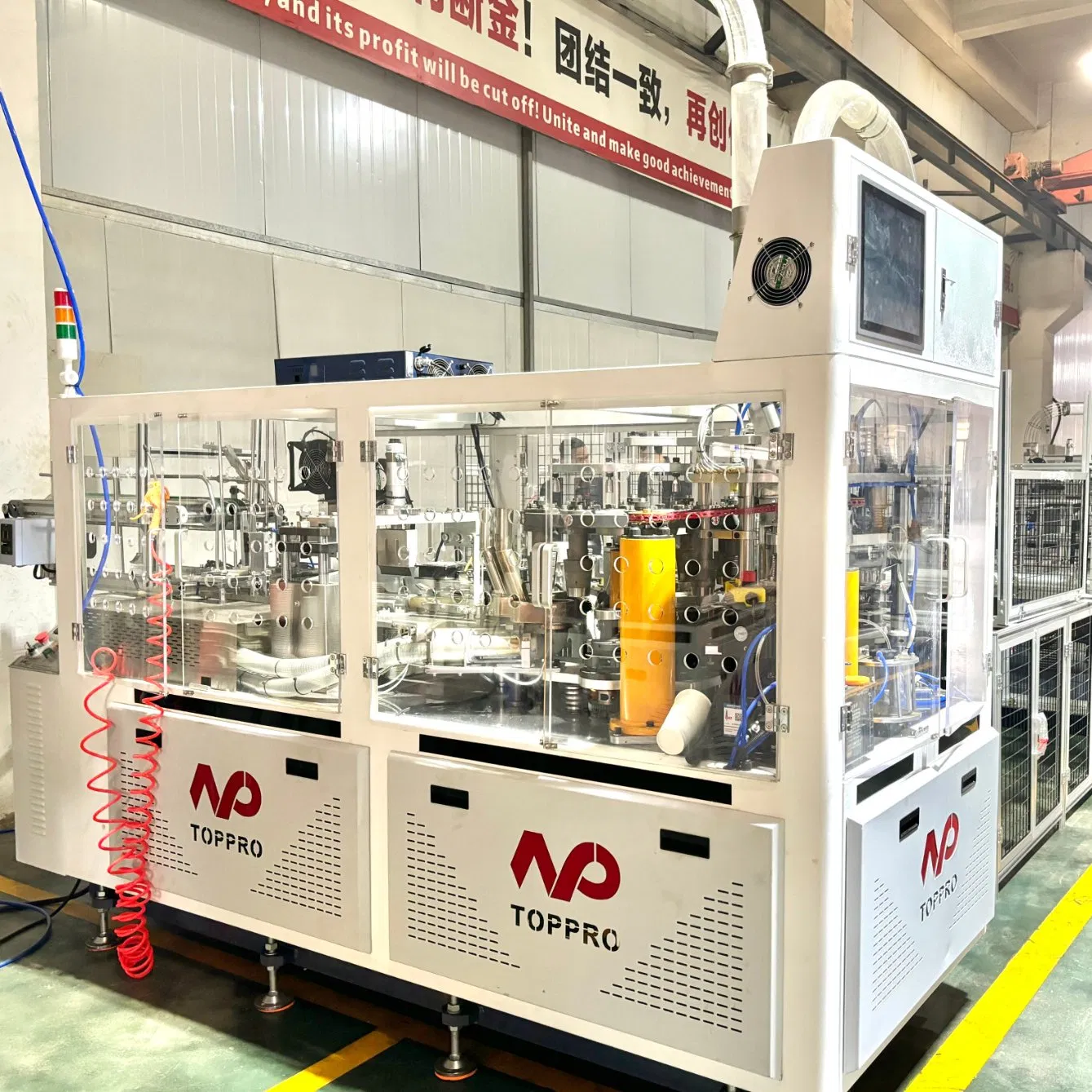

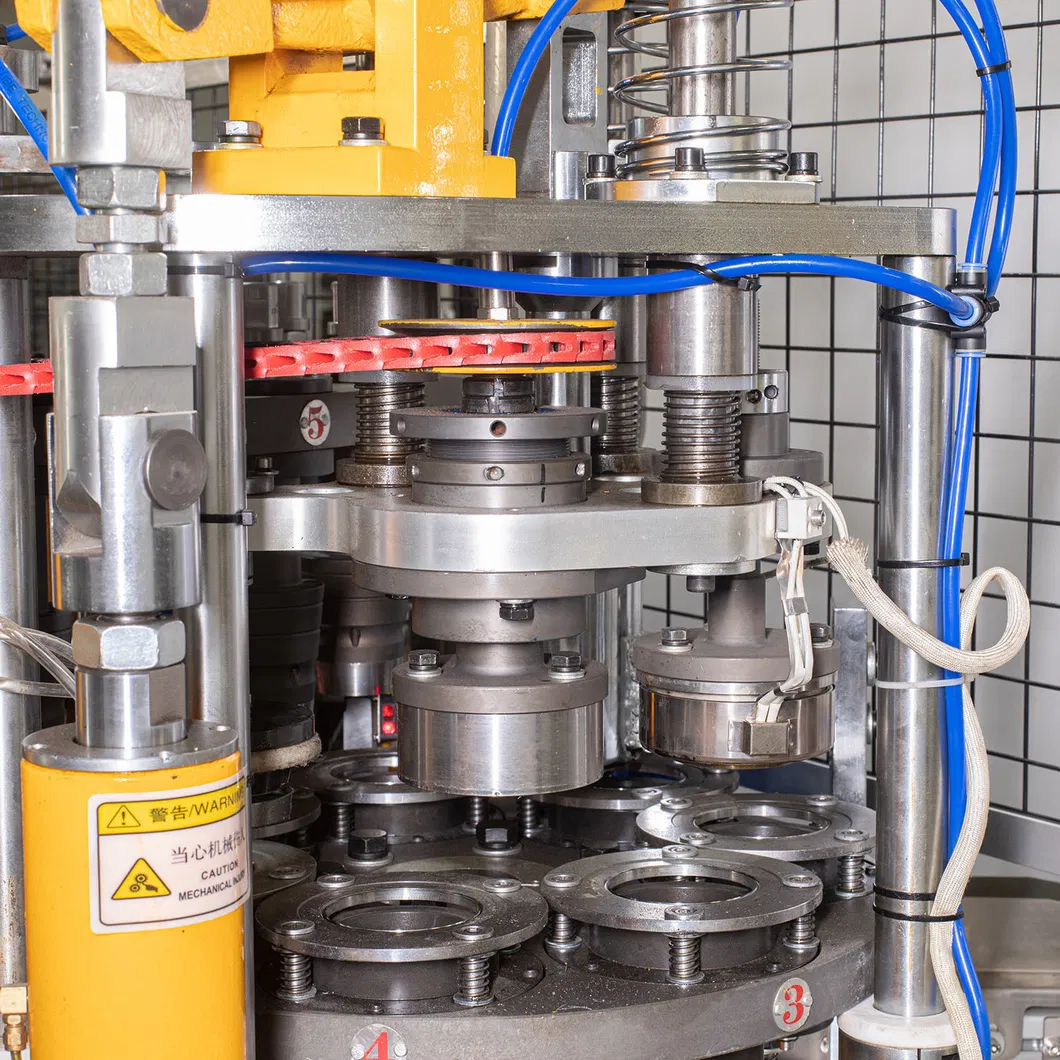

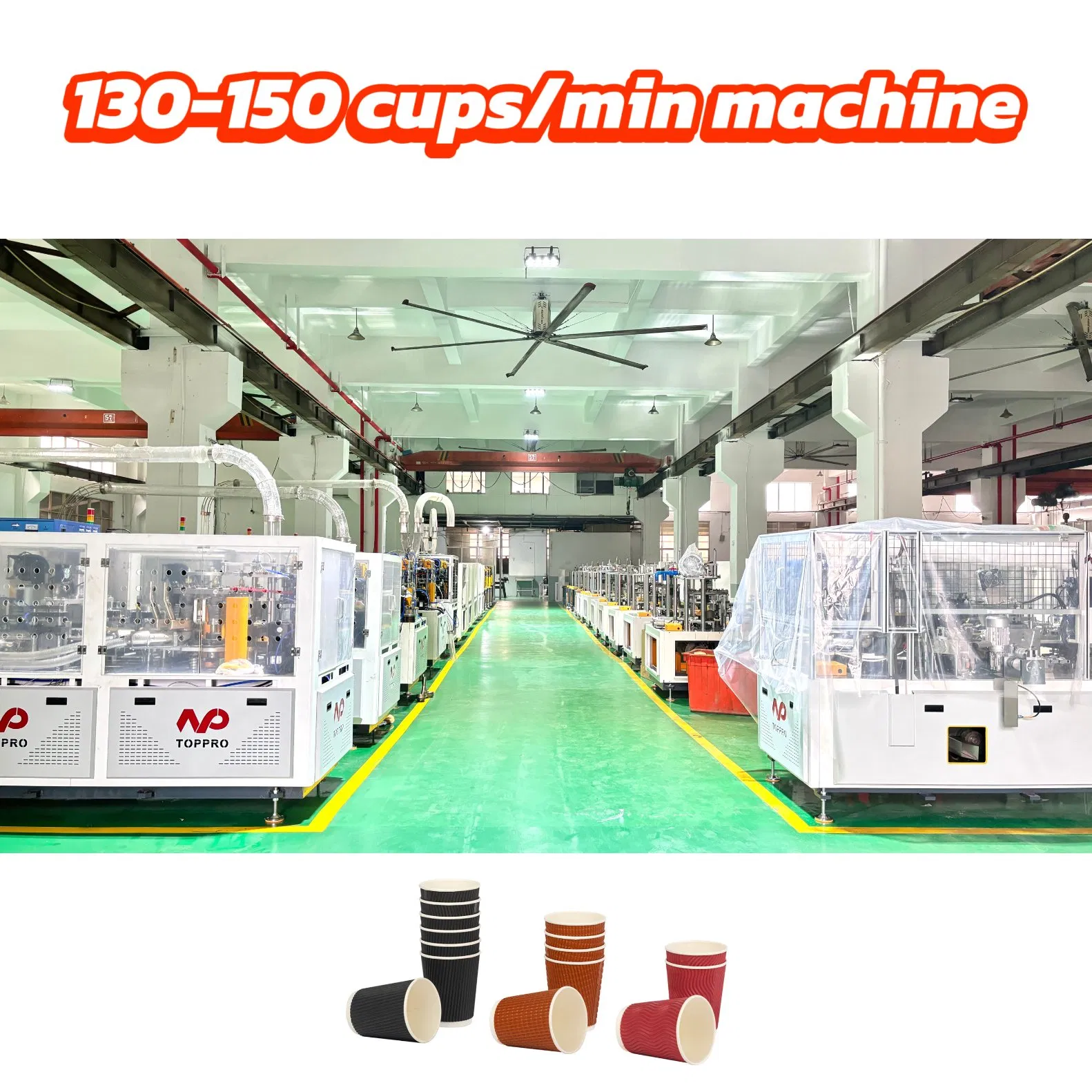

GZB-600 High-speed paper cup forming machine is a high-performance system featuring double turntables and dual-segment operation. It integrates automatic paper fan feeding, imported heater side sealing, cup top lubrication, automatic bottom paper feeding, double curling artwork, and automatic cup collection. It is suitable for both single and double PE coated paper, producing cups for cold and hot drinks at speeds of 130-150pcs/min.
| Parameter |
Details |
| Model | GZB-600 |
| Paper Cup Size | 4-16oz (Standard range) |
| Raw Material | One-side or two-side PE coated paper |
| Stable Speed | 110-120pcs/min (20 hours stable running) |
| Paper Weight | 190-350gsm |
| Bottom Diameter | 45-65mm |
| Cup Height | 60-135mm |
| General Power | 24kw |
| Net Weight | 3660kgs |

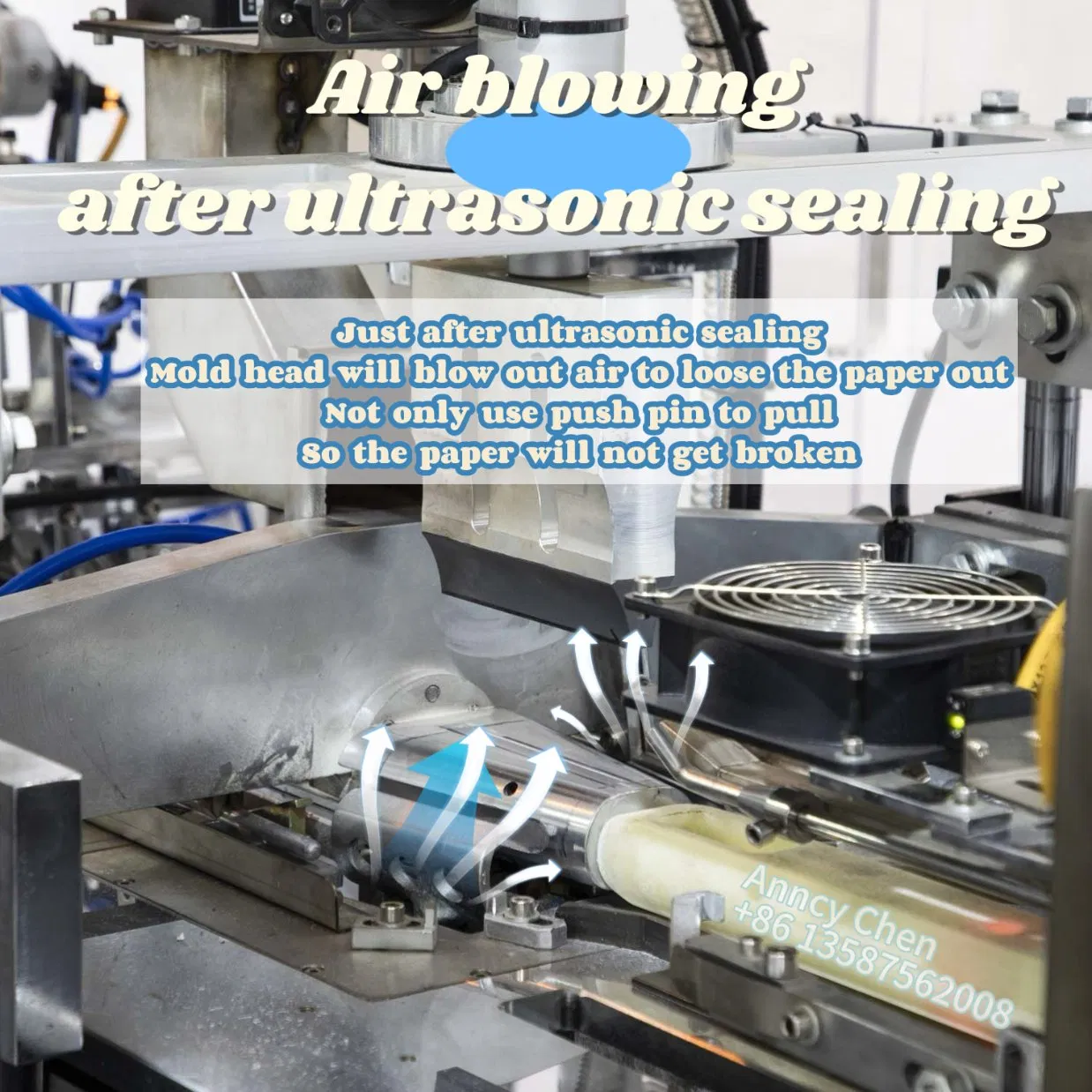

| Side Sealing | EVERGREEN Ultrasonic |
Machine Advantages
1

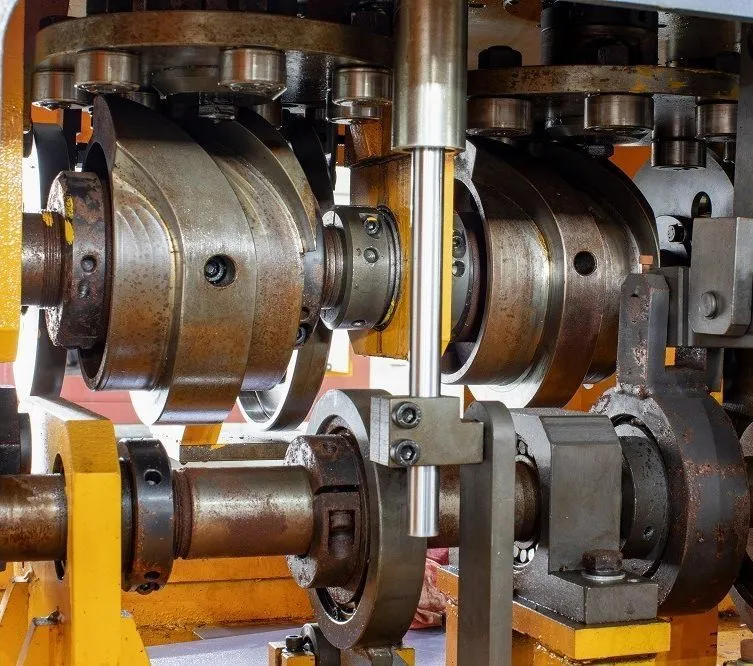

Foreign Dual-bit Technology: Ensures long working life and high precision.
2

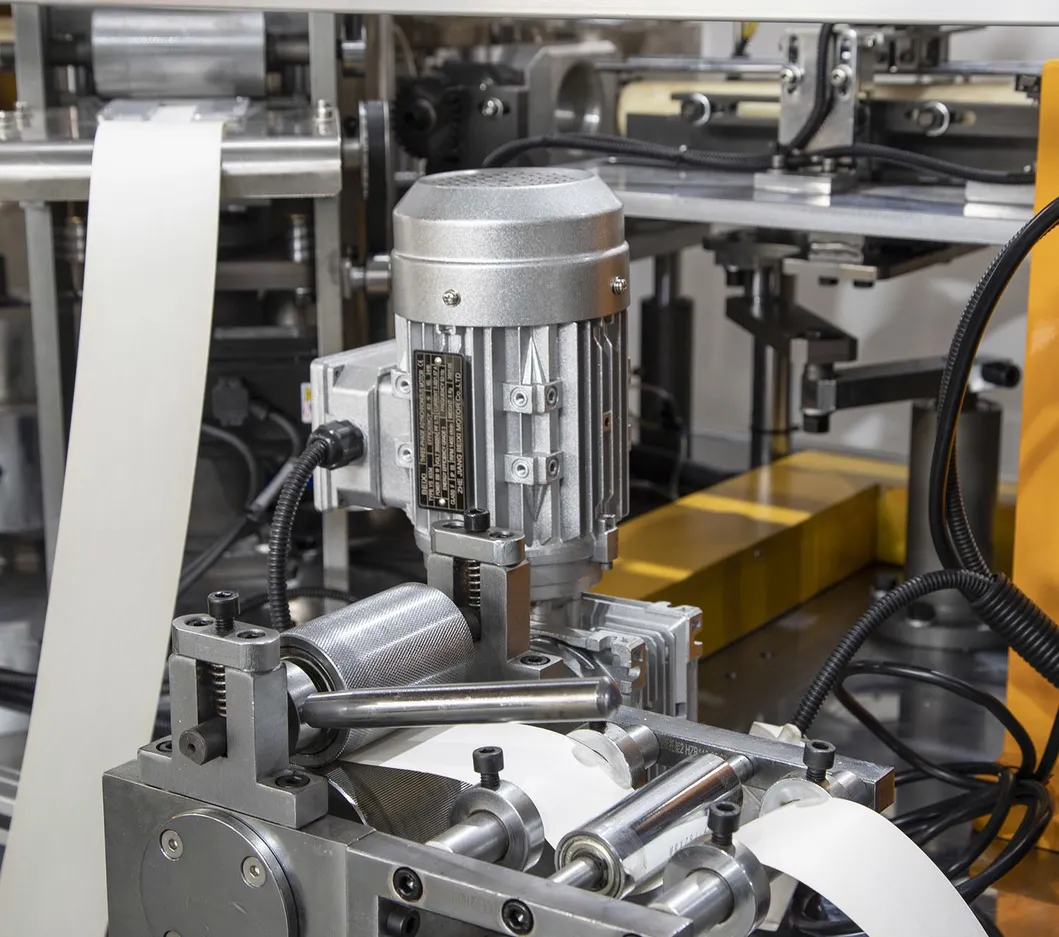

High-power Servo Motor: Optimized for efficient feeding and collecting.
3

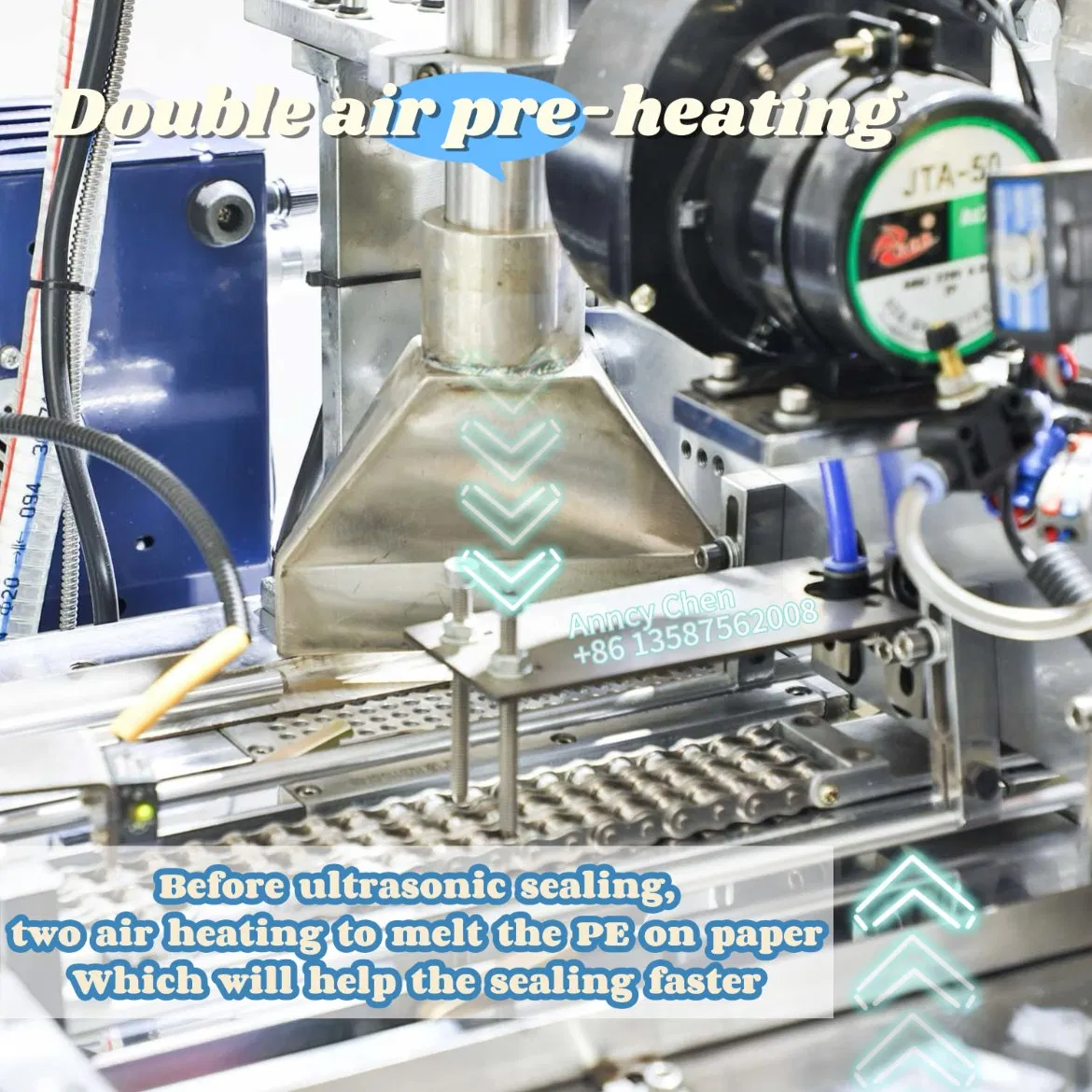

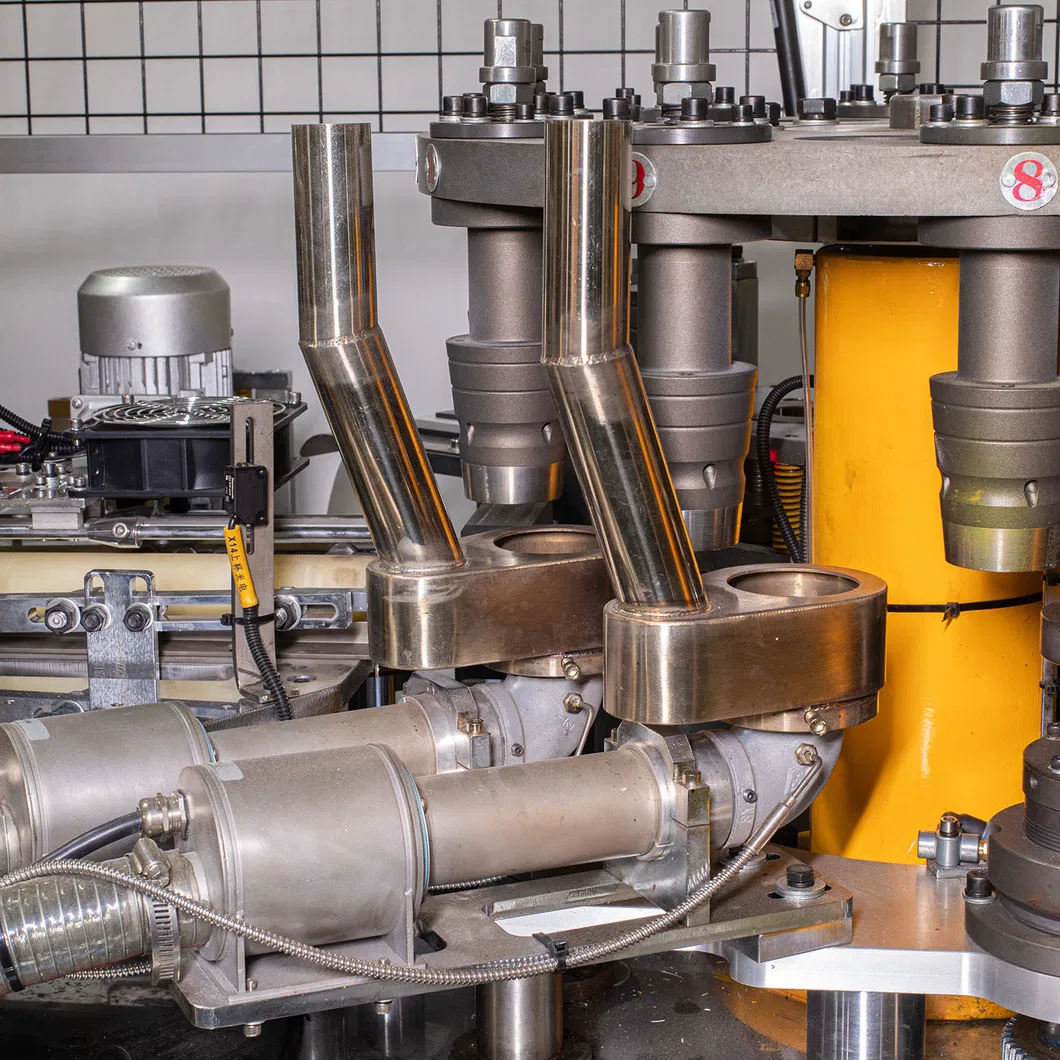

Double Hot Air Heating: Superior system for robust bottom sealing.
4

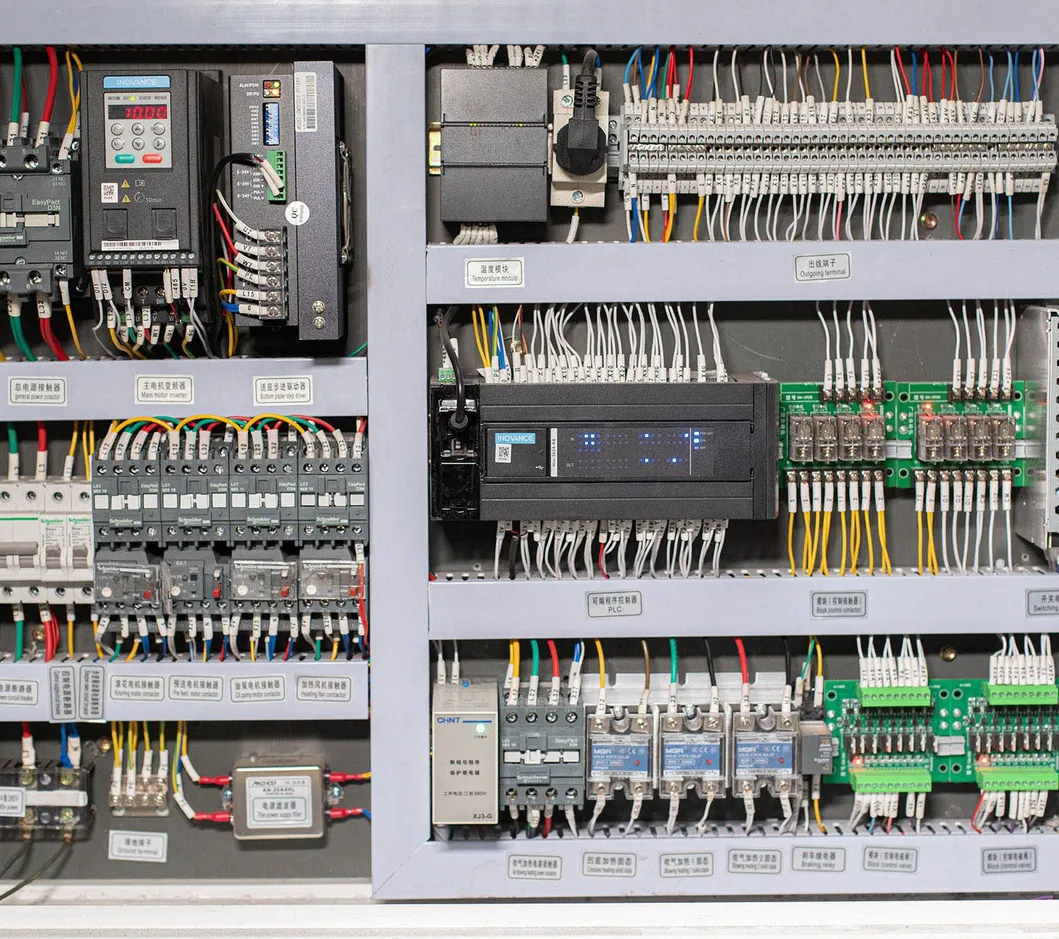

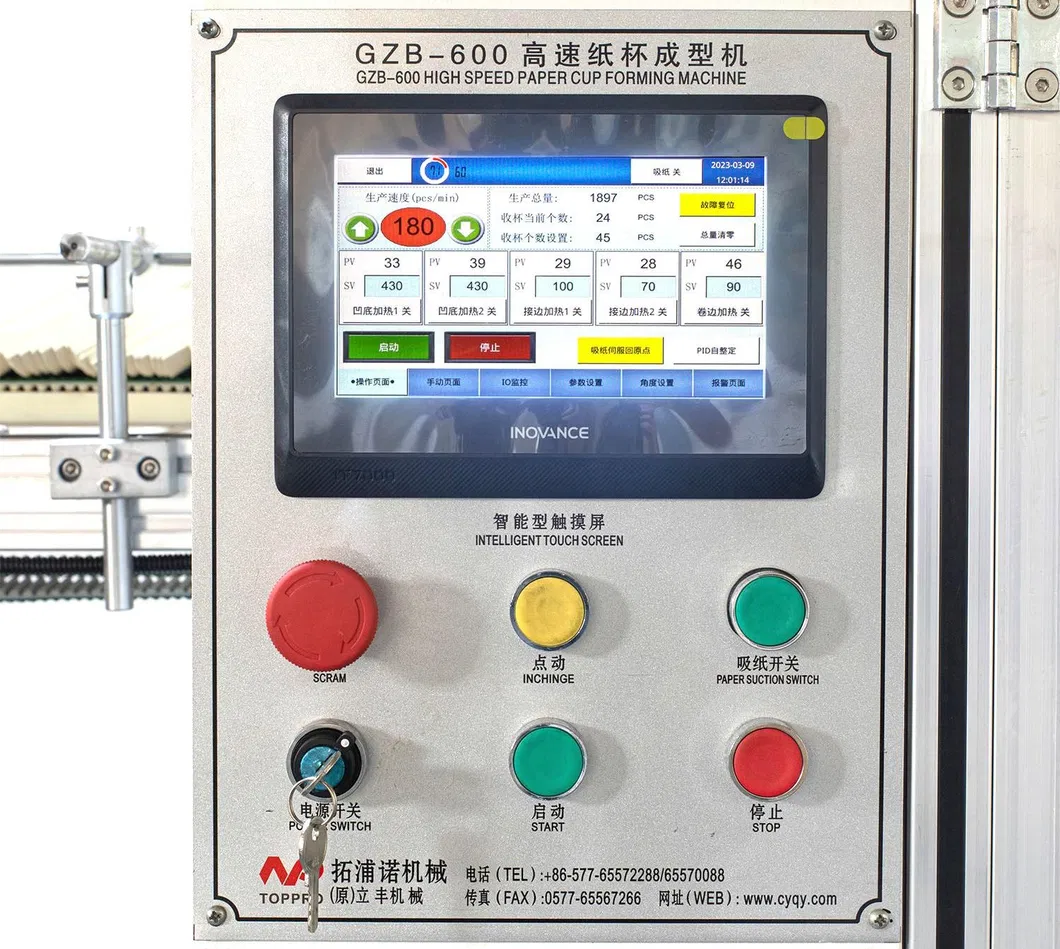

PLC & Touch Screen: 9-inch touch screen with encoder controlling for clear vision and easy operation.
Innovation & Intelligence

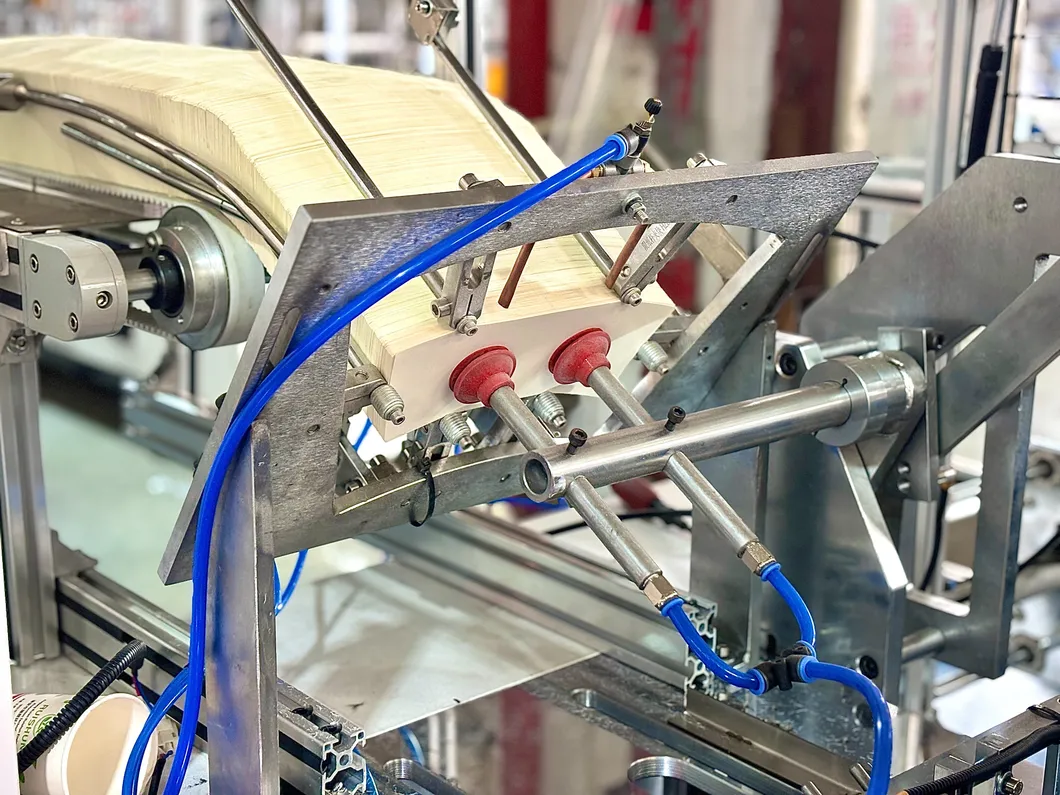

Self Automatic Paper Feeding System
Supports both direct feeding and side feeding to effectively prevent paper jams and simplify maintenance.

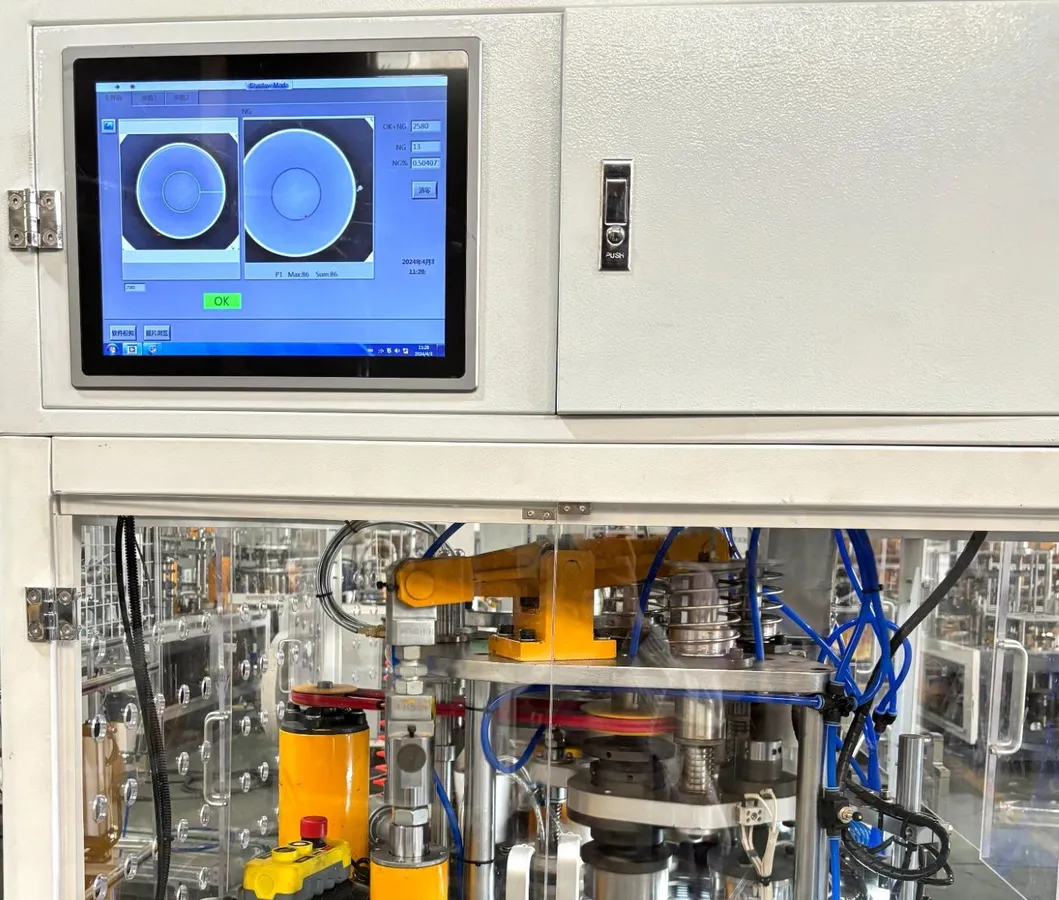

Automatic Camera Detection System
In-built camera and computer monitor the quality of every single cup. Defective products, such as those with spots, are automatically removed.

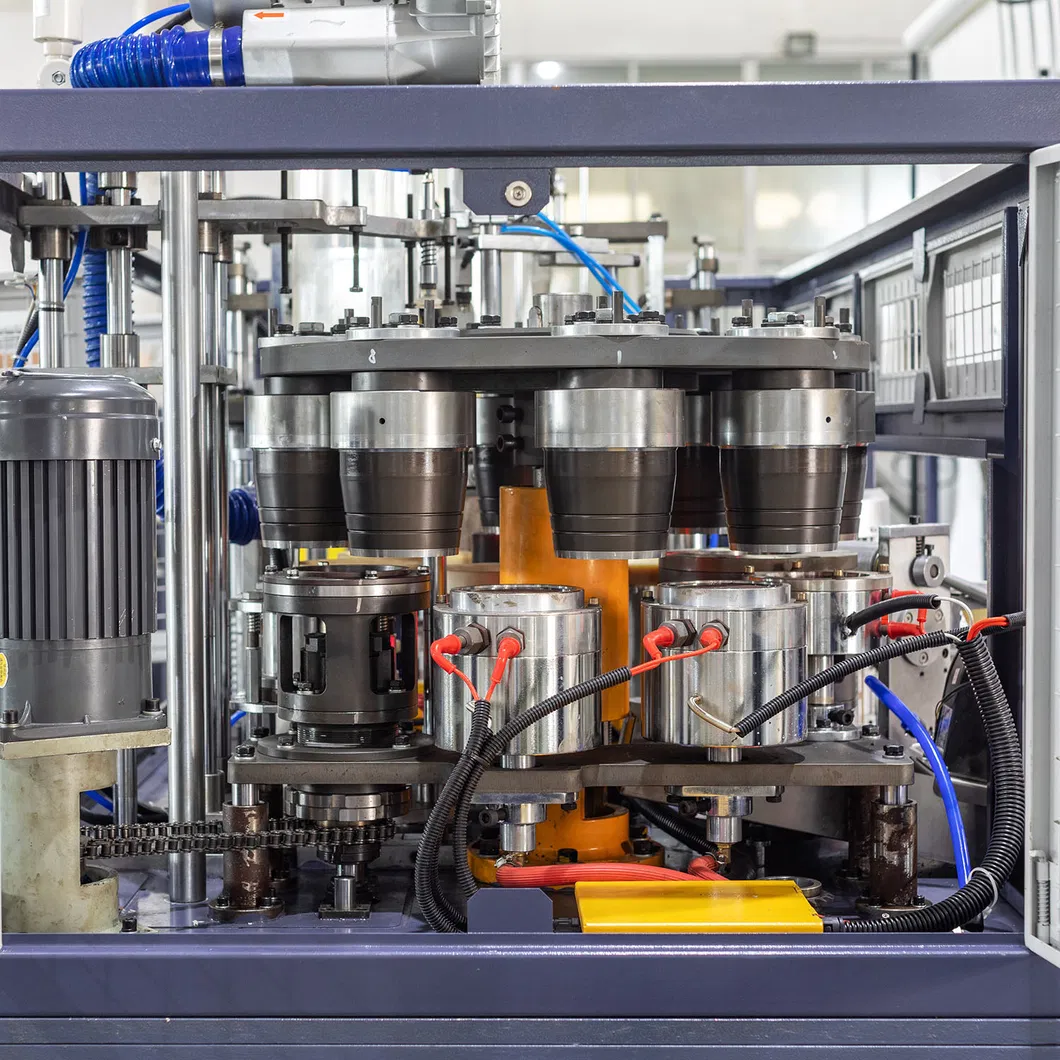

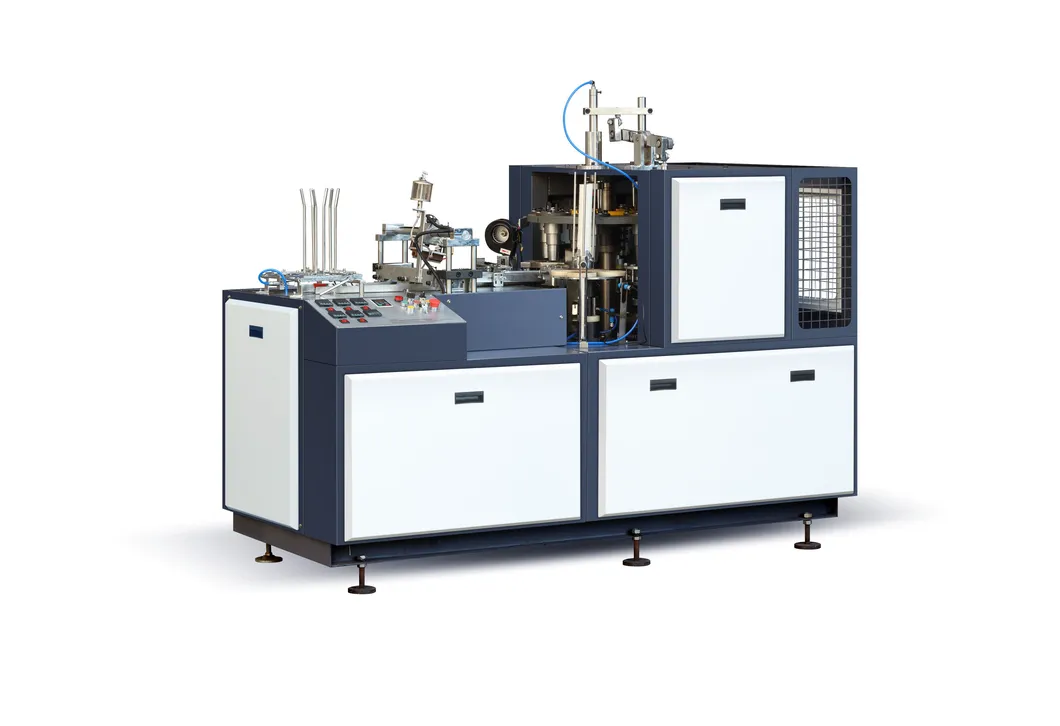

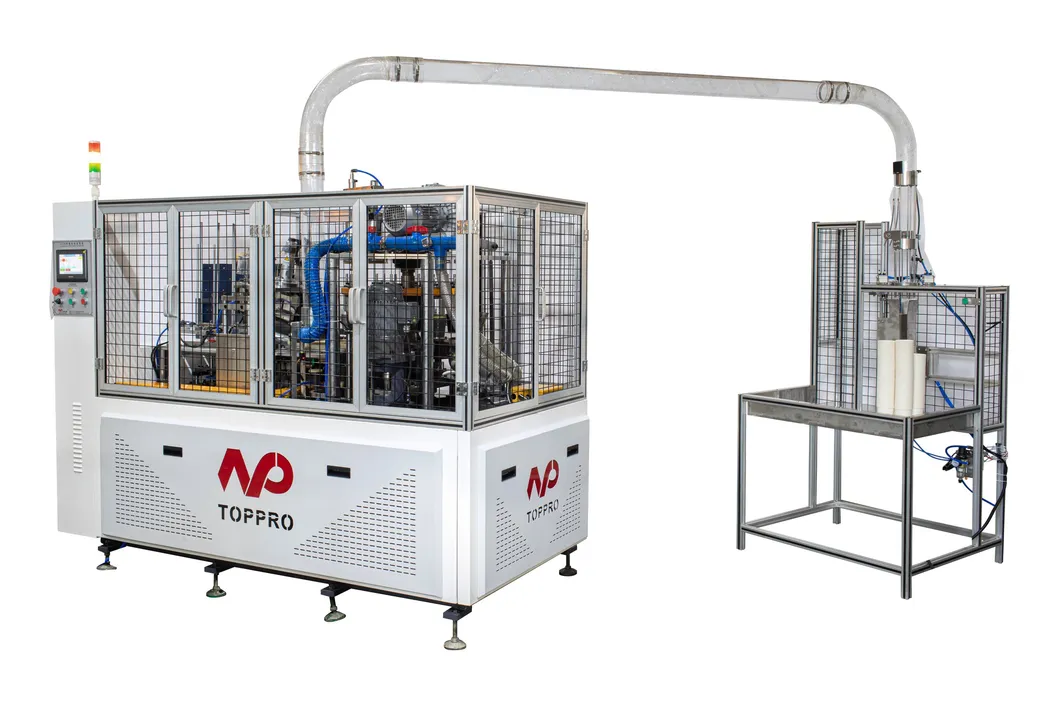

Other Models & Related Machinery

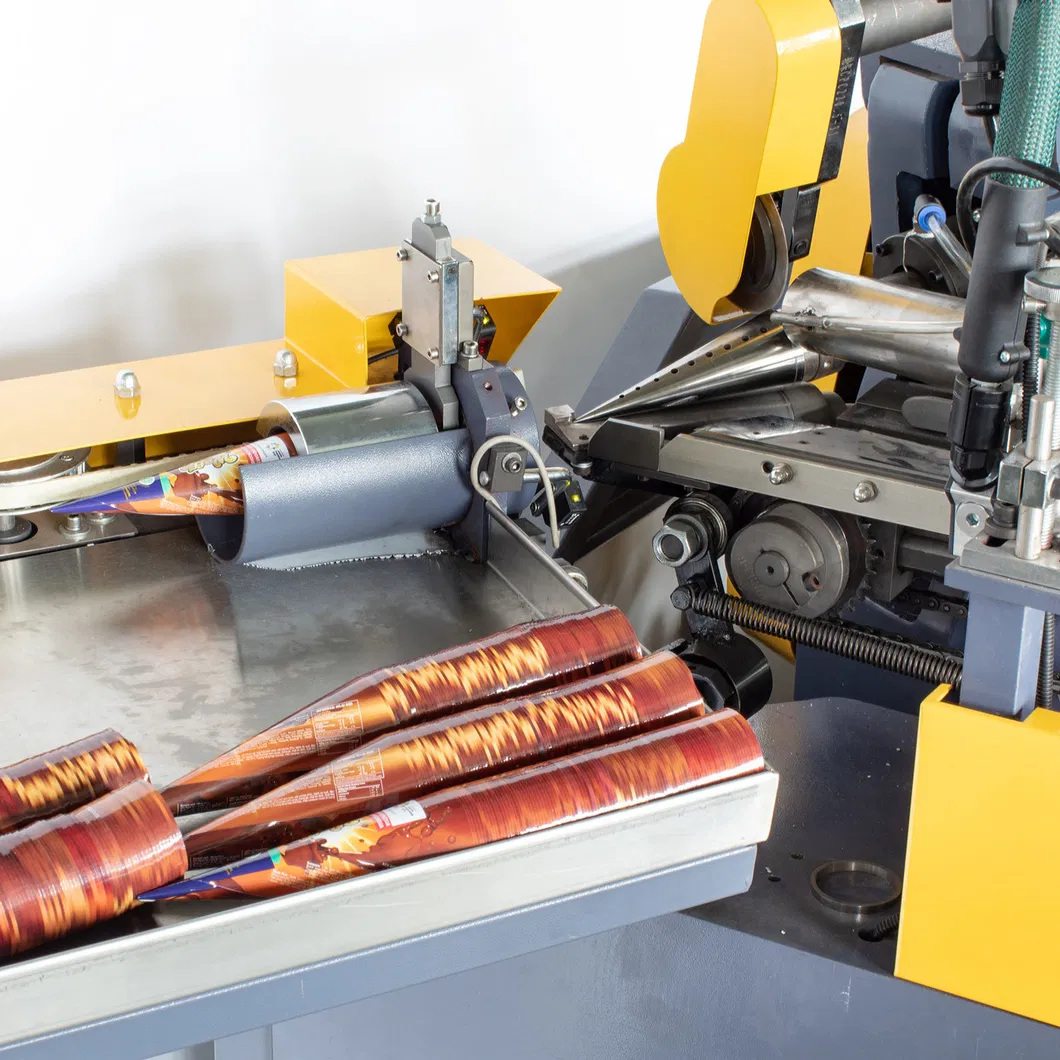

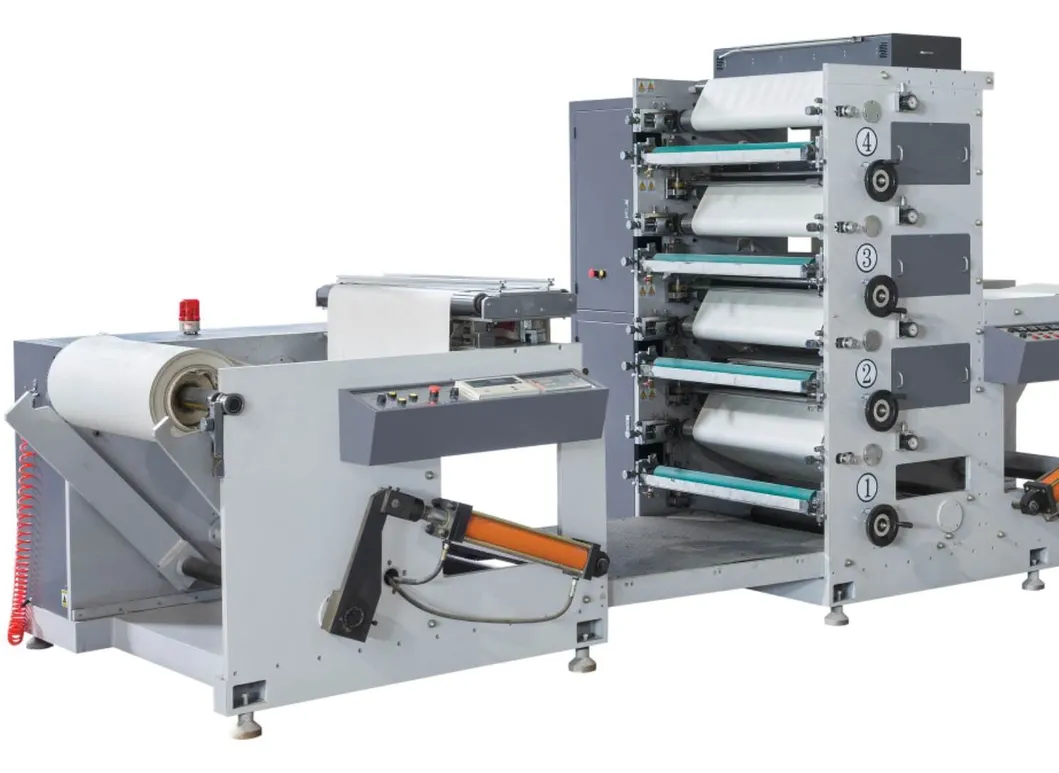

We also provide full production lines including paper bowl machines, die-cutting machines, and ice cream cone sleeve machines.
Packing & After-Sales Service

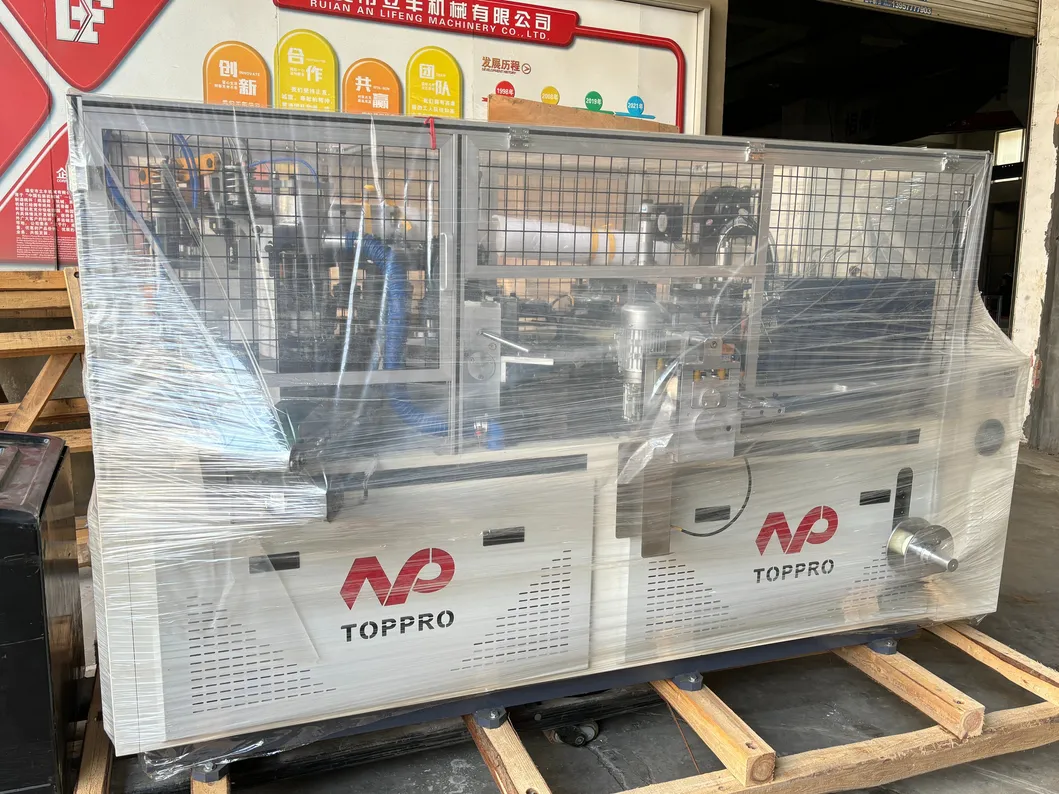

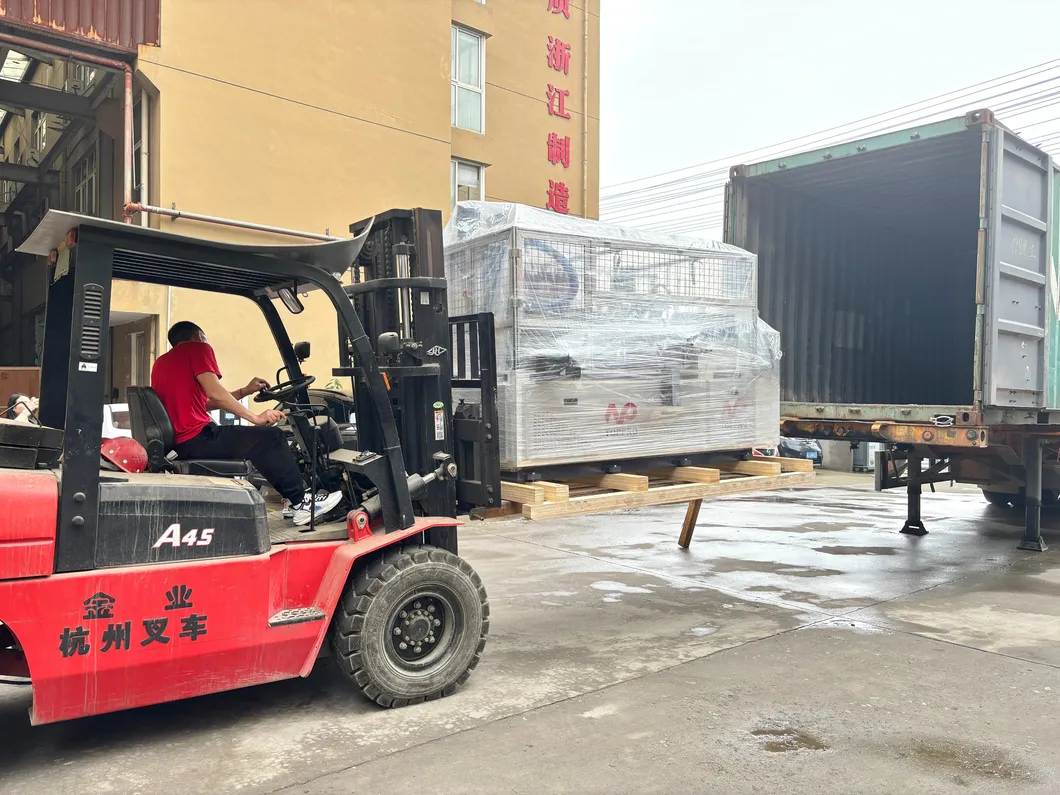

Machines are packed in strong wooden cases. Includes English manual, electric diagram, and operation CD.
- ✓ 1-Year Warranty on all forming machinery.
- ✓ Free consumable spare parts for one year.
- ✓ On-site technician dispatch for installation and adjustment.
- ✓ Comprehensive training until the operator is fully proficient.
Frequently Asked Questions
Q1: What certifications do your machines have?
Our machines are fully certified with CE, BV, and SGS standards.
Q2: What is the standard delivery time?
Normal production takes 25-30 working days. Urgent orders can be discussed based on requirements.
Q3: How do you handle technical problems after purchase?
We provide a 1-year warranty and 24-hour online support. If a problem cannot be solved remotely via video/photo guidance, we can dispatch engineers to your factory.
Q4: Can one machine produce different cup sizes?
High-speed paper cup machines are typically designed for one specific size to maintain stability and speed.
Q5: What materials are compatible with this machine?
The machine uses PE coated paper (single or double side). We can recommend high-quality paper suppliers if needed.
Q6: In what language are the manuals and instructions provided?
All manuals, instructions, and operation videos are provided in English. Custom language options are available upon request.
