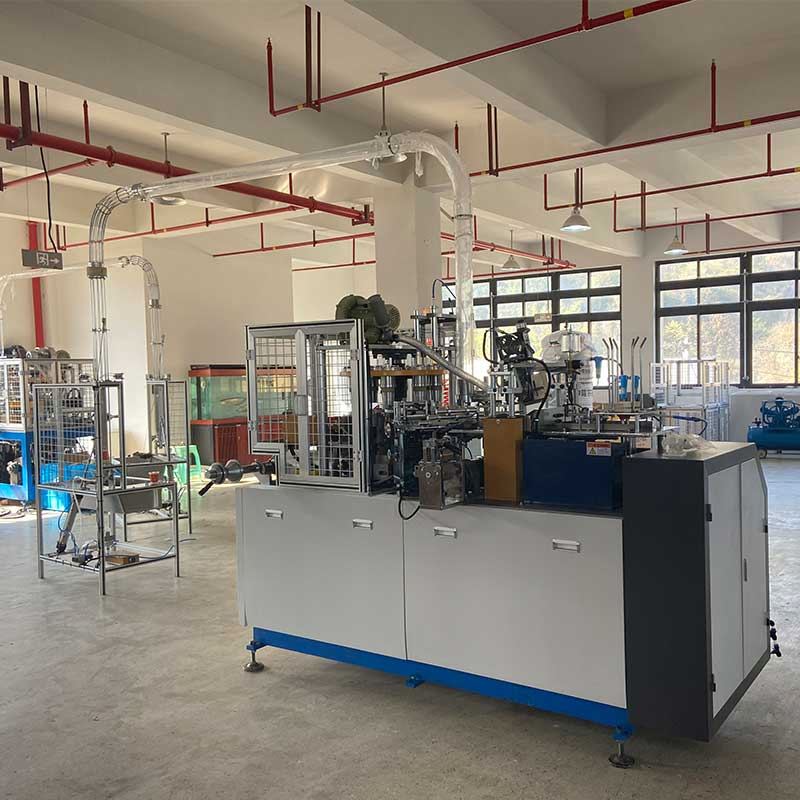

Factory Sales Ultrasonic Handle Sealing Making Automatic Price Paper Cup Forming Machine
Factory Sales Ultrasonic Handle Sealing Making Automatic Price Paper Cup Forming Machine
Factory Sales Ultrasonic Handle Sealing Making Automatic Price Paper Cup Forming Machine
Factory Sales Ultrasonic Handle Sealing Making Automatic Price Paper Cup Forming Machine
Factory Sales Ultrasonic Handle Sealing Making Automatic Price Paper Cup Forming Machine
1 / 5
Factory Sales Ultrasonic Handle Sealing Making Automatic Price Paper Cup Forming Machine
Factory Sales Ultrasonic Handle Sealing Making Automatic Price Paper Cup Forming Machine
Factory Sales Ultrasonic Handle Sealing Making Automatic Price Paper Cup Forming Machine
Factory Sales Ultrasonic Handle Sealing Making Automatic Price Paper Cup Forming Machine
Factory Sales Ultrasonic Handle Sealing Making Automatic Price Paper Cup Forming Machine

Factory Sales Ultrasonic Handle Sealing Making Automatic Price Paper Cup Forming Machine

Customization: Available
Required Paper: Single and Double Side PE Coated Paper
Automation: Automatic
Send Inquiry

Product Description

Basic Information
Model NO.
YC-50-120pcs/min
Logo Printing
With Logo Printing
Certification
CE
Customized
Customized
Condition
New
Product Name
Paper Cup Forming Machine
Finished Products
Paper Cup
Raw Material
160-350gram Paper
Type
Full Automatic
Paper Cup Size
2-16oz
Total Power
4kw/8.5kw
Air Compressor
0.4 M3/Min 0.5MPa
Power Source
220V 380V 50Hz
Weight
1000kg/2500kg
Usage
Drink Paper Cup
After-Sales Service
Video Support
Color
Customized Color
Transport Package
Wooden Box
Specification
2200x1100x1950 MM
Origin
China
HS Code
8441309000
Production Capacity
500 Sets/Month
Product Description

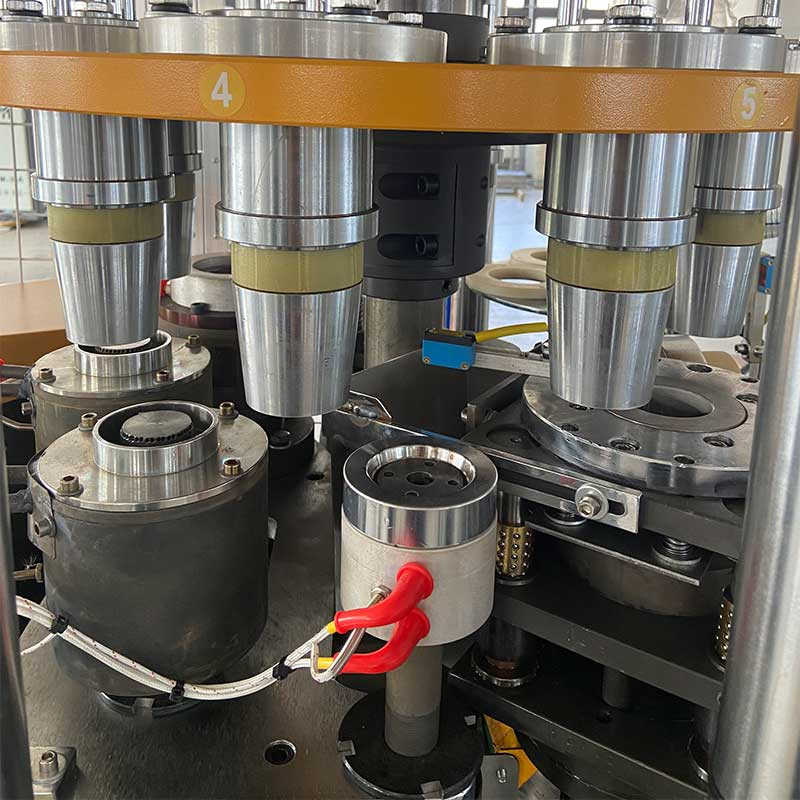

YC-ZG16 paper cup forming machine use open cam system and single aluminium plate, which make machine more faster and stably. The machine have plenty of 14 sensors to follow each process. Machine with Automatic double paper feeding system, ultrasonic, heating sealing, oiling, bottom punching, bottom fold, bottom folding, pre-heating, knurling cup.

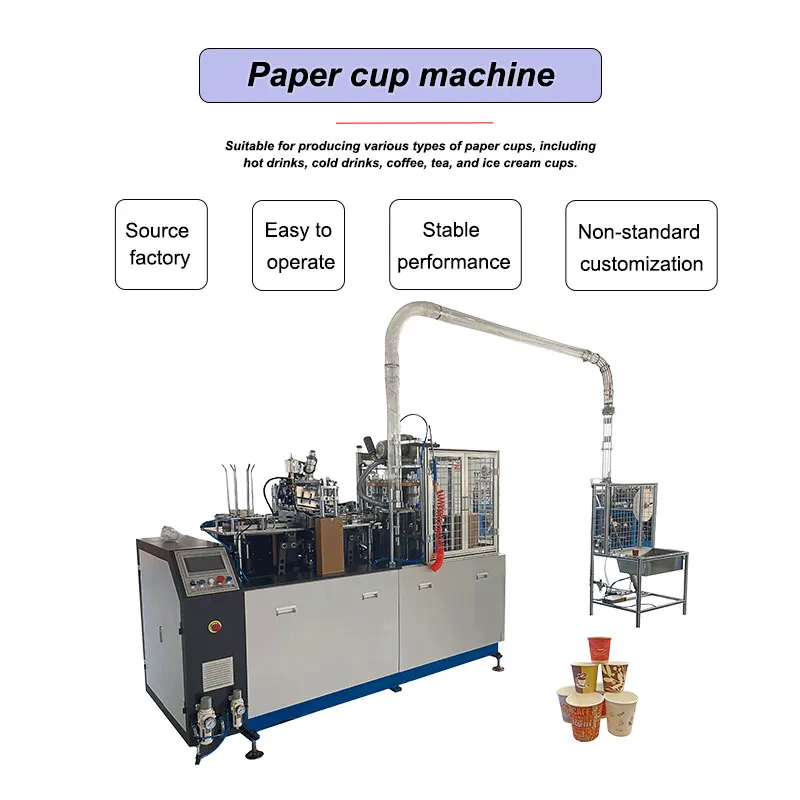

Paper Cup Forming Machine
Product Parameters
TypeYC-ZG2-16
Cup size2-16oz (different size mold exchanged)
Suitable paper materialGray bottom white paper

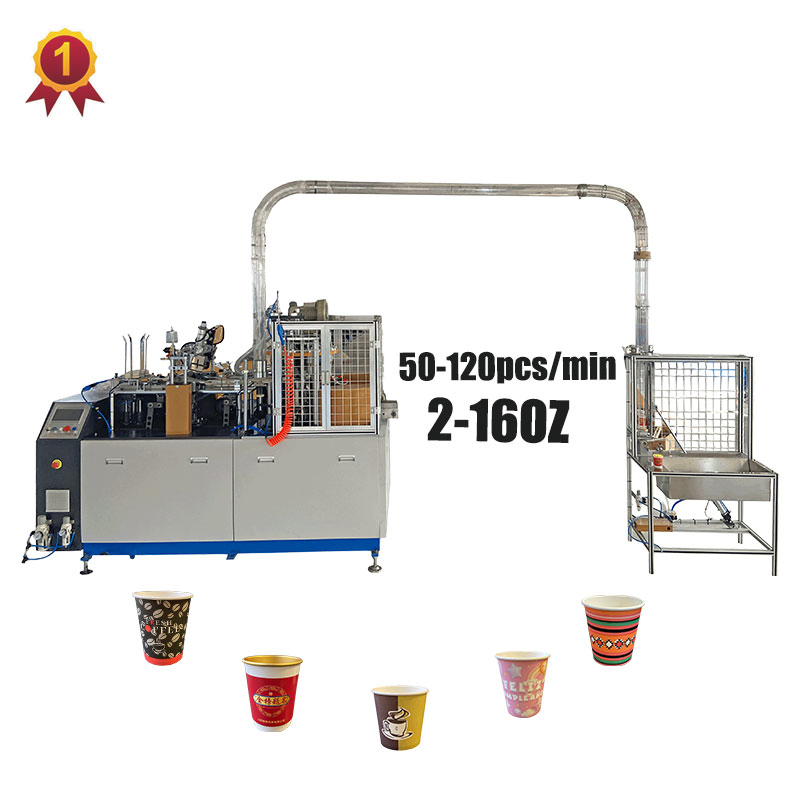

Capacity50-120pcs/min
Finished productsHollow/Ripple wall cups
Paper weight170-400g/m2
Power source220V 380v 50HZ
Total power4KW/8.5kw
Weight1000KG/2500KG
Package size2100*1250*1750 mm
Machine Parameters
Our Advantages
Advantage 1

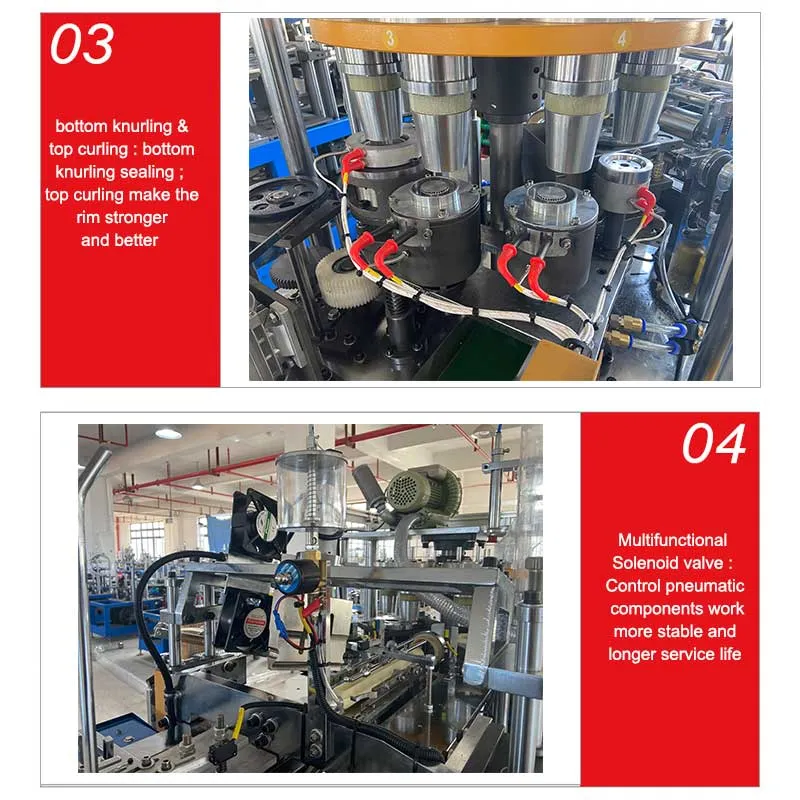

Advantage 2
✓ Multiple feeding for flat fan paper and multiple mediation to avoid unevenness and paper jam problems.

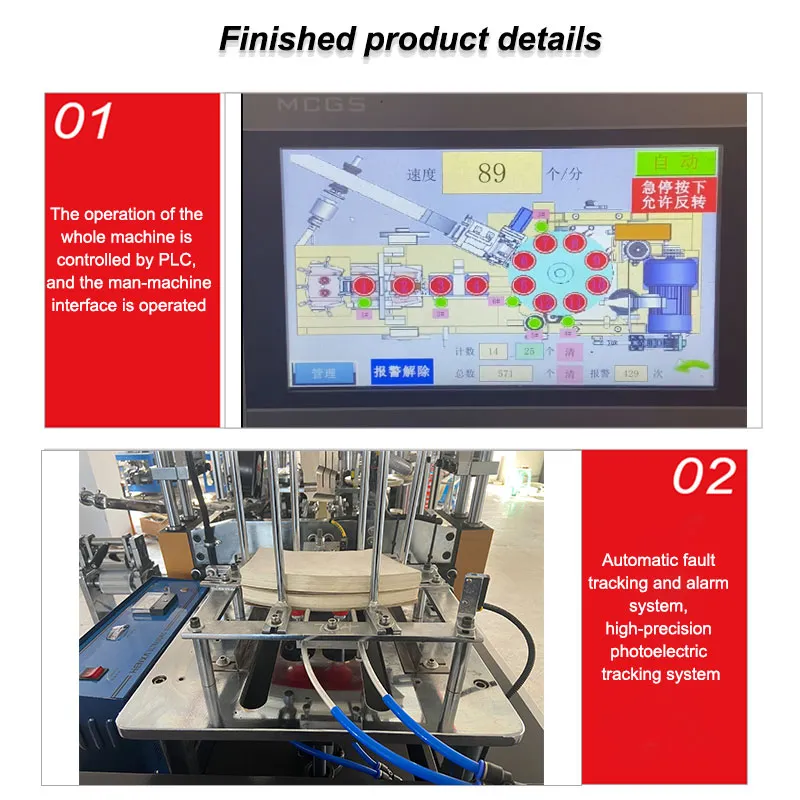

✓ Equipped with 14 sensors to ensure stable operation; includes an automatic alarm and stop system for failures.
✓ Direct feeding system for paper bottom using a servo motor and automatic sensors to reduce waste and feeding issues.
✓ Full automatic oil lubrication system with a continuous oil pump, open cam, and reducer motor for lower failure rates.
✓ Integrated bottom paper cutting system for easy recycling of wasted material.
Detailed Photos

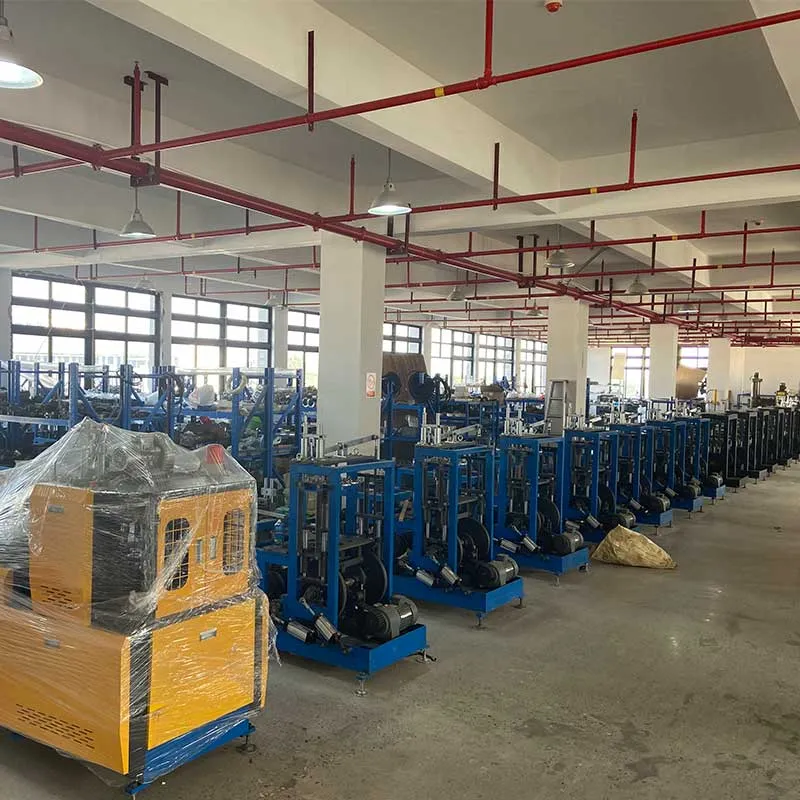

Detail 1

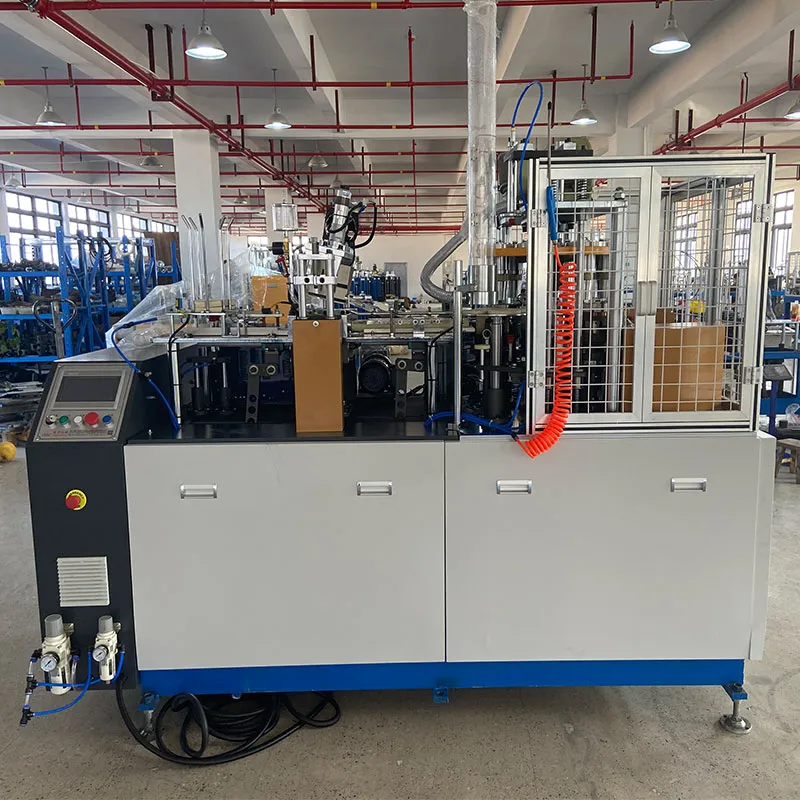

Detail 2

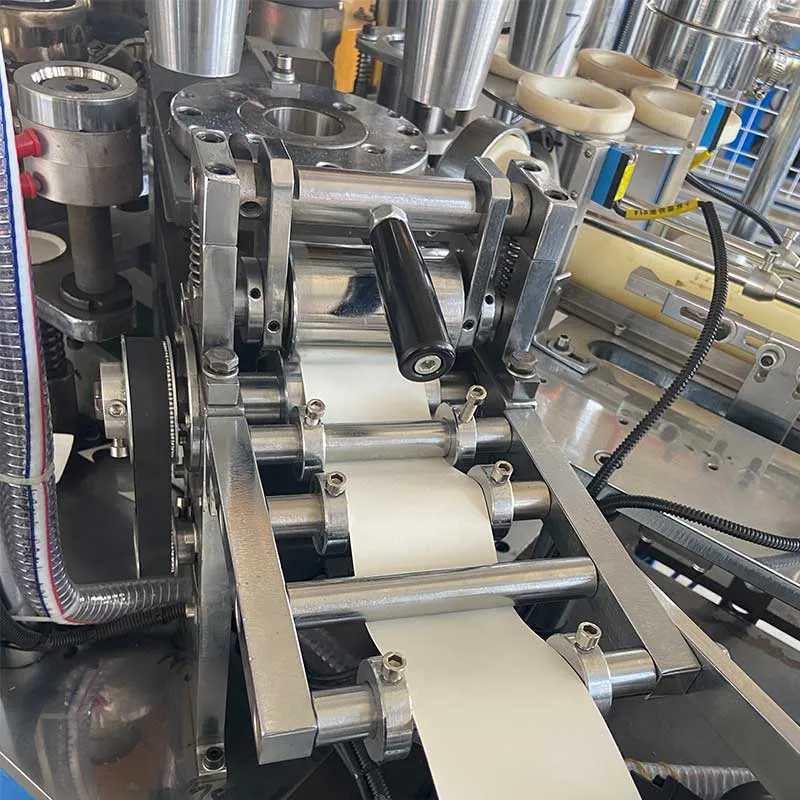

Detail 3

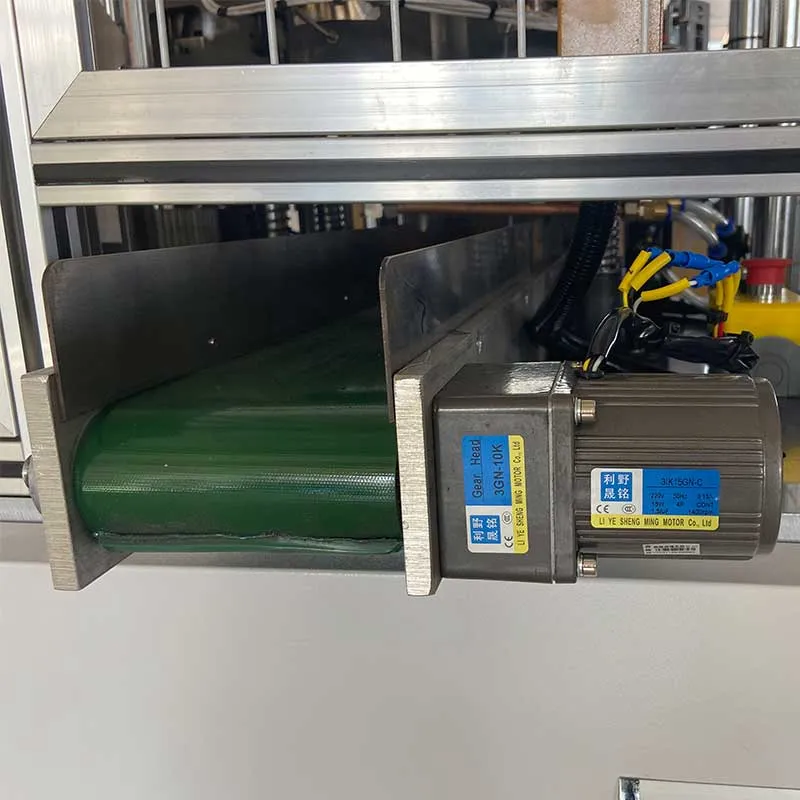

Detail 4

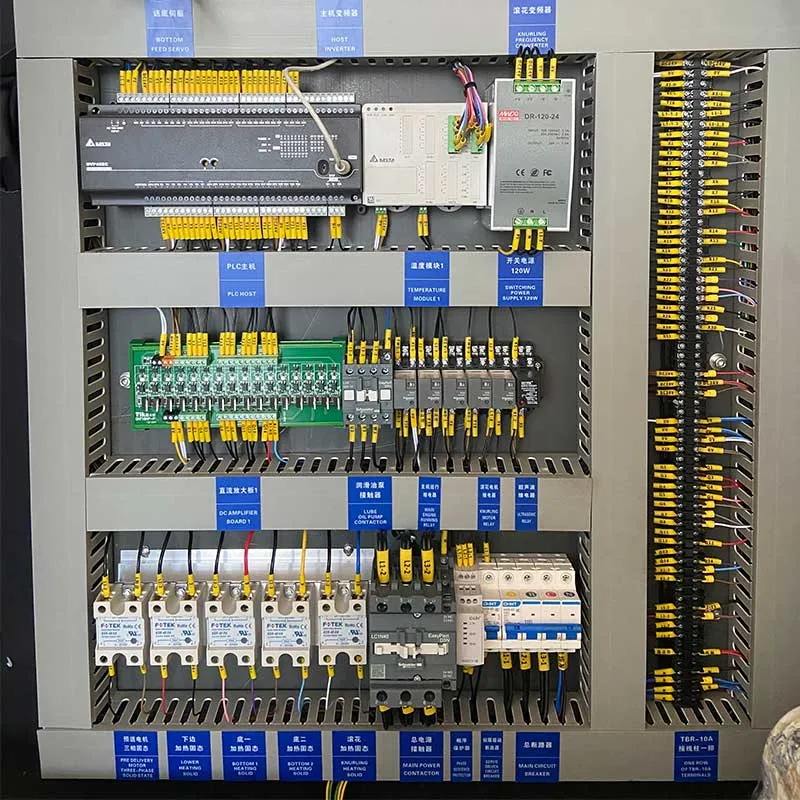

Detail 5

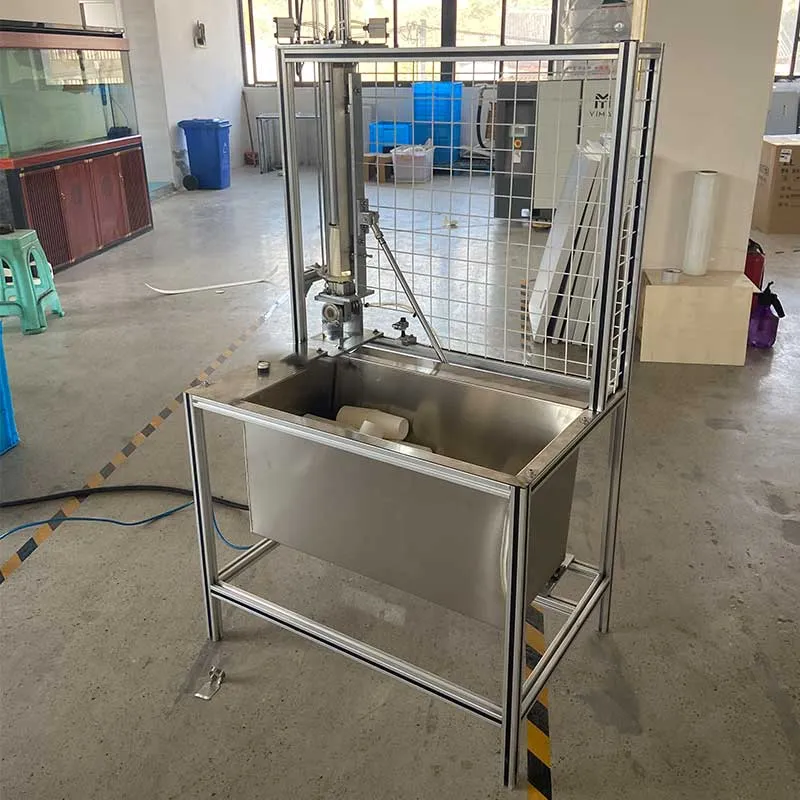

Detail 6
Company Profile

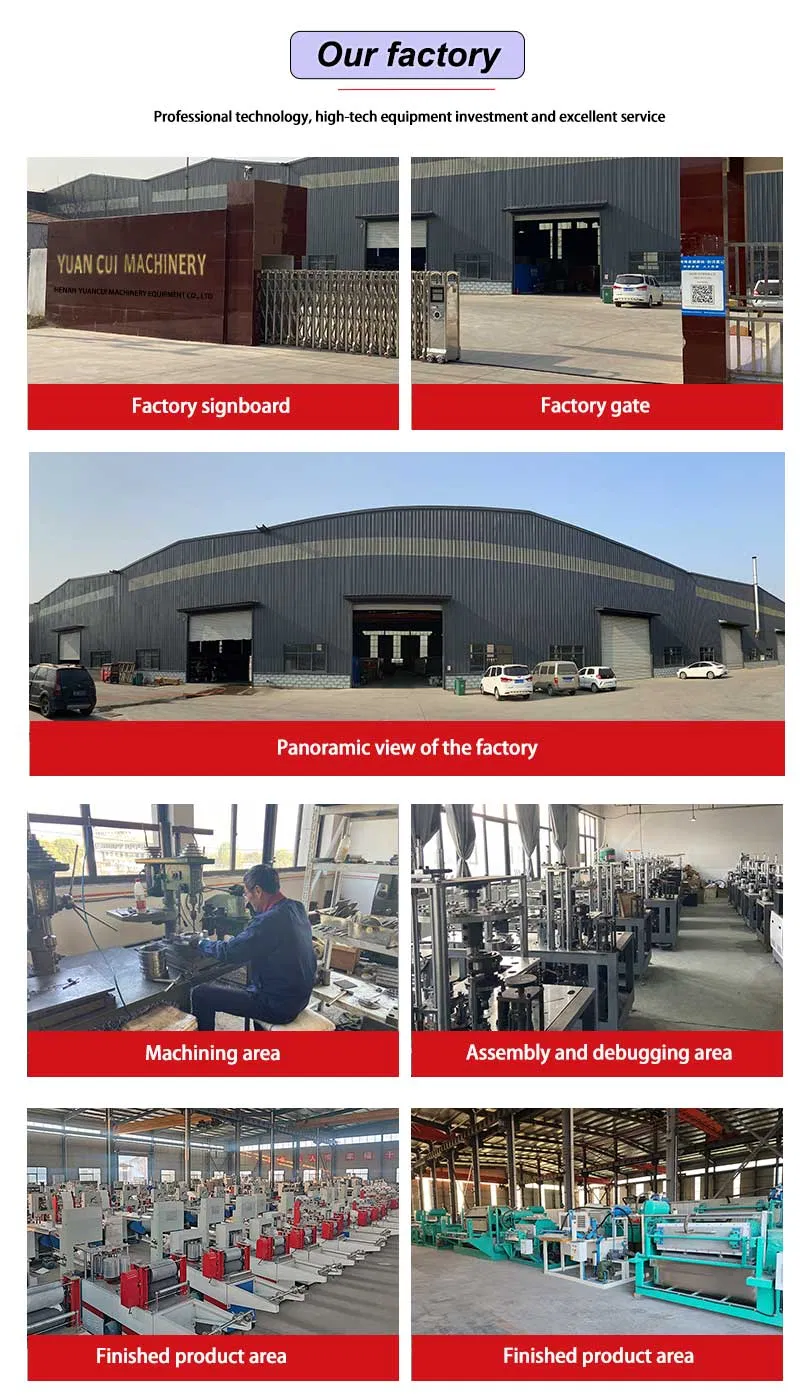

We specialize in the production of household paper towel machines, toilet paper machines, napkin machines, facial tissue machines, egg tray machines, paper cup machines, and other paper processing and pulp molding equipment. With nearly 30 years of experience in R&D and export, we operate across a 10,000 square meter facility. We always adhere to the principle of quality first, meeting customer needs through continuous technological innovation and development, providing high-quality products, reasonable prices, and comprehensive services.
Factory 1
Factory 2
Factory 3
Frequently Asked Questions
Q1. How long is the shelf life of the machine?
A: Machine main parts warranty is 2 years or after the cups capacity reaches 840,000pcs. Electrical parts have a warranty of 1 year.
Q2. Do you have quality certificates?
A: Yes, we have obtained the CE certificate for our machines.
Q3. What is the delivery time?
A: Generally around 20~30 days, depending on the specific order requirements.
Q4. How does your factory handle quality control?
A: Quality is our priority. We attach great importance to quality control from start to finish: 1) Skillful workers handle every detail in production and packing; 2) A dedicated Quality Control Department checks each process.
Q5. What terms of payment do you usually use?
A: T/T 30% deposit and 70% before machine loading, Western Union, or L/C at sight.
Q6. Can the machine produce different sizes?
A: Yes, the machine can produce different sizes from 2-16oz by exchanging the corresponding molds.
