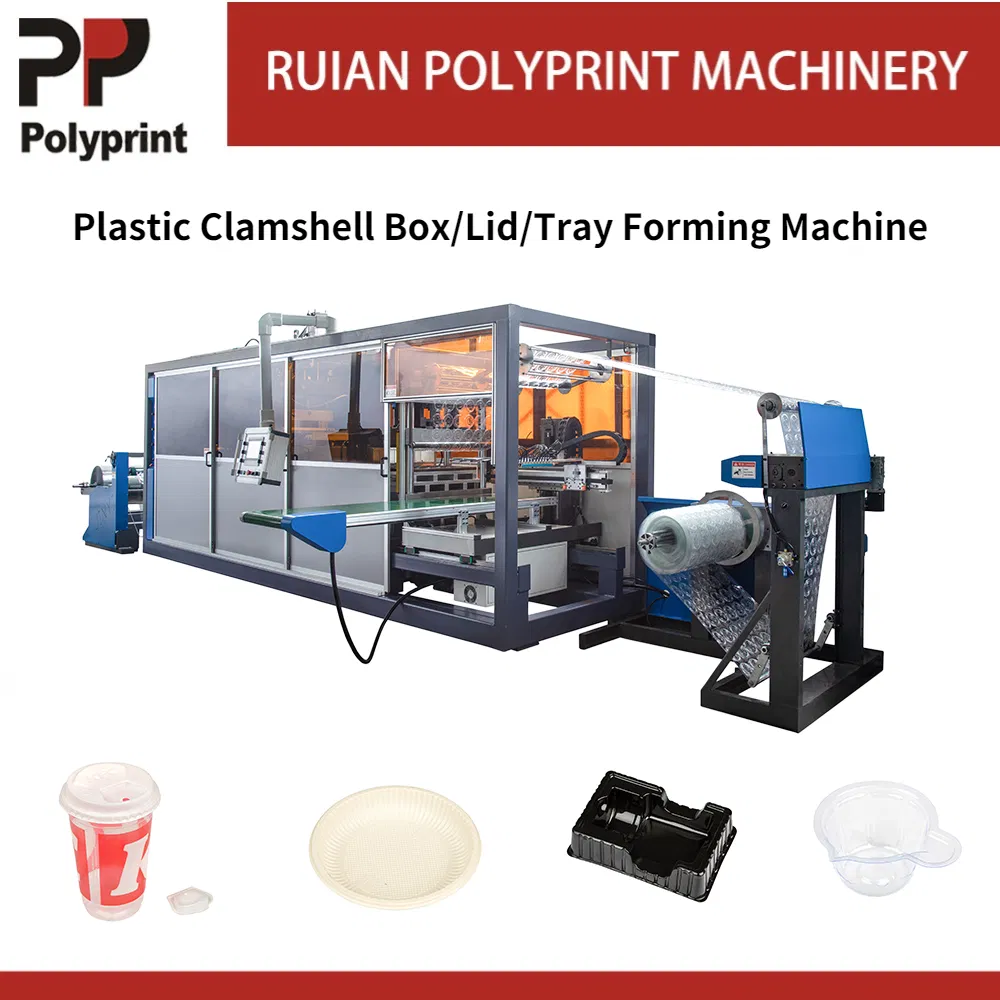

1. The PPBG-750 automatic positive and negative pressure molding machine is an advanced independent development of a fully functional automatic model, integrating leading technologies from the plastic machinery industry. It represents a major innovation and is the ideal update model for traditional plastic machines.

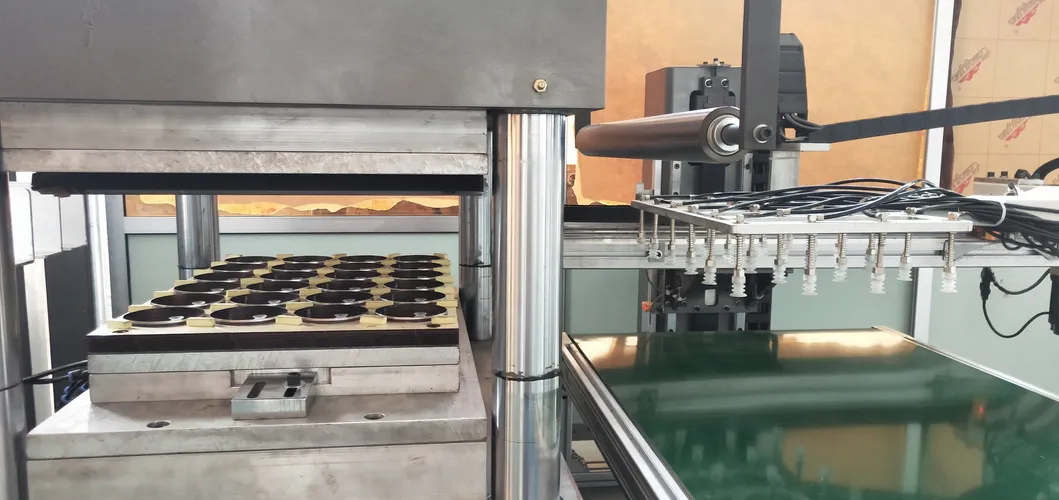

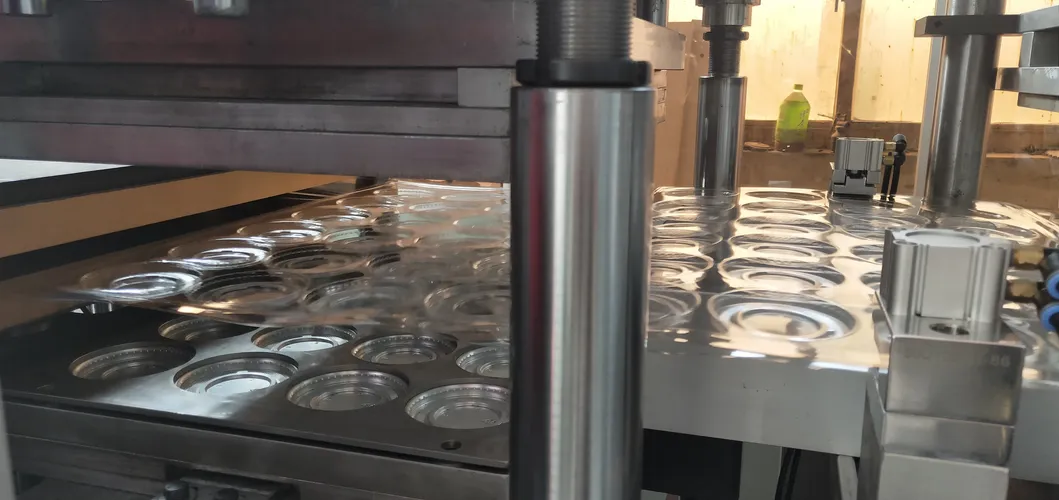

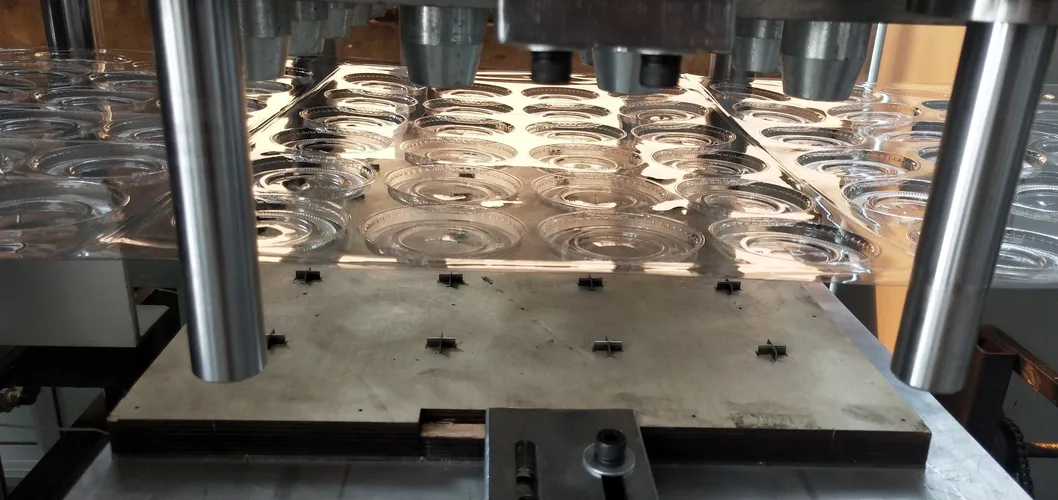

2. This machine utilizes laminating heating and moving film punching technology, ensuring no secondary pollution and high sanitary standards. It streamlines production by combining positive pressure, negative pressure, automatic molding, punching, cutting, and manipulator stacking/counting into a single continuous production line. This eliminates the need for manual punching and subsequent processing, significantly reducing labor costs and quality issues while saving workspace.

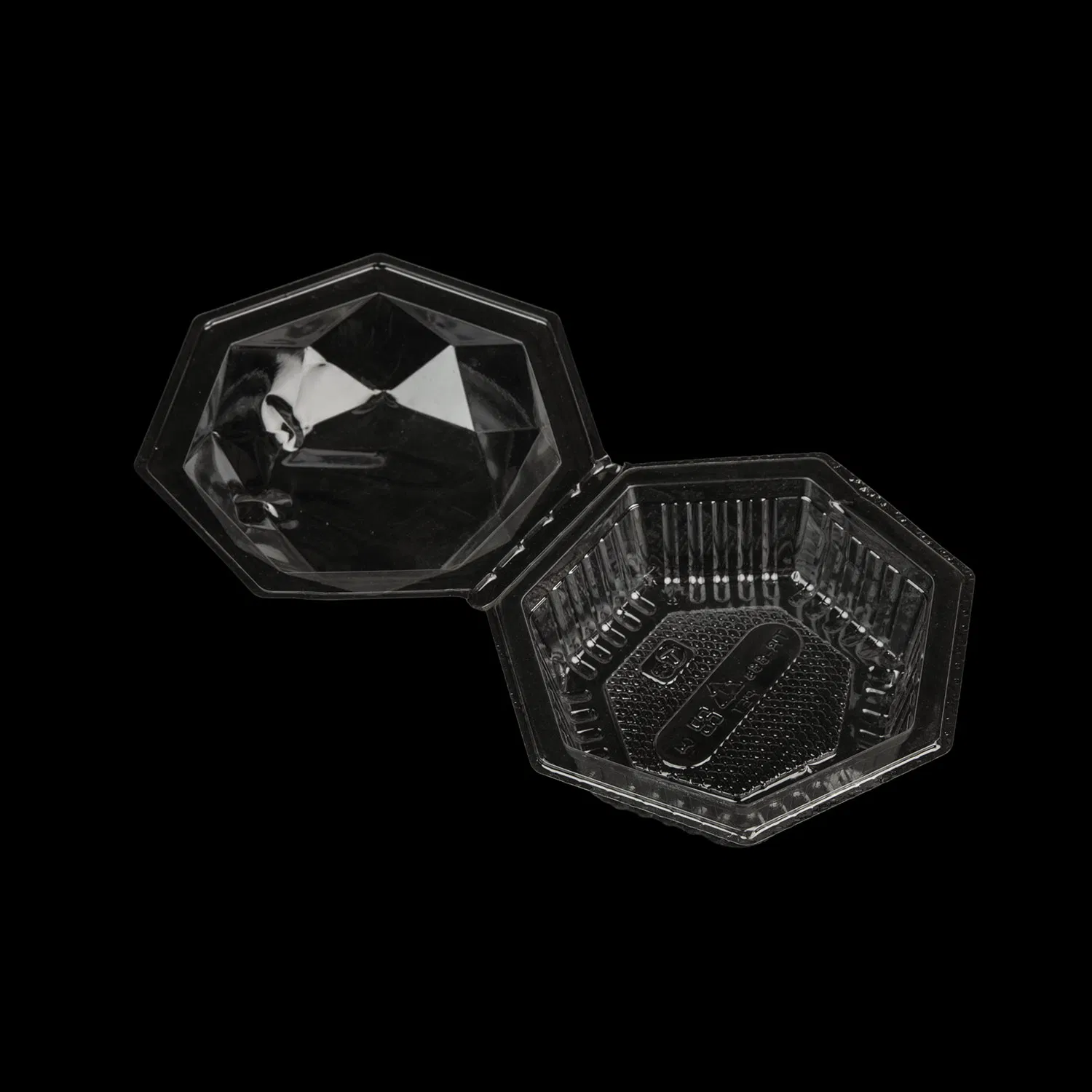

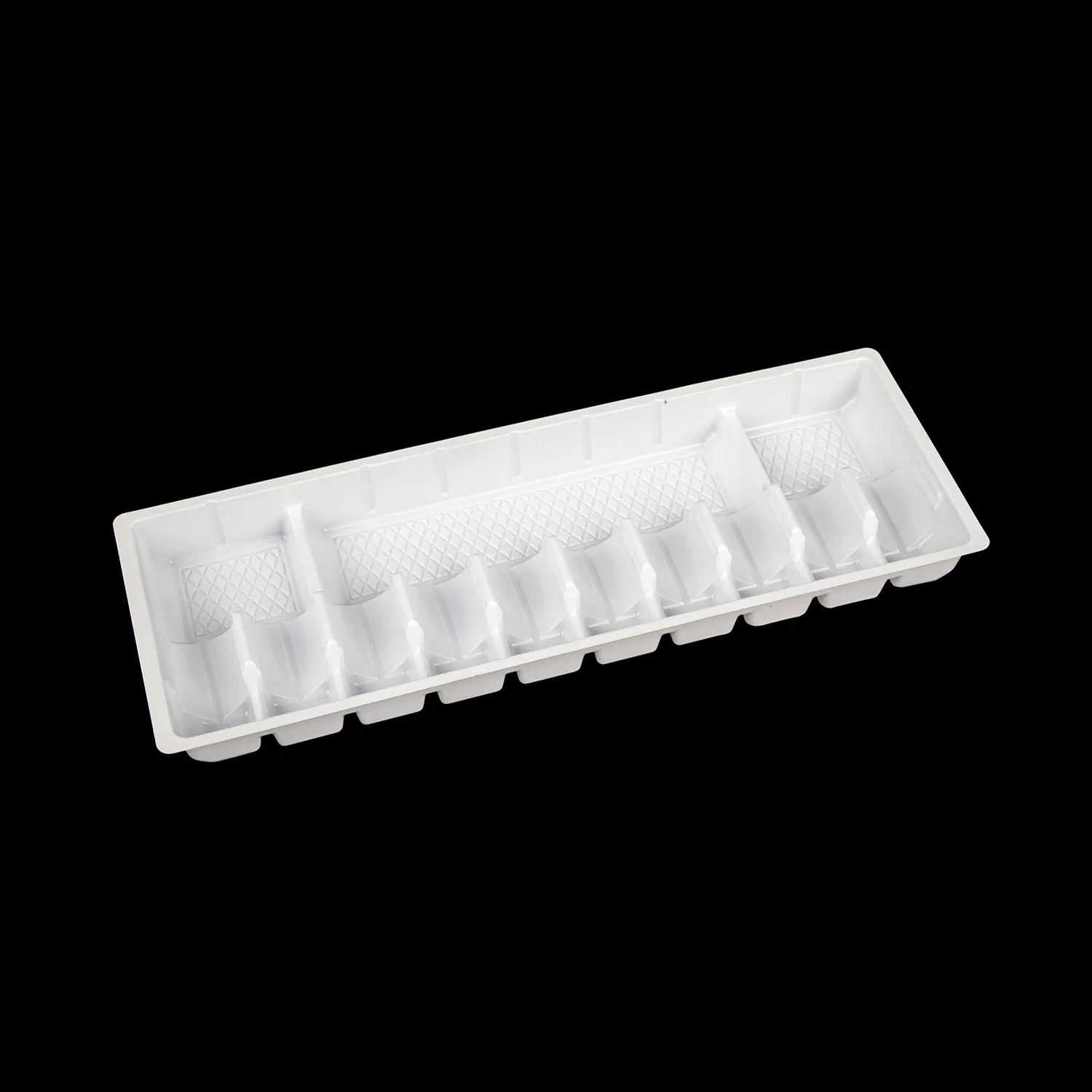

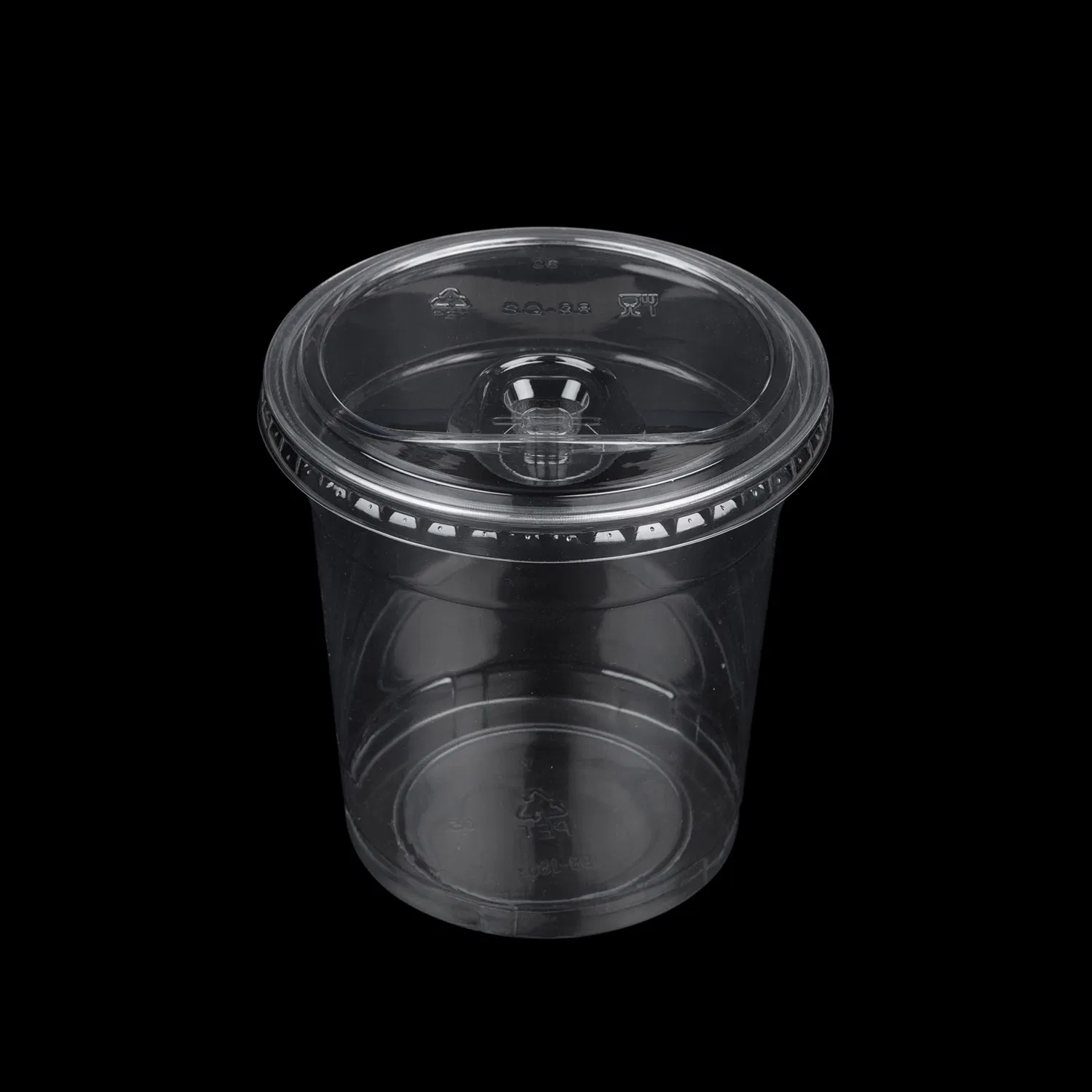

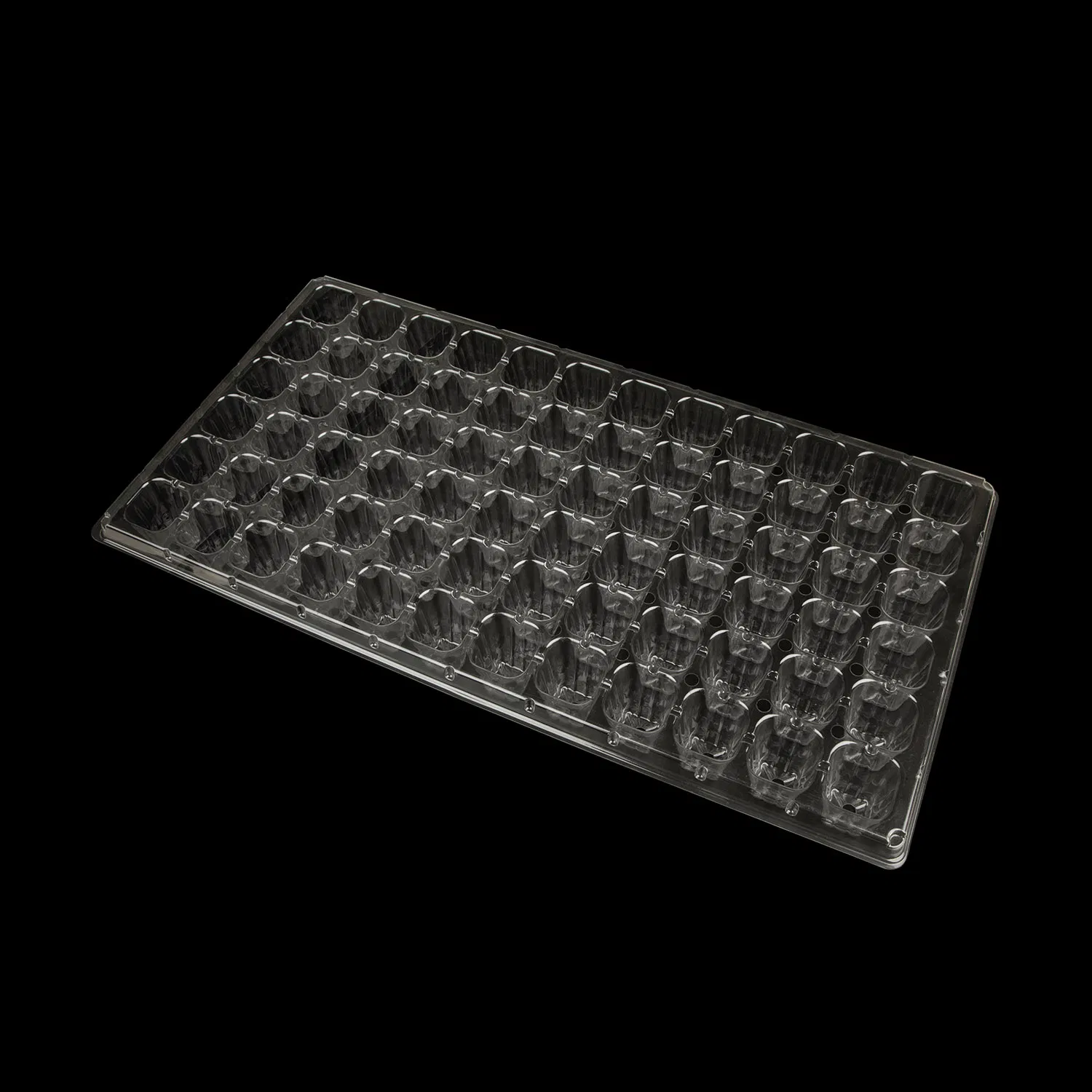

3. This model is suitable for high-demand blister products including: blueberry boxes, fruit box lids, fresh food trays, moon cake trays, disposable fast-food containers, noodle bowl covers, milk tea and coffee lids, ice cream cups, medicine packaging, and electronic equipment blister packaging. It delivers a bright, clean cutting edge and uniform thickness.
| No. | Item Description | Specification Details |
|---|---|---|
| 1 | Suitable Products | Disposable plastic lids, egg trays, clamshell boxes, plates etc. |
| 2 | Suitable Materials | PLA, PVC, PS, PET, PP sheet |
| 3 | Thickness Range | 0.1-1.5mm |
| 4 | Stroke Range | 30-440mm |
| 5 | Max. Forming Depth | 120mm |
| 6 | Max. Forming Area | 730x500mm |
| 7 | Industry Voltage | 380V/50Hz (Three Phase, Four Wires) |
| 8 | Total Power | 28kW |
| 9 | Max. Speed | 10-40 Cycles/Min (Robot max 25 cycles/Min) |
| 10 | Max. Cutting Force | 30Ton/0.8Mpa |
| 11 | Air Pressure | 0.5-0.7MPa |
| 12 | Air Consumption | ≥ 0.3 m3/h |
| 13 | Cooling Water | Normal Tap Water Recycle Cooling |
| 14 | Noise | <75Db |
| 15 | Machine Dimension | 7300×1500×1820mm |
| 16 | Machine Weight | 4300kg |
The machine is compatible with a wide range of materials including PLA, PVC, PS, PET, and PP sheets.
The machine operates at a speed of 10-40 cycles per minute, with a maximum of 25 cycles per minute when using the stacking robot.
It is designed for ultra-low energy consumption, utilizing only 8 kW/h during operation despite its high output capacity.
Yes, it is a fully automatic production line that integrates positive/negative pressure molding, punching, cutting, and robotic arm stacking/counting.
The machine can achieve a maximum forming depth of 120mm, making it suitable for fruit boxes and deep food trays.
We offer a 1-year warranty on the machine and provide technical support through engineer-led installation and training services.
