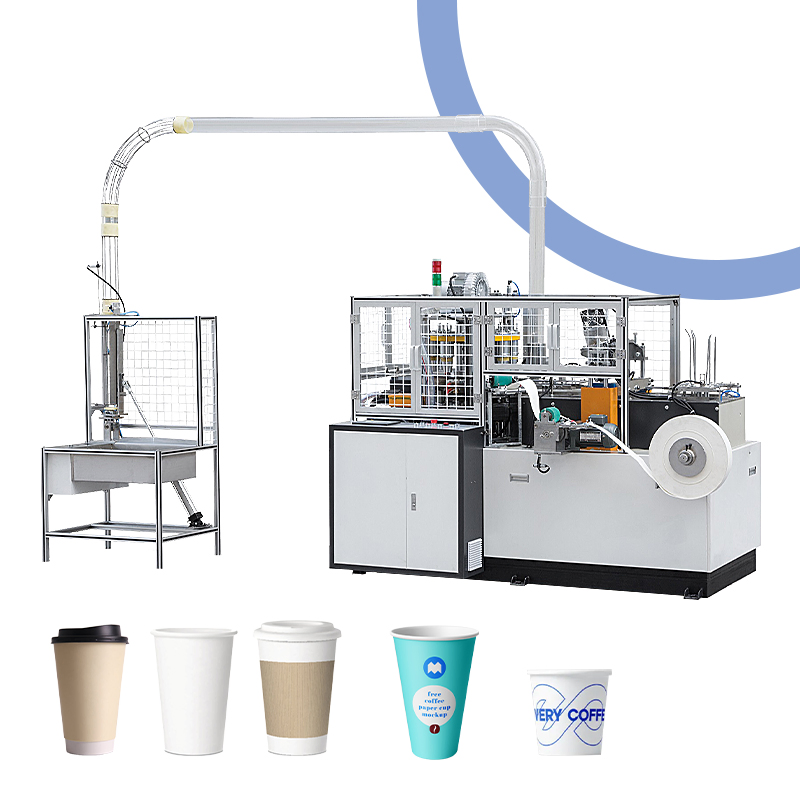

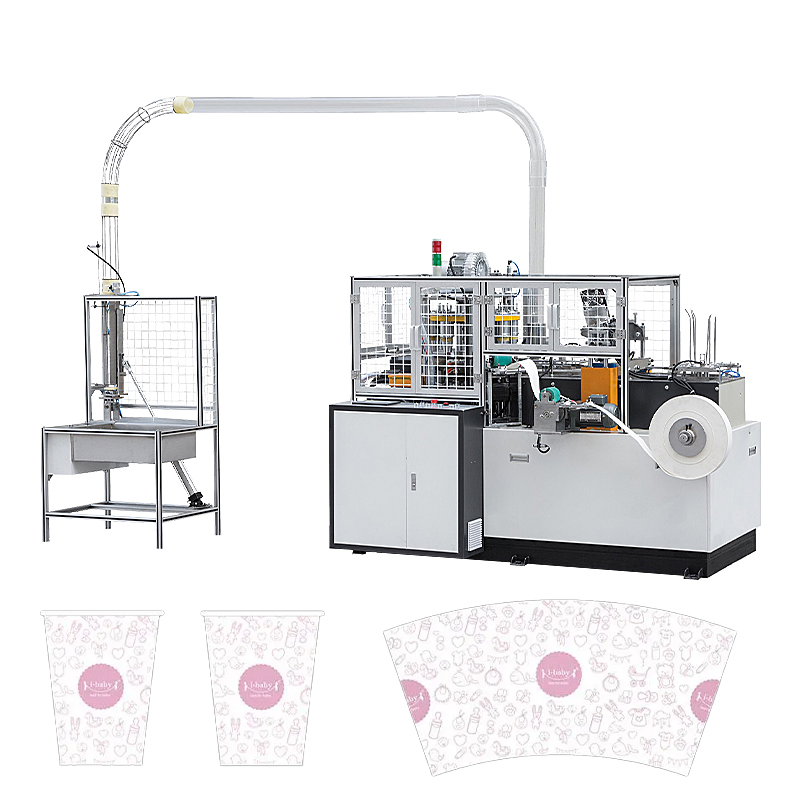

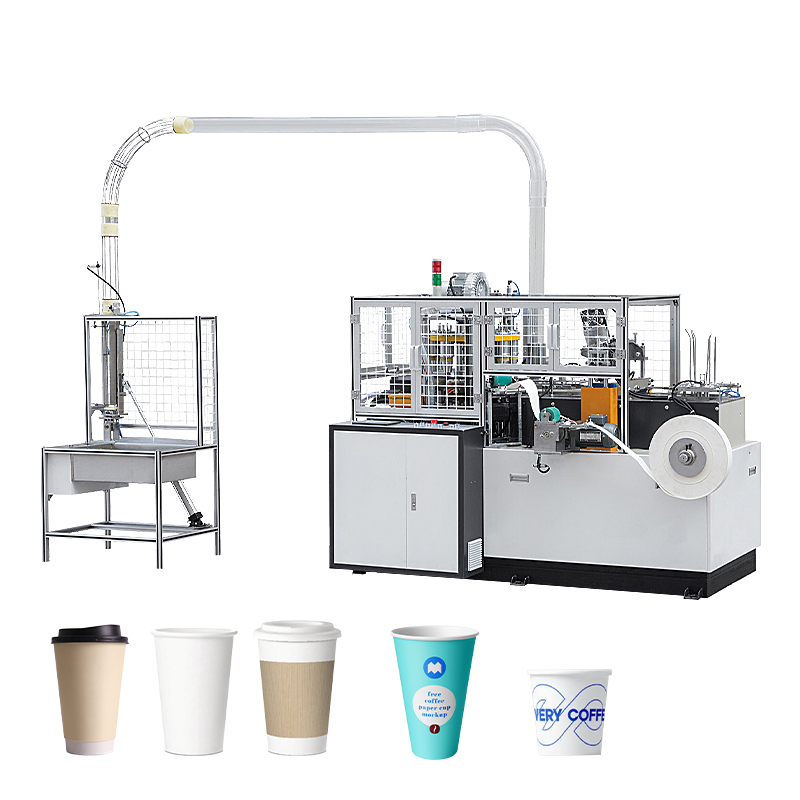

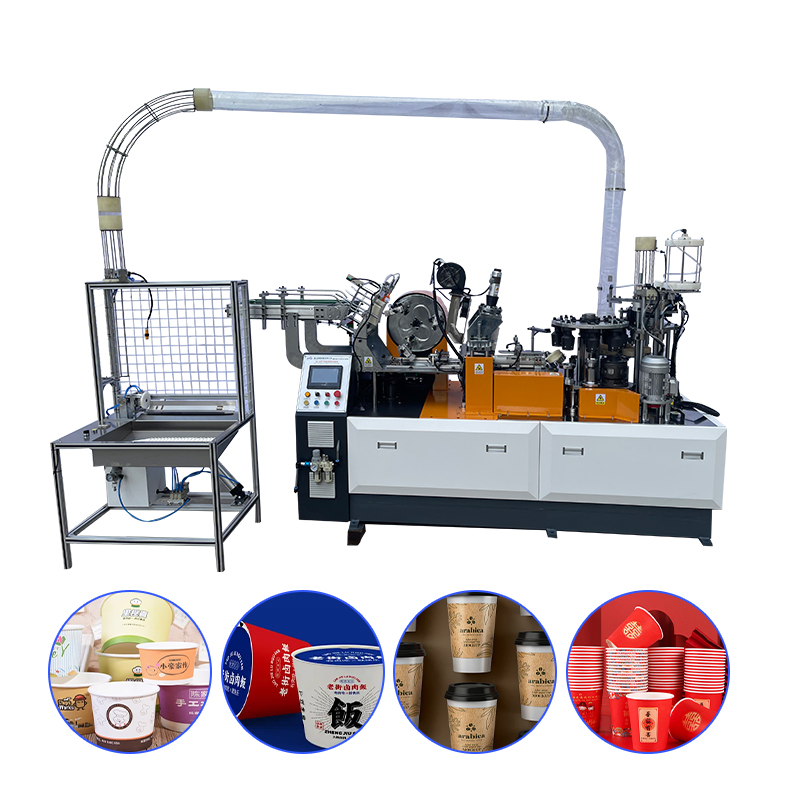

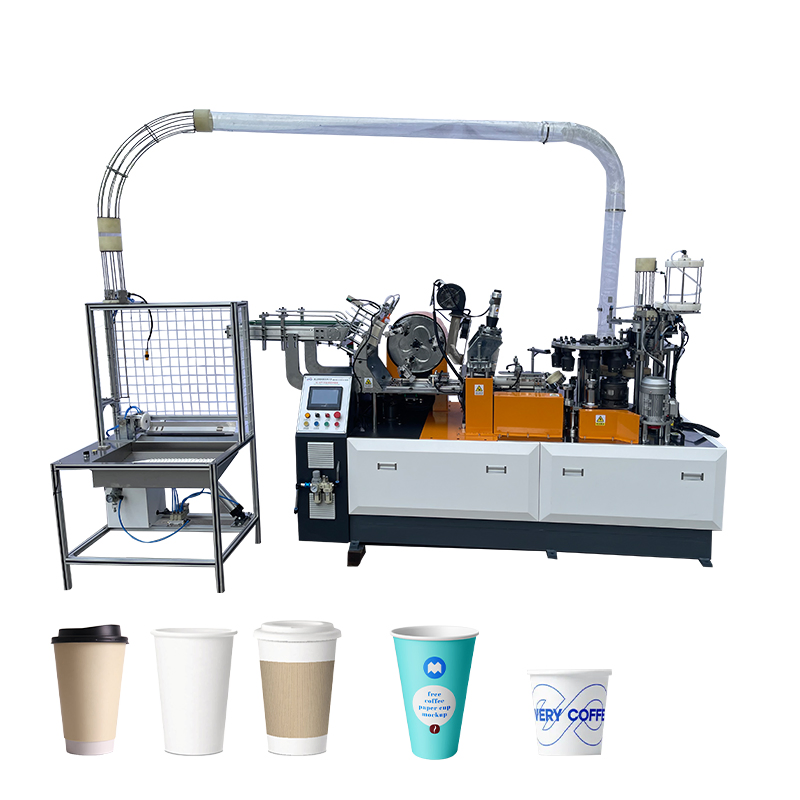

China Best Machine Paper Cup Forming Making Machinery with Lids for Coffee Ice Cream Salad Bowl Paper Bucket Machine
China Best Machine Paper Cup Forming Making Machinery with Lids for Coffee Ice Cream Salad Bowl Paper Bucket Machine
China Best Machine Paper Cup Forming Making Machinery with Lids for Coffee Ice Cream Salad Bowl Paper Bucket Machine
China Best Machine Paper Cup Forming Making Machinery with Lids for Coffee Ice Cream Salad Bowl Paper Bucket Machine
China Best Machine Paper Cup Forming Making Machinery with Lids for Coffee Ice Cream Salad Bowl Paper Bucket Machine
1 / 5
China Best Machine Paper Cup Forming Making Machinery with Lids for Coffee Ice Cream Salad Bowl Paper Bucket Machine
China Best Machine Paper Cup Forming Making Machinery with Lids for Coffee Ice Cream Salad Bowl Paper Bucket Machine
China Best Machine Paper Cup Forming Making Machinery with Lids for Coffee Ice Cream Salad Bowl Paper Bucket Machine
China Best Machine Paper Cup Forming Making Machinery with Lids for Coffee Ice Cream Salad Bowl Paper Bucket Machine
China Best Machine Paper Cup Forming Making Machinery with Lids for Coffee Ice Cream Salad Bowl Paper Bucket Machine

China Best Machine Paper Cup Forming Making Machinery with Lids for Coffee Ice Cream Salad Bowl Paper Bucket Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
YG-120
Cup Size(Ounce)
2-12OZ
Speed
100-120pcs/min
Required Paper
Single and Double Side PE Coated Paper
Automation
Automatic
Logo Printing
With Logo Printing
Certification
CE
Item
High Speed Ultrasonic Paper Cup Machine
Paper Cup Size
Top: 160-115mm Bottom: 40-85mm
Paper Weight
135-450g
Heating Method
Hot Air & Ultrasonic
Power
12kw, 380V/220V, 60Hz/50Hz
Air Source
0.4 M3/Min, 0.5MPa
Net Weight
3400kg
Machine Dimension
2500*1800*1700mm
HS Code
8441309000
★

Product Description

6oz 7oz 16oz double wall paper cup making machine

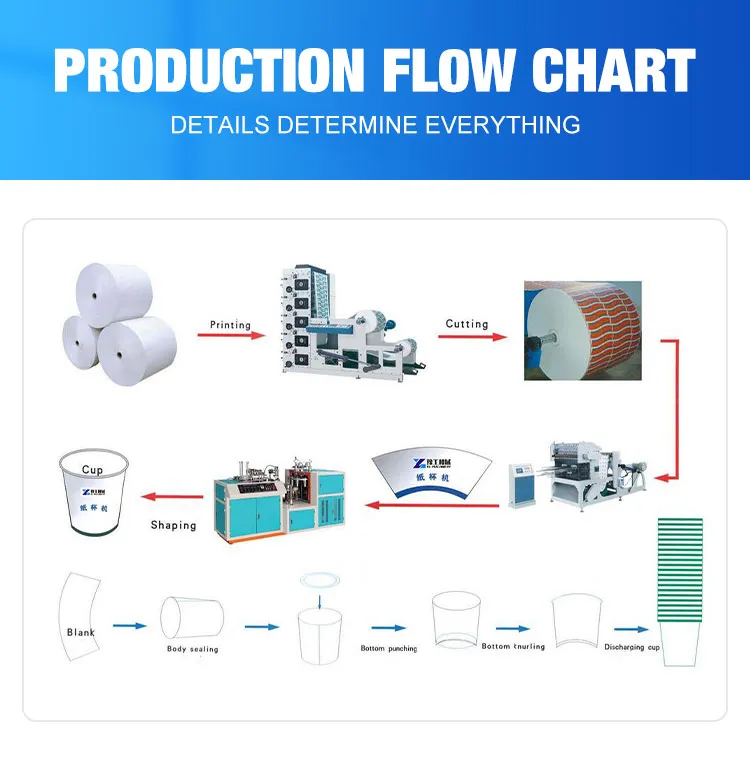

This paper cup machine is improved based on the normal chain driving type. It performs a complete procedure including paper-feeding, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding, and tripping. It is ideal equipment for producing drinking cups, market cups, coffee cups, advertising cups, and more, widely used for both hot and cold beverages.

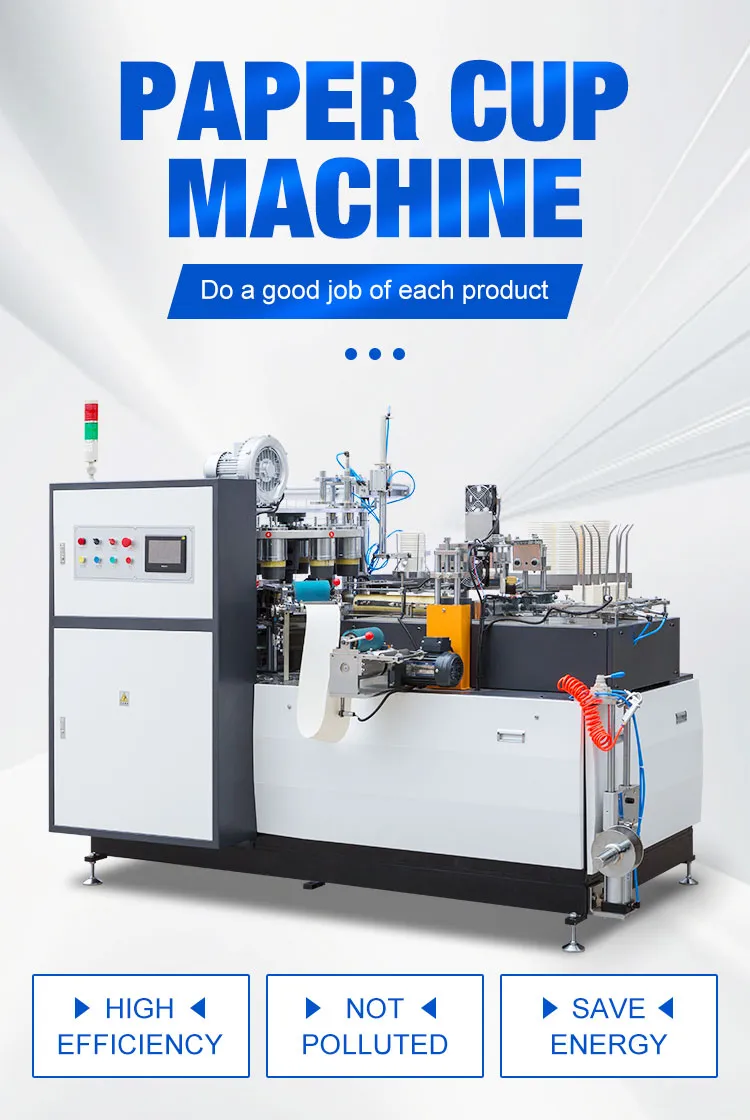

Paper Cup Forming Machinery

Key Features:

✔Three-times paper feeding system with multiple mediation to avoid unevenness.
✔Slotted wheel design for tighter internal connections and stable operation.
✔Single plate bottom punching and cup route offset to prevent paper jams.
✔Automatic time-controlled oil lubrication for stable, maintenance-free running.

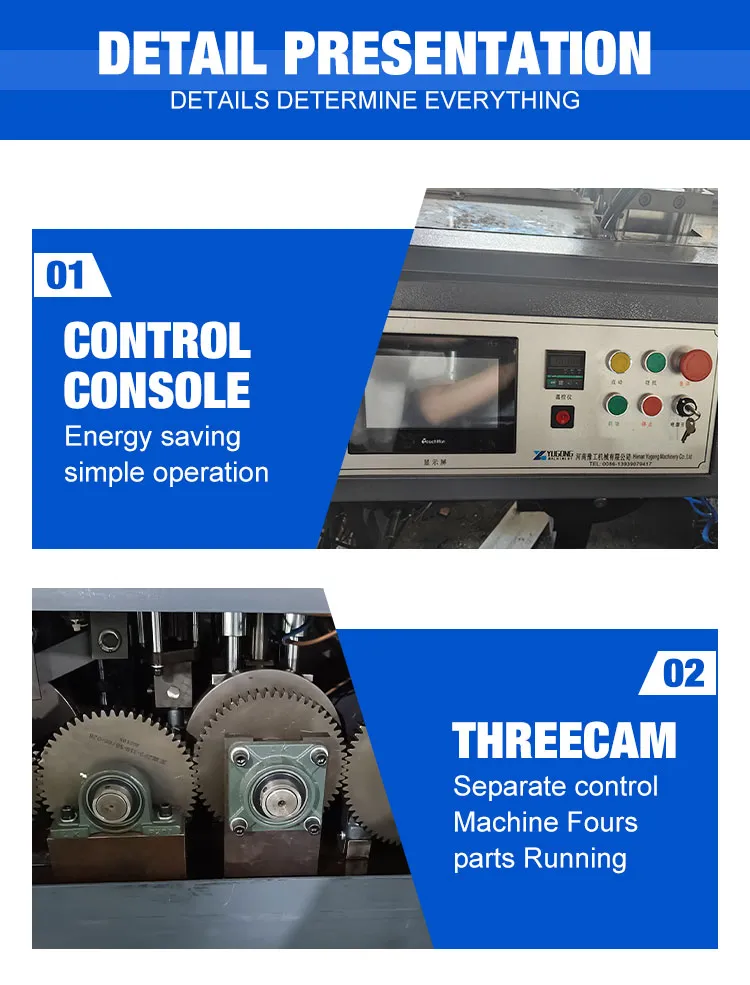

✔Open cam running system reduces malfunction rates and increases production speed.
✔Square steel body construction (2500kg) ensures stability under high-speed operation.
✔Equipped with Taiwan brand reducer and NSK bearings.
⚙

Technical Specifications

Parameter Details
Speed100-120 pcs/min
Cup Size RangeTop: 60-125mm | Bottom: 45-100mm | Height: 60-170mm
Raw Material135-450 GRAM Paper
ConfigurationUltrasonic & Hot Air System
Output Power12KW, 380V/220V, 60HZ/50HZ
Air Compressor Requirement0.4 M³/Min, 0.5MPA
Machine Dimension2500 × 1800 × 1700mm
Cup Collector Dimension900 × 900 × 1760mm
📷

Product Gallery

Machine Detail 1
Machine Detail 2
Machine Detail 3

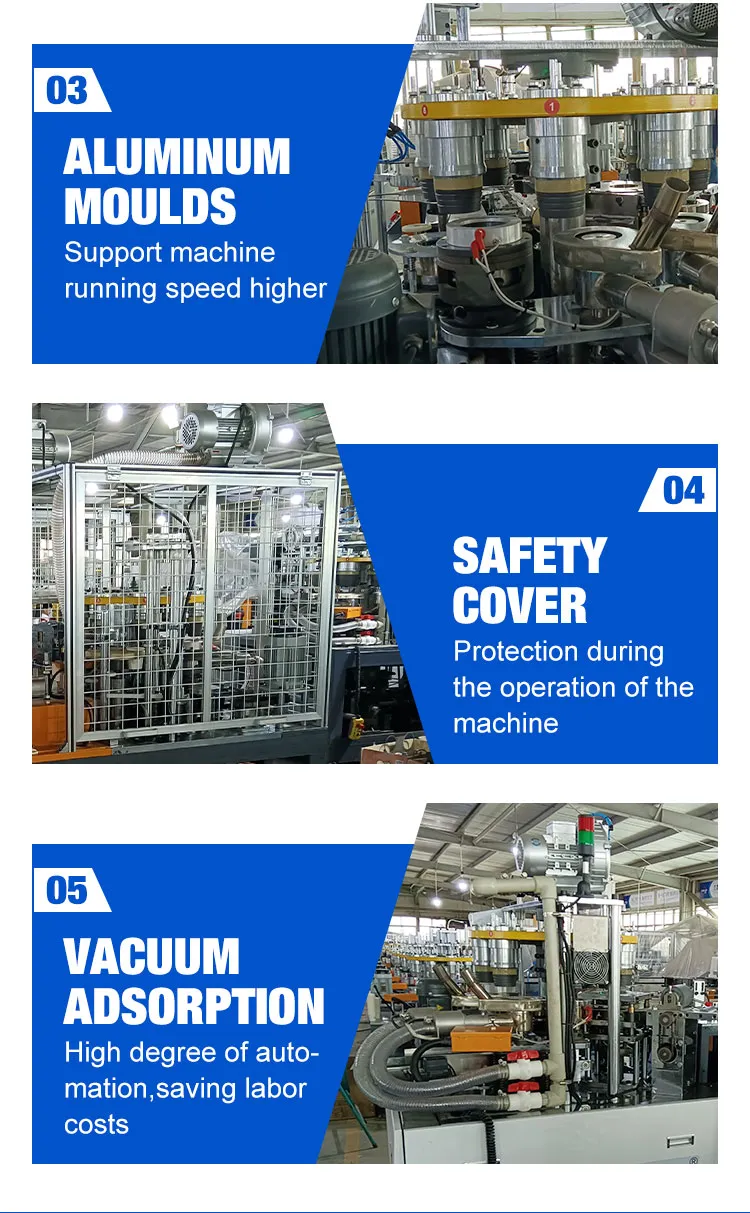

Machine Detail 4
Machine Detail 5
Machine Detail 6
Machine Detail 7
Machine Detail 8
?

Frequently Asked Questions

What is the production speed of the YG-120 machine?
The machine operates at a high speed of 100 to 120 pieces per minute, depending on the cup size and material quality.
What range of cup sizes can this machine produce?
It is versatile and can produce paper cups ranging from 2oz to 12oz, with adjustable dimensions for top diameter, bottom diameter, and height.
Does the machine support double-sided PE coated paper?
Yes, the machine is compatible with both single and double-side PE coated paper, making it suitable for both hot and cold drink applications.
What heating system does the machine use?
The YG-120 utilizes a combination of Hot Air and Ultrasonic heating systems to ensure strong and leak-proof sealing.
How is the machine lubricated?
The machine features an automatic time-controlled oil lubrication system, which ensures all moving parts are consistently lubricated for stable operation.
What are the power and air requirements?
The machine requires a 12KW power supply (380V/220V) and an air source providing 0.4 M³/Min at 0.5MPa.
