Machine for Making The Cone-Shaped Paper Cups for Ice Cream and Water

Customization:	Available
Power Source:	Electric
Automatic Grade:	Manual

Send Inquiry

Product Description

Basic Specifications

Model:CPC-220

Application:Ice Cream, Candy, Chocolate, Popcorn

Shape Angle:17 Degree - 28 Degree

Length:110-250mm

Function:Make Paper Cone Sleeve Cups

Production Capacity:50 Sets/Month

Transport Package:Wooden Case

Package Size:1850 * 1750 * 1800mm

Product Description

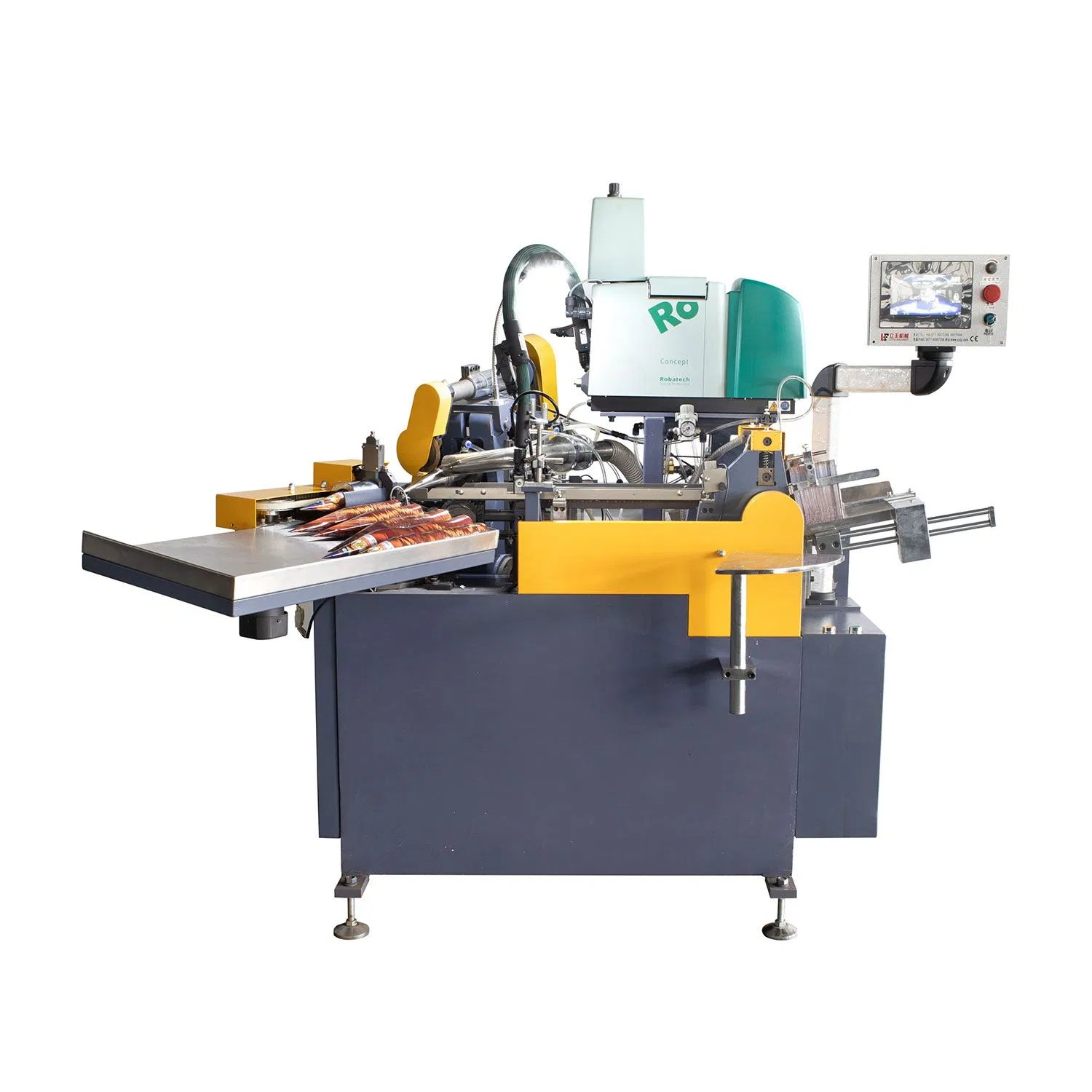

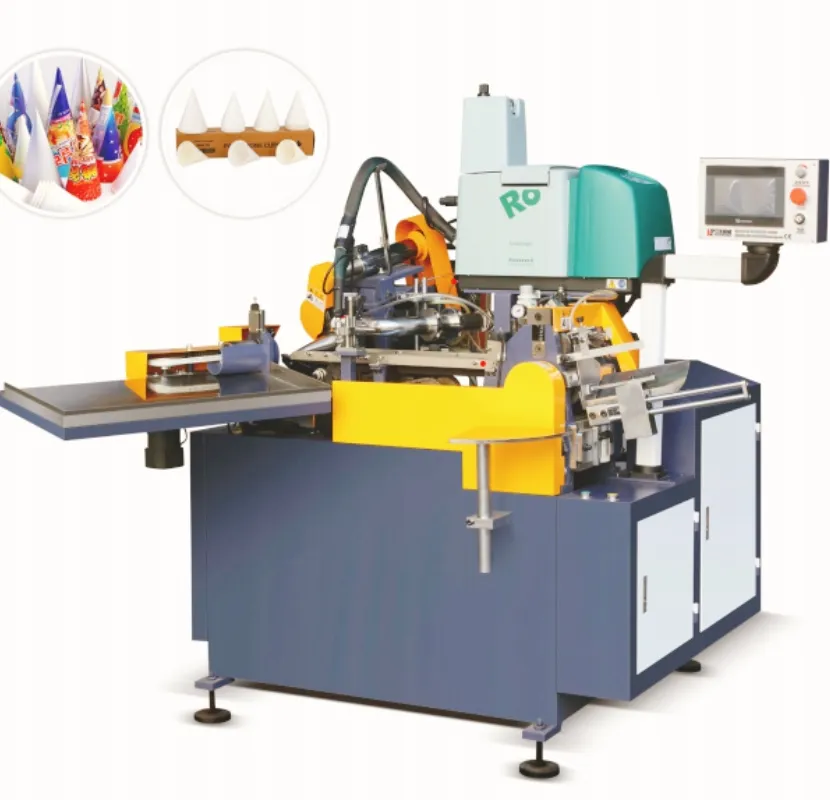

The CPC-220 automatic paper cone sleeve machine is designed for ice cream and similar paper cone sleeves. This high-efficiency equipment can shape angles from 17° to 28° by changing molds, achieving speeds between 190-230 pcs/min. It is compatible with various materials including art paper, aluminized paper, and offset paper. Key components feature world-renowned brands such as Schneider, Panasonic, and Robatech.

Versatile cone cup angles between 15°- 28° and lines from 10-25cm.

Fully certified with CE and SGS standards.

Equipped with a micro-computer controlled system for precise operation.

High-speed performance reaching 160-190pcs/min (up to 230pcs/min).

Photoelectric tracing system for automatic alarm and safety stop.

Technical Parameters

Specification Item	Technical Detail
Paper Request	80-170g/m² art paper, aluminized paper, offset paper, wax paper, etc.
Voltage Supply	220v 50hz / 380v 50hz or customized
Cup Size Range	4 - 10 oz
Production Speed	190 - 230 pcs/min
Angle Degree	17° - 28°
Cone Line Range	Min 110mm - Max 250mm
Main Brands	PLC: Mitsubishi \| Glue: Robatech \| Transducer: Schneider \| Sensor: Omron

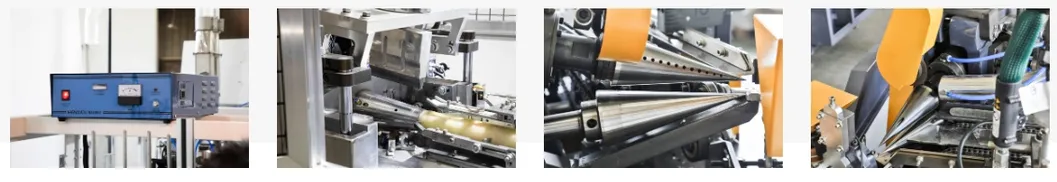

Detailed Component Analysis

Electrical System: Imported configuration for strong versatility and excellent performance.

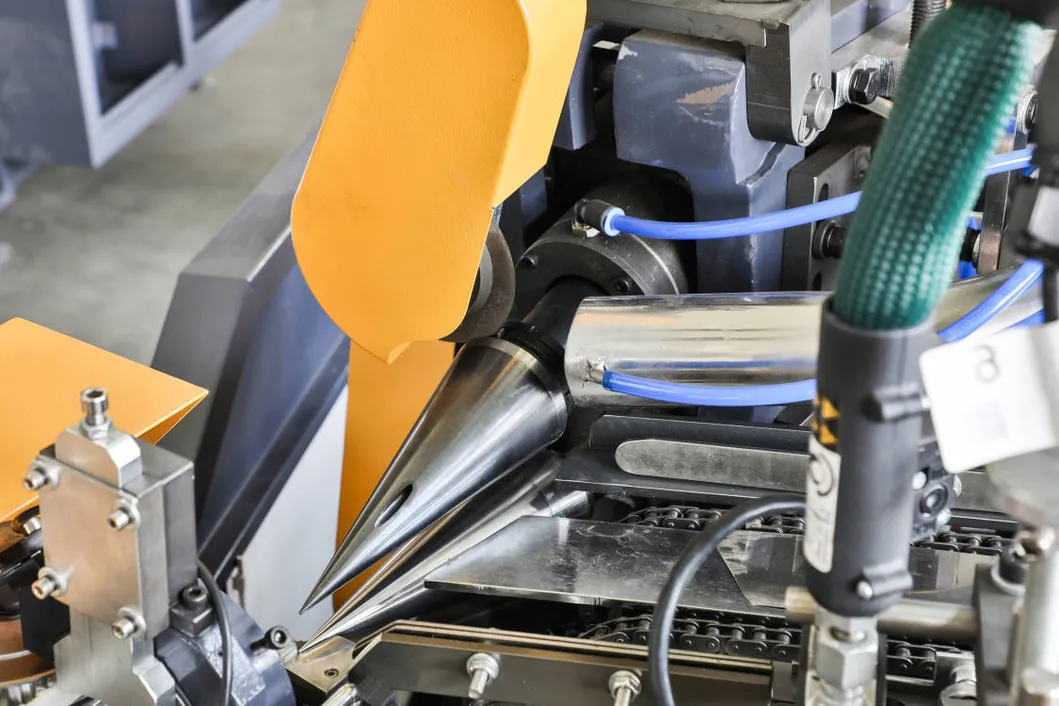

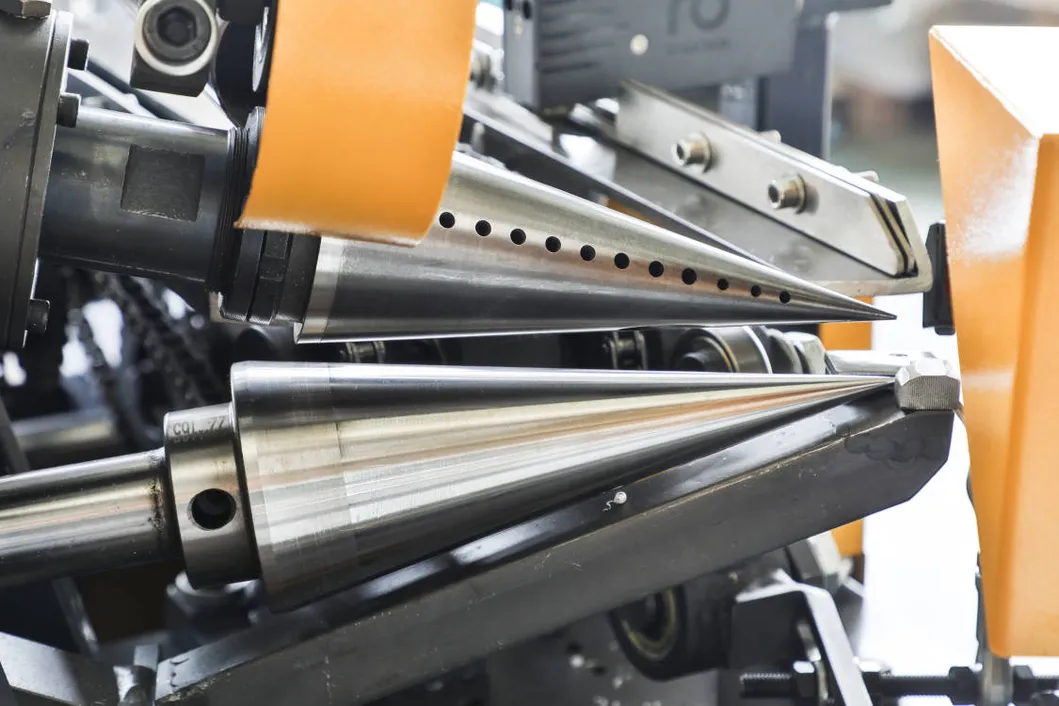

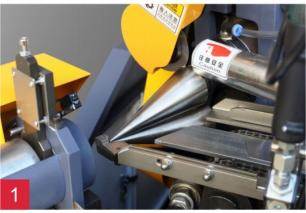

Special Mold: Cone molds made of high-grade materials for extended service life.

Durability: Engineered for long-term industrial use with minimal maintenance.

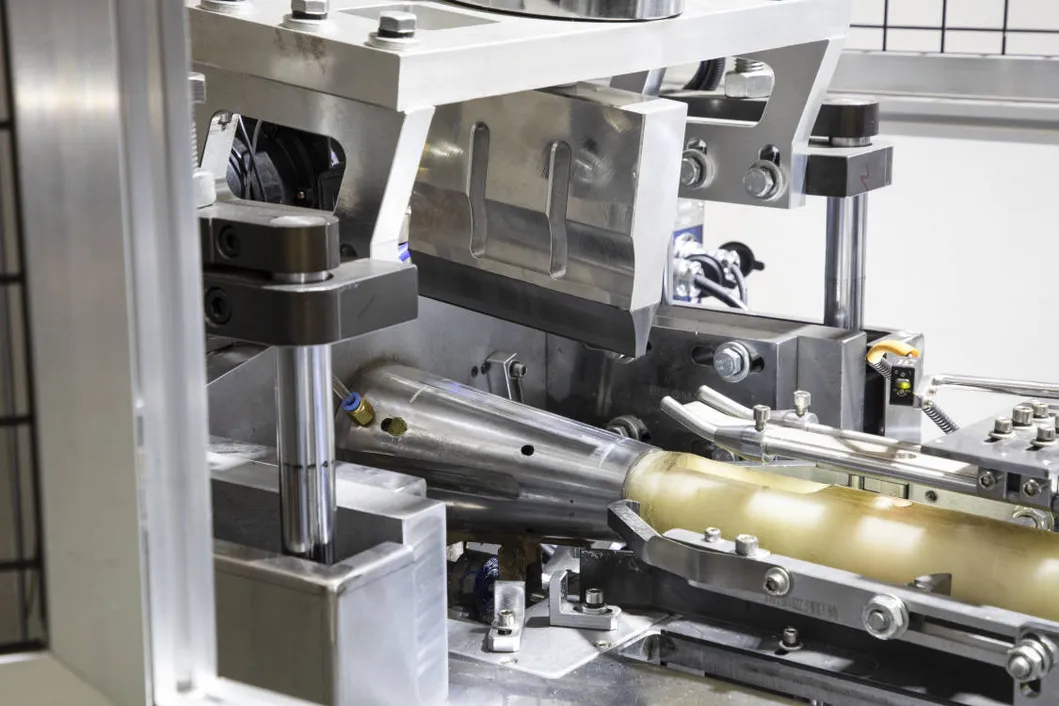

Bonding System: Original Switzerland Robatech nozzle for solid and precise bonding.

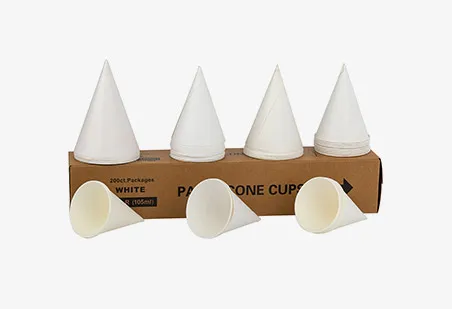

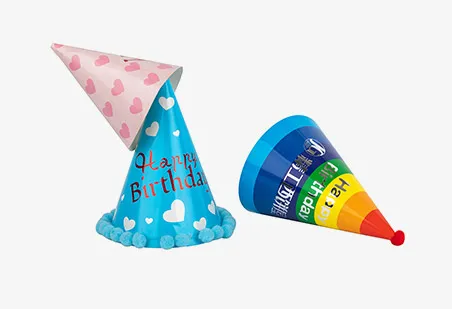

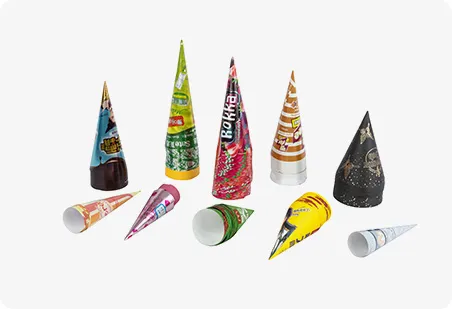

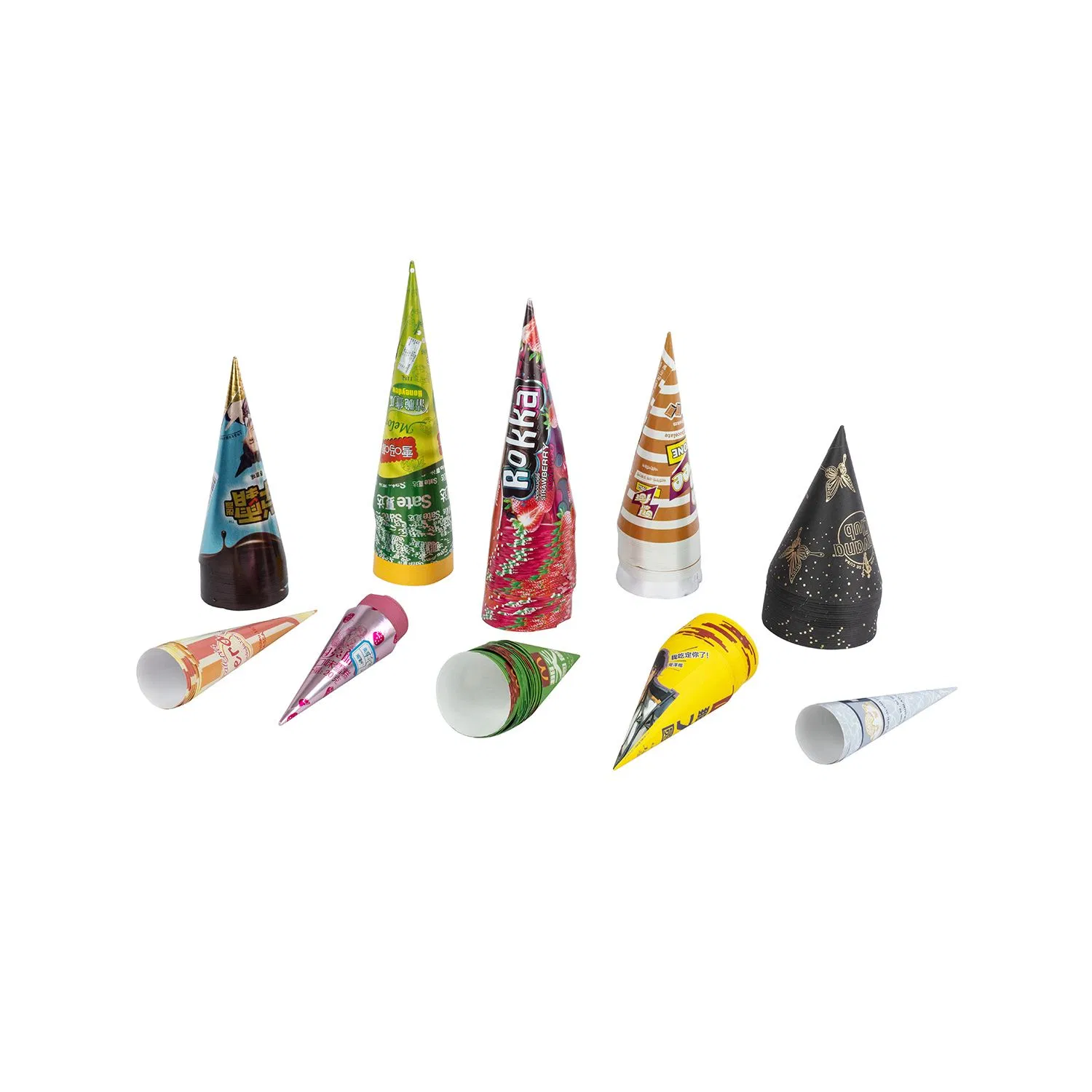

Sample Display

Associated Machinery

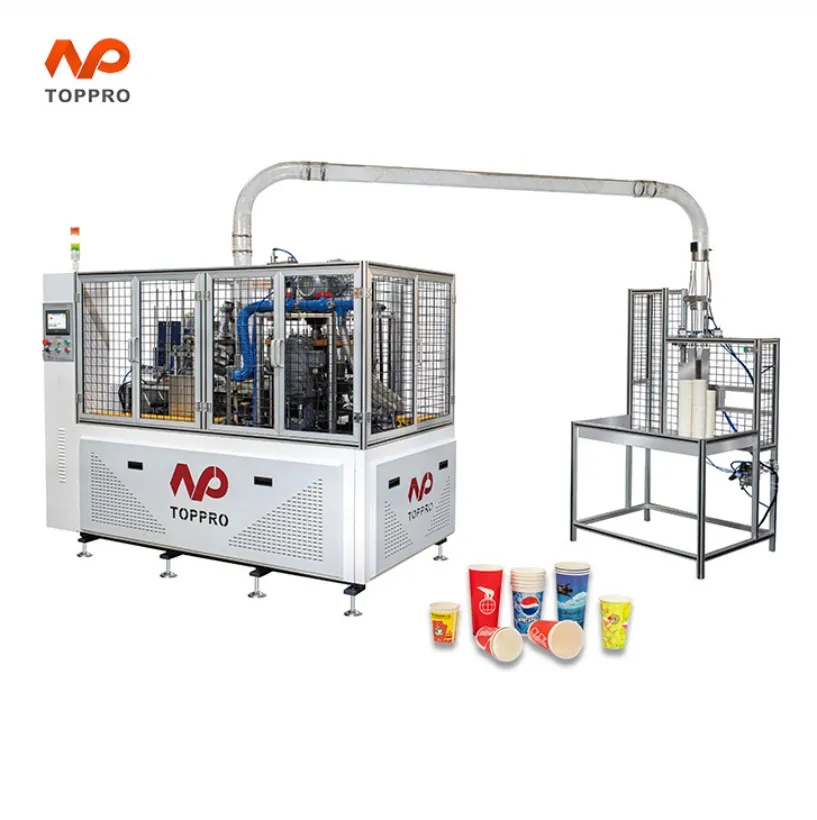

Paper Cup Machine

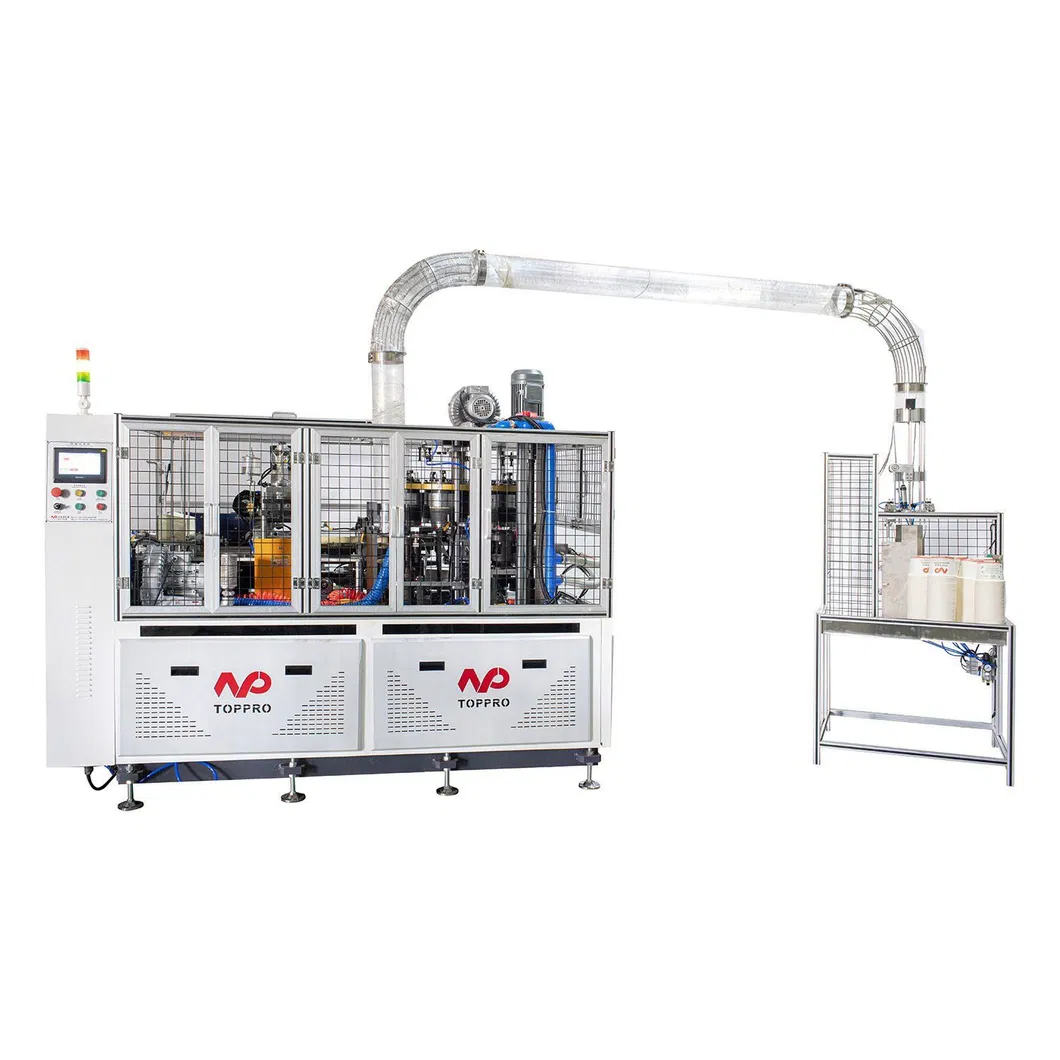

Paper Bowl Machine

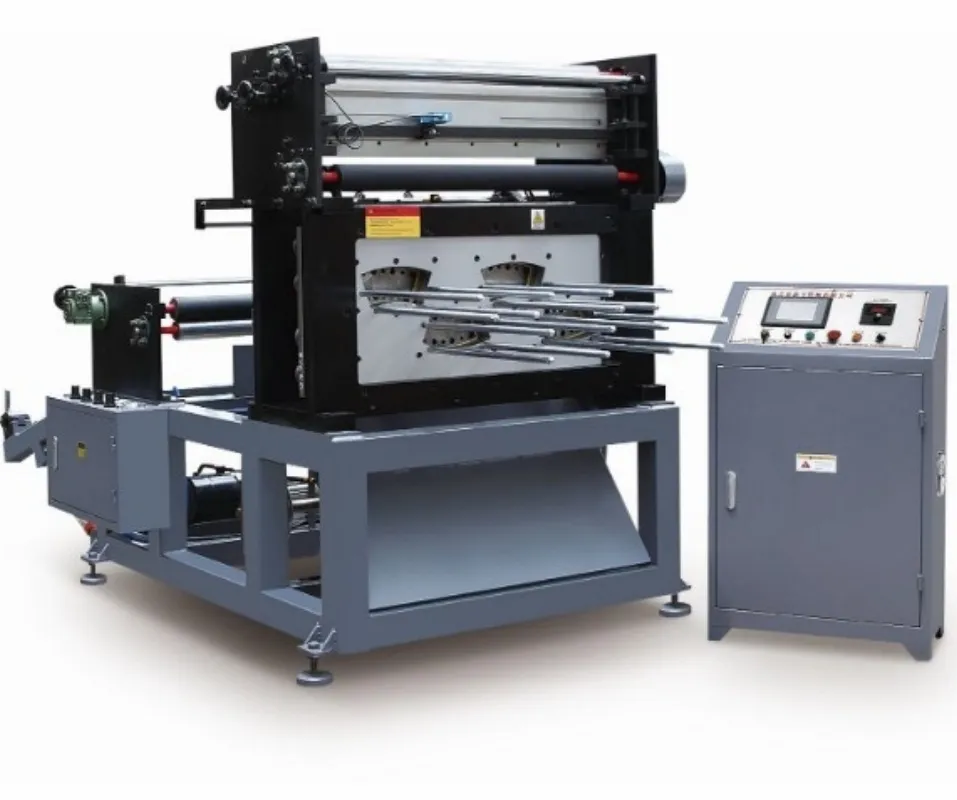

Punching Machine

Packaging & Service

Standard Packing: Secure wooden case exterior with protective stretching film interior.

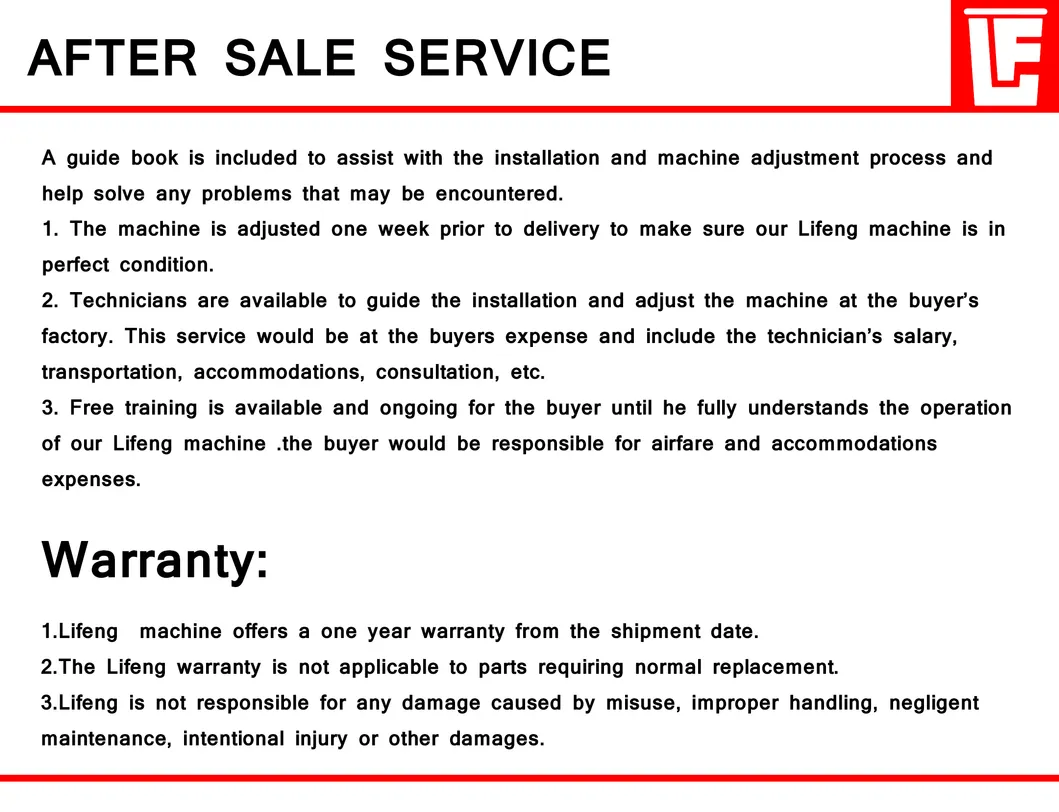

Warranty: One-year comprehensive guarantee for the whole machine (excluding wear parts).
Support: 24-hour technical assistance via electronic communication.
Documentation: User-friendly English software, operation manuals, and detailed instructional videos/CDs provided.

Frequently Asked Questions

What makes this machine different from others on the market?

The main difference is the production speed. Our CPC-220 operates at 190-230 pcs/min, whereas many standard machines only reach 160 pcs/min.

How is technical support handled for overseas clients?

The machine is designed for easy operation. Our engineers can guide clients through maintenance or repairs via video or email. On-site engineering support is also available for overseas locations.

What are the payment and delivery terms?

We typically require a 30% T/T deposit, with the balance paid before delivery. Production takes approximately 25 days, and delivery occurs within 5 days after final payment.

What types of paper materials can be used?

This machine supports a wide range of materials from 80-170g/m², including art paper, aluminized paper, offset paper, and wax paper.

Can the cone angle be adjusted?

Yes, the machine can produce cone angles between 17° and 28°. This is achieved by changing the specific molds provided for the machine.

What is the Minimum Order Quantity (MOQ)?

The MOQ for the CPC-220 Automatic Paper Cone Sleeve Machine is 1 set.
