Custom Printing Disposable Hot Drink Coffee Paper Cup- Insulated Ripple Wall Paper Coffee Cups Making Machine

Customization:	Available
Warranty:	One Year
Applicable Objects:	Beverage

Send Inquiry

Product Description

📊

Basic Information

Model NO.	XZT-150D	Cup Size	2-12OZ / 4-16oz
Speed	140-160 pcs/min	Automation	Automatic
Required Paper	Single and Double Side PE Coated Paper	Material	170-380GSM Coated Paper
Power Supply	3phase 380V 50Hz, 34kw	Air Supply	0.6MPa
Dimension	2460X1620X1780mm	Weight	2800kgs
Certification	CE	HS Code	8441309000

📝

Product Description

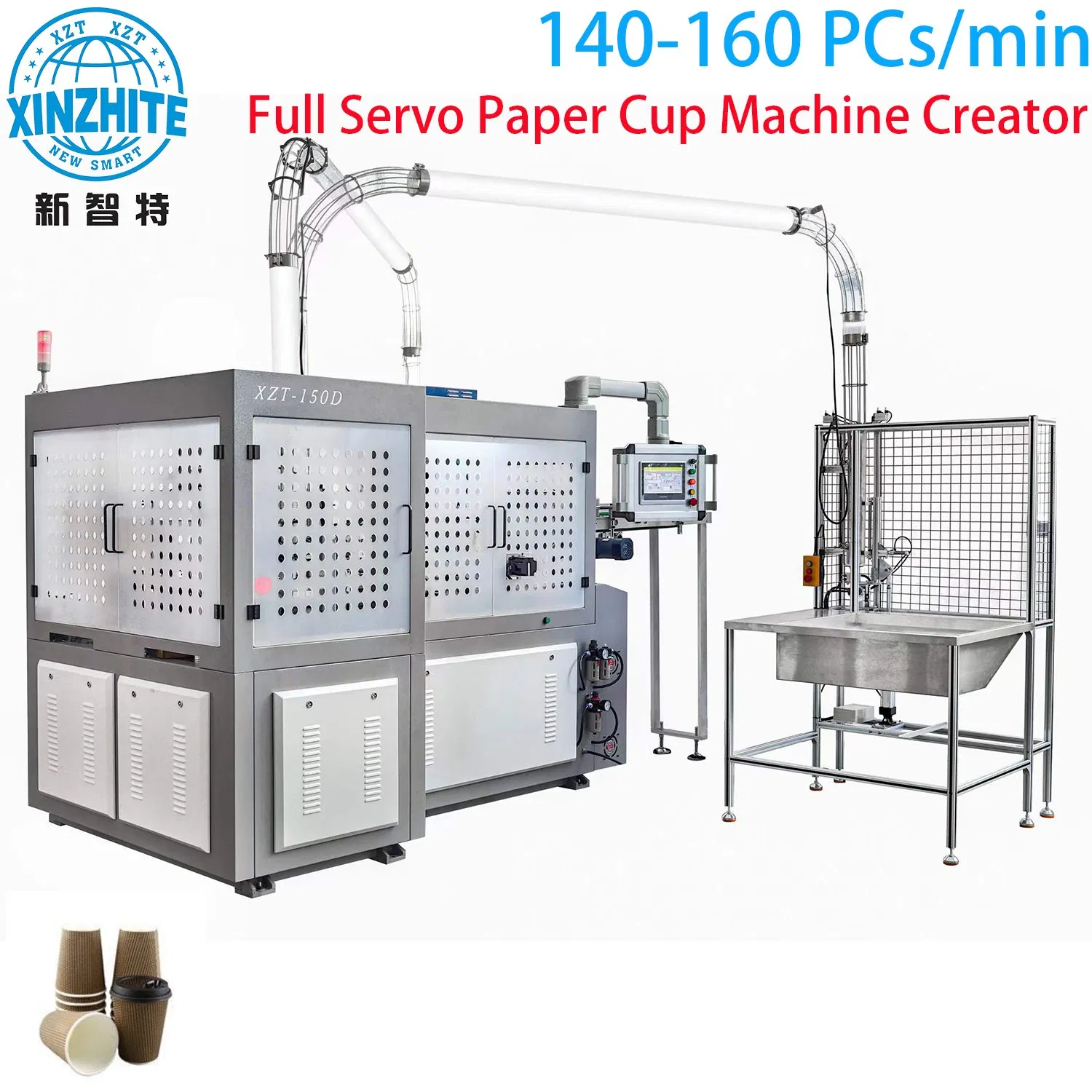

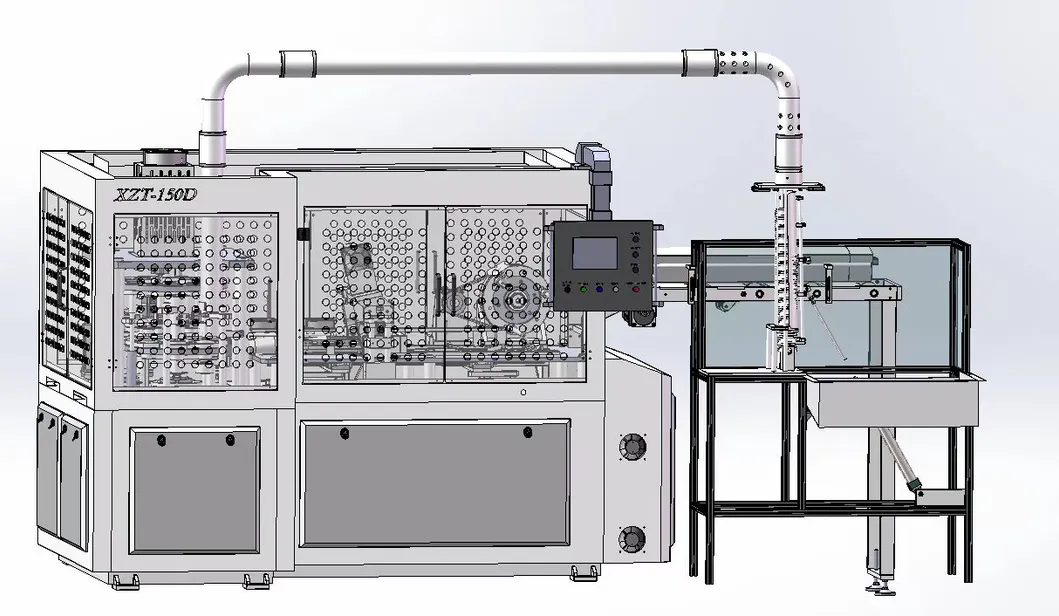

XZT-150D is our latest model for double-wall paper cups. It produces 4oz to 16oz double wall paper cups at a stable running speed of 140-160ppm and is still in upgrading.

XZT-150D features full servo-driven technology throughout the entire machine. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion. It replaced the market's most gear/chain transmission and cam design paper cup machines. It provides flexibility, speed, affordable capital cost, and low maintenance.

⚙️

Technical Parameters

Parameter Item	Specifications
Model	XZT-150D Paper Cup Sleeve Machine
Bowl Size	4-16oz
Material	170-380GSM coated paper
Speed	140-160 pcs/min
Power Consumption	34KW (Running consumption is 11KW)
Air Supply	0.6Mpa (Running consumption 0.5Nm3/min)
Weight	2800kgs

🚀

Machine Features

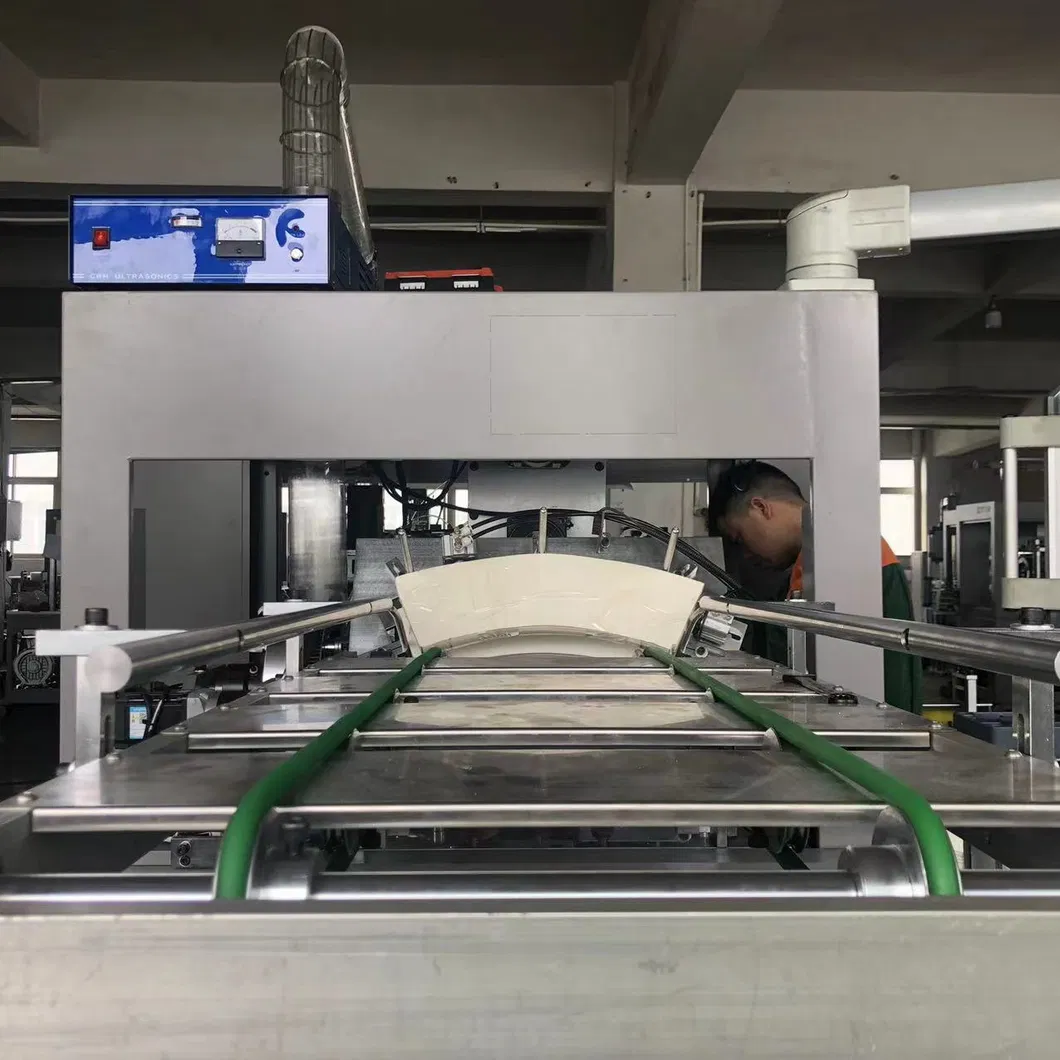

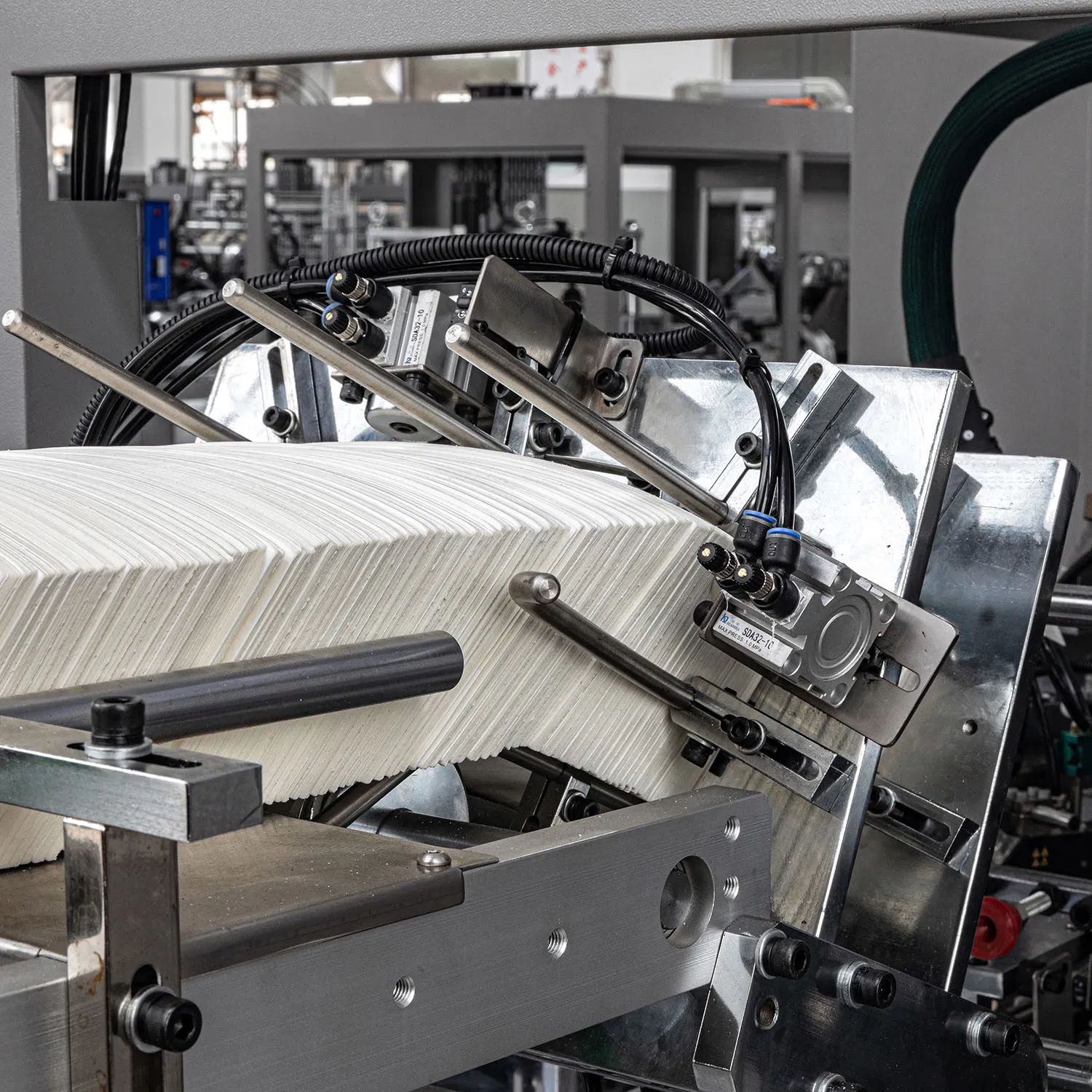

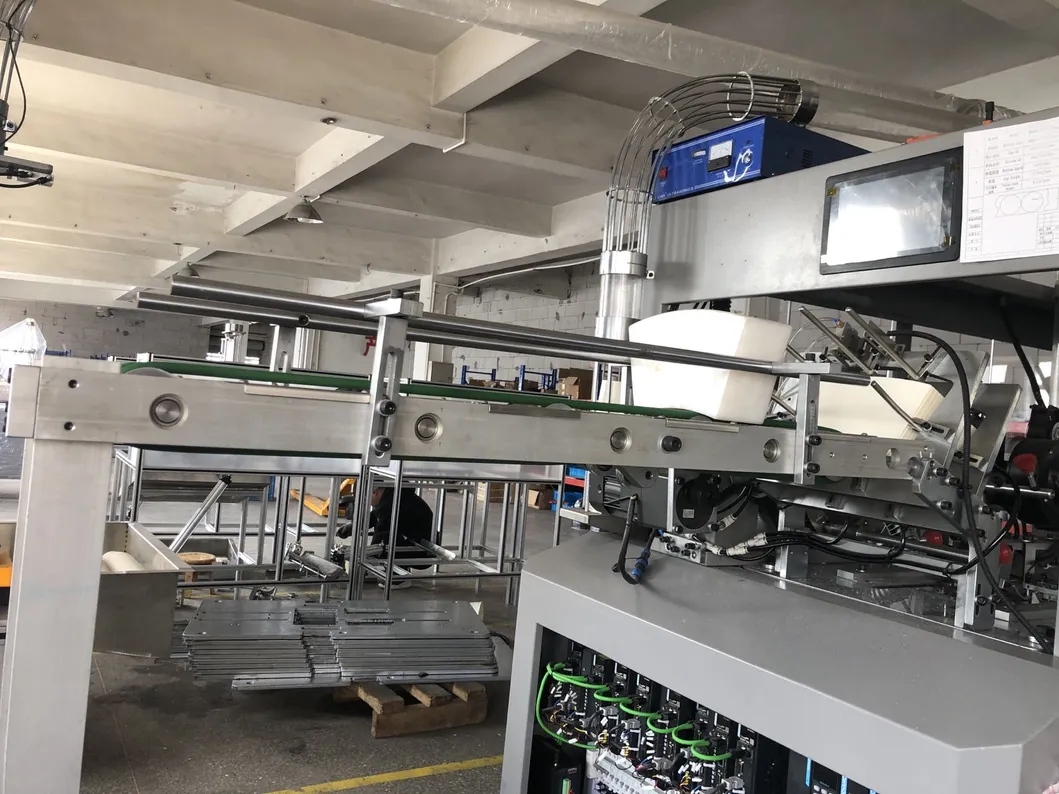

Conveyor Fan Wall Feeding

Equipped with a high-precision step motor for consistent paper feeding.

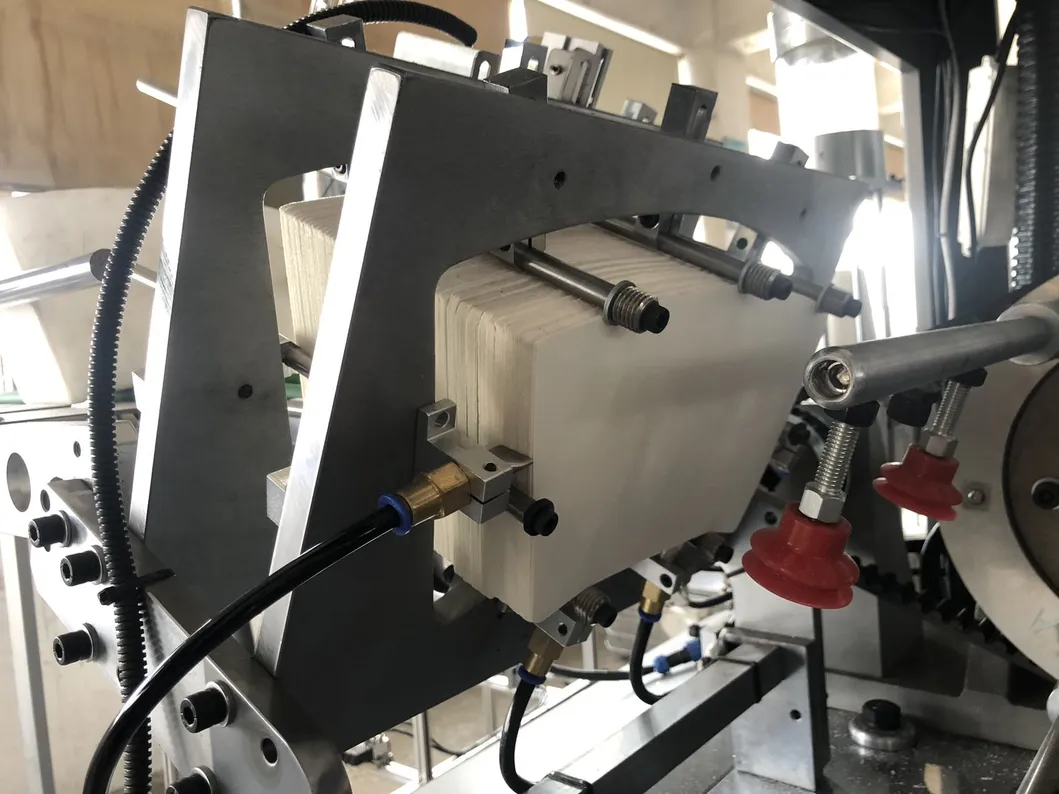

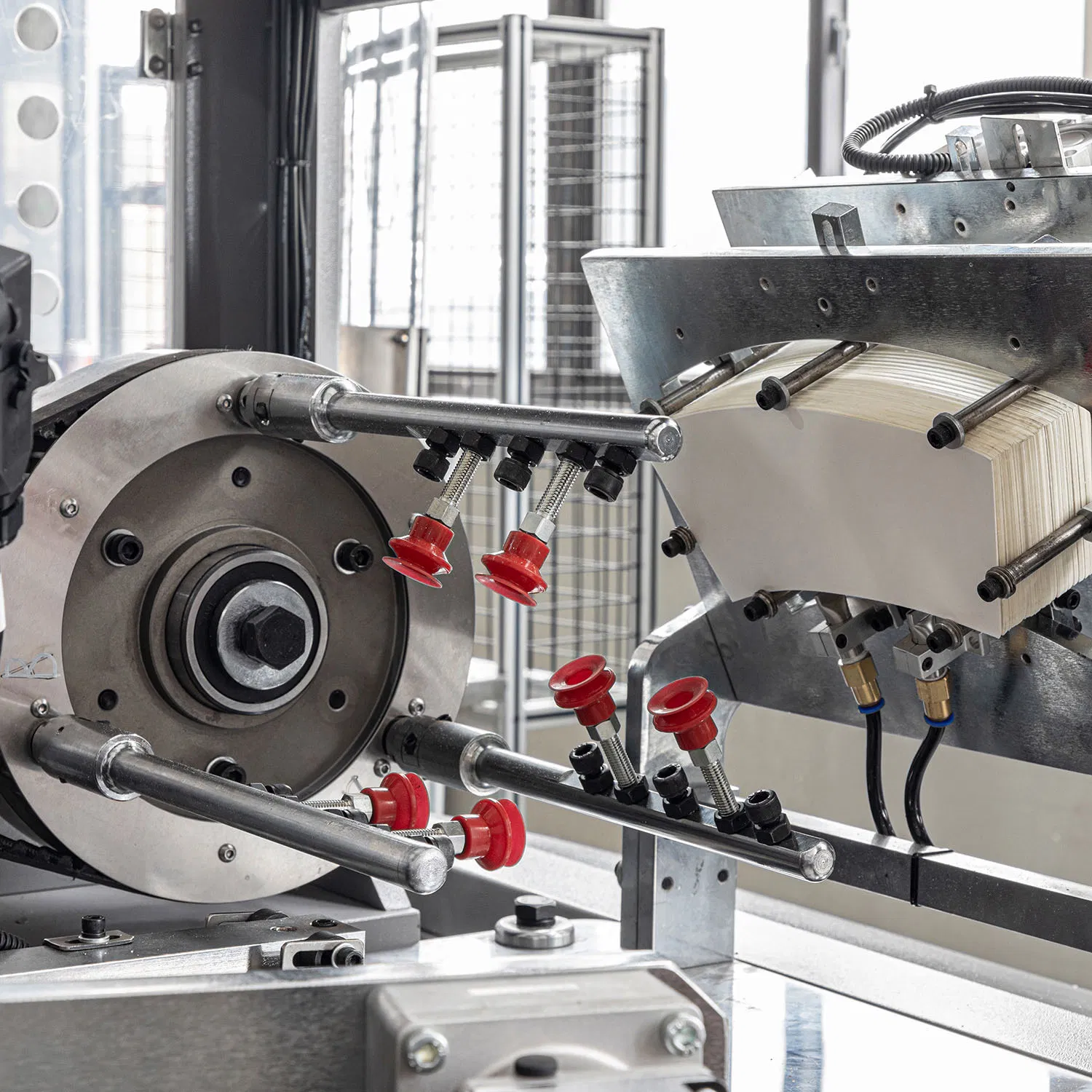

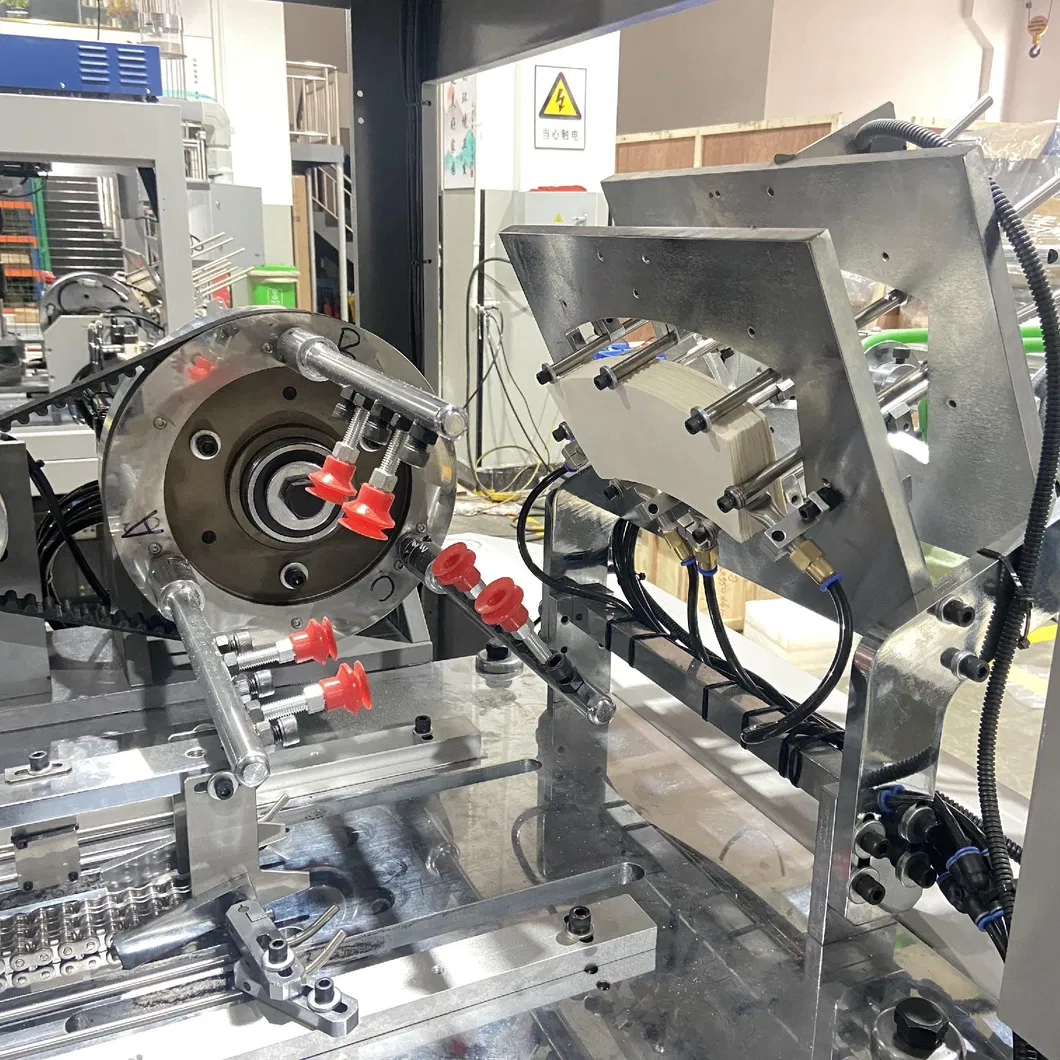

Rotary Shuttle System

Unique rotary shuttle feeding system by servo motor ensures stable and fast paper feeding, supported by an automatic conveyor.

Swiss Leister Hot Air

Independent Swiss Leister hot air system for paper fan preheating before ultrasonic sealing.

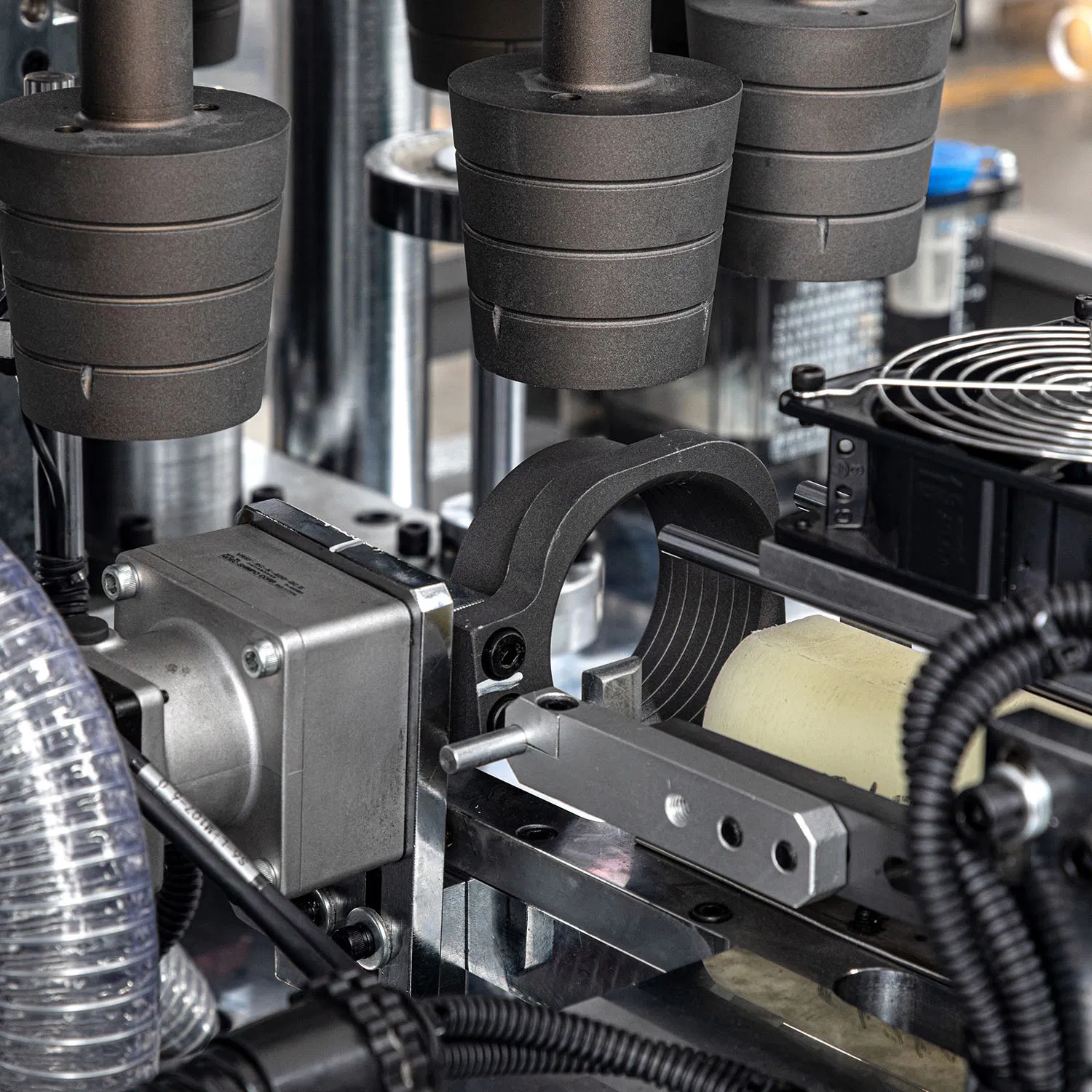

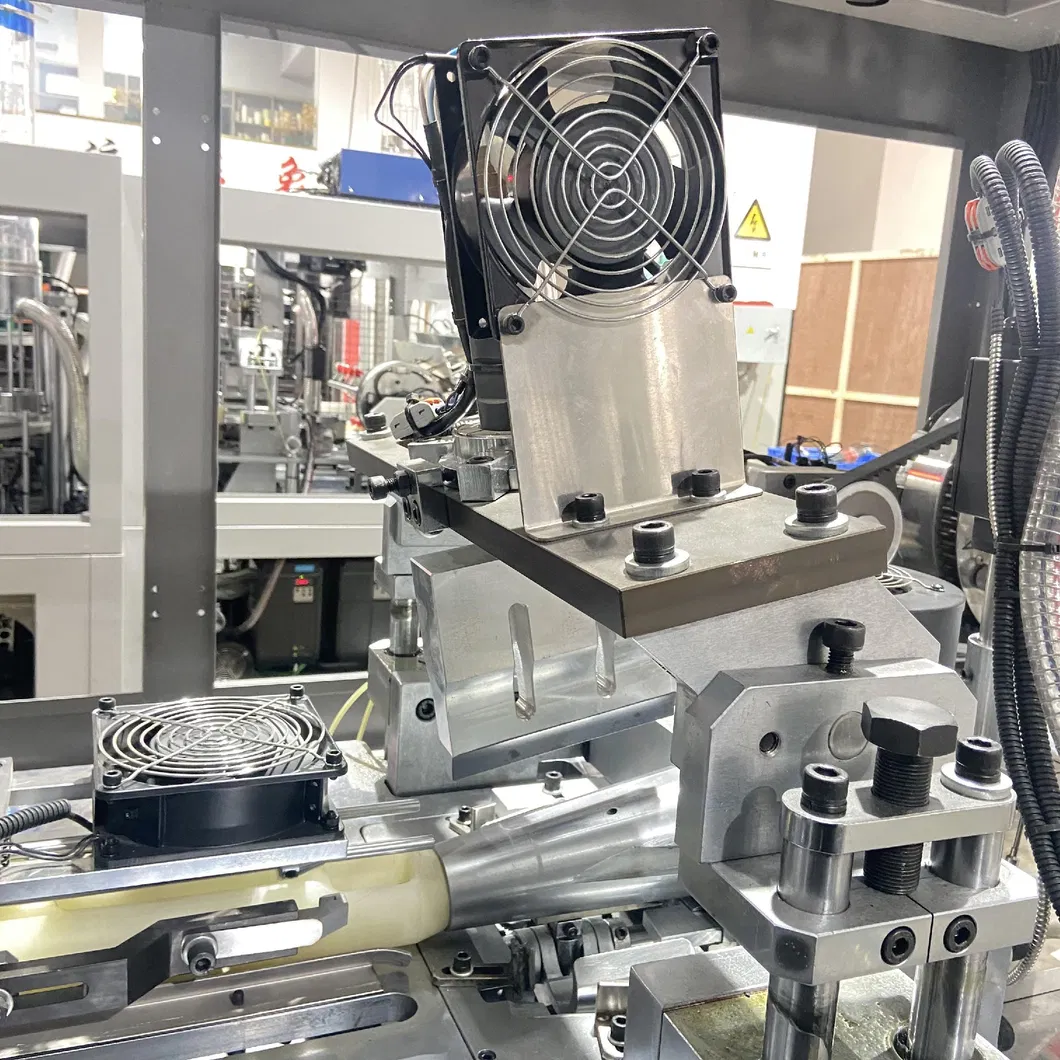

Ultrasonic Sealing

Adopts servo motor and electronic cam to precisely control the lift and timing of the sealing process.

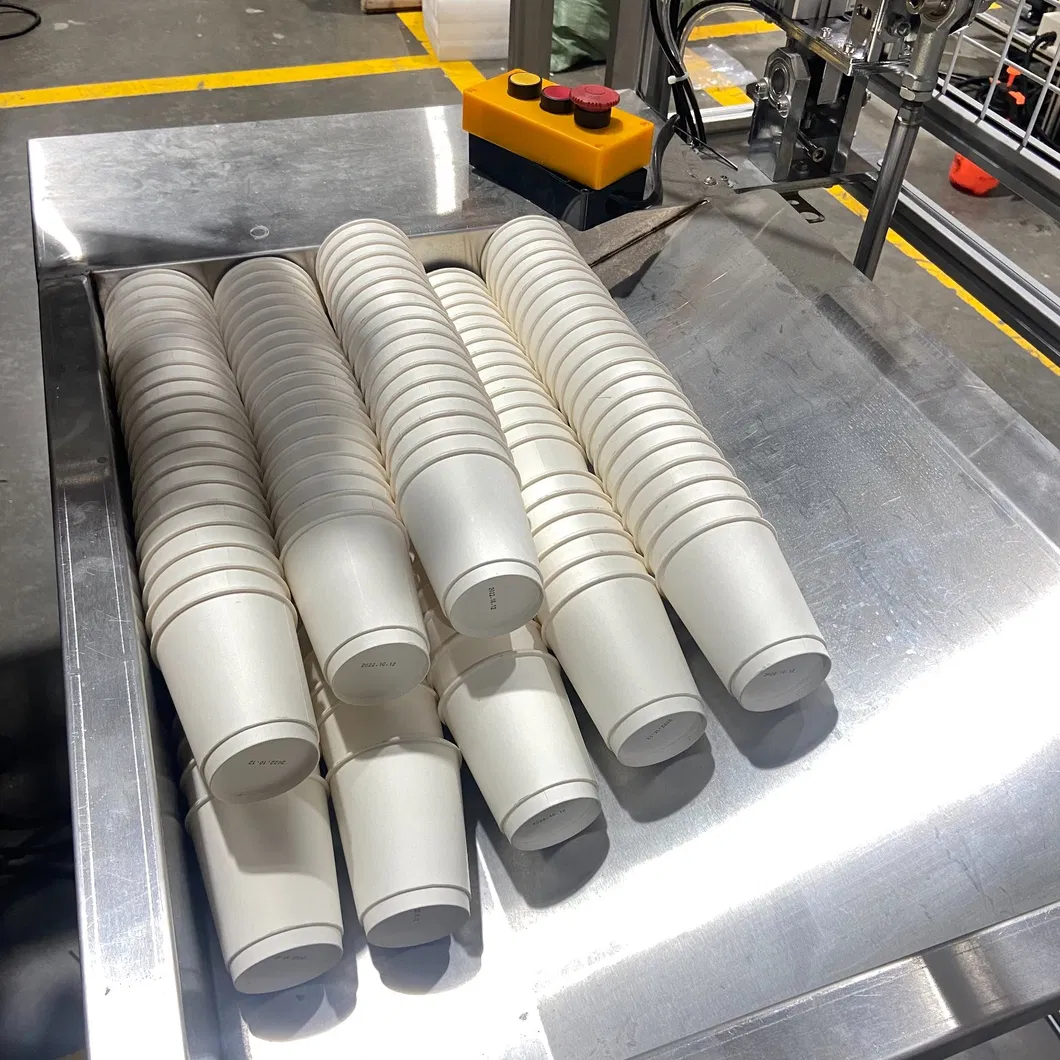

Cup Reject & Collection

Integrated cup reject system and finished cup collection system for seamless production flow.

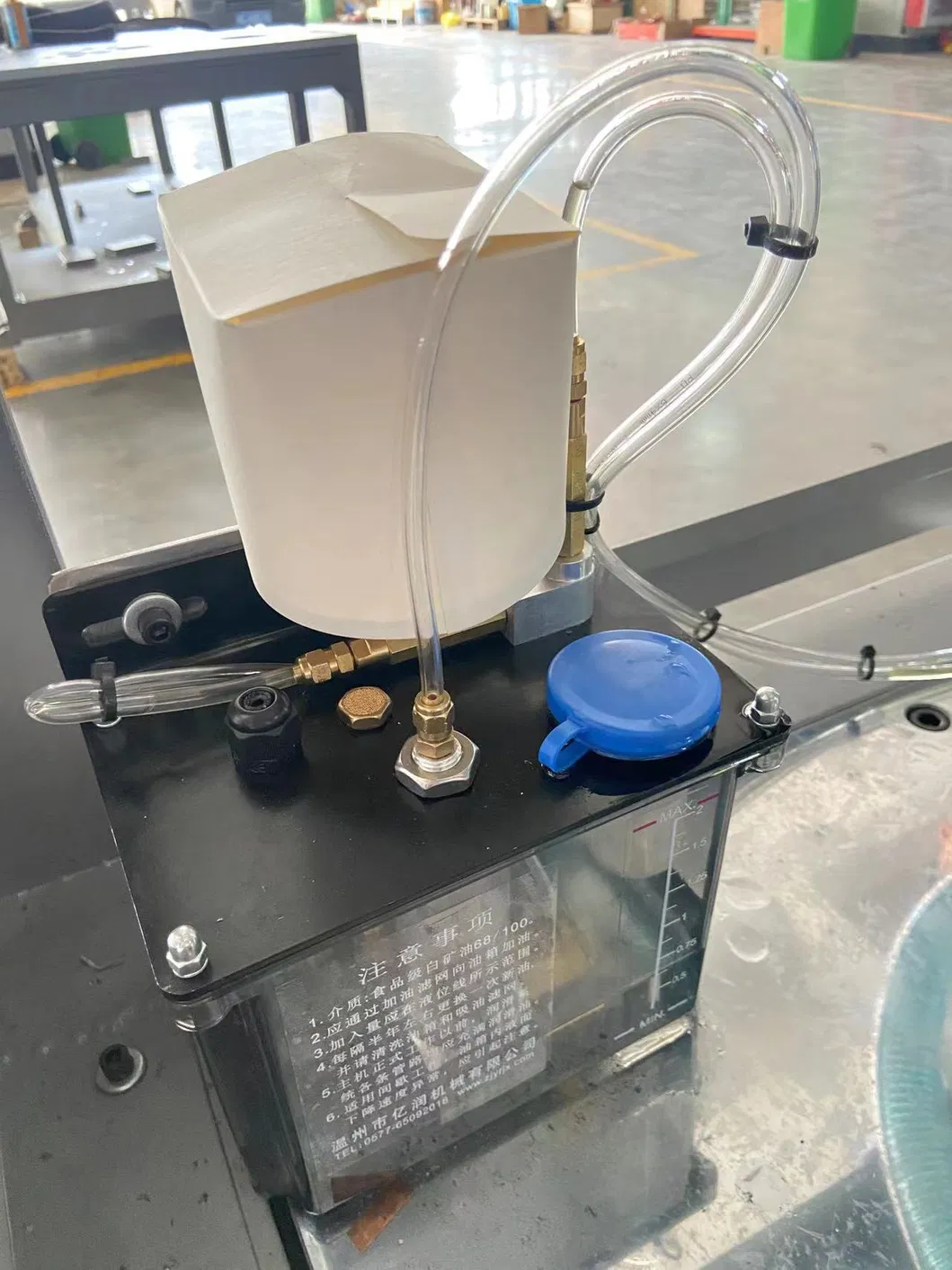

Lubrication System

Automatic grease lubricant system ensures long-term durability and low maintenance of moving parts.

📋

Available Machine Types

Paper Cup Forming Machine	High Speed Paper Cup Making Machine
Double Wall Paper Cup Machine	Paper Cup Sleeve Machine
Coffee Cup Making Machine	Paper Bowl Machine
Ice Cream Bucket Machine	Popcorn Bucket Machine
Biodegradable Tableware Machine	Cup Packaging Machine

❓

Frequently Asked Questions

What materials are suitable for these machines?

PE, double-PE Laminated cup paper, composite material, and aluminum foil paper are all suitable for our machinery. We can produce cups and bowls ranging from 4oz to 57oz.

What kind of machines do you produce?

We specialize in full servo paper cup making machines, full servo paper bowl-making machines, and fully automatic intelligent cup packaging systems.

What certifications do your machines hold?

Our equipment is CE certified and we hold more than 10 technical patents for our machine designs.

What are the standard payment terms?

Our standard terms are 30% T/T in advance as a deposit, with the remaining balance to be paid before shipment.

What is the warranty period for the products?

We offer a one-year warranty. We also provide online technical instructions and can dispatch engineers for on-site support when conditions permit.

How is machine maintenance handled?

We contact customers regularly to provide guidance on maintenance. Our professional team is available to ensure your equipment runs at peak performance.
