Product Making Machinery Forming Make Disposable Plate Paper Cup Handle Machine Factory Price

Customization:	Available
Warranty:	12month
Applicable Objects:	Beverage

Send Inquiry

Product Description

Basic Information

Model NO.

YG-S150

Cup Size

2-12OZ

Speed

100-120pcs/min

Required Paper

Single/Double Side PE Coated

Automation

Automatic

Certification

Heating Method

Hot Air & Ultrasonic

Power

12kw, 380V/220V

Net Weight

3400kg

Machine Size

2500*1800*1700mm

Product Description

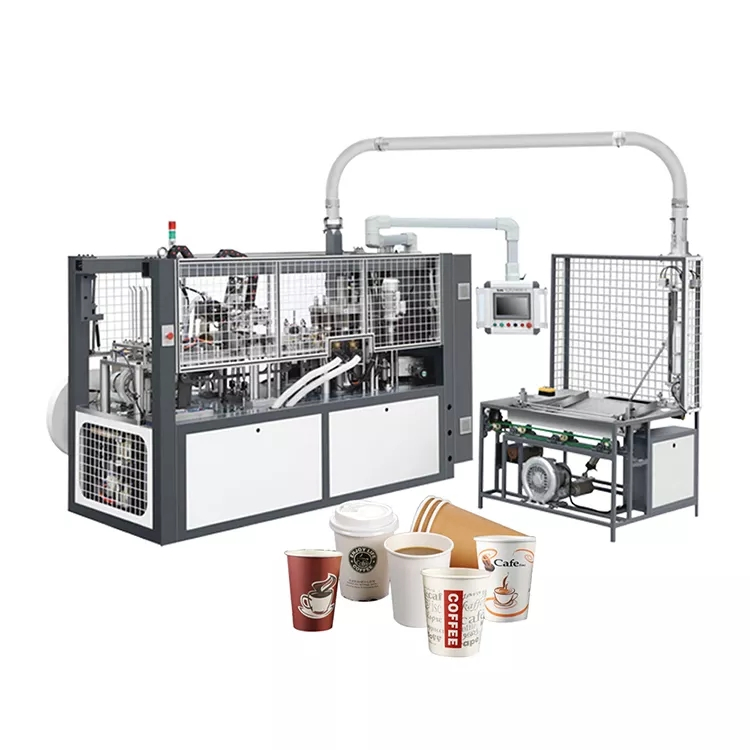

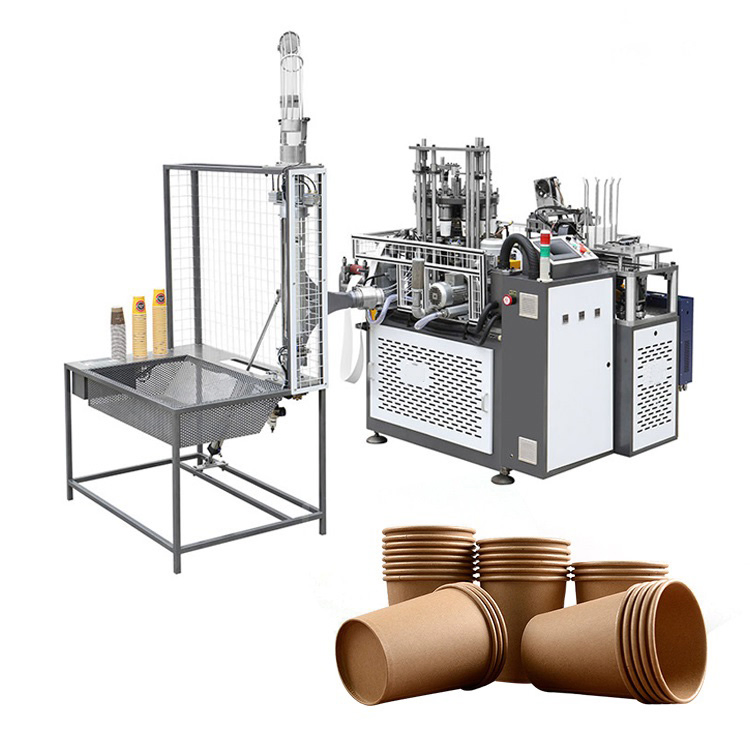

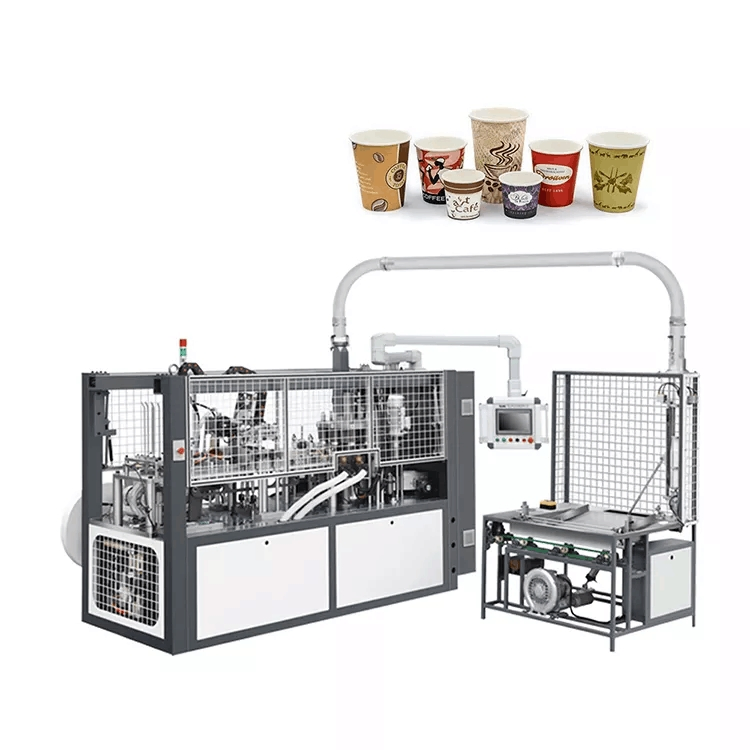

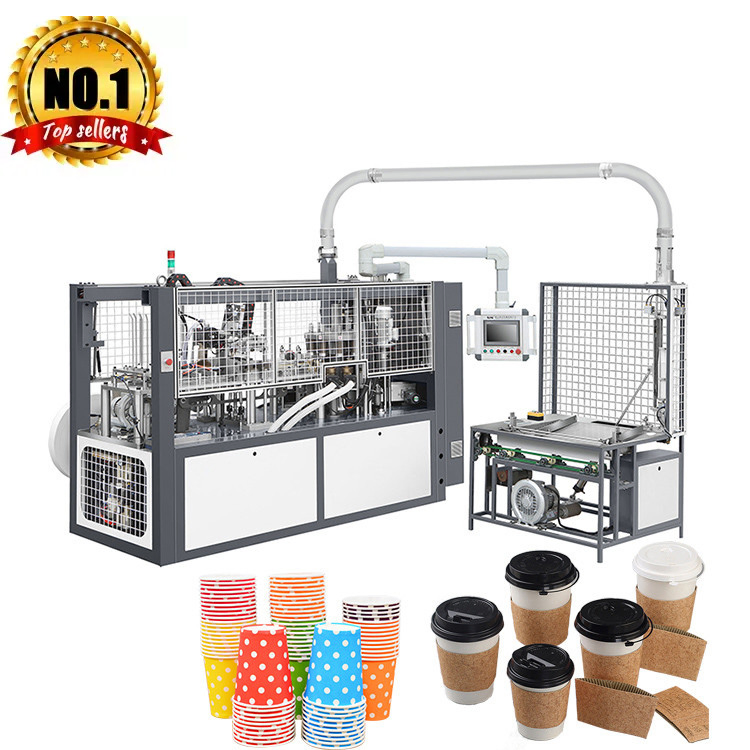

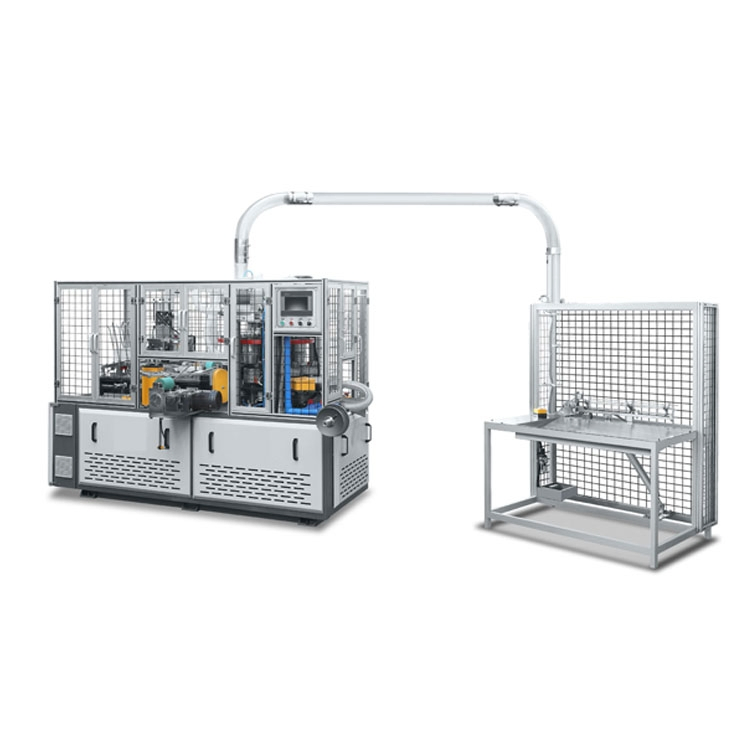

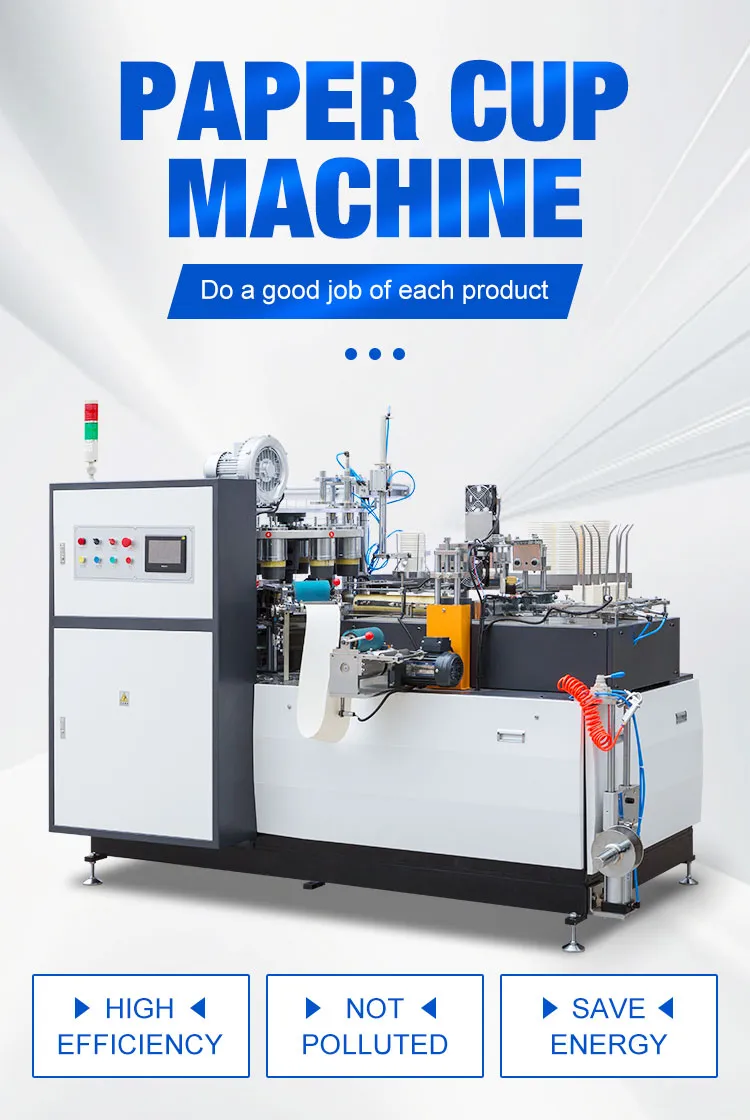

High Speed Double Wall Paper Cup Making Machine (6oz, 7oz, 16oz)

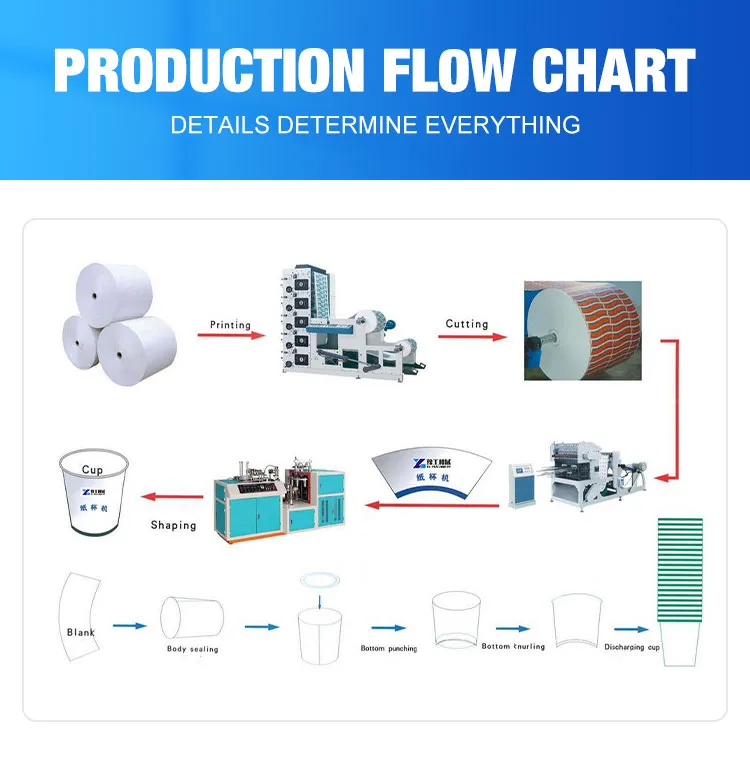

This paper cup machine is an advanced version of the standard chain-driven type. It automates the entire process including paper feeding, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding, and tripping. It is the ideal equipment for producing drinking cups, coffee cups, and advertising cups, widely used for both hot and cold beverages.

⚙️

Three-Times Paper Feeding: Multiple mediation system to ensure perfectly even paper alignment on both sides of the cup.

⚙️

Slotted Wheel Design: Ensures tighter internal connections, preventing loosening during high-speed operation.

⚙️

Advanced Bottom Punching: Single plate design solves paper jam and flip-bottom issues, significantly improving production capacity.

⚙️

Automatic Lubrication: Time-controlled oil lubrication for the entire machine reduces maintenance labor and increases stability.

⚙️

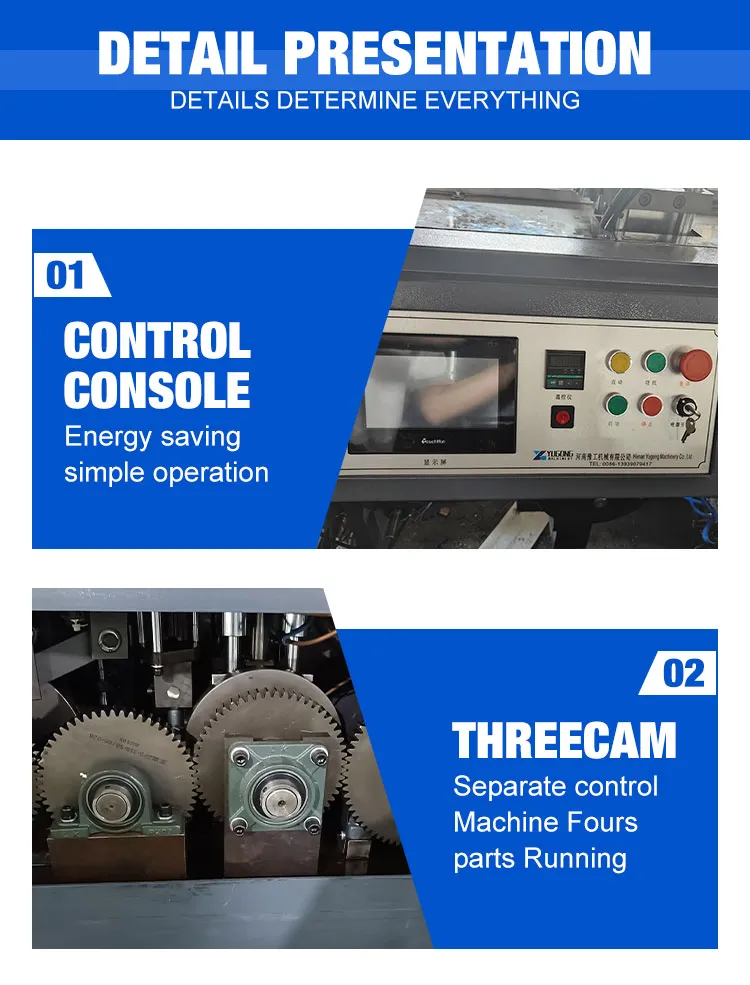

Open Cam System: Replaces traditional connecting rods to reduce malfunction rates and increase production speed.

⚙️

Heavy-Duty Build: Uses square steel for the body (weight 2500kgs-3400kgs) to ensure stability at high speeds.

Technical Specifications

Speed	100-120 pcs/min
Cup Size Range	Top: 60-125mm \| Bottom: 45-100mm \| Height: 60-170mm
Raw Material	135-450 GRAM Paper
Configuration	Ultrasonic & Hot Air System
Output Power	12KW, 380V/220V, 60HZ/50HZ
Air Compressor Req.	0.4 M³/Min, 0.5MPA
Machine Dimension	2500 × 1800 × 1700mm
Collector Dimension	900 × 900 × 1760mm

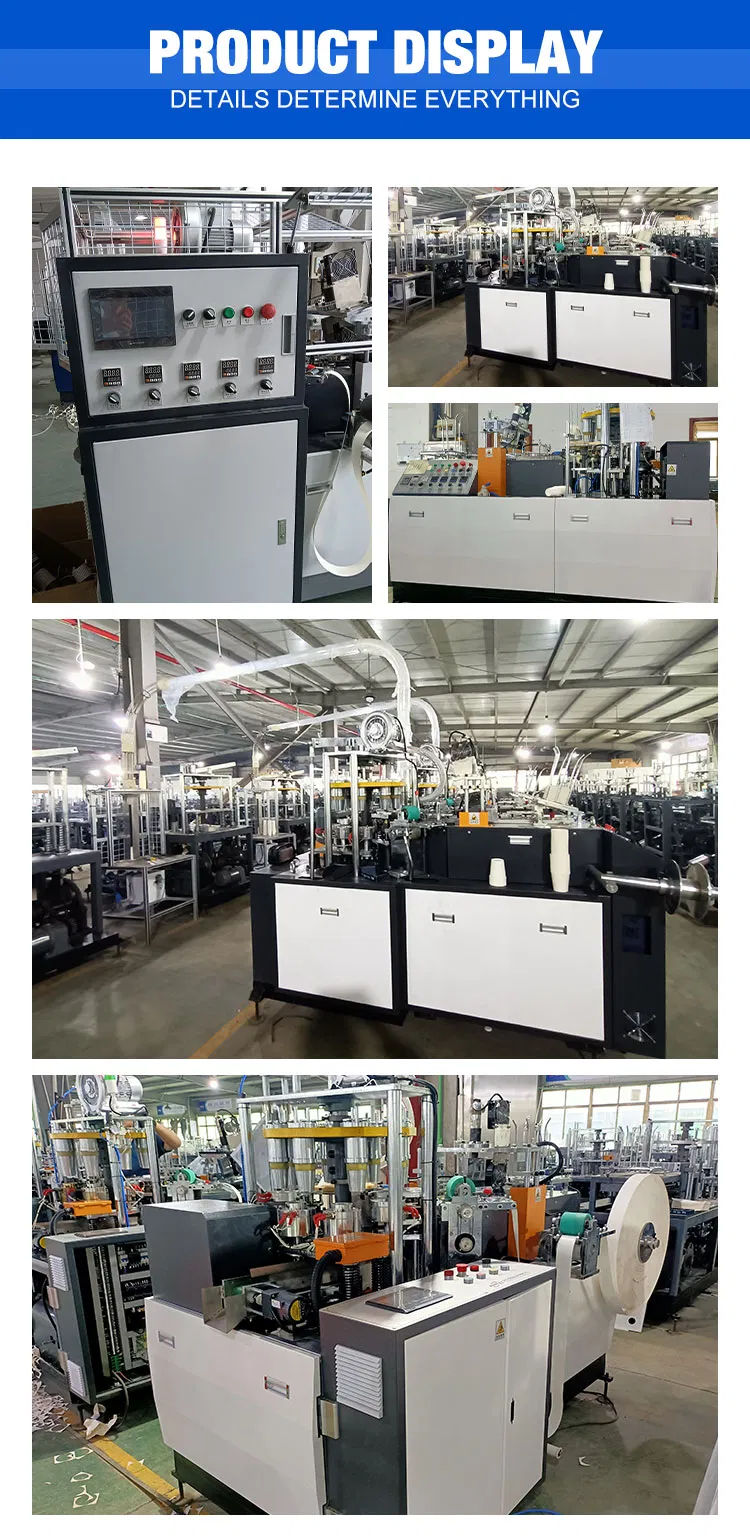

Product Details & Production

Frequently Asked Questions

What is the maximum production speed of this machine?

The machine operates at a high speed of 100 to 120 pieces per minute, depending on the cup size and material quality.

What range of paper cup sizes can be produced?

This machine is versatile and can produce cups ranging from 2oz to 12oz, with adjustable diameter and height settings.

Does the machine support both single and double PE coated paper?

Yes, it is designed to handle both single and double-side PE coated paper, making it suitable for both cold and hot drink applications.

What kind of heating system does the machine use?

It utilizes a combination of Hot Air and Ultrasonic heating systems to ensure strong and leak-proof sealing of the paper cups.

How is the machine lubricated?

The machine features an automatic time-controlled oil lubrication system, which ensures all moving parts stay lubricated for stable, long-term operation without manual intervention.

Is the machine stable during high-speed operation?

Yes, the machine is built with a heavy-duty square steel frame weighing up to 3400kg and uses an open cam system to ensure maximum stability and low vibration at high speeds.
