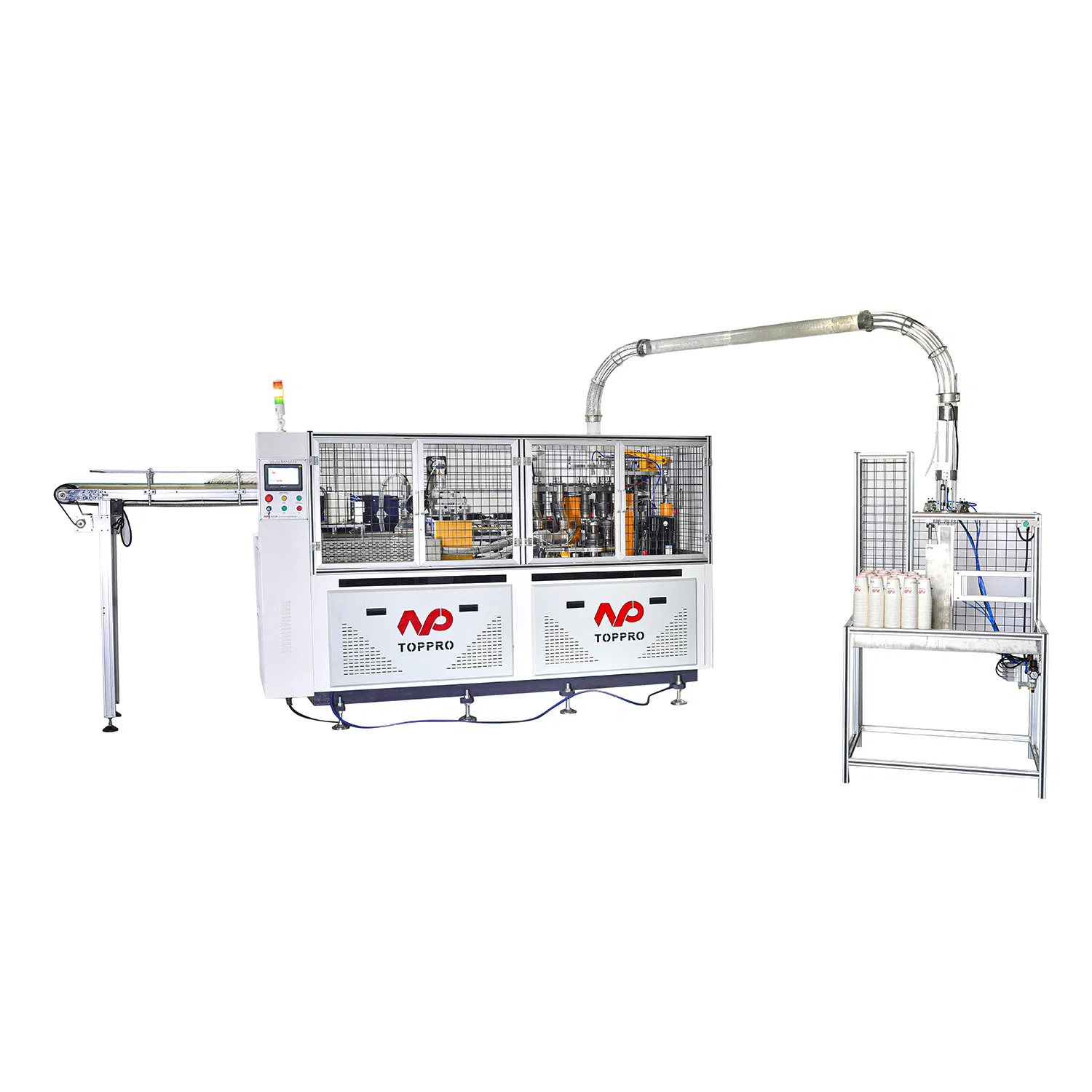

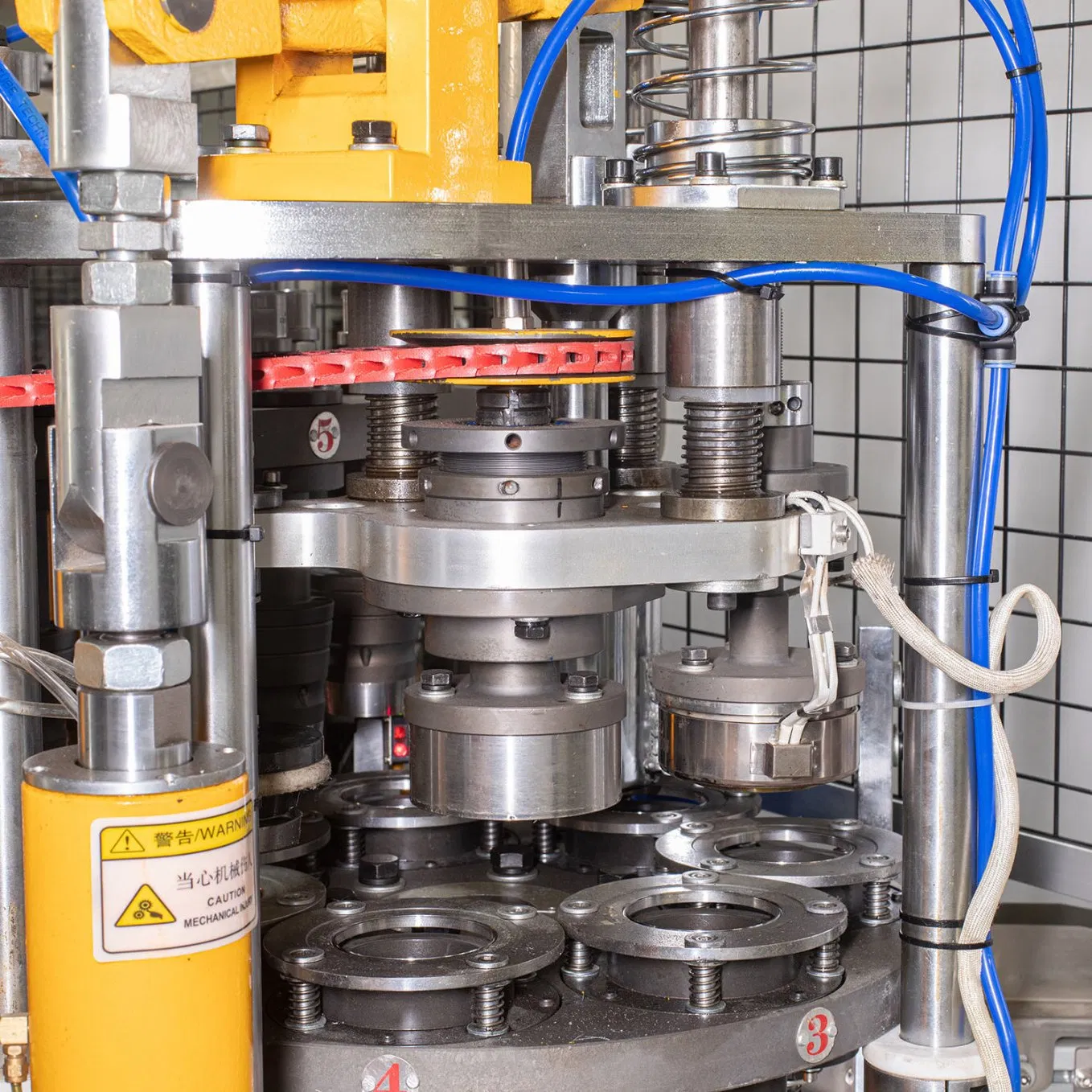

GZB-600 High-speed paper cup forming machine is a high-performance system featuring a double turntable and dual-segment operation. It integrates multiple functions including automatic paper fan feeding, imported heater side sealing, cup top lubrication, automatic bottom paper feeding, double curling artwork, and automatic cup collection and stocking. This versatile machine is capable of producing both single PE and double PE coated cups, suitable for both cold and hot beverages. The machine speed can reach a stable 130-150pcs/min.
| Model | GZB-600 High Speed Paper Cup Machine |
| Raw Material | One-side or two-side PE coated paper |
| Stable Running Speed | 110-120pcs/min (Max 150pcs/min) |
| Cup Bottom Diameter | 45-65mm |
| Cup Height | 60-135mm |
| Cup Angle | 4-7.5 degrees |

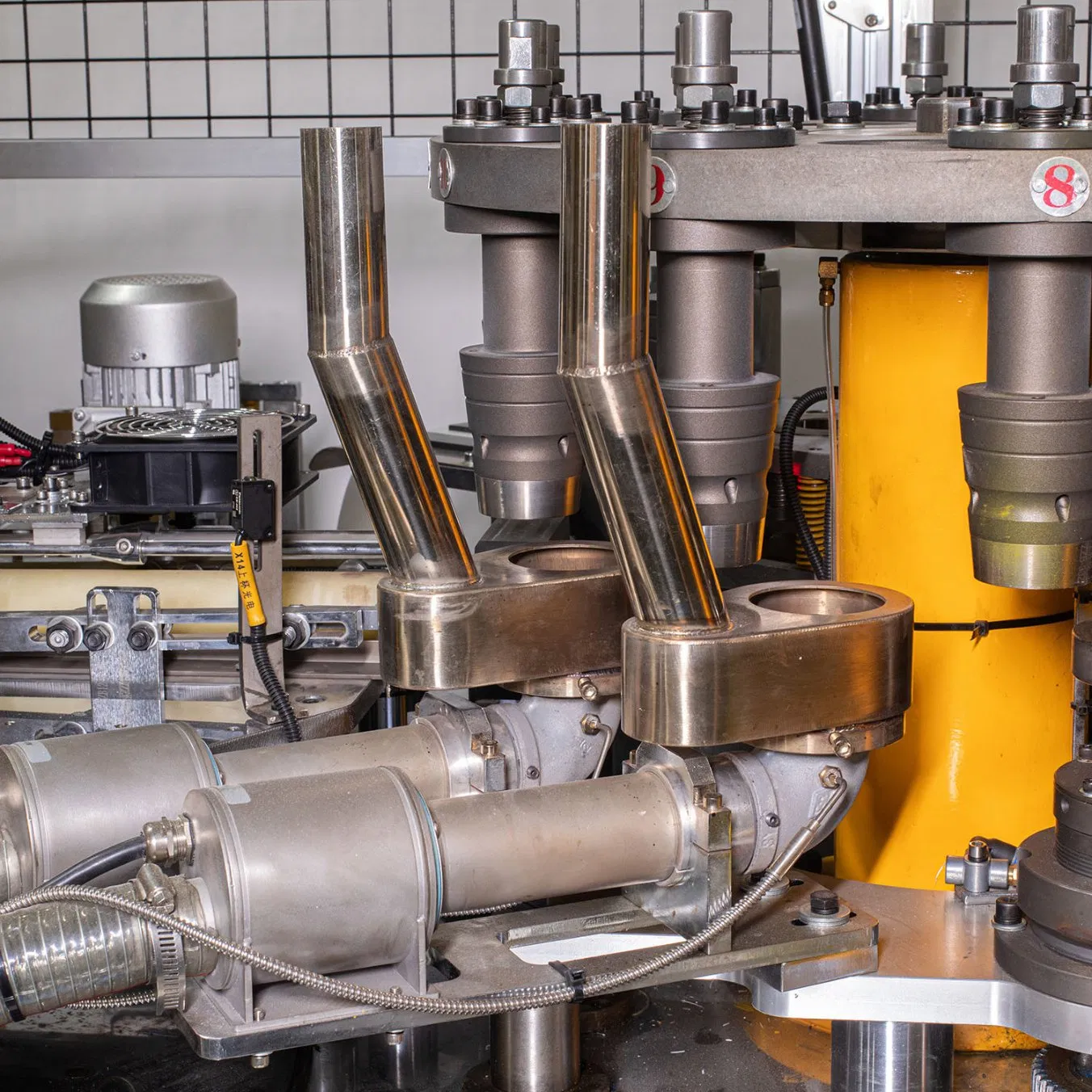

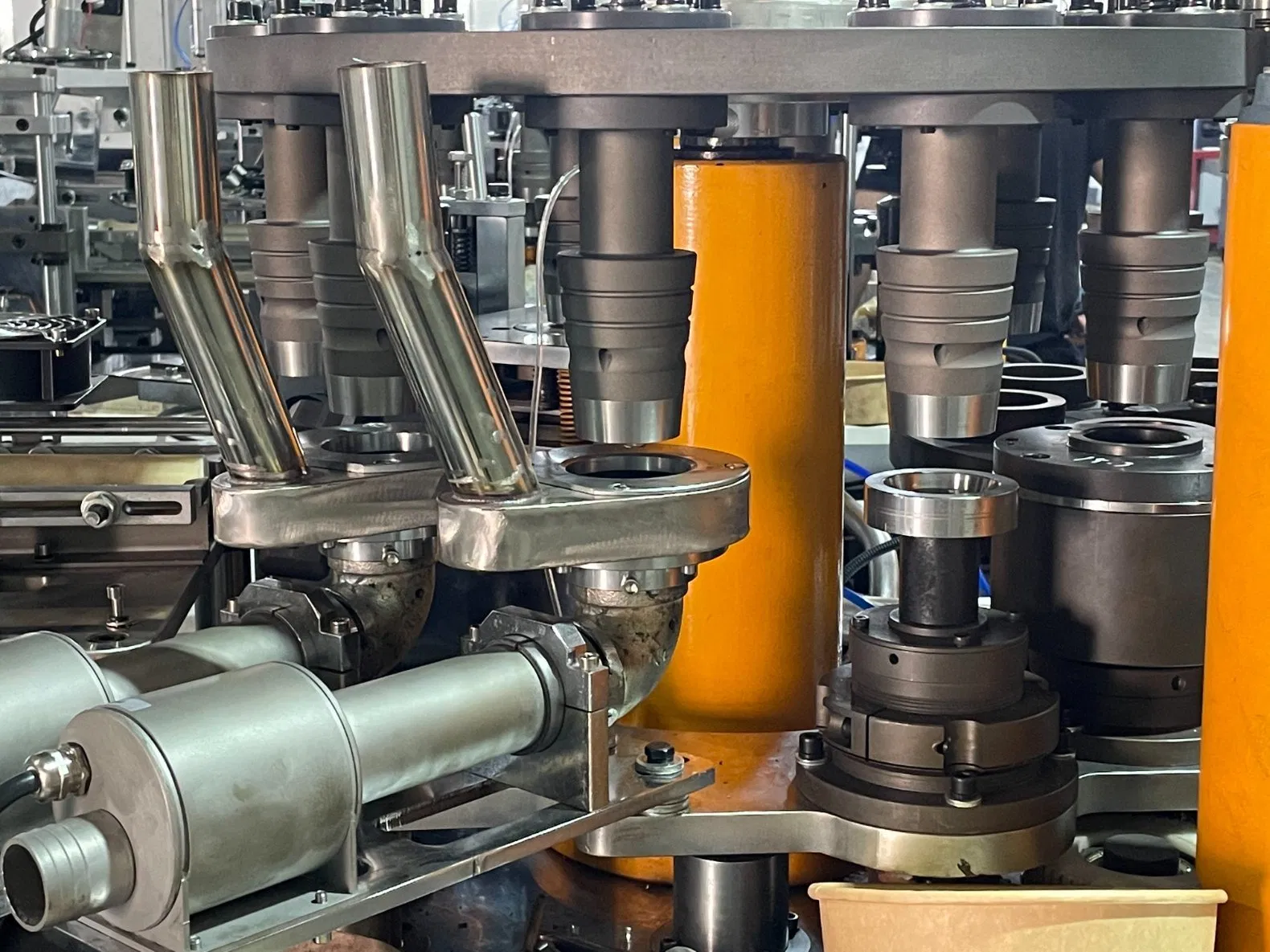

| Side Sealing | EVERGREEN Ultrasonic System |
| Air Source | 0.5-0.8Mpa (Air Compressor required) |

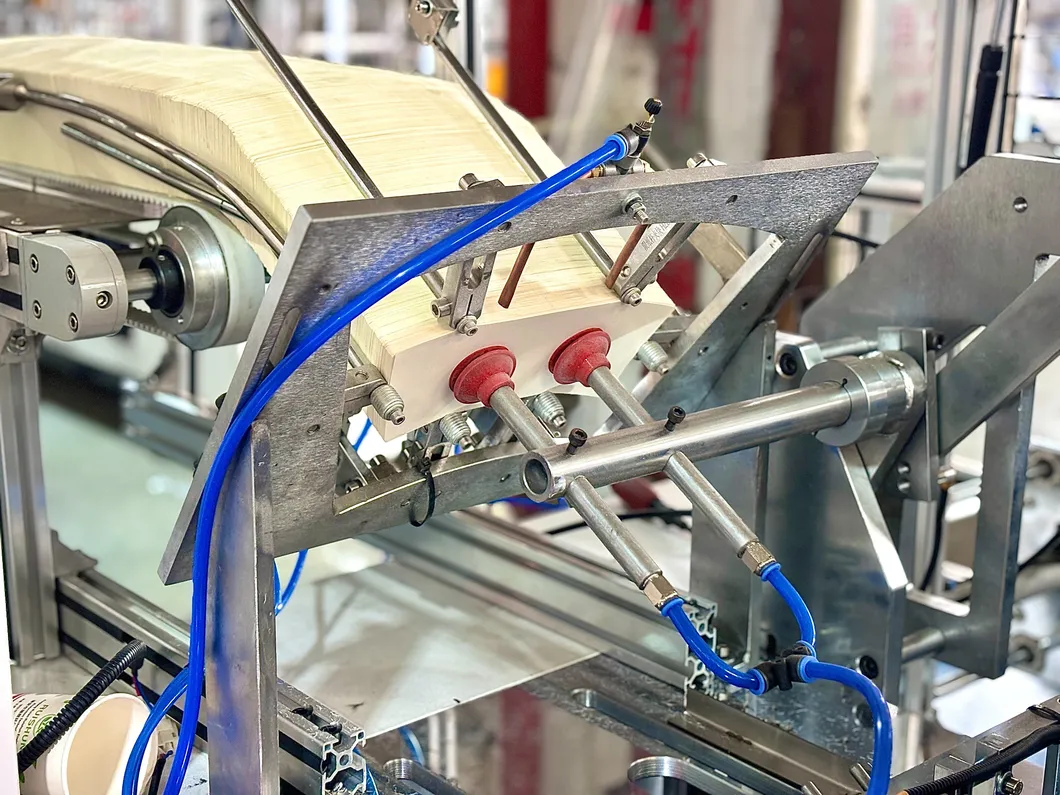

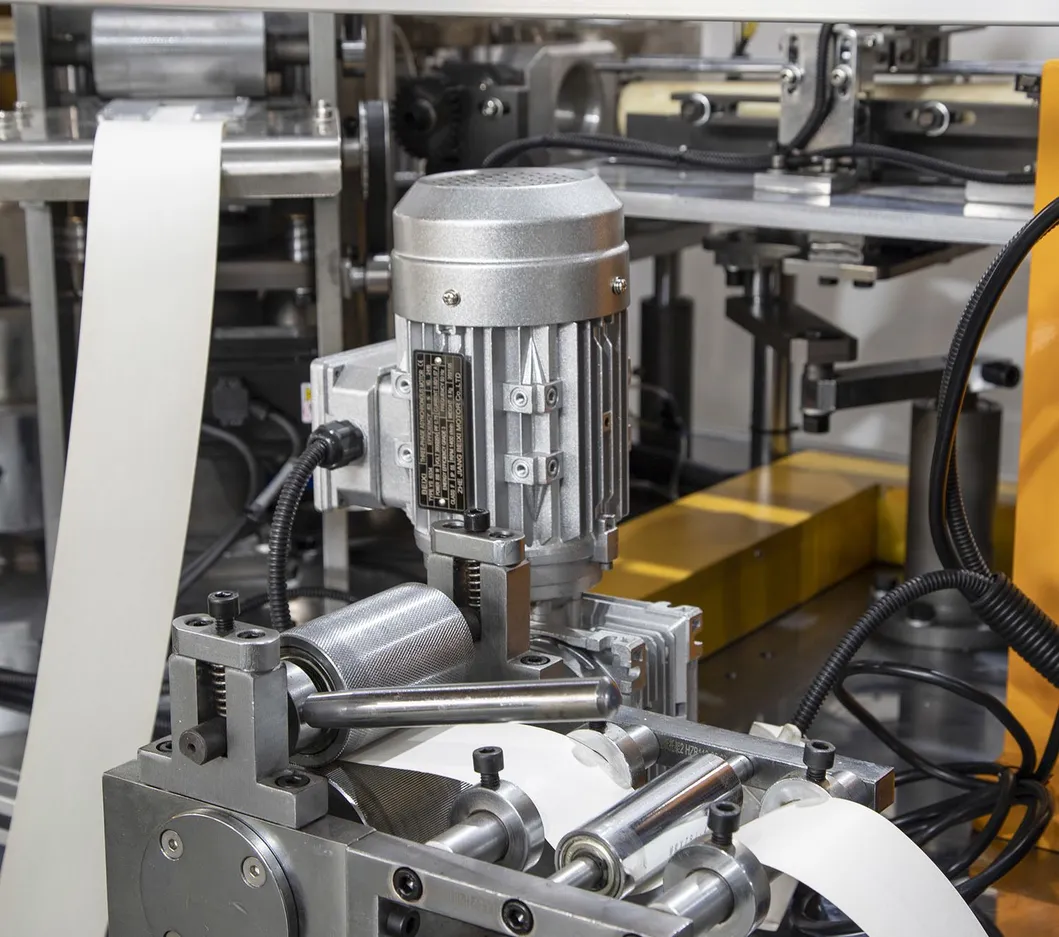

Self Automatic Paper Feeding System: Features two available sizes for pairing (direct feeding and side feeding). This effectively prevents paper jams and facilitates easier maintenance.

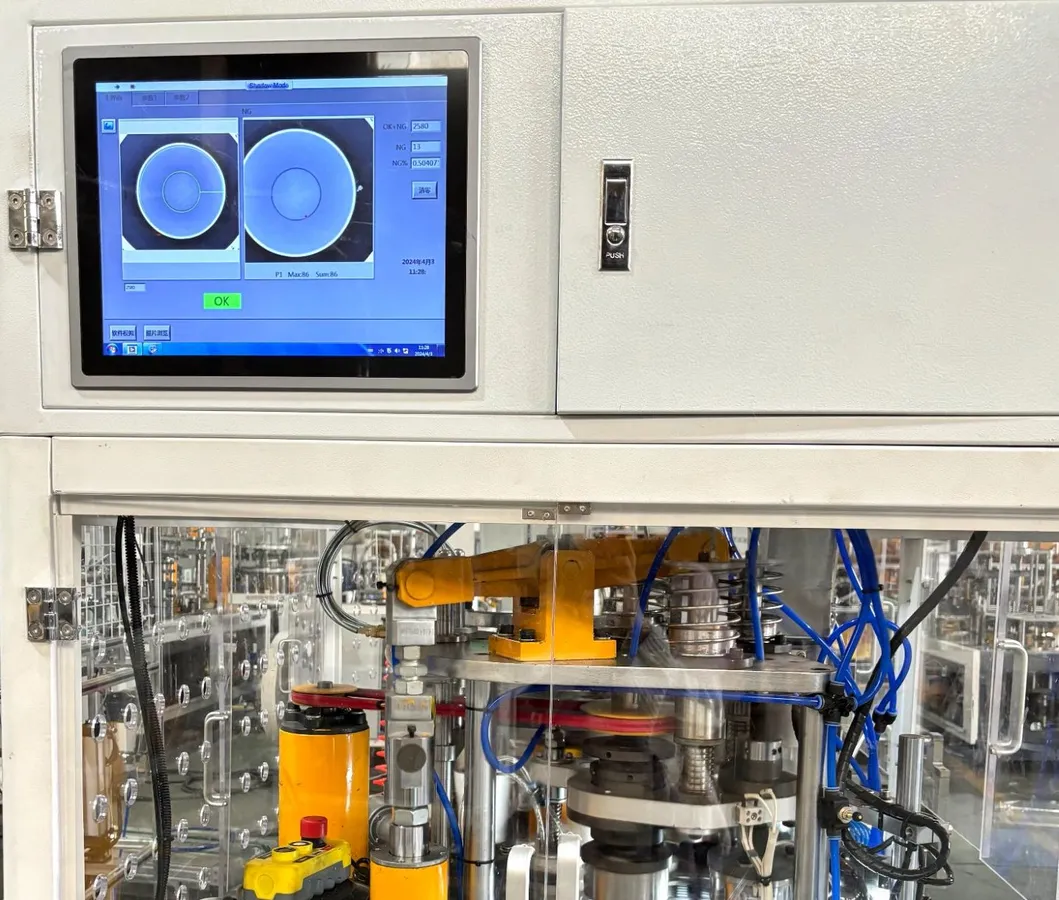

Automatic Camera Detection System: In-built camera and computer system detect the quality of every single cup. If a defect like an unclean spot is found, the machine automatically removes the defective product.
