| Model NO. | CW-09Z |
| Type | Self-Propelled Wrapping Machine |
| Driven Type | Electric |
| Application | Beverage |
| Automatic Grade | Automatic |
| Inclusion Degree | Fully Wrapped Winding Machine |
| Film Frame Structure | Mechanical Stretch |
| Raw Material | 200-350GSM Paper Board |
| Cup Size | 4-16oz. |
| Speed | 80-100cups/Min |
| Voltage | 220V / 380V |
| Power | 6kw |
| Weight | 2400kgs |
| Overall Dimension | 2700X1350X1800mm |

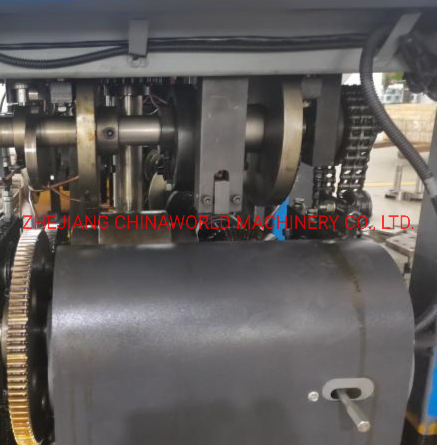

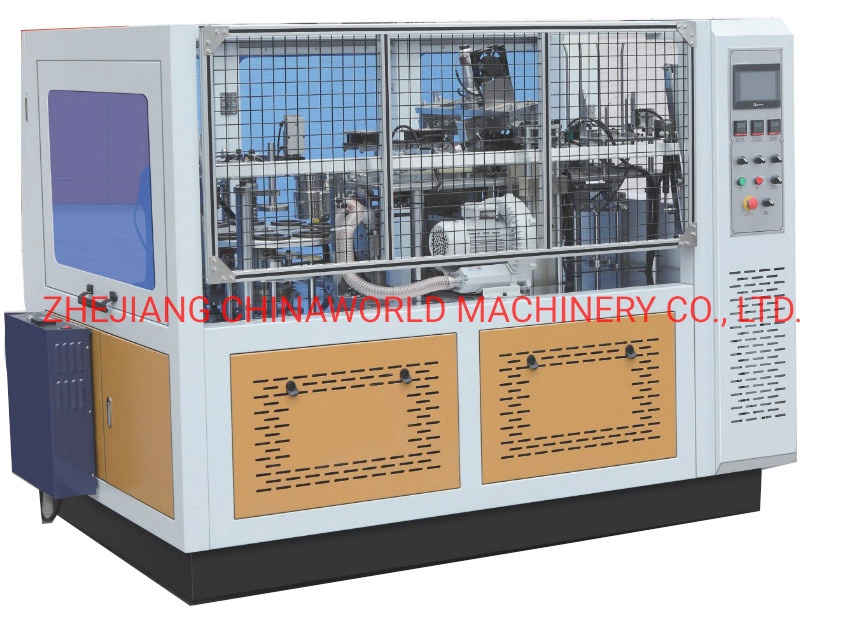

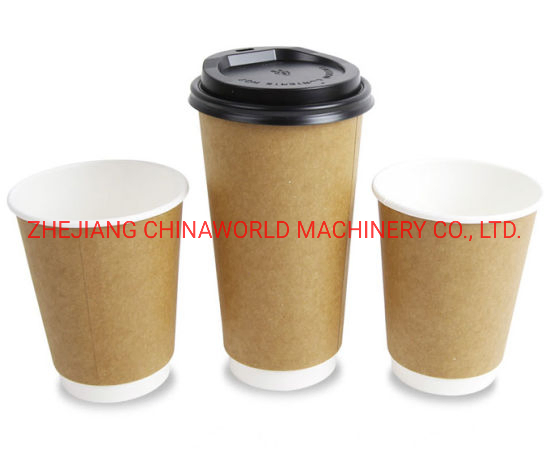

CW-100T Double Wall Paper Cup Machine is an advanced automatic double-layer cup forming machine. It features an open intermittent indexing cam mechanism, gear transmission, and longitudinal axis structures.
The system is equipped with an automatic lubrication system, ensuring all mechanical components operate smoothly. Key functions include automatic row-by-row paper feeding, ultrasonic sealing, mechanical arm cylinder transfer, oiling, bottom folding, stepping glueing, and efficient stacking.
For enhanced durability and protection, the machine includes an inverter for automatic speed adjustment and sensors that trigger an automatic stop if issues are detected. The separate cam drivers for cup side sealing offer a quiet and stable working environment, representing top-tier technology. Size customization is easily achieved by changing molds.
| Cup Size Range | 4-16oz. |
| Material Compatibility | 180-350gsm paper board |
| Production Speed | 80-100 cups/min |
| Power Supply | 220V or 380V, 3 phases |
| Total Power | 6kw |
| Air Source Requirement | 0.4m³/min |
| Machine Weight | 2400kgs |
