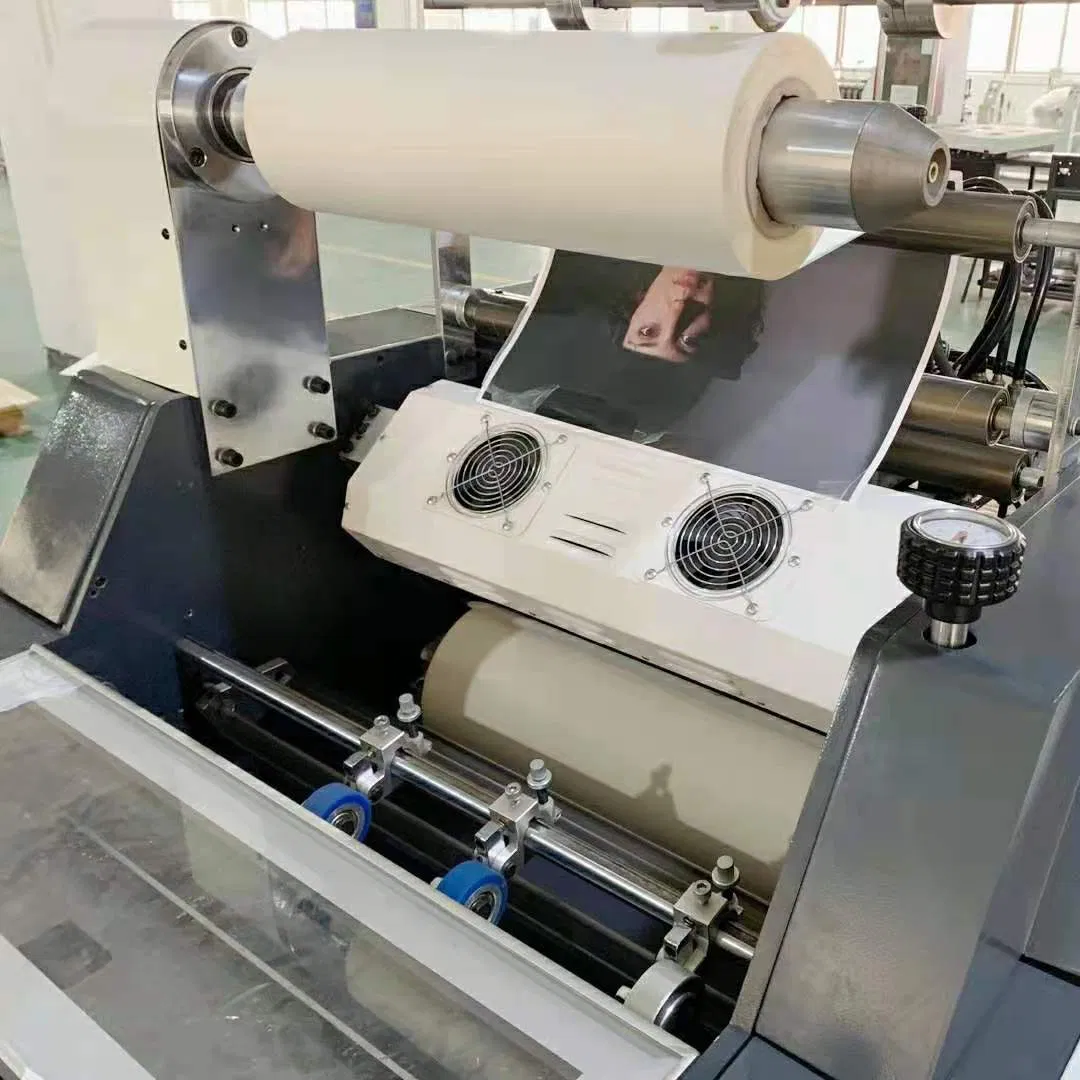

Fully Automatic Laminator Hot and Cold Sheet Paper Cup Sleeve Reflection Deep Embossing Laminating Machine (SADF-540)

1 / 5

Fully Automatic Laminator Hot and Cold Sheet Paper Cup Sleeve Reflection Deep Embossing Laminating Machine (SADF-540)

Customization:	Available
After-sales Service:	1 Year Warranty Excludes The Spare Parts
Warranty:	1 Year Warranty Excludes The Spare Parts

Send Inquiry

Product Description

Basic Information

Model NO.

SADF-540

Classification

Hot Laminating Machine

Application

Packaging Paper, Film Material

Driven Type

Mechanical

Automatic Grade

Automatic

Membrane Material

Thermal Film

Mulching Modes

Hot Laminating

Performance

Waterproof

Product Overview

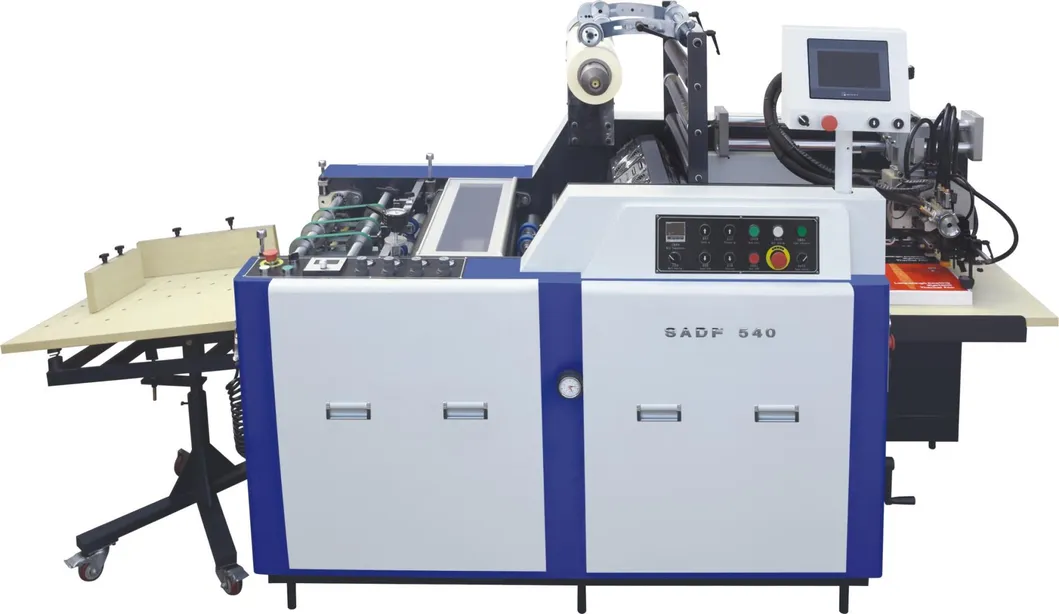

SADF-540 Full Automatic Thermal Film Laminating Machine

Economical laminating machine is a small and economical laminator which is designed and manufactured upon the market needs. The machine has the feature of compact structure and easy operation. The electric and pneumatic system is controlled by PLC system. One person can operate it easily. When the operator inputs paper size on touch screen, the machine can realize automatically paper lamination and cut processes.

Key Features & Configuration

SCHNEIDER frequency converter for infinitely variable speed and stable running.

One-piece construction design for enhanced stability and machine lifetime.

Automatic paper feeding (bottom feeder).

Easily adjustable regulating plate for manual paper feeding control.

Touch screen controlled paper overlap regulating system.

High precision chrome plated heating roller with built-in electrical tube heater.

Pneumatic pressuring system for steady and adjustable pressure.

Film cutter to match film width with paper size.

Film perforating wheel for automatic cutting of laminated paper.

Anti-curvature device to ensure leveled paper after cutting.

Pneumatic cutting system for automatic paper cut based on touch screen input.

Adjustable height paper receiving table.

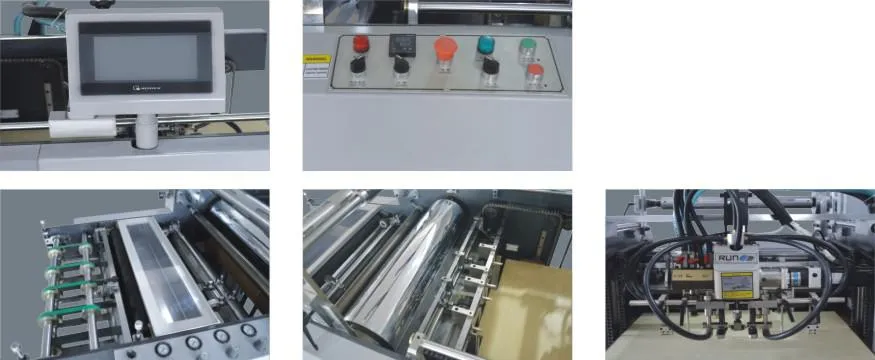

Detailed Photos

Technical Parameters

Model	SADF-540
Max Laminating width	540x760mm
Min paper size	210x290mm
Paper weight	157-400g/m²
Max laminating Speed	30m/min
Power	17kw
Total Weight	2000kg
Overall Dimensions	3000x1200x1700mm

Packaging & Shipping

Frequently Asked Questions

What types of materials can the SADF-540 laminate?

The machine is specifically designed for the lamination of pre-glued film (thermal film) onto various types of paper, including packaging paper and film materials.

What is the maximum production speed of this laminator?

The SADF-540 can reach a maximum laminating speed of 30 meters per minute, which can be adjusted via the Schneider frequency converter.

Does the machine support automatic feeding?

Yes, it features an automatic bottom feeder system, which simplifies the workflow and improves efficiency.

How is the temperature controlled during the process?

It uses a high-precision chrome-plated heating roller with a built-in electrical tube heater that raises temperature quickly and is fully adjustable.

What paper thickness is compatible with this machine?

The machine supports a wide range of paper weights, specifically from 157g/m² up to 400g/m².

Is the operation of the SADF-540 complicated?

No, the machine is designed for easy operation. It is controlled by a PLC system with a touch screen where the operator can input paper sizes and overlap lengths.
