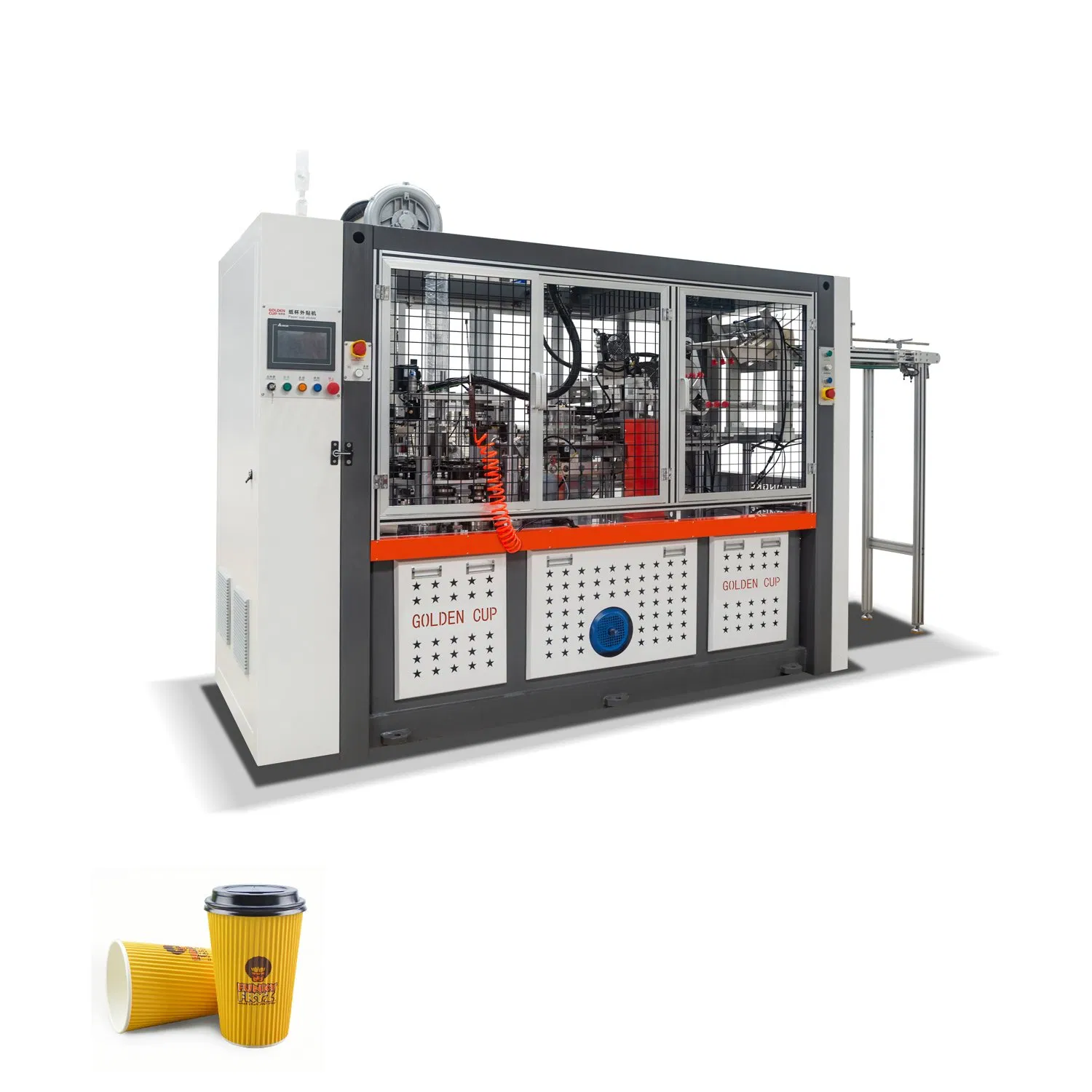

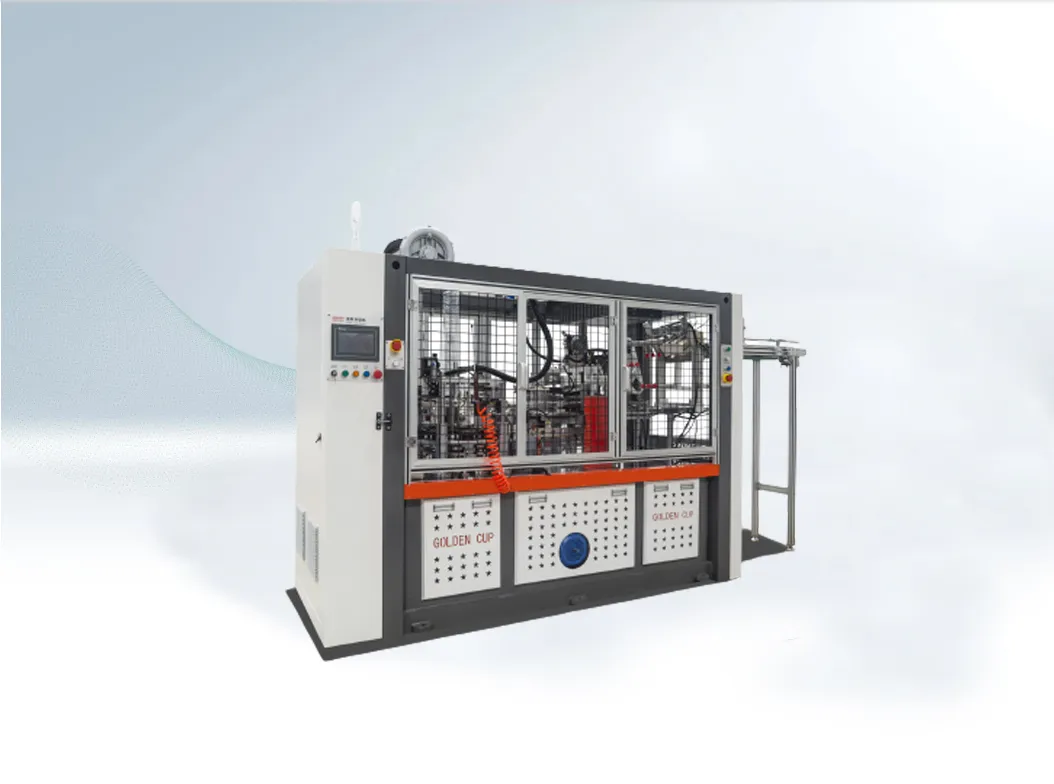

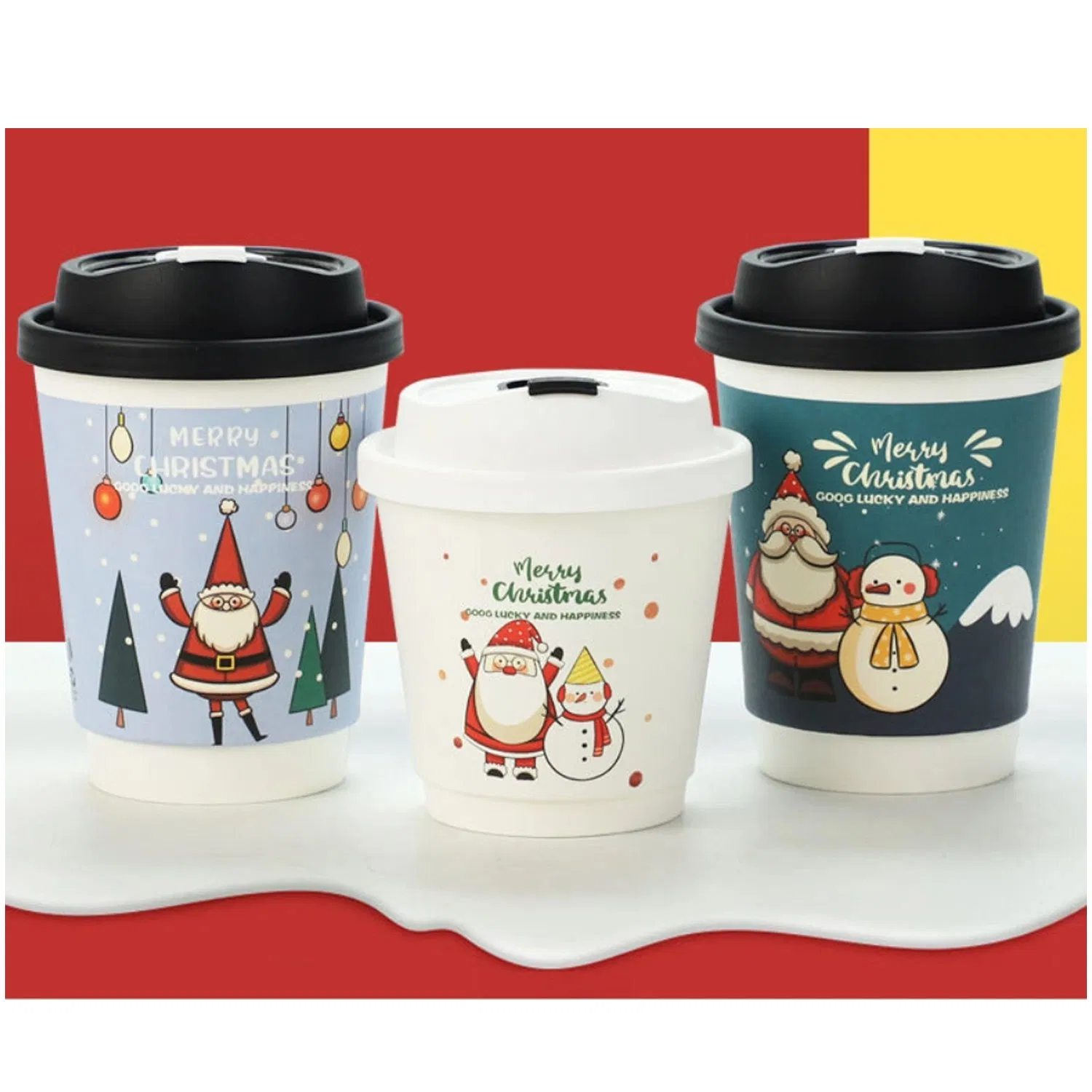

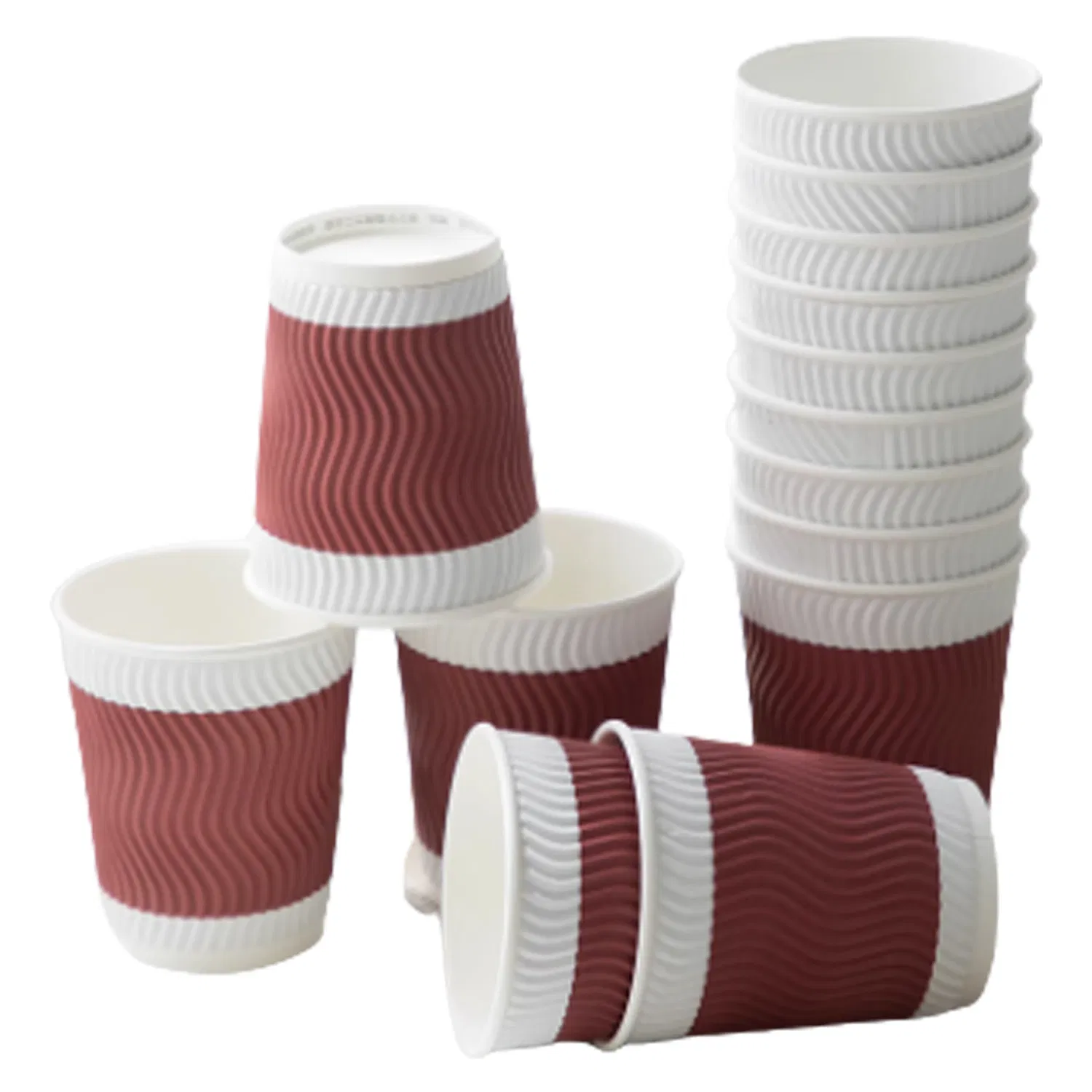

The XSL-16W double wall sleeve machine utilizes a tabletop layout, which effectively isolates the forming parts from the transmission parts. The machine is controlled by a PLC system, with the entire process monitored by photoelectric sensors and glue sprayed via servo control. It is an ideal equipment for manufacturing various types of sleeve cups.
| Technical Specifications | |
|---|---|
| Model | XSL-16W double wall paper cup sleeve machine |

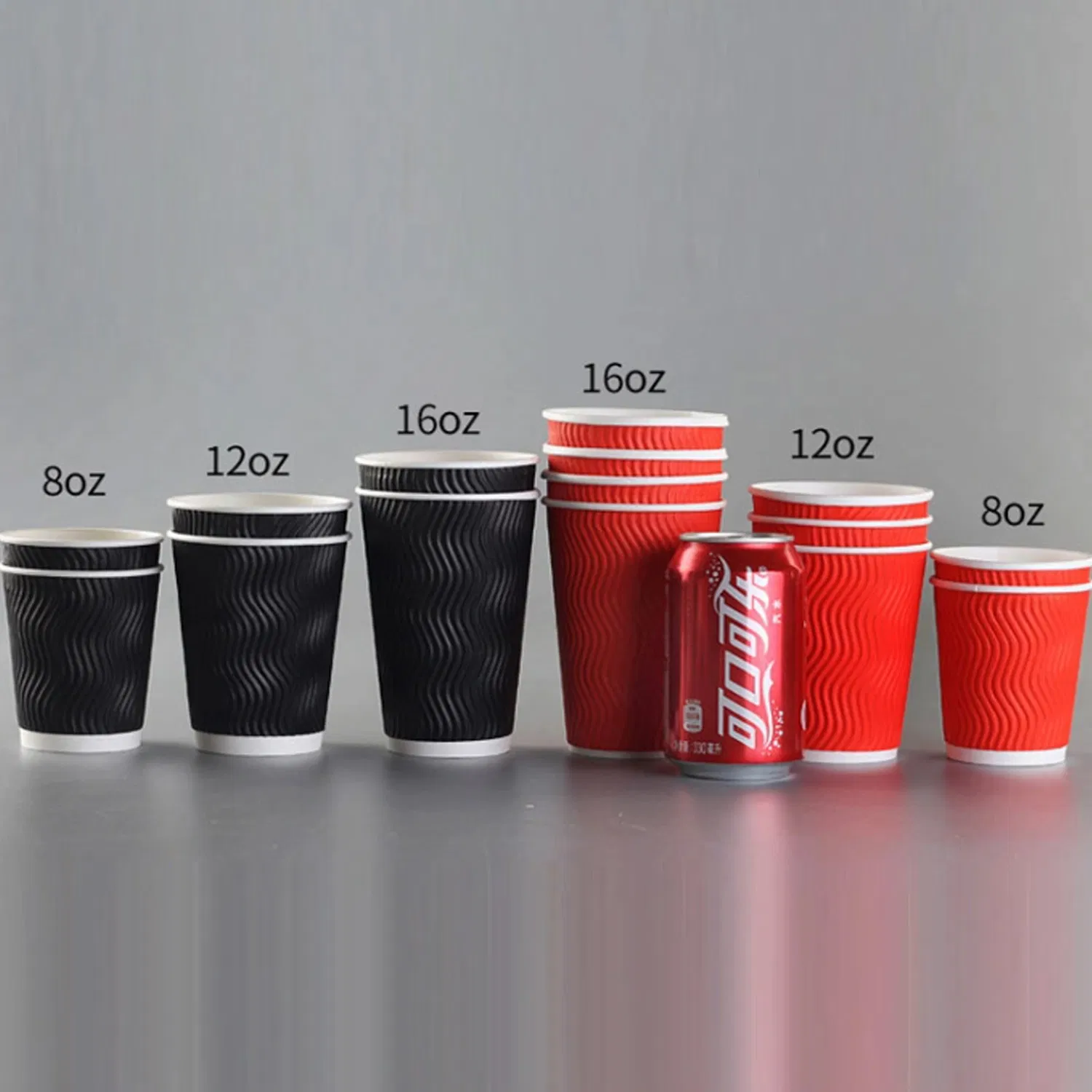

| Suitable Size | Top: 60-95mm | Bottom: 40-75mm | Height: 50-135mm |
| Production Speed | 100-120pcs/min |
| Paper Request | 170-300gsm single/double PE paper |
| Machine Size | 2600*960*2120mm |
| Air Consumption | 0.3Mpa |

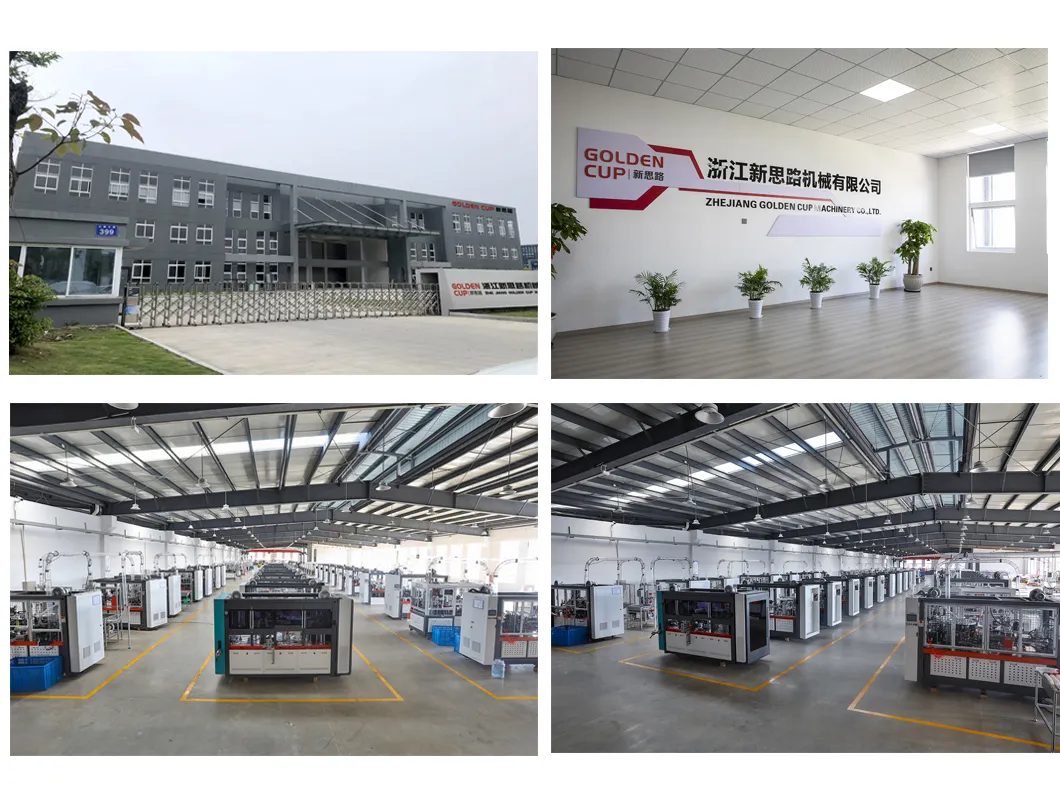

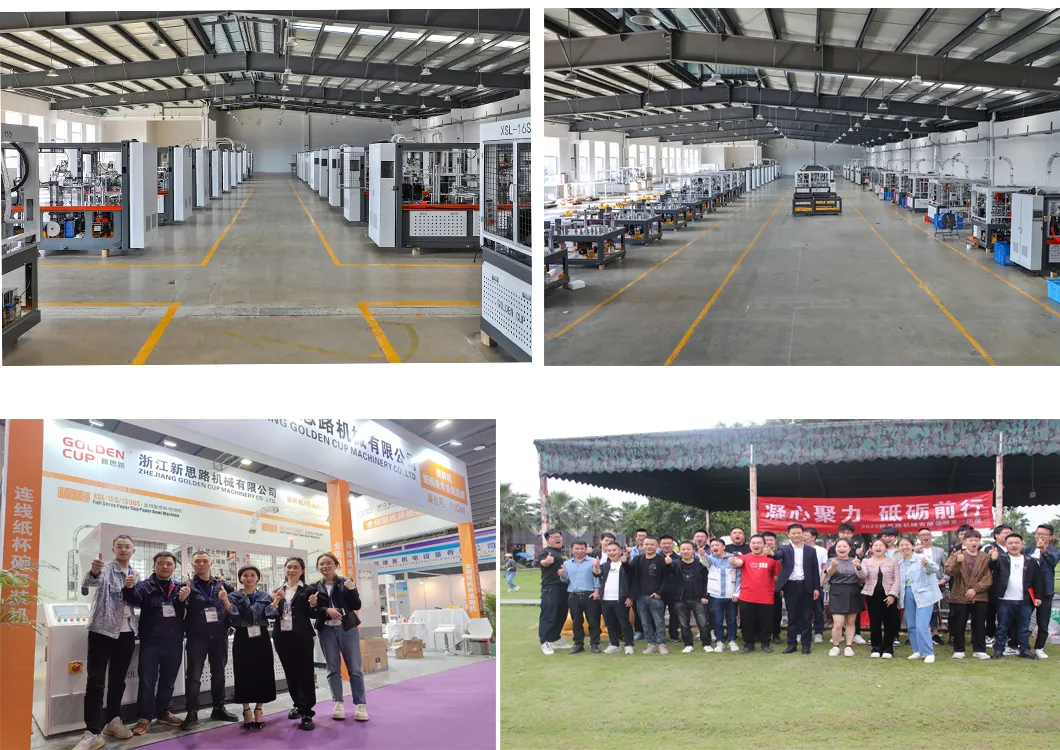

Our state-of-the-art facility spans approximately 10,000 square meters, equipped with advanced production capabilities. We specialize in the production of high-speed paper cup machines, paper bowl machines, and double wall sleeve machines. Our machinery is designed to cater to a wide range of cup sizes, from small coffee cups to large bowls, and can be customized to meet specific requirements.

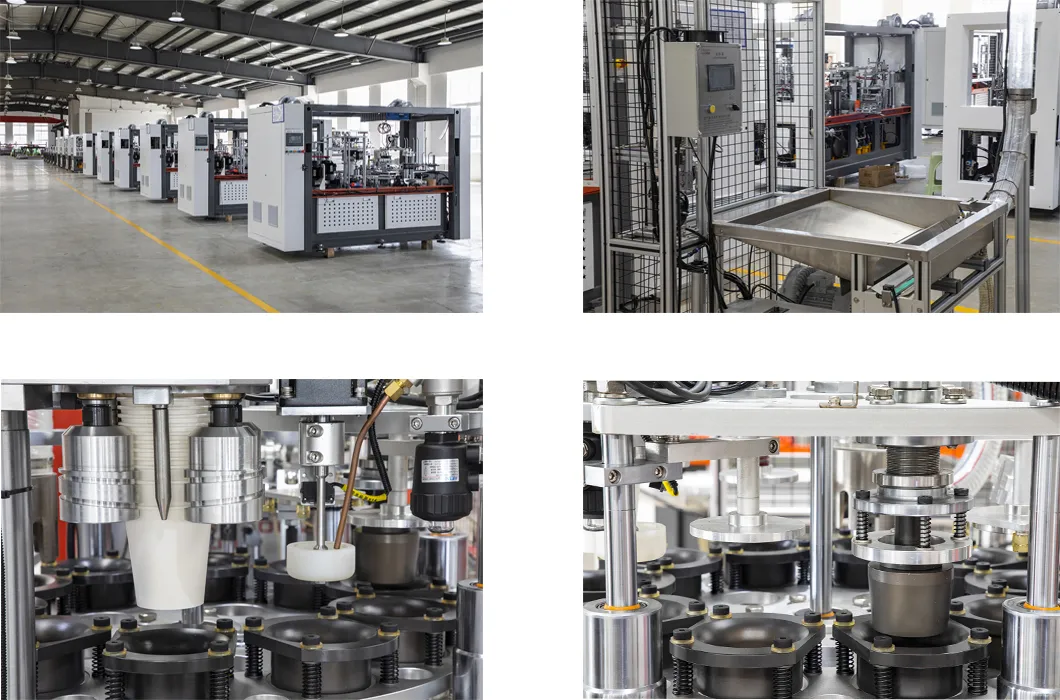

To ensure top-notch performance and durability, we use components from renowned international brands for main electrical parts. Important bearings are sourced from Japan, and molds are constructed with high-quality materials. The transmission part utilizes cam and gear mechanisms, eliminating chains and incorporating a spray circulating lubrication system. Our high-speed machines can achieve production rates of 120-150 cups per minute.
