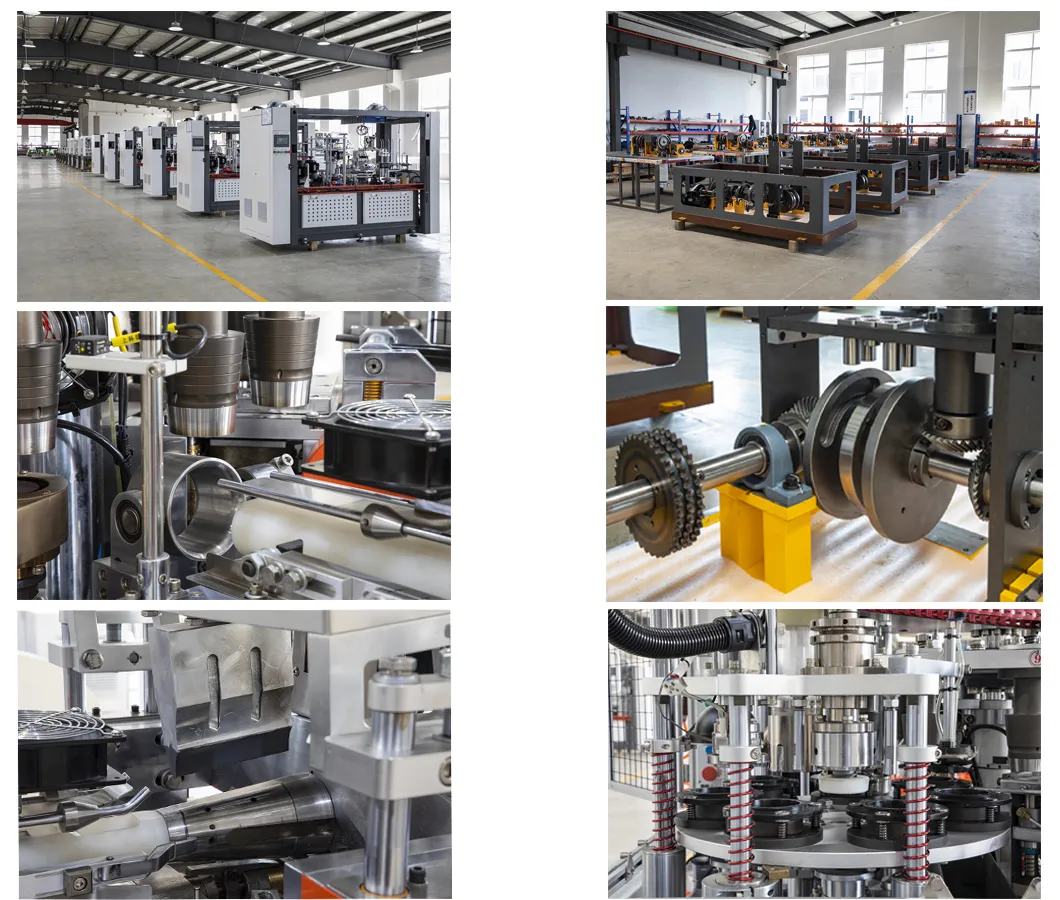

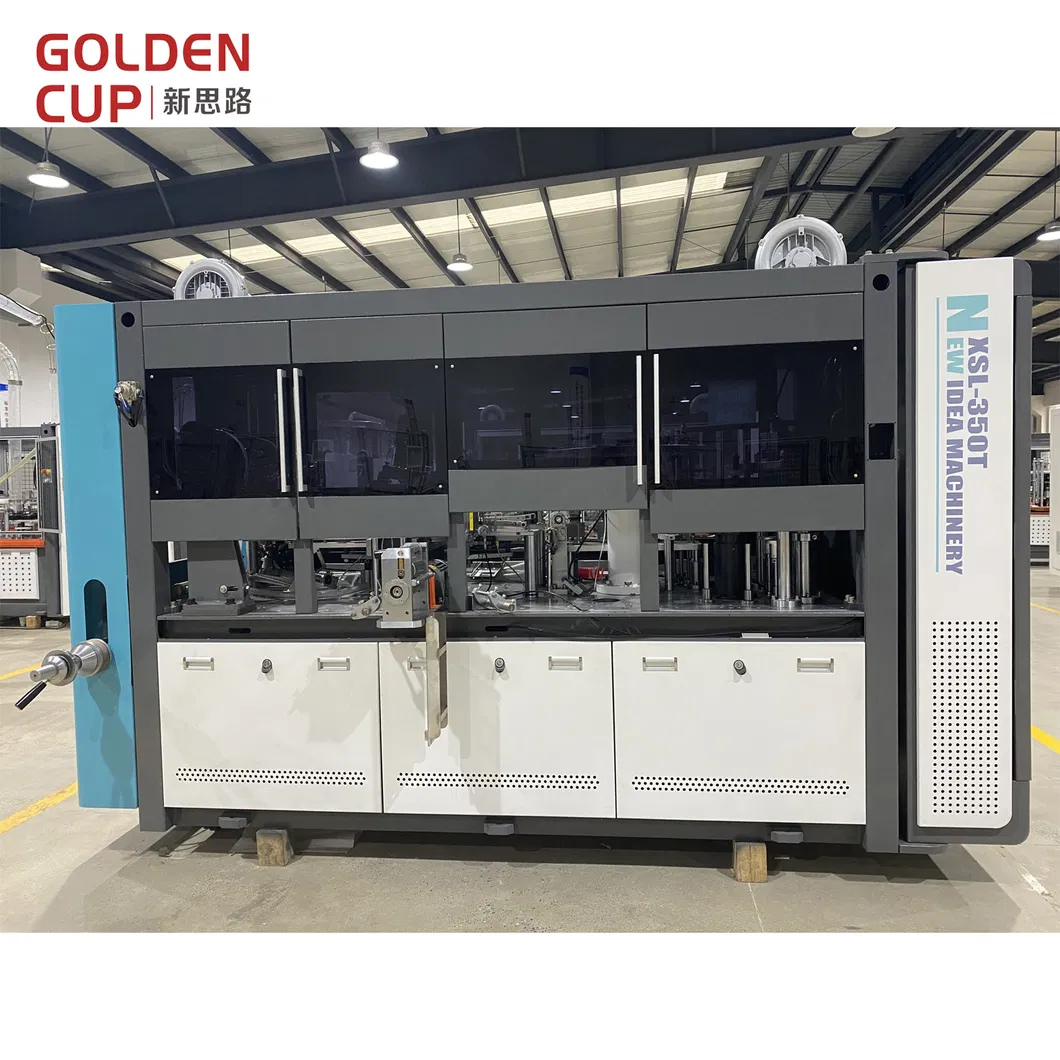

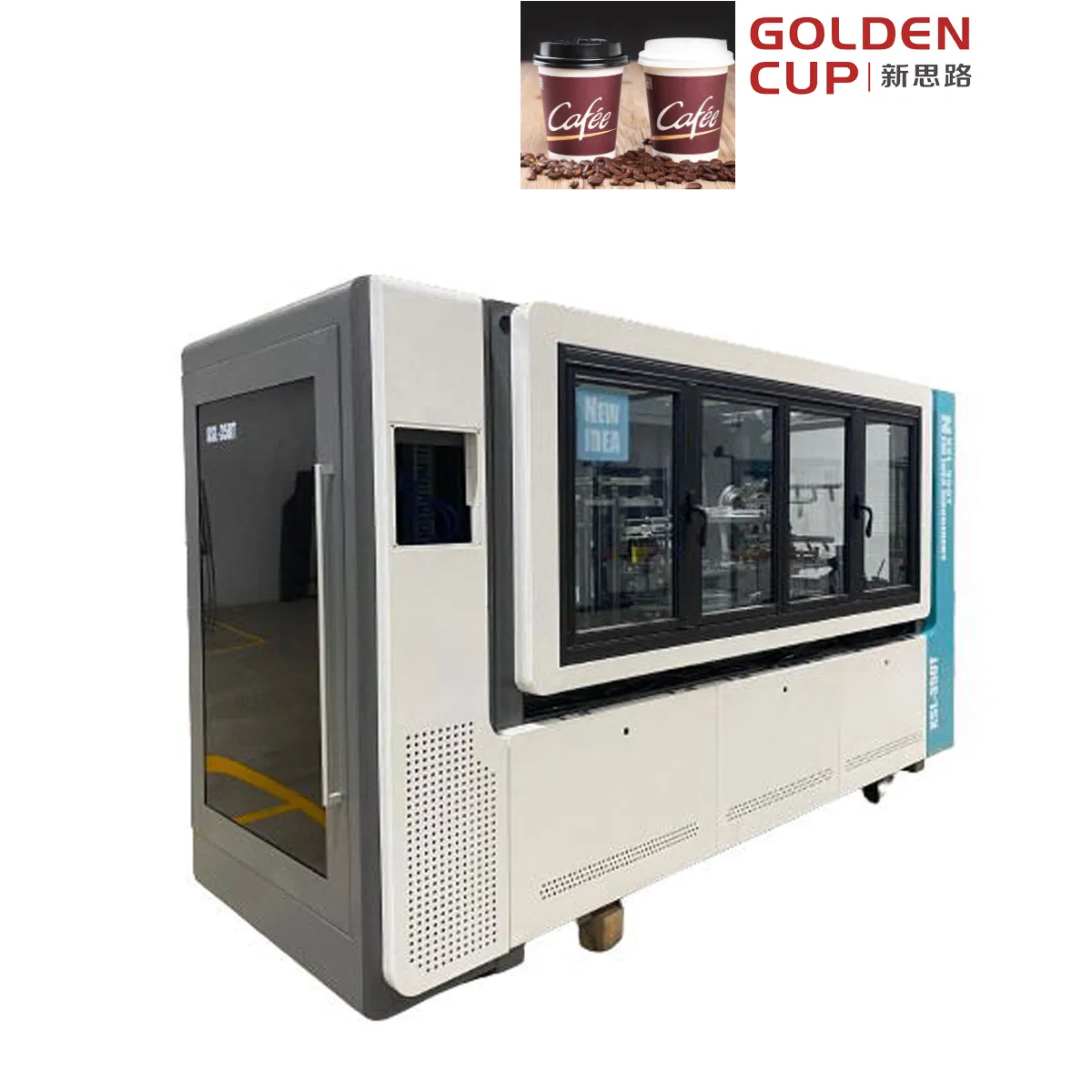

The paper cup machine uses a tabletop layout, which isolates the forming parts and transmission parts. All transmission parts use longitudinal shafts, barrel indexing cams, and gear transmissions. The transmission components are lubricated by spray.

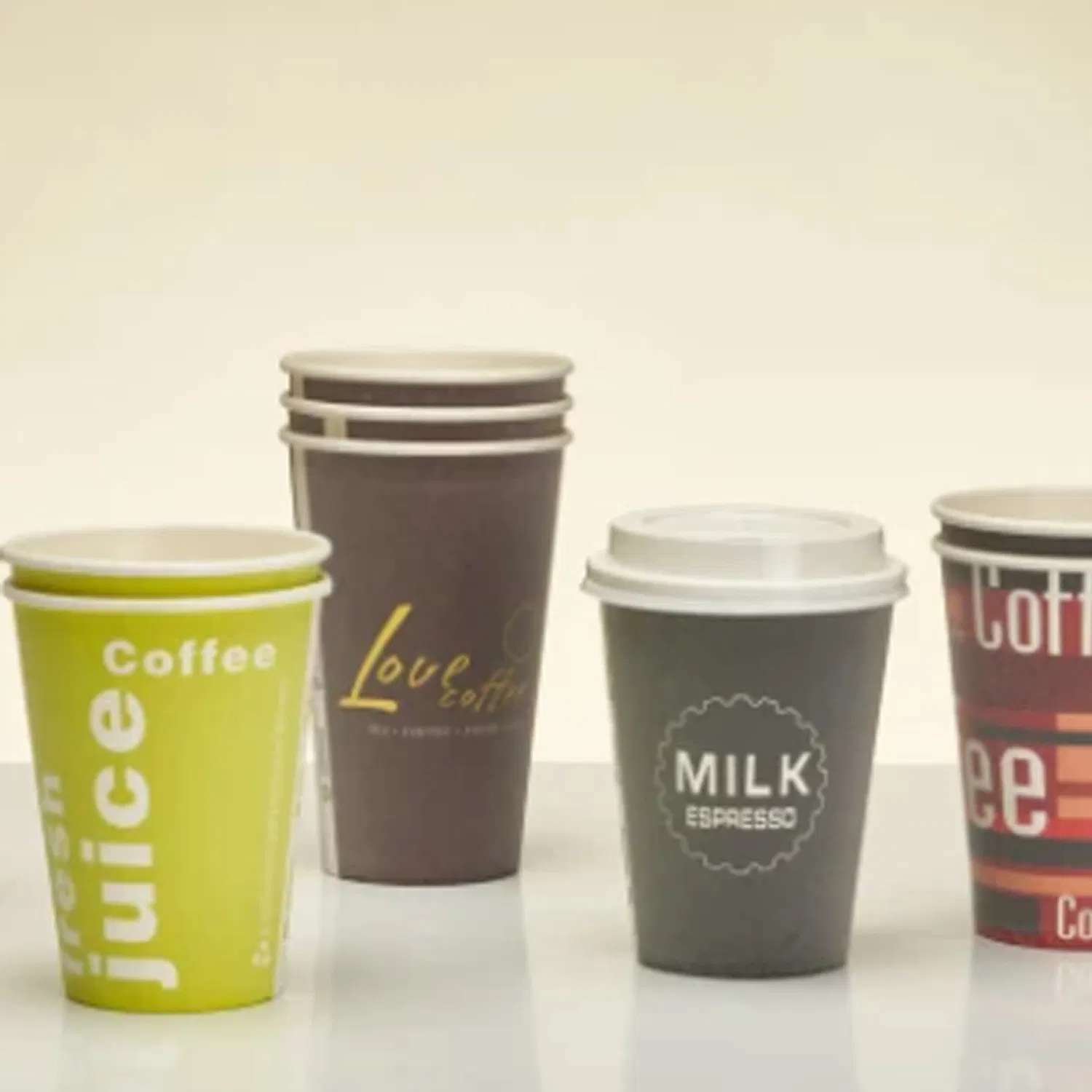

The machine is controlled by PLC, and the entire process is monitored by photoelectric sensors, with feeding handled by servo. A visual inspection system is an option to eliminate disqualified cups. It is suitable for producing 4-16 OZ cold and hot drink cups.
| Technical Specifications | |
|---|---|
| Model | High speed paper cup machine |
| Suitable Size | Top: 60-95mm | Bottom: 40-75mm | Height: 50-135mm |
| Speed | 120-150pcs/min |
| Paper Request | 170-380gsm single/double PE paper |
| Weight | 3600kgs |
| Dimensions (L*W*H) | 3700 * 1300 * 2060 mm |
| Power | 3 phase, 380V, 50HZ, 21KW |
| Air Consumption | 0.6-0.8m³/min |

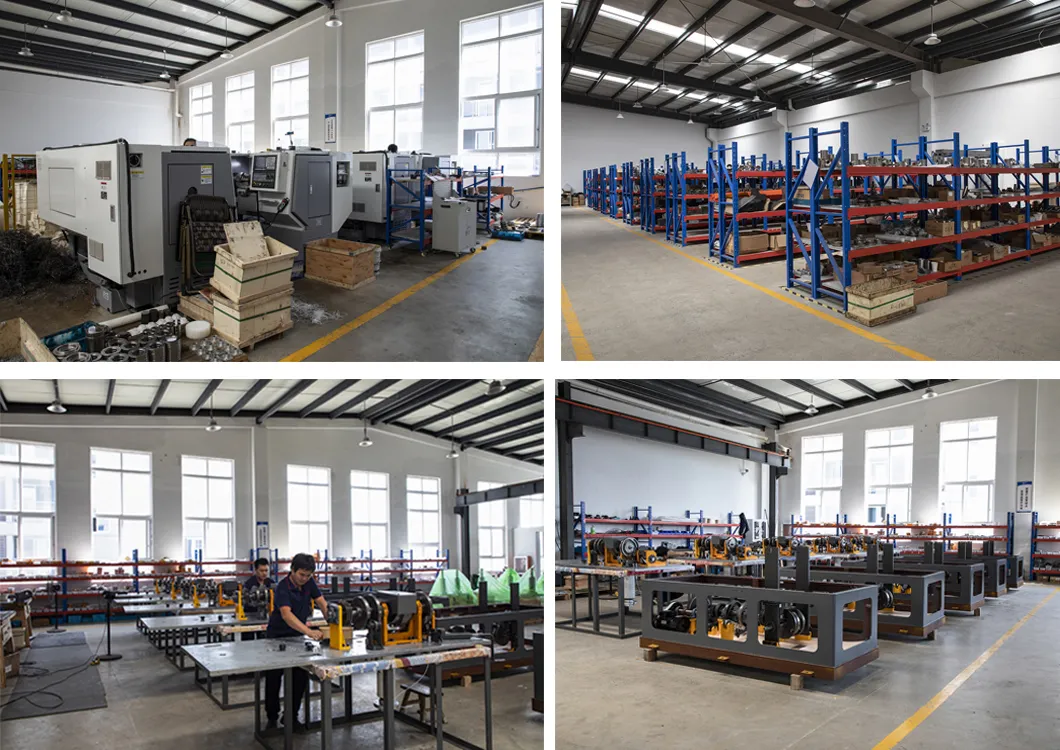

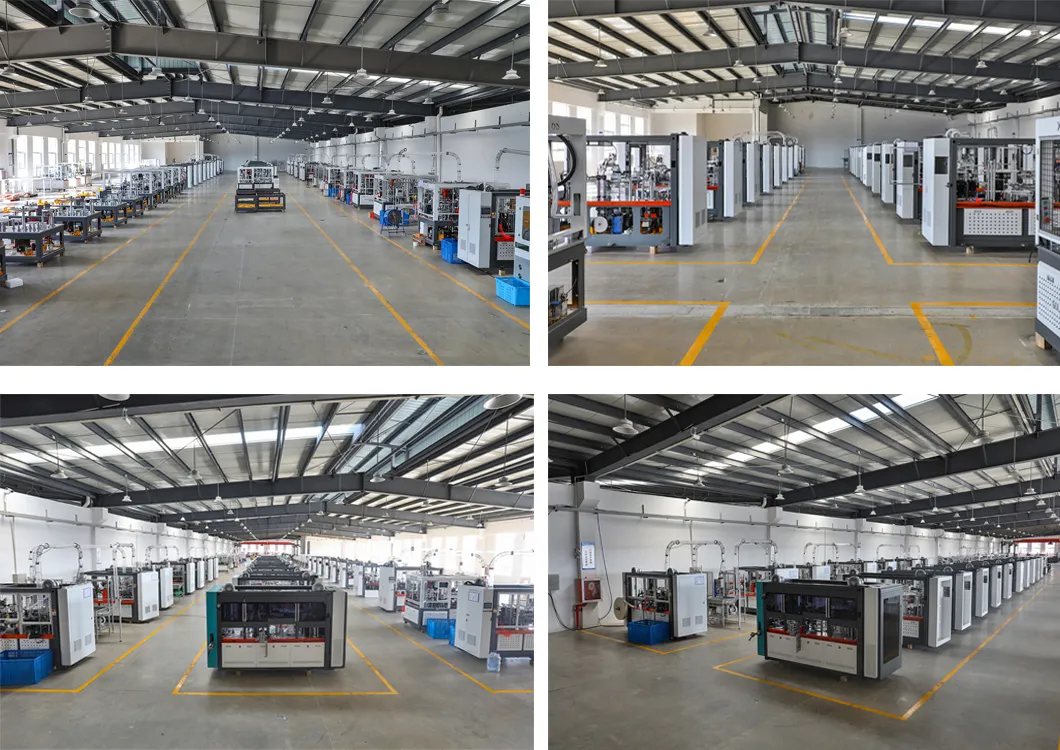

As a leading manufacturer in the paper cup industry, our state-of-the-art facility spans approximately 10,000 square meters, equipped with advanced production capabilities. We specialize in high-speed paper cup machines, paper bowl machines, and double-wall sleeve machines.
To ensure top-notch performance, we utilize components from renowned international brands. Our high-speed machines achieve production rates of 120-150 cups per minute, incorporating cam and gear mechanisms for stability and longevity.
