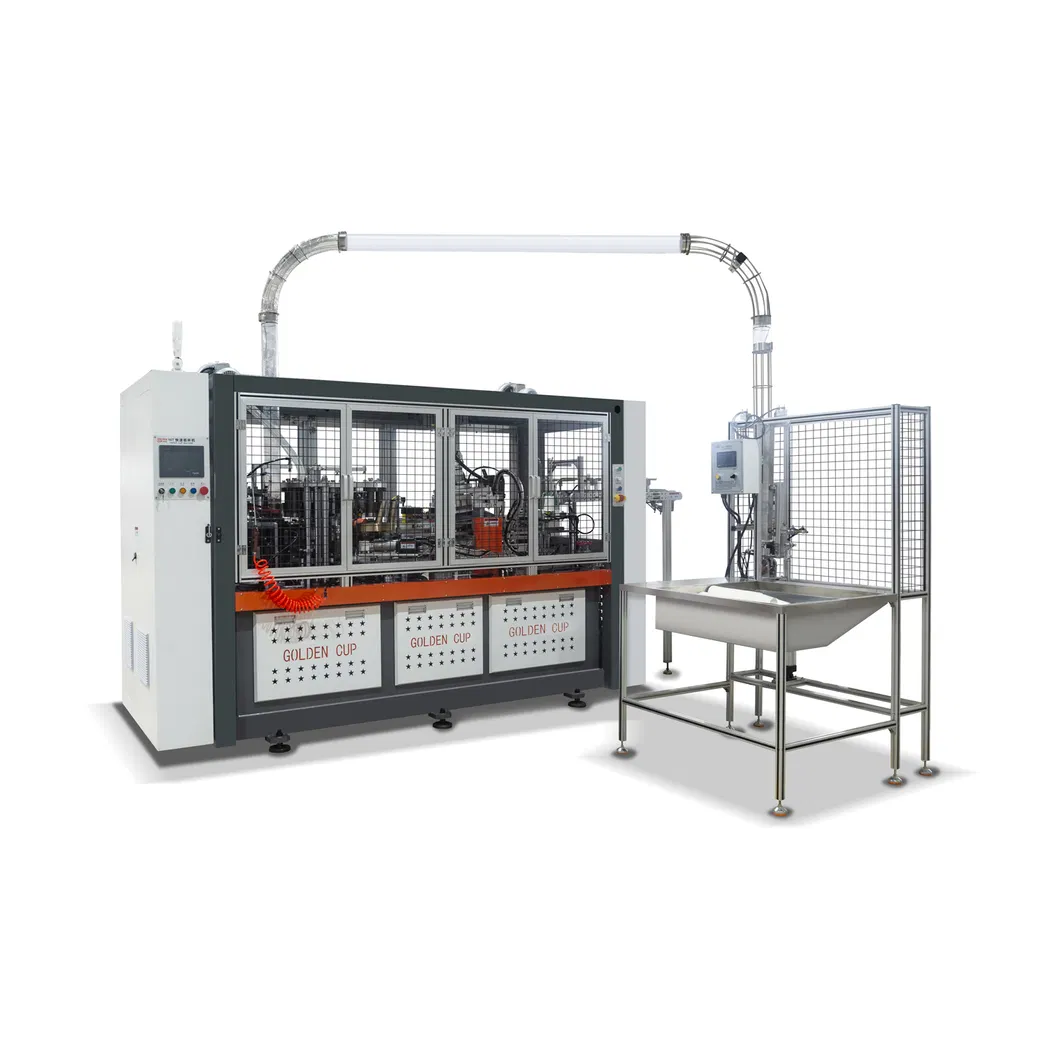

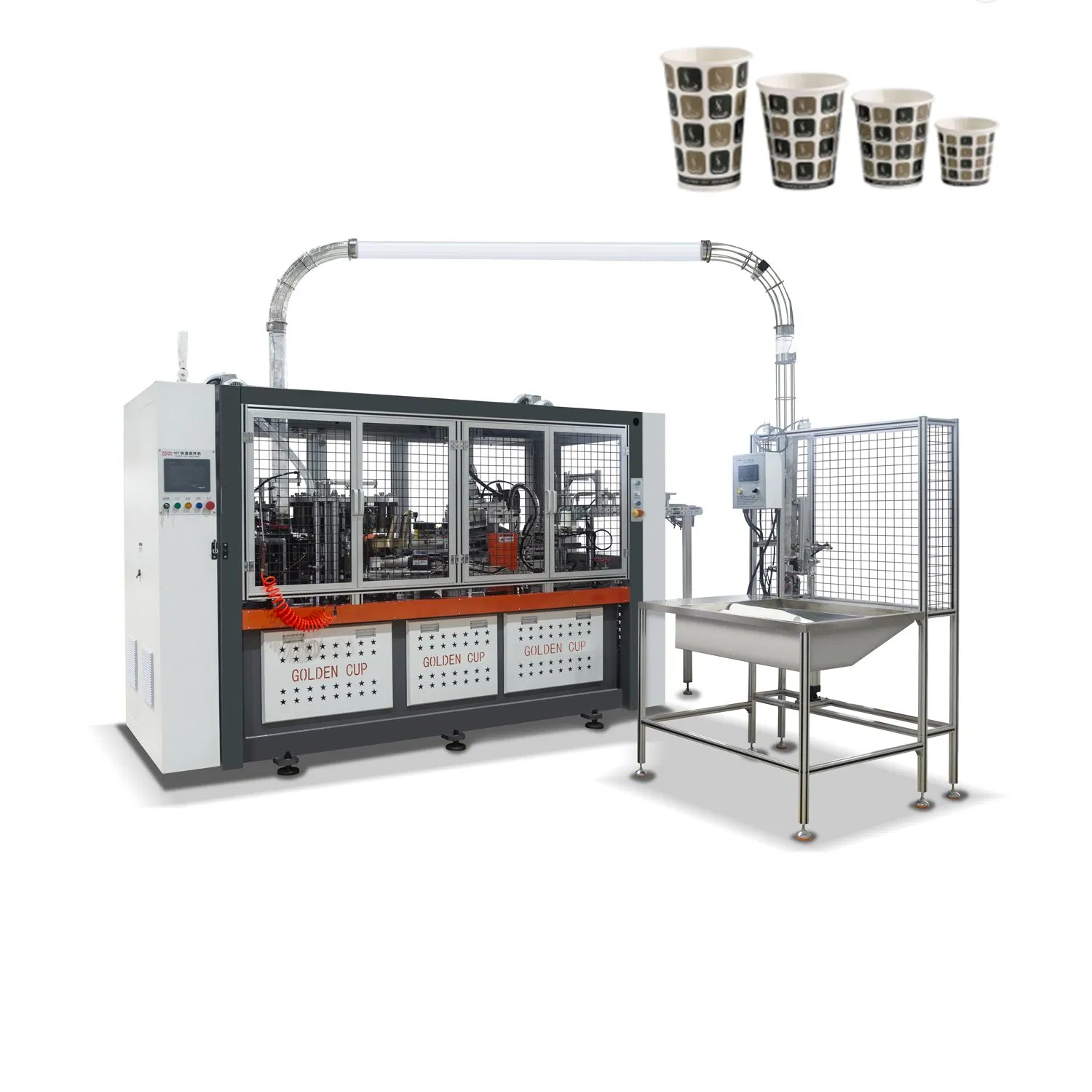

The XSL-16T paper cup machine features a tabletop layout that effectively isolates forming parts from transmission parts. All transmission components utilize longitudinal shafts, barrel indexing cams, and gear transmissions. The system is maintained through an integrated spray lubrication system.

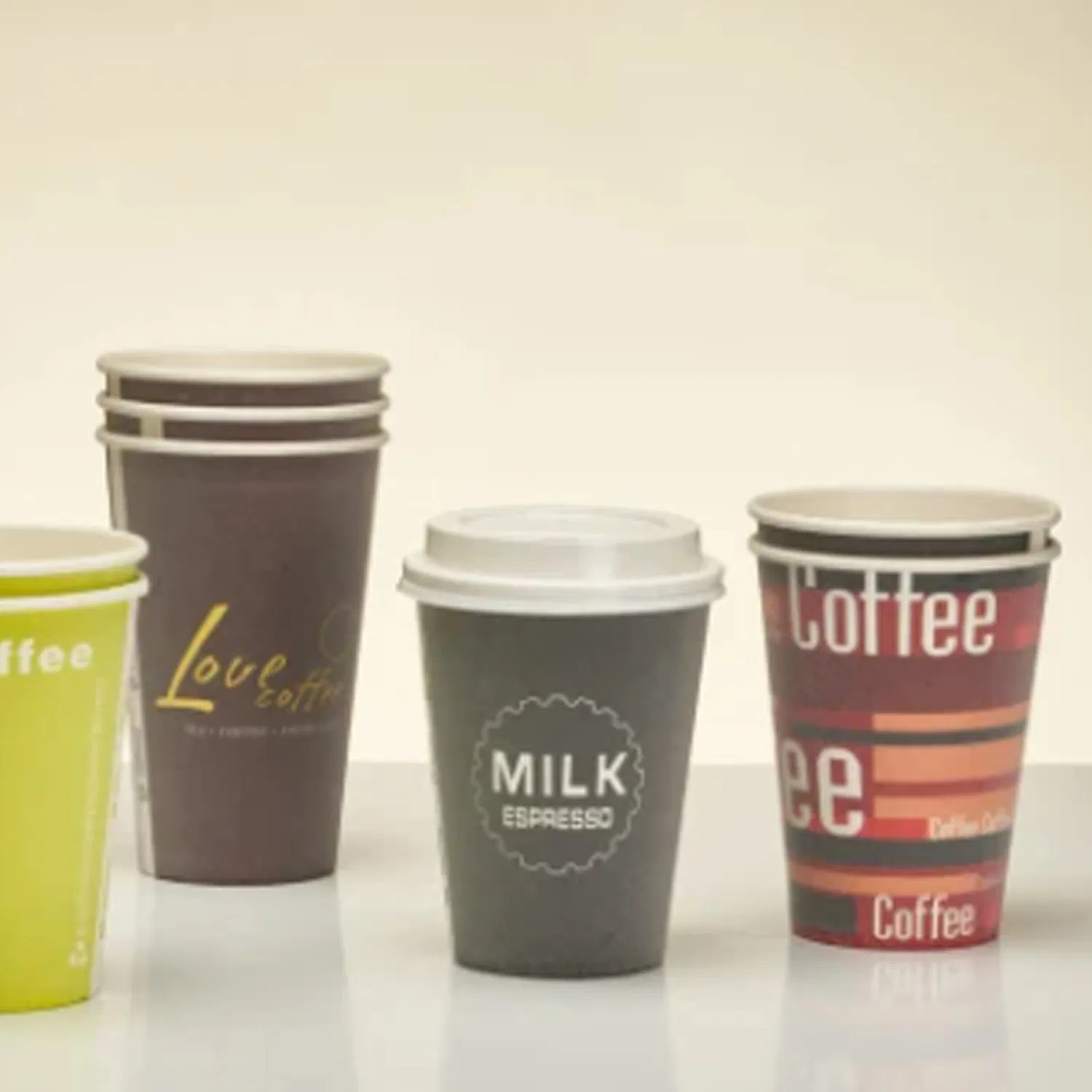

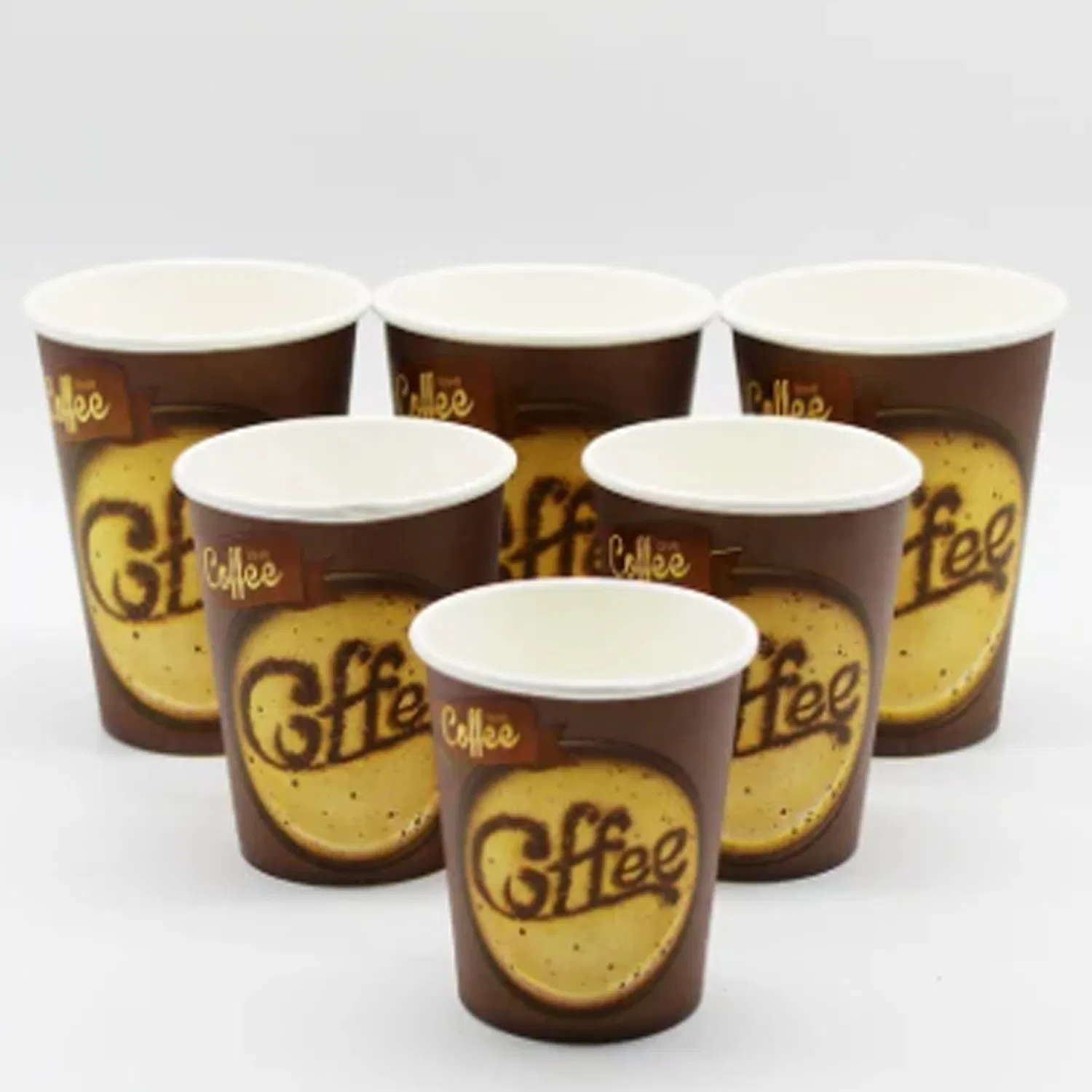

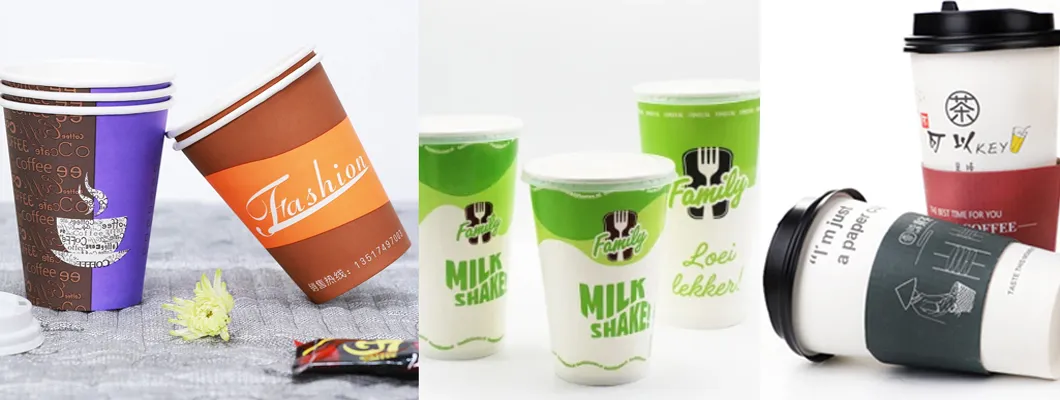

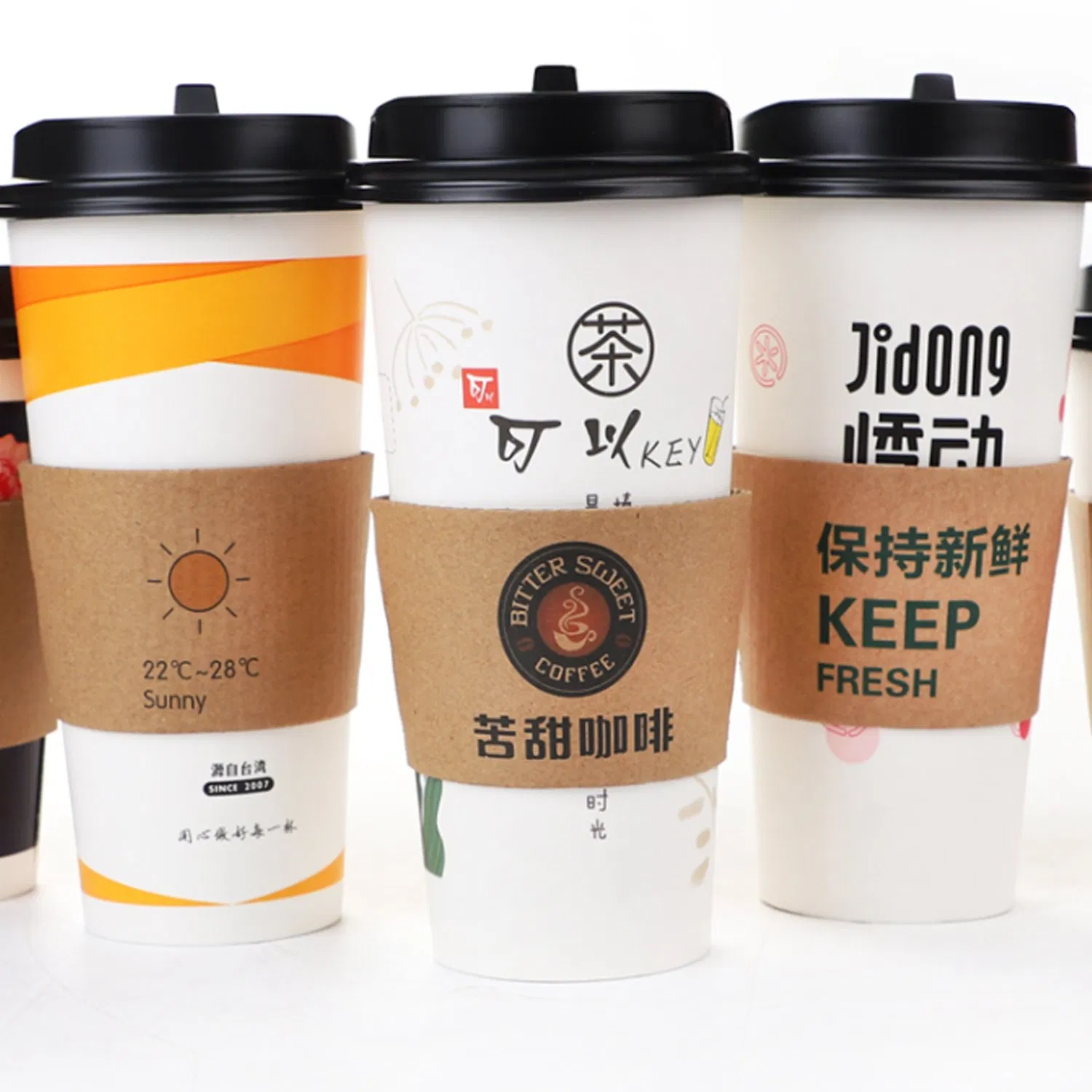

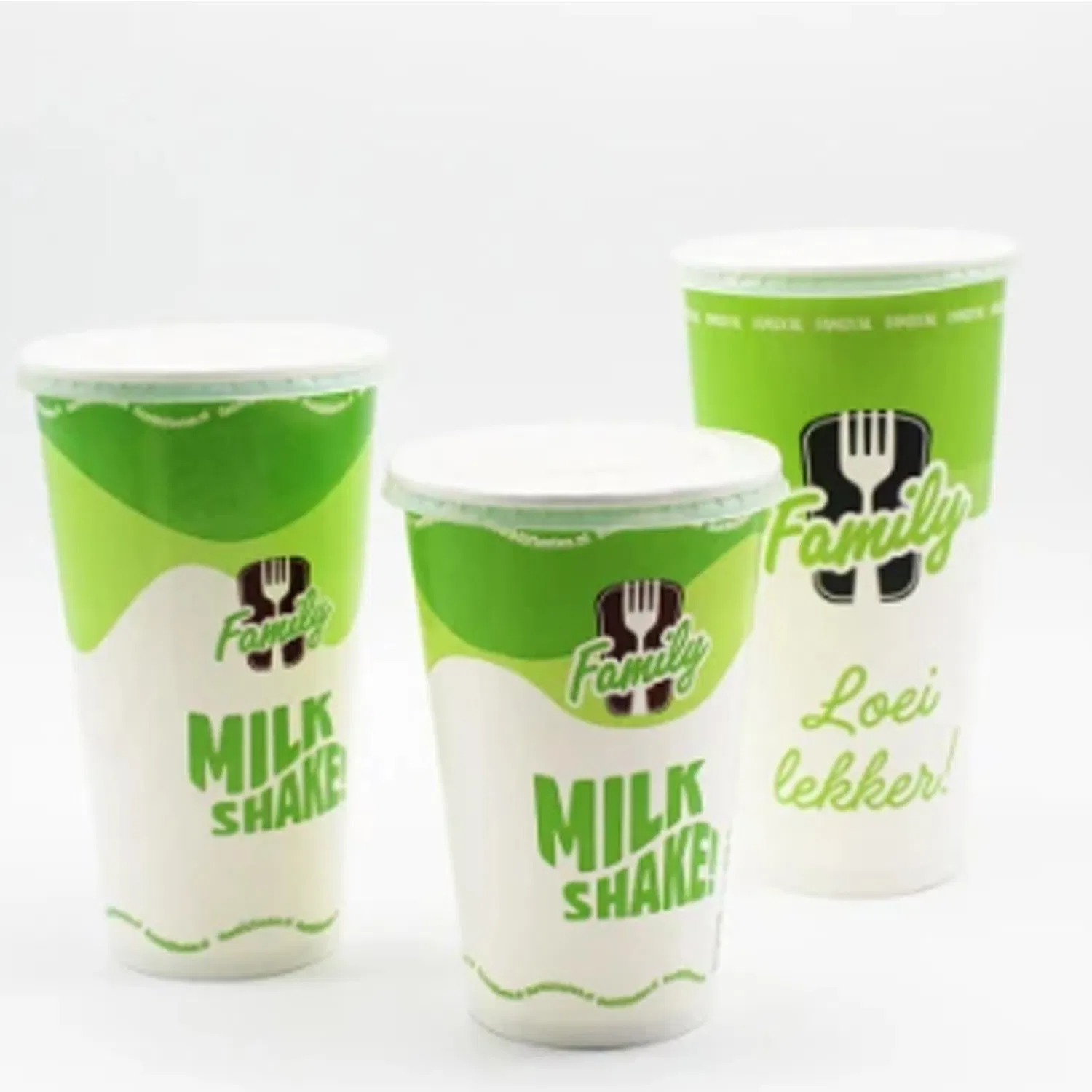

Smart Control: The machine is managed by a high-performance PLC, with the entire production process monitored by photoelectric sensors and servo feeding. An optional visual inspection system is available to automatically identify and remove disqualified cups, ensuring premium quality for 4-16 OZ cold and hot drink containers.
| Technical Specifications | |
|---|---|
| Model | XSL-16T High Speed Paper Cup Machine |
| Suitable Size | Top: 60-95mm | Bottom: 40-75mm | Height: 50-135mm |
| Production Speed | 120-150 pcs/min |
| Paper Requirement | 170-380gsm Single/Double PE Paper |
| Machine Weight | 3600 kgs |
| Dimensions (L*W*H) | 3700*1300*2060 mm |
| Air Consumption | 0.6-0.8 m³/min |

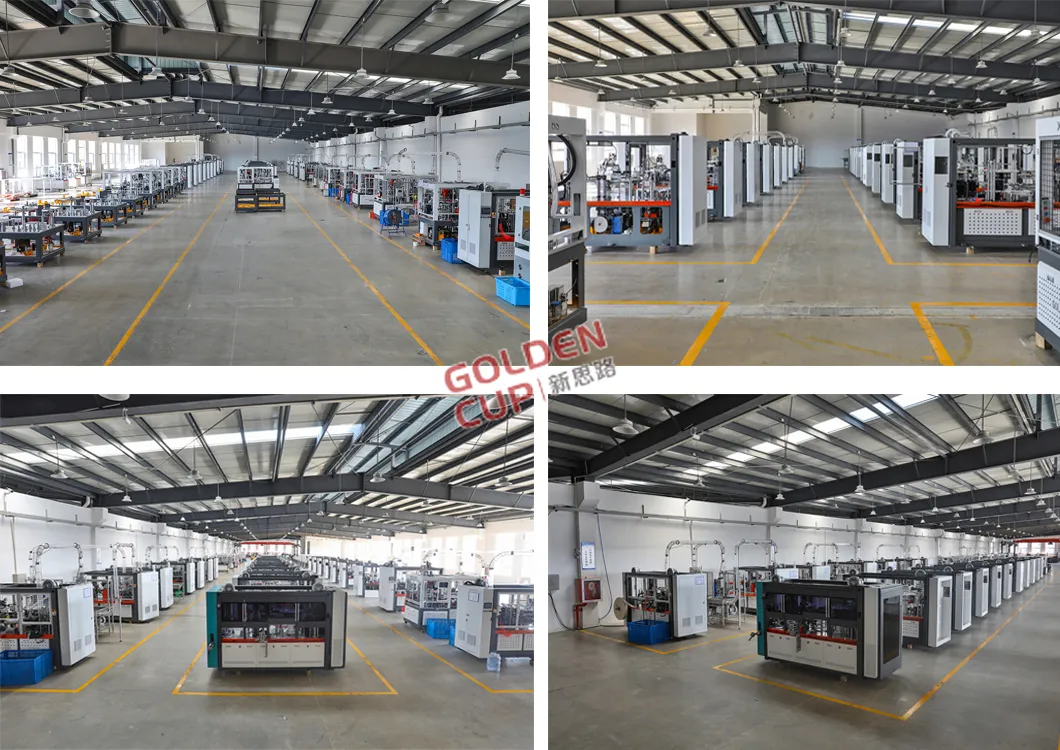

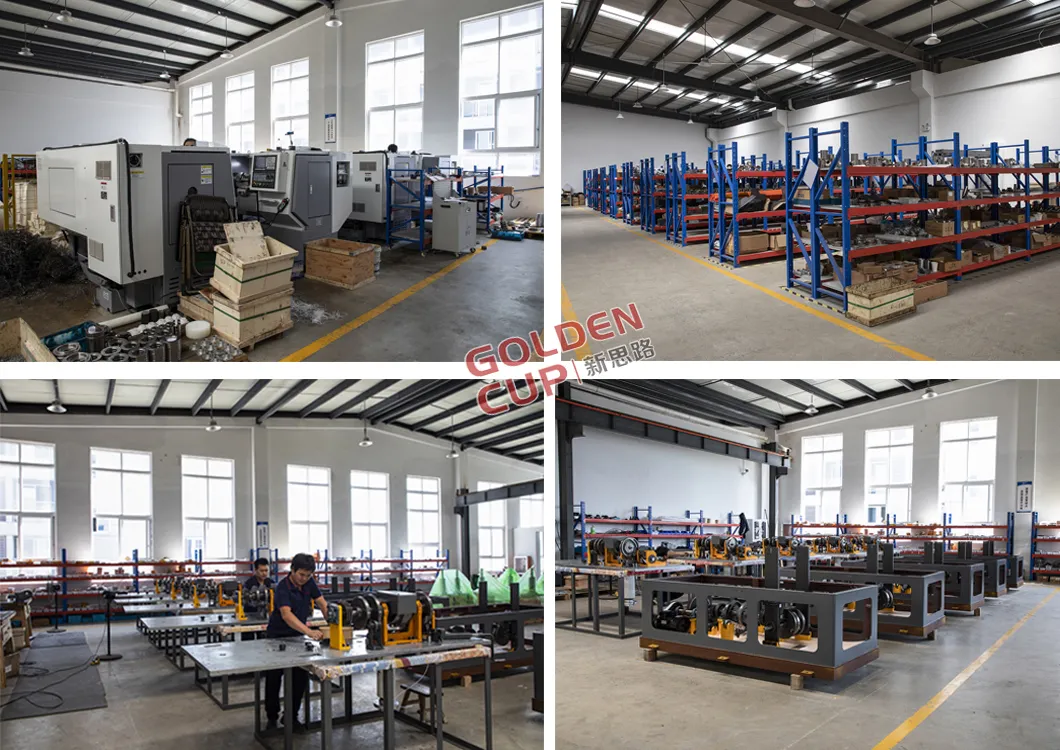

We specialize in the production of high-speed paper cup machines, paper bowl machines, and double wall sleeve machines. Our equipment is designed to handle a wide range of sizes, from small coffee cups to large bowls, with full customization options available.

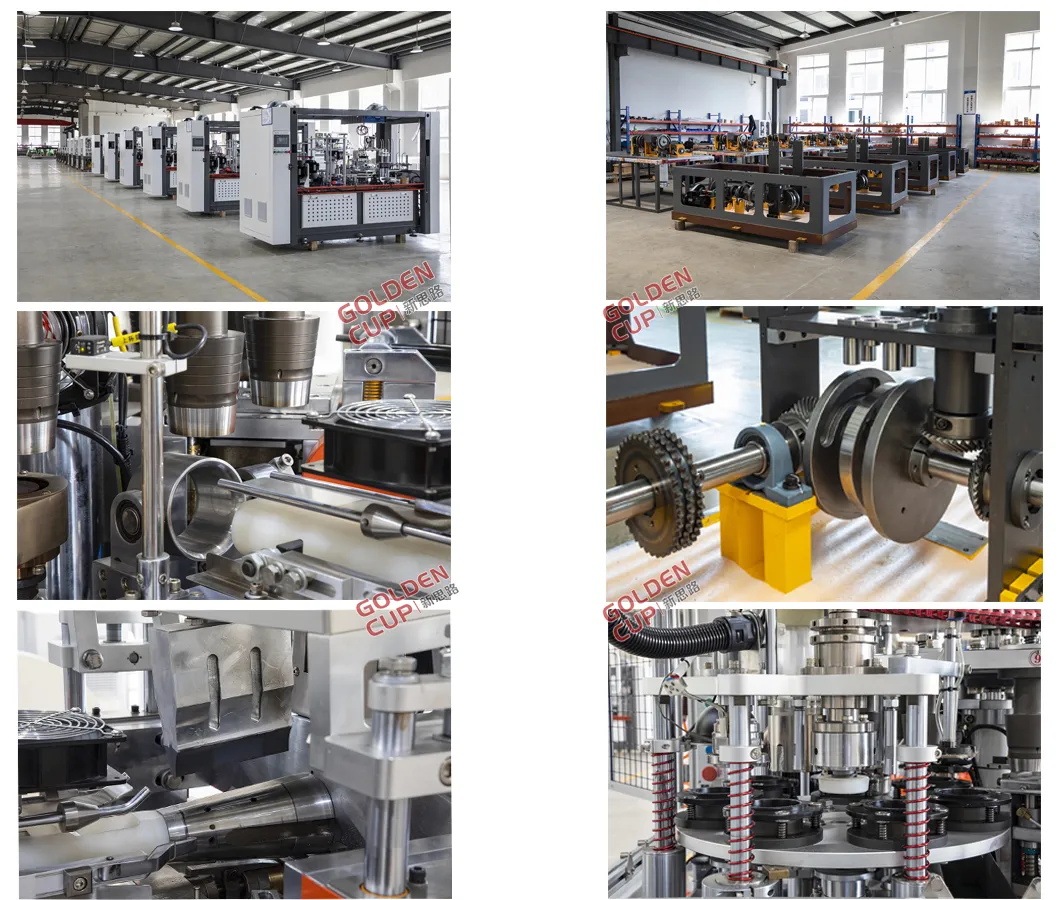

To ensure durability, we utilize components from renowned international brands. Key bearings are sourced from Japan, and molds are crafted from high-quality materials similar to those used in aviation. The transmission system employs cam and gear mechanisms, eliminating chains for a more stable, high-speed production rate of 120-150 cups per minute.
