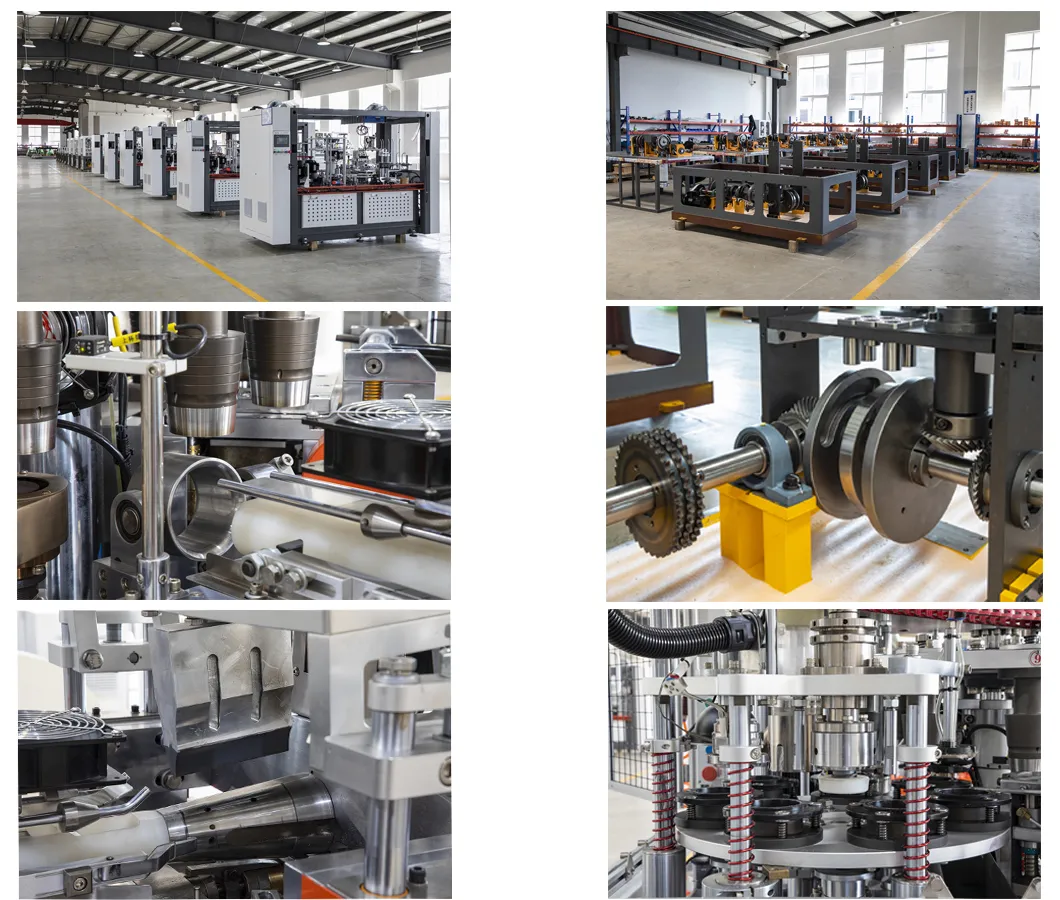

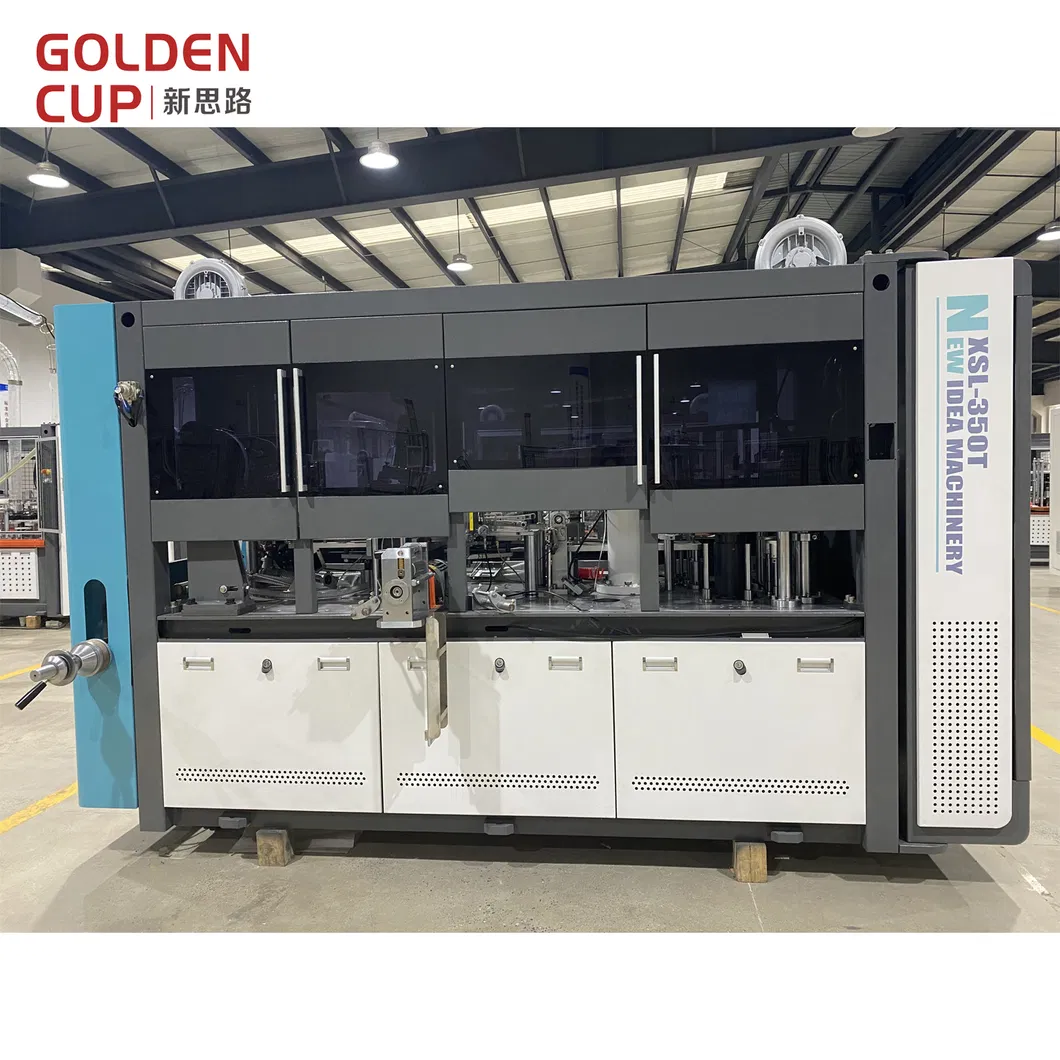

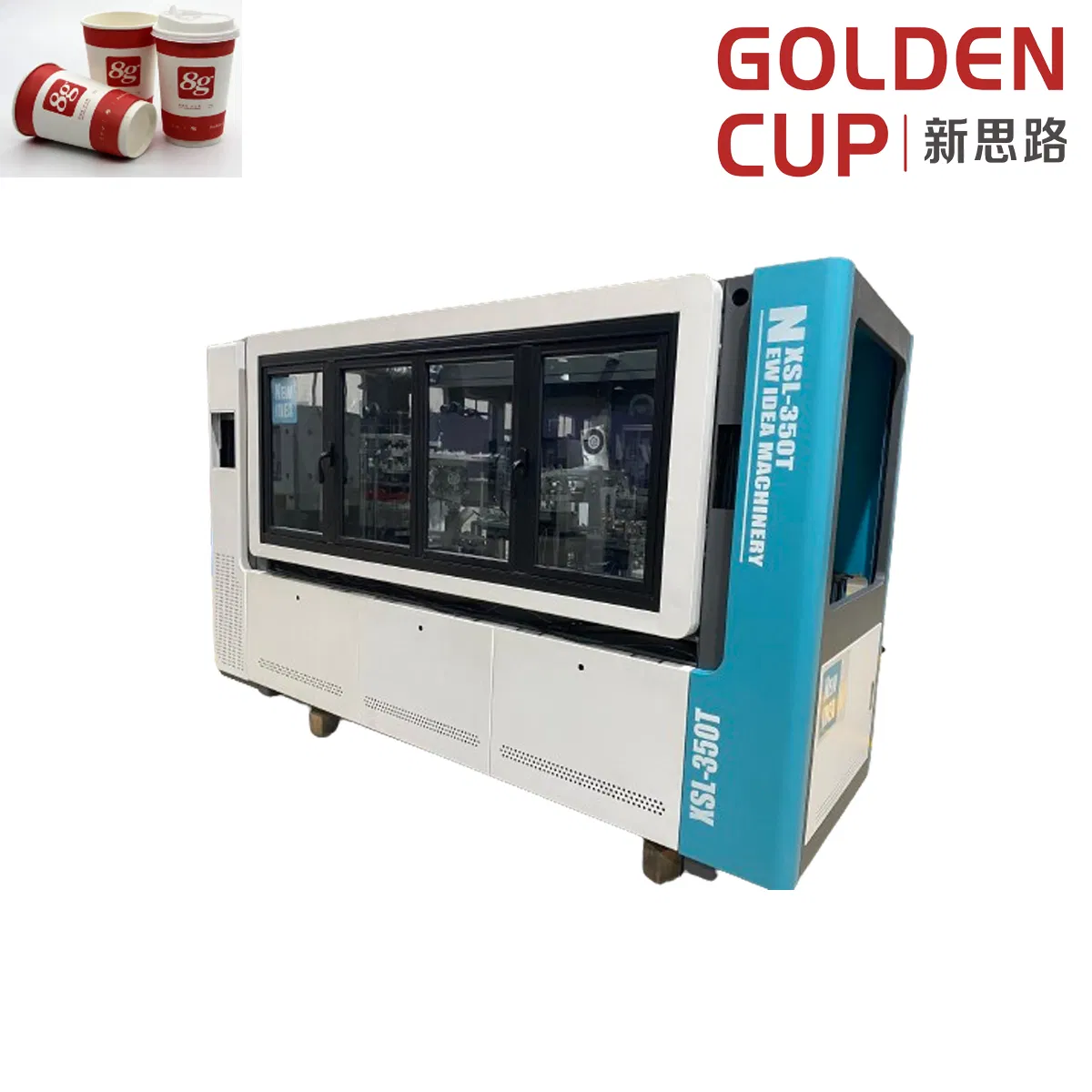

XSL-16T paper cup machine utilizes a tabletop layout, effectively isolating forming parts and transmission components. All transmission parts employ longitudinal shafts, barrel indexing cams, and gear transmissions. The system features spray lubrication for all transmission components.

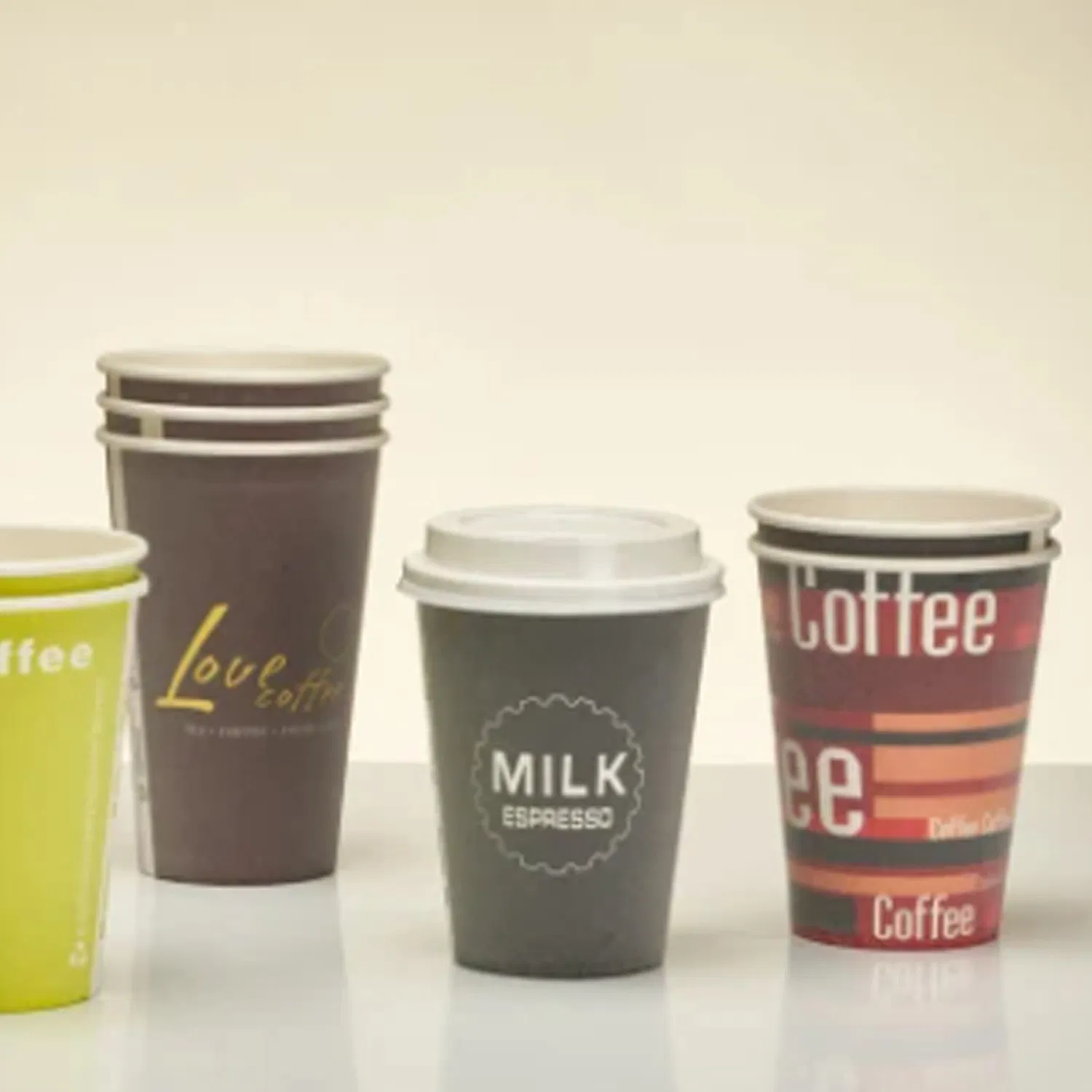

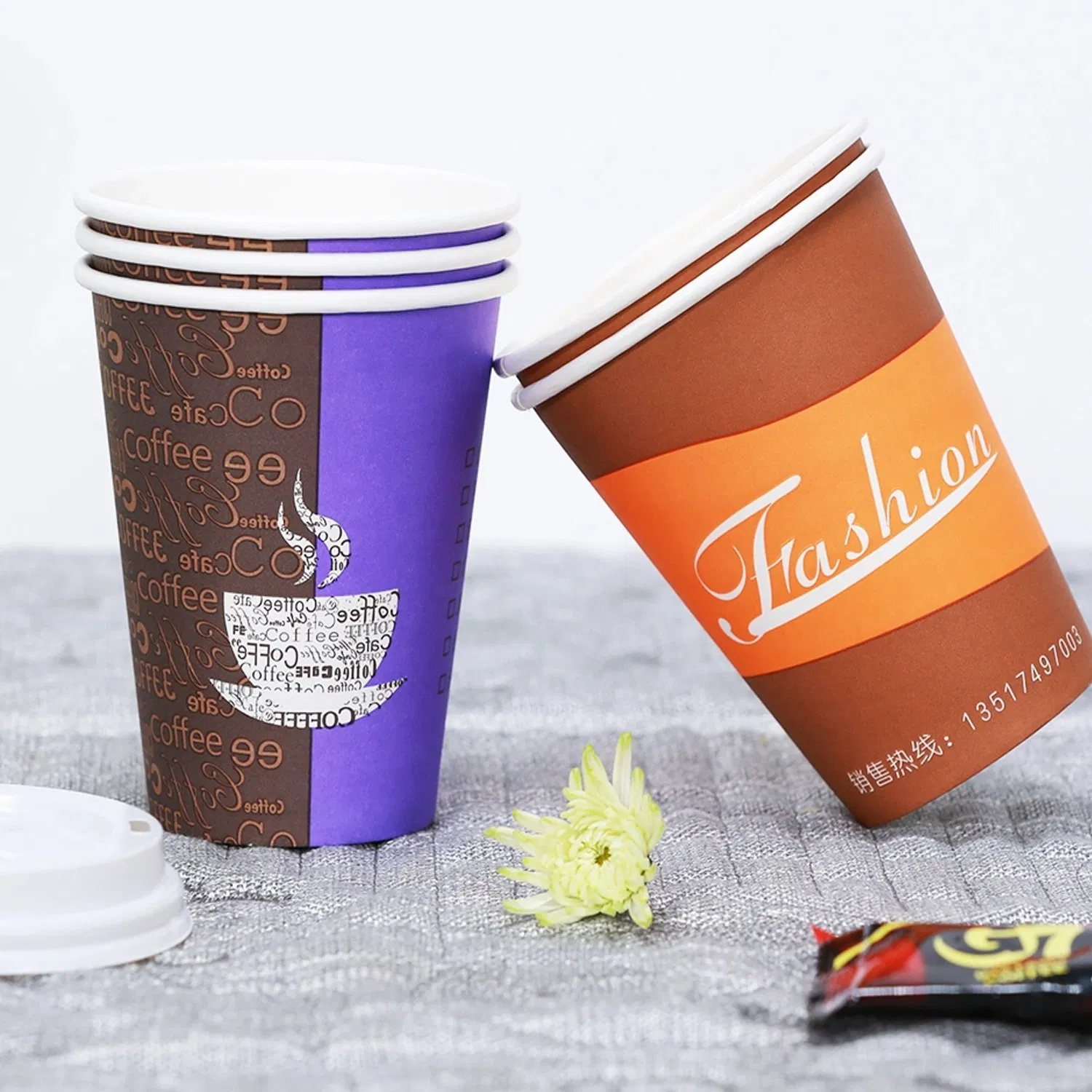

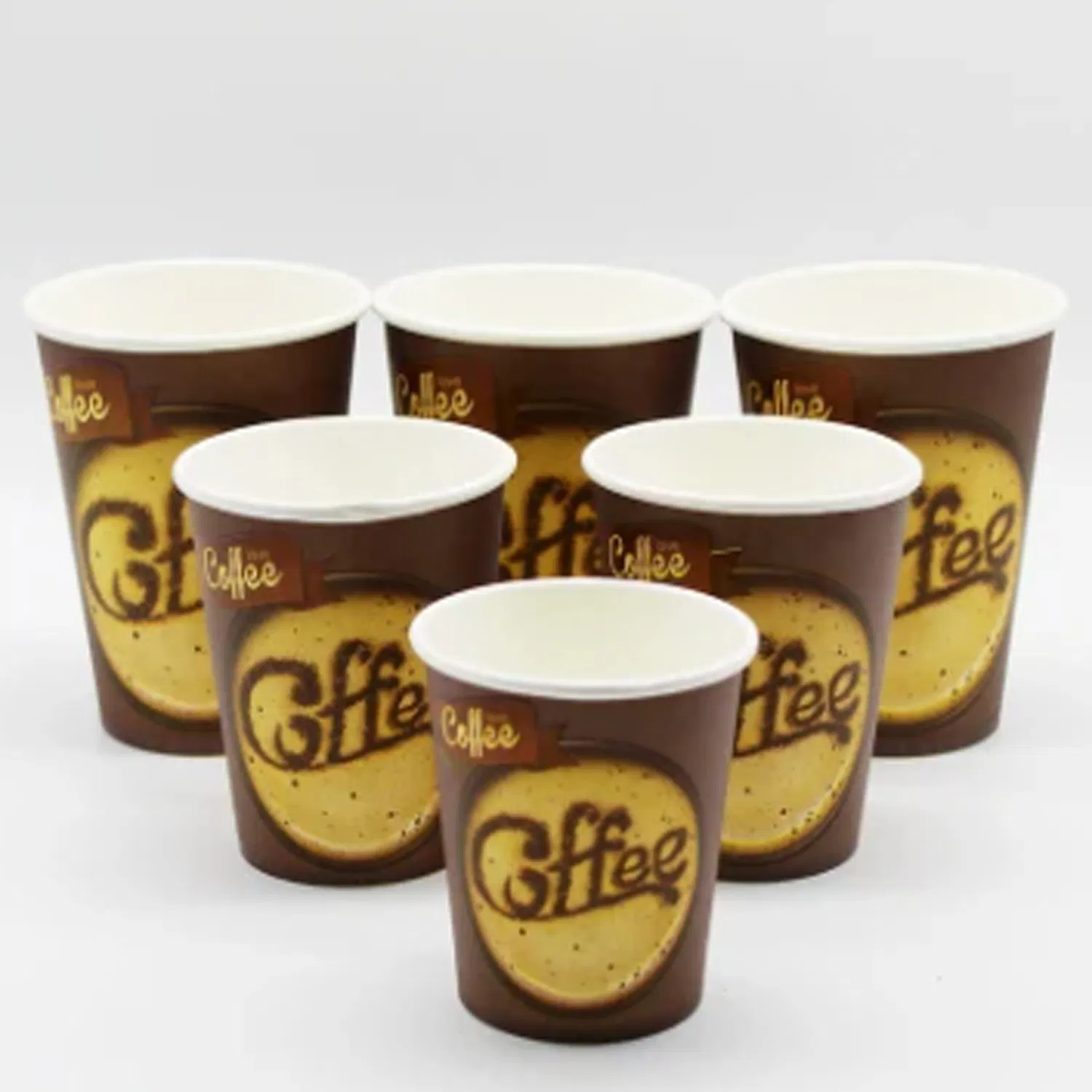

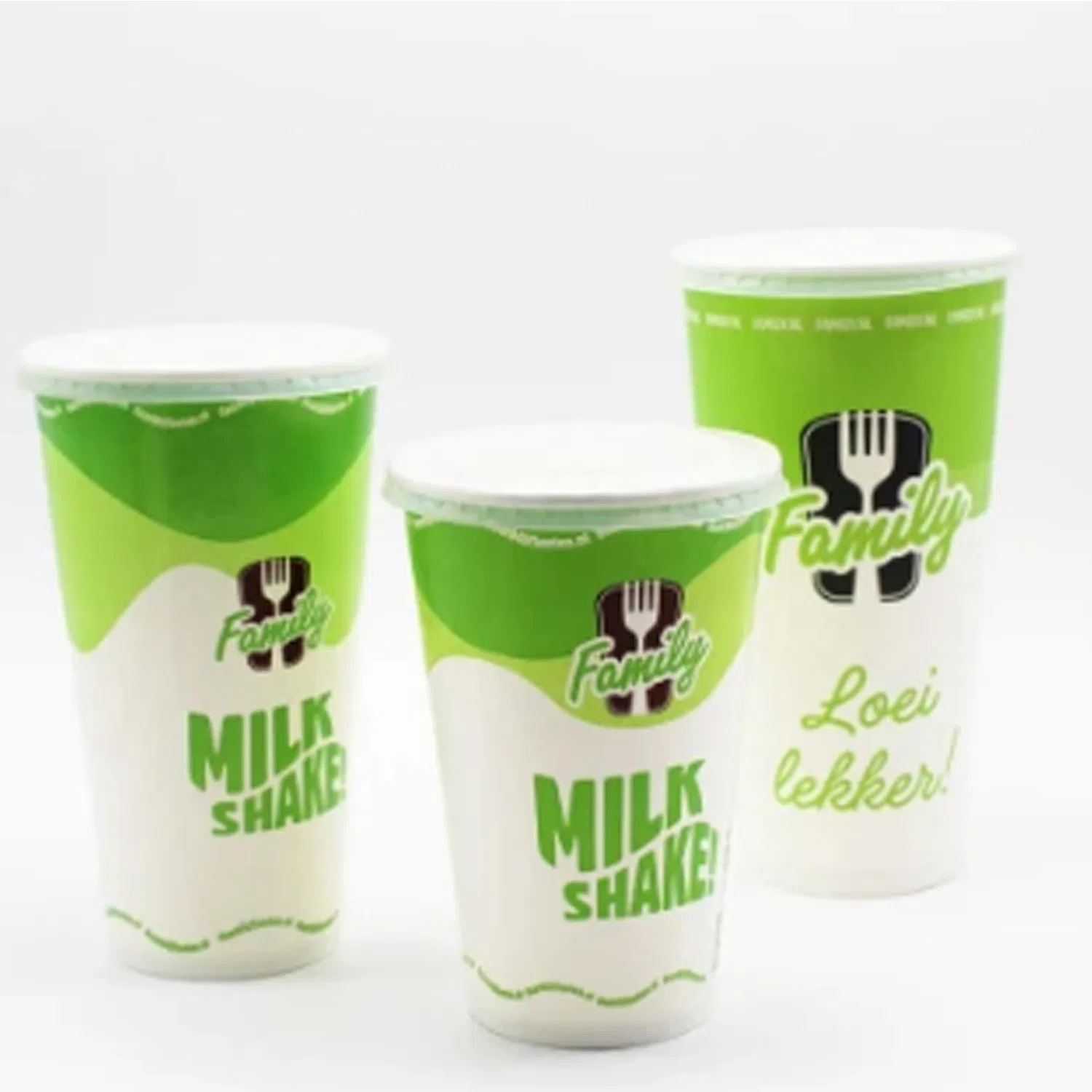

The machine is controlled by a high-precision PLC system, with the entire process monitored by photoelectric sensors and feeding handled by a servo system. An optional visual inspection system is available to automatically identify and remove disqualified cups. It is perfectly suited for producing 4-16 OZ cold and hot drink cups.
| Technical Specifications | |
|---|---|
| Model | XSL-16T High Speed Paper Cup Machine |
| Suitable Size | Top: 60-95mm | Bottom: 40-75mm | Height: 50-135mm |
| Production Speed | 120-150 pcs/min |
| Paper Requirement | 170-380gsm single/double PE paper |
| Machine Weight | 3600kgs |
| Dimensions (L*W*H) | 3700 * 1300 * 2060 mm |
| Power Supply | 3 phase, 380V, 50HZ, 21KW |
| Air Consumption | 0.6-0.8m³/min |

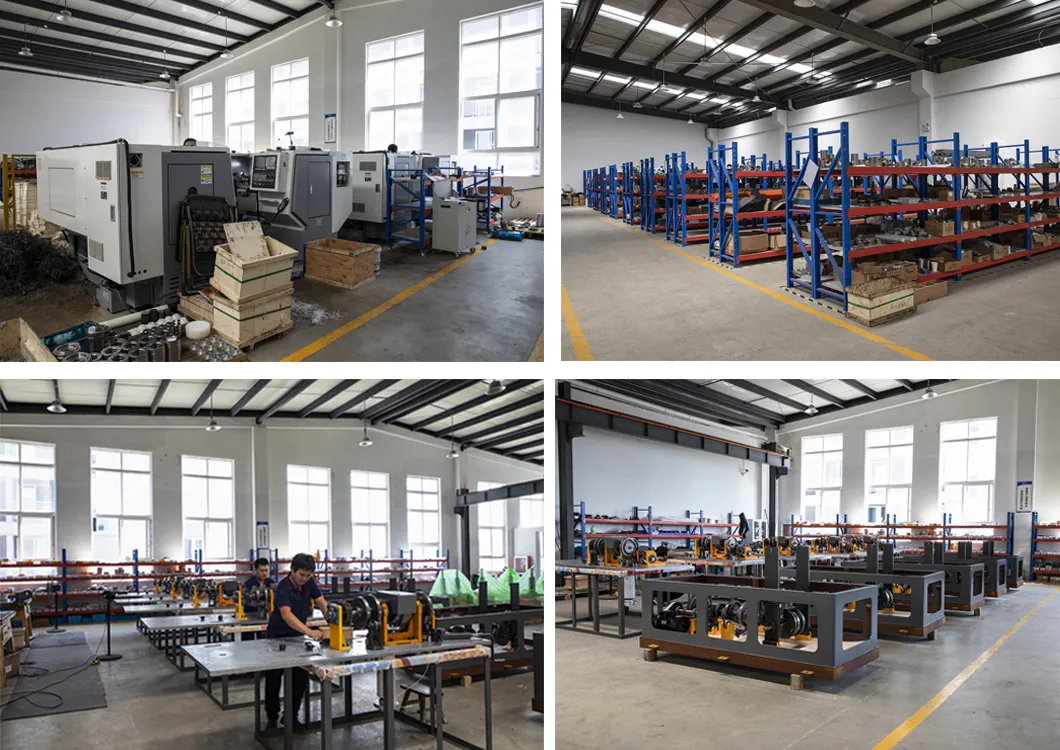

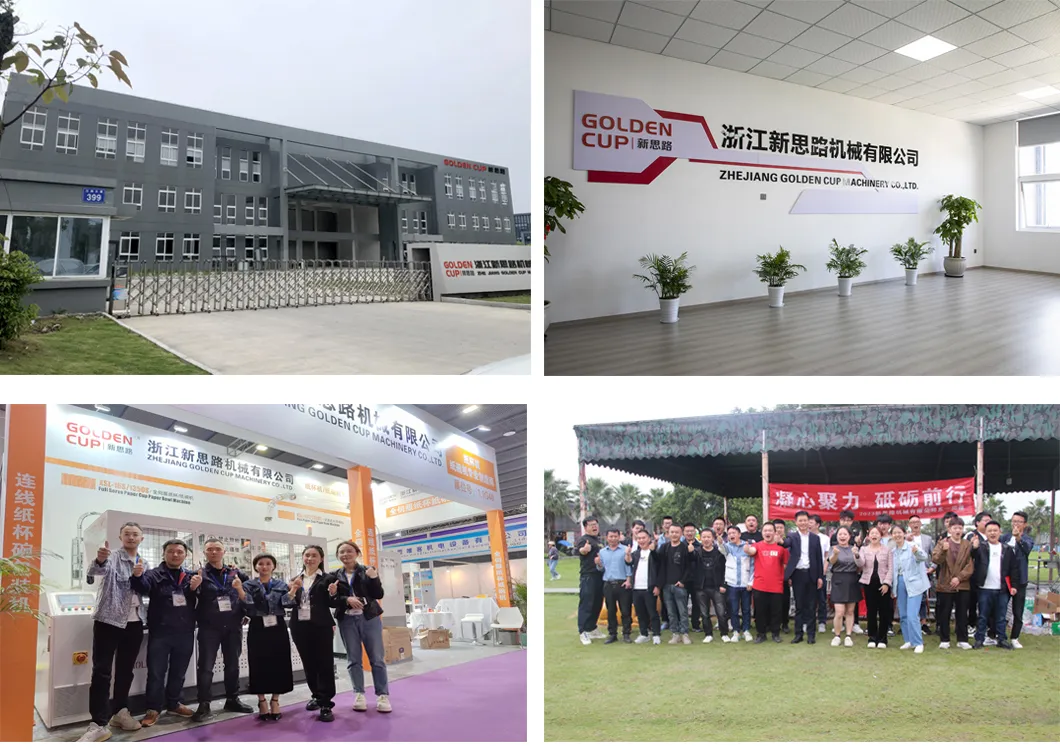

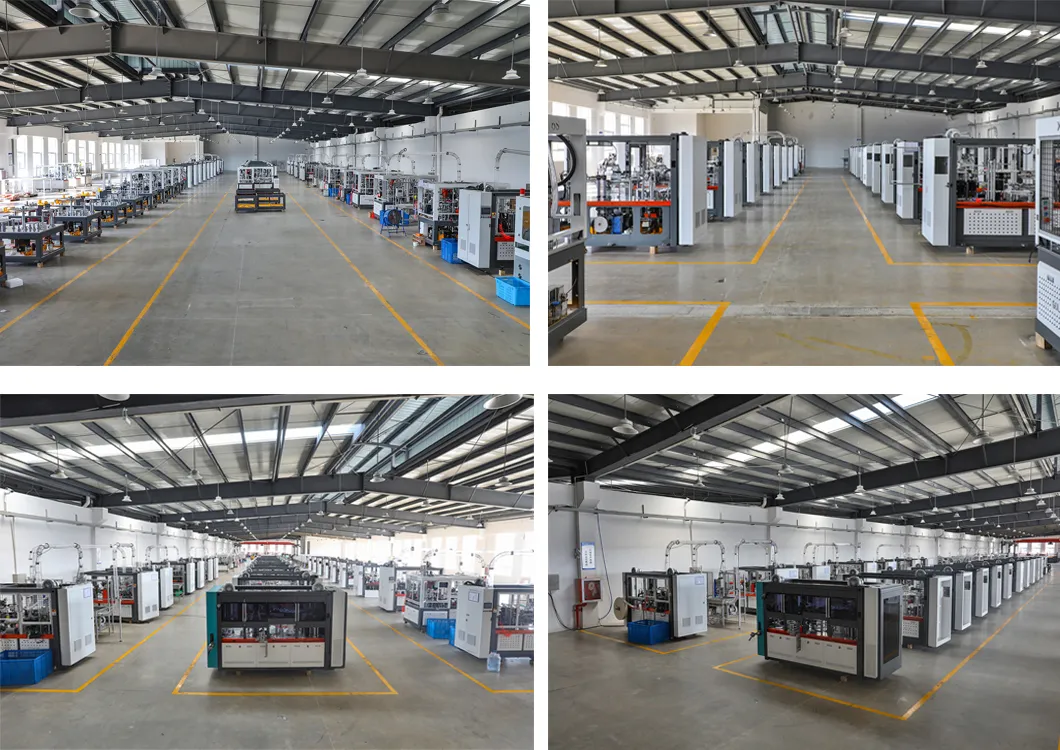

Our company is a leading manufacturer specializing in high-speed paper cup machines, paper bowl machines, and double-wall sleeve machines. Our state-of-the-art facility spans approximately 10,000 square meters and is equipped with advanced production capabilities.
We utilize components from renowned international brands for electrical parts and source critical bearings from Japan. The molds are crafted from high-quality materials similar to those used in aviation. Our transmission system utilizes cam and gear mechanisms, eliminating chains and incorporating a spray circulating lubrication system to reach production rates of 120-150 cups per minute.
