| Model NO. | XSL-16W |
|---|---|
| Cup Size(Ounce) | 4-16oz |
| Speed | 100-120pcs/min |
| Required Paper | Single/Double PE Paper/PLA Paper/Water Based Paper |
| Automation | Automatic |
| Certification | CE |
| Condition | New |
| Power | 3 Phase, 380V, 50Hz 6kw |
| Air Consumption | 0.3MPa |
| Weight | 3600kgs |
The XSL-16W double wall sleeve machine utilizes a tabletop layout, which effectively isolates the forming parts from the transmission parts. The machine is fully controlled by a PLC system, with the entire process monitored by high-precision photoelectric sensors. Glue spraying is handled by a servo system, making it an ideal equipment for manufacturing various types of sleeve cups.
| Suitable Size | Top diameter: 60-95mm; Bottom diameter: 40-75mm; Height: 50-135mm; Depth from bottom: 5-12mm |
|---|---|
| Production Speed | 100-120pcs/min |
| Paper Request | 170-300gsm single/double PE paper |
| Machine Size | 2600*960*2120mm |

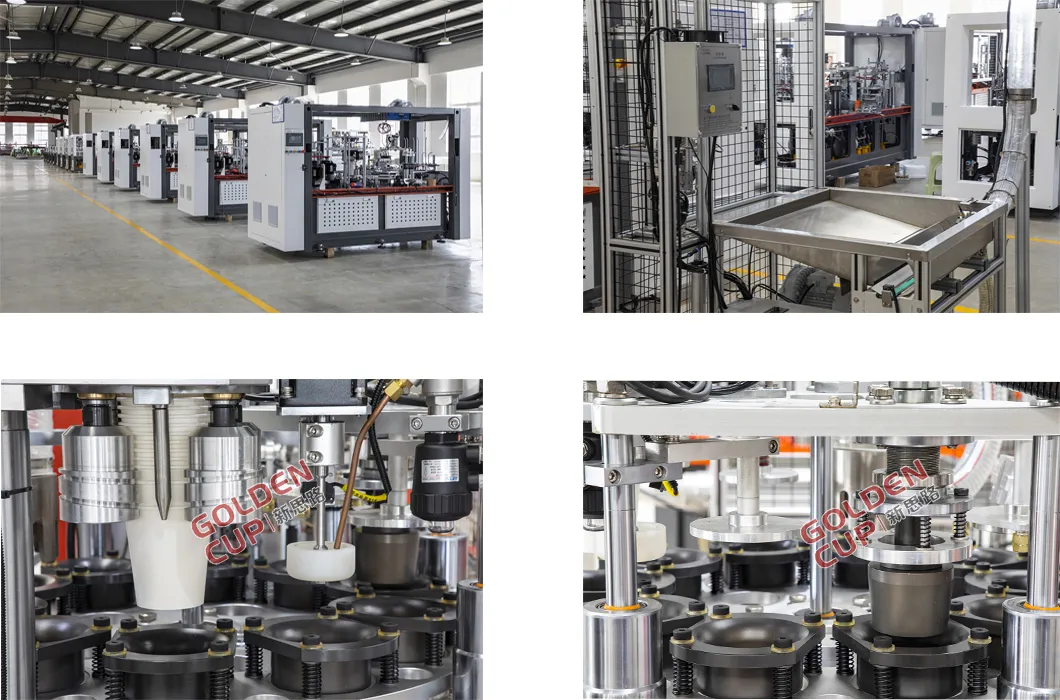

| Transmission | Cam and gear mechanisms (No chains) |
| Lubrication | Spray circulating lubrication system |

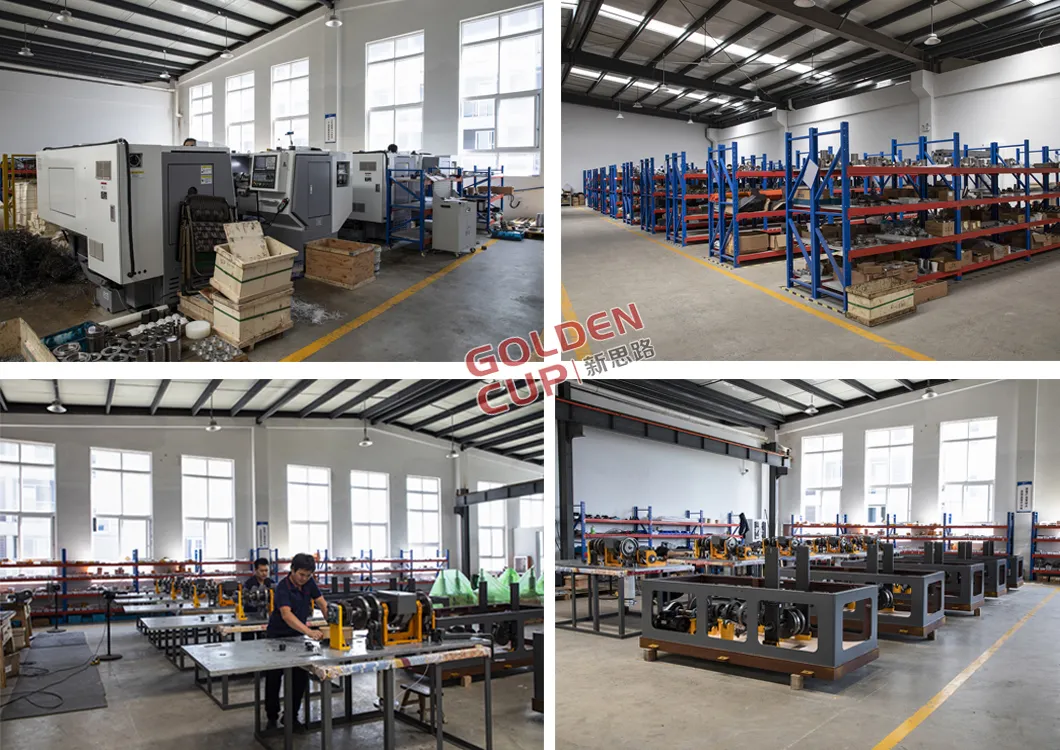

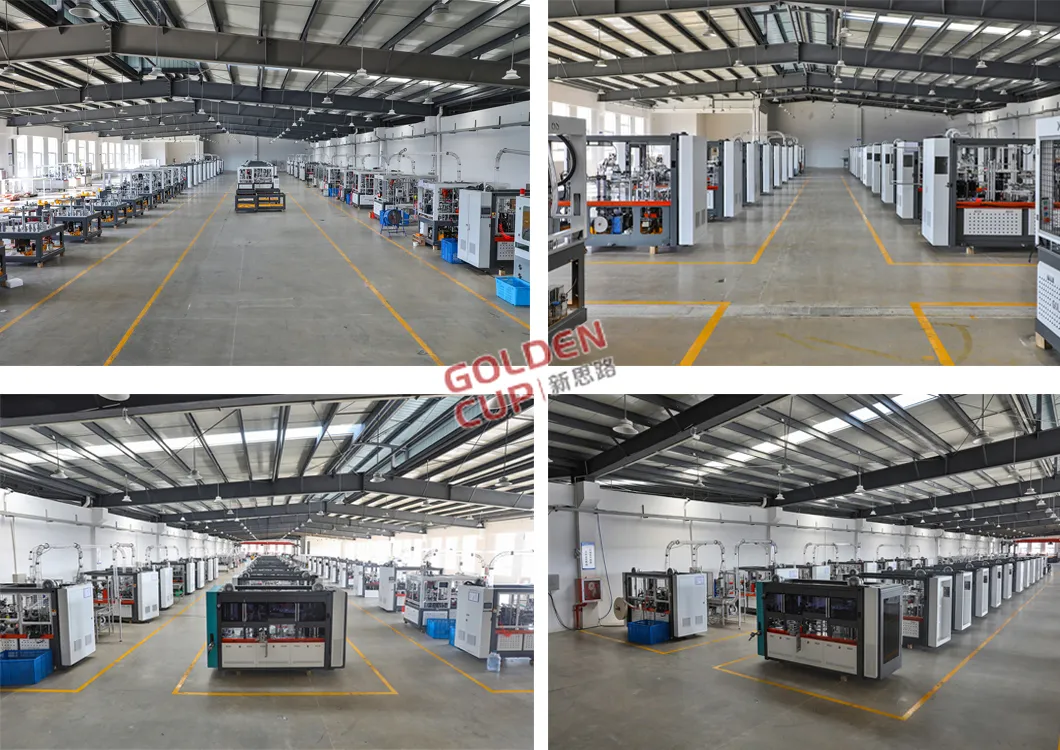

We are a leading manufacturer of high-quality machinery in the paper cup industry. Our state-of-the-art facility spans around 10,000 square meters, equipped with advanced production capabilities. We specialize in high-speed paper cup machines, paper bowl machines, and double wall sleeve machines.
To ensure top-notch performance, we use components from renowned international brands for main electrical parts. Important bearings are sourced from Japan, and molds are crafted from high-quality materials. Our high-speed machines achieve an impressive production rate of 120-150 cups per minute, with optional vision inspection systems available to ensure impeccable quality.
Before shipping, all products are securely packed in professional wooden cases to ensure safety during transit. Products are generally shipped via sea from major ports to the destination port.
