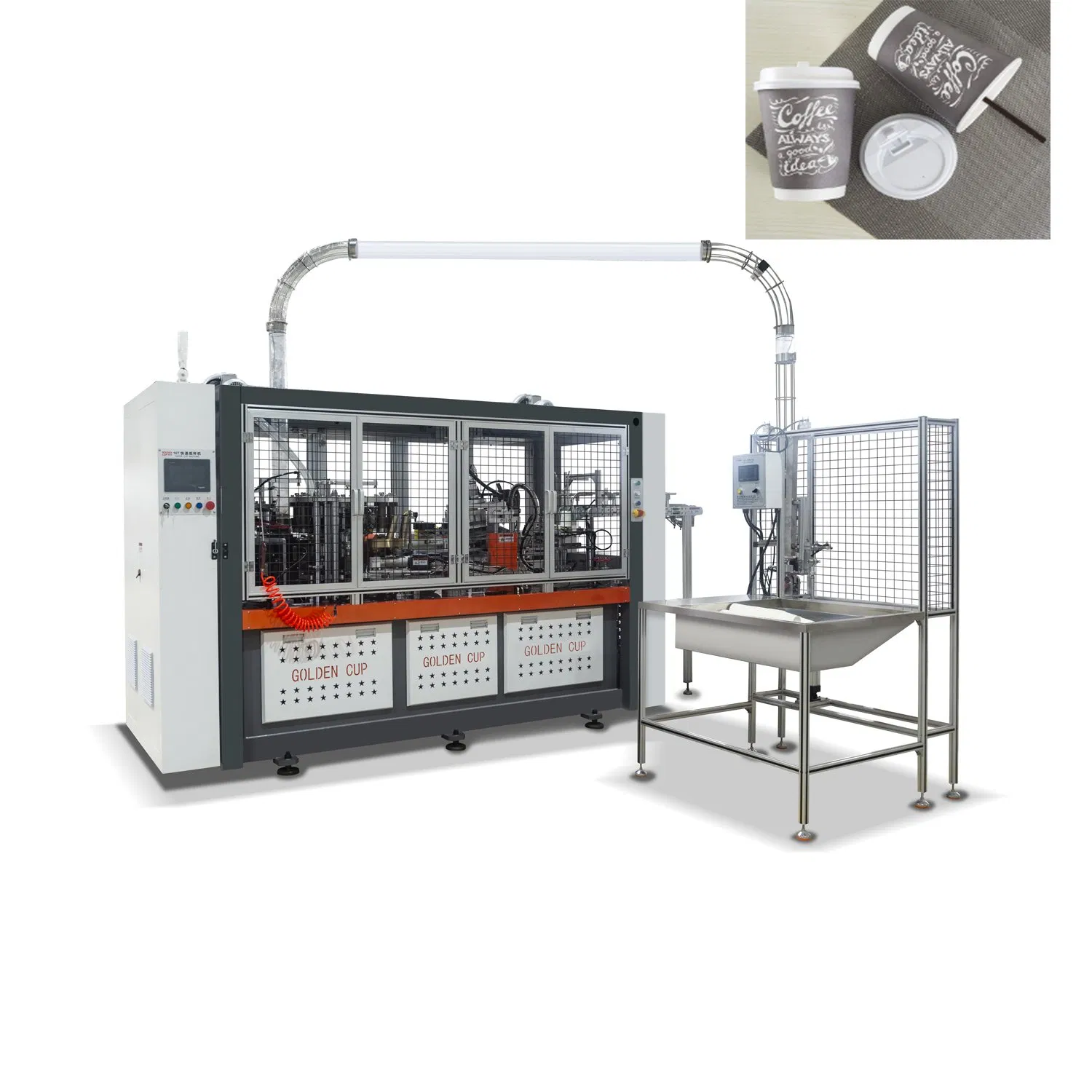

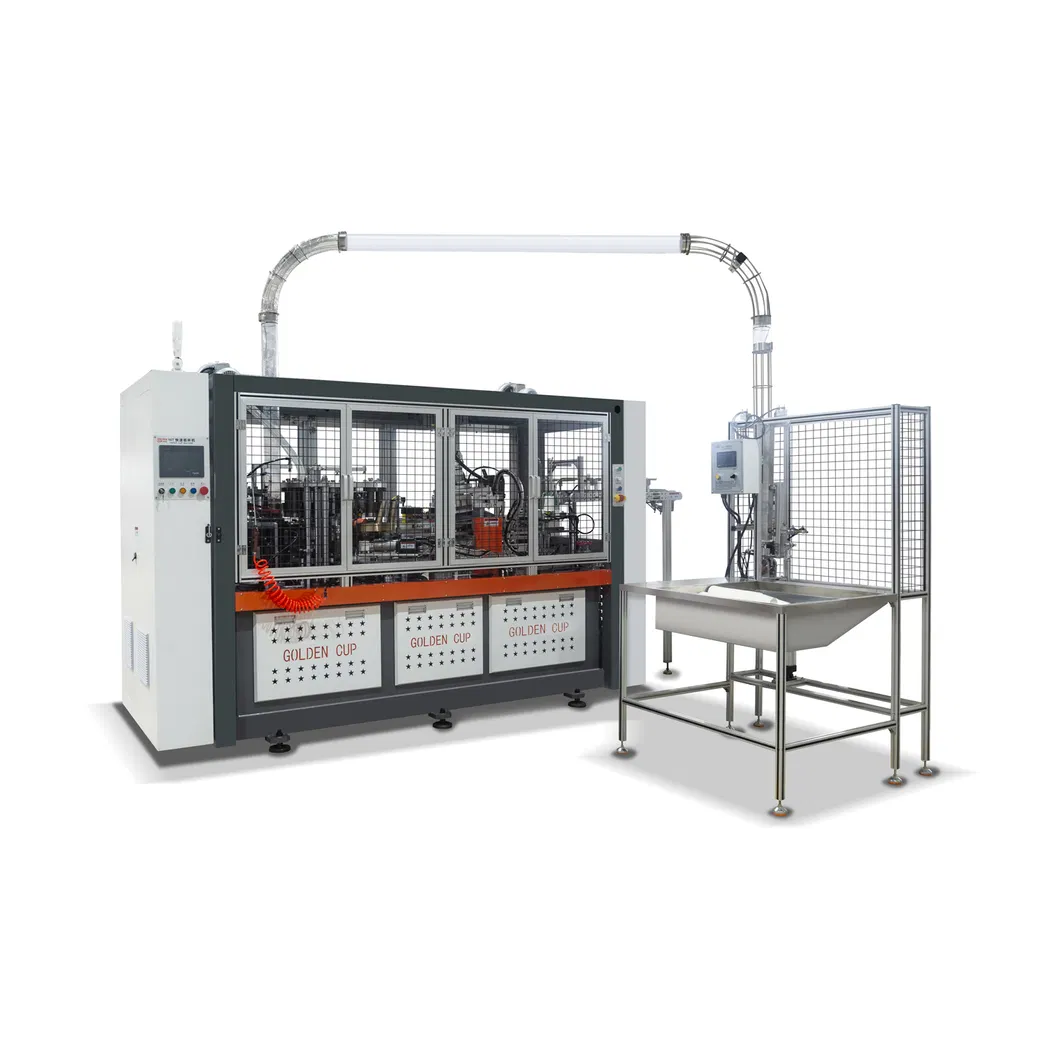

The XSL-16T paper cup machine features a tabletop layout that effectively isolates forming parts from transmission parts. All transmission components utilize longitudinal shafts, barrel indexing cams, and gear transmissions, ensuring high stability and precision. The system is lubricated via a spray circulating system for long-term durability.

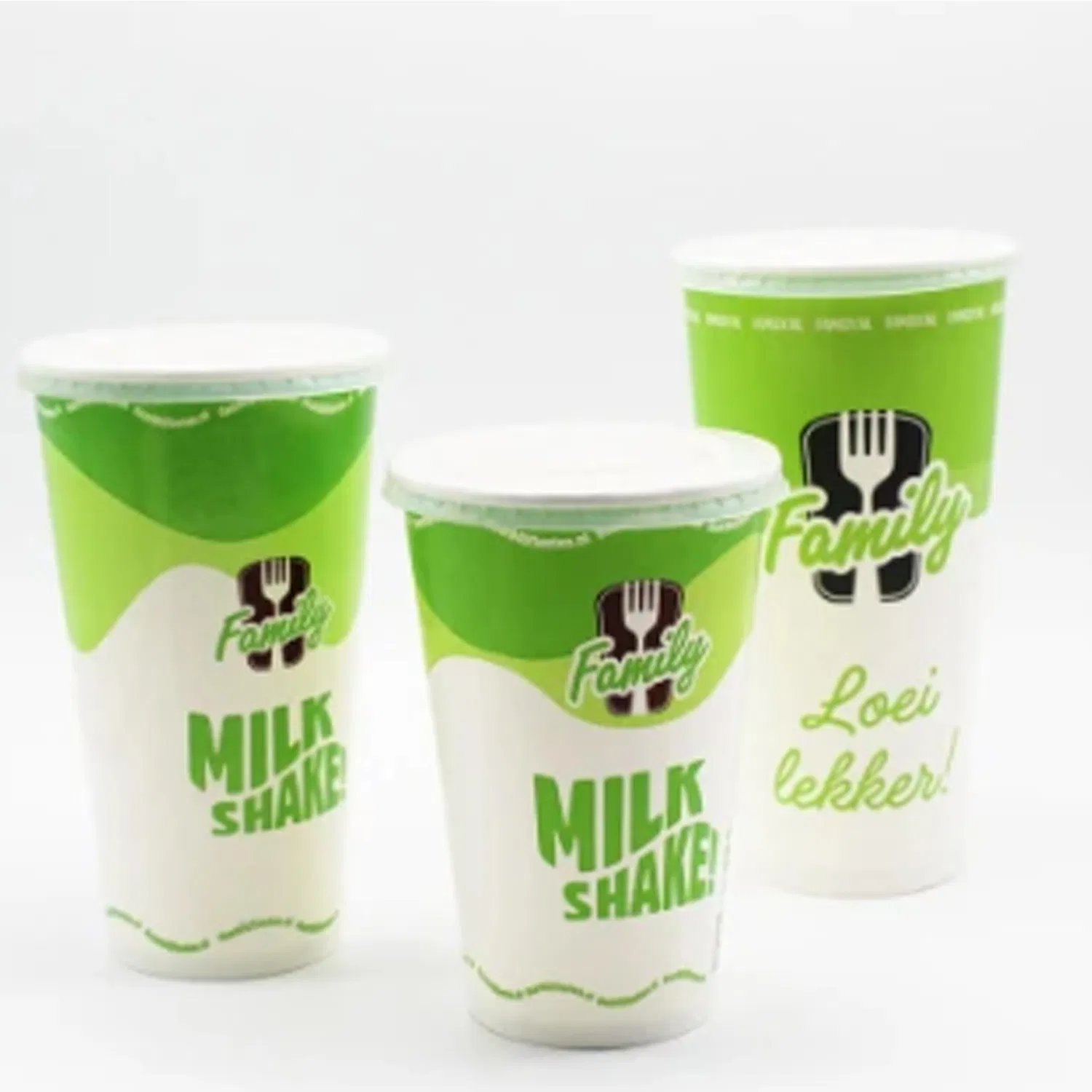

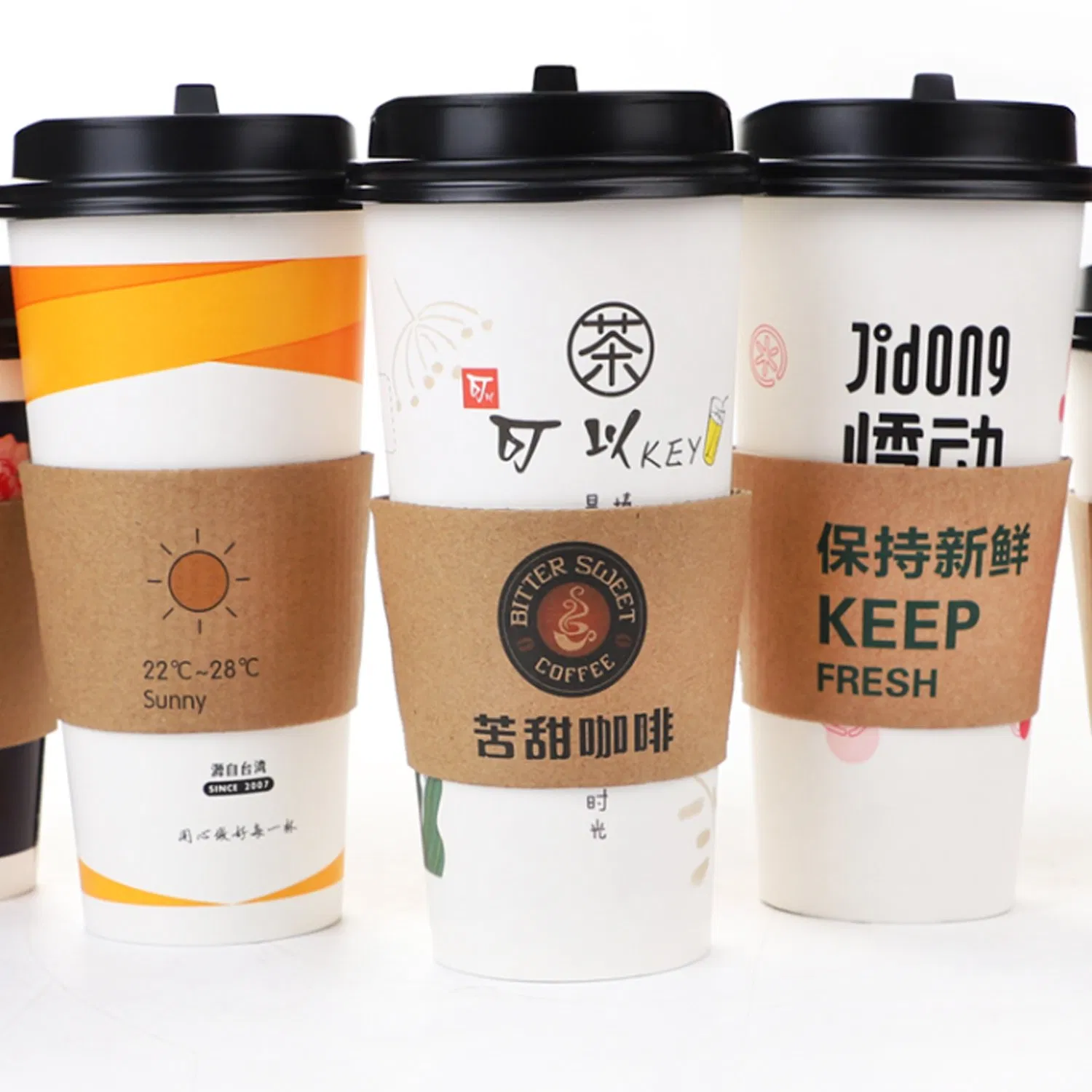

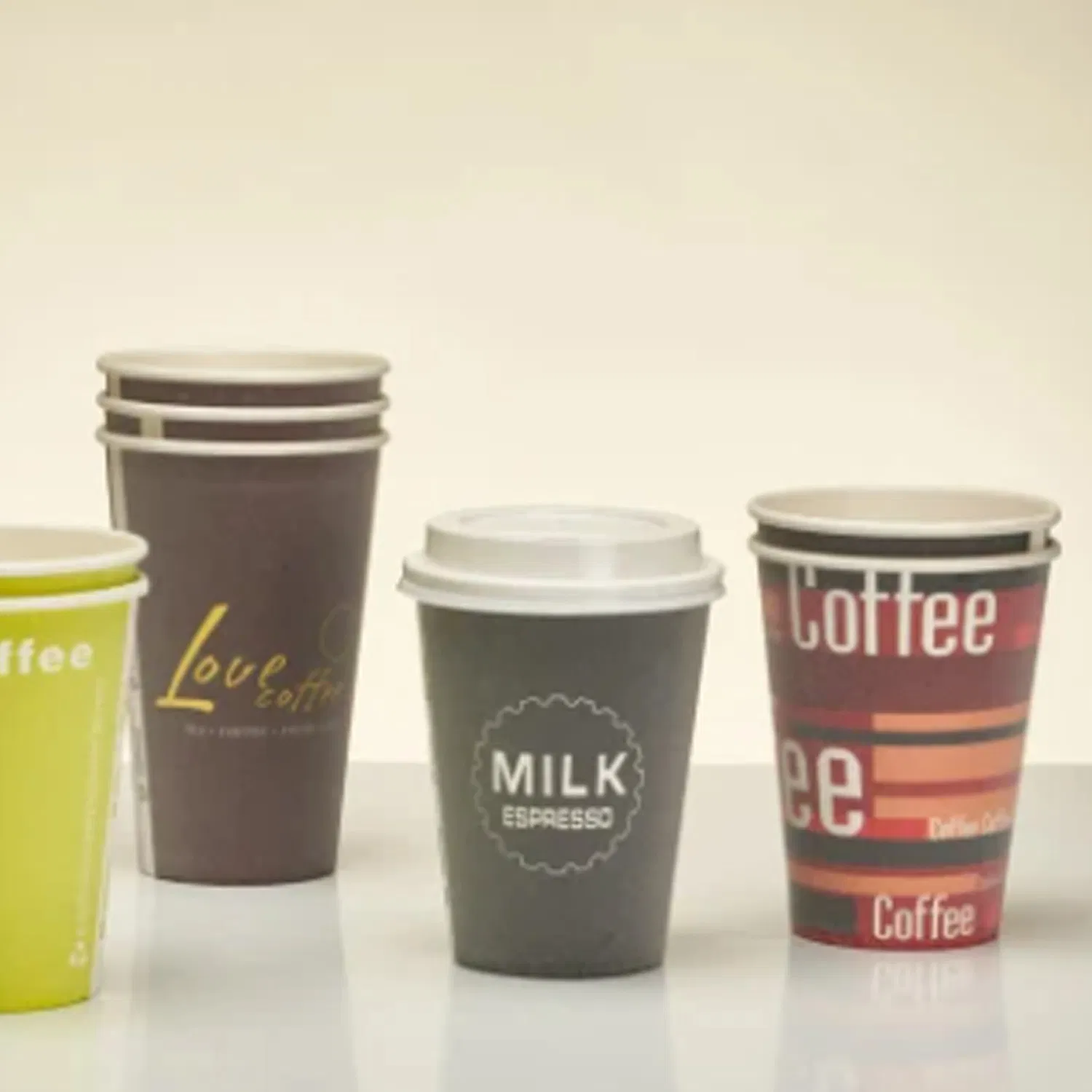

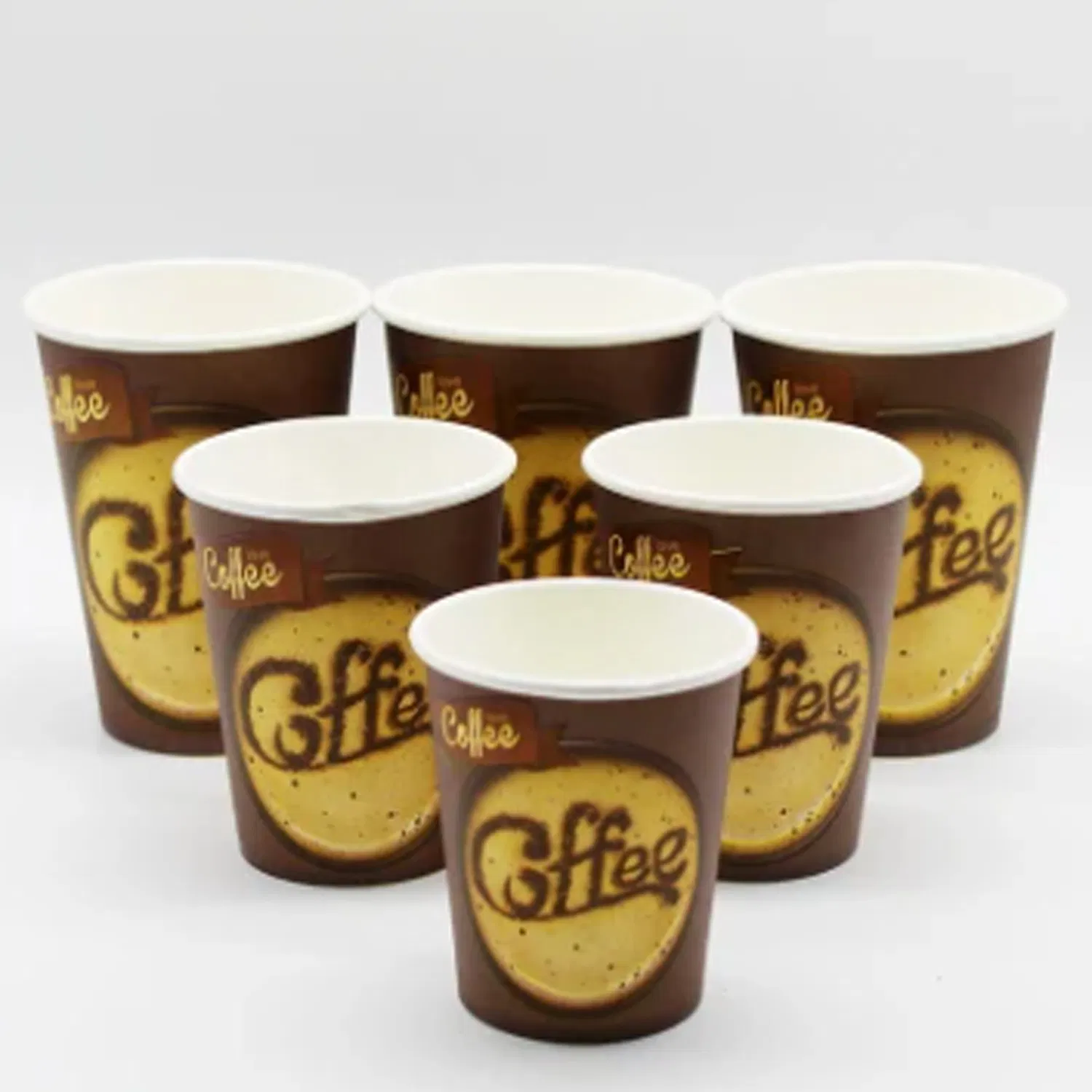

Controlled by a high-performance PLC, the entire production process is monitored by photoelectric sensors with servo-driven feeding. An optional visual inspection system is available to automatically identify and remove disqualified cups. This machine is ideal for producing 4-16 OZ cold and hot drink cups.
Basic Information
Model NO.
XSL-16T
Cup Size
4-16oz
Speed
120-150 PCS/Min
Automation
Automatic
Required Paper
Single/Double PE, PLA, Water Based
Certification
CE
Weight
3600kgs
Power
3 Phase, 380V, 21kw
Technical Parameters
Parameter
Specification
Suitable Size
Top: 60-95mm | Bottom: 40-75mm | Height: 50-135mm
Production Speed
120-150 pcs/min
Paper Requirement
170-380gsm single/double PE paper
Dimensions (L*W*H)
3700*1300*2060mm
Air Consumption
0.6-0.8m³/min

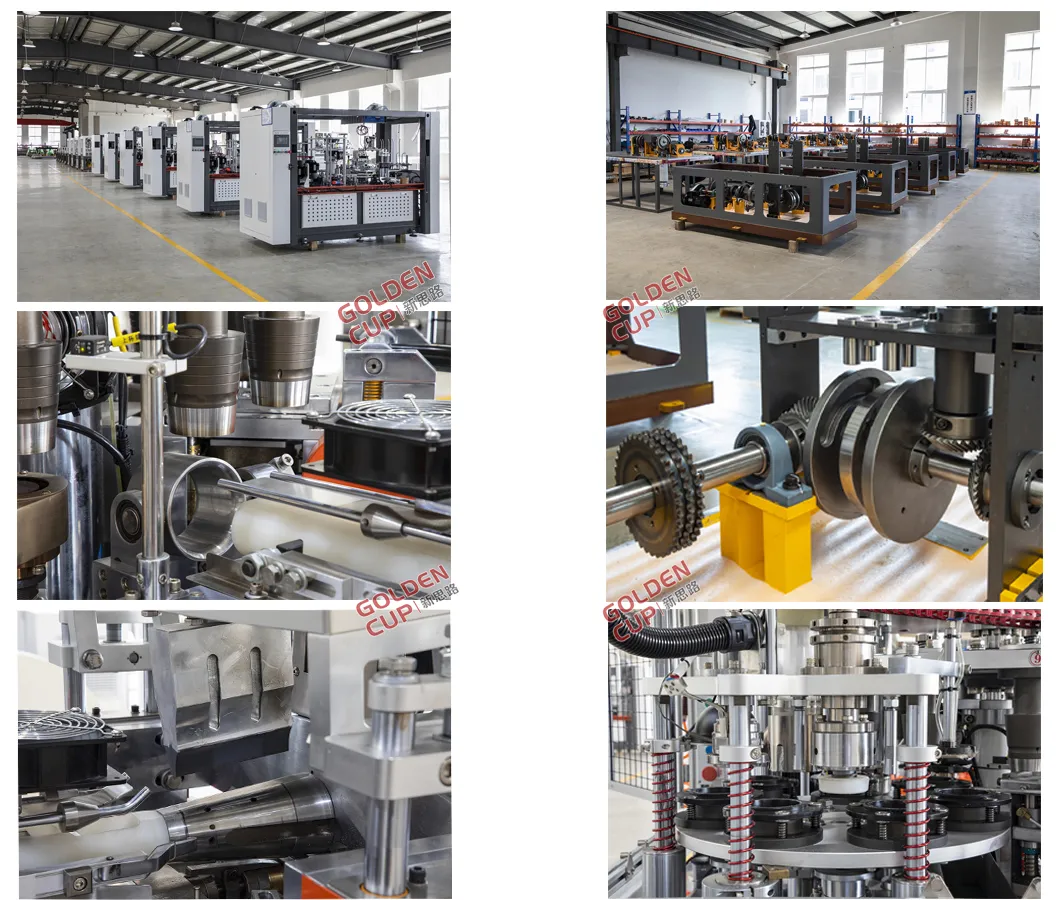

Machine Details

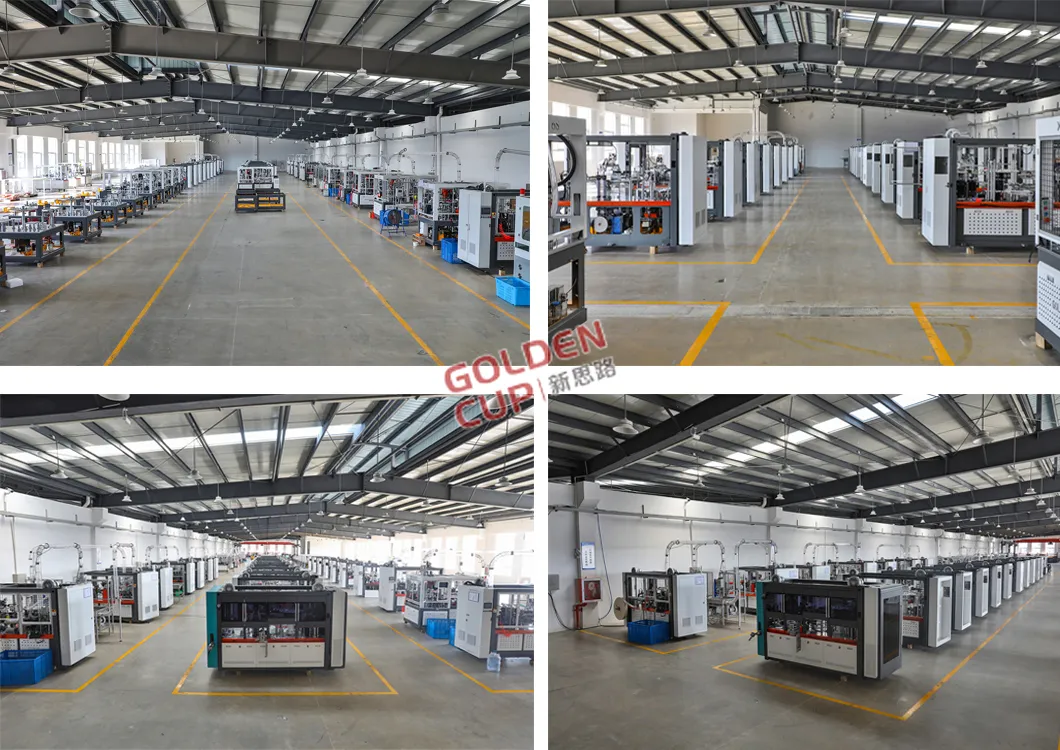

About Our Manufacturing

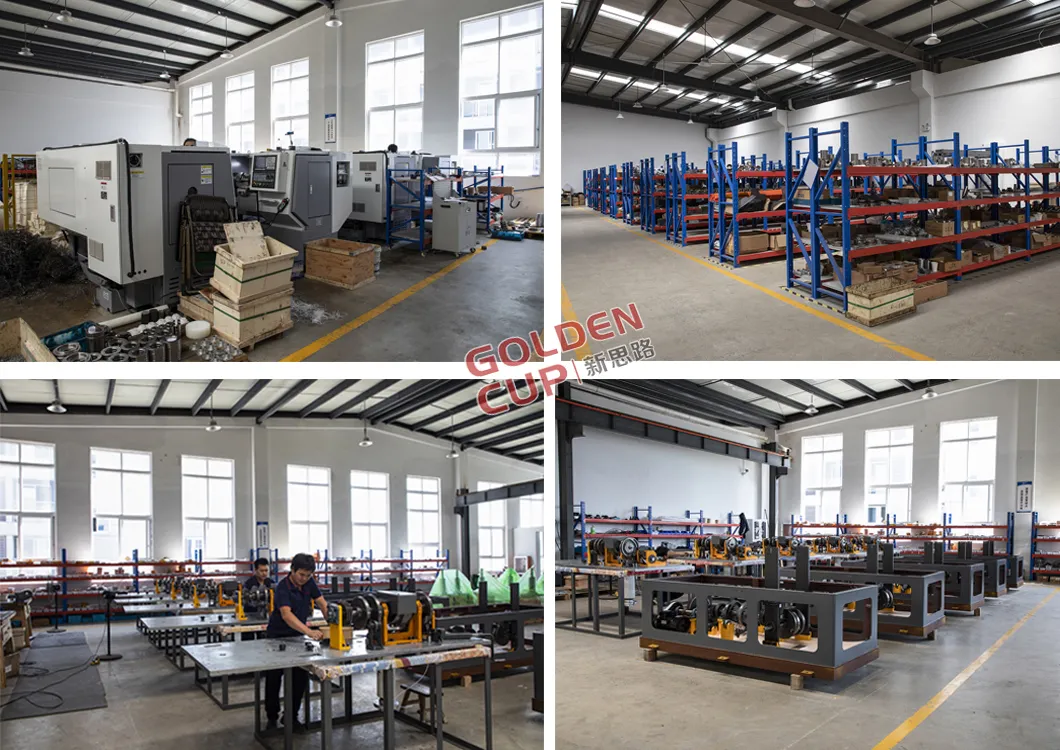

Our company is a leading manufacturer in the paper cup industry, operating from a state-of-the-art facility spanning approximately 10,000 square meters. We specialize in high-speed paper cup machines, paper bowl machines, and double-wall sleeve machines designed for versatility and durability.
To ensure premium performance, we utilize international brand components for electrical parts and source critical bearings from Japan. Our molds are crafted from high-quality materials, similar to those used in aviation. The transmission system features cam and gear mechanisms, eliminating chains and utilizing a spray circulating lubrication system for high-speed production of 120-150 cups per minute.
Packaging
Frequently Asked Questions
Q1: What is the production speed of the XSL-16T?
The machine operates at a high speed of 120 to 150 pieces per minute, depending on the cup size and paper quality.
Q2: What range of cup sizes can this machine produce?
It is suitable for producing cups from 4oz to 16oz. We can also customize molds for non-standard sizes upon request.
Q3: What types of paper materials are compatible?
The machine supports 170-380gsm paper, including single/double PE coated paper, PLA paper, and water-based coated paper.
Q4: How is the machine quality and stability ensured?
We use a tabletop layout with longitudinal shafts and gear transmissions (no chains). The process is monitored by PLC and photoelectric sensors for maximum stability.
Q5: What is the warranty period for the machine?
We provide a 3-year warranty for the cam transmission parts and a 1-year warranty for electrical components, along with lifetime maintenance services.

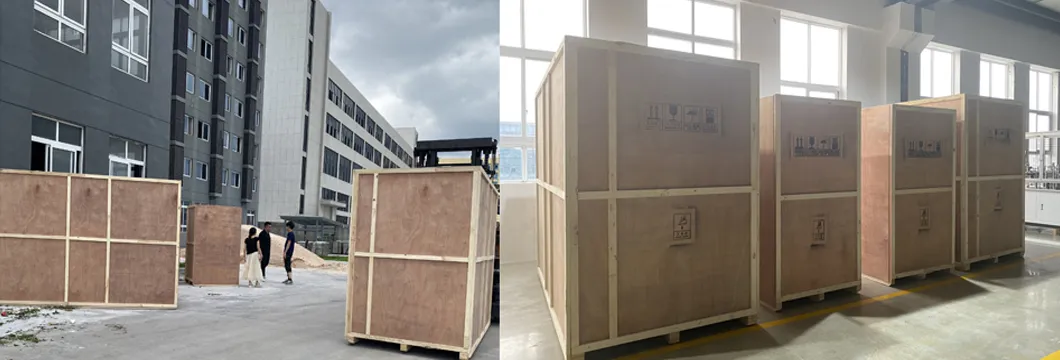

Q6: How is the machine packaged for international shipping?
All machines are securely packed in professional wooden cases to ensure protection during sea transportation.
