Advanced High-Efficiency Paper Cup and Bowl Handle Production Machine

1 / 5

Advanced High-Efficiency Paper Cup and Bowl Handle Production Machine

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

YB-W35

Production Speed

＞45pcs/min

Voltage

380V 50Hz

Control Panel

Computer Control Panel

Certification

After-sales Service

12 Month

Transport Package

Wooden Box by Sea

Production Capacity

1000 sets/Year

Product Description

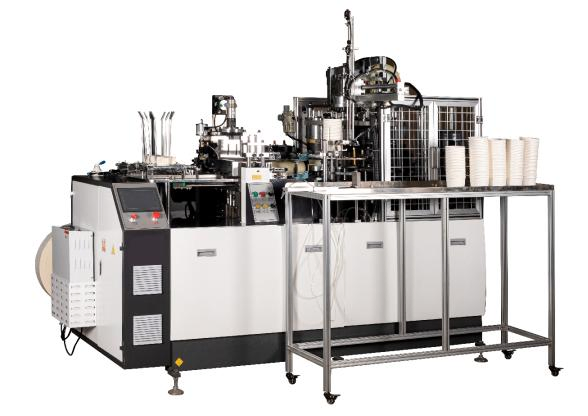

YB-W35 Paper Bowl Machine

Quotation: The ex-factory price including tax and wooden box packaging is 129,000 RMB.

Packing Type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external.

Delivery Time: 40 days after receiving the deposit payment.

Payment Terms: 30% deposit by T/T in advance, 70% balance after qualified acceptance.

Guarantee: 12 months after receiving the machine.

Key Performance Features

Reliability: Intelligent medium-speed forming with an integral steel body and auto oil lubrication system for stable operation.
Energy Efficiency: High-precision open cam and gear drive. Servo tracking bottom paper feeding reduces raw material waste.
Humanized Design: PLC man-machine interface for long-term stable control and easy operation.

Technical Parameters

Parameter	Specification
Model	YB-W35 Automatic Paper Bowl Forming Machine

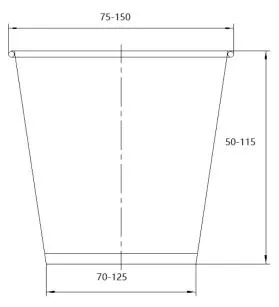

Cup Size	20-50oz (Moulds customizable)
Raw Materials	Single / Double PE Coated Paper
Paper Weight	140-350gsm
Speed	60-75 pcs/min
Power Source	380V 50Hz
Total Power	4.8 KW
Weight	2400 KG
Dimensions (LWH)	2450 x 1300 x 1750mm
Air Pressure	0.6Mpa (Output: 0.6 m³/min)

Machine Specification Details

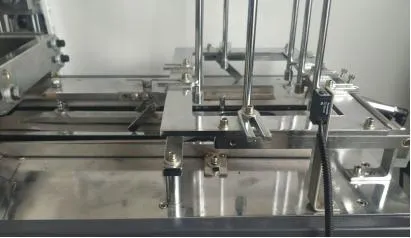

1. Multiple Paper Feeding

Paper feeding three times with multiple adjustments to avoid unevenness on both sides of the paper cup fan.

2. Sensors Detection

Controlled by encoder and sensors to ensure paper fan matches cup bottom, preventing waste. Includes fault alarms and auto-shutdown.

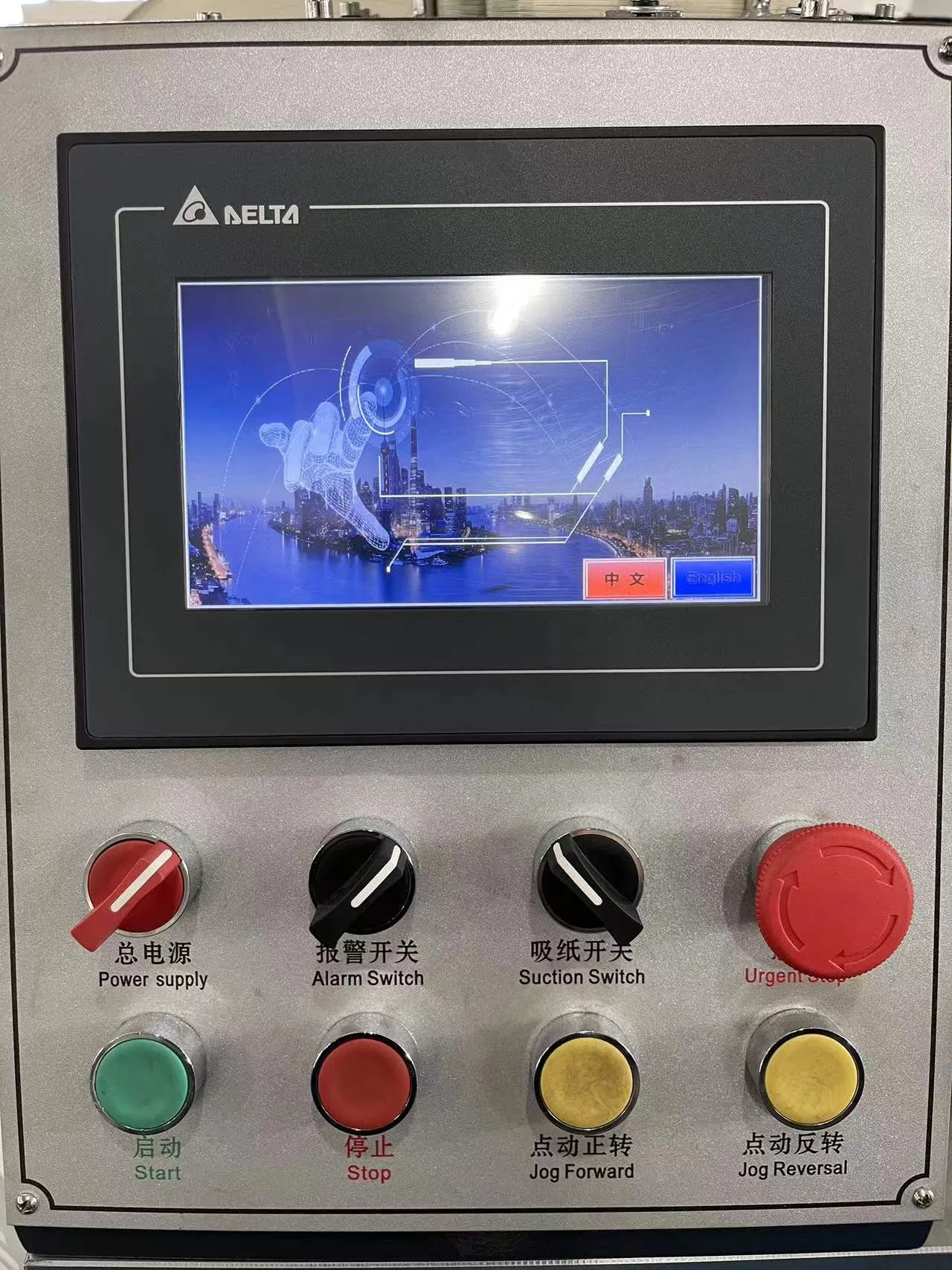

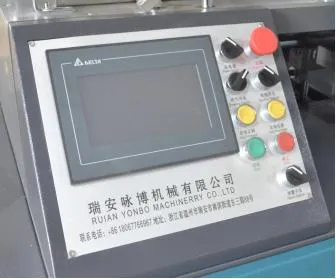

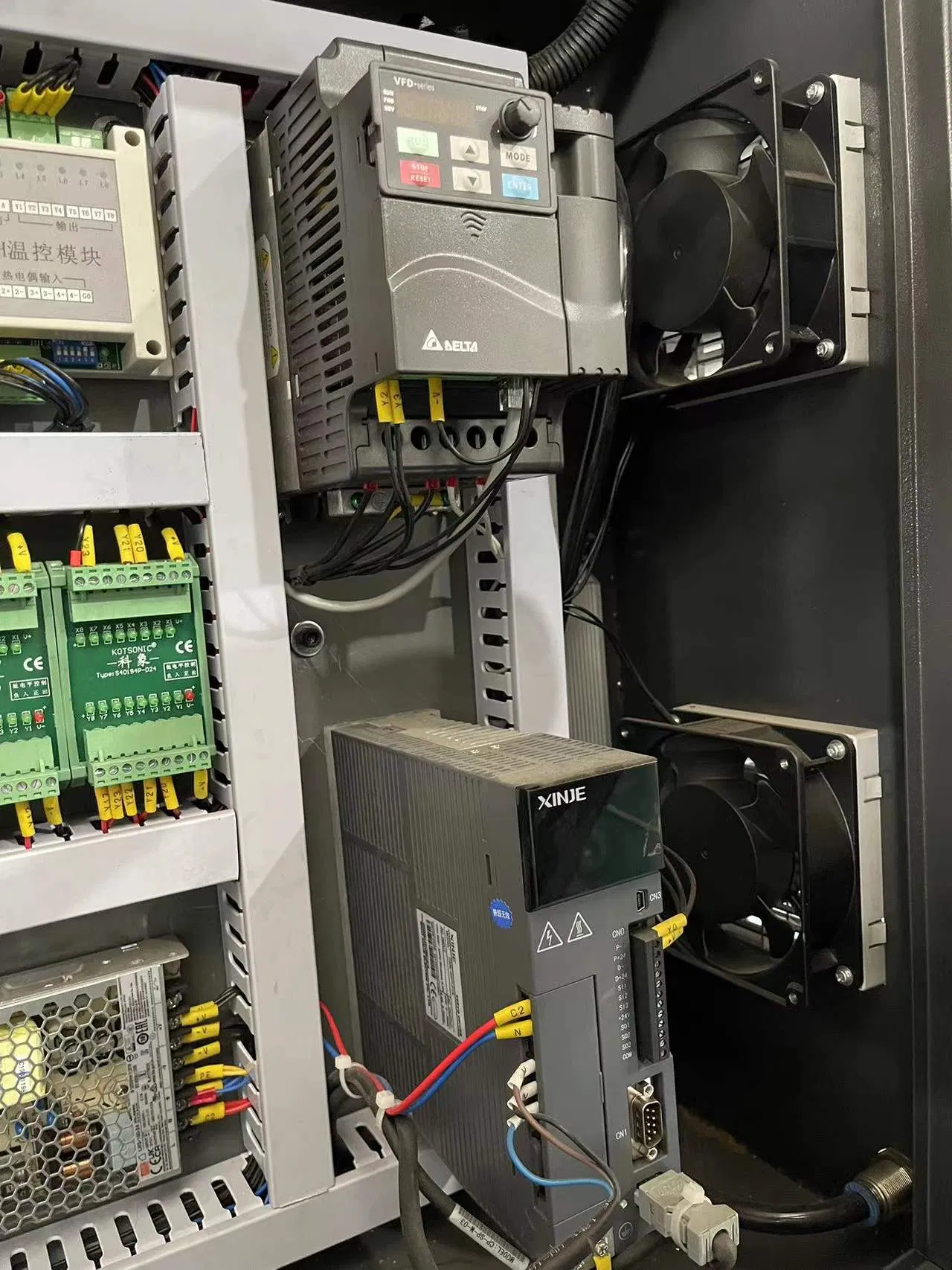

3. PLC Control System

Improves intelligence and stroke precision. All parameters are adjustable via the control panel.

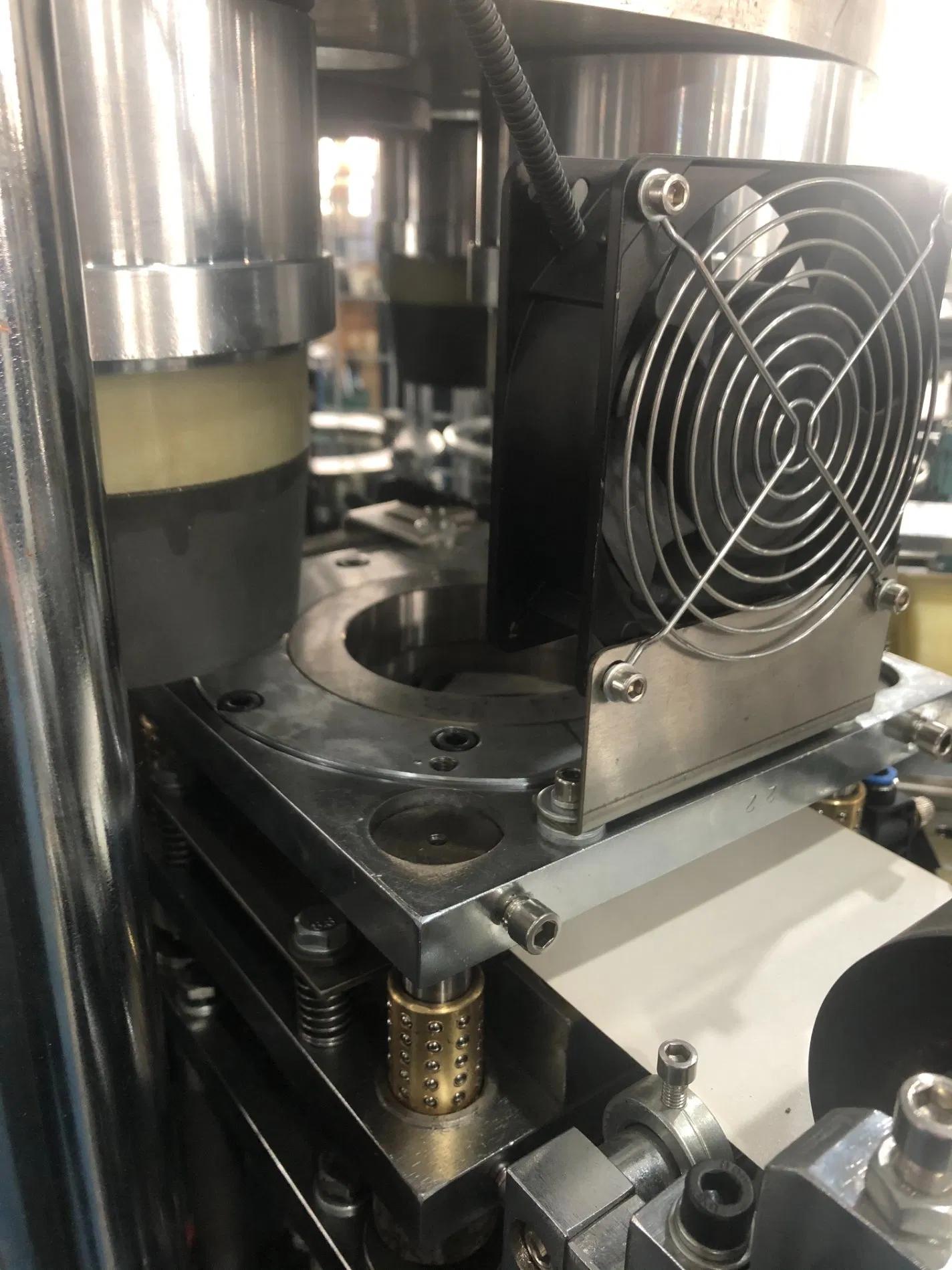

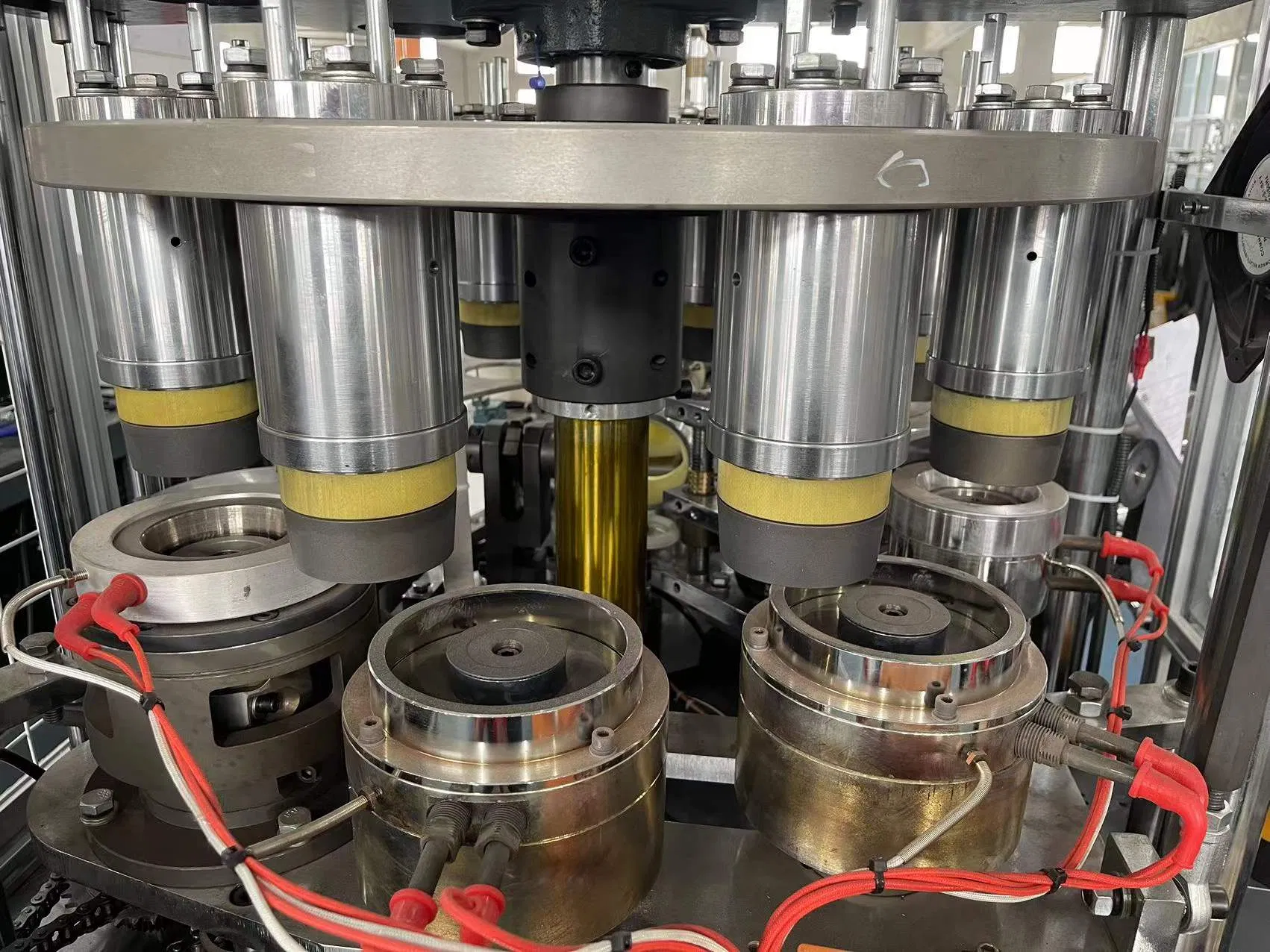

4. Ultrasonic & Cooling System

Multiple fans operate simultaneously to increase heat dissipation and maintain optimal running temperature.

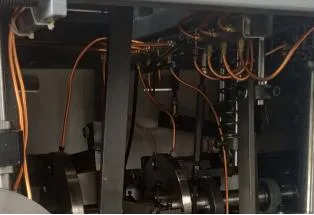

5. Automatic Lubrication & Waste Removal

Automatic oil lubrication via copper pipes extends machine life. Conveyor belt system removes waste paper efficiently.

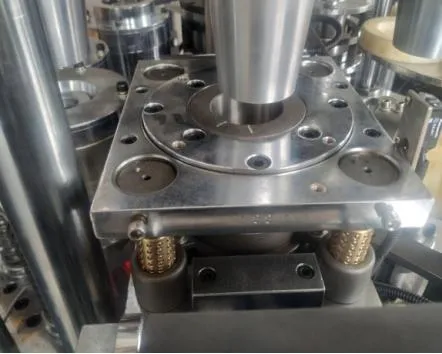

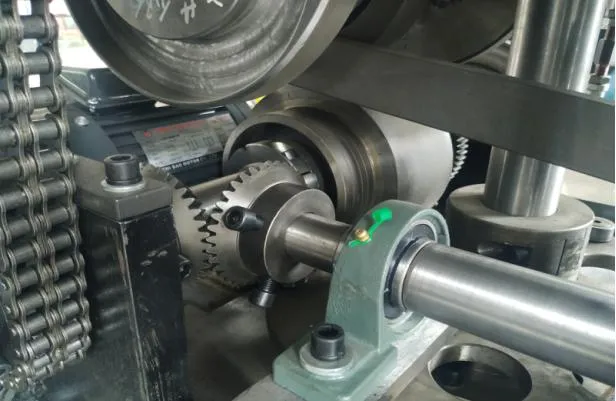

6. Gear Drive & Bottom Punching

Full gear drive system for stable operation. Direct punch bottom feeding method avoids bottom turning over issues.

Spare Parts List

Part Name	Quantity
Electrical heating rod	1 pcs
Adjustable spanner (10 inch)	1 pcs
Small Springs	3 pcs
Preheat heating collar	1 set
Heater ring	2 pcs
Bearing 5204 + Knurling wheel	1 set
Inner hexagonal spanner	1 set
Open-end wrench set	1 set
Foot-screw M18	6 pcs
Oil Gun	1 pcs

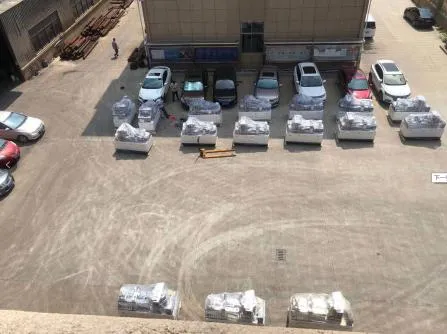

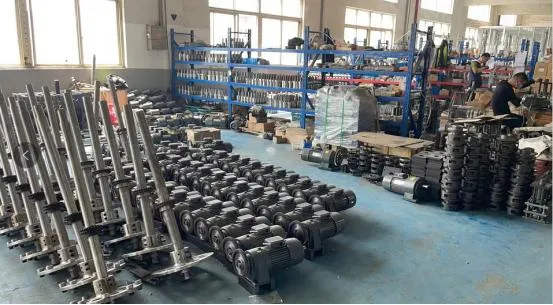

Factory & Production Gallery

Frequently Asked Questions (FAQ)

Q1: What is the maximum production speed of the YB-W35?

The machine can reach a production speed of 60-75 pieces per minute, depending on the material and cup size.

Q2: What range of paper bowl sizes can this machine produce?

It is designed for bowls ranging from 20oz to 50oz. The moulds can be customized according to specific client requirements.

Q3: Does the machine support double PE coated paper?

Yes, the YB-W35 is compatible with both single and double PE coated paper, making it versatile for different types of food packaging.

Q4: How does the automatic lubrication system benefit the machine?

The system automatically lubricates key moving parts through copper pipes, which reduces manual labor and significantly extends the machine's service life.

Q5: What is included in the after-sales service?

We provide a 12-month guarantee period. Additionally, we can dispatch technicians for installation, debugging, and staff training upon request.

Q6: What are the power and air requirements for operation?

The machine requires a 380V 50Hz power supply and an air compressor providing 0.6Mpa pressure with an output of 0.6 m³/minute.
