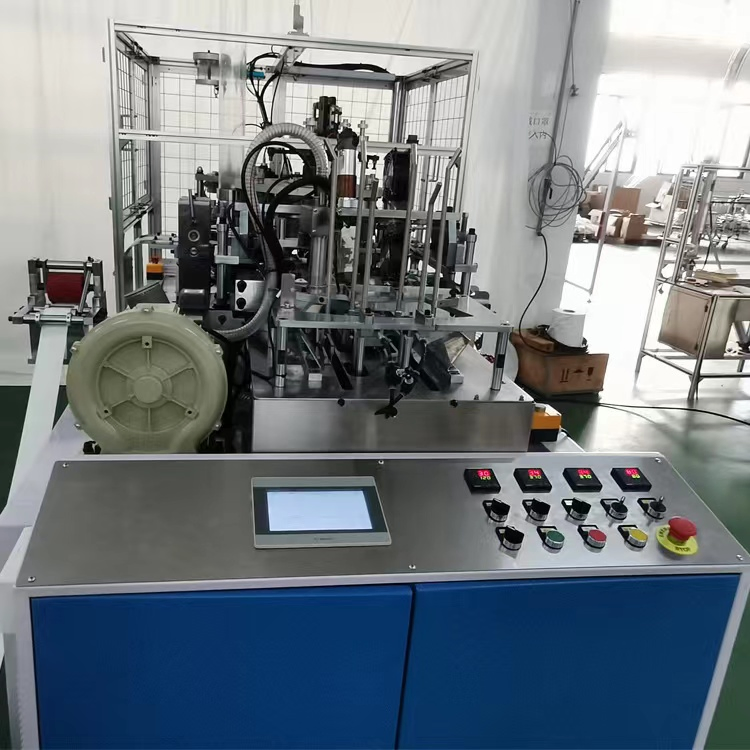

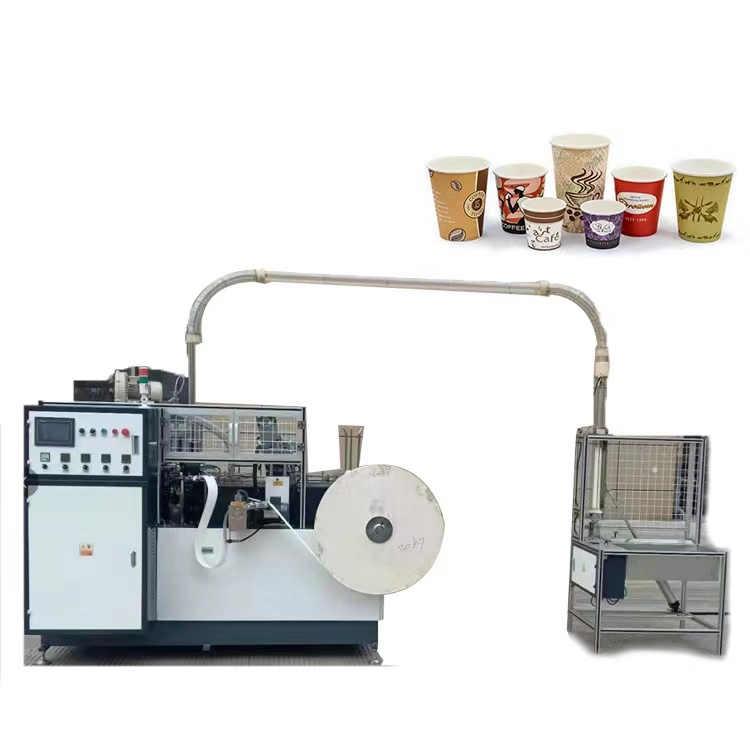

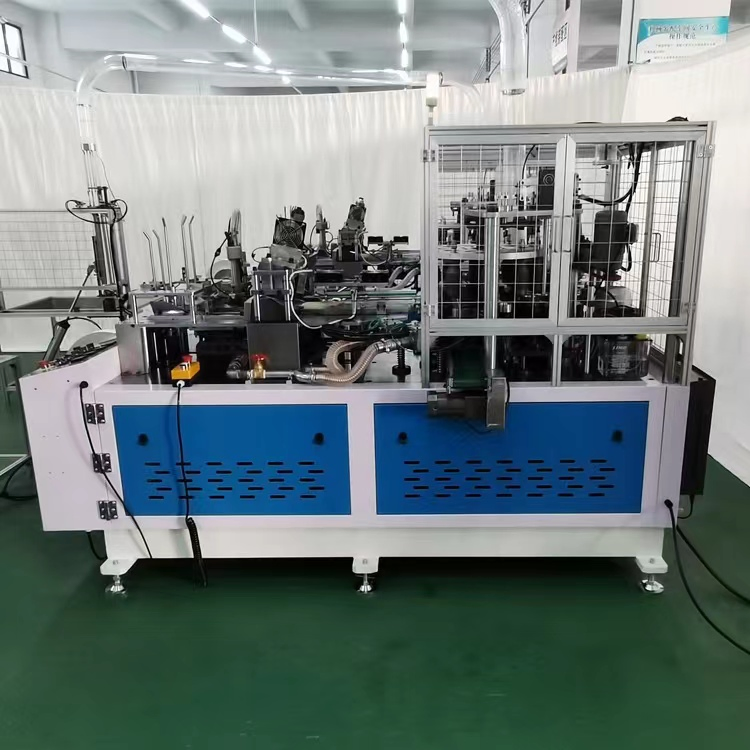

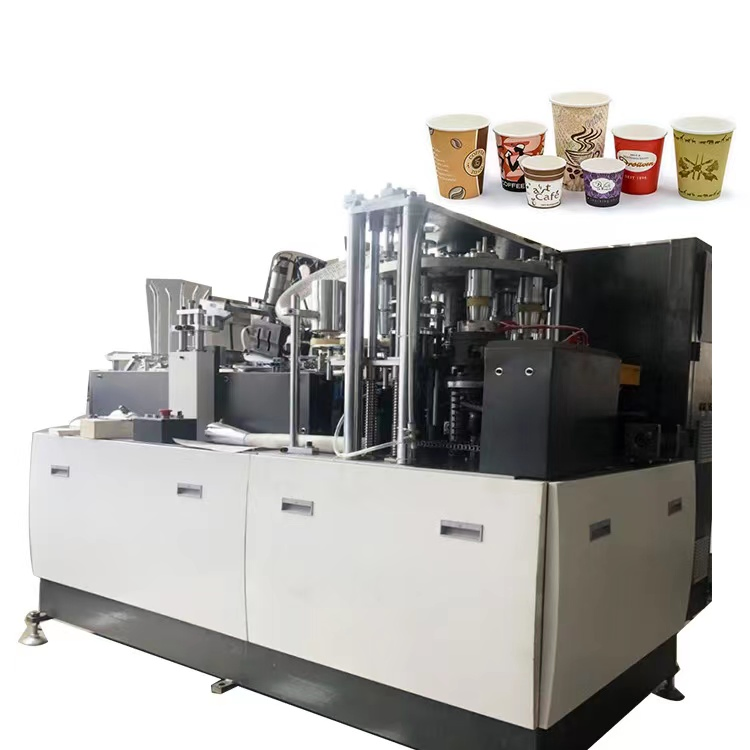

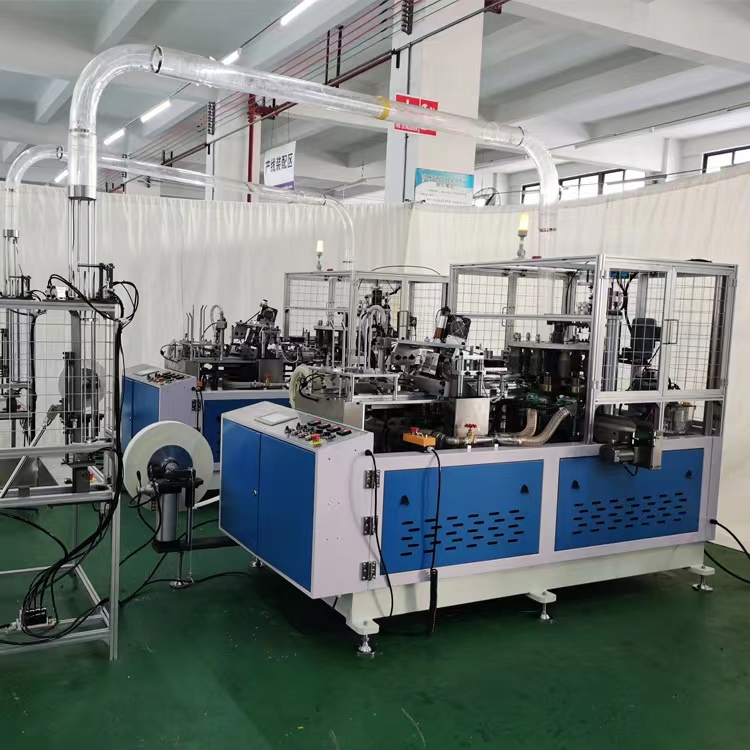

High Quality High Speed Paper Cup/Paper Bowl/Forming Machine

The High-Speed Paper cup machine comes with two turn plate, open intermittent indexing cam mechanism and gear transmission, longitudinal axis structures. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly. Cup body and bottom are sealed by ultrasonic and hot device. Cup top curling has two steps, rotary curling and heating figuration, which makes the curling more stable and better appearance.

The machine comes with PLC control system, photoelectric failure detecting, and can stop working automatically if the machine has any problem, it can greatly improve operation safety and reducing labor cost. The machine can finish the whole process including paper feeding, side sealing, cup bottom punching and feeding, heating, knurling, cup-top curling, cup collection.

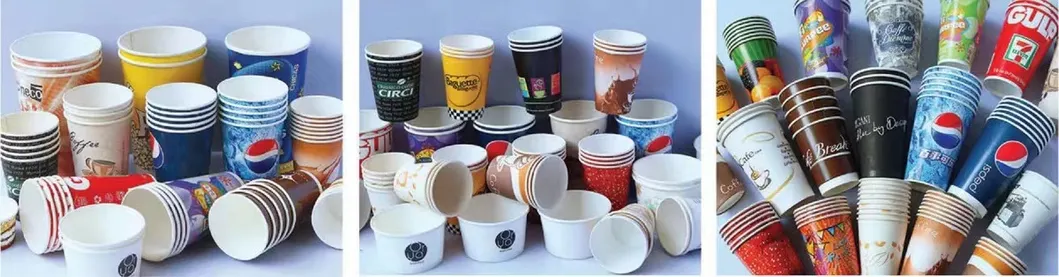

Paperboard cup and container forming machine provides fast production speed of 90 pcs cups per minute. The XY16 produces cups and containers in sizes ranging from 3 ounces to 16 ounces. The XY16 forming machine incorporates technologically advanced performance features to improve uptime and increase production.

Our Paper Machinery line of cup forming machines is the finest available for both hot and cold beverage applications. our paperboard cup forming machines produce leak resistant two-piece, single wrap cups with tight, smooth rolled top curls. Customers supplying the food service industries rely on the excellent cup quality and the renowned machine durability of forming machines.

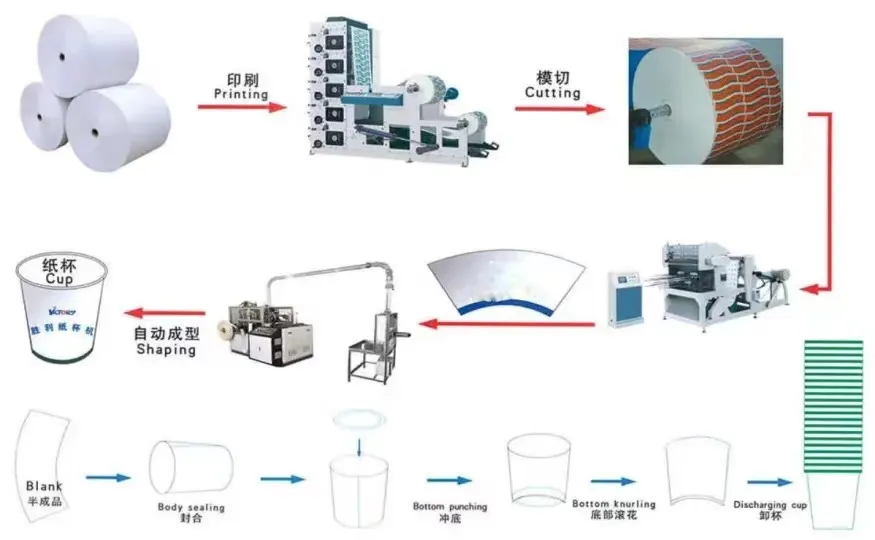

The working principle of the paper cup machine is that a main motor drives the whole machine to realize the perfect integration of gear and cam structure. Now the machine uses a single aluminum disk instead of the previous three-disk machine, greatly reducing the failure rate of the machine and reducing the training time for the operators. A 3-16oz odd-even shower film paper cup can be made according to customer request. Is a automatic paper cup molding equipment, through rows of automatic paper, paper device (ensure accurate positioning), ultrasonic or copper welding, mechanical paper transfer, oil injection, bottom, folding, preheating, rolling, cup, unloading continuous process, can stabilize the production of different specifications of paper cup, is our company after comprehensive technical improvement to improve the stability of the paper cup equipment.
