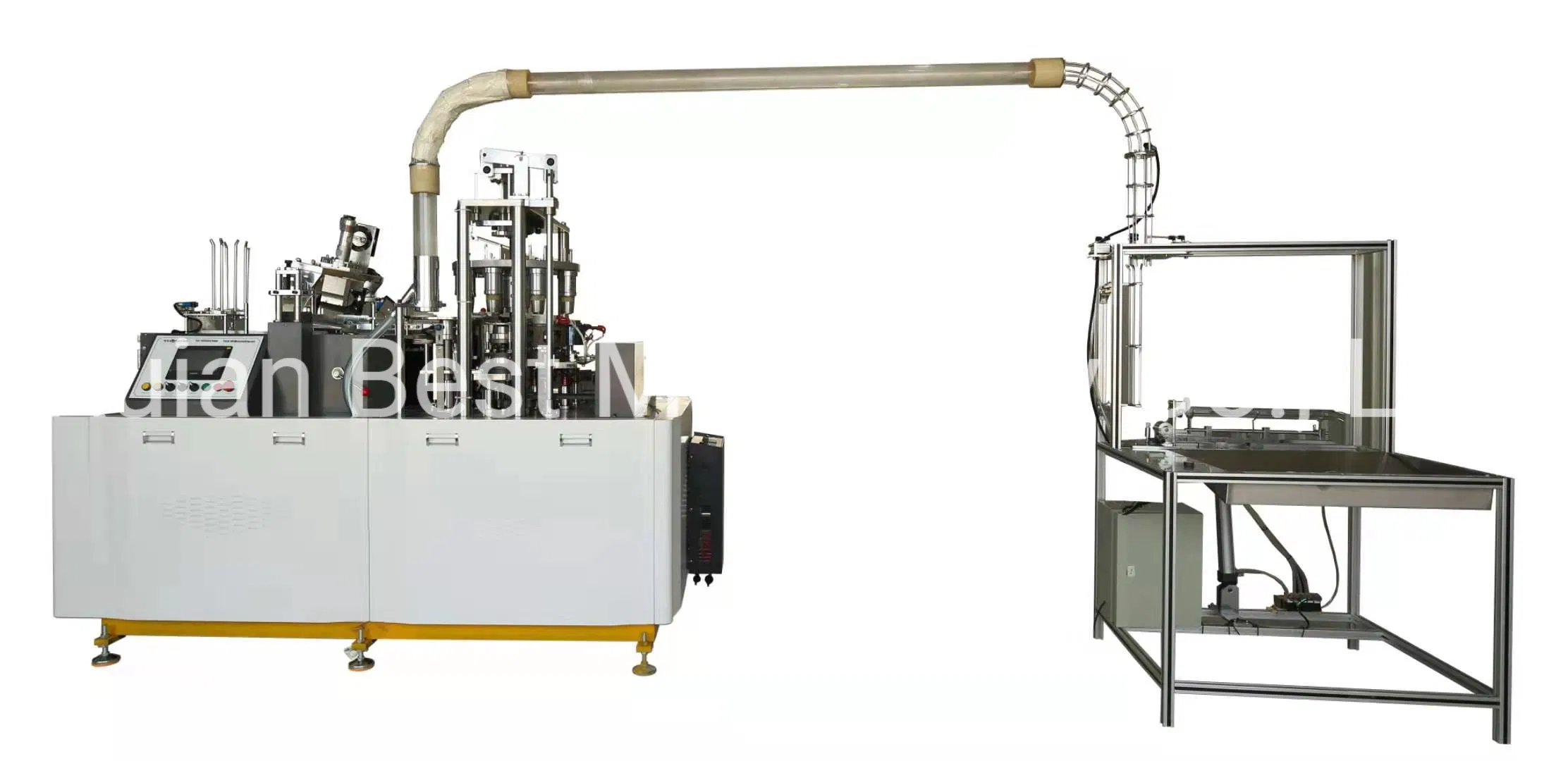

Model ZGJ-70-CUP Paper Cup Forming Machine (Disposable Tumbler Cup Making machine) is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance.
It makes one-side-PE-film-coated paper cups after running a whole procedure of automatic pre-printed fan-shape-paper feeding, cup-side-body sealing (heater), silicone-oil lubricating (for top curling, Dimethyl silicone oil 201, Food Grade), roll bottom auto punching, bottom pre-heating and pre-folding, main heating, NO bottom knurling, top curling and cup discharging.
It is an ideal equipment for making hot drinks (tea, coffee, milk) disposable paper cups and ice-cream paper cups, cake cups, one-time testing cups, etc.
| Name | Model | Origin | Remarks | QTY |
|---|---|---|---|---|
| Main motor | CH-25-1.5 | Taiwan | Chenggang | 1 |
| Frequency converter | Em60-1.5kw | Japan | Panasonic | 1 |
| Photoelectricity | PSE17-5DN | Korea | Ottonico | 3 |
| AC contactor | 0910 | France | France | 3 |
| Thermal couple | - | Domestic | Huibang | 5 |
| Temperature control | AI-208G | Domestic | Yudian | 5 |
| Button | NP2-BA31 | Domestic | Chint | 12 |
| Relay | JZX-22F(D)/2Z | Domestic | Chint | 5 |
| Switching power supply | LRS-200-24 | Taiwan | Ming Wei | 1 |
| Circuit breaker | DZ47-60 1P C10 | Domestic | Chint | 6 |
| Circuit breaker | DZ47-60 3P D60 | Domestic | Chint | 1 |
| Exchange Contactor | CJX2-1810 220V | Domestic | Chint | 5 |
| Exchange Contactor | CJX2-4011 220V | Domestic | Chint | 2 |
| Paper Cup Size | 5-12oz |
| Paper Material | 140-320g/m2, One Side PE Coated Paper Or Double |
| Speed | Max Speed: 105pcs/min, Stable speed: 85Pcs/min |
| Power source | 380V 50HZ |
| Heating total power | 5KW |
| Main motor | 1.5KW |
| Total Power | 7.5kw |
| Weight | 2200kg |
| Overall size | 2.23 x 1.14 x 1.8m |
| Air pressure | ≤0.4MPa (used for auto bottom paper feeding) |
| Operation person | 1 person for multiple machines |
| Operation space | About 3000 * 3000mm |
| Note | Can be customized according to your requirements |
