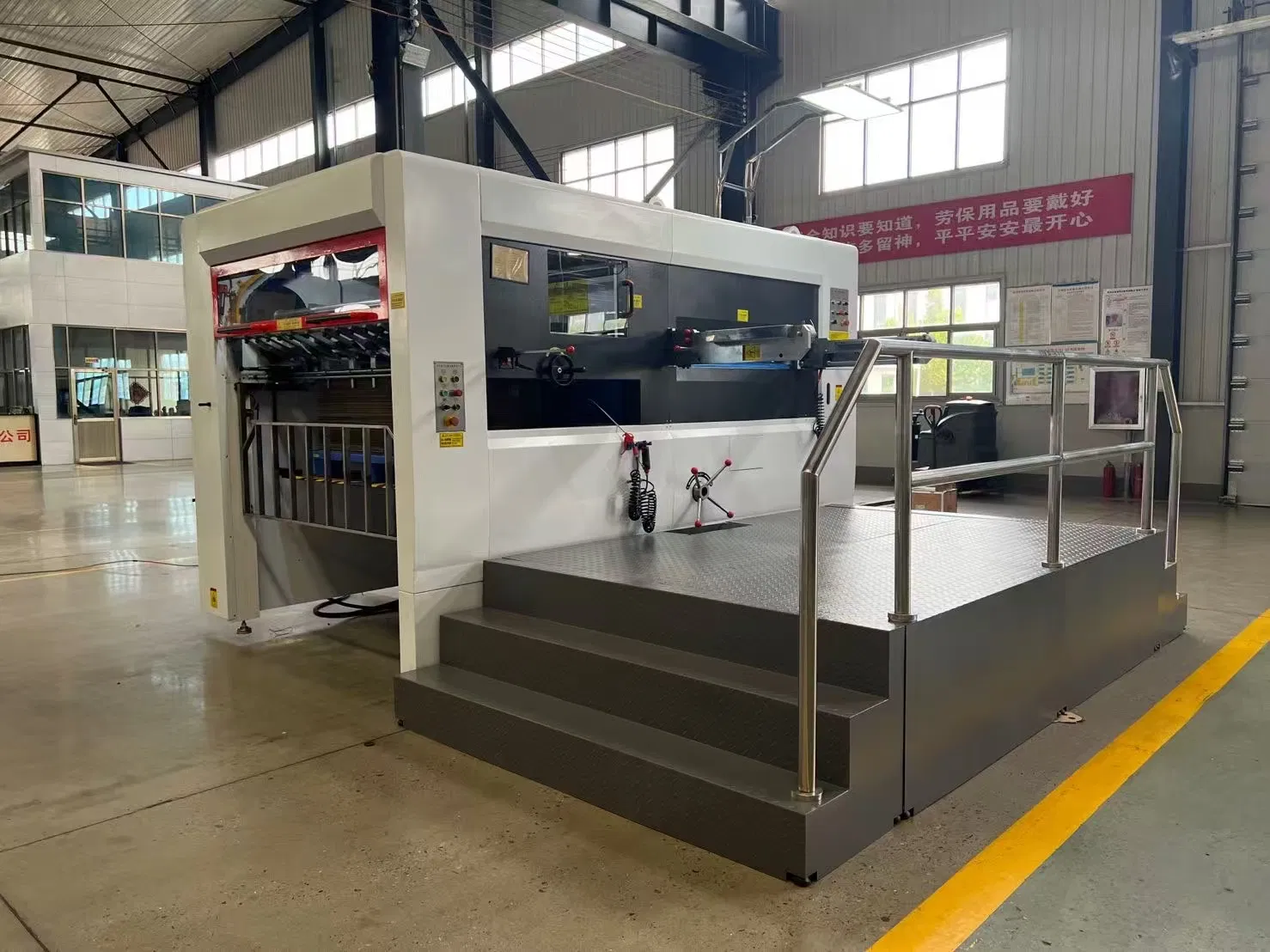

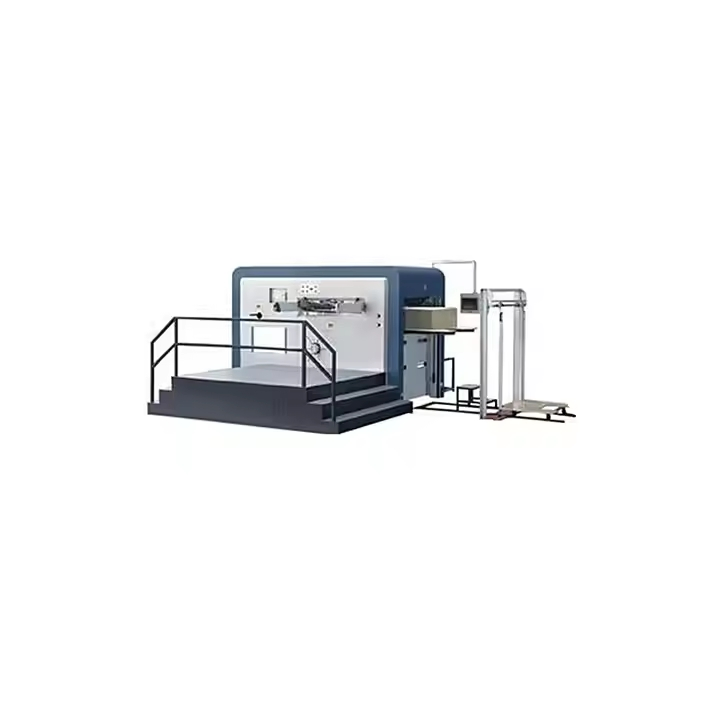

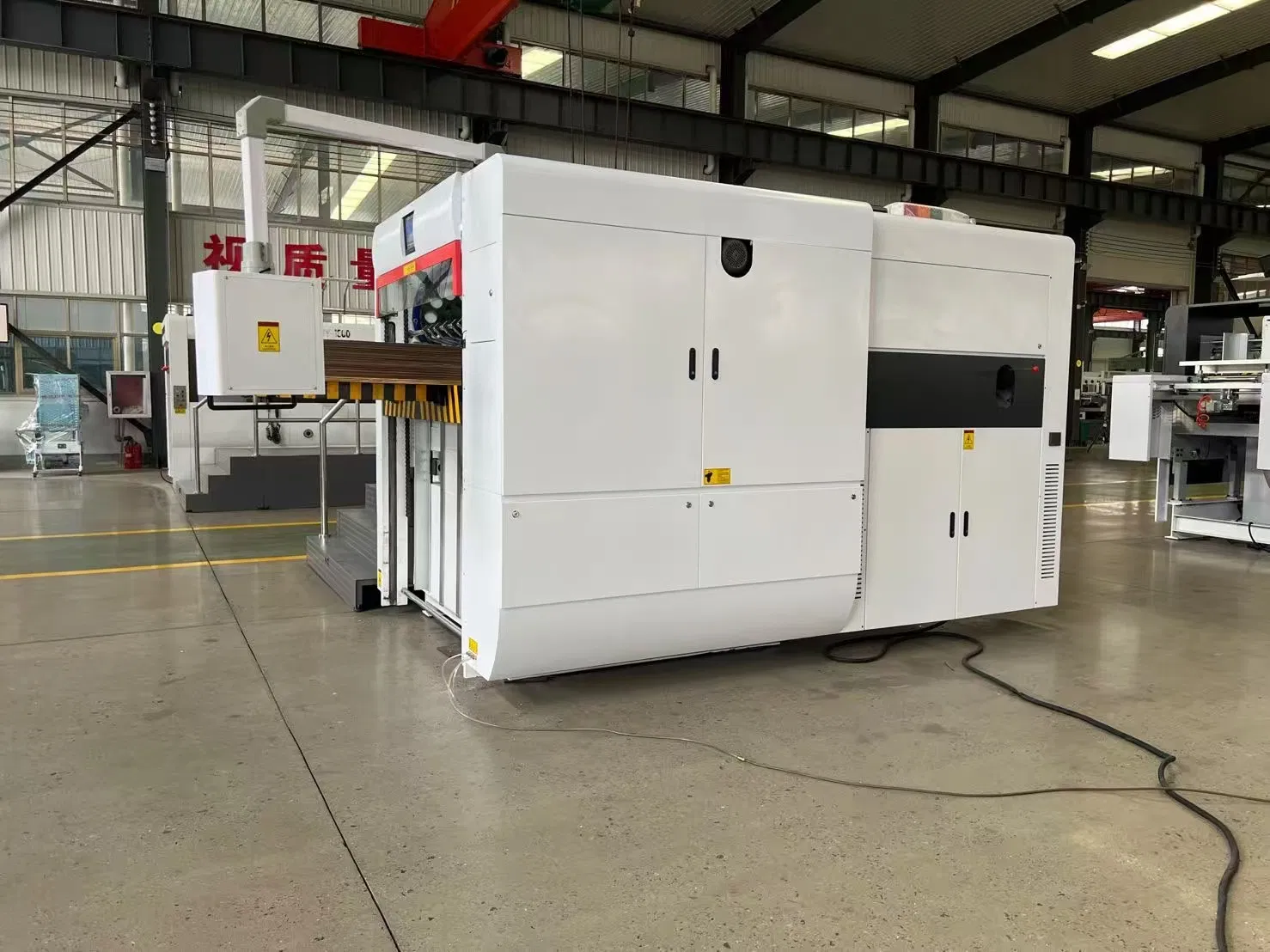

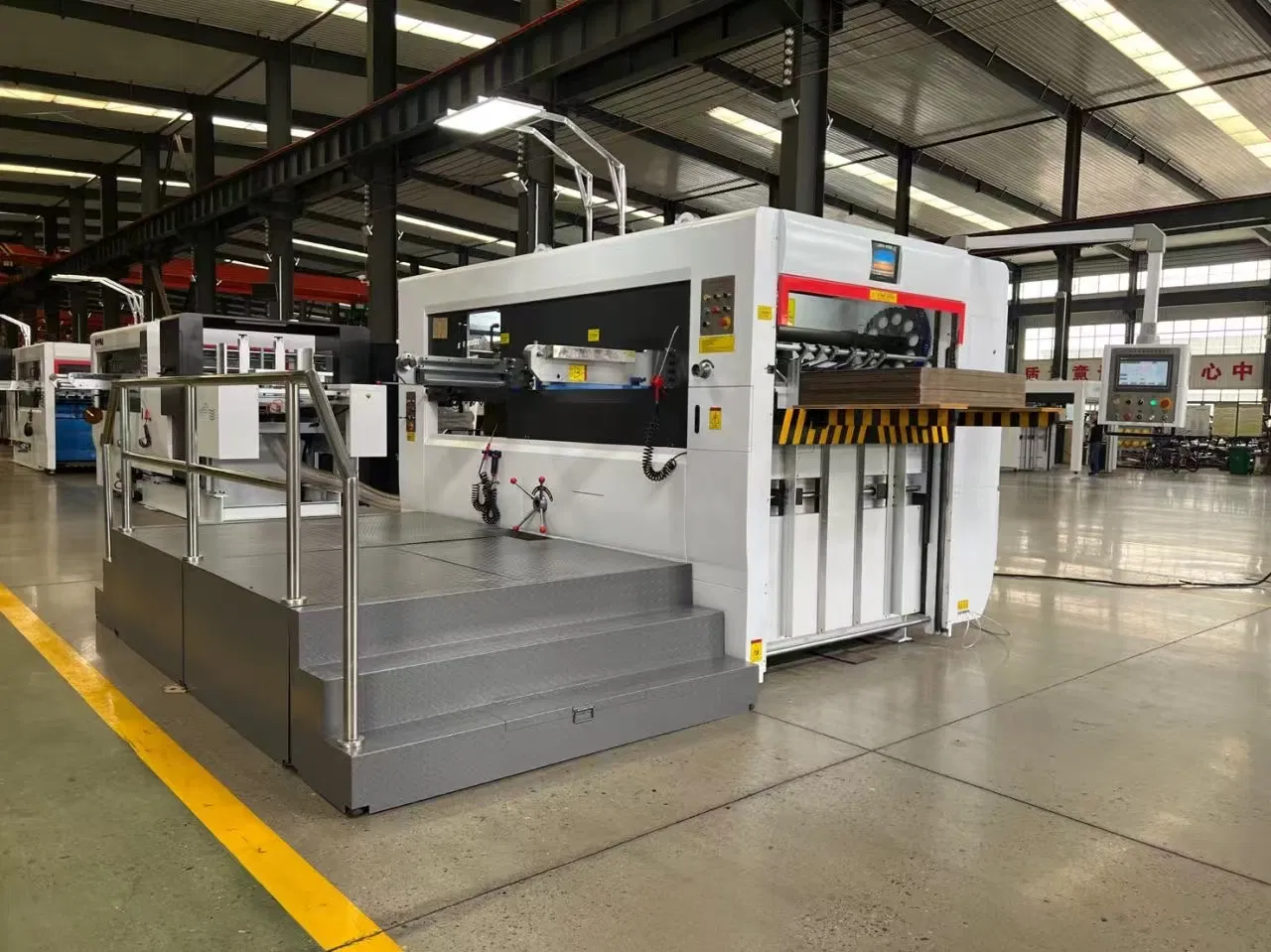

Best Sale High Speed High Production Sheet Die-Cutting Machine for Paper Cup Paper Bowl Box Making
Best Sale High Speed High Production Sheet Die-Cutting Machine for Paper Cup Paper Bowl Box Making
Best Sale High Speed High Production Sheet Die-Cutting Machine for Paper Cup Paper Bowl Box Making
Best Sale High Speed High Production Sheet Die-Cutting Machine for Paper Cup Paper Bowl Box Making
Best Sale High Speed High Production Sheet Die-Cutting Machine for Paper Cup Paper Bowl Box Making
1 / 5
Best Sale High Speed High Production Sheet Die-Cutting Machine for Paper Cup Paper Bowl Box Making
Best Sale High Speed High Production Sheet Die-Cutting Machine for Paper Cup Paper Bowl Box Making
Best Sale High Speed High Production Sheet Die-Cutting Machine for Paper Cup Paper Bowl Box Making
Best Sale High Speed High Production Sheet Die-Cutting Machine for Paper Cup Paper Bowl Box Making
Best Sale High Speed High Production Sheet Die-Cutting Machine for Paper Cup Paper Bowl Box Making

Best Sale High Speed High Production Sheet Die-Cutting Machine for Paper Cup Paper Bowl Box Making

Customization: Available
After-sales Service: Service Machinery Overseas
Warranty: 12 Months
Send Inquiry

Product Description

ℹ

Basic Information

Model NO.
1100
Species
Die Cutting and Creasing Machine
Imprinting Type
Platen
Placing Form
Horizontal
Die Cutting Tool
Metal Mold
Control System
Computerized / Automatic
Speed
4600 Sheets/H
Voltage
380V
⚙

Technical Parameters

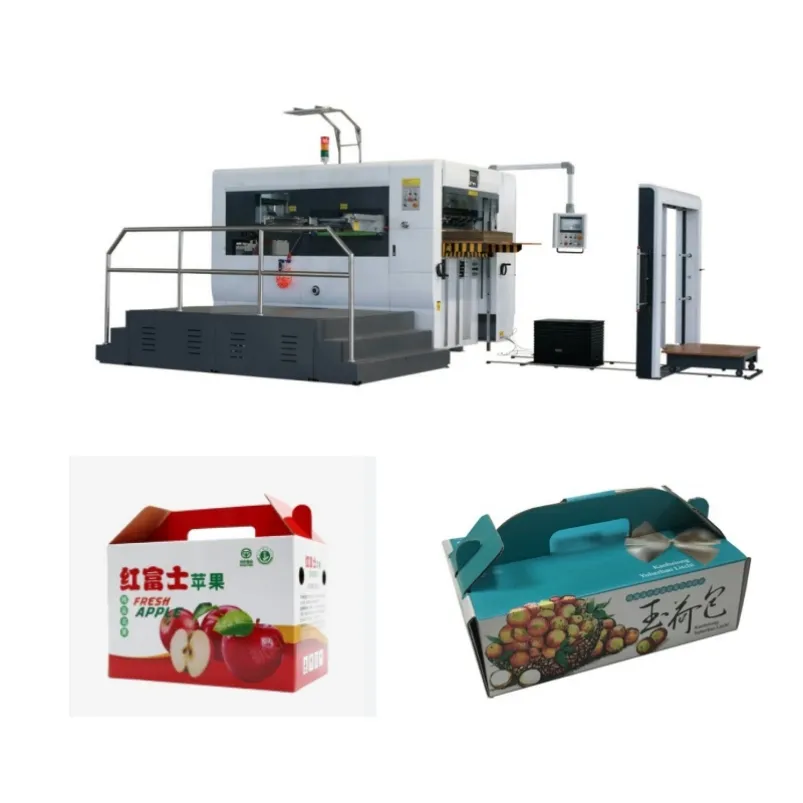

Technical parameter
Item Parameters
Model MY-1300
Die cutting type Pressed flat die cutting (Lower side movable)
Max paper transmitting size 1320*980mm
Min paper transmitting size 400*500mm
Max die cutting size 1300*960mm
Max die cutting pressure 350N/cm²
Paper processed Cardboard 200-2000 gsm / Corrugated board <= 10mm
Max die cutting speed 4600 sheets/h
Main motor power 11 kw
Total weight ~13.5 T
📂

System Introduction

Feeding and Collecting Part

  • Whole machine is risen making the maximum front pile height up to 1400mm and back pile height up to 1250mm.
  • Monitor installed at the head allows workers to easily see the back operations.
  • Pre-paper pile design and special pneumatic bench save significant time.
  • Non-stop sampling system allows checking board accuracy without stopping the machine.

Main Body

  • Adopts automatic centralized lubricating system and main chain lubricating system controlled by HMI.
  • Patented shock absorption system prolongs main body life and increases pressure capacity.
  • Taiwan-made intermittent gearbox ensures accurate registration and decreases gripper attack.

Diecutting Part and Delivery System

  • Diecutting chase fixed accurately by pneumatic lock system.
  • Diecutting plate is moved in and out by an air floating device.
  • Electric clutch system ensures chain stability when stopped at high speeds.
  • Aluminum alloy 9-piece gripper bars with Renold UK chain ensure high accuracy.

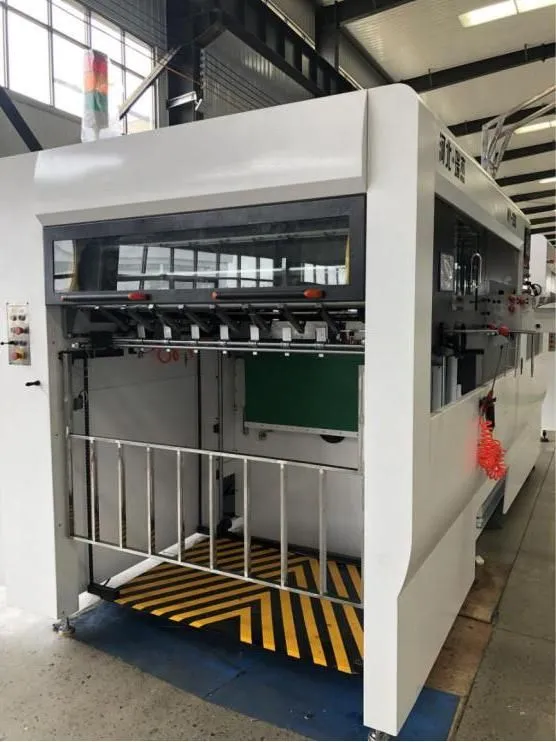

System Part 1

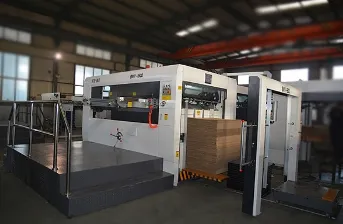

System Part 2
System Part 3
🚢

Packaging & Shipping

Packaging 1
Packaging 2
Packaging 3
Frequently Asked Questions
Q1: What is the maximum production speed of this machine?
The machine can reach a maximum die cutting speed of 4600 sheets per hour.
Q2: What types of materials can the MY-1300 process?
It is designed to process cardboard from 200-2000 gsm and corrugated board up to 10mm in thickness.
Q3: How is the lubrication system managed?
The machine features an automatic centralized lubricating system and main chain lubrication controlled via HMI and PLC.
Q4: What are the requirements for paper size?
The maximum paper transmitting size is 1320*980mm, and the minimum size is 400*500mm.
Q5: Is it possible to check quality without stopping the machine?
Yes, the machine includes a non-stop sampling system that allows for accuracy checks while the machine is running.
Q6: What is the total weight and power of the machine?
The total weight is approximately 13.5 tons, and the total power consumption is about 13.5 kw.
