📊 Product Description
The working principle of our paper cup machine is that a main motor drives the whole machine to work, which realizes the perfect integration of gear and cam structure. Now the machine uses a single aluminum plate to replace the previous three plate machine, which greatly reduces the machine failure rate and reduces the training time for the operator.

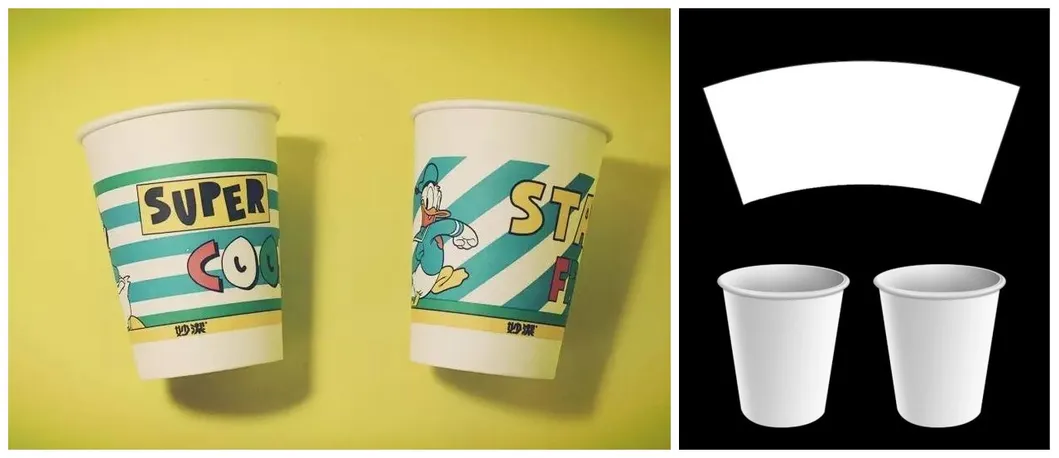

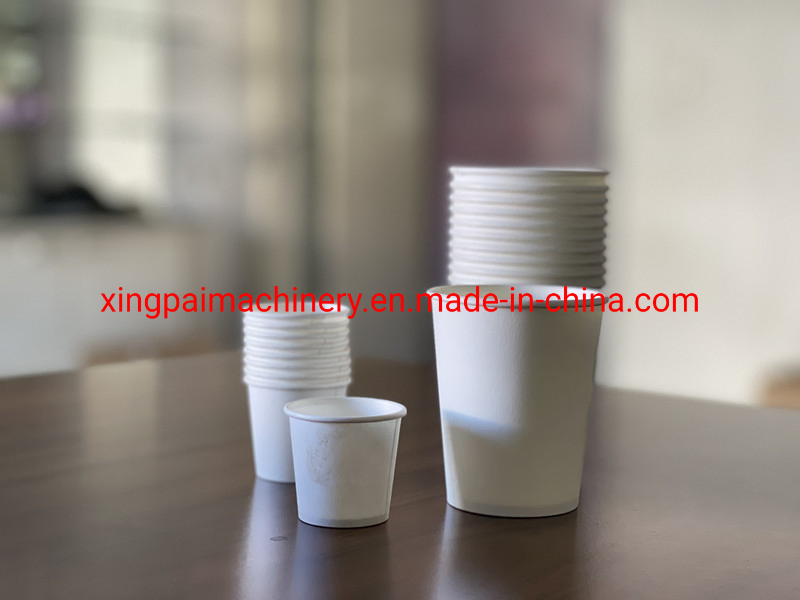

3-16oz single and double coated paper cups can be customized according to customer requirements.

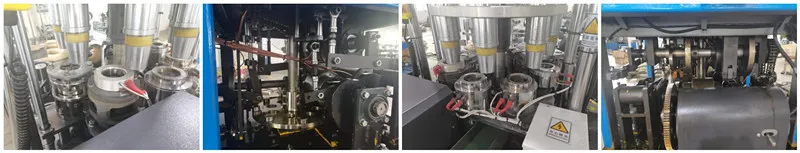

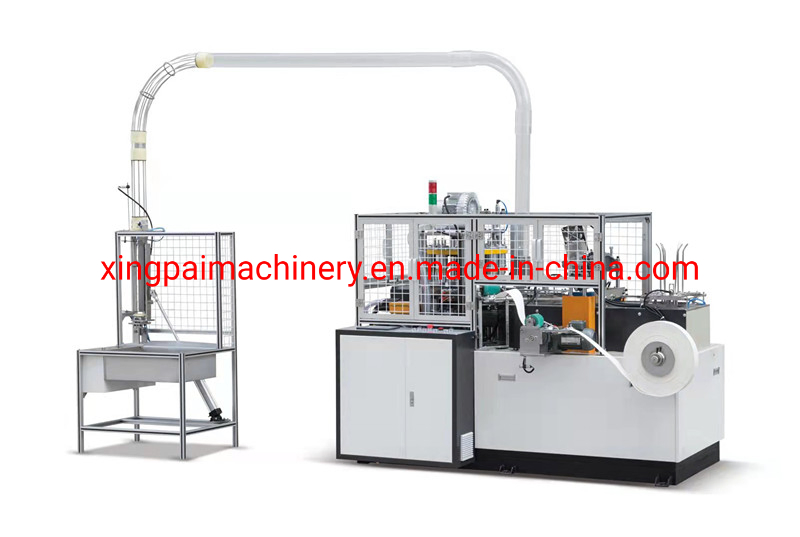

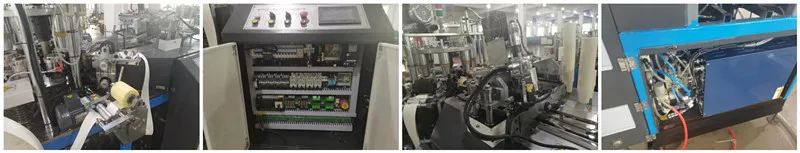

It is a fully automatic paper cup forming equipment, through multi-row automatic paper feeding, paper anti return device (to ensure accurate positioning), ultrasonic or copper strip welding, mechanical hand paper tube transfer, oil injection, bottom punching, bottom folding, preheating, and rolling. Continuous processes such as flower and cup unloading can stably produce paper cups of various specifications. It is a paper cup equipment independently developed that has undergone comprehensive technical improvements to improve the stability of the whole machine.
❓ Frequently Asked Questions
Q1: What is the production speed of the XP-DP16 paper cup machine?
A: The machine operates at a stable production speed of 70-90 pieces per minute, with a maximum capacity of up to 100pcs/min depending on the cup size.
Q2: What range of paper cup sizes can this machine produce?
A: It is designed to produce paper cups ranging from 3oz to 16oz. The molds can be customized to meet specific dimensions within this range.
Q3: Does the machine support both single and double PE coated paper?
A: Yes, the XP-DP16 is compatible with both single and double side PE coated paper, making it suitable for both hot and cold drink cups.
Q4: What are the power and voltage requirements for operation?
A: The machine requires a power supply of 7.5kw and operates on a standard voltage of 380V at 50Hz.
Q5: How does the machine ensure the stability of the cup forming process?
A: The machine utilizes a perfect integration of gear and cam structures driven by a main motor, and features a single aluminum plate design to reduce failure rates and improve stability.
Q6: Is technical support available after purchase?
A: Yes, we provide comprehensive online after-sales service to assist with machine setup, operation training, and troubleshooting.
