Basic Info.

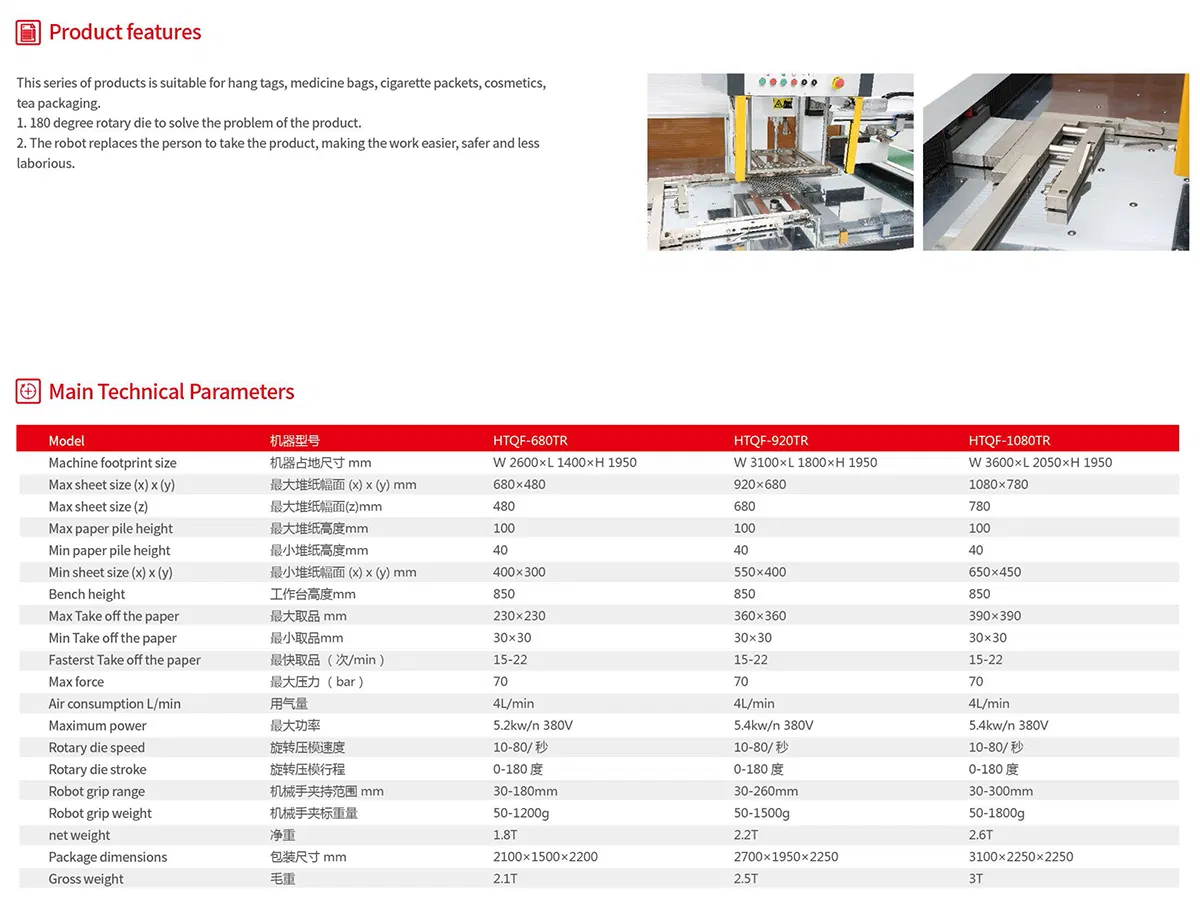

Max Take off The Paper
230*230
Min Take off The Paper
30*30
Fasterst Take off The Paper
15-22
Depth of The Machine(B)
1480
Transport Package
Strong Export Wooden Case
Specification
750mm to 2800mm
Production Capacity
300set/Month
Product Description

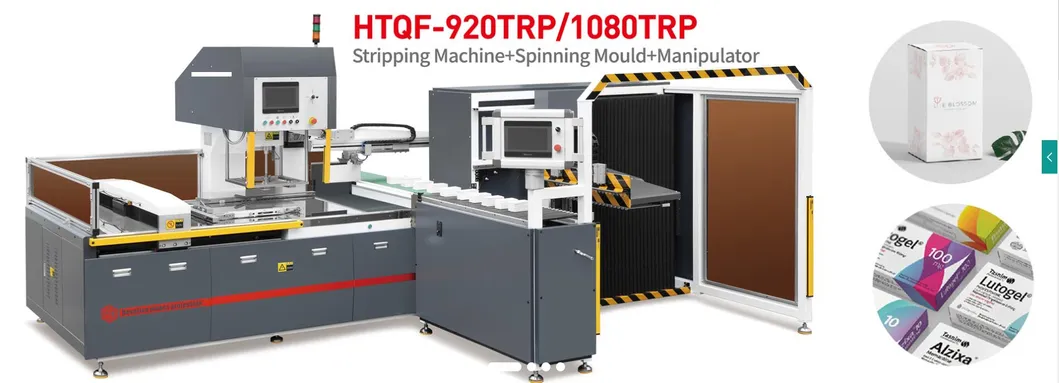

Introduction: The die cutting and creasing machine is an equipment especially designed for die cutting the ordinary cardboard, corrugated board, plastic and leather products. It is widely used in the printing, packing decorating and plastic industries. The machine has features such as compact structure, fine workmanship, big pressure, high precision and easy and reliable operation etc.
Key Features
High strength due to one piece casting by using top quality materials for the machine body.
Smooth running, big pressure and low noise with herringbone gear input and helical gear output mechanism.
Sensitive and reliable single plate electromagnetic clutch system.
Reasonably arranged operational altitude with optimum moveable platen opening.
Electrical system designed strictly according to IEC standards.
Functions include single, continuous operation and opening well with adjustable dwell time.
Reliable safety system for operator protection.
Equipped with a concentrated lubricating system for easy maintenance.
Main Specifications
| Model |
Inner Chase size |
Speed (strokes/min) |
Max. Rule Length |
Motor Power |
Weight |
Overall Dimensions |
| ML-750 | 750x520mm | 25±2 | <14m | 2.2kw | 1800kg | 1360x1400x1300mm |
| ML-930 | 930x670mm | 23±2 | <25m | 4kw | 3000kg | 1680x1680x1640mm |
| ML-1040 | 1040x720mm | 23±2 | <30m | 4kw | 4000kg | 1850x1780x1700mm |
| ML-1100 | 1100x800mm | 20±2 | <26.5m | 4kw | 4500kg | 1900x1780x1700mm |
| ML-1200 | 1200X820mm | 20±2 | <26.5m | 4kw | 4500kg | 1900x1900x1750mm |
| ML-1300 | 1300x920mm | 18±2 | <38m | 5.5kw | 5600kg | 1920x2140x1800mm |
| ML-1400 | 1400x1000mm | 17±2 | <38m | 5.5kw | 6200kg | 2010x2400x1930mm |
| ML-1500 | 1500x1050mm | 17±2 | <40m | 7.5kw | 6800kg | 20100x2480x1960mm |
| ML-1600 | 1600x1250mm | 13±2 | <50m | 11kw | 11000kg | 2500×2200×2000mm |
| ML-1800 | 1800×1250mm | 13±2 | <60m | 11.5kw | 13500kg | 2510×2300×2000m |
| ML2000 | 2000×1400mm | 13±2 | <60m | 15kw | 16000kg | 2270×3100×2150mm |
| ML2500 | 2500×1500mm | 13±2 | <75m | 18.5kw | 20000kg | 2300×3600×2150mm |
Logistics & Loading
FAQ
What materials can this die cutting machine process?
The machine is specifically designed to handle ordinary cardboard, corrugated board, plastic, and leather products, making it versatile for various industries.
Does the machine support continuous operation?
Yes, the machine features multiple operational modes including single stroke, continuous operation, and opening well, with an adjustable dwell time to suit different production needs.
What safety standards does the electrical system follow?
The entire electrical system is designed and built in accordance with IEC standards to ensure global compatibility and high safety reliability.
How is the machine lubricated?
The machine is equipped with a concentrated lubricating system, which ensures all critical moving parts are properly oiled for smooth operation and reduced wear.
What is the typical packaging for international shipping?
All machines are packed in strong export-standard wooden cases to ensure maximum protection during sea freight and land transportation.
What is the production capacity for these machines?
The current production capacity is approximately 300 sets per month, ensuring timely delivery for large-scale orders.
