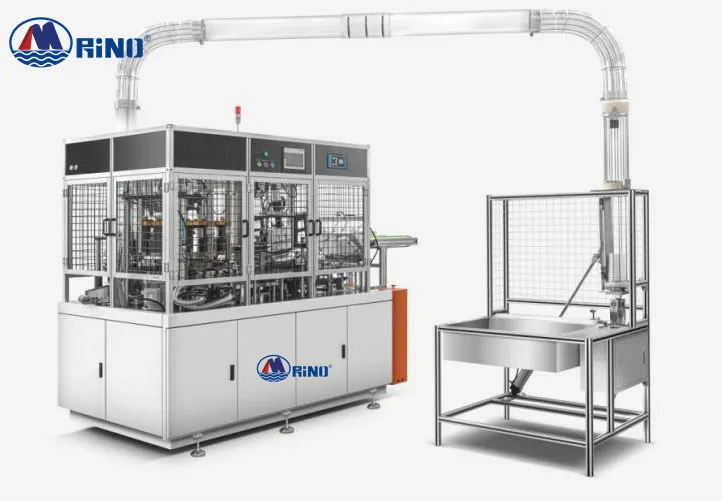

High Speed Paper Cup Making Machine Paper Bowl Making Machine

Customization:	Available
Warranty:	One Year
Applicable Objects:	Beverage

📋 Basic Information

Model NO.:C type

Cup Size:2-12OZ

Speed:100-120pcs/min

Required Paper:Single Side PE Coated Paper

Automation:Automatic

Logo Printing:With Logo Printing

Certification:CE

Customized:Customized

Condition:New

After-sales:One Year

Size Range:4-32 Oz (Top: 60-120mm, Height: 50-115mm)

Sealing Method:Ultrasonic Sealing

Paper Thickness:170~350g PE Coated Paper

Origin:China

HS Code:844130

Capacity:20 Sets/ Month

🚀 Product Description

Our newly designed paper cup/bowl forming machine is a fully automatic paper cup forming machine, which can produce different sizes of paper cups with a series of continuous process, including automatic paper feeding, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by robot hand, silicone oil lubricating, bottom punching, bottom folding, bottom pre-heating, bottom knurling, cup discharging.

Key Features

The ultrasonic of the cup body adopts a four-column lifting cam mechanism.
Paper holding adopts double cam mechanism.
Separation of the suction piece adopts the standard configuration of tilting suction piece structure and cup transmission.
Use 4~6 small wheels with adjustable positions or integral bottom knurling structure.
The ten equal cup-plate is made of aluminum alloy; cup mold is made of 7075 high-quality aluminum alloy and surface hardened.
The mechanical frame is welded with steel plates and artificially aged for durability.
Adopts PS board and aluminum alloy profiles for comprehensive safety protection.
Gear pump lubrication for gear transmission and independent oil injection for cam bearings.

📊 Product Parameters

Item Name	Paper Cup Machine	Paper Bowl Machine
Model	C style	B style
Size Range	4-32 oz (Top: 60-120mm, Height: 50-115mm)	20-35 oz (Top: 95-143mm, Height: 50-115mm)
Production Capacity	120-140 pcs/min	100-120 pcs/min
Sealing Method	Ultrasonic Sealing
Paper Thickness	170~350g PE Coated Paper
Power Requirement	380V, 3-phase, 50Hz (Customizable)
Total Power	15KW	15KW
Machine Weight	2900KG	2900KG
Packing Dimension	2650 x 1300 x 2100 mm	2700 x 1350 x 2300 mm
Working Pressure	0.5-0.8MPa, 0.35m3/min (Air compressor required)

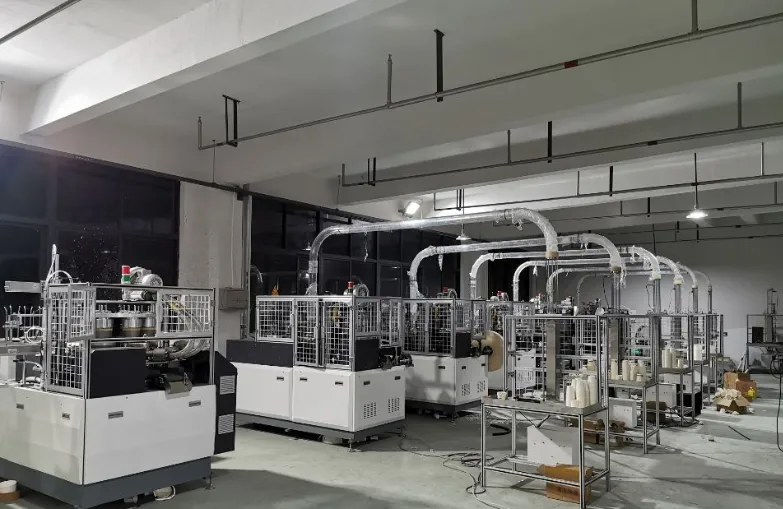

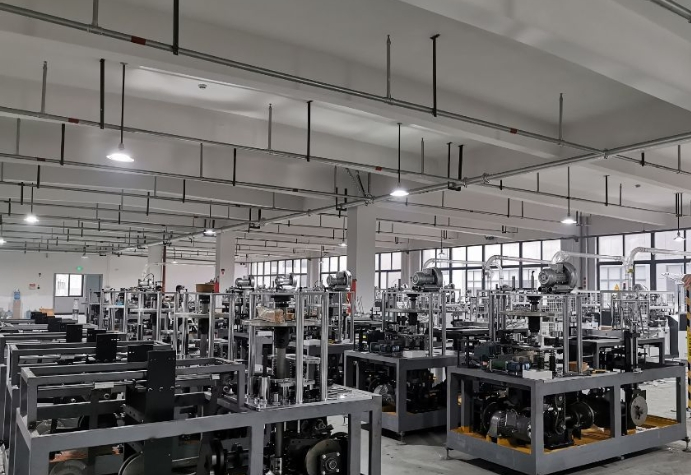

📸 Detailed Photos

📜 Certifications

📦 Packaging & Shipping

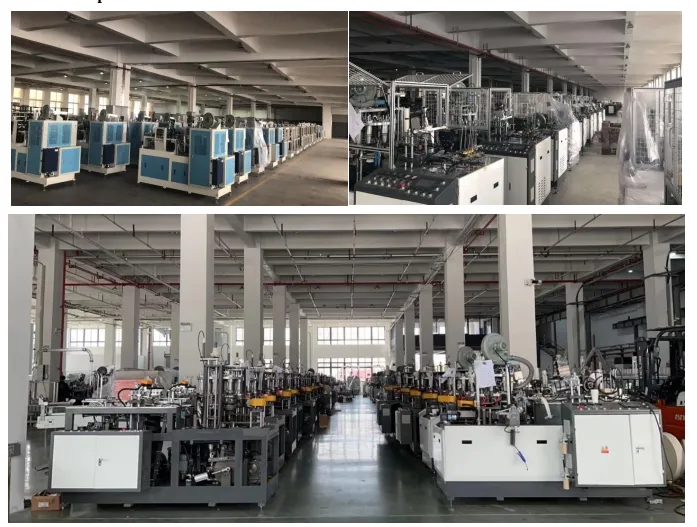

🏢 Company Profile

❓ FAQ

1. What is the maximum production speed of the machine? The C type paper cup machine can reach a production speed of 120-140 pieces per minute, while the bowl machine operates at 100-120 pieces per minute.

2. What range of cup sizes can this machine produce? The machine is versatile and can produce cups ranging from 4oz to 32oz, with top diameters between 60mm and 120mm.

3. What type of sealing technology does the machine use? It utilizes advanced Ultrasonic Sealing technology to ensure a strong, leak-proof bond for the cup body.

4. What are the paper requirements for the production process? The machine is designed to work with single-side PE coated paper with a thickness/weight between 170g and 350g.

5. Does the machine require an external air compressor? Yes, the machine operates at a working pressure of 0.5-0.8MPa and requires an air compressor with a capacity of at least 0.35m3/min.

6. Is the machine fully automatic? Yes, it is a fully automatic system covering everything from paper feeding and welding to bottom knurling and final cup discharging.
