High Speed Paper Cup Making Machine with Touch Screen and Ultrasonic

Customization:	Available
Warranty:	1years
Applicable Objects:	Beverage

Basic Information

Model NO.	lf-90
Speed	100-120pcs/min
Required Paper	Single and Double Side PE Coated Paper
Automation	Automatic
Certification	CE
Voltage Supply	380V 50Hz 3-Phase
General Power	16kw
Suitable Paper Weight	190-350GSM
Working Air Source	Air Pressure 0.5-0.8MPa, 0.4m³/Min
Production Capacity	6000-6600 PCS/Hour

Product Description

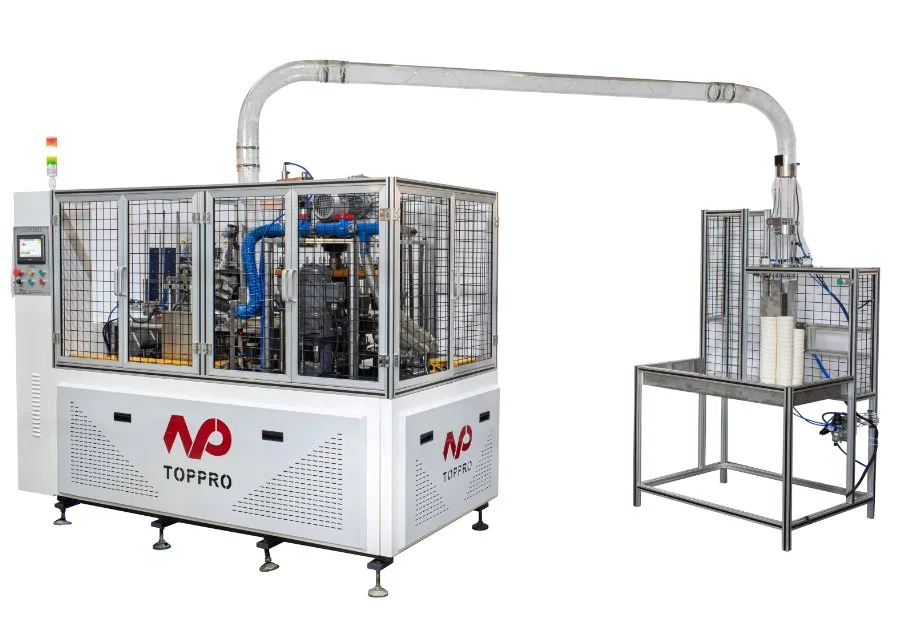

LF-90 Automatic Mid-Speed Paper Cup Machine

The LF-90 mid-speed paper cup forming machine is a multi-station high-speed automatic machine producing both single and double PE coated drink cups and ice cream cups. The process includes continuous automatic paper feeding, sealing, oil injection, bottom cutting, heating, knurling, curling, and stacking. Equipped with a hot air system, PLC control, and servo motor driving, it features full-automatic failure warning, counting, detection, and automatic stopping.

Key Advantages

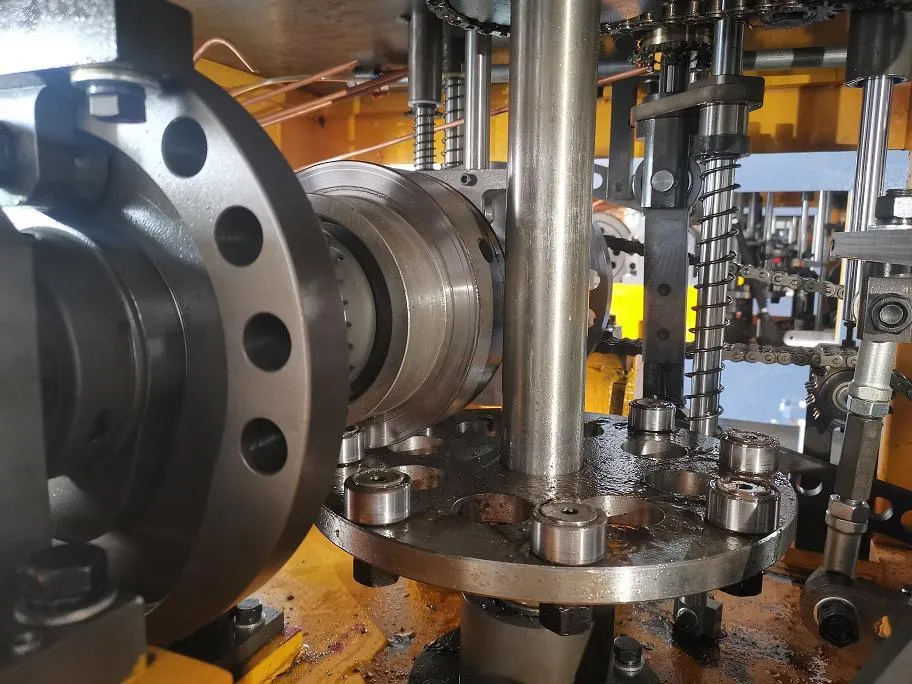

1. Geneva Open Cam System

The main part of the machine uses the Geneva open cam, making the driving more accurate, faster, and providing reliable stability.

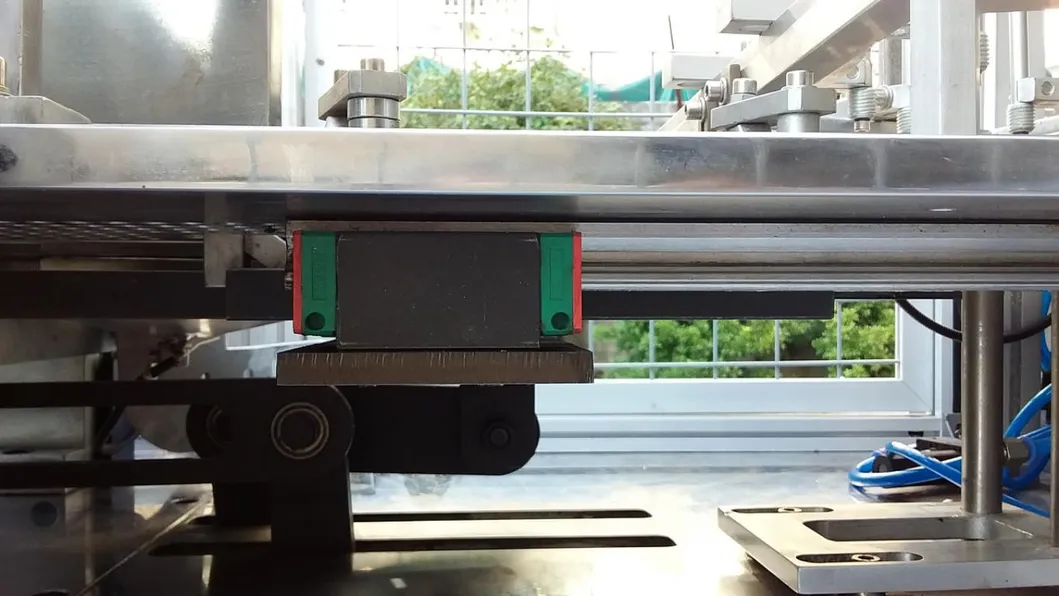

2. High-Precision Sliding Block

Imported sliding blocks ensure a long lifetime and high precision during operation.

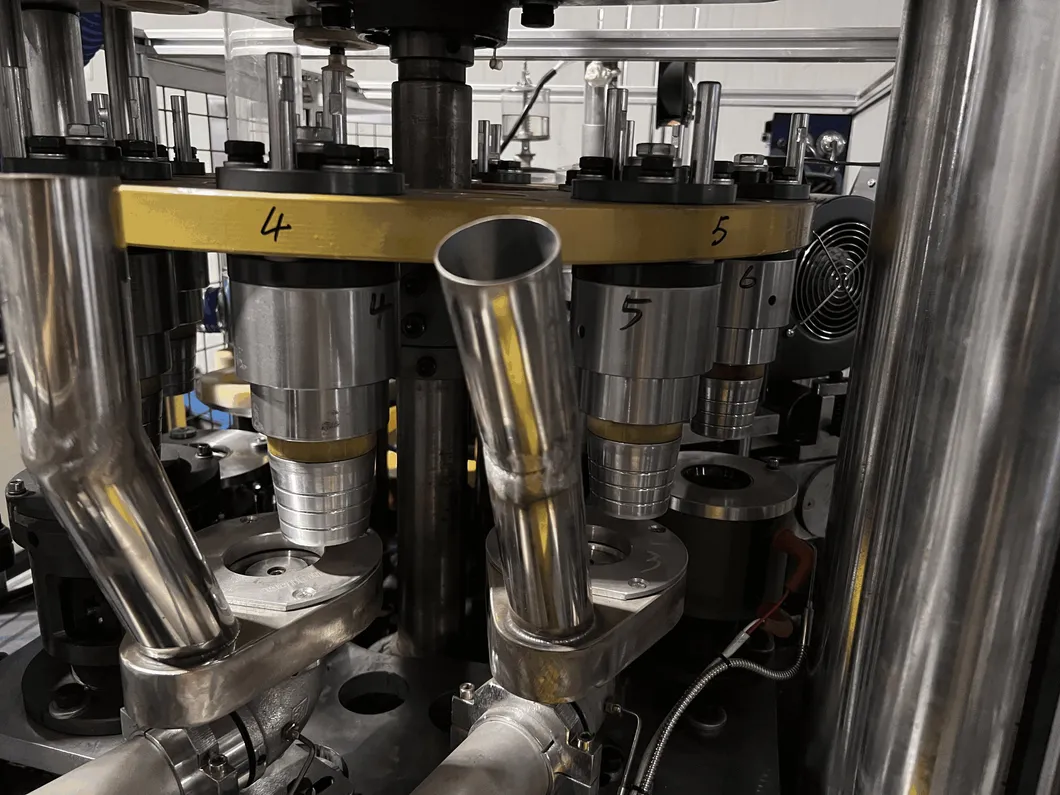

3. Hot Air Heating System

Bottom heaters are equipped with a hot air heating system to form the cup bottom quickly and with high quality.

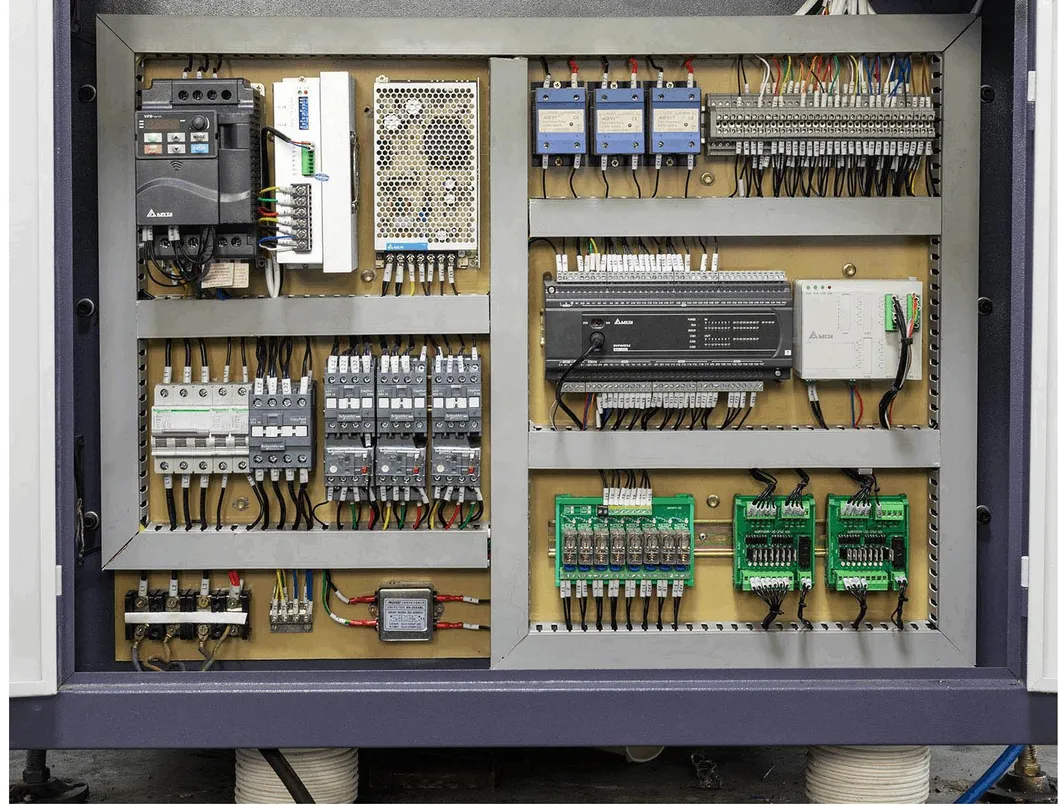

4. Intelligent PLC Control

Imported electrical parts and PLC controlling with an easy-to-use touch screen make the machine more intelligent.

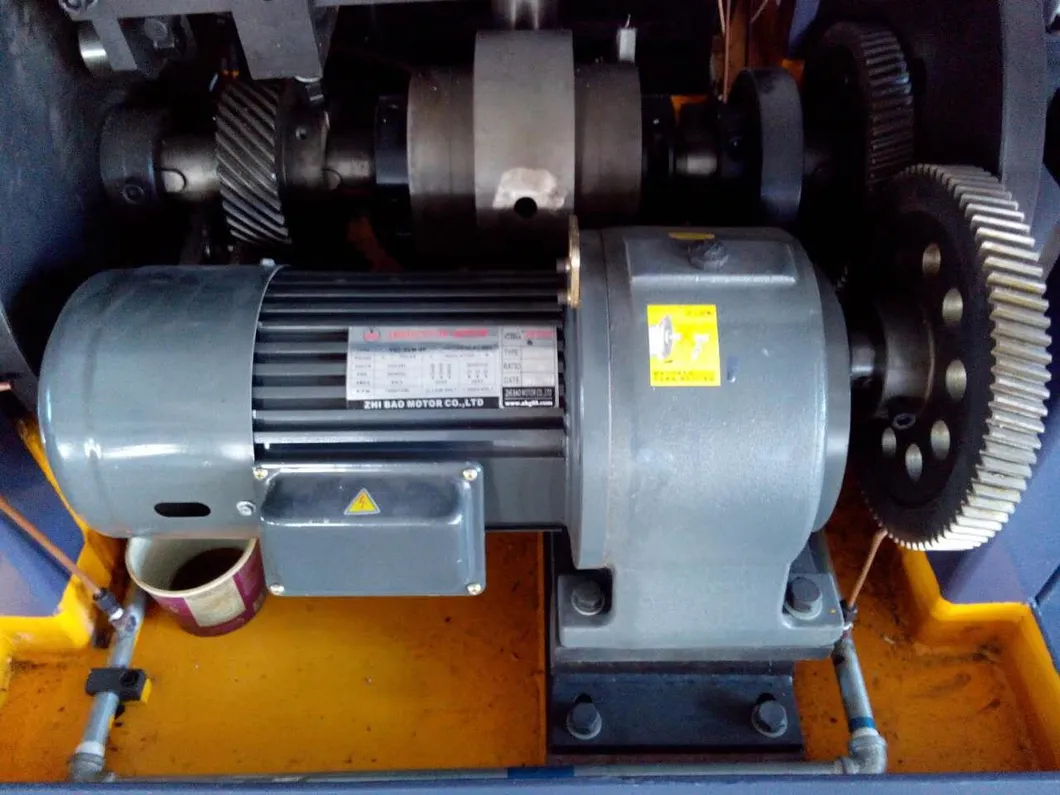

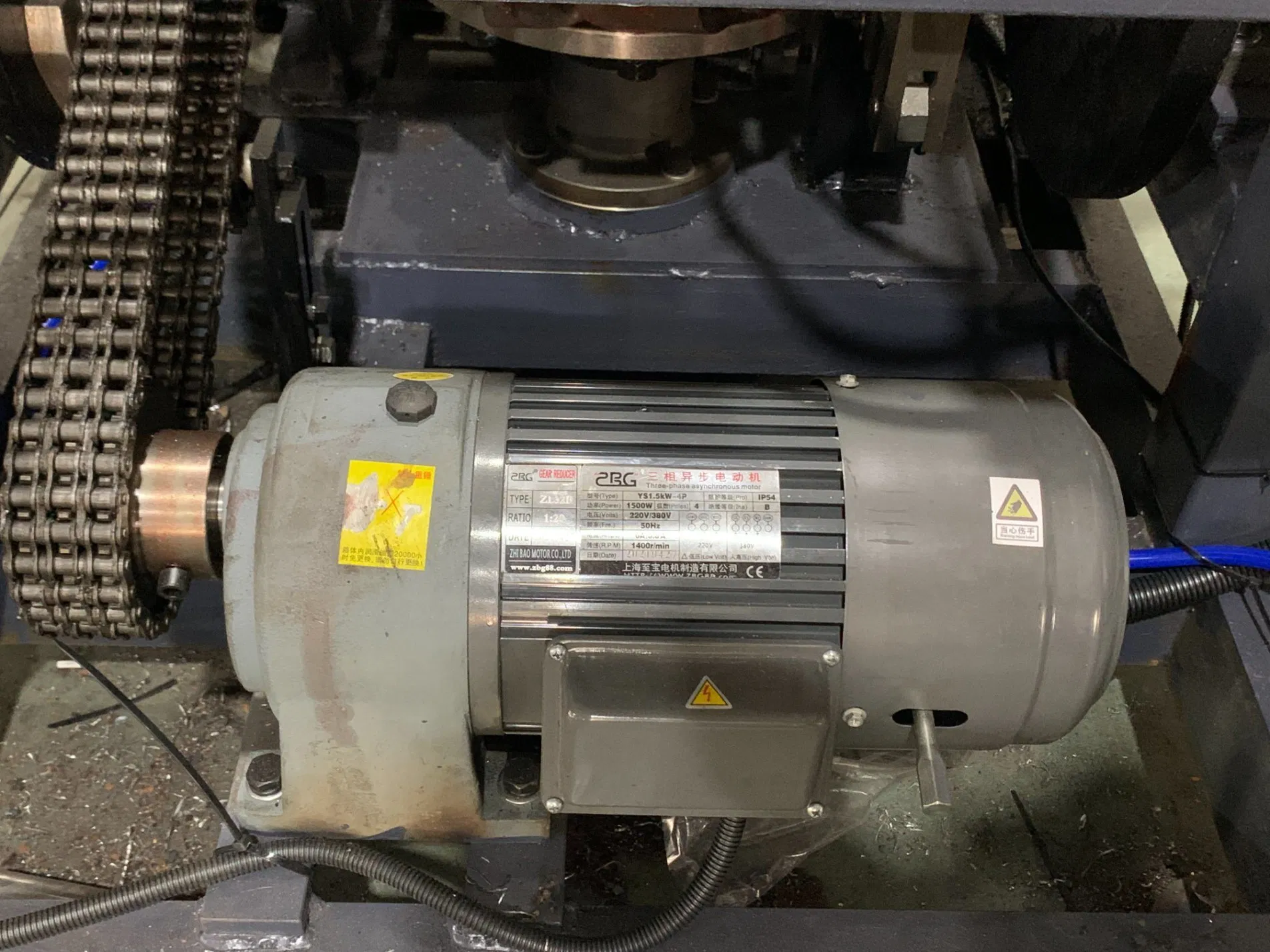

5. Safety Brake Motor

The main motor with a brake allows for precise testing and debugging positioning, ensuring the safety of the operator.

Technical Parameters

Model	LF-90
Raw Material	Single PE or Double PE
Speed	80-100 PCS/Min
Voltage Supply	380V, 50Hz
General Power	9kw
Net Weight	2200kgs
Measurement	2300 x 1250 x 1800 (mm)
Cup Side Sealing	Ultrasonic Sealing

Company Profile

We are a professional manufacturer of paper container machinery, established in 1999. Our product range includes paper cup machines, paper bowl machines, paper cone machines, and die punching machines. The facility occupies over 9,000 square meters and has obtained CE and SGS certificates. With over 20 years of experience, we have successfully exported to Europe, South America, Africa, and Southeast Asia.

After Sales Service

One year comprehensive warranty
24 hours technical support via online channels
Free professional training for operators

Frequently Asked Questions

Q: Is your company a factory or a trading company? A: We are a professional machinery factory with over 20 years of experience in the international trade industry.

Q: How can I visit your company? A: You can fly to the nearest city airport, and we will arrange to pick you up by car for a factory tour.

Q: What information is needed for a quotation? A: Please provide the required quantity, detailed cup sizes (top diameter, bottom diameter, and height), and paper thickness/material specifications.

Q: What is the standard delivery time? A: The automatic high-speed paper cup making machine typically requires 25-30 days. Urgent orders can be discussed based on production schedules.

Q: What types of cups can this machine produce? A: It is designed for both single and double PE coated paper cups, suitable for hot/cold drinks and ice cream.

Q: Do you provide technical support after the warranty? A: Yes, we provide lifelong technical support and can supply spare parts whenever needed to ensure your production remains stable.
