Low Price 12oz Ripple Wall Custom Logo Printed Paper Cup Machine

📋 Basic Information

Model

XSL-16W Double Wall Paper Cup Sleeve Machine

Cup Size

4-16oz

Speed

100-120pcs/min

Paper Required

Single/Double PE/PLA/Water Based Paper

Automation

Automatic

Certification

CE

Weight

3600kgs

Power

3 Phase, 380V, 50Hz 6kw

🚀 Product Description

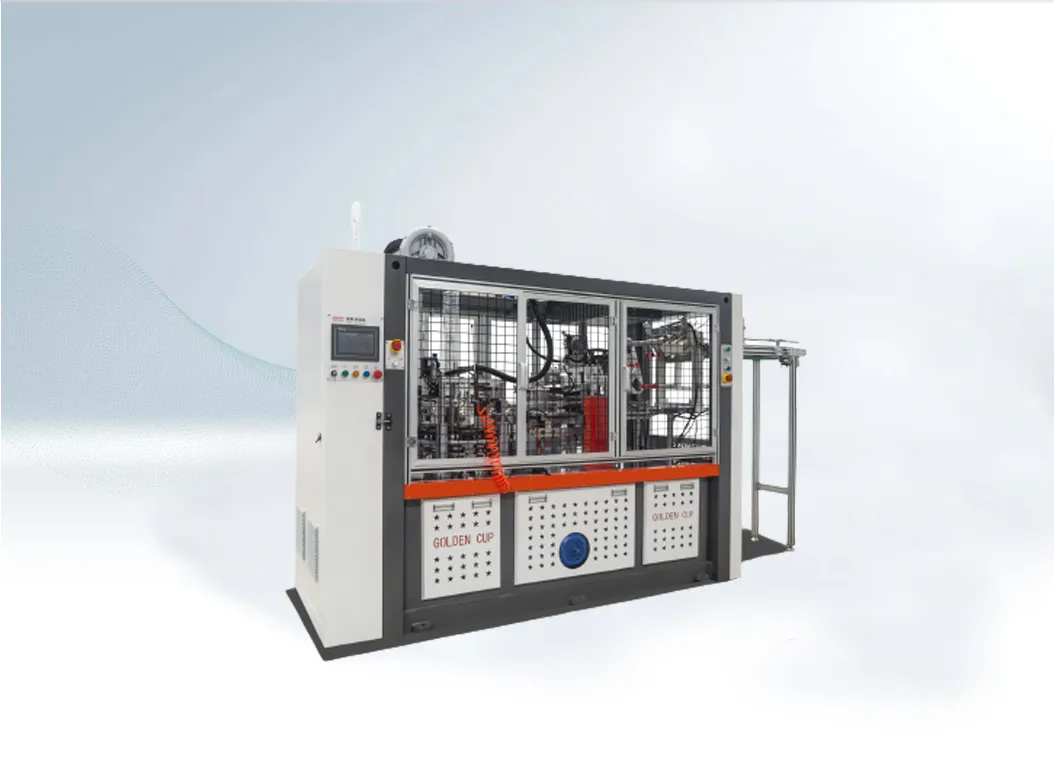

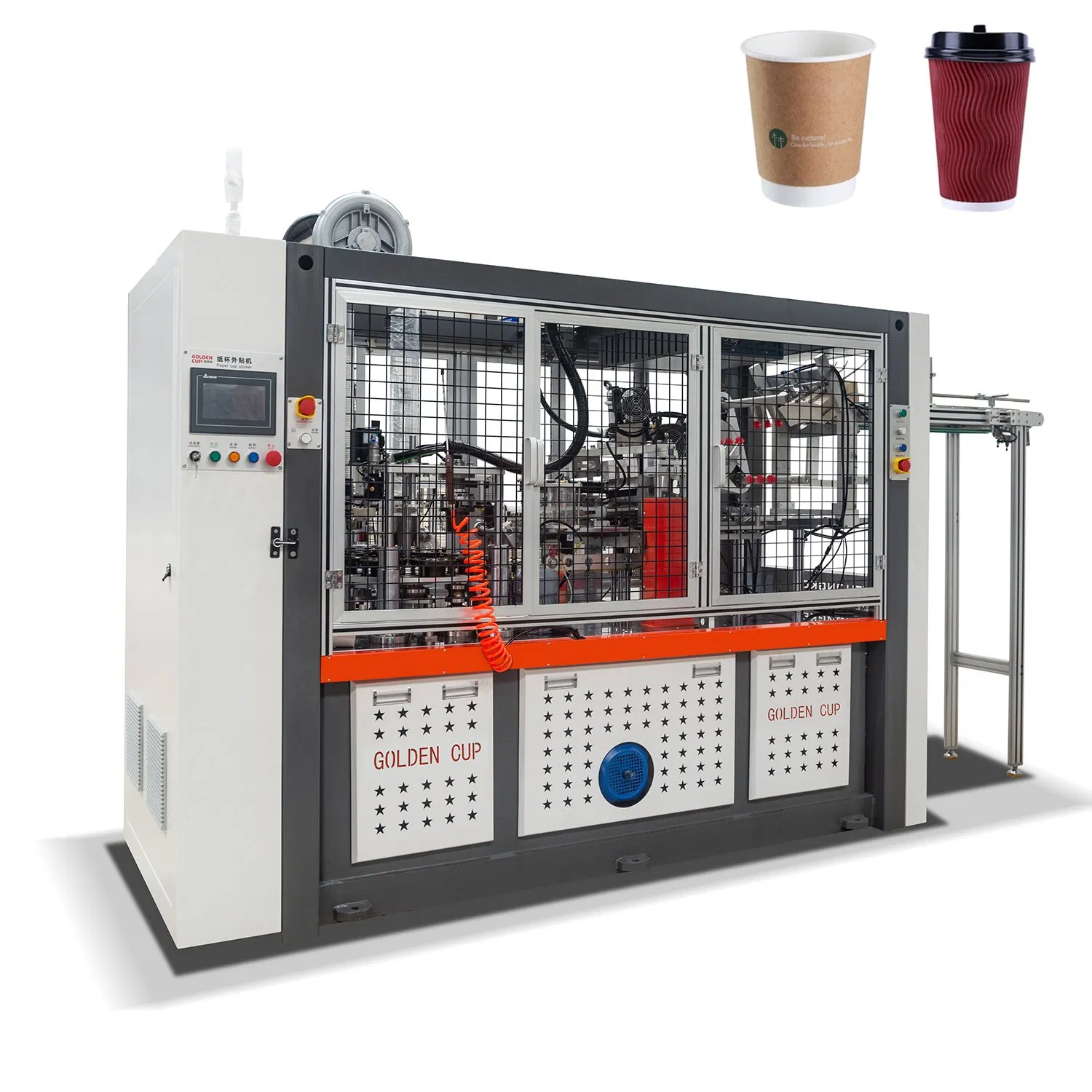

The XSL-16W double wall sleeve machine features a tabletop layout that effectively isolates forming parts from transmission components. Controlled by a high-precision PLC system, the entire production process is monitored by photoelectric sensors. With glue spraying managed by a servo system, it is the ideal equipment for manufacturing various types of sleeve cups with high efficiency and reliability.

⚙️ Technical Parameters

Machine Specifications
Model	XSL-16W double wall paper cup sleeve machine
Suitable Size	Top: 60-95mm \| Bottom: 40-75mm \| Height: 50-135mm
Production Speed	100-120 pcs/min
Paper Request	170-300gsm single/double PE paper
Machine Size	26009602120mm
Air Consumption	0.3Mpa
Transmission	Cam and Gear mechanism (Chainless)

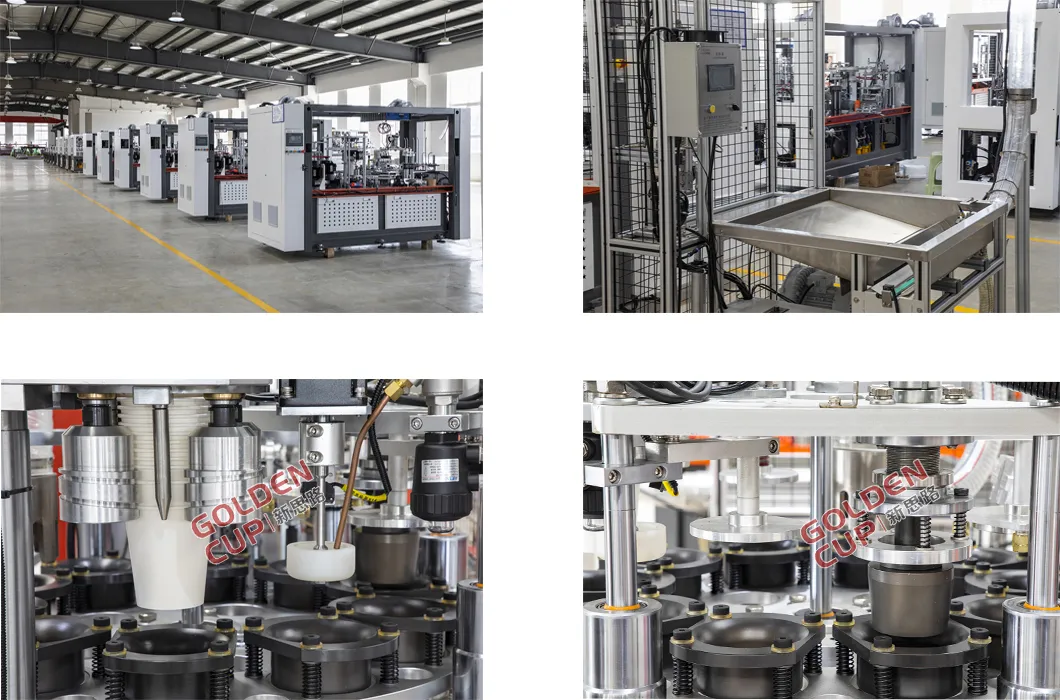

🔍 Machine Details & Production

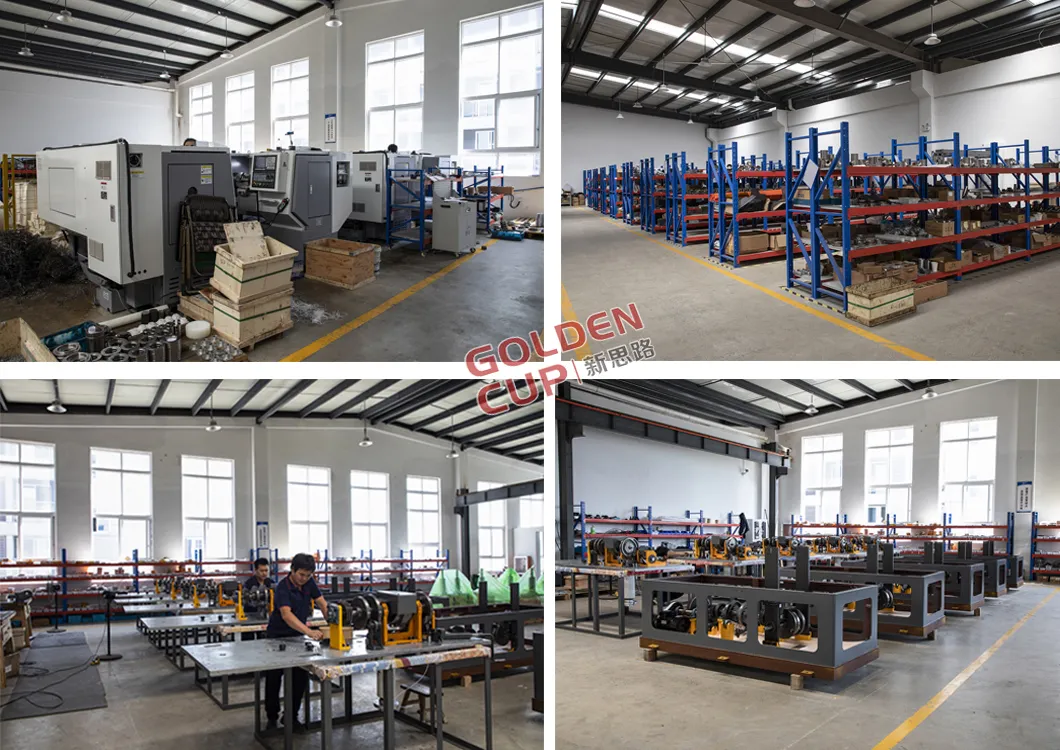

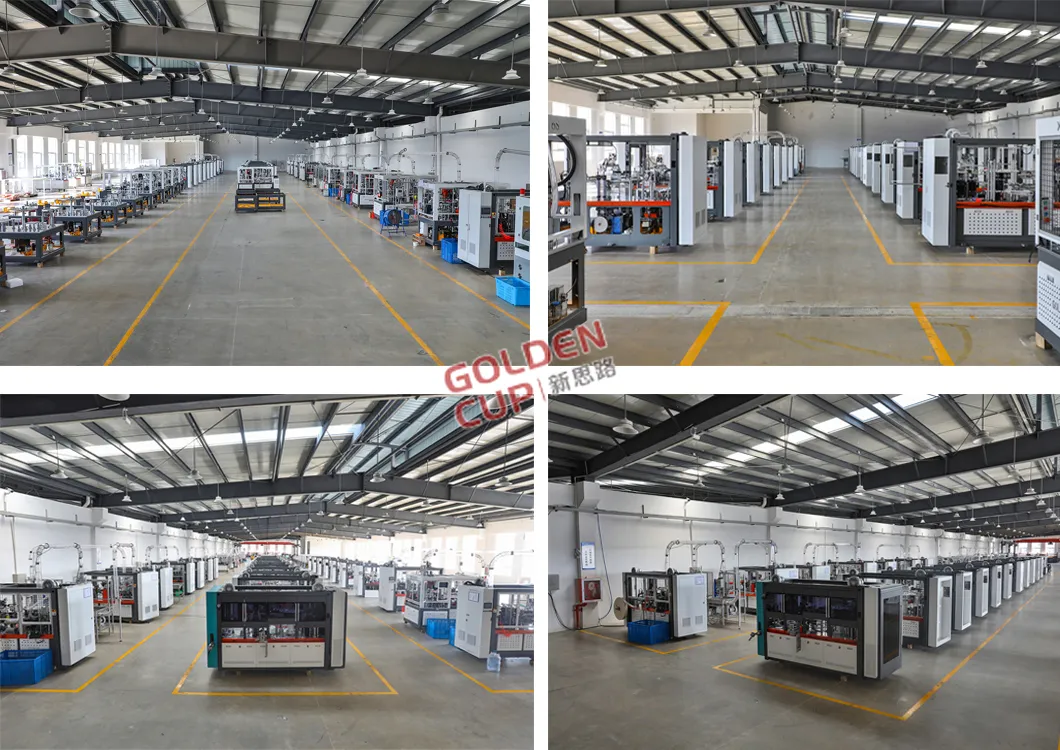

Our facility spans approximately 10,000 square meters, equipped with advanced production capabilities. We specialize in high-speed paper cup machines, paper bowl machines, and double wall sleeve machines. To ensure durability, we utilize international brand components and high-quality mold materials. The transmission system employs a spray circulating lubrication system, achieving production rates of 120-150 cups per minute on high-speed models.

📦 Packaging & Delivery

❓ Frequently Asked Questions

What size of cups can this machine produce?

The machine can produce sizes ranging from 4oz to 16oz using different molds. We can also check and confirm compatibility for other non-standard sizes.

What is the production speed of the XSL-16W?

The standard production speed is 100-120 pieces per minute, depending on the cup size and paper quality.

What are the payment and delivery terms?

A 30% advance payment is required, with the balance due before delivery. Standard machines generally have a lead time of 45 working days after deposit and drawing confirmation.

How is the machine quality tested before shipping?

After assembly, professional engineers test the machine and cup quality. We can send samples to customers for quality checks to ensure all technical requirements are met before delivery.

What is the warranty period for the machine?

For this machine, the cam transmission parts are covered for 3 years, and electrical components are covered for 1 year. We also provide lifetime maintenance services.

How do you handle after-sales technical support?

We provide training for your operators during installation. If problems arise later, our technical department responds immediately via phone or video tutorials to help solve the issue.
