LQ-ZBNB-D Automatic Paper Cup Handle Forming Machine

1 / 2

LQ-ZBNB-D Automatic Paper Cup Handle Forming Machine

Customization:	Available
After-sales Service:	After-sales service available
Warranty:	1 Year

Send Inquiry

Product Description

Overview

📊Basic Specifications

Model NO.	LQ-ZBNB-D
Cup Size	3-12oz (different size mold exchanged)
Power Source	220V / 380V 50HZ
Capacity	40-50pcs/min
Total Power	4KW
Weight	2000KG
Transport Package	Wooden Case
Specification	2500 x 1500 x 1700 mm
Origin	China

Product Description

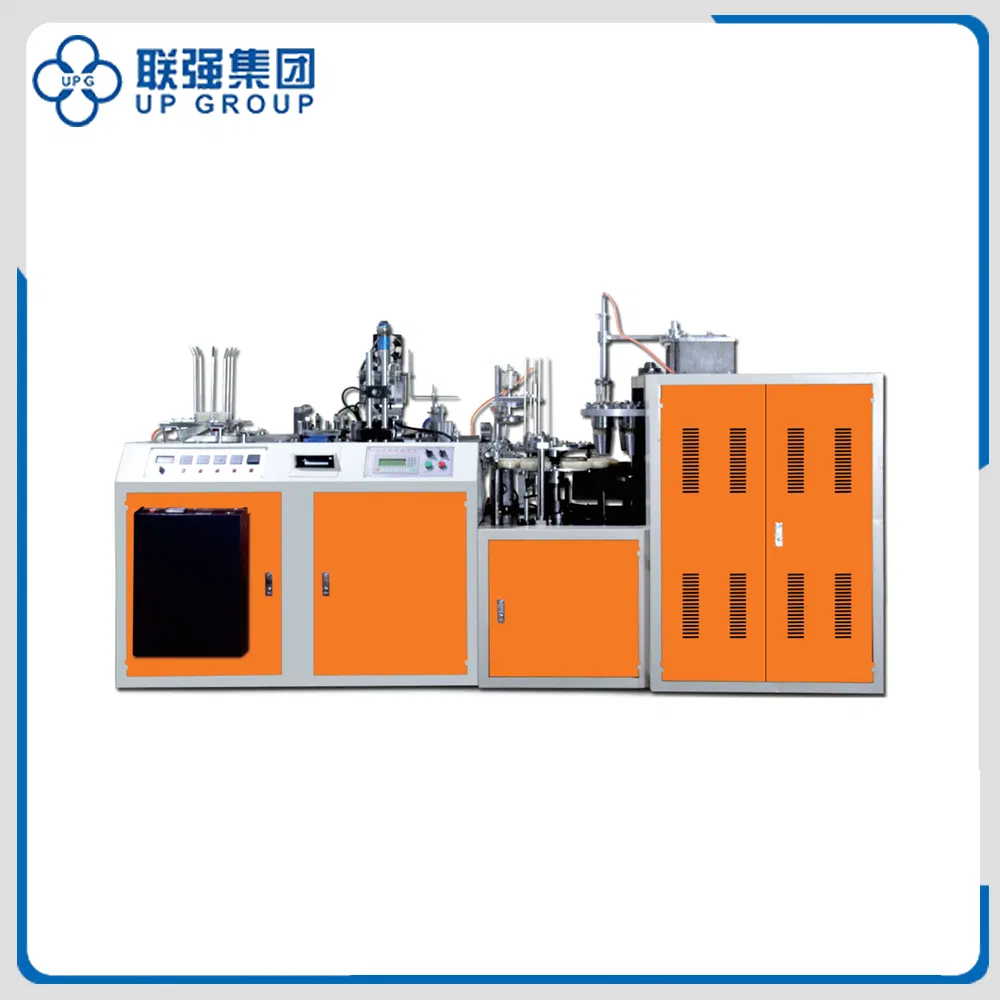

The LQ-ZBNB-D Automatic Paper Cup Handle Machine is a sophisticated forming solution featuring multi-running positions. This machine automates the entire production workflow, including paper-feeding, handle affixing, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding, and tripping. Its primary innovation lies in seamlessly integrating the paper cup and the handle into a single cohesive unit.

For specialized requirements such as double PE coated paper cups or paper weights exceeding 250g/m2, we recommend utilizing the Ultrasonic paper cup machine configuration, which efficiently processes both single and double PE coated materials.

Product Parameters

Suitable Paper	150-380g/m2 (Single or Double PE-coated)
Working Air Source	Air pressure 0.4Mpa; Output: 0.6m3/min

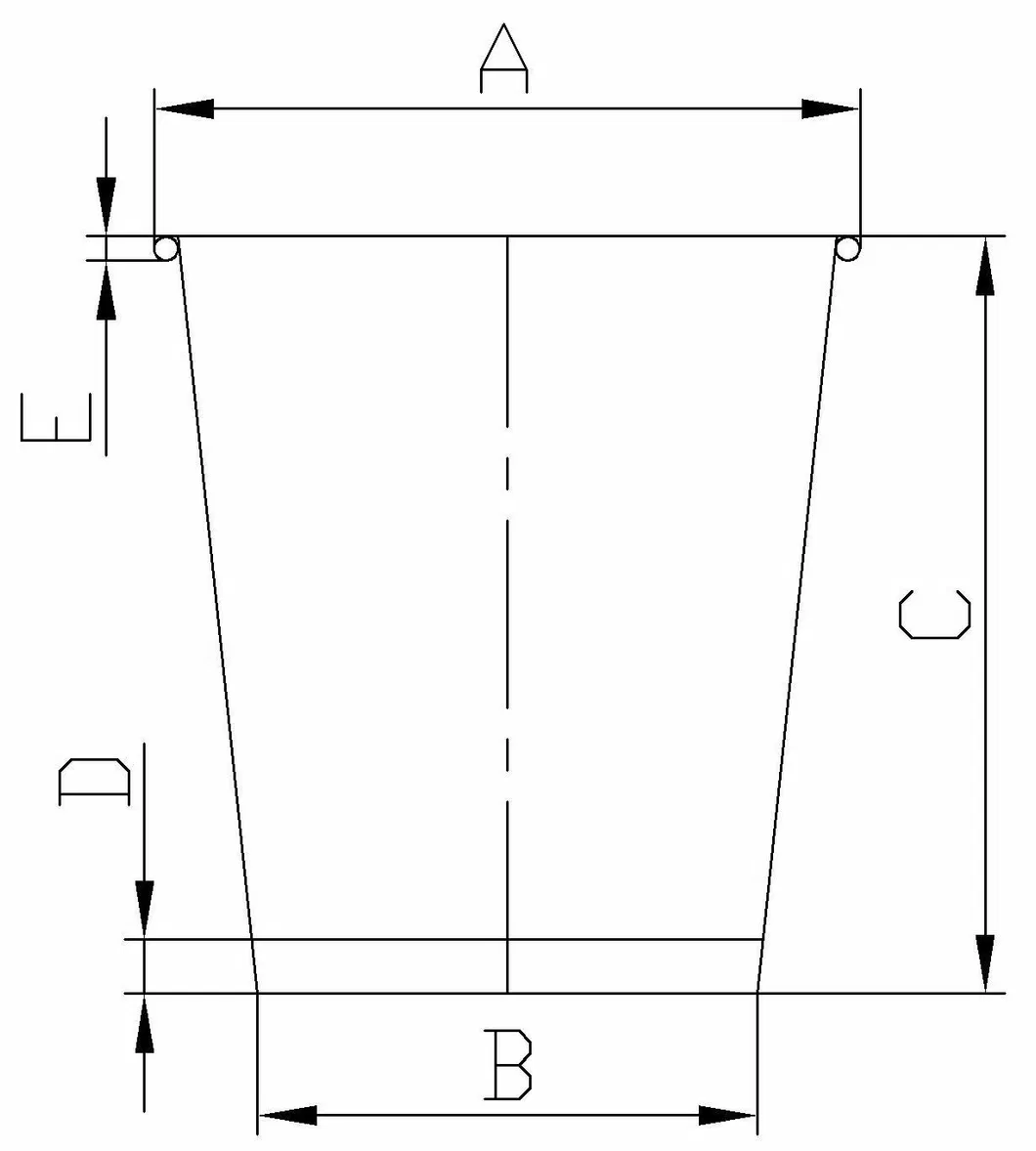

Top Diameter	Min 45mm — Max 90mm
Bottom Diameter	Min 35mm — Max 75mm
Total Height	Min 30mm — Max 115mm
Knurling Depth	Min 4mm — Max 12mm
Rim Diameter	Usually Φ2.5 — Φ3

Core Features & Superiority

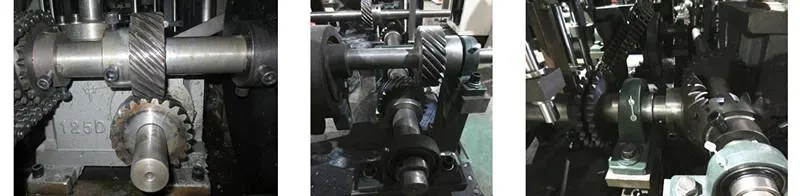

Advanced Driving System: Utilizes a gear driving system instead of traditional chains for enhanced stability and increased operational speed.

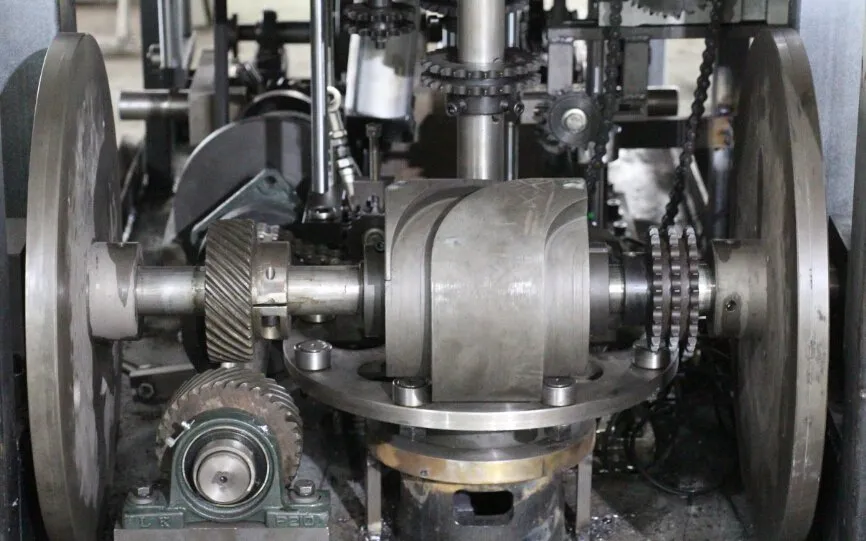

Open Cam Mechanism: Incorporates an open cam driving system for precision movements.

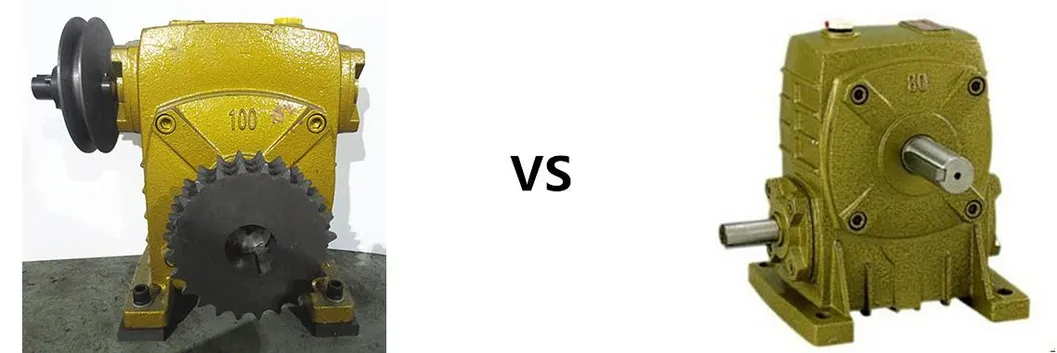

Upgraded Speed Reducer: Equipped with a 100 type speed reducer (replacing the 80 type) to ensure long-term durability and heavy-duty performance.

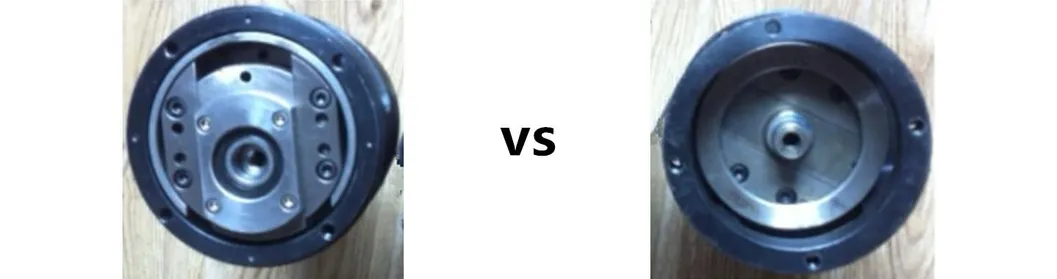

Optimized Sealing: New design knurling wheel guarantees even pressure and superior bottom sealing quality.

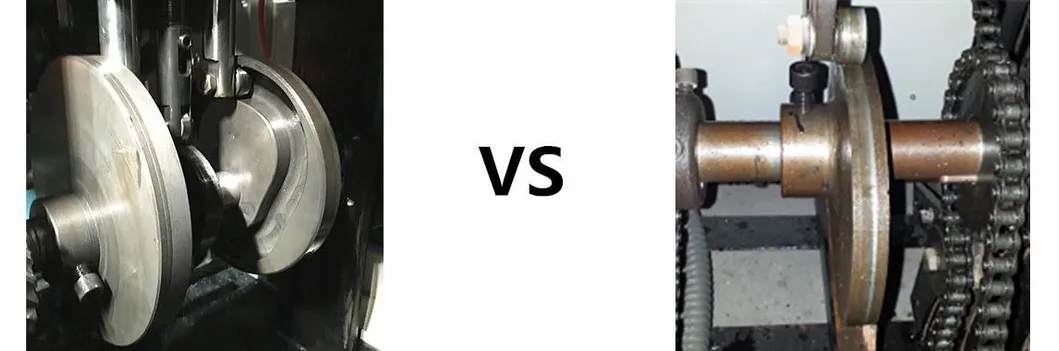

Independent Folding: Cup folding parts are controlled by three separate cams, allowing individual adjustment for each folding clip.

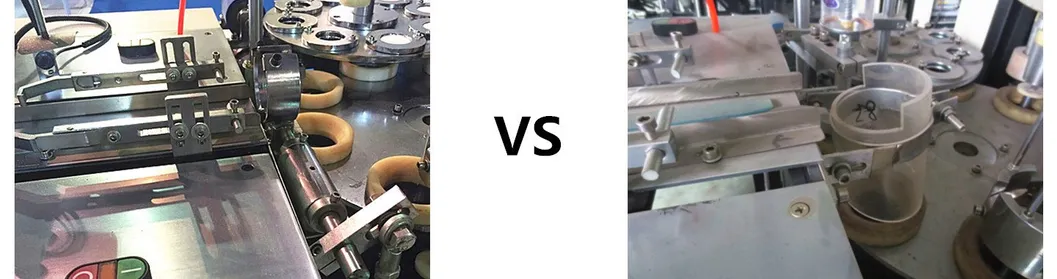

Manipulator Transfer: Uses a robotic manipulator to transfer the cup body instead of gravity-fed pipes, ensuring accuracy during high-speed runs.

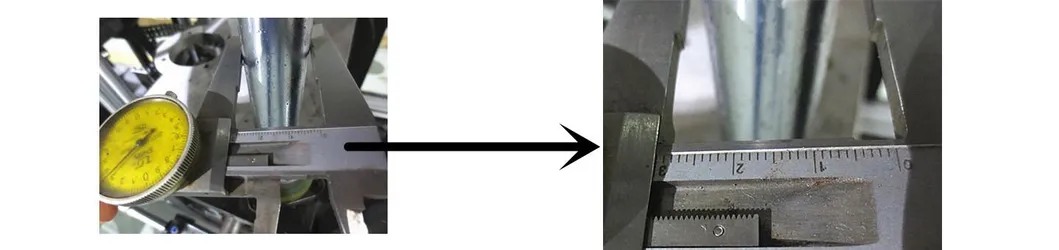

Reinforced Shafts: Upgraded from 25mm normal steel to 30mm imported steel shafts for a longer operational lifespan.

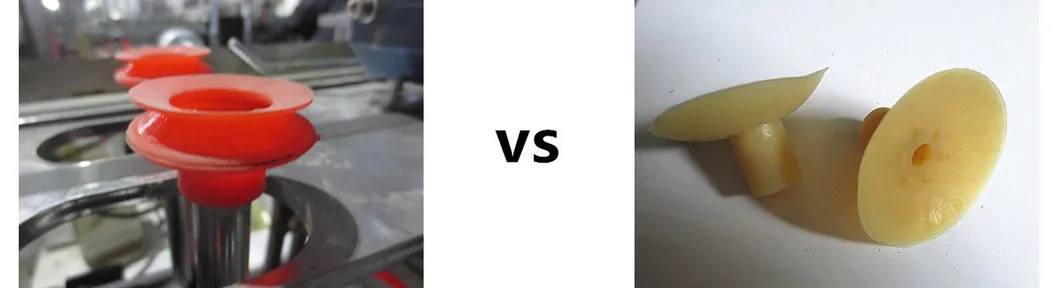

Organ Type Sucker: Enhances suction power and reliability for cup fan wall feeding.

Industrial Presence

🏆Manufacturing Excellence

Our Customers & Exhibitions

Our Services

🛠️Pre-Sales

Comprehensive product information, printing samples, and preferential pricing for initial orders.

🚚In-Sales

Efficient delivery timelines ranging from 30-90 days depending on equipment customization.

✅After-Sales

13-month quality guarantee, free installation support, and technical training available worldwide.

Frequently Asked Questions

What is the production capacity of the LQ-ZBNB-D?

The machine operates at a speed of 40-50 pieces per minute, depending on the paper quality and cup size.

What range of cup sizes can this machine handle?

It is designed for cups ranging from 3oz to 12oz. Molds can be exchanged to produce different sizes within this range.

Can it process double PE coated paper?

Yes. While it handles single PE, we recommend the Ultrasonic configuration for optimal sealing of double PE or heavy-duty paper (above 250g/m2).

What are the advantages of the gear driving system?

The gear driving system provides significantly higher stability and precision compared to chain drives, allowing for faster speeds and reduced maintenance.

What kind of after-sales support is offered?

We provide a 13-month warranty. During this period, replacement parts for manufacturing failures are free. We also offer on-site installation and engineer training.

What power and air source are required?

The machine supports 220V or 380V 50HZ power sources. It requires an air pressure of 0.4Mpa and an air output of 0.6m3/min.
