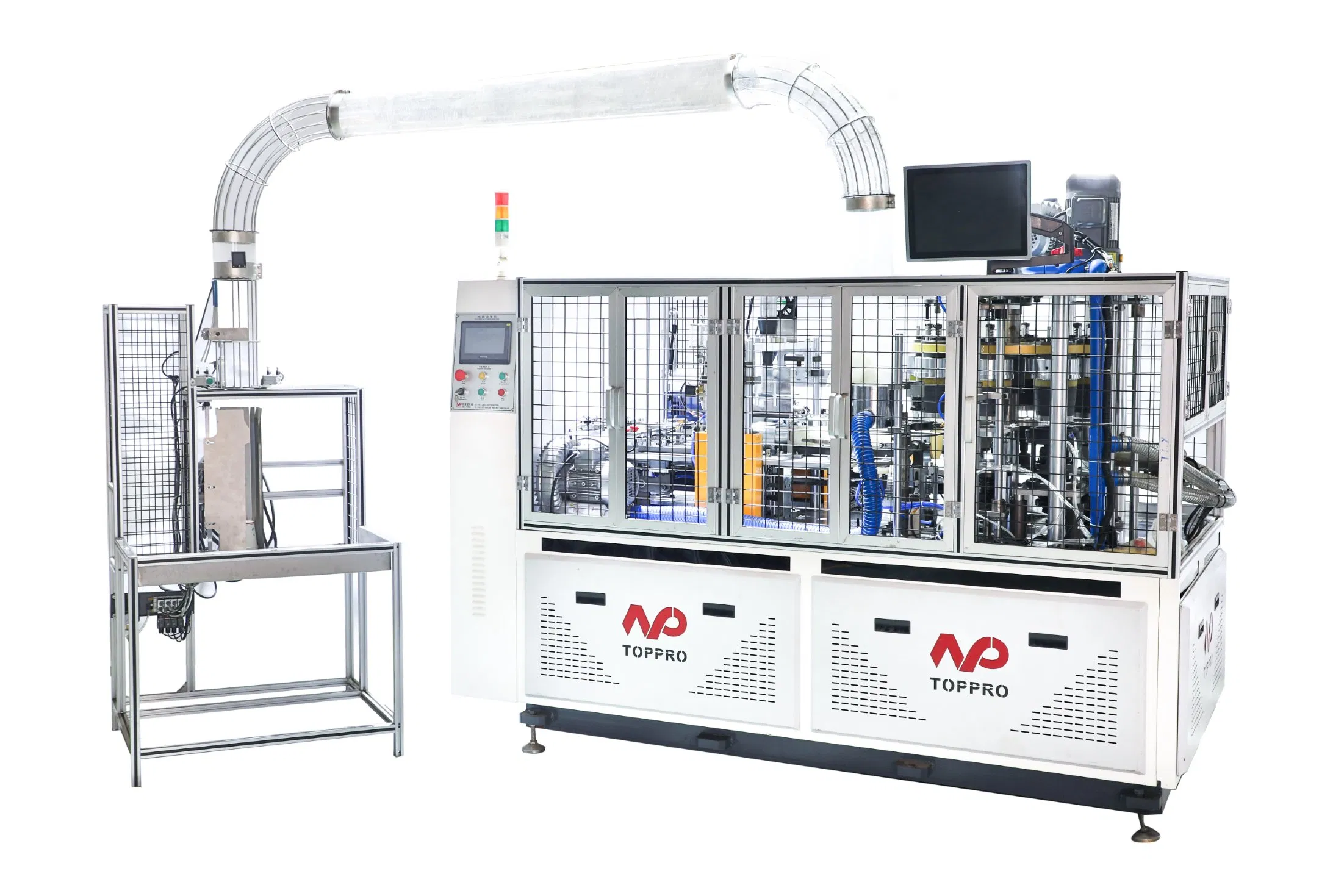

| Model NO. | LF-90 | Cup Size | 2-12OZ |
| Speed | 80-100 PCS/Min | Automation | Automatic |
| Required Paper | Single and Double Side PE Coated Paper | ||
| Paper Weight | 170-350G/M^2 | Voltage | 380V, 50Hz |
| General Power | 9kw / 10.5kw | Net Weight | 2300kgs |
| HS Code | 8441309000 | Certification | CE, BV, SGS |
The machine utilizes a hot air system, PLC control, servo motor driving, and features full-automatic failure warning, counting, detection, and emergency stopping functions.

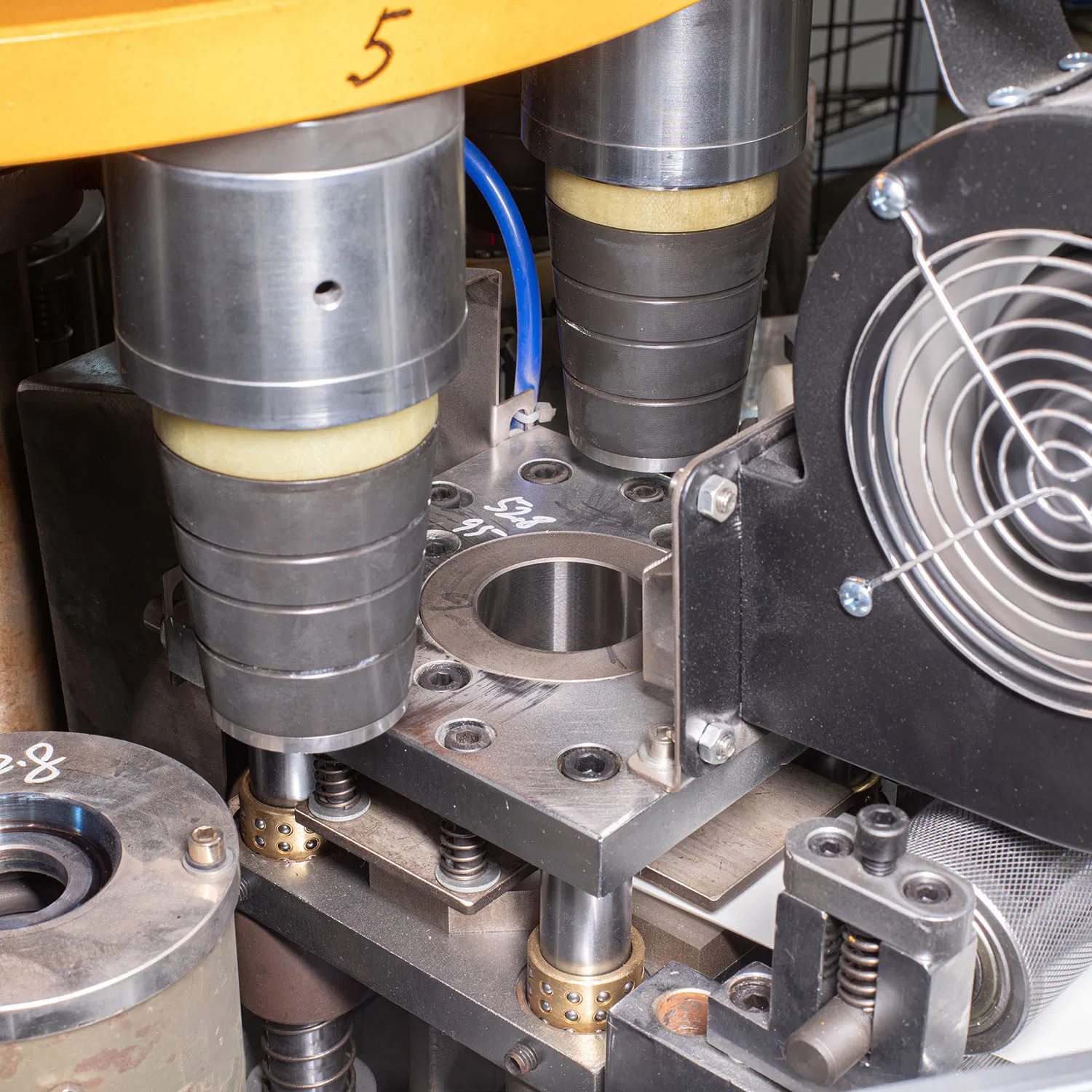

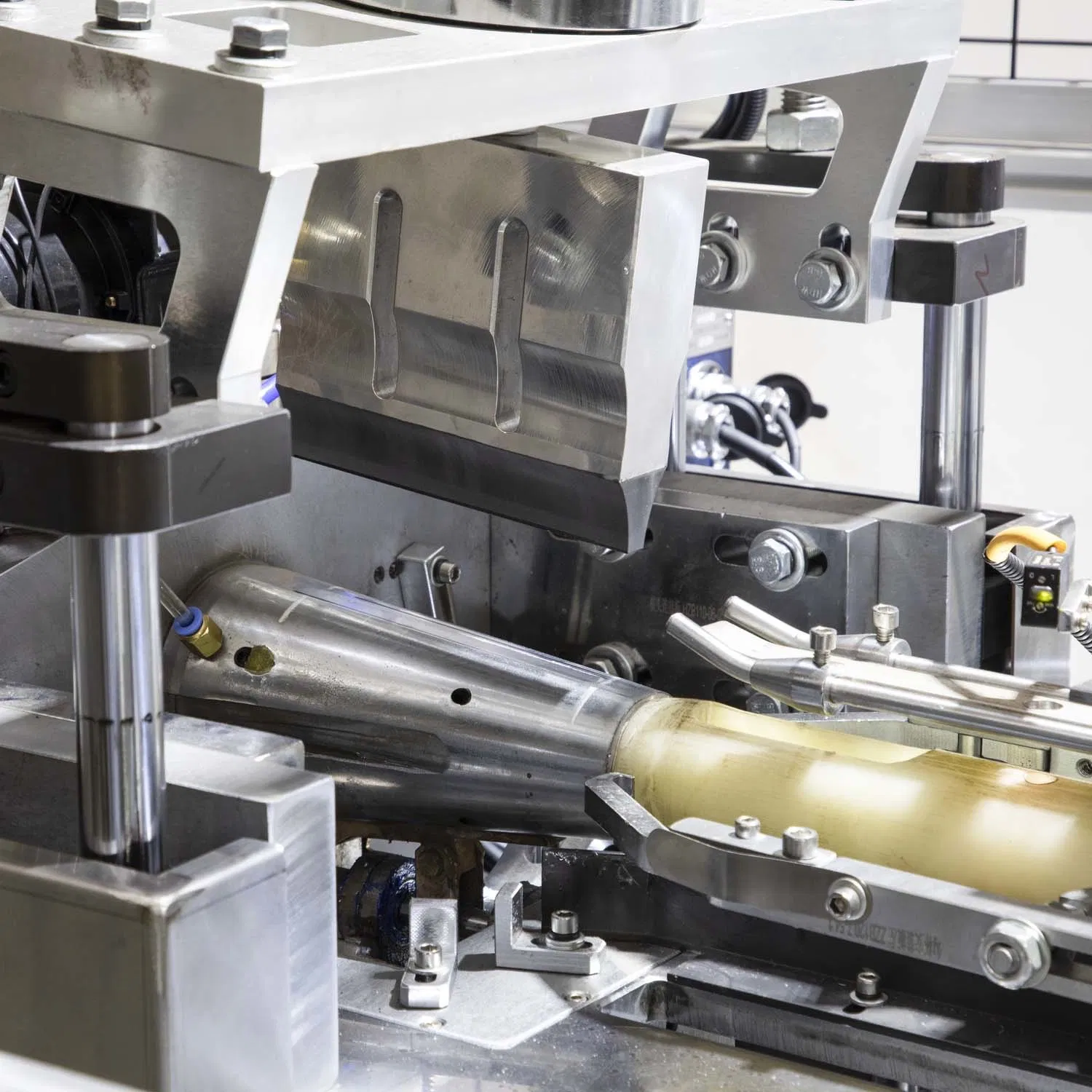

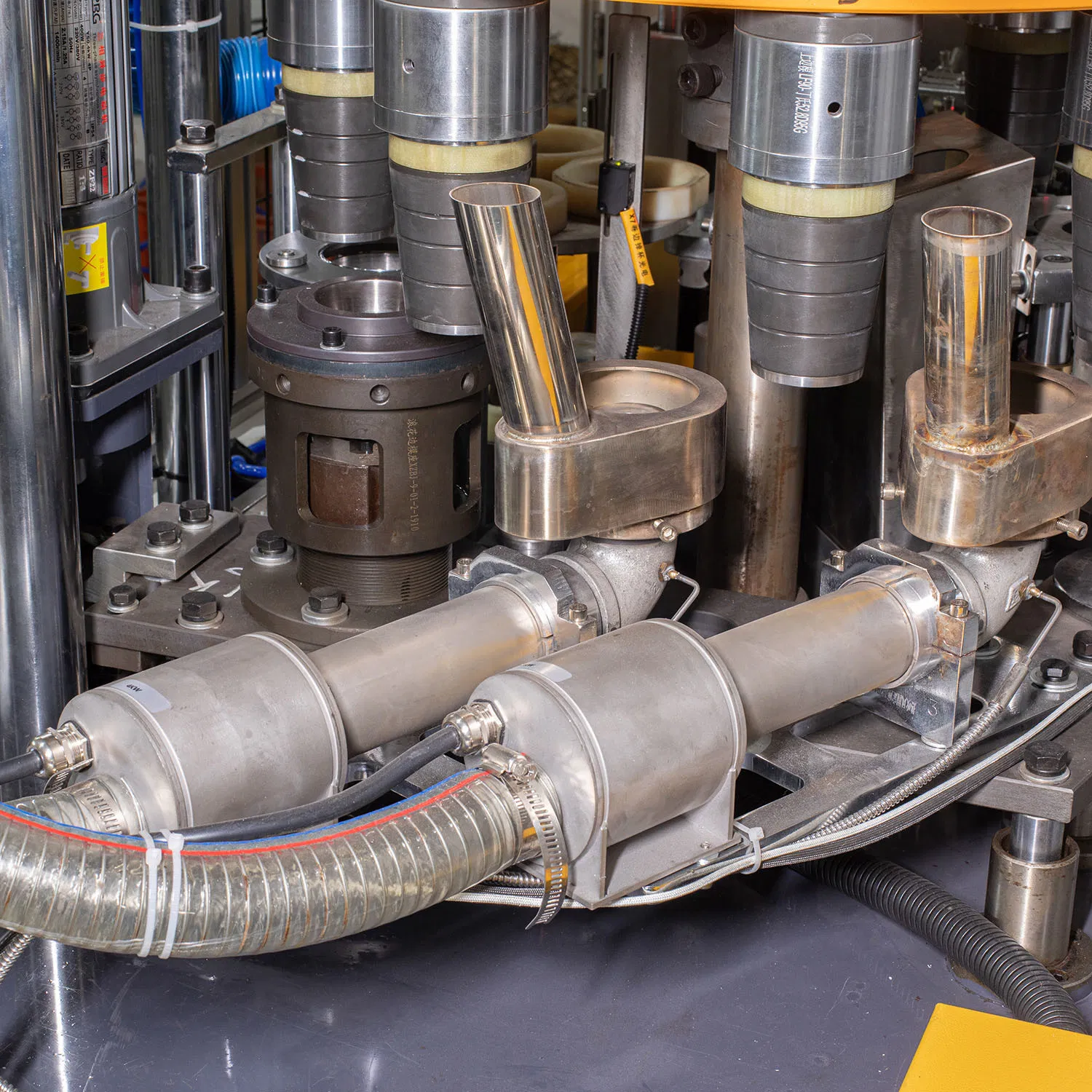

Equipped with an Ultrasonic heating system for side sealing and double hot air heating for bottom forming, ensuring leak-proof results.

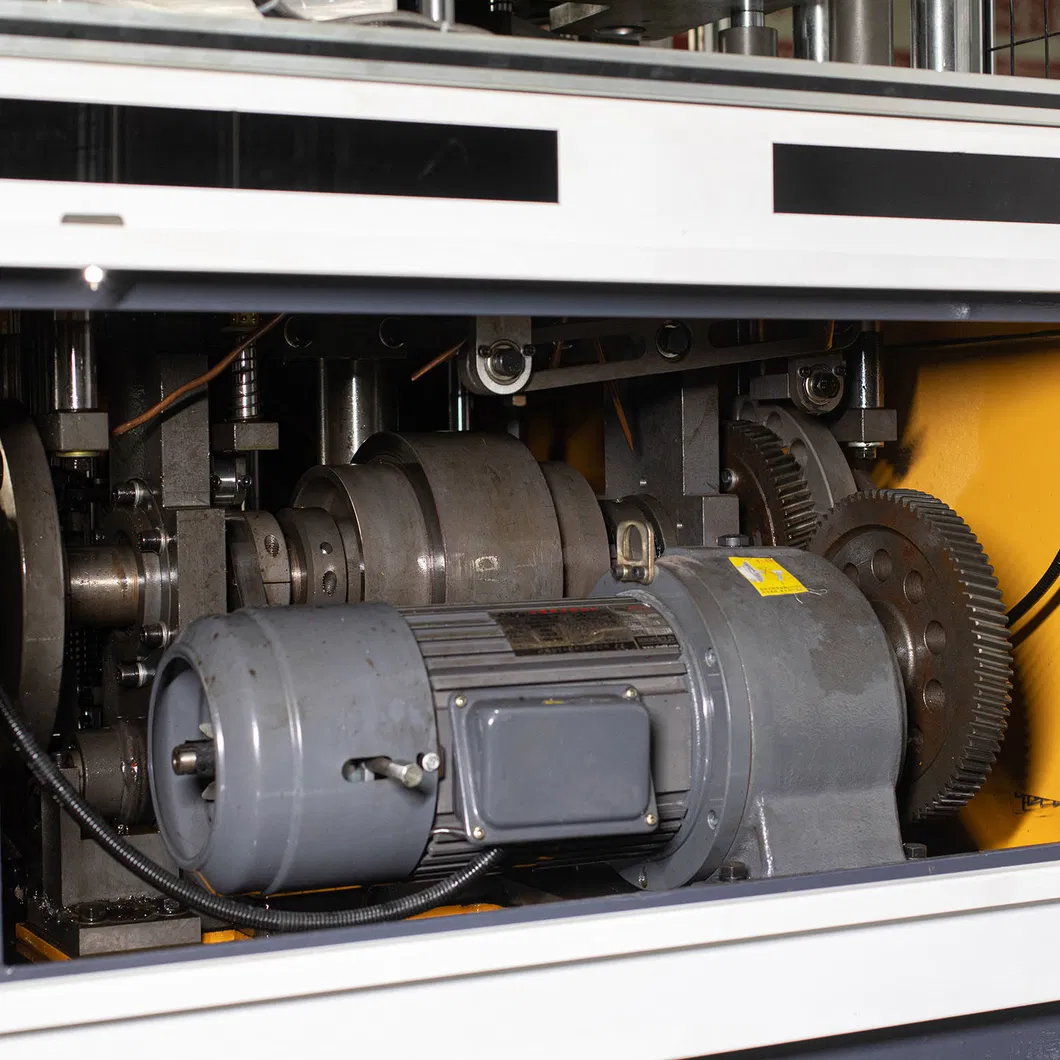

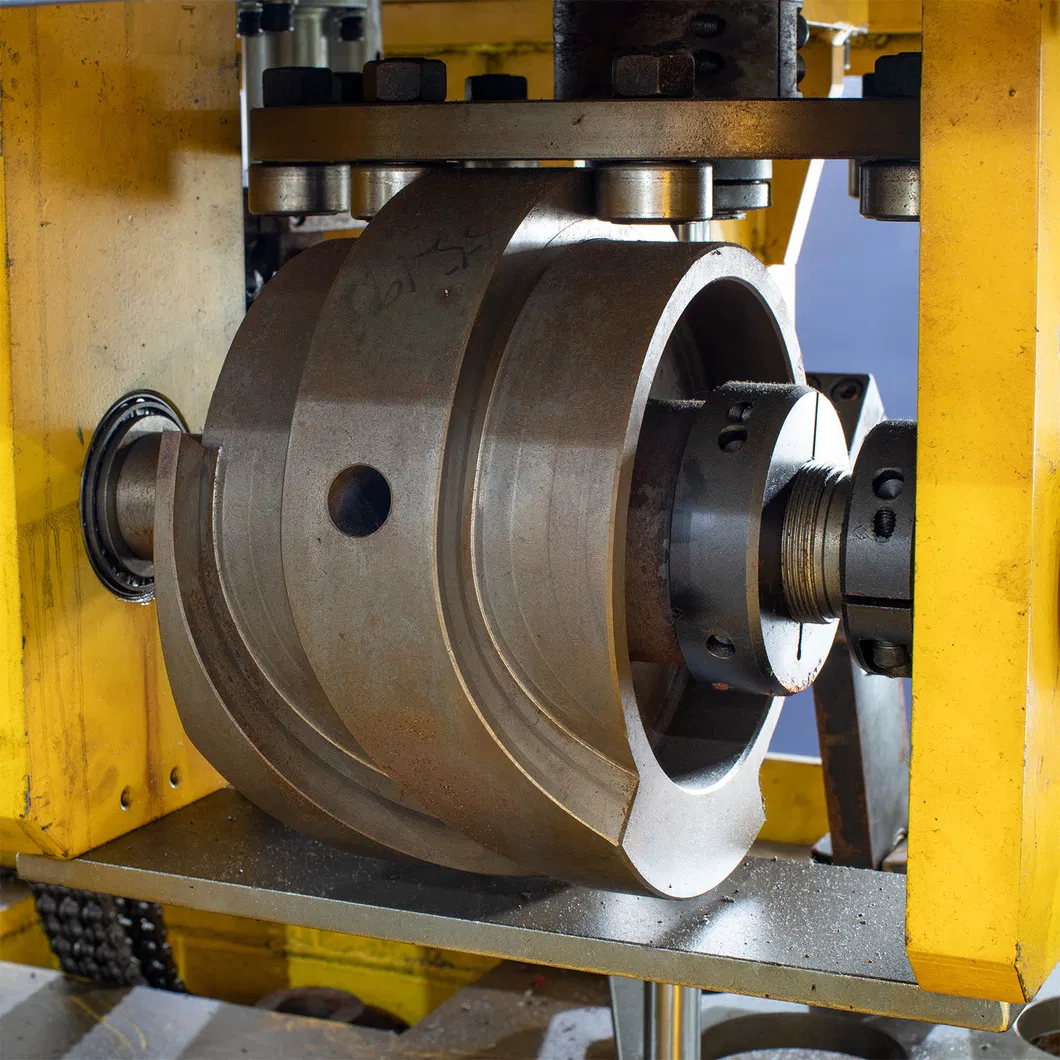

Uses a Geneva open cam instead of traditional dividing box transmissions. The main motor includes a brake for high-precision positioning and enhanced safety during debugging.

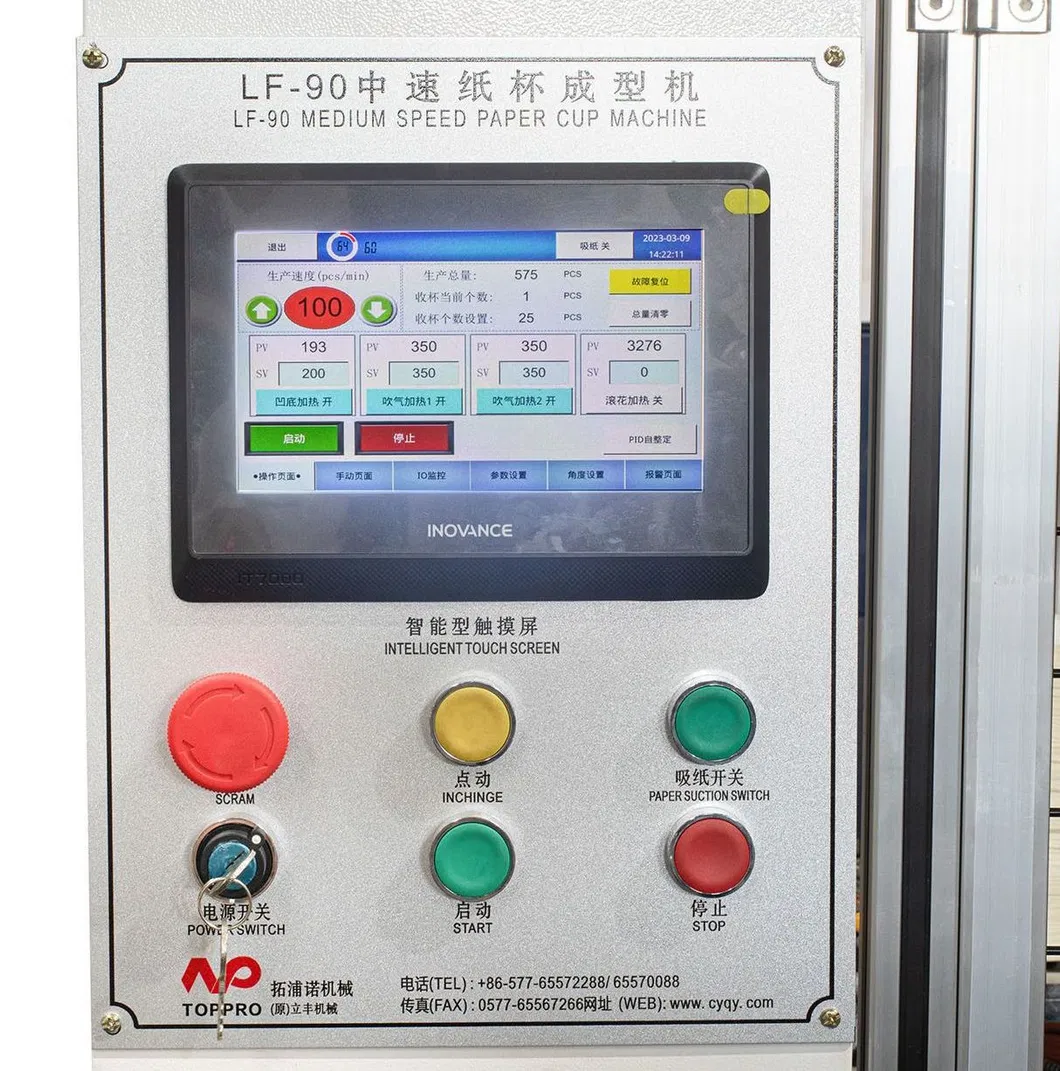

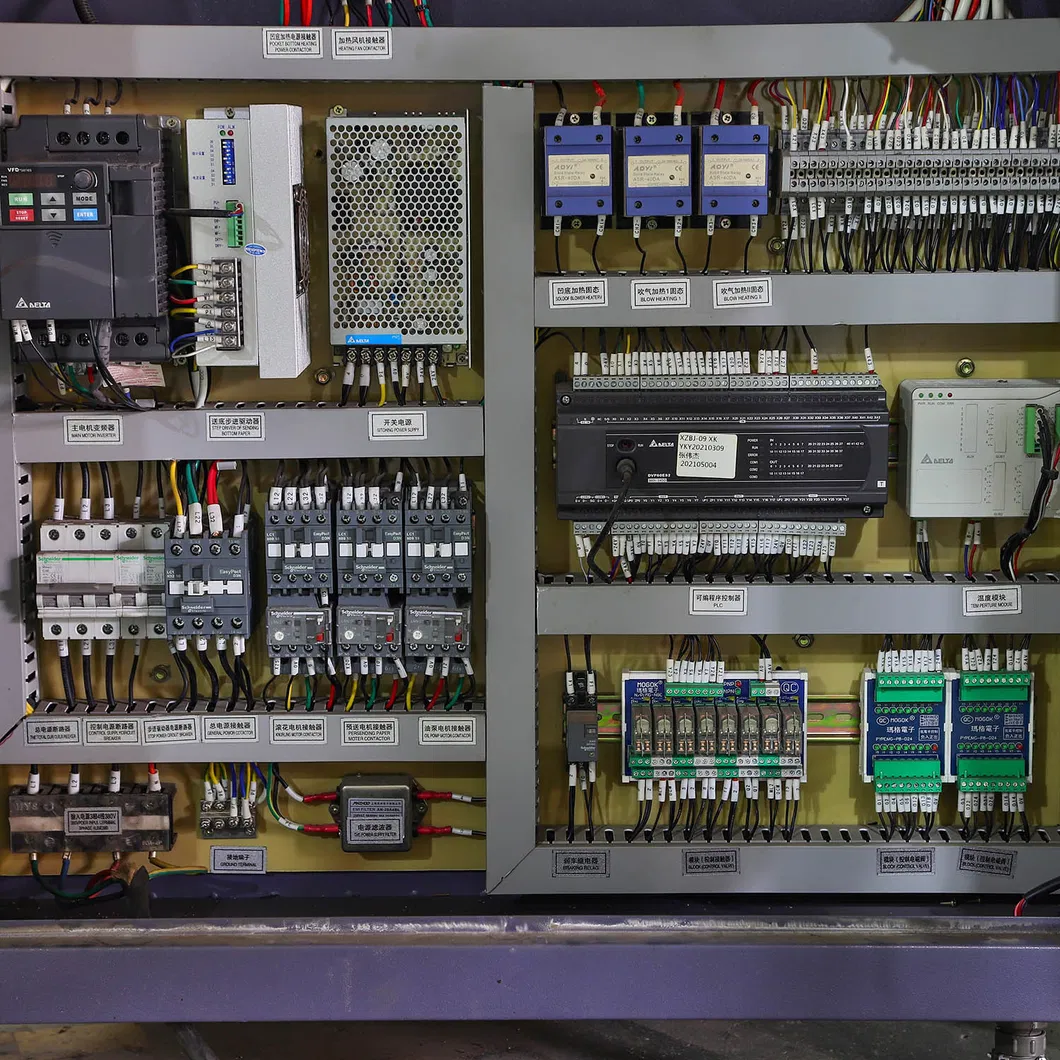

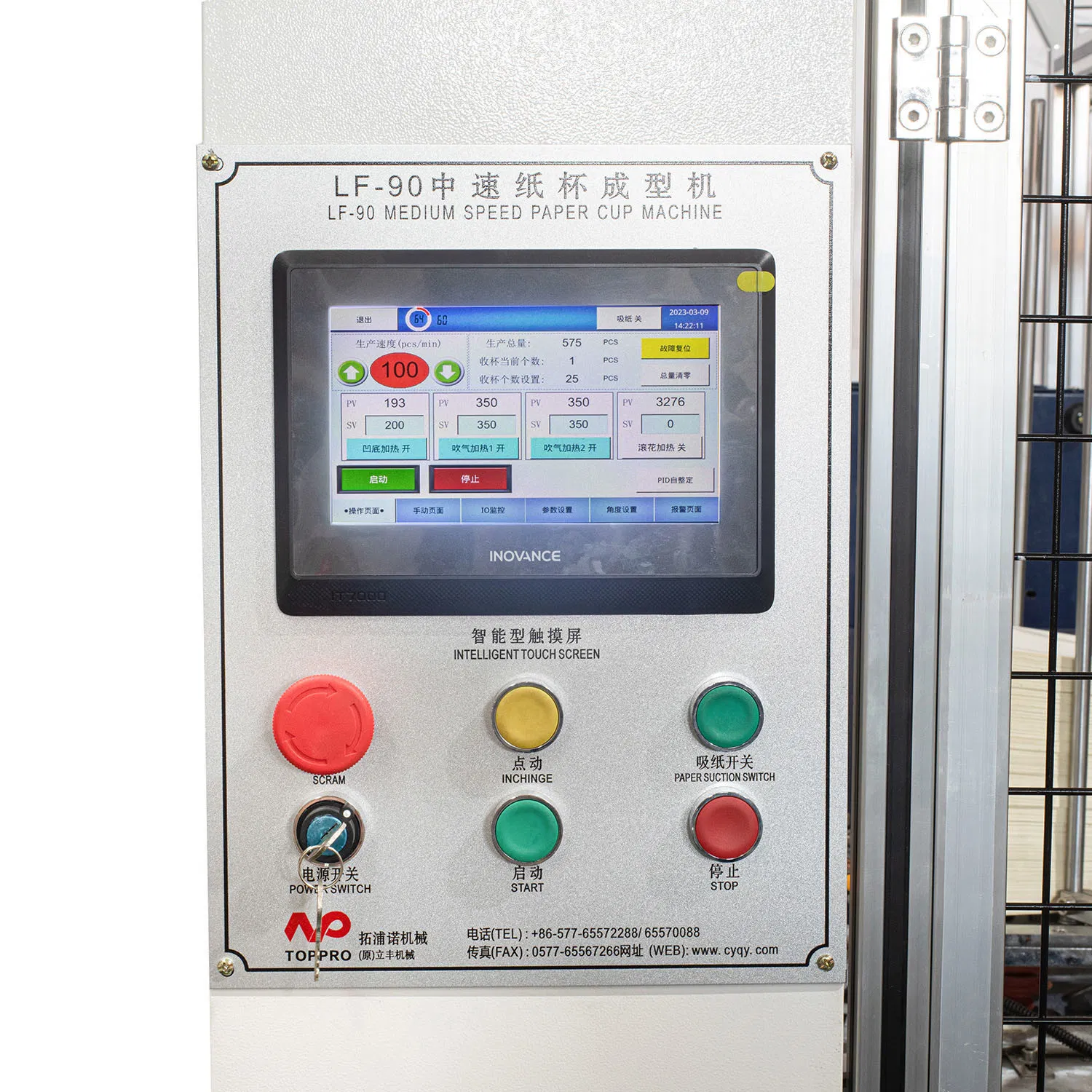

Equipped with a PLC controlling system and an intelligent touch screen for easy operation and real-time monitoring.

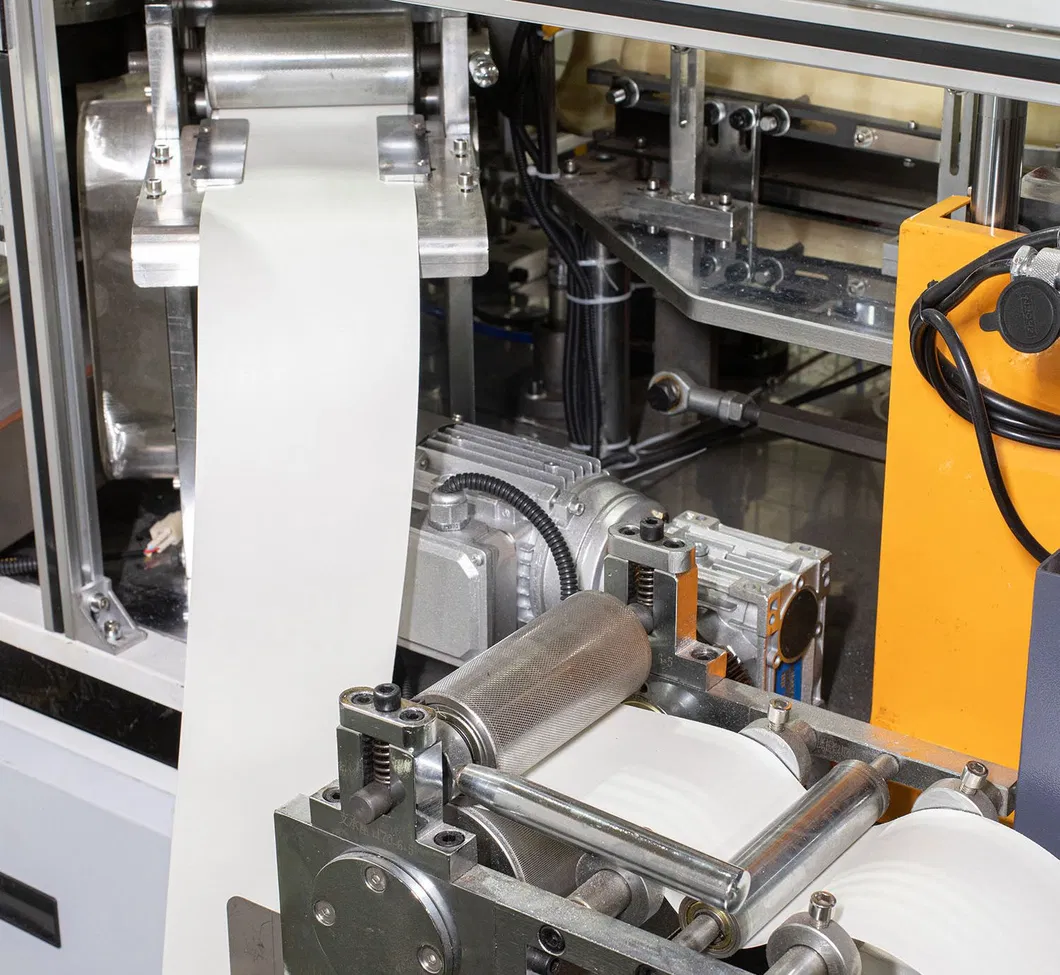

Features a two-channel sending system with stepper motor transport and precision feeding to ensure accuracy and minimize waste.

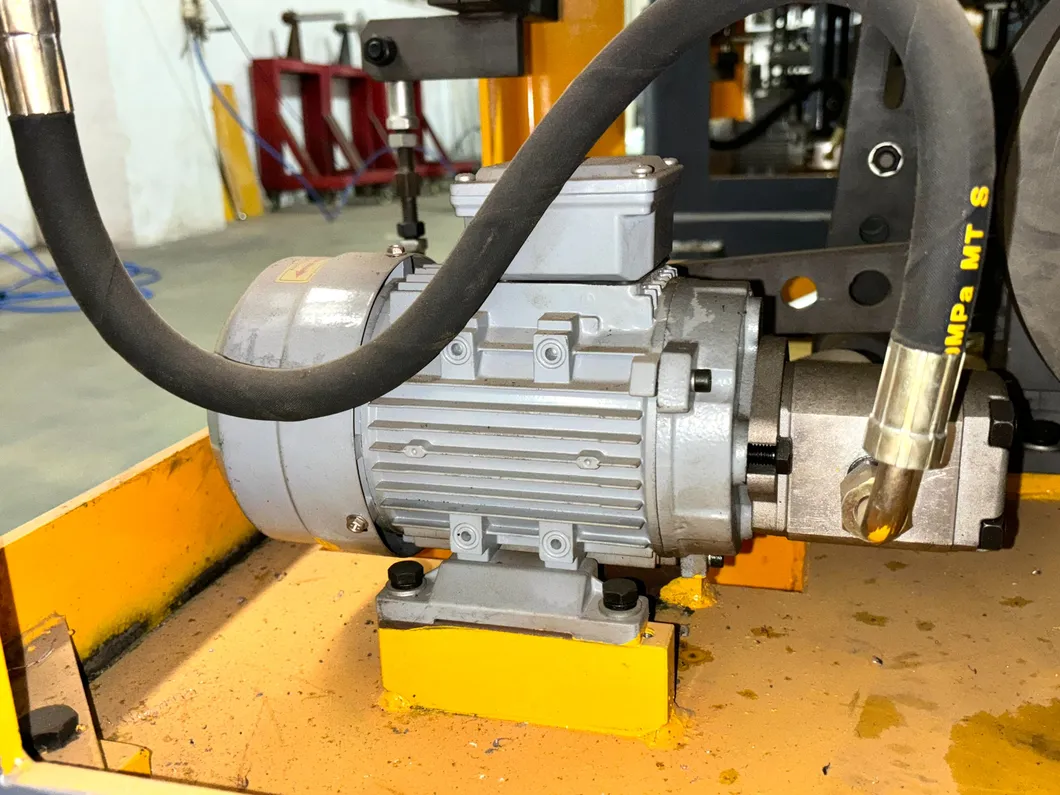

Includes an automatic lubrication system with a dedicated oil pipe design and filter screen to ensure long-term stable running and component longevity.

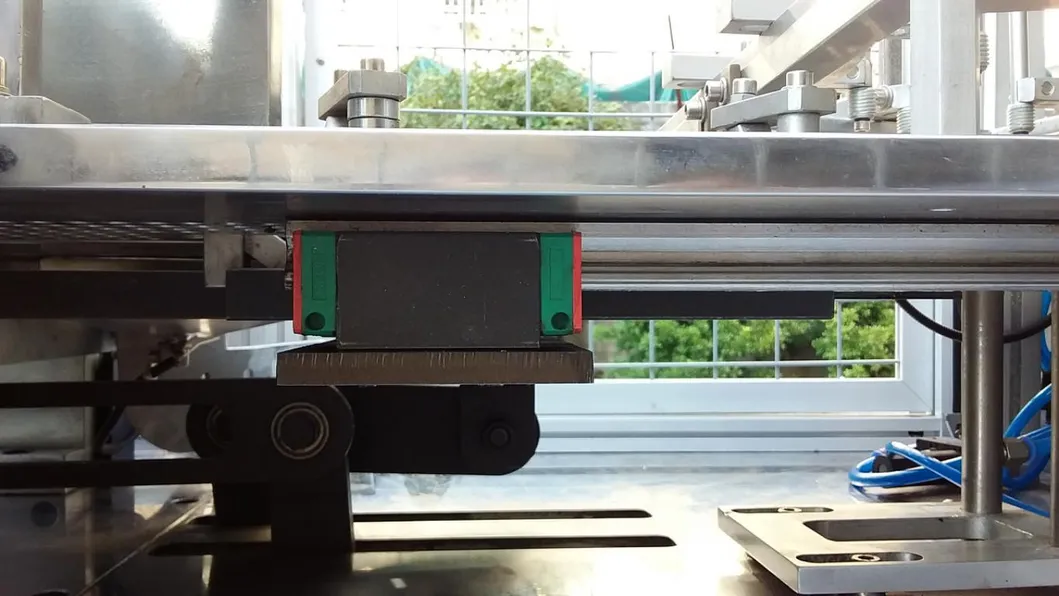

The sliding block is imported for high precision and a long lifetime, replacing older linear bearing designs.

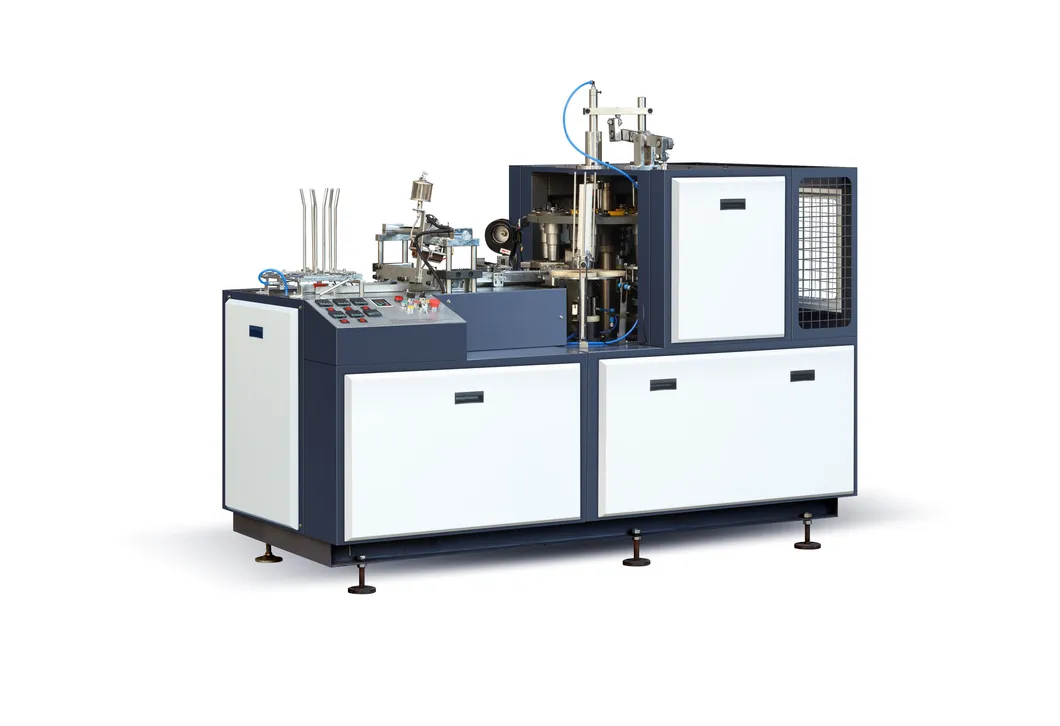

LF-70 (70-90 pcs/min)

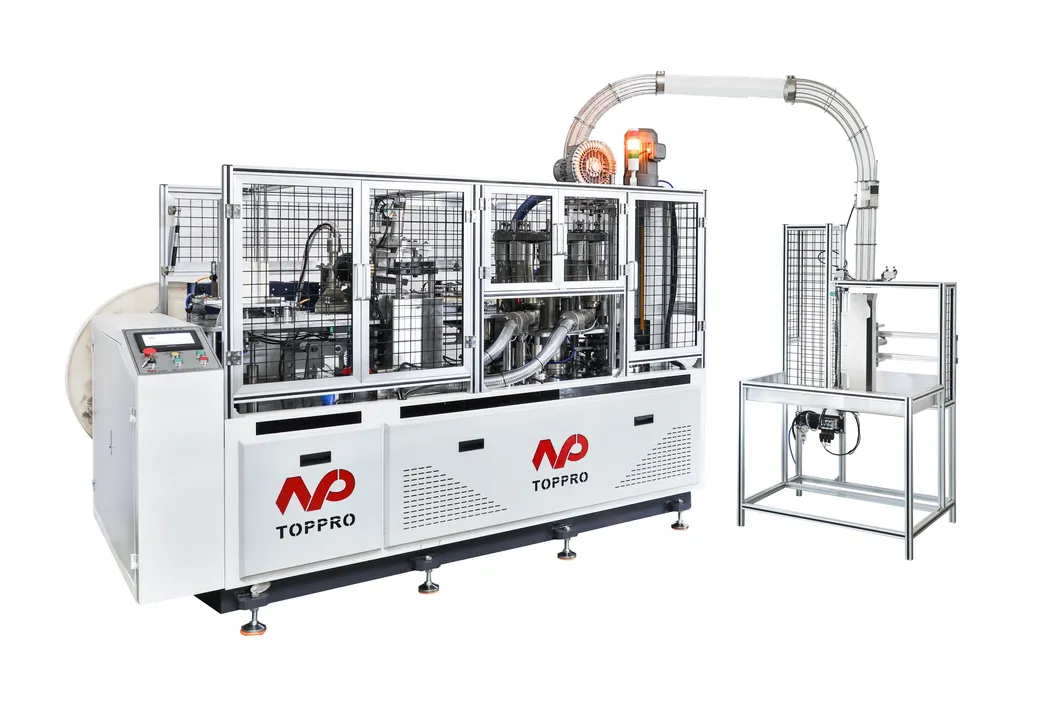

LF-110 (100-120 pcs/min)

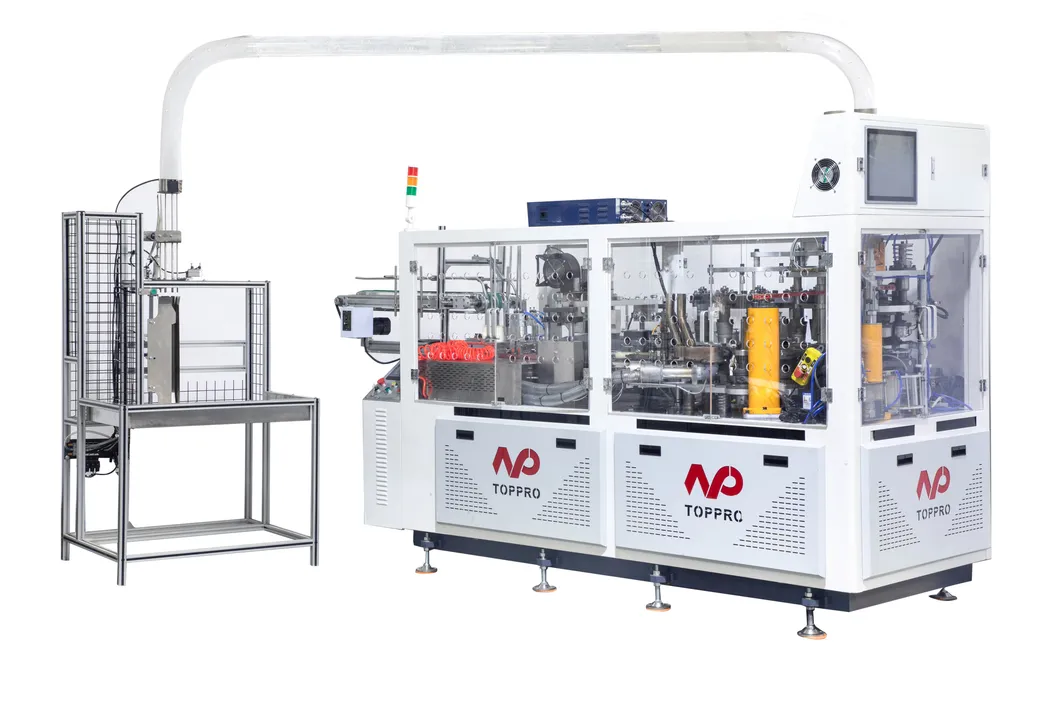

GZB-600 (130-150 pcs/min)
