Paper Cup Handle Machine for Coffee Cup by Toppro

Customization:	Available
Warranty:	1years
Applicable Objects:	Beverage

Basic Information

Model NO.	gzb-600
Cup Size(Ounce)	2-12OZ
Speed	100-120pcs/min
Required Paper	Single and Double Side PE Coated Paper
Automation	Automatic
Logo Printing	With Logo Printing
Certification	CE
Customized	Customized
Condition	New
After-sales Service	1 year
Total Power	13kw
Paper Size	Single PE and Double PE
Paper Weight	210- 330g/M
Transport Package	Wooden
Specification	shipping weight: 3660kgs
Origin	China
Production Capacity	7800-9000PCS/Hour

Product Description

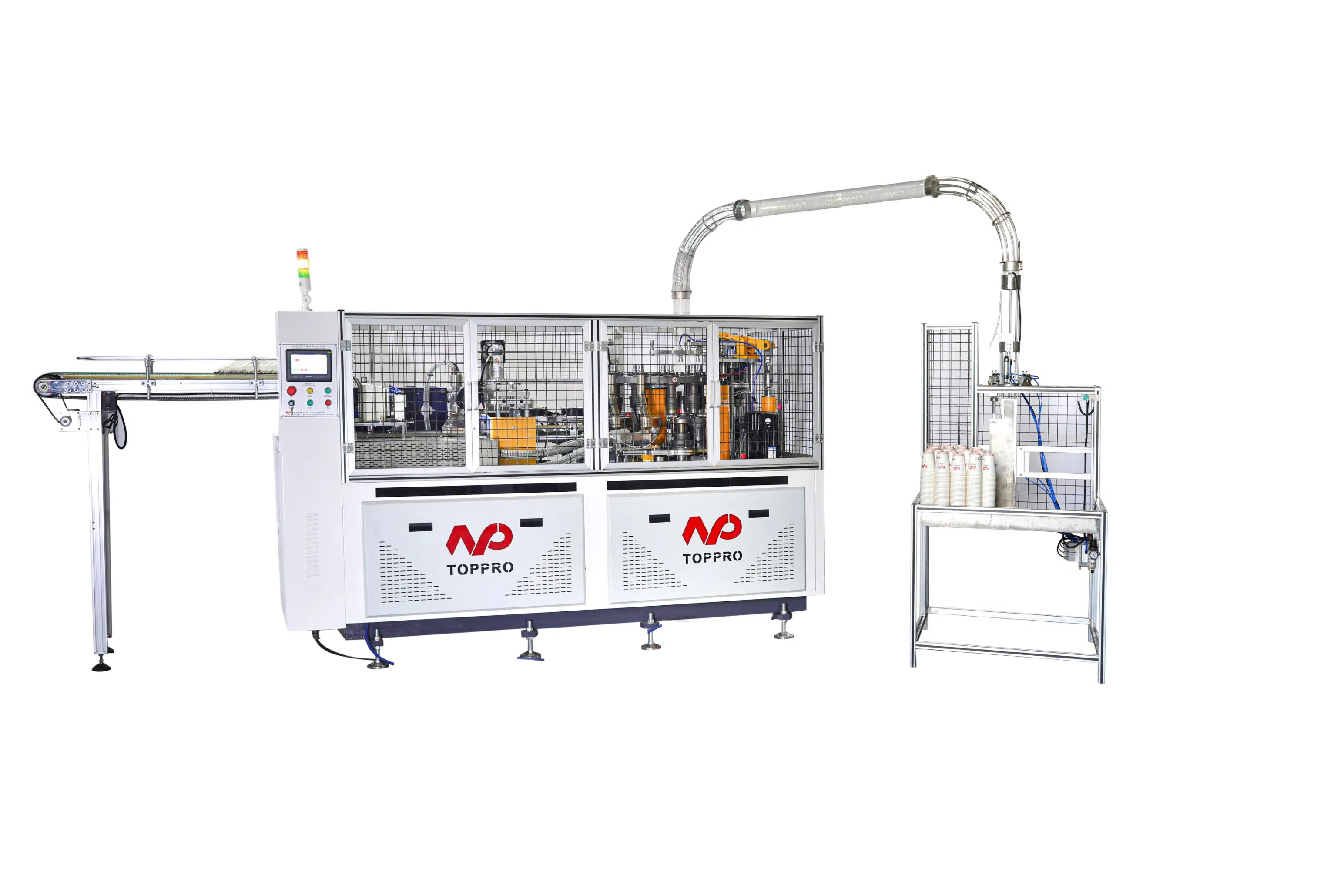

GZB-600 HIGH SPEED PAPER CUP FORMING MACHINE
The GZB-600 High-speed paper cup forming machine features a double turntable and dual-segment high performance. It integrates automatic paper fan feeding, ultrasonic side seal, cup top lubrication, automatic bottom paper feeding, double curling artwork, and automatic cup collection. It is capable of producing cups for both cold and hot drinks using single or double PE coated paper. The maximum speed reaches 180pcs/min, with a stable running speed of 130-150pcs/min depending on paper quality.

Our Advantages

1

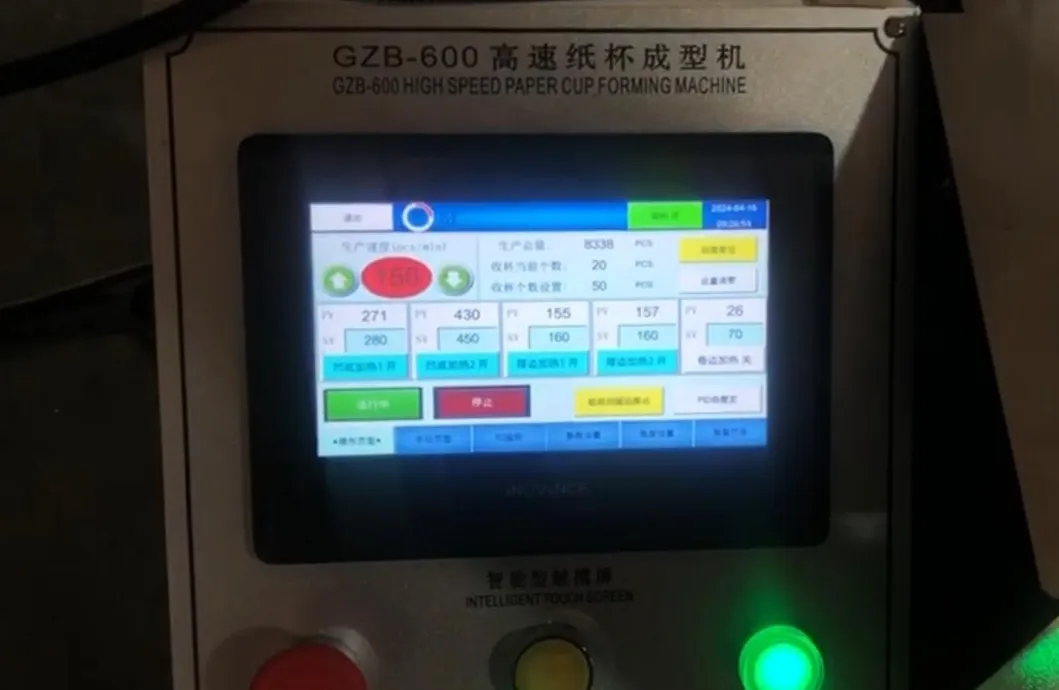

Human-Computer Interface: PLC touch screen control for all settings. Features a full automatic counting system for finished cups, ensuring stable long-term operation and intelligent production.

2

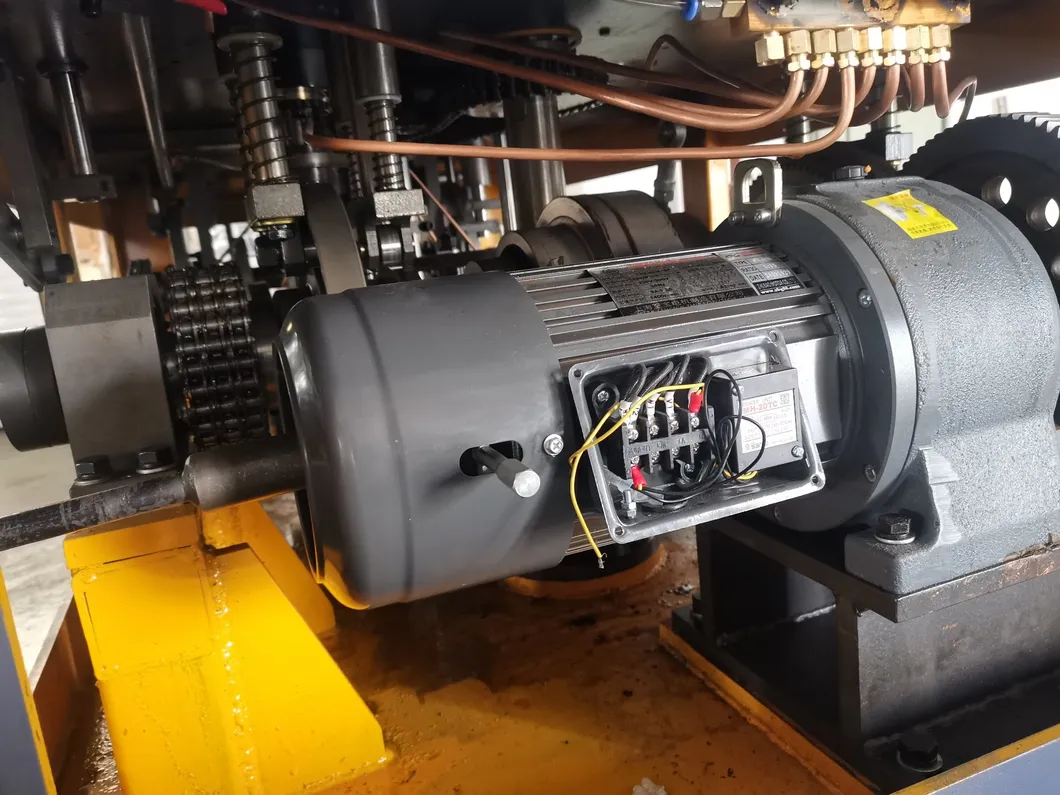

High-Precision Driving: Imported high-precision CAM driving system with gear transmission replaces traditional systems, ensuring accurate and unmistakable molding at each station.

3

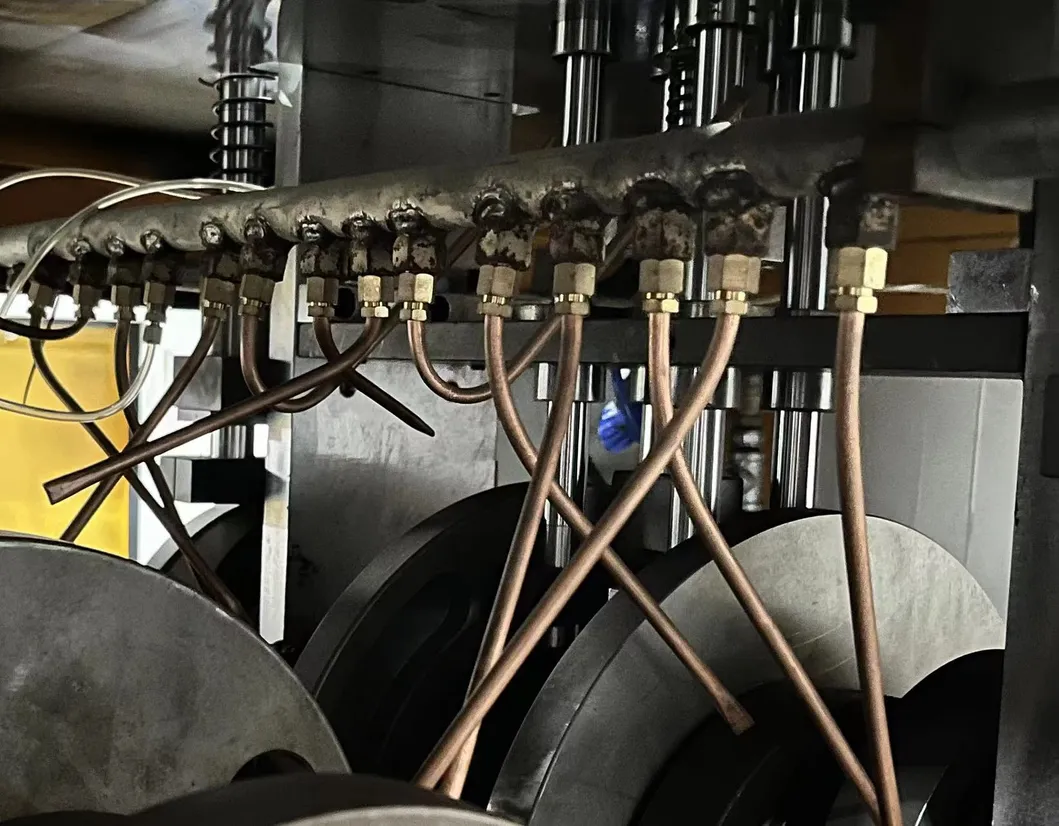

Oil Circulation System: Integrated oil circulation and filtration for the driving system at the machine bottom ensures long-term stability for transmission parts.

Main Technical Parameters

Model	GZB-600
Raw Material	Single PE or Double PE
Speed	130-150 PCS/Min
Voltage Supply	380v, 50hz
General Power	13kw
Paper Size	210-330g/m
Measurement	2800 x 1400 x 1700 (mm)
Cup Side Sealing	Ultrasonic Sealing

Company Profile

As a professional manufacturer of paper container machinery established in 1999, we specialize in paper cup machines, paper bowl machines, paper cone machines, and die punching machines. Our facility occupies over 9,000 square meters and holds CE and SGS certifications. With over a decade of successful export experience across Europe, South America, Africa, and Southeast Asia, we prioritize quality and paramount service.

After Sales Service

✓

One year comprehensive warranty.

✓

24-hour technical support for after-service needs.

✓

Free professional training provided.

Frequently Asked Questions

Q1: Is your company a factory or a trading company? A: We are a specialized machinery factory with 20 years of experience in the foreign trade industry.

Q2: What is the production speed of the GZB-600? A: The machine operates at a stable speed of 130-150pcs/min, with a maximum capability of up to 180pcs/min.

Q3: What information is needed for a quotation? A: Please provide the required quantity, detailed cup dimensions (top/bottom diameter and height), and paper thickness/material.

Q4: What is the typical delivery time? A: For the Automatic High-speed Paper Cup Making Machine, delivery normally takes 25-30 days. Urgent orders can be discussed.

Q5: Does the machine support both single and double PE coated paper? A: Yes, the GZB-600 is designed to handle both single and double PE coated paper for hot and cold drink applications.

Q6: How is the cup side sealed? A: The machine utilizes an advanced ultrasonic sealing system for the cup side seams to ensure durability and leak prevention.
