150PCS Per Minute Paper Cup with Handle Making Machine

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

YG-X180; YG-X260; YG-X300; YG-X400; YG-X500

Cup Size (Ounce)

3-16oz (Up to 44oz available)

Speed

80-100pcs/min

Required Paper

Single and Double Side PE Coated Paper

Paper Thickness

160-300GSM

Automation

Fully Automatic

Certification

Production Capacity

40-150 Pieces/Minute

Dimensions

2100*1200*1500MM

HS Code

8441309000

★

Product Overview

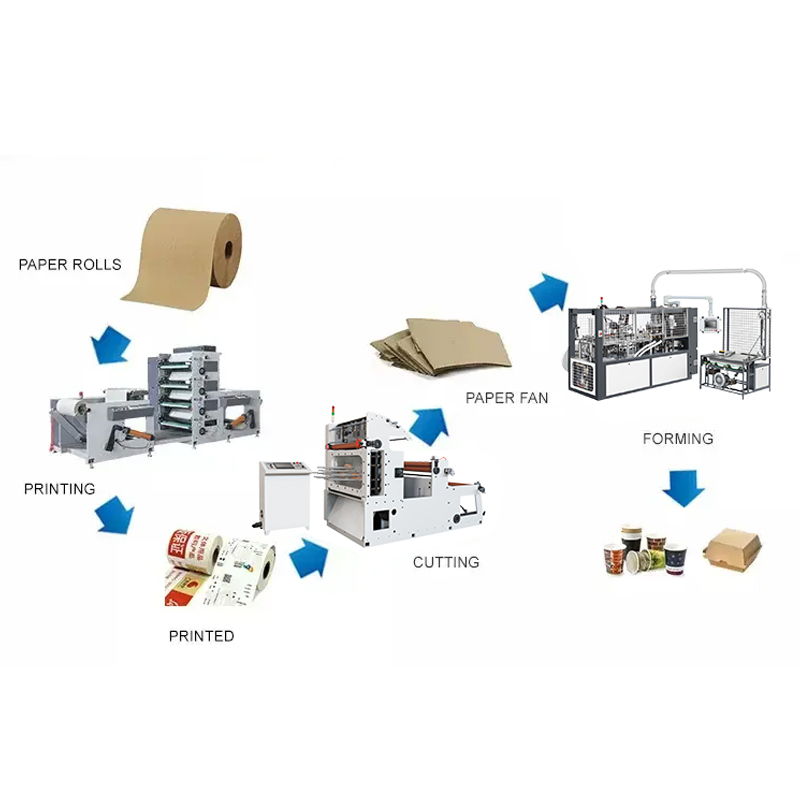

This Automatic Paper Cup Making Machine is designed for high-efficiency production of various paper containers, including tea cups, coffee cups, advertisement cups, and ice cream containers. Featuring advanced optical control and non-contact switches, the system ensures precision through micro-controlled transducers and step-less speed adjustments.

Ultrasonic vs. Copper Strip Sealing

The Ultrasonic Heater Type is equipped with a specialized hot air blowing system. This ensures perfect adhesion at the bottom of the cup, effectively eliminating water leakage issues. Unlike the standard copper heater type, the ultrasonic system provides superior sealing stability for both single and double PE coated papers.

📋

Technical Parameters

Specification	Model YG-800	Model YG-C800	Model YG-S800
Paper Cup Size	3-16OZ	3-16OZ	3-16OZ
Raw Material	One-side PE	One-side PE	Single or Double PE coated
Speed (pcs/min)	65-75	70-80	75-85
Paper Weight	150-180g; ±20g	150-300g; ±20g	160-300g; ±20g
General Power	4.5 kw	5 kw	6 kw
Sealing Type	Copper bar heating	Ultrasonic	Ultrasonic
Bottom Knurling	Heating	Heating	Hot Air System
Net Weight	1680kg	1680kg	2000kg

✔

Key Features

Excellent steel frame for long-term durability
Professional humanized design for easy access
Simple operation panel (One operator sufficient)
Stable transmission system for smooth running
Safe alarm system and automatic control
Low consumption with high-quality output

Frequently Asked Questions

Q1: What sizes of paper cups can this machine produce? The machine is versatile and can produce cup sizes ranging from 3oz up to 16oz as standard, with high-capacity models supporting up to 44oz.

Q2: What is the benefit of the ultrasonic sealing system? The ultrasonic system includes a hot air blowing feature that ensures the bottom of the cup is perfectly adhered, preventing any water leakage. It is highly recommended for double PE coated paper.

Q3: How many operators are required to run the machine? The machine is fully automatic and designed for ease of use; one operator is sufficient to manage the production process and maintenance.

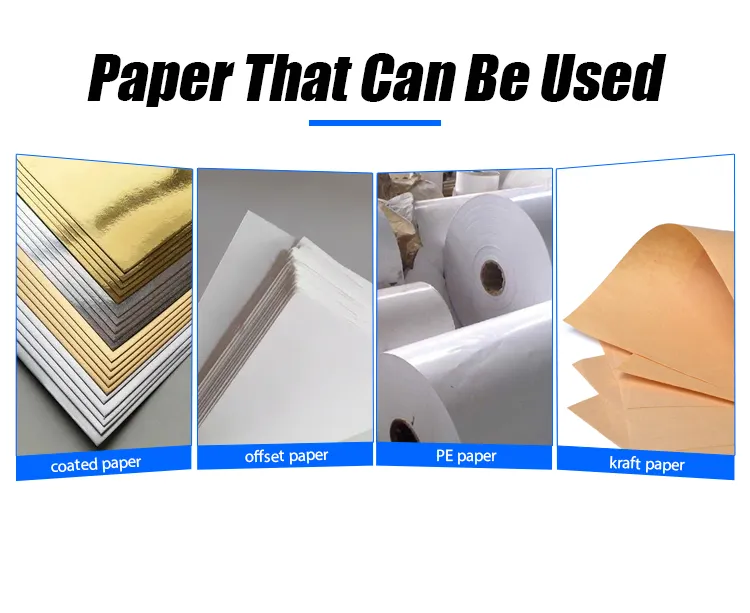

Q4: What types of paper can be used with this equipment? It supports both Single and Double PE coated paper with a thickness ranging between 160 and 300 GSM.

Q5: Is the machine production speed adjustable? Yes, the machine features step-less speed adjustment via a micro-controlled transducer, allowing production speeds between 40 to 150 pieces per minute depending on the model.

Q6: Can the machine be customized for specific cup shapes? Yes, we can customize the machine and the molds according to specific customer requirements for various cup dimensions and shapes.
