Paper Cup/Plate/Lid/Bowl/Packaging/Products Making Machine with Cutting and Printing on Line

Technical Specification

Introduction

FD series automatic web die-cutting machine based on international advanced technology, has a high stability, high safety performance, high precision of the finished product, it's widely used in printing, packaging and paper products industries. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic cluth, centralized oil lubrication, overload protection and distinctive gearing.

Main Structure

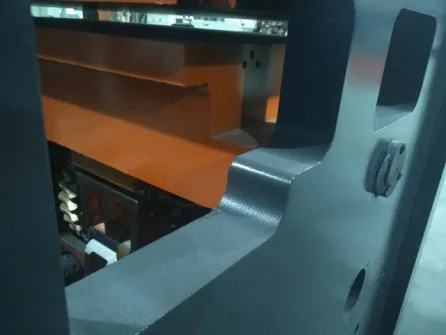

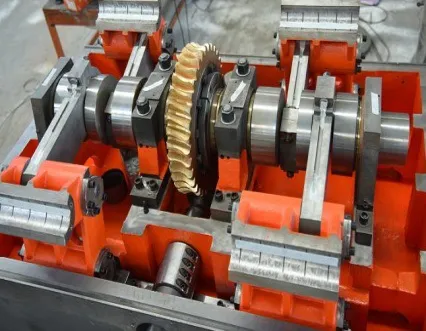

1. Worm Gear Structure: Perfect worm wheel and worm transmission system ensures the powerful and steady pressure and makes the cutting accurately while the machine runs with high speed. Main base frame, moving frame and top frame are all adopts high strength Ductile Cast Iron QT500-7.

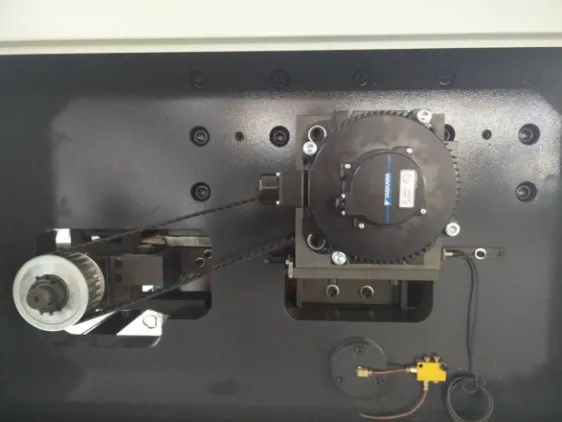

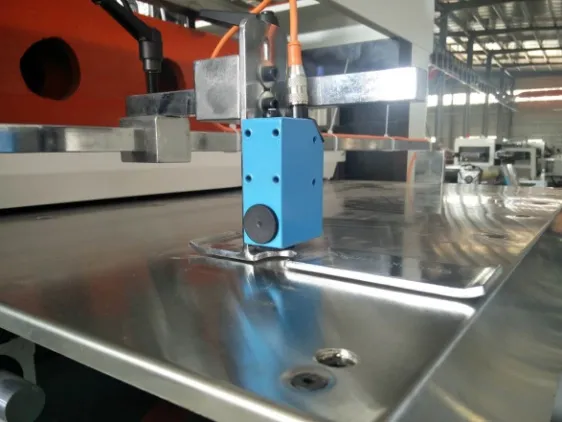

2. Positioning System: It can die-cut according to the printed words and figures or simply die-cut without them. The coordination between stepping motor and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures.

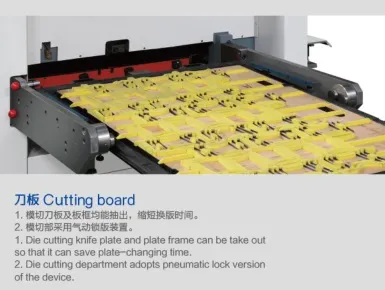

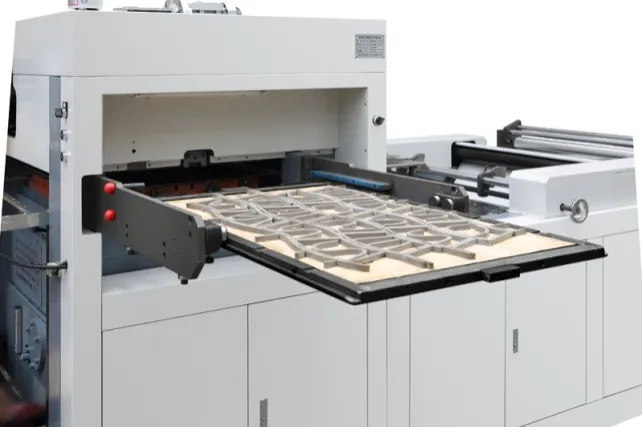

3. Die Cutting Department: Adopts pneumatic lock version of the device to avoid come off from the machine. Die cutting plate: 65Mn steel plate heating treatment, high hardness and flatness.

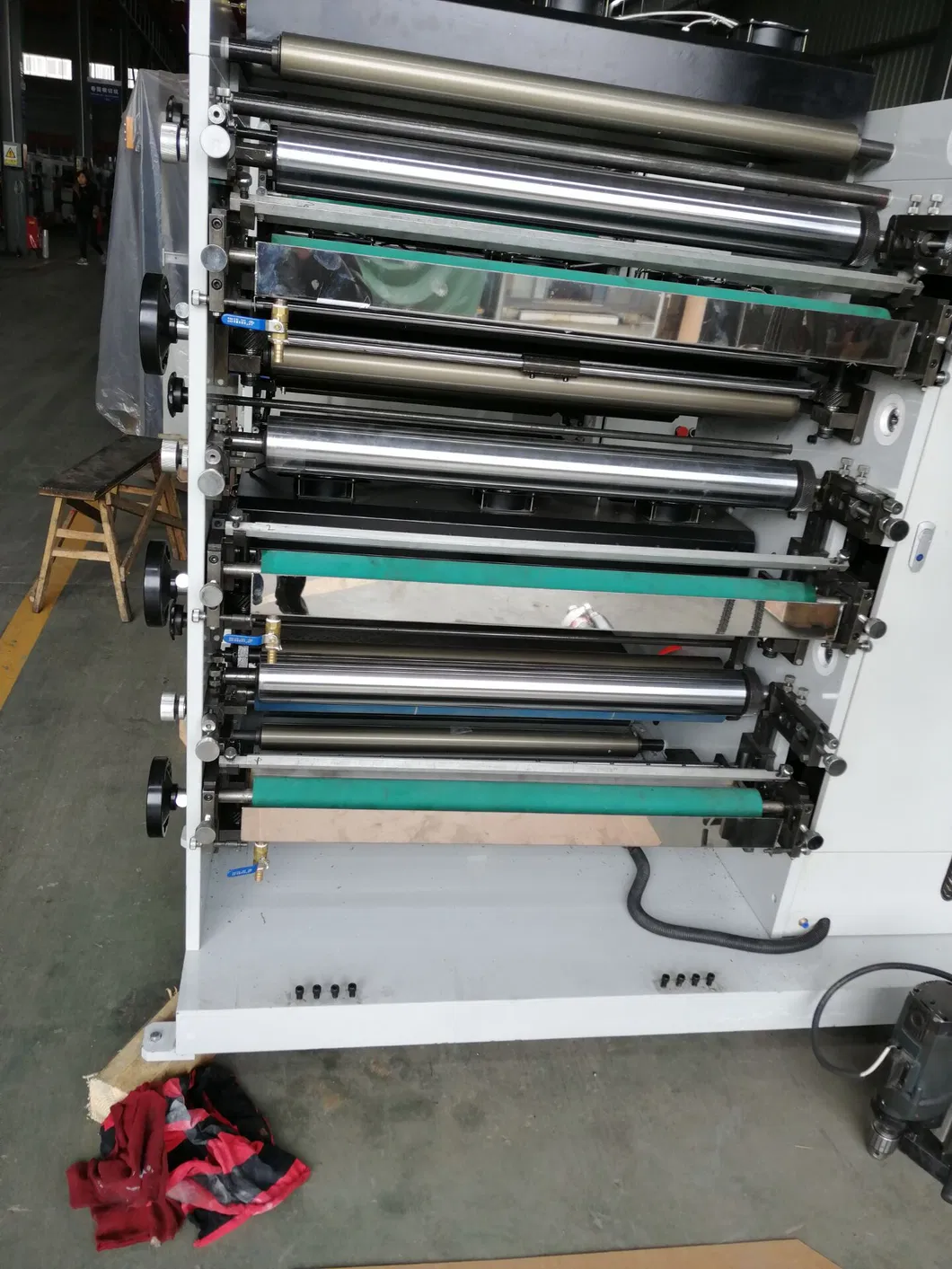

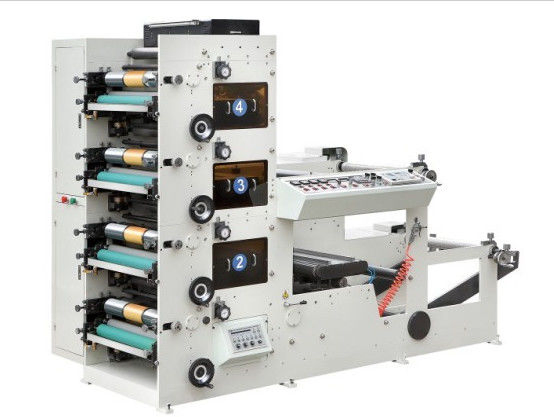

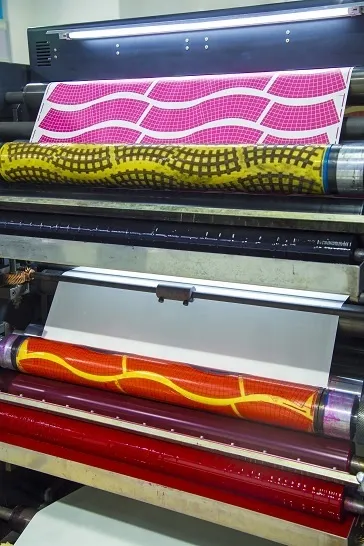

• Adopt the anilox roller to spread ink.
• Unwinding tension is controlled by automatic tension controller.
• Each printing unit adopt 360° for registration.
• Each printing unit have one IR dryer.
• The rubber roller can break away automatically while parking.
• The main motor is adopted the import stepless regulation of frequency conversion.
• Unwinding, web guiding, printing, IR drying and punching can be finished in one process.

Main Technical Variables
