Single/Double PE Coated Paper Bowl Making Forming Machine with Paper Lid or Plastic Lid
Single/Double PE Coated Paper Bowl Making Forming Machine with Paper Lid or Plastic Lid
Single/Double PE Coated Paper Bowl Making Forming Machine with Paper Lid or Plastic Lid
Single/Double PE Coated Paper Bowl Making Forming Machine with Paper Lid or Plastic Lid
Single/Double PE Coated Paper Bowl Making Forming Machine with Paper Lid or Plastic Lid
1 / 5
Single/Double PE Coated Paper Bowl Making Forming Machine with Paper Lid or Plastic Lid
Single/Double PE Coated Paper Bowl Making Forming Machine with Paper Lid or Plastic Lid
Single/Double PE Coated Paper Bowl Making Forming Machine with Paper Lid or Plastic Lid
Single/Double PE Coated Paper Bowl Making Forming Machine with Paper Lid or Plastic Lid
Single/Double PE Coated Paper Bowl Making Forming Machine with Paper Lid or Plastic Lid

Single/Double PE Coated Paper Bowl Making Forming Machine with Paper Lid or Plastic Lid

Customization: Available
Warranty: One Year
Application: Food
Send Inquiry

Product Description

Overview
Model NO.
CW-35
Production Speed
35-45pcs/min
Voltage
380V/220V 50Hz
Control Panel
Computer Control Panel
Certification
CE
After-sales Service
Yes
Total Power
6 Kw
Specification
20-50 OZ
Transport Package
Wooden/Shrink Film
Production Capacity
10sets /Month
Product Description

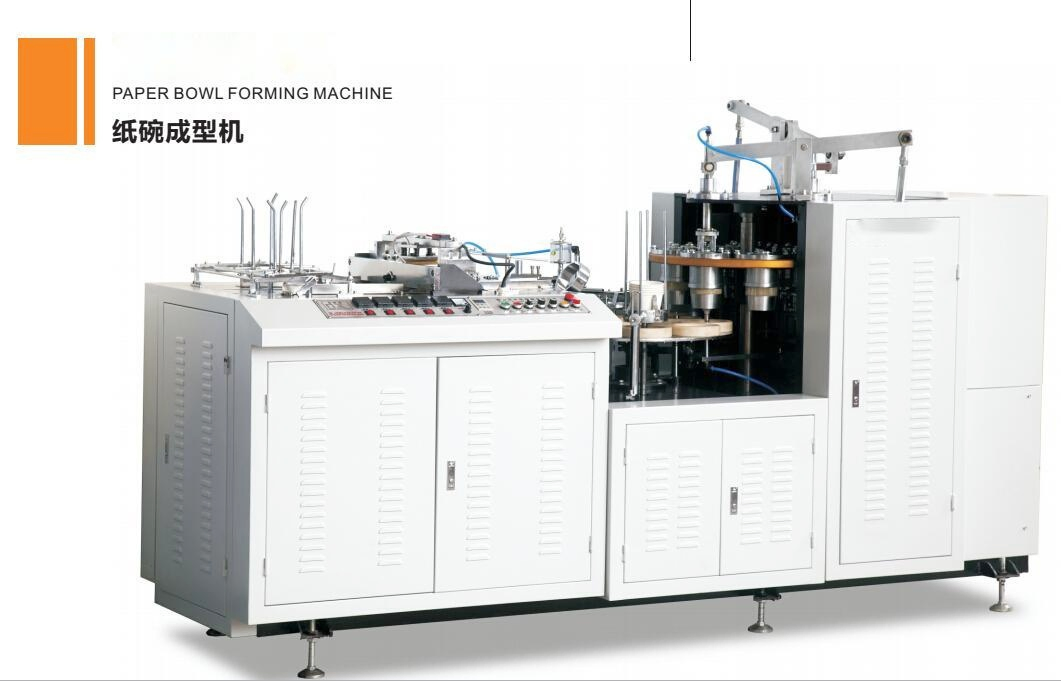

Single/Double PE Coated Paper Bowl Making Forming Machine

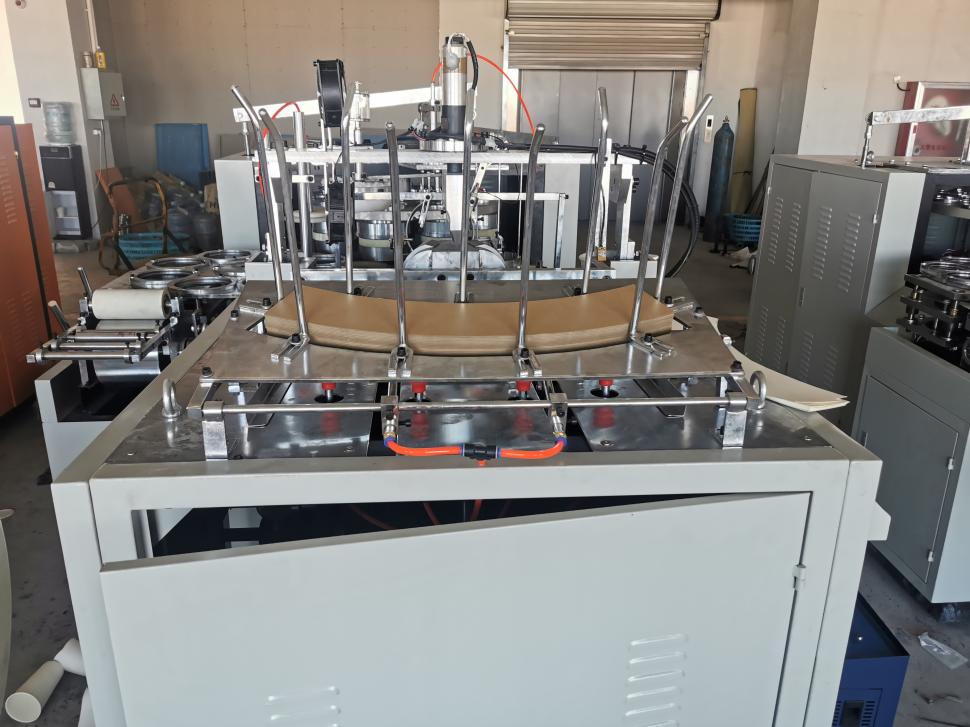

CW-35 is an newest type of paper bowl machine, by auto feeding paper with multiple rows, paper anti-reverse device (make sure correct position), ultrasonic welding, oil fill, robot arm, paper tube, punch bottom, folding bottom, pre-heating, knurling, curling, and drop cups. Machine can make various size of bowls by changing mould. This model is invented by our team and widely improved by technique.

Product Parameters
Model Single/Double PE Coated Paper Bowl Making Forming Machine
Paper Cup Size 20-50 OZ (Mould exchangeable)
Raw Material One side PE coated Paper
Paper Weight 140gsm - 400 GSM
Rated Productivity 35-45 pcs/min
Total Power 6 KW
Power Source 50/60HZ, 380V/220V (3 Phase Recommended)
Weight GW/NW: 2600KG / 2500KG
Working Air Source Pressure: 0.4Mpa; Output: 0.6m³/min
Package Size 2900 x 1500 x 1900 mm
Side Welding Ultrasonic Heater
Bottom Knurling 1 side PE paper by heater knurling
HOT SALE

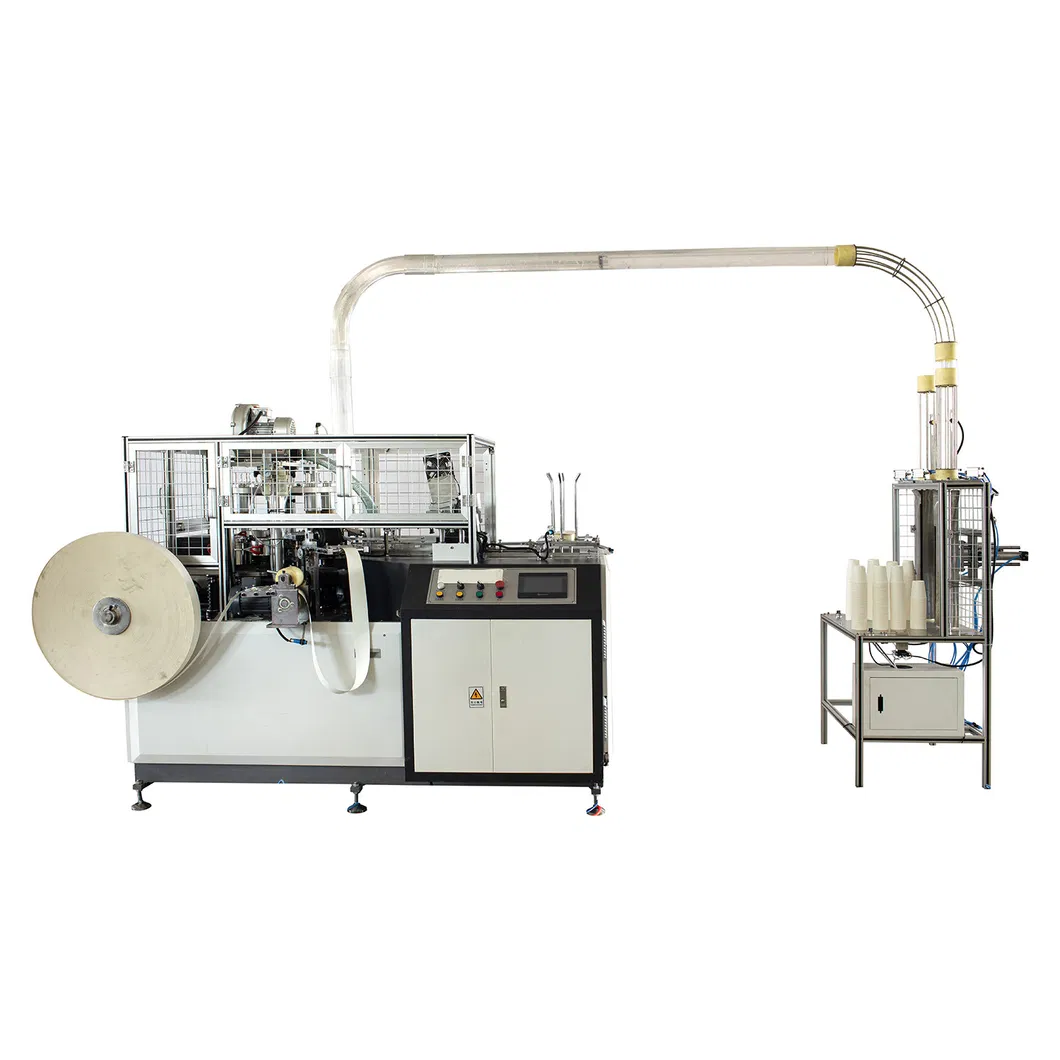

Paper Bowl Machine 1

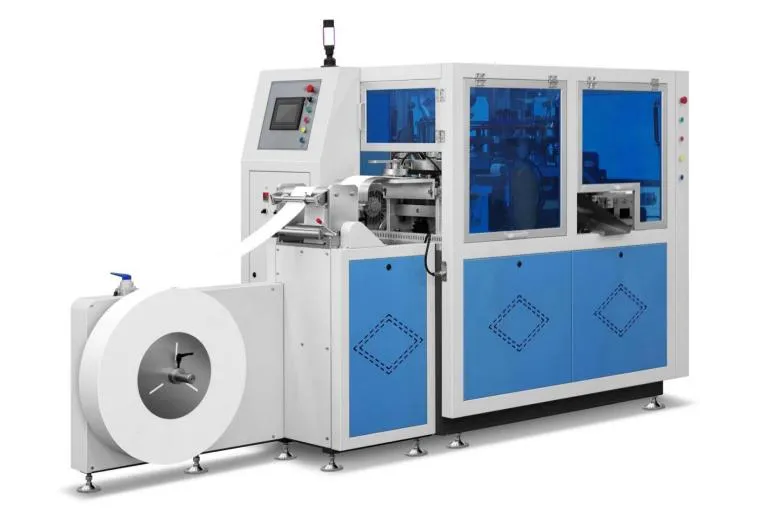

Paper Bowl Machine 2

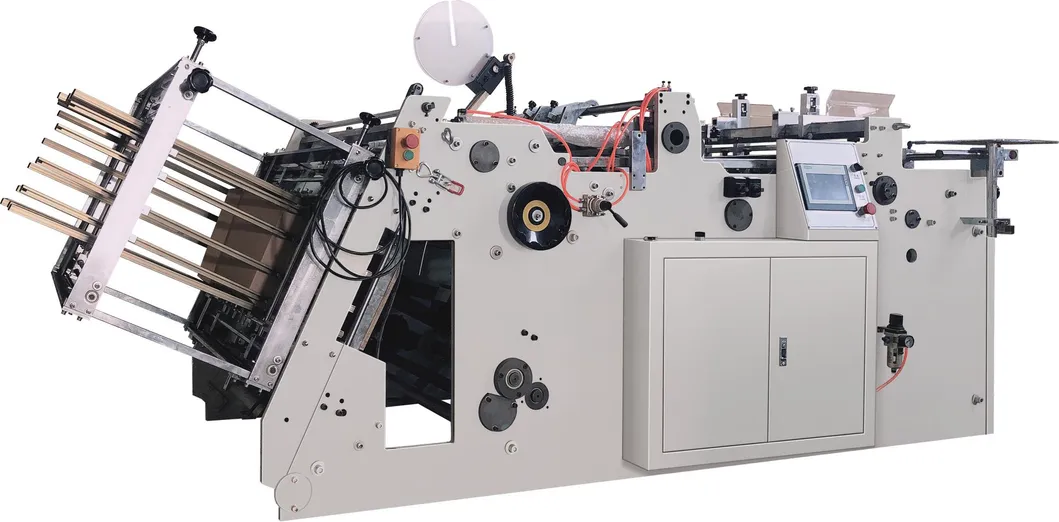

Paper Bowl Machine 3
Product Detail View
Product Technical View
Frequently Asked Questions
What is the production speed of the CW-35 machine?
The machine operates at a stable production speed of 35 to 45 pieces per minute.
What sizes of paper bowls can this machine produce?
The CW-35 is designed for large paper bowls ranging from 20 OZ to 50 OZ. The moulds are exchangeable to accommodate different sizes.
Does this machine support both single and double PE coated paper?
Yes, it is designed for Single/Double PE coated paper bowl making and forming.
What type of welding technology is used for the cup sides?
The machine utilizes advanced ultrasonic welding for the side seams to ensure a strong and leak-proof seal.
What are the power requirements for installation?
The machine supports 380V or 220V at 50/60Hz. For optimal performance, a 3-phase 380V power supply is recommended.
Is an air compressor required for operation?
Yes, the user needs to provide an air compressor with a working pressure of 0.4Mpa and an output of 0.6m³/minute.
