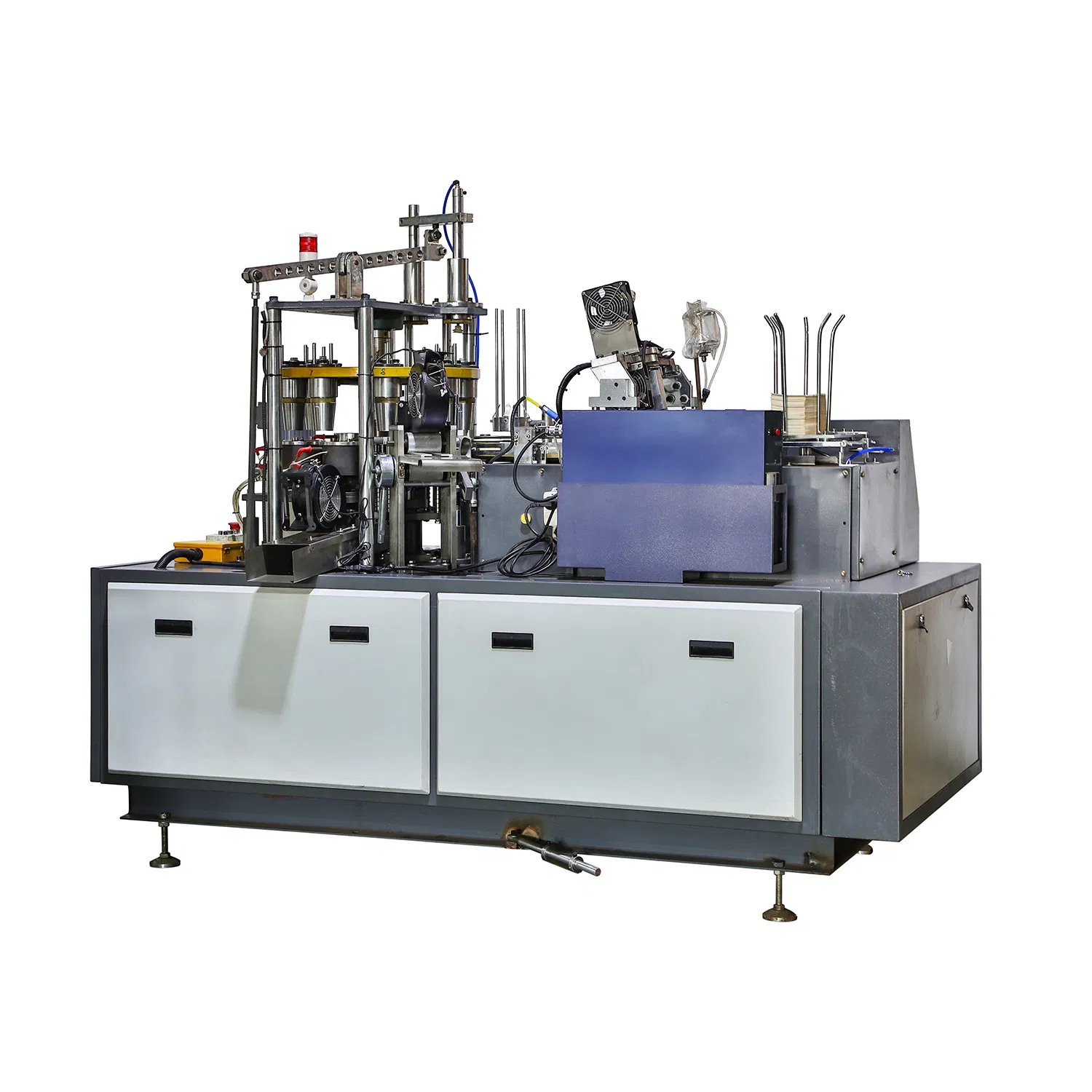

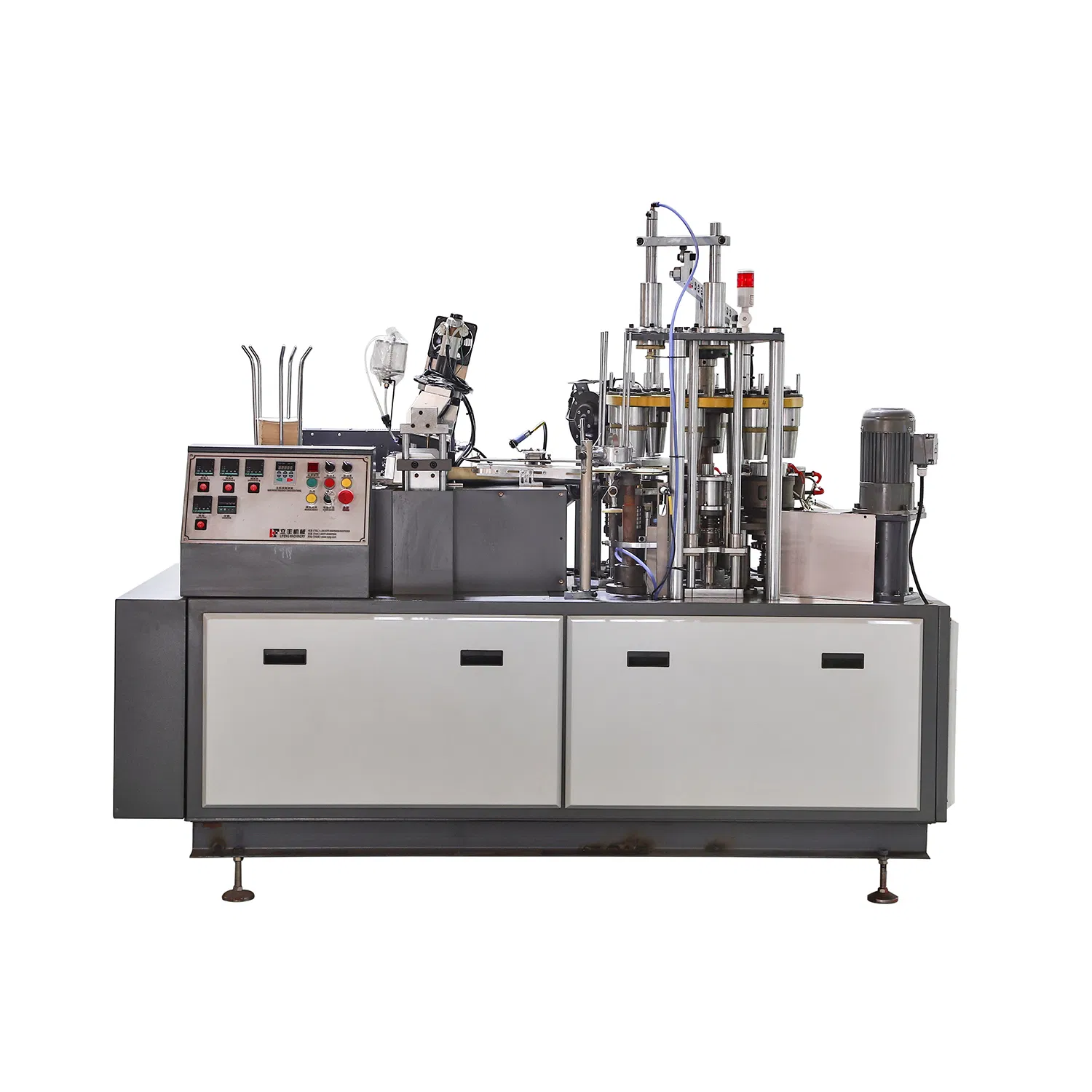

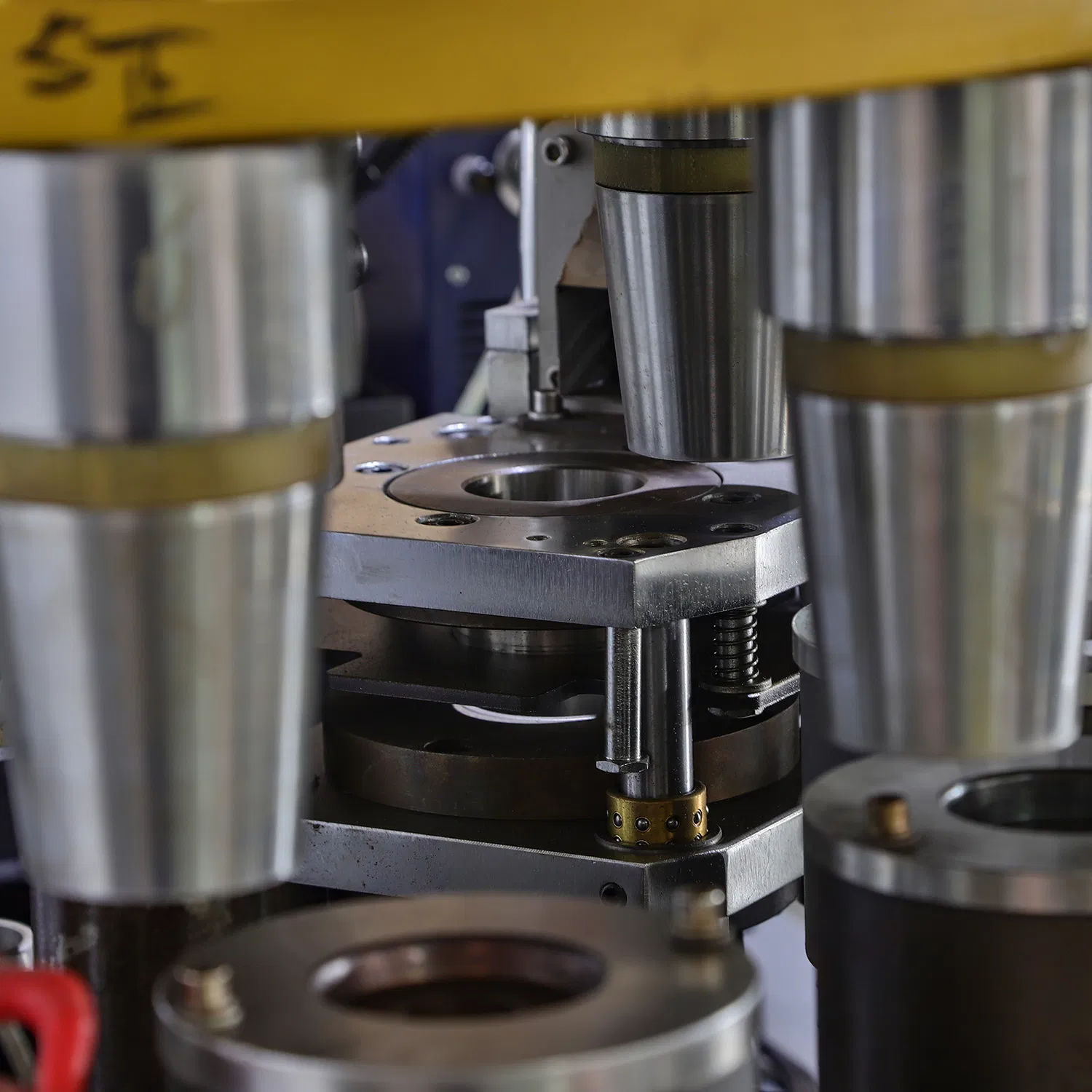

The LF-80 is a full automatic paper cup forming machine. It is a multi-station machine designed to produce drink cups and ice cream cups through a continuous automatic process including paper feeding, sealing, oil injection, bottom cutting, heating, knurling, curling, and stacking. The machine features a full-automatic lubrication system.
| Main Technical Specifications | |
|---|---|
| Name | Full Automatic Paper Cup Machine |
| Model | LF-80 |
| Paper Cup Size | 2-12oz |
| Raw Material | Single PE |
| Speed | 80-90 pcs/min |
| Suitable Paper Weight | 170-350g/m² |
| Measurement (mm) | 2300*1250*1800 |
| Cup Side Sealing | Normal sealing (Ultrasonic optional) |

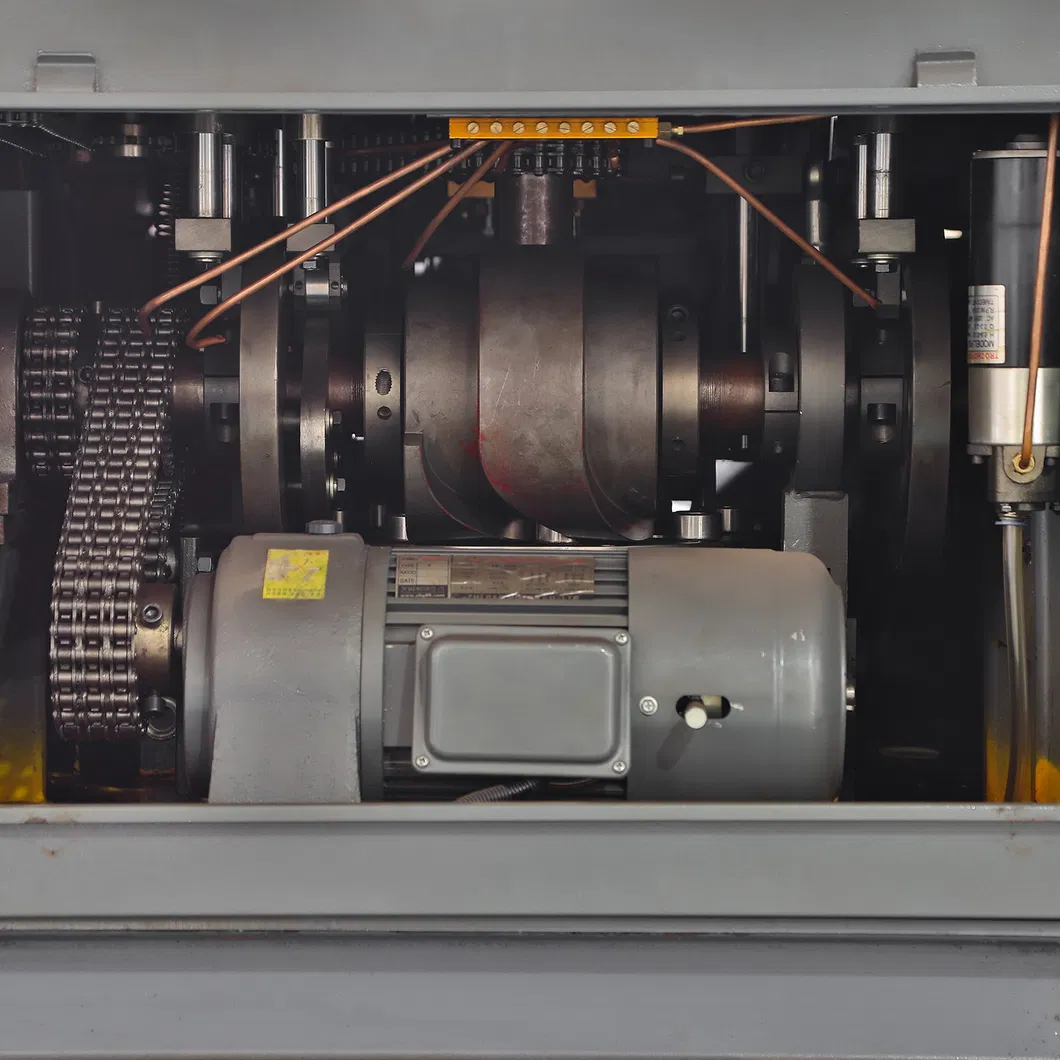

1. Geneva Open Cam System: The main part uses the Geneva open cam instead of old dividing box transmission, making driving more accurate, faster, and more reliable.
2. CNC Machined Structure: The machine bottom is made by CNC machining and shaped in one-piece. It is heavier and thicker than standard models, improving precision and stability for long-term running.

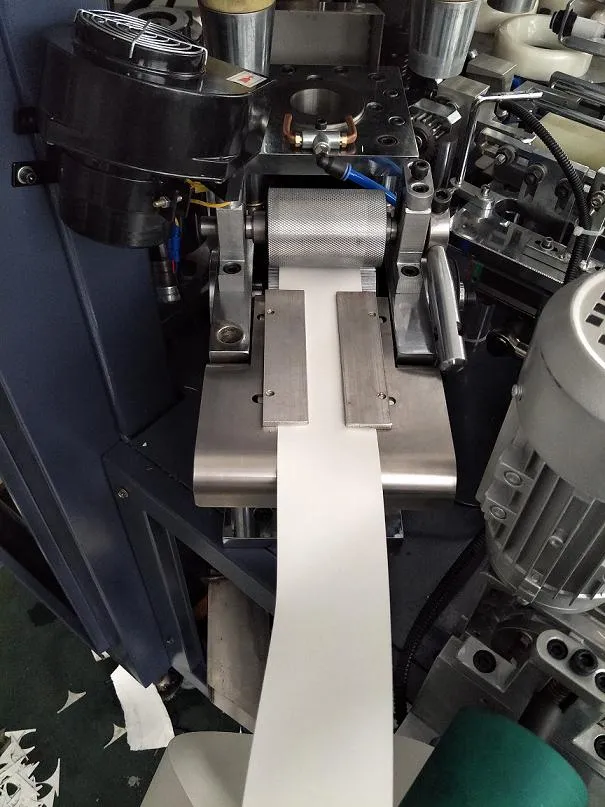

3. Two-Channel Bottom Feeding: Adopts a stepper motor transport and precision feeding system to ensure accuracy and significantly reduce paper waste.

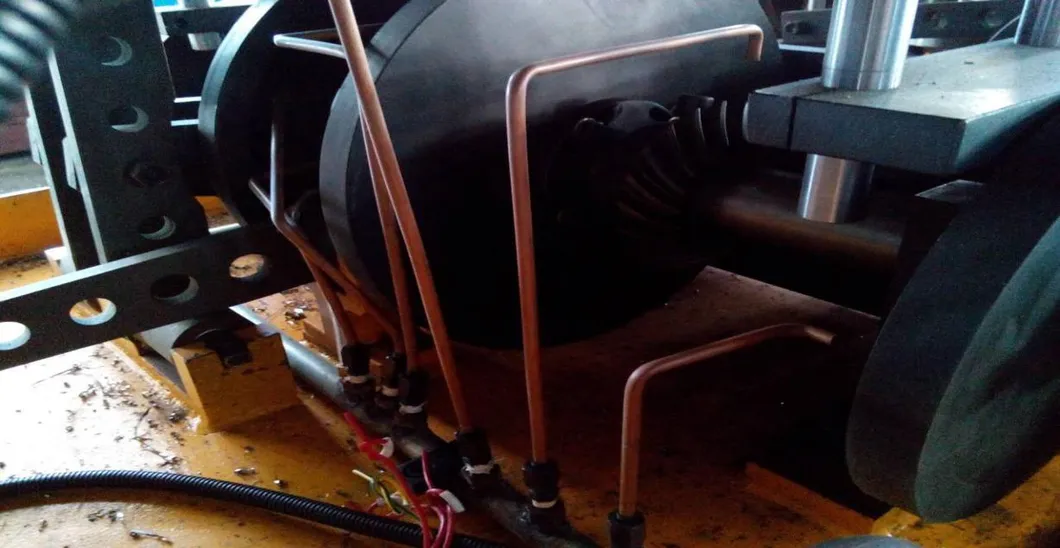

4. Automatic Lubrication: Features an automatic lubrication system with oil pipes, filter screens, and an oil pump to keep the machine running smoothly and extend its lifetime.

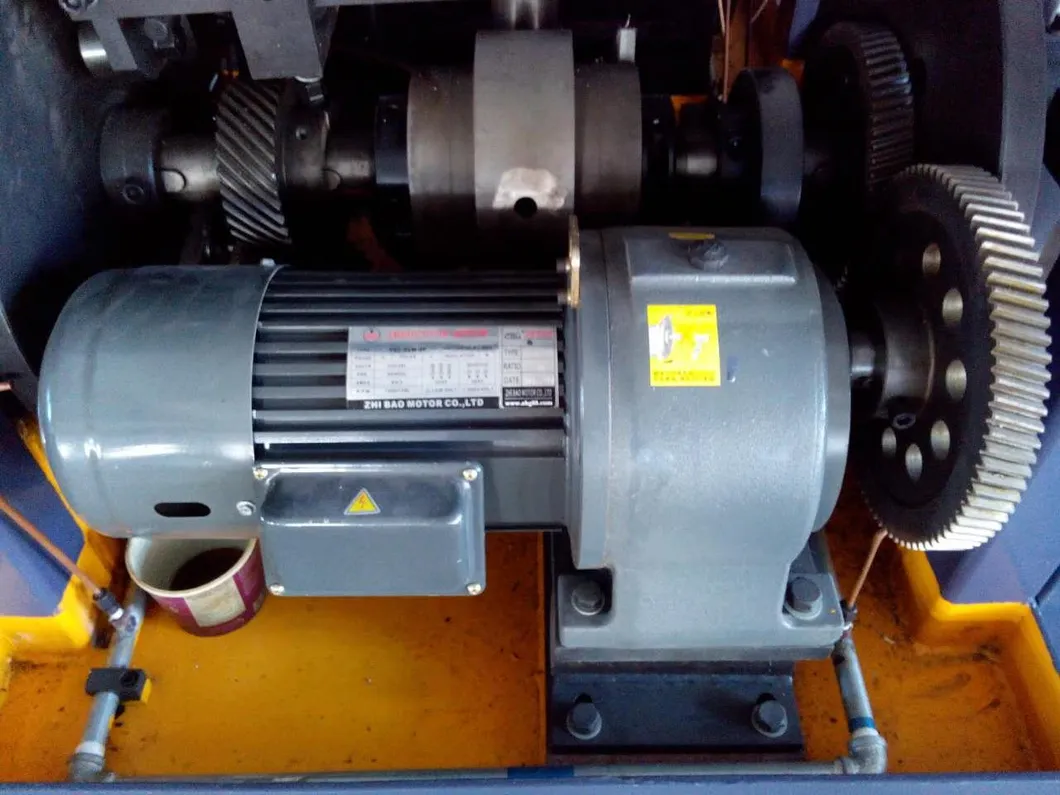

5. Brake Motor: The main motor includes a brake for high-precision positioning during testing and debugging, ensuring operator safety.
Packing Details:
Machines are packed in strong wooden cases. We provide English manuals, electric diagrams, and operation videos to guide you through operation and mold changes.
