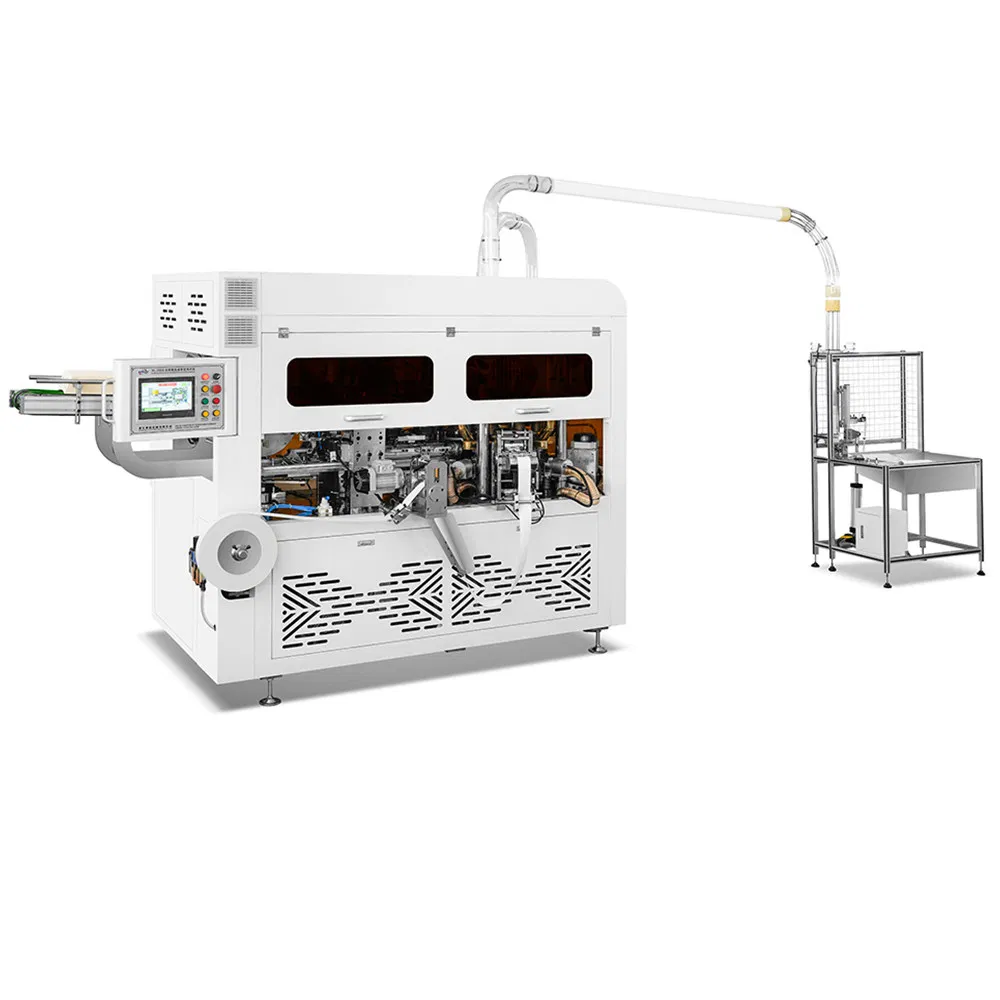

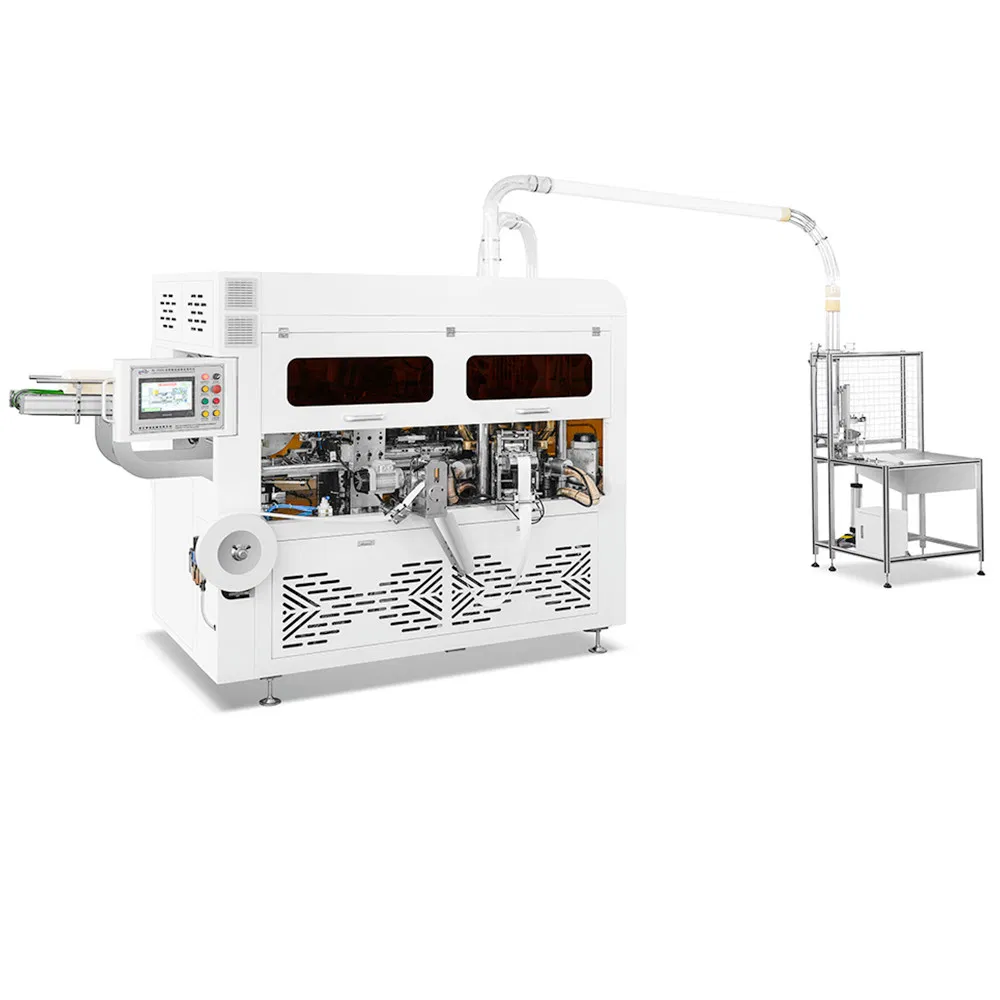

XL-220s Ultrasonic Friendly Coffee Paper Cup Forming Machine for Making Paper Cup
XL-220s Ultrasonic Friendly Coffee Paper Cup Forming Machine for Making Paper Cup
XL-220s Ultrasonic Friendly Coffee Paper Cup Forming Machine for Making Paper Cup
XL-220s Ultrasonic Friendly Coffee Paper Cup Forming Machine for Making Paper Cup
XL-220s Ultrasonic Friendly Coffee Paper Cup Forming Machine for Making Paper Cup
1 / 5
XL-220s Ultrasonic Friendly Coffee Paper Cup Forming Machine for Making Paper Cup
XL-220s Ultrasonic Friendly Coffee Paper Cup Forming Machine for Making Paper Cup
XL-220s Ultrasonic Friendly Coffee Paper Cup Forming Machine for Making Paper Cup
XL-220s Ultrasonic Friendly Coffee Paper Cup Forming Machine for Making Paper Cup
XL-220s Ultrasonic Friendly Coffee Paper Cup Forming Machine for Making Paper Cup

XL-220s Ultrasonic Friendly Coffee Paper Cup Forming Machine for Making Paper Cup

Customization: Available
Warranty: 1 Year
Applicable Objects: Beverage
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
XL-220S
Cup Size
6-16oz (4-16oz range)
Speed
160-200 PCS/Min
Required Paper
Single and Double Side PE Coated Paper
Automation
Automatic
Certification
CE
Machine Weight
4200 Kg
Machine Power
32 Kw
Paper Thickness
190-320 GSM
HS Code
8441309000
🚀 Machine Introduction
💡

High-speed intelligent servo paper cup machine XL-220S adopts a table layout, isolating the transmission components and molds. This layout is designed for easy cleaning and maintenance. The machine utilizes automatic spray lubrication and a new servo transmission structure, replacing the old indexing groove wheel system.

By reducing the transmission structure and using servo control for each part, the machine ensures superior stability and quality. Equipped with PLC control, photoelectric tracking, and servo feeding, it achieves a production capacity of 180-200 pcs/min, making it ideal for both cold and hot cups.

Paper Cup Forming Machine View 1
Paper Cup Forming Machine View 2
Paper Cup Forming Machine View 3

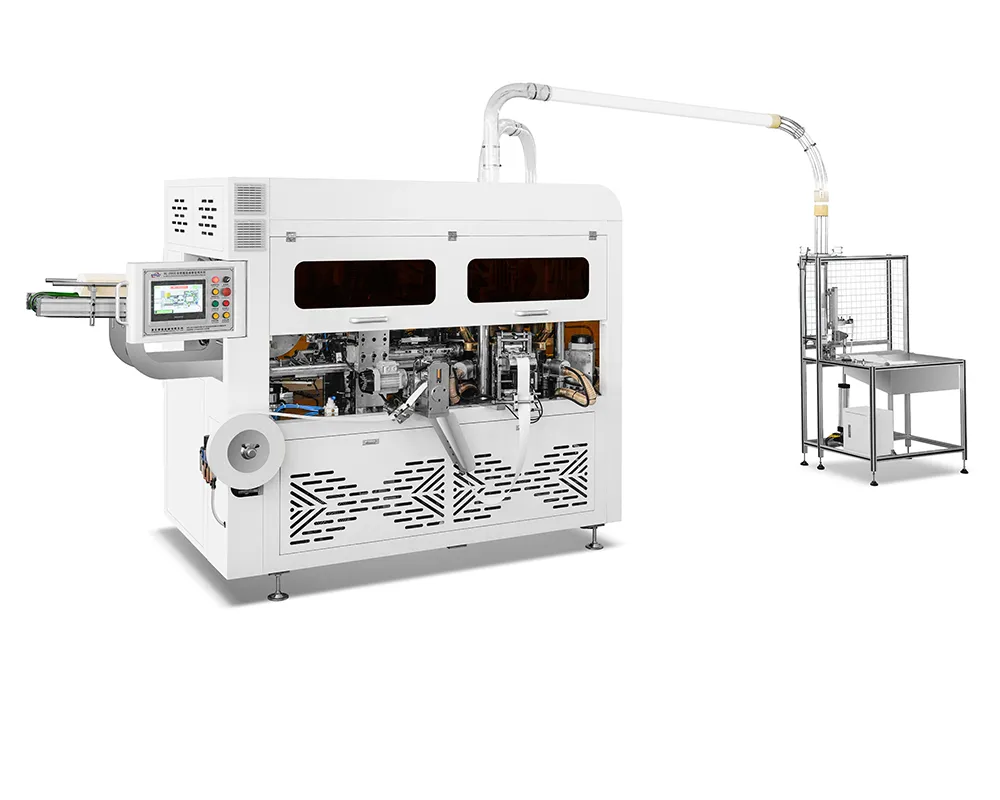

Machine Detailed Structure
📋 Technical Specifications
ModelXL-220S
Cup Size Range4-16 oz
Production Speed180-200 pcs/min
Machine Weight4200 kg
Dimensions2800 * 1450 * 2000 mm
📦 Packing & Delivery
Packing Process 1

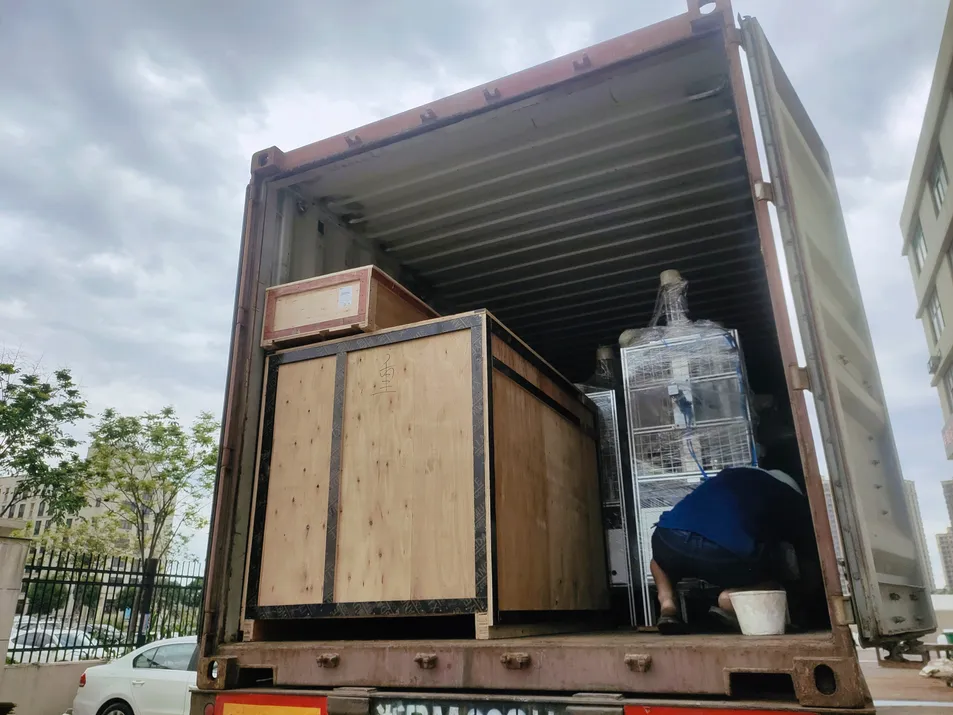

Packing Process 2
Package Size
280.00cm * 145.00cm * 200.00cm
Gross Weight
4200.000kg
Transport Package
Wooden Box
🏭 Production Facility
Factory View 1
Factory View 2

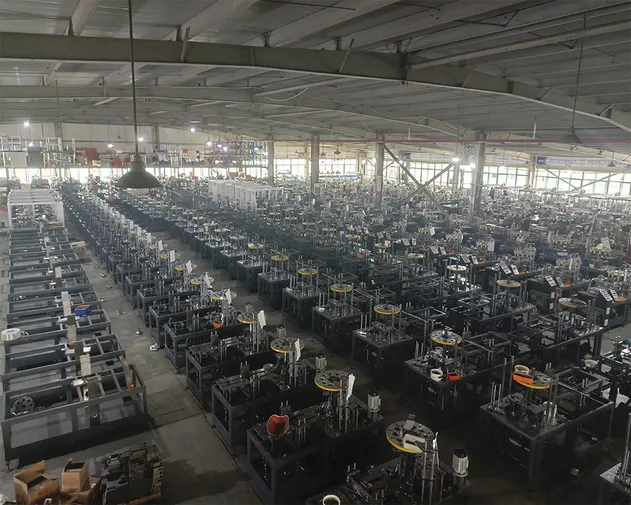

Factory View 3
❓ Frequently Asked Questions
What is the maximum production speed of the XL-220S?
The XL-220S is a high-speed intelligent machine capable of producing between 180 to 200 paper cups per minute.
What range of cup sizes can this machine handle?
This machine is versatile and can produce paper cups ranging from 4 ounces to 16 ounces, suitable for both hot and cold beverages.
What kind of paper material is required?
It supports both single and double-side PE coated paper, as well as PLA coated paper, with a thickness range of 190-320 GSM.
How does the servo transmission system benefit production?
The new servo transmission structure replaces traditional indexing wheels, significantly improving stability, reducing mechanical wear, and making the machine easier to operate and maintain.
What are the maintenance features of this machine?
The machine features an automatic spray lubrication system and a table layout that separates transmission parts from the molds, making it very easy to clean and maintain.
What control systems are integrated into the XL-220S?
It utilizes a high-end PLC control system combined with photoelectric tracking and servo feeding to ensure precise operation and consistent product quality.
