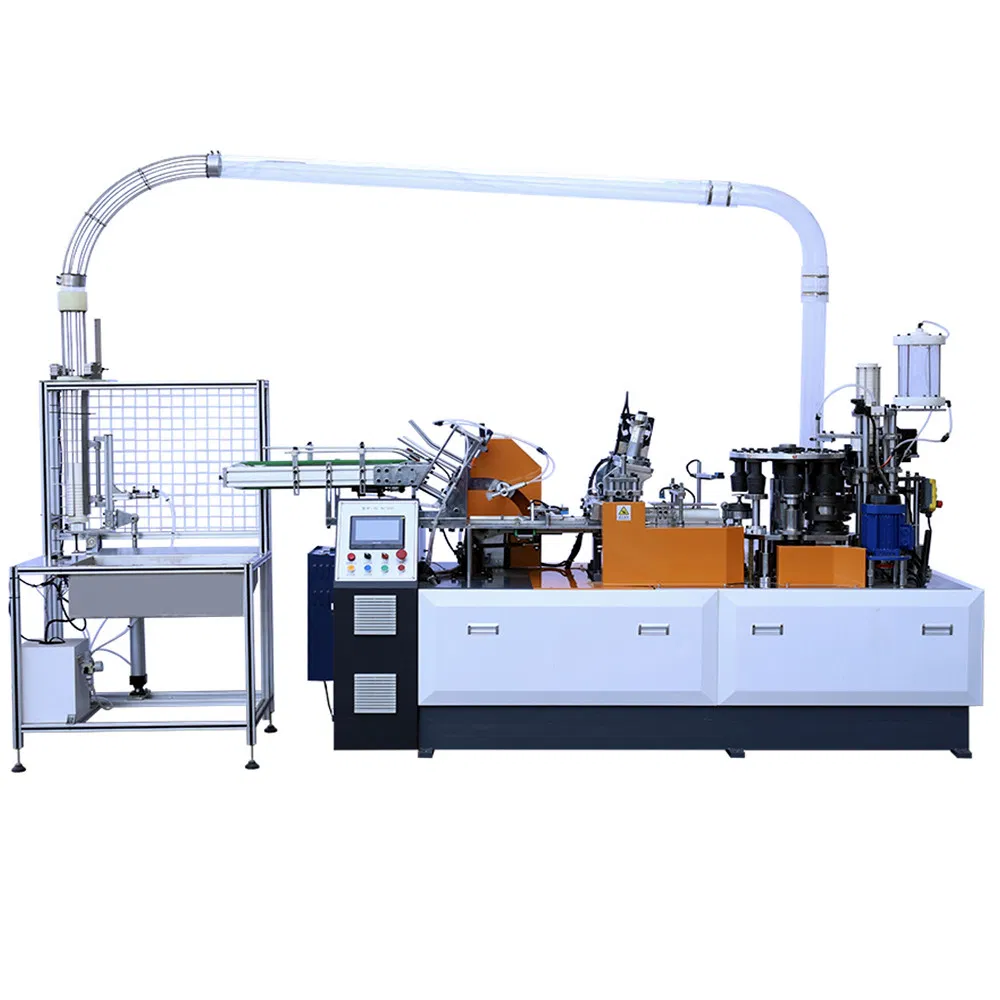

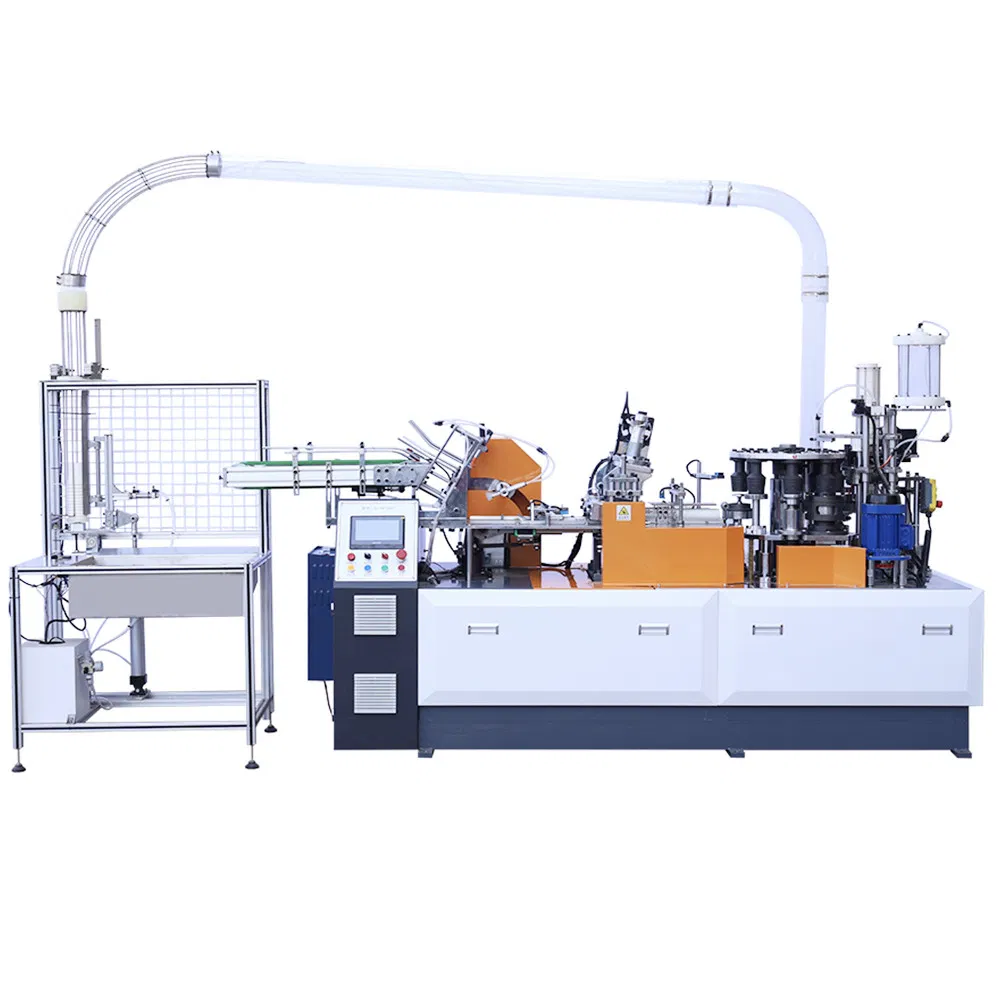

XL-Wt100 Automatic 12oz Ripple Wall Paper Cup Forming Machine
XL-Wt100 Automatic 12oz Ripple Wall Paper Cup Forming Machine
XL-Wt100 Automatic 12oz Ripple Wall Paper Cup Forming Machine
XL-Wt100 Automatic 12oz Ripple Wall Paper Cup Forming Machine
XL-Wt100 Automatic 12oz Ripple Wall Paper Cup Forming Machine
1 / 5
XL-Wt100 Automatic 12oz Ripple Wall Paper Cup Forming Machine
XL-Wt100 Automatic 12oz Ripple Wall Paper Cup Forming Machine
XL-Wt100 Automatic 12oz Ripple Wall Paper Cup Forming Machine
XL-Wt100 Automatic 12oz Ripple Wall Paper Cup Forming Machine
XL-Wt100 Automatic 12oz Ripple Wall Paper Cup Forming Machine

XL-Wt100 Automatic 12oz Ripple Wall Paper Cup Forming Machine

Customization: Available
Warranty: 12 Months
Applicable Objects: Beverage
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.
XL-WT100
Cup Size
4-16 Oz
Speed
100-110 PCS/Min
Required Paper
Single/Double PE Coated Paper
Automation
Automatic
Logo Printing
Customize
Certification
CE
Condition
New
Machine Weight
2000 Kg
Power
5.5 Kw
Electricity
380V 50Hz, 3 Phases
Cup Material
180-330 GSM
HS Code
8441309000
Capacity
1000 Set

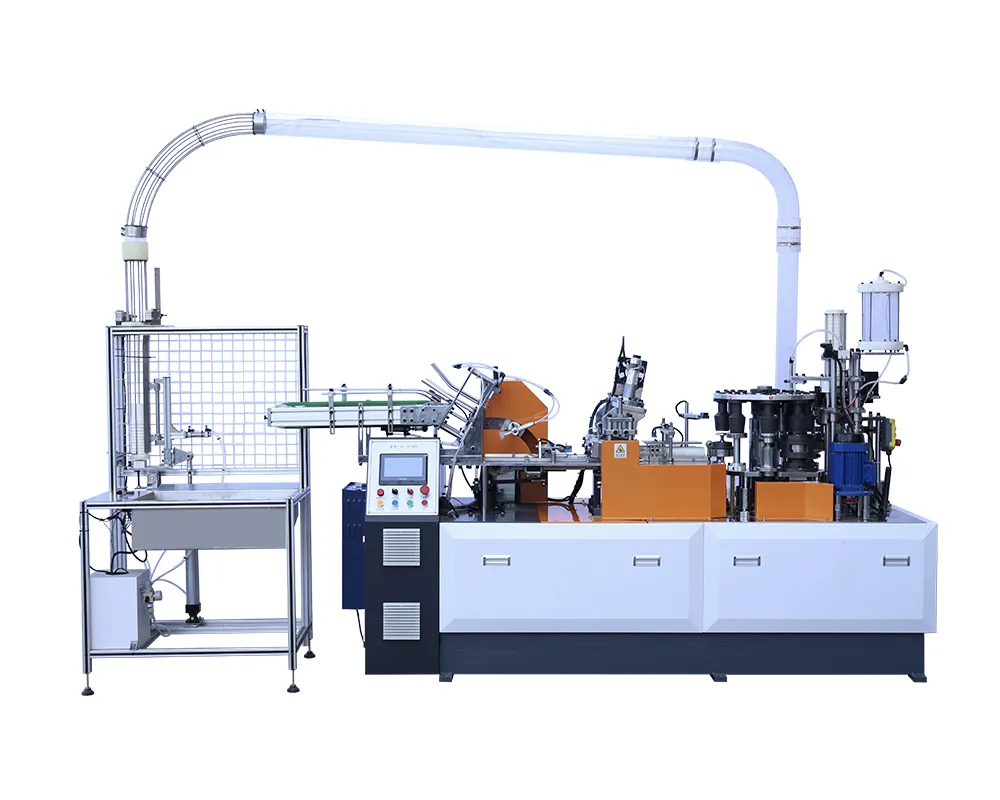

Automatic Ripple Wall Paper Cup Forming Machine
⚙️

Mechanical Behavior

The externally laminated hollow corrugated cup machine features a tabletop layout, isolating the drive components and molds. With the drive components located below the platform and the molds above, this layout facilitates cleaning and maintenance. The machine utilizes automatic spray lubrication, a longitudinal drive structure, an open cylindrical grooved wheel indexing mechanism, and a gear drive, ensuring overall stability and quality. PLC, photoelectric tracking, and servo feed control are used for electrical components. With a production capacity of 80-100 t/min, this machine is suitable for producing 5-16 oz. hot and cold laminated hollow corrugated cups. The upgraded paper suction mechanism provides more stable paper suction.

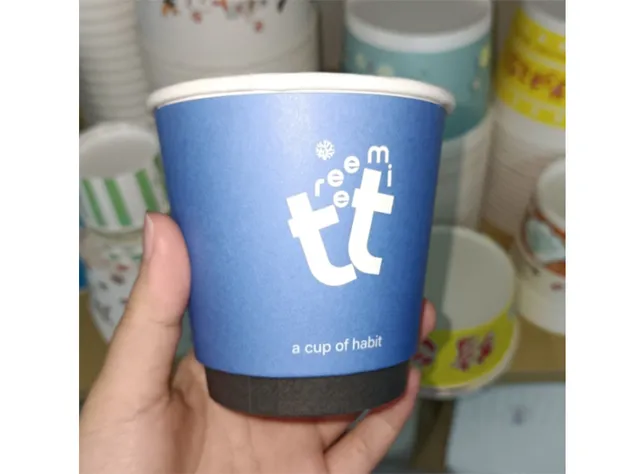

Machine Detail 1

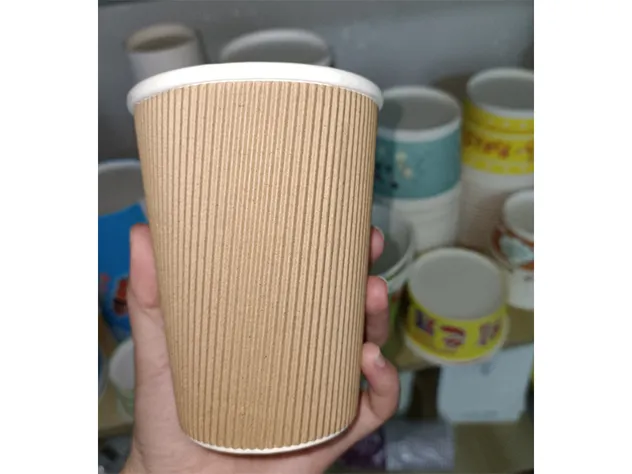

Machine Detail 2

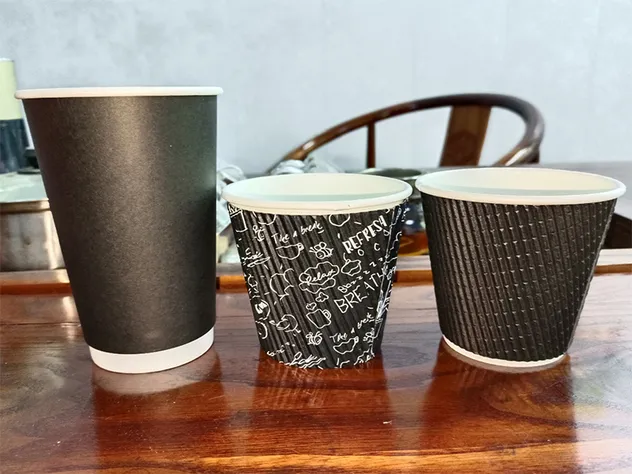

Machine Detail 3
📋

Technical Specifications

ModelXL-WT100
Cup Size Range4-16 oz
Production Speed100-110 pcs/min
Machine Weight2000 kg
Machine Dimensions2880*1060*1650 mm
🧠

Intelligent Control System

  • Multiple module models: Simple window prompts guide you through selecting the model you want to set.
  • Flexible parameter settings: Back up, restore, or revert parameters to factory settings. Manual modification available.
  • Flexible encoder settings: Includes fault self-diagnosis. No physical location constraints for encoder hardware.
  • Automatic parking configuration: Rapid deceleration in less than one turn based on inertia calculations.
  • Hardware monitoring system: Real-time line monitoring for PLC, relays, and contactors with abnormal alarms for easy troubleshooting.
📦

Packing & Delivery

Package Size
288.00cm * 106.00cm * 165.00cm
Gross Weight
2000.000kg
Package Type
Wooden Box

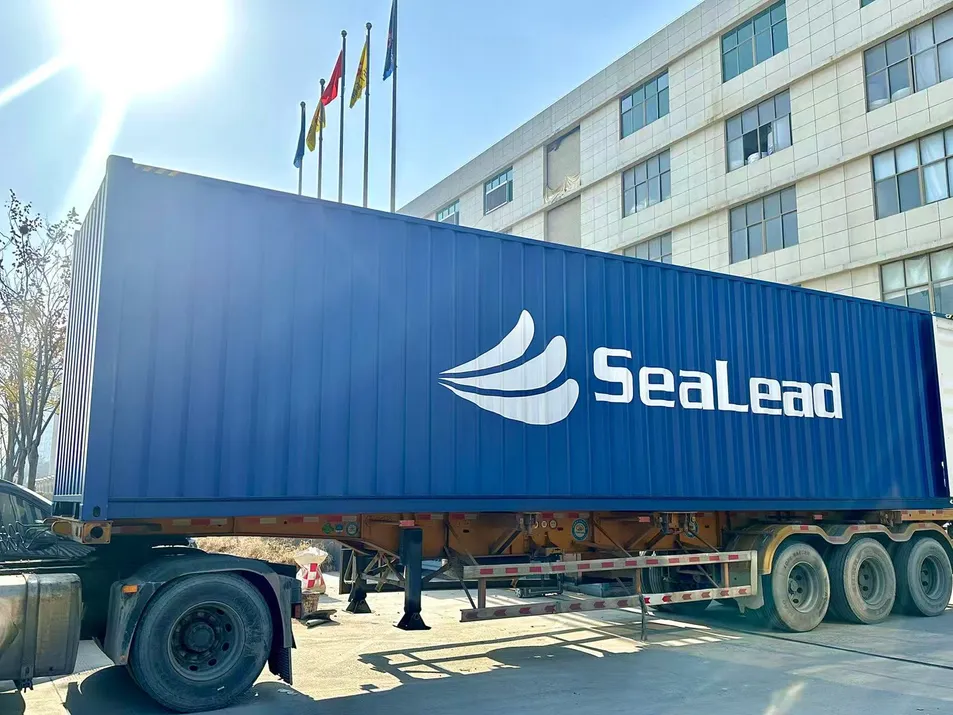

Packing 1

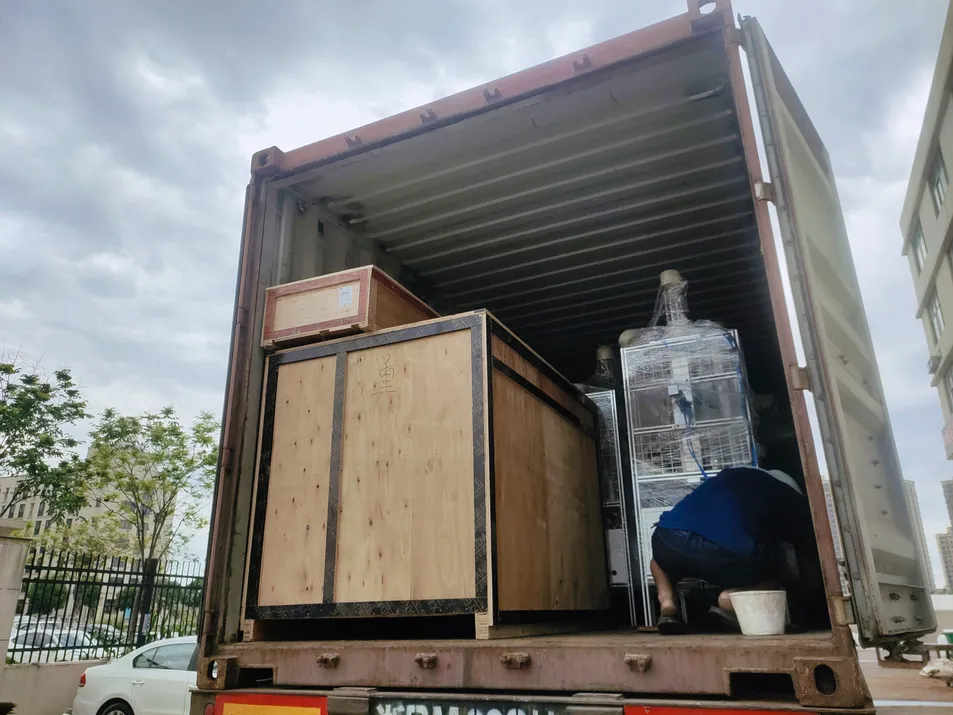

Packing 2
🏭

Production Environment

Factory 1

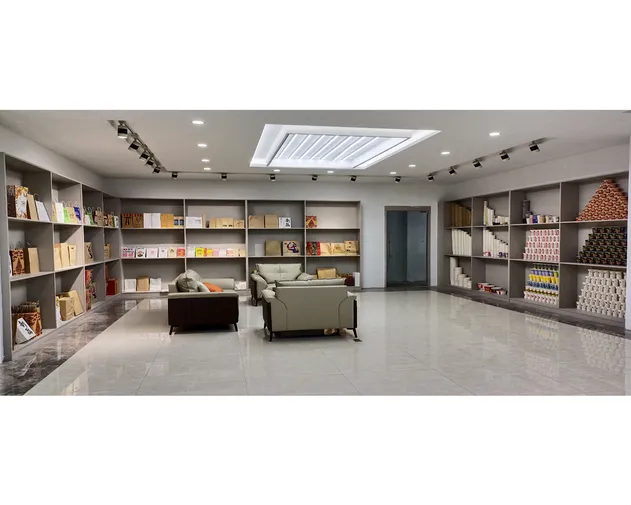

Factory 2

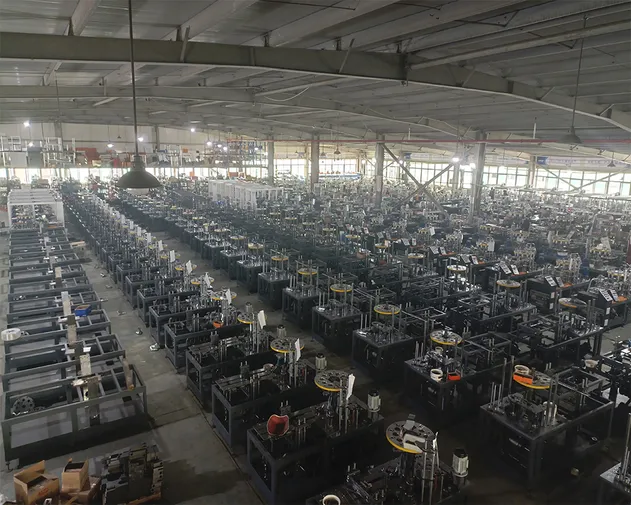

Factory 3
If you want to know more details about our machine, please contact us any time!
❓

Frequently Asked Questions (FAQ)

What range of cup sizes can the XL-WT100 machine produce?
The machine is versatile and can produce ripple wall and hollow corrugated paper cups ranging from 4 oz to 16 oz.
What is the maximum production speed?
The XL-WT100 features a stable production speed of 100 to 110 pieces per minute, depending on the material and cup size.
What kind of paper material is required for operation?
The machine requires single or double-side PE coated paper with a thickness range of 180 to 330 GSM.
How does the intelligent control system help with maintenance?
The system includes hardware monitoring and fault self-diagnosis. It displays detailed error messages on the touch screen, allowing for rapid troubleshooting and minimal downtime.
What lubrication method does the machine use?
The machine uses an automatic spray lubrication system, which ensures all drive components remain well-oiled for smooth operation and longevity.
Is the machine suitable for both hot and cold drink cups?
Yes, the machine is specifically designed for producing laminated hollow corrugated cups suitable for both hot and cold beverage applications.
