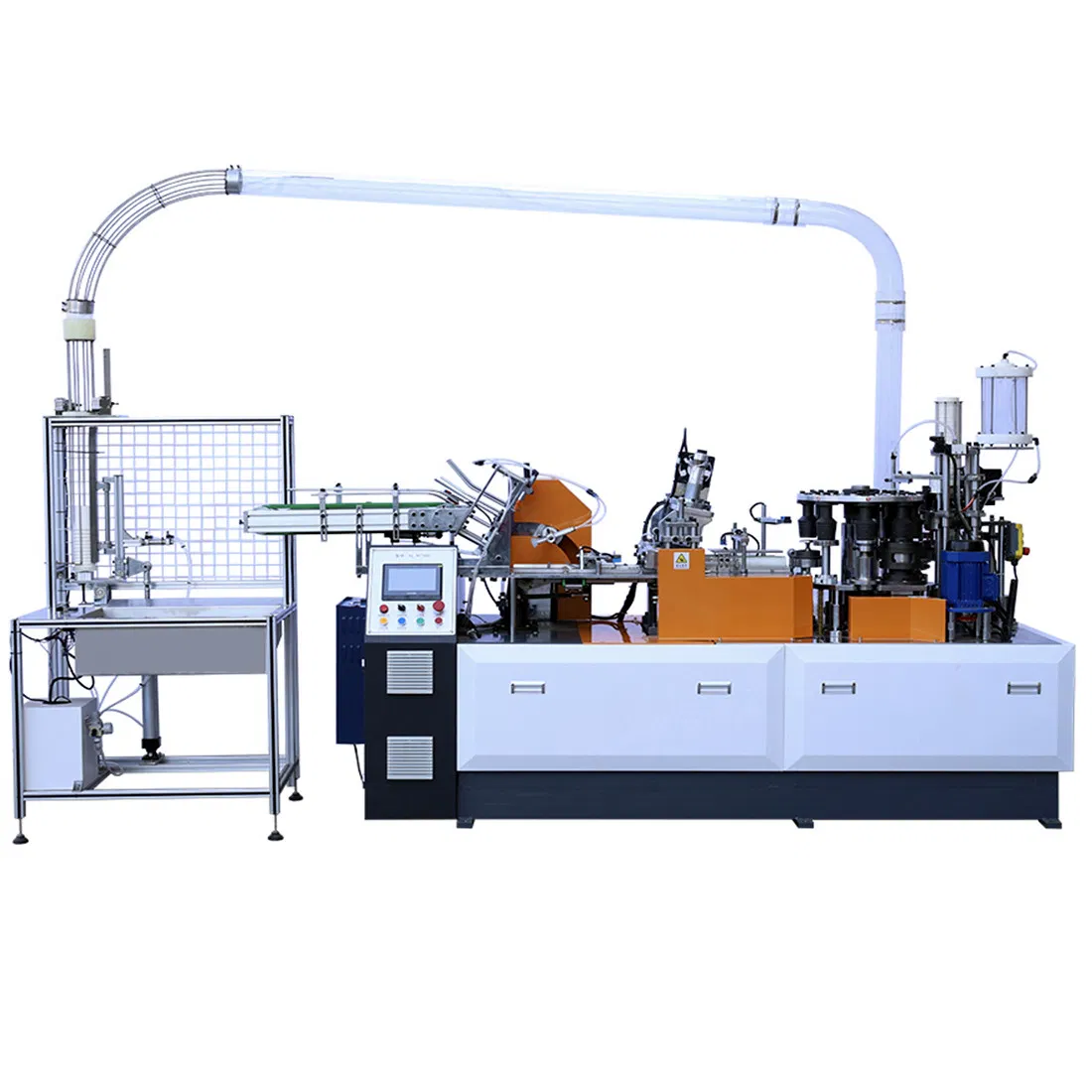

XL-Wt100 Hot Sale Disposable Paper Cup Ripple Wall Forming Machinery

Customization:	Available
Warranty:	12 Months
Applicable Objects:	Beverage

i

Basic Information

Model NO.

XL-WT100

Cup Size

4-16 Oz

Speed

100-110 PCS/Min

Required Paper

Single/Double PE Coated

Automation

Automatic

Certification

CE

Machine Weight

2000 Kg

Power

5.5 Kw

Electricity

380V 50Hz, 3 Phases

Cup Material

180-330 GSM

HS Code

8441309000

Capacity

1000 Set

P

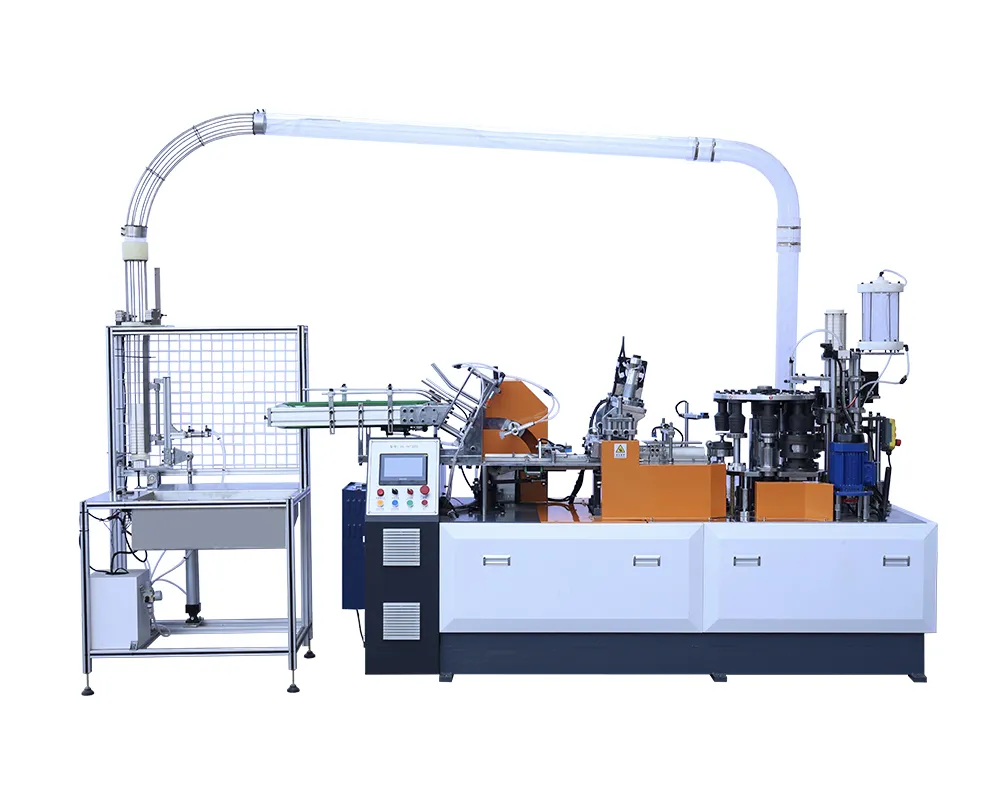

Product Description

Mechanical Behavior

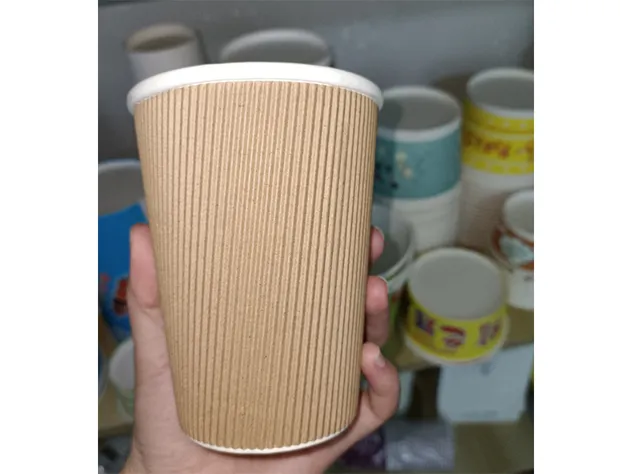

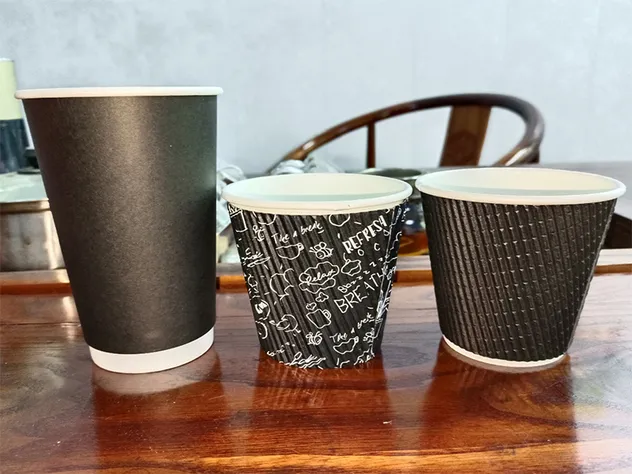

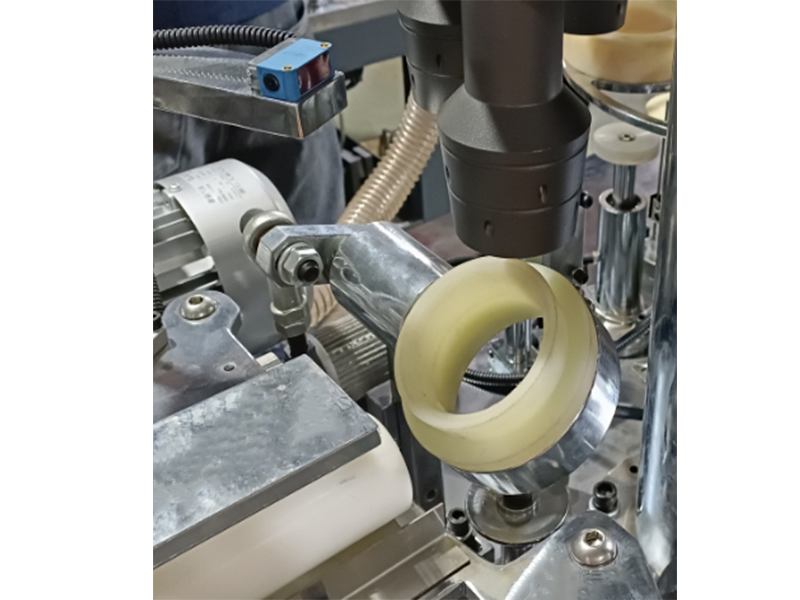

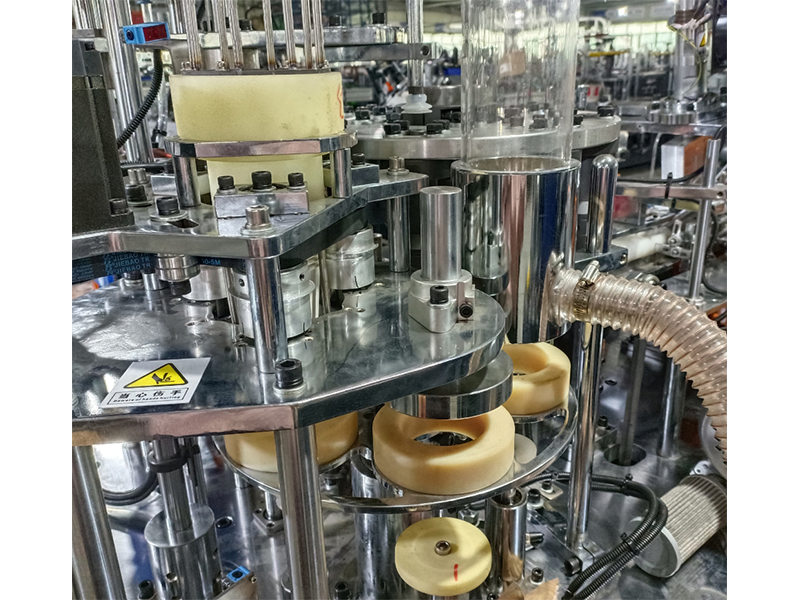

The externally laminated hollow corrugated cup machine features a tabletop layout, isolating the drive components and molds. With the drive components located below the platform and the molds above, this layout facilitates cleaning and maintenance. The machine utilizes automatic spray lubrication, a longitudinal drive structure, an open cylindrical grooved wheel indexing mechanism, and a gear drive, ensuring overall stability and quality. PLC, photoelectric tracking, and servo feed control are used for electrical components. With a production capacity of 80-100 t/min, this machine is suitable for producing 5-16 oz. hot and cold laminated hollow corrugated cups. The upgraded paper suction mechanism provides more stable paper suction.

S

Technical Specifications

Parameter	Details
Model	XL-WT100
Cup Size Range	4-16 oz
Production Speed	100-110 pcs/min
Machine Weight	2000 kg

C

Intelligent Control System

01

Multiple module models: Simple window prompts guide you through selecting the model you want to set.

02

Flexible parameter settings: You can back up, restore, or revert parameters to factory settings. You can also manually modify parameters in detail.

03

Fault self-diagnosis: Encoder hardware installation requires no consideration of location; simply configure the software.

04

Automatic parking configuration: Rapid deceleration in less than one turn. The machine automatically calculates inertia distance.

05

Hardware monitoring system: PLC features extended real-time line monitoring. Abnormal alarms on the touch screen indicate the cause of the fault for easy troubleshooting.

D

Packing & Delivery

G

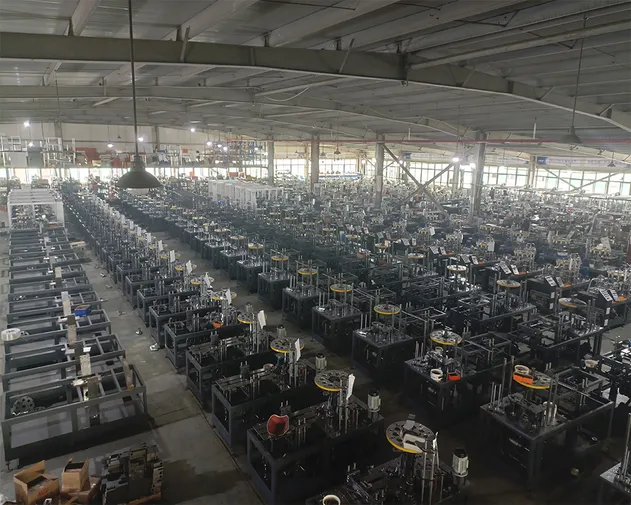

Production Gallery

?

Frequently Asked Questions

What is the production speed of the XL-WT100?

The machine operates at a high speed of 100-110 pieces per minute, depending on the cup size and material.

What range of cup sizes can this machine produce?

It is designed to produce disposable paper cups ranging from 4 oz to 16 oz.

What type of paper is compatible with this machinery?

The machine works efficiently with both single and double-side PE coated paper, with a weight range of 180-330 GSM.

How does the intelligent control system help in maintenance?

The system includes hardware monitoring and fault self-diagnosis. Abnormal alarms on the touch screen provide detailed fault information, allowing for rapid troubleshooting.

Is the machine easy to clean and maintain?

Yes, the tabletop layout isolates drive components from the molds, and it features an automatic spray lubrication system to ensure clean and stable operation.

What are the power requirements for installation?

The machine requires a 380V 50Hz, 3-phase electricity supply and has a power rating of 5.5 Kw.
