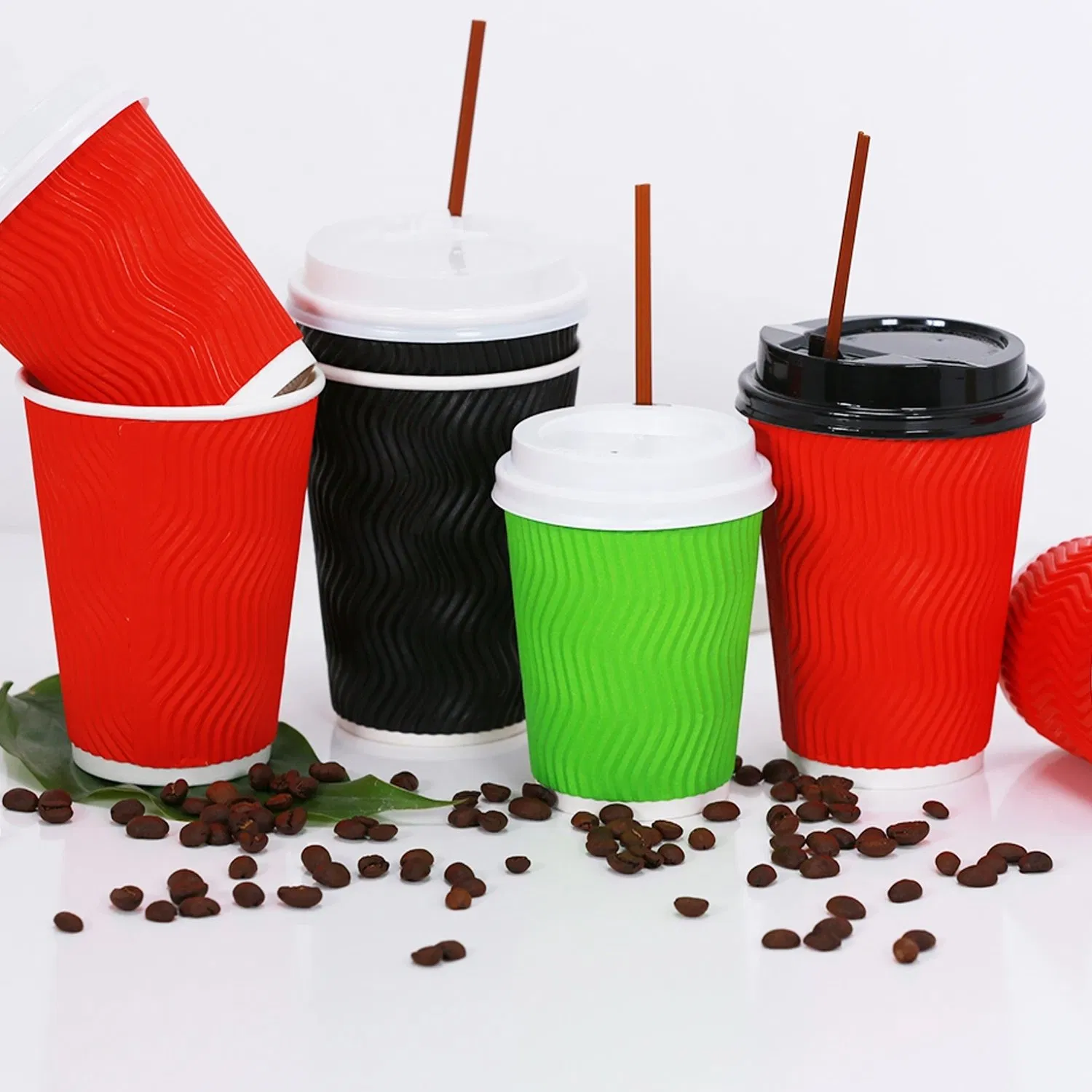

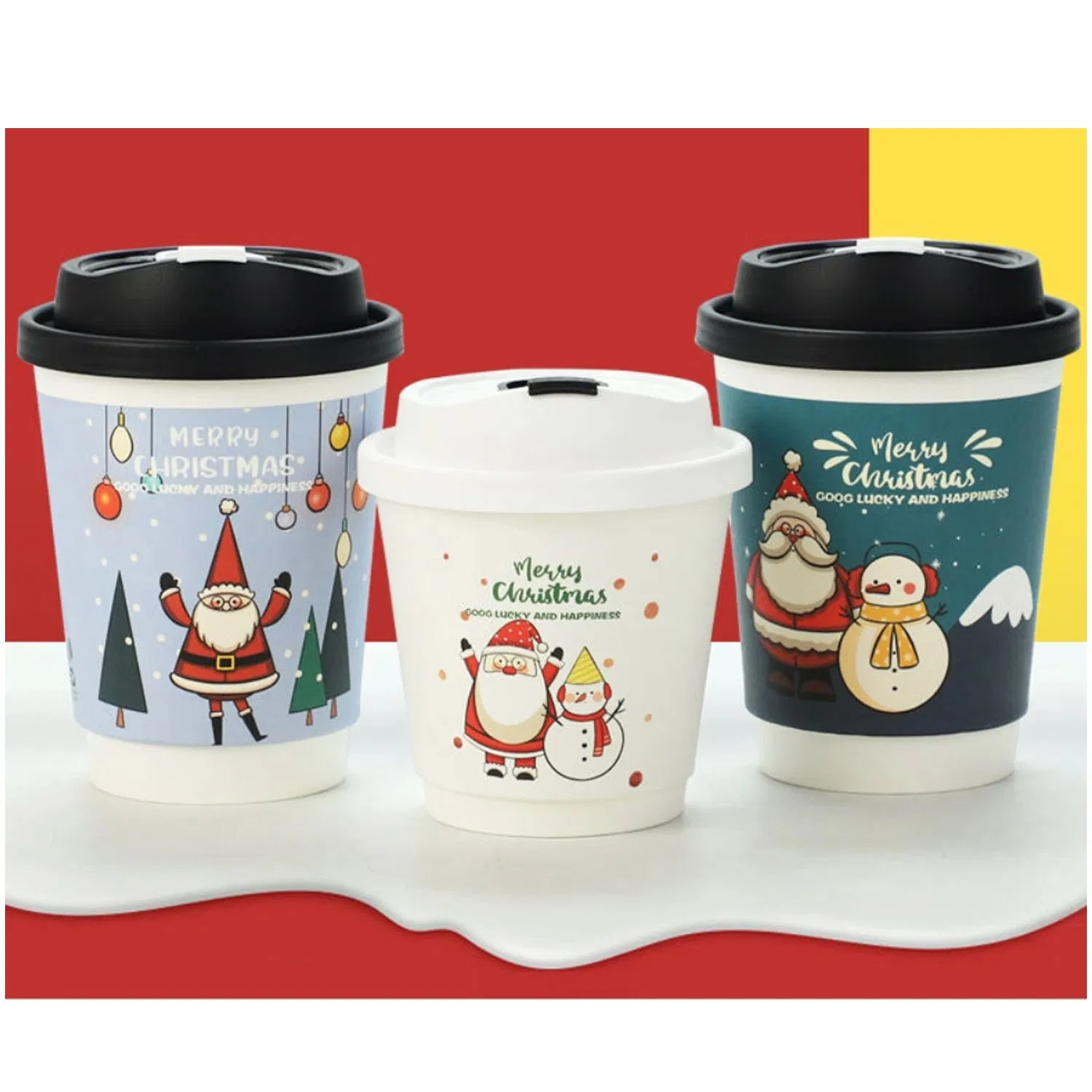

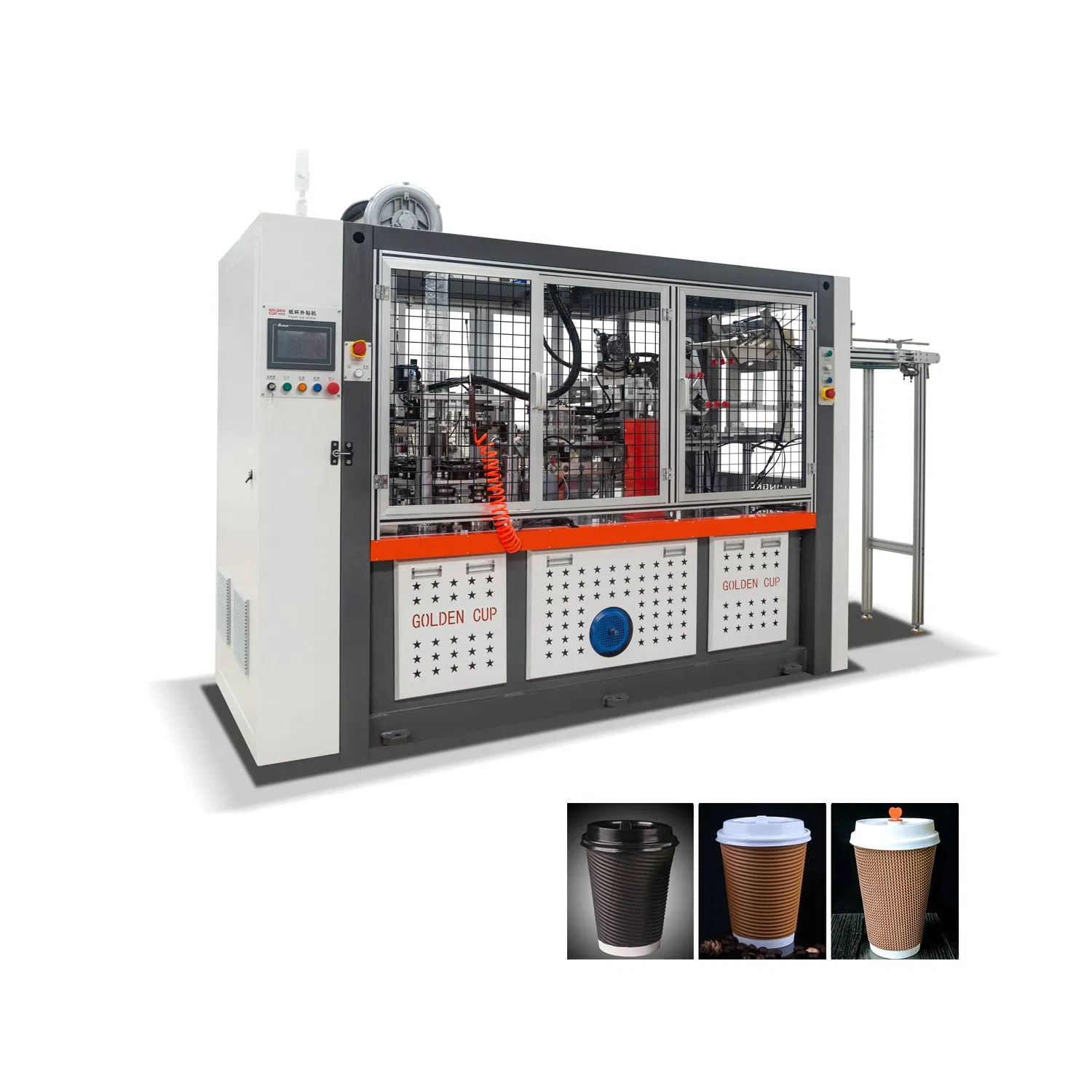

Xsl-16W Paper Cup and Bowl Sleeve Making and Forming Machine Double Wall Paper Cup Machine

Basic Information

Model NO.

XSL-16W

Cup Size

4-16oz

Speed

100-120pcs/min

Required Paper

Single/Double PE/PLA/Water Based Paper

Automation

Automatic

Certification

CE

Weight

3600kgs

Power

3 Phase, 380V, 6kw

Product Description

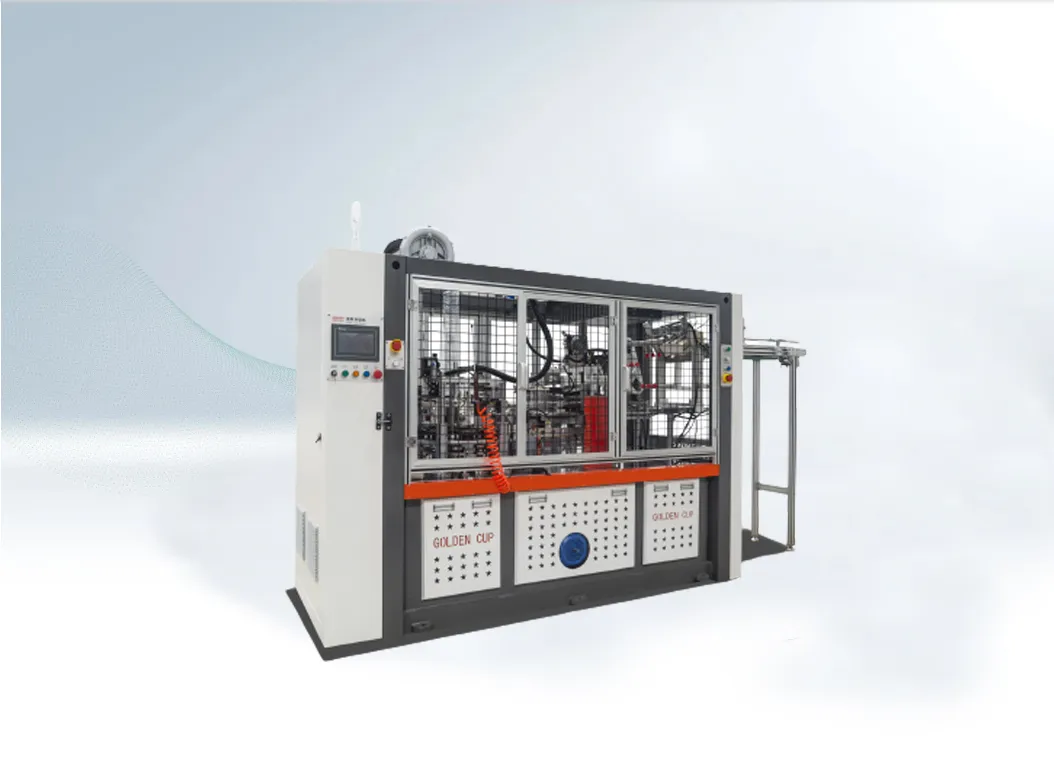

The XSL-16W double wall sleeve machine features a tabletop layout that effectively isolates the forming parts from the transmission parts. The entire system is controlled by a high-precision PLC, with photoelectric sensors monitoring the full process. Glue spraying is handled by a servo system, making it the ideal equipment for manufacturing various types of sleeve cups with high efficiency and stability.

Technical Parameters

Technical Specifications
Model	XSL-16W Double Wall Paper Cup Sleeve Machine
Suitable Size	Top: 60-95mm \| Bottom: 40-75mm \| Height: 50-135mm
Production Speed	100-120 pcs/min
Paper Request	170-300gsm Single/Double PE Paper
Machine Size	2600 * 960 * 2120mm
Air Consumption	0.3Mpa

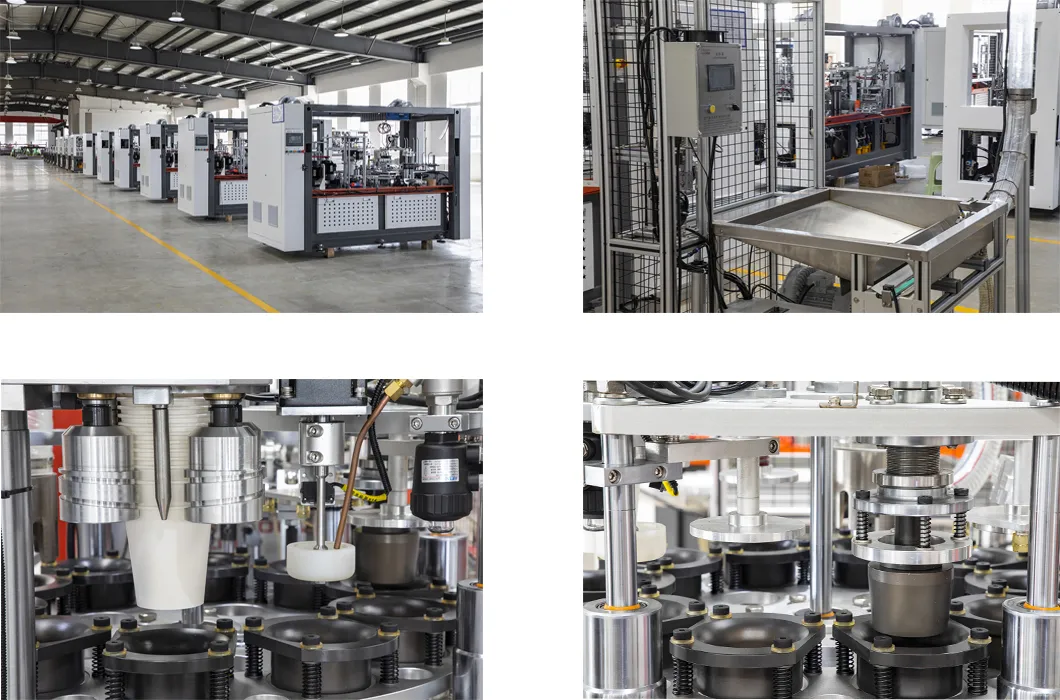

Machine Details

Advanced Engineering: Our machinery utilizes components from renowned international brands for main electrical parts. Bearings are sourced from Japan, and molds are crafted from high-quality materials similar to those used in aviation. The transmission utilizes cam and gear mechanisms, eliminating chains and incorporating a spray circulating lubrication system.

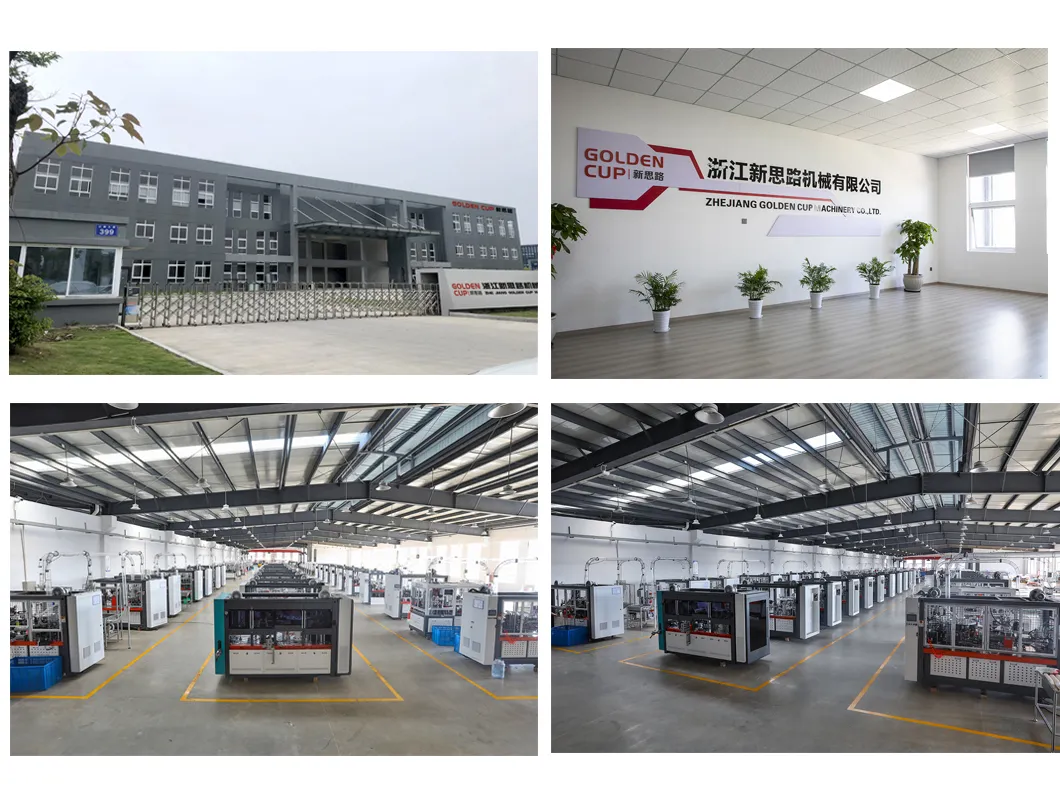

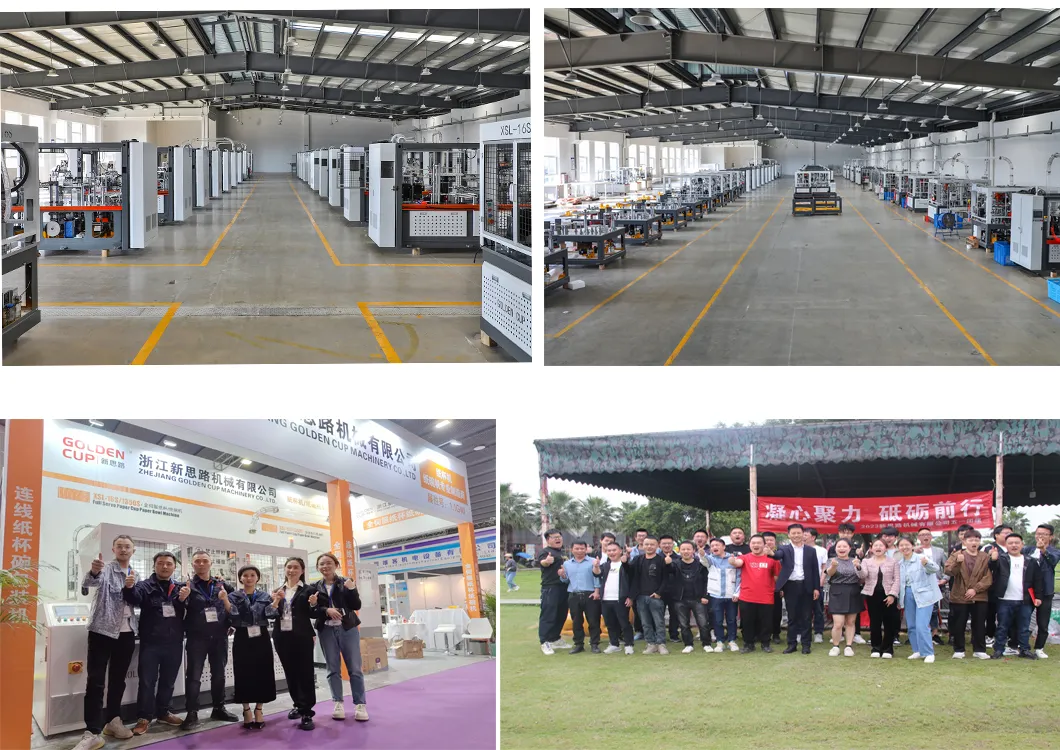

Workshop & Packaging

Frequently Asked Questions

What is the production range for this machine?

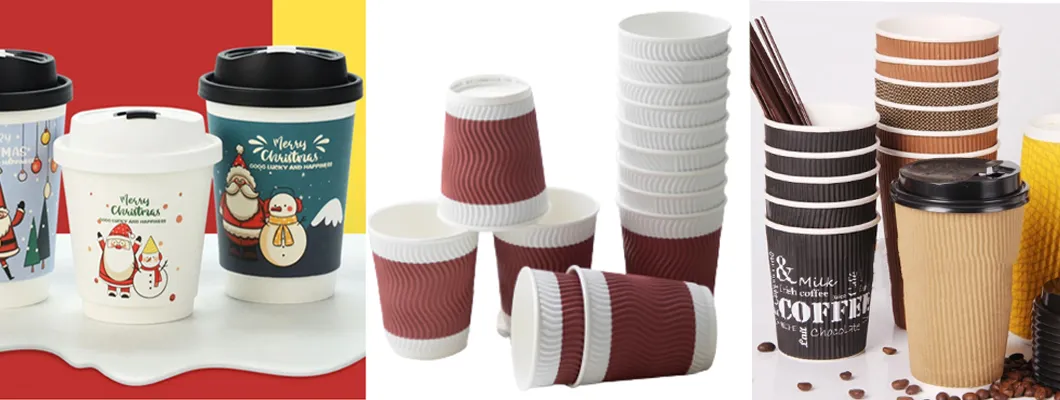

The machine can produce sleeve cups ranging from 4oz to 16oz. For other non-standard sizes, we can check and confirm based on specific requirements.

What is the standard production speed?

The XSL-16W operates at a stable speed of 100-120 pieces per minute, depending on the cup size and paper quality.

What are the payment and delivery terms?

Typically, 30% of the total payment is required in advance, with the balance due before delivery. The standard lead time is generally 45 working days after deposit and drawing confirmation.

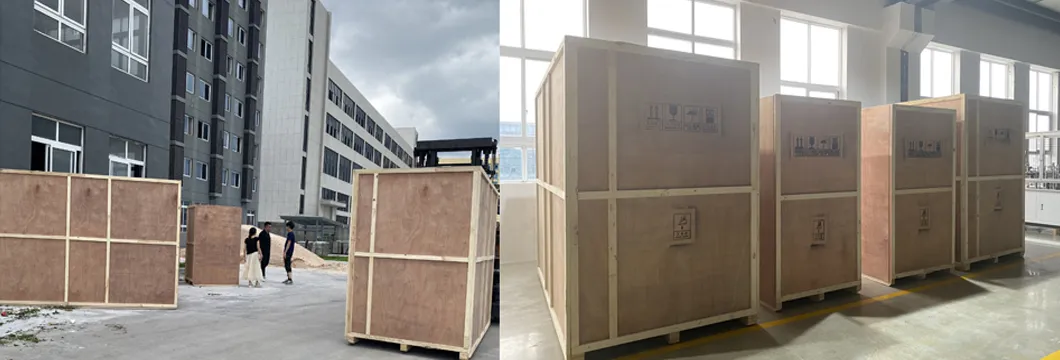

How is the machine packaged for international shipping?

All machines are securely packed in professional wooden cases to ensure protection during sea transportation.

What is the warranty period for the machine?

We provide a 3-year warranty for the cam transmission parts and a 1-year warranty for electrical components, along with lifetime maintenance services.

How do you handle technical support and maintenance?

We offer training for your operators on how to maintain the machine. If problems arise, our technical department provides immediate support via phone or video guidance.
