Zb-Nb The Most Popular Paper Cup with Handle Machine

1 / 5

Zb-Nb The Most Popular Paper Cup with Handle Machine

Customization:	Available
Applicable Objects:	Beverage
Cup Size(Ounce):	6-12oz

Send Inquiry

Product Description

⚙️ Basic Specifications

Model NO.

ZB-NB

Speed

40-50 PCS/Min

Automation

Automatic

Certification

Required Paper

Single/Double Side PE Coated

General Power

6kw

Weight

1800kg

Air Source

0.6MPa

Measurement

3000*1400*1700mm

HS Code

8441309000

📝 Product Description

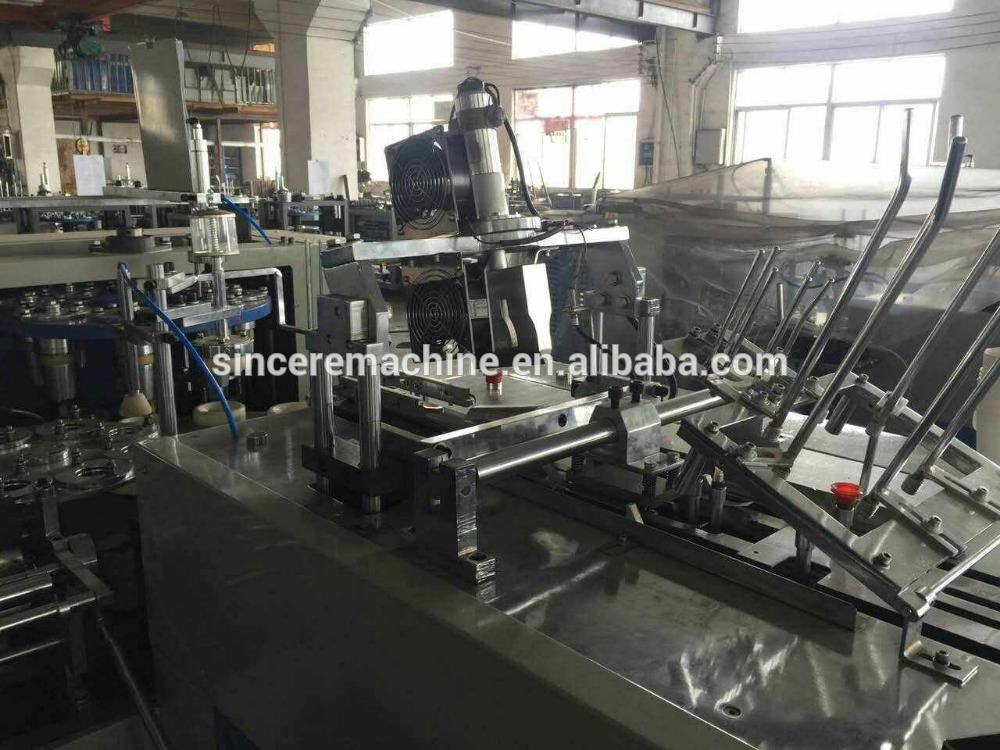

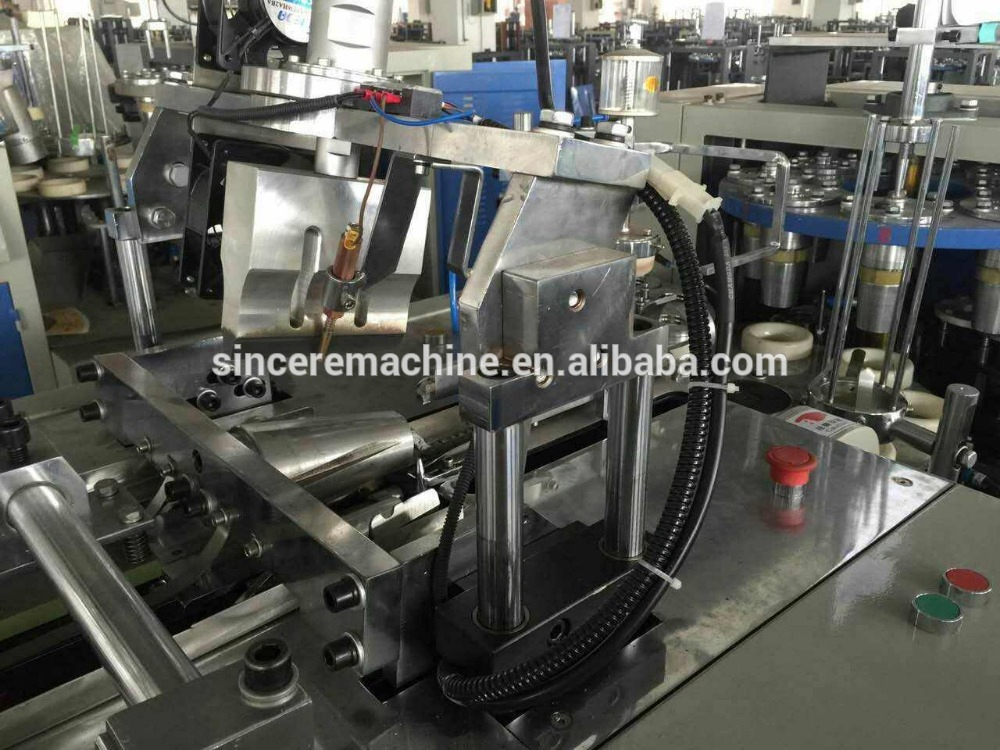

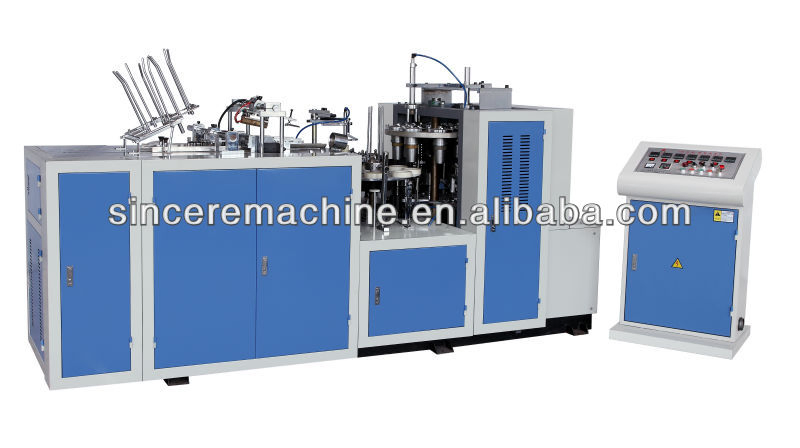

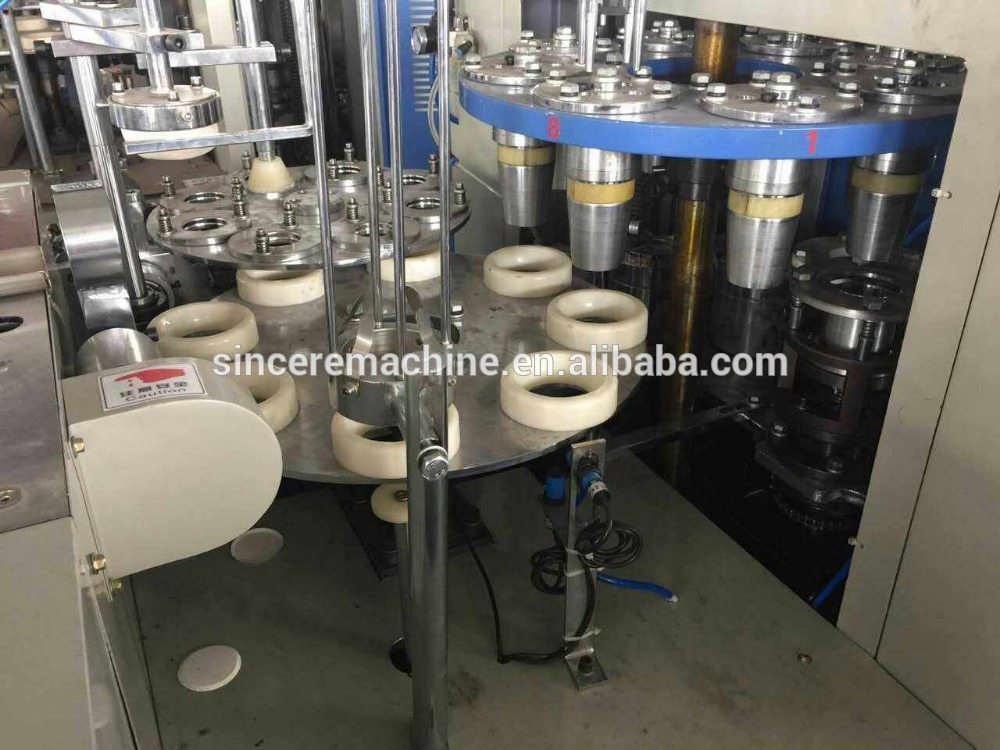

The ZB-NB paper cup with handle machine is a high-performance automatic machine featuring a multi-working station design. It streamlines the entire production process, including automatic paper cup wall feeding, paper handle feeding, handle sticking, top cup lubrication, bottom punching, heating, knurling, curling, and cup stacking.

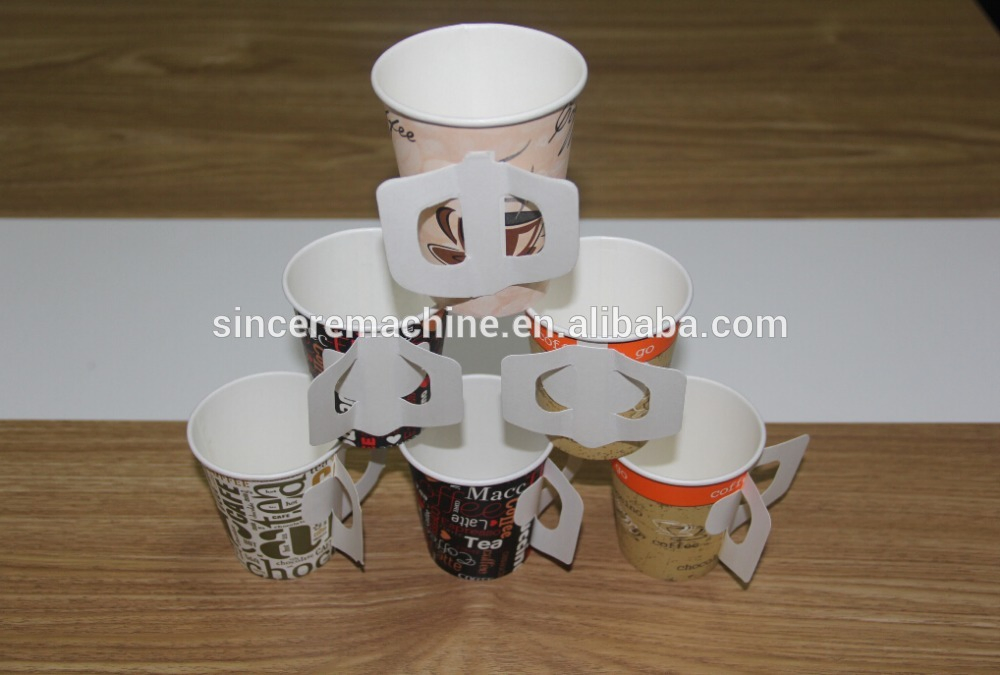

This versatile equipment is designed to produce both standard cups and cups with handles. These products are ideal for hot beverages, such as soft drinks, tea, and coffee.

📊 Main Technical Parameters

General Power	6kw
Paper Request	150-350g/m²
Voltage Supply	220v 50hz / 380v 50hz / Customized
Cup Size	6-12oz
Speed	40-50 pcs/min
Weight	1800kg
Measurement	3000 * 1400 * 1700mm
Air Source	0.6Mpa

🖼️ Product Showcase

❓ Frequently Asked Questions

What types of cups can the ZB-NB machine produce?

This machine is highly versatile; it can produce both standard paper cups and paper cups with handles, specifically suitable for 6-12oz sizes used for hot drinks like coffee.

What is the production speed of this equipment?

The machine operates at a stable speed of 40 to 50 pieces per minute, depending on the material and cup specifications.

What kind of paper material is required?

It supports single or double-side PE coated paper with a weight range between 150g/m² and 350g/m².

How is the machine maintained if a technical issue occurs?

The machine is designed for easy operation. Technical support is provided via video demonstrations or email instructions. Engineers are also available for overseas service if required.

What certifications does the ZB-NB machine have?

The equipment is fully certified with CE, BV, and SGS standards, ensuring compliance with international safety and quality regulations.

Can the voltage be customized for my country?

Yes, while the standard is 220V/380V 50Hz, we can customize the voltage supply to meet your specific local industrial requirements.
