2025 New Design Manufacturer of High Speed Paper Cup Making Machine

📋 Product Overview

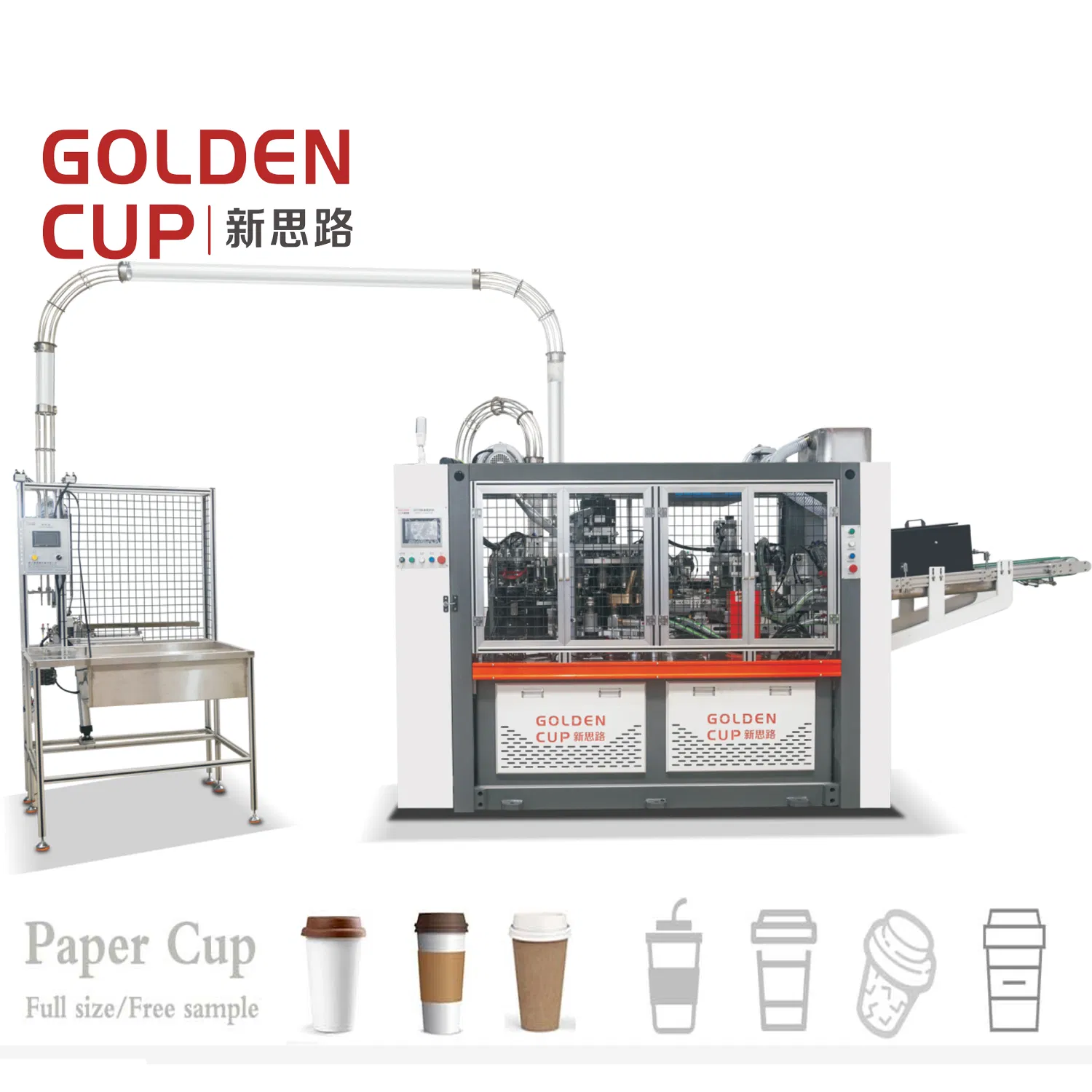

The XSL-16TS high-speed paper cup machine features a tabletop layout that effectively isolates forming parts from transmission components. The system utilizes a longitudinal shaft, barrel indexing cam, gear transmission, and servo motor control for precision operation. Automatic spray lubrication ensures all transmission parts run smoothly and durably.

Key Features:
• PLC Controlled with photoelectric sensor monitoring.
• Servo-driven feeding system.
• Optional visual inspection system for quality assurance.

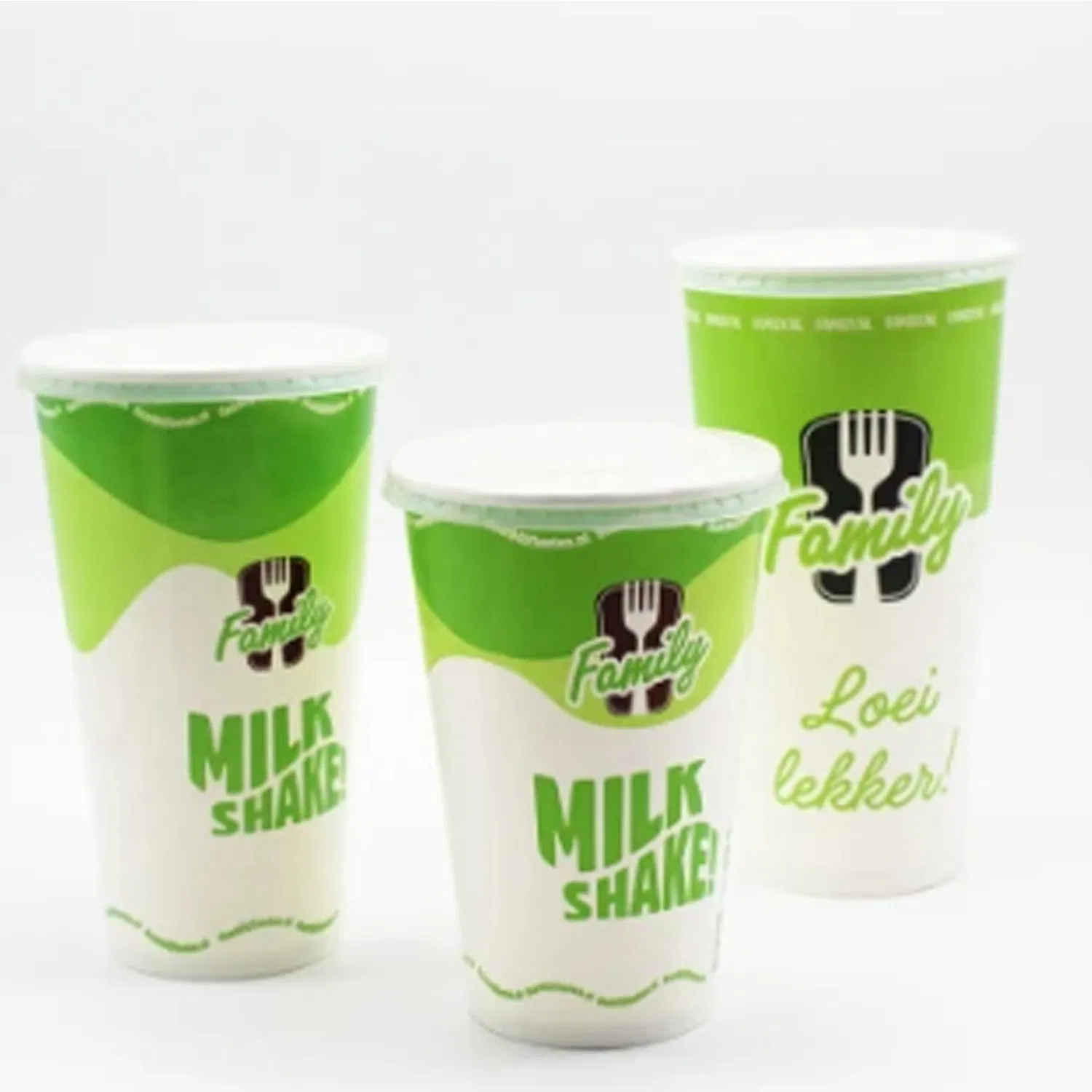

• Suitable for 2.5-8 OZ cold and hot drink cups.

⚙ Technical Parameters

Model	XSL-16TS High Speed Paper Cup Machine
Suitable Size	Top: 50-80mm \| Bottom: 35-55mm \| Height: 50-90mm
Production Speed	140-170 PCS/min
Paper Requirement	150-380GSM Single/Double PE, PLA, or Water-based Paper
Total Power	3 Phase, 380V, 50Hz, 18KW-21KW
Weight	2800 kgs
Dimensions (LWH)	3400 * 1500 * 1900 mm
Air Consumption	0.6-0.8 m³/min

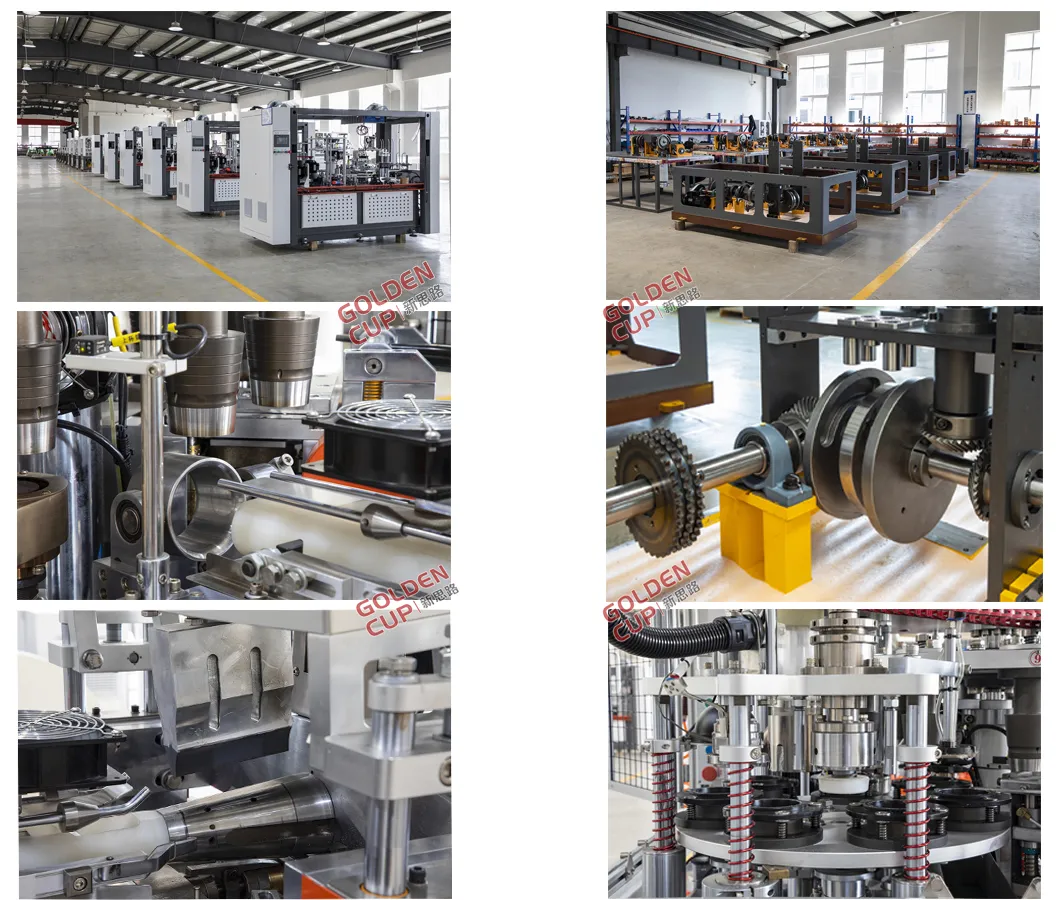

📷 Detailed Photos

🏭 About Our Production

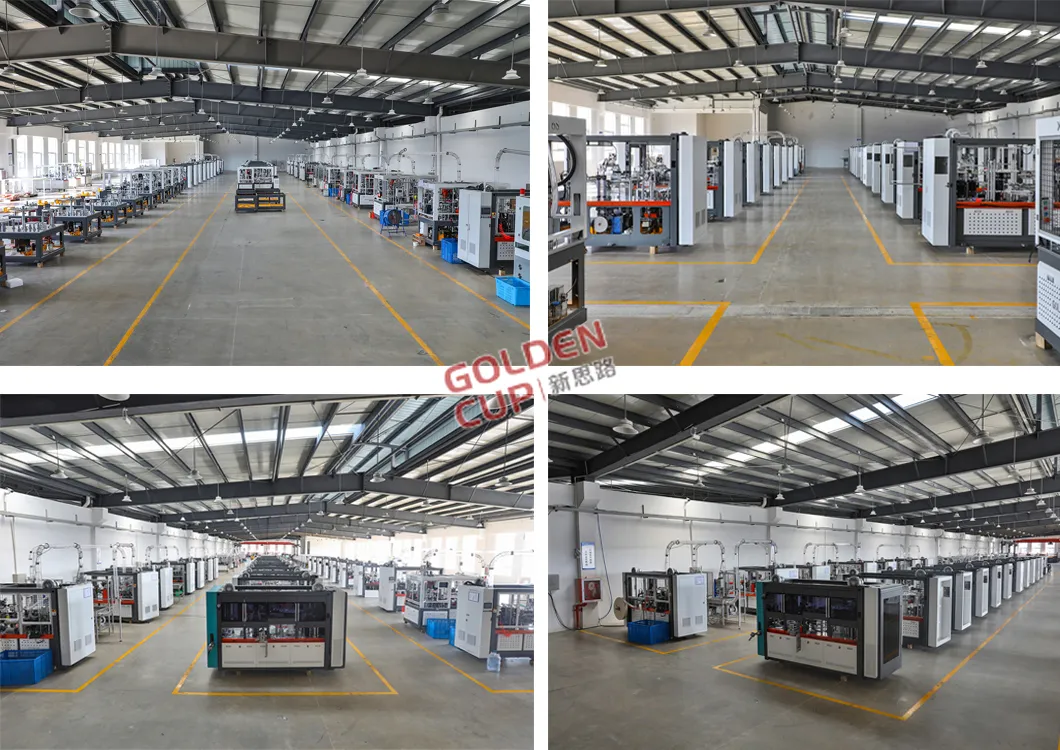

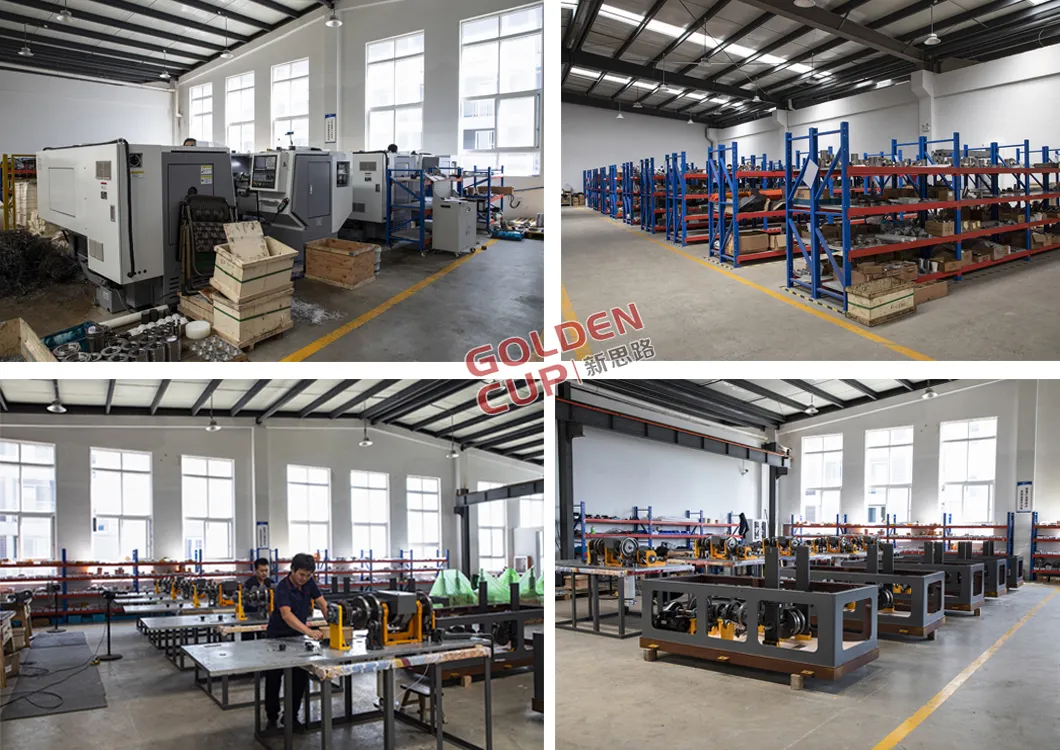

Our facility spans approximately 10,000 square meters and is equipped with advanced production capabilities. We specialize in high-speed paper cup machinery, paper bowl machines, and double-wall sleeve machines. Our equipment is designed to produce a wide range of sizes from small coffee cups to large bowls.

To ensure high performance, we integrate components from renowned international brands. Key bearings are sourced from premium suppliers, and molds are constructed using aircraft-grade materials. The transmission utilizes cam and gear mechanisms, replacing traditional chains with a spray circulating lubrication system for increased efficiency.

📦 Workshop & Packaging

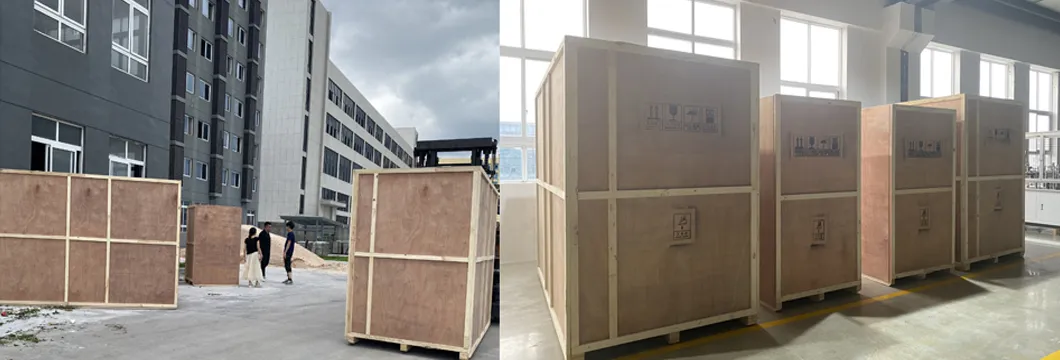

Before shipment, all products are rigorously tested and then securely packed in professional wooden cases to ensure safe international transportation.

❓ Frequently Asked Questions

What size of cups can this machine produce?

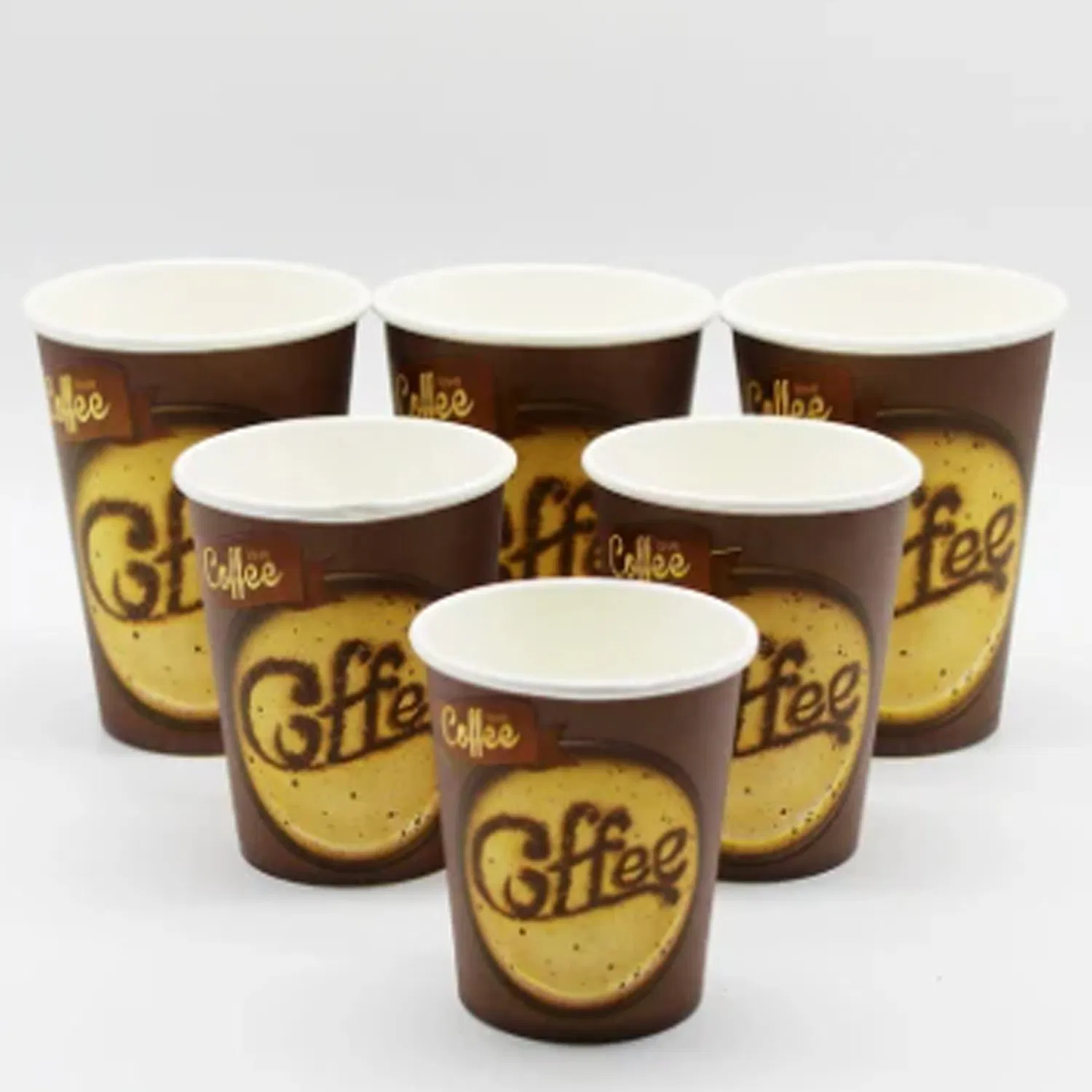

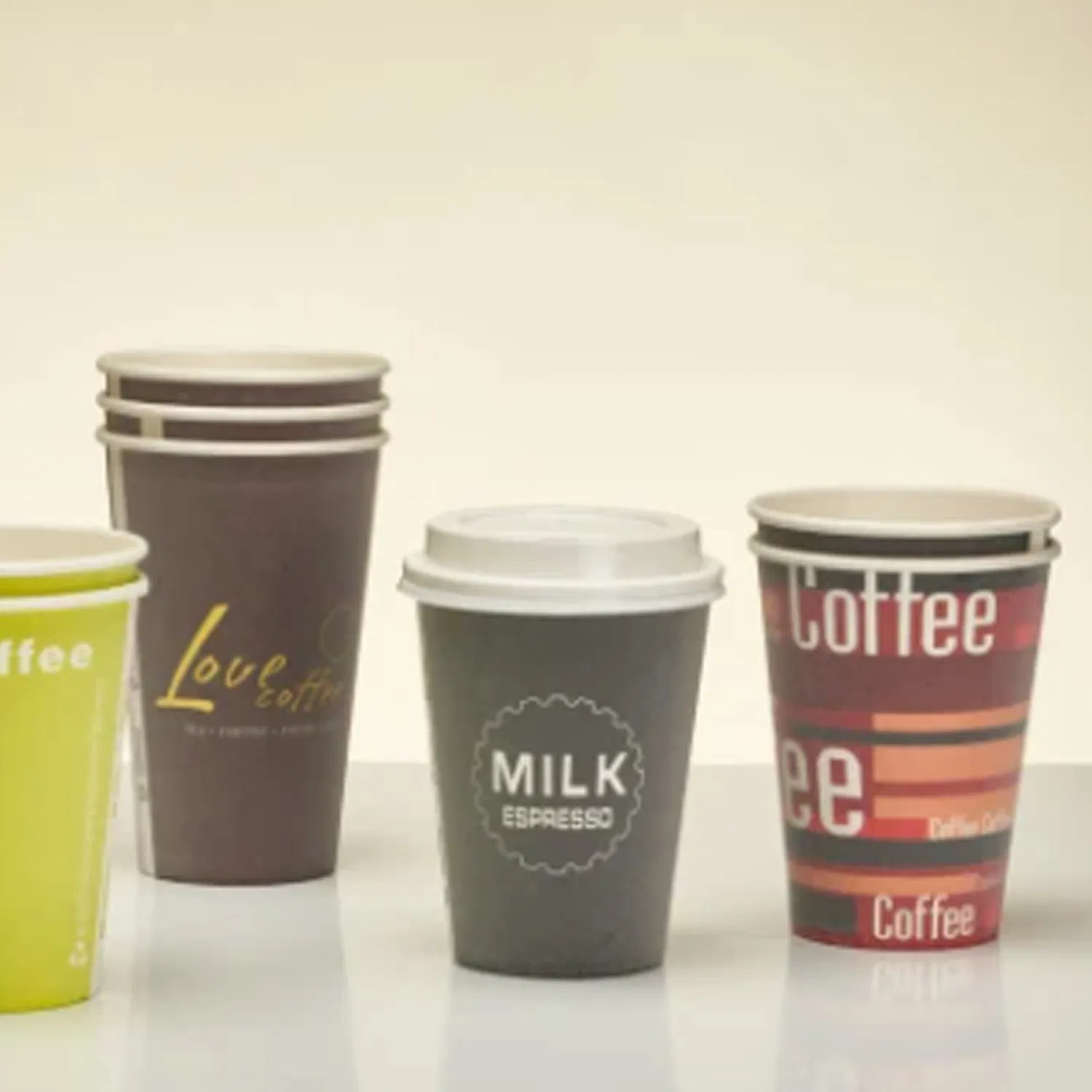

The machine can produce various sizes from 2.5OZ up to 32OZ by changing different molds. Standard and non-standard sizes can be confirmed upon request.

What is the production speed of the XSL-16TS?

The high-speed model can achieve an impressive production rate of 140-170 cups per minute, depending on the material and size.

What kind of paper materials are compatible?

It is suitable for 150-380GSM paper, including single/double PE coated paper, PLA paper, and water-based coated paper.

How is the quality of the cups ensured?

The whole process is monitored by photoelectric sensors. Additionally, we offer an optional visual inspection system to automatically identify and remove disqualified cups.

What is the warranty period for the machine?

For this machine, the cam transmission part carries a 3-year warranty, while electrical parts are covered for one year. Lifetime maintenance services are also provided.

How long does installation and training take?

Our specialists typically complete the installation and operator training within 3 working days per machine once it arrives at your facility.
