Customization: Available
Warranty: One Year
Applicable Objects: Coffee, Tea, Milk, Juice
Send Inquiry

Product Description

i

Basic Information

Model NO. YG-DP09 Cup Size 2-12OZ / 3oz--16oz
Speed 100-120pcs/min Automation Automatic
Required Paper Single and Double Side PE Coated Paper Certification CE
Power 10kw Voltage 380V / 220V
Core Components PLC, Engine, Motor, Bearing, Gearbox Condition New
★

Product Description

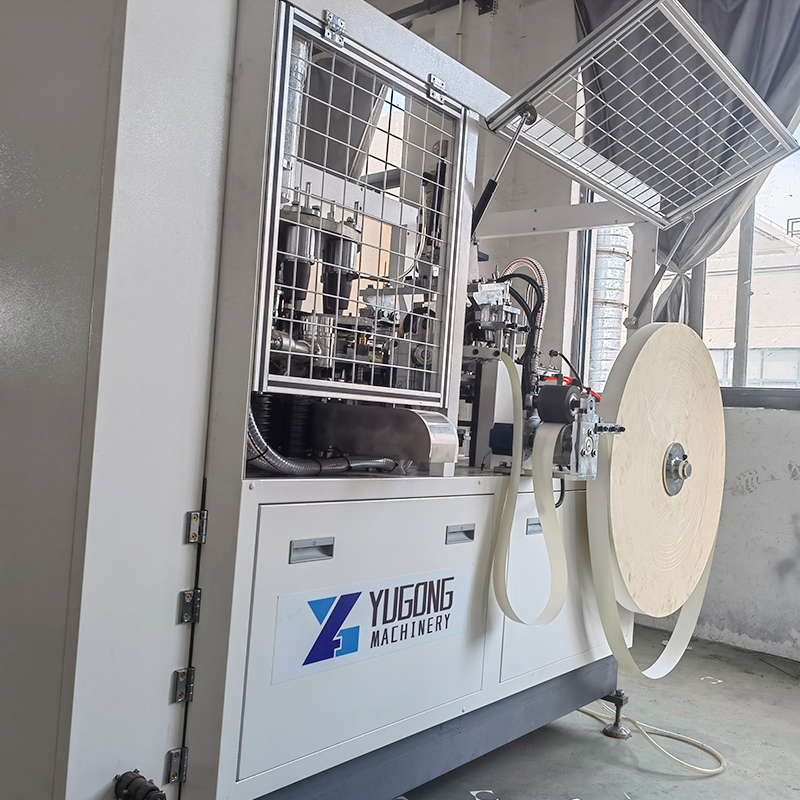

High Speed Fully Automatic Disposable Single Double Wall Coffee Ice Cream Paper Bowl Paper Cup Forming Making Machine

This new generation paper cup forming machine is a fully automatic system designed for high-efficiency production. It features multi-row paper feeding, an anti-backing device for accurate positioning, ultrasonic welding, and mechanical paper tube transfer. The continuous process includes oil injection, bottoming, pre-heating, knurling, and unloading, ensuring stable production of various specifications.

Durable Construction: Full steel plate fuselage with an interlayer paper feeding design and oil poured lubrication system for long-term stability.
High Precision: Short distance double vertical axis combined with high-precision cylinder open-type cam drive for error-free high-speed operation.
Advanced Feeding: Single wrap leaf groove cam structure and seesaw roof bar design for accurate paper placement.
Smart Monitoring: Every production step is monitored by high-quality photocells and controlled via a PLC human-computer interface.

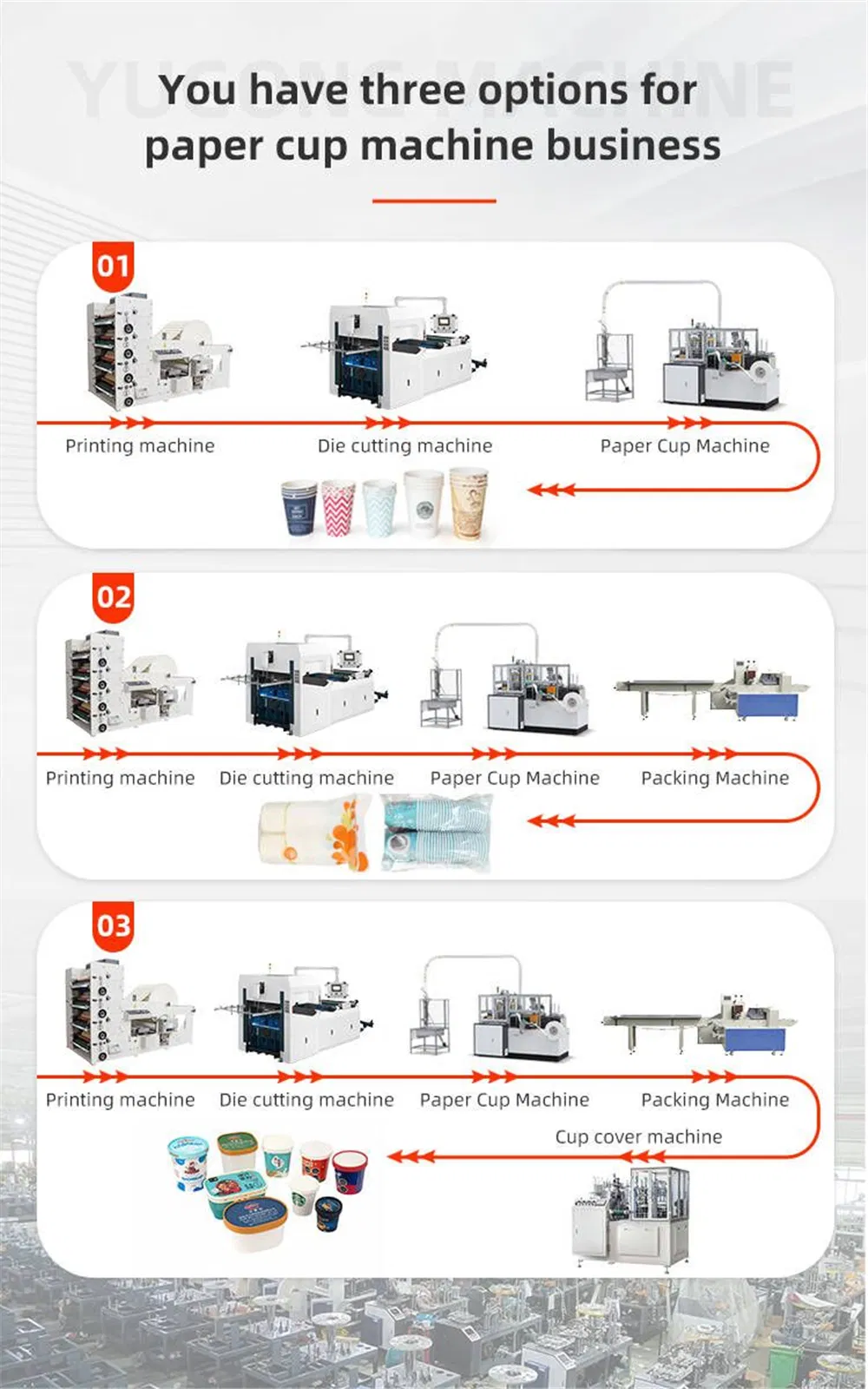

Paper Cup Machine Overview
⚙

Technical Parameters

Parameter Details
Cup Size Range 6~16oz (Diameter 60-90mm, Height 50-135mm)
Rated Speed 90-110 pcs/min
Main Motor Power 2.2KW
Applicable Paper 190~350g (Single or Double PE coating paper)
Machine Weight 3.8T
Main Dimensions 2700*1500*1800mm
📷

Detailed Photos

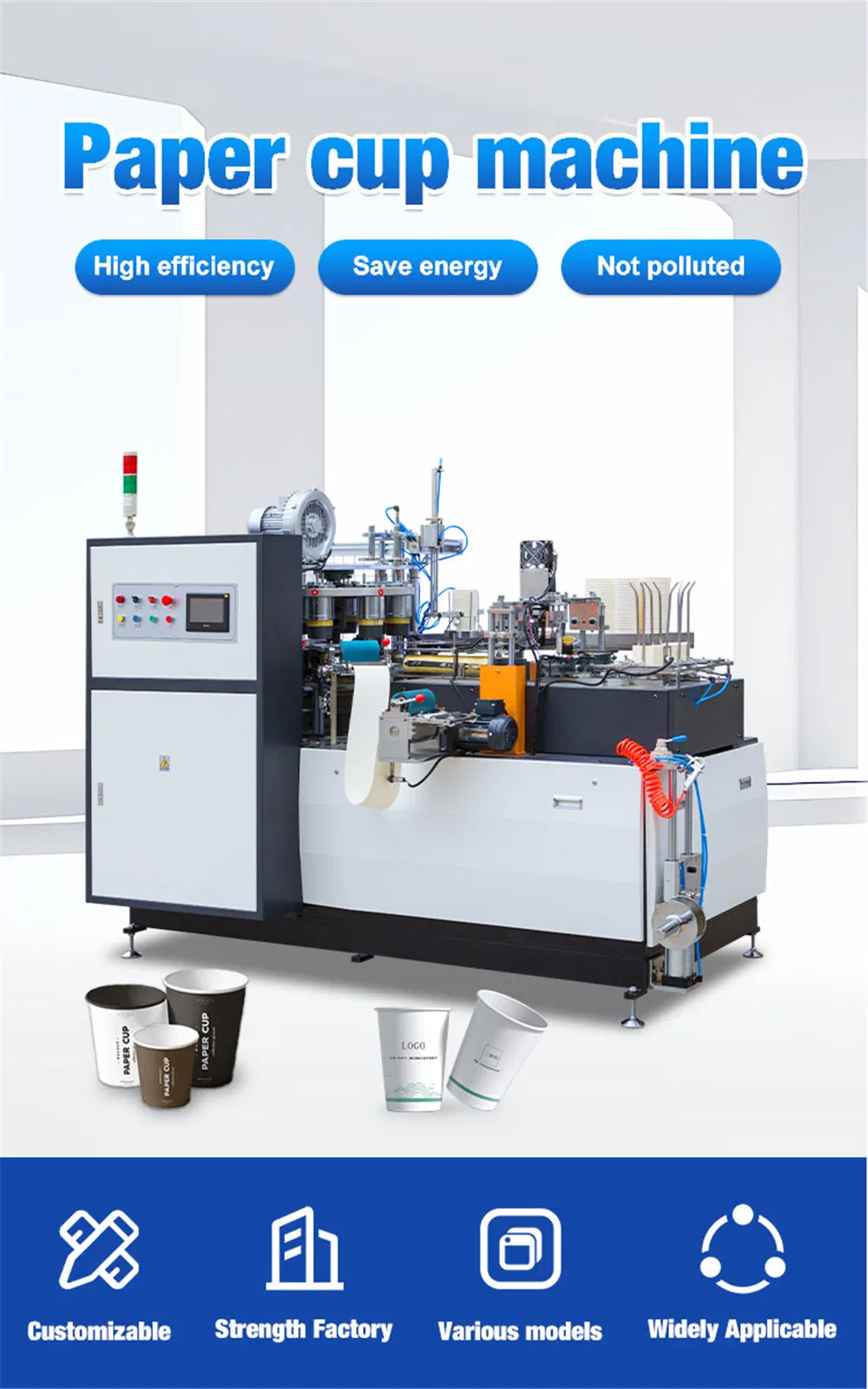

Machine Detail 1

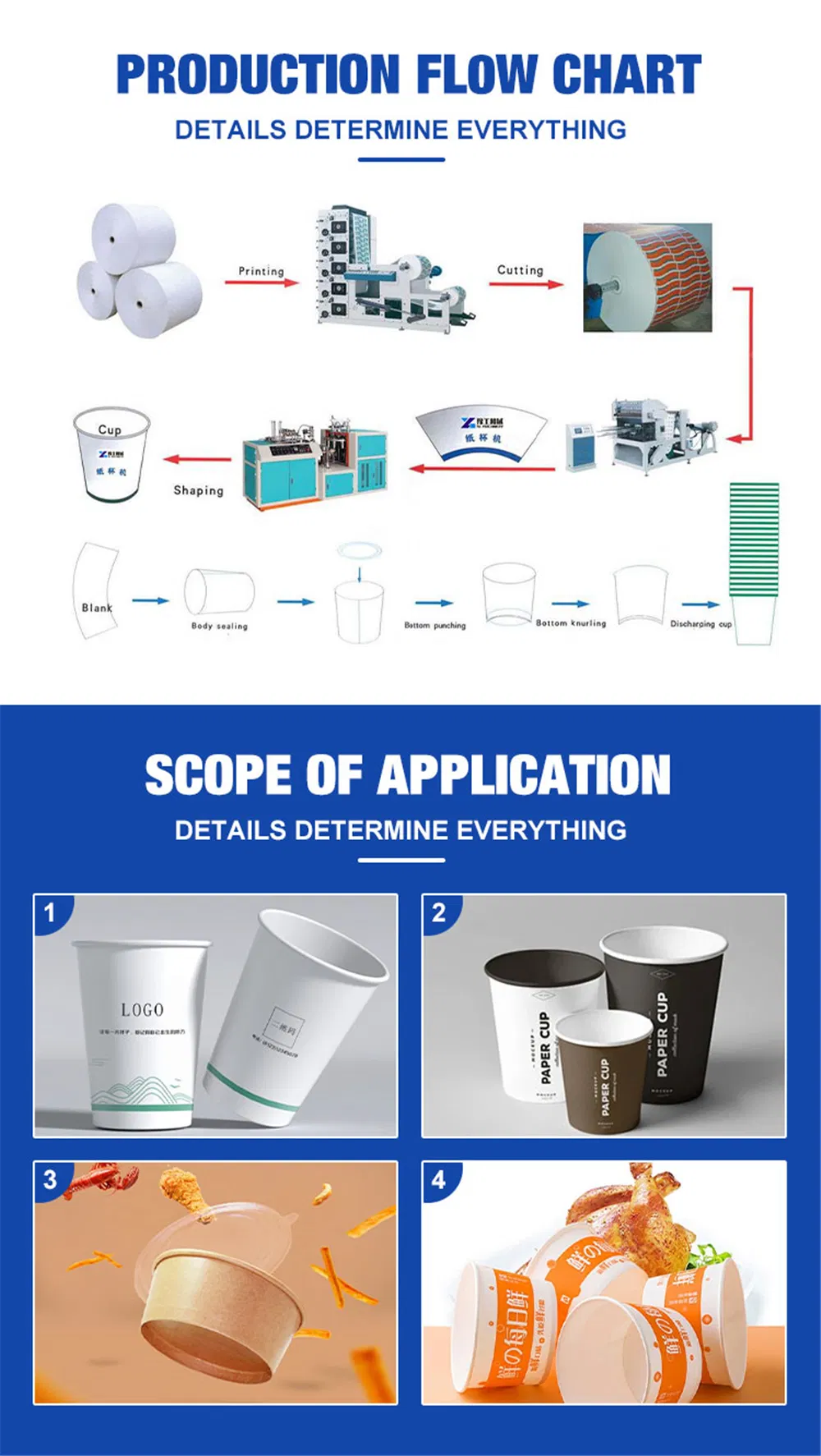

Machine Detail 2

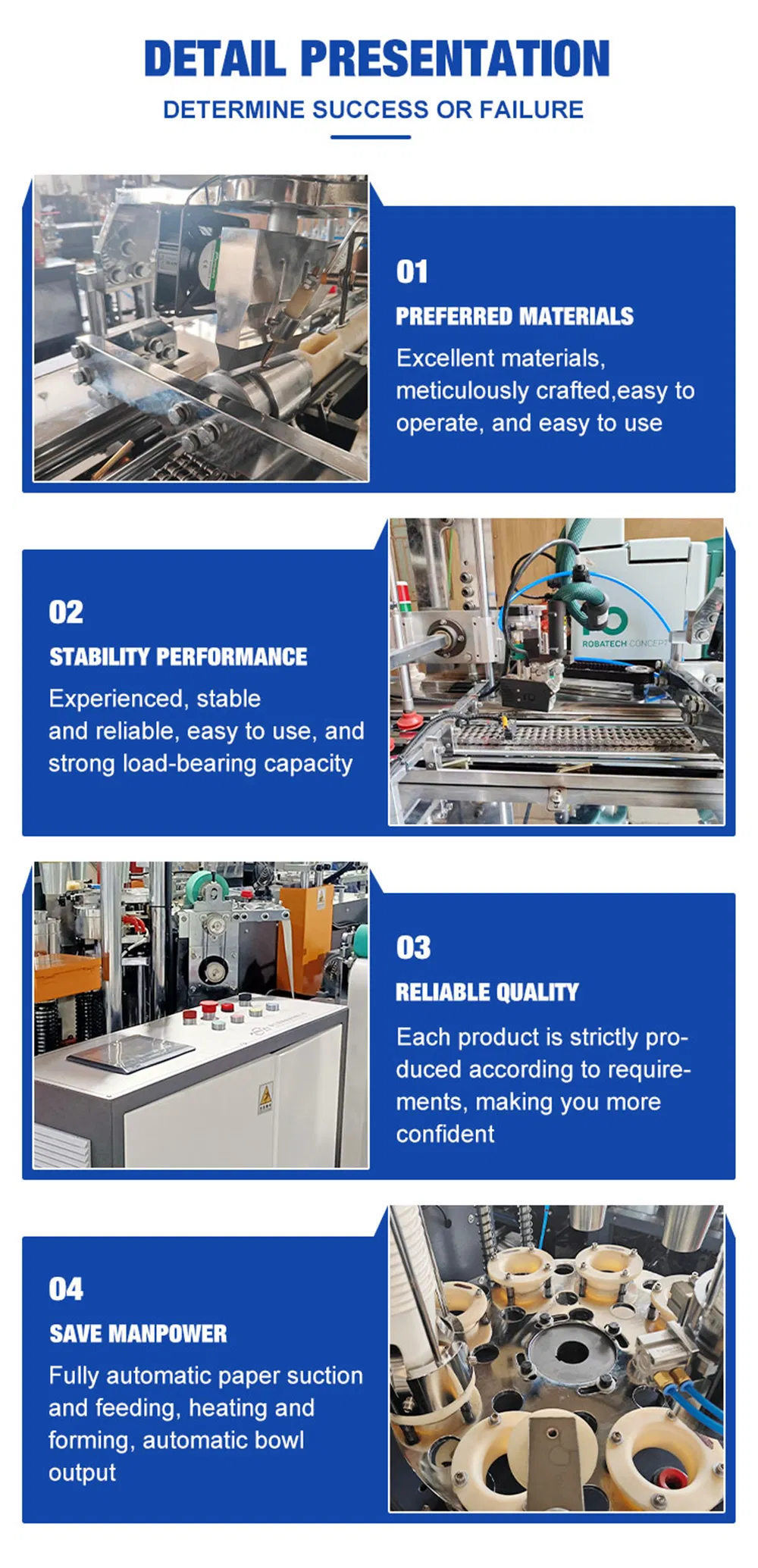

Machine Components

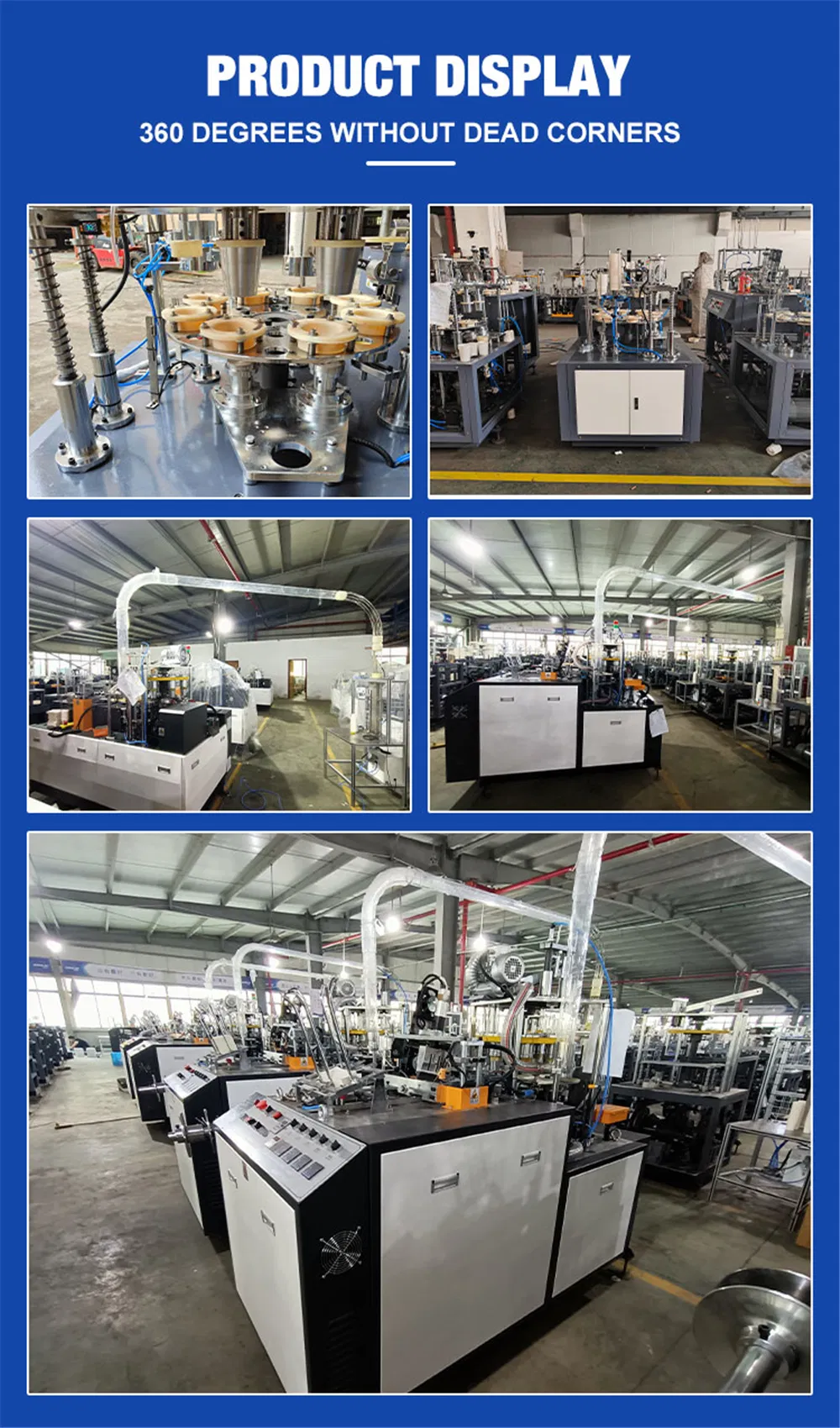

Production Process
✈

Packaging & Services

Packaging and Shipping
  • 19+ years of manufacture and export experience.
  • CE and ISO 9001 certified production guidelines.
  • 24-hour online technical support.
  • Strong R&D technical team for customization.
  • Engineers available for installation guidance.
  • OEM & ODM services available.
Workshop
Factory
Customer Visit
?

Frequently Asked Questions

What is the production speed of this paper cup machine?
The machine operates at a high speed of 100-120 pcs/min, depending on the cup size and material quality.
What range of cup sizes can this machine produce?
It is designed for cups ranging from 2oz to 16oz. The standard mold handles 6-16oz, but it can be adjusted for smaller sizes like 3oz.
What type of paper material is required?
The machine is compatible with both single and double-side PE coated paper, with a thickness range of 160g to 350g.
How long is the delivery time for a customized machine?
Standard models in stock can be delivered within 3-5 days. For customized requirements, the delivery time typically ranges from 15 to 30 days.
What kind of after-sales service do you provide?
We provide a one-year warranty and 24-hour online technical support. Engineers are also available to guide installation and troubleshooting.
What are the accepted payment terms?
We accept various payment methods including T/T, Western Union, Money Gram, and PayPal.
