Product Description

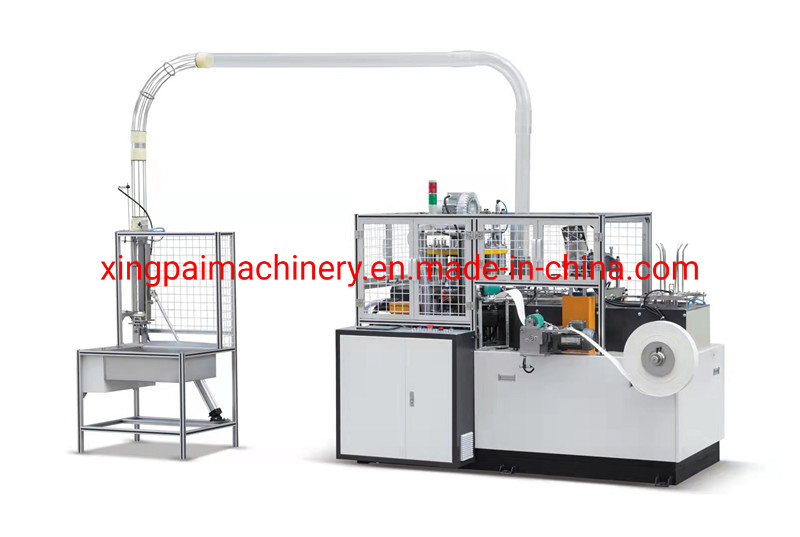

The working principle of our paper cup machine is that a main motor drives the whole machine to work, which realizes the perfect integration of gear and cam structure. Now the machine uses a single aluminum plate to replace the previous three plate machine, which greatly reduces the machine failure rate and reduces the training time for the operator.

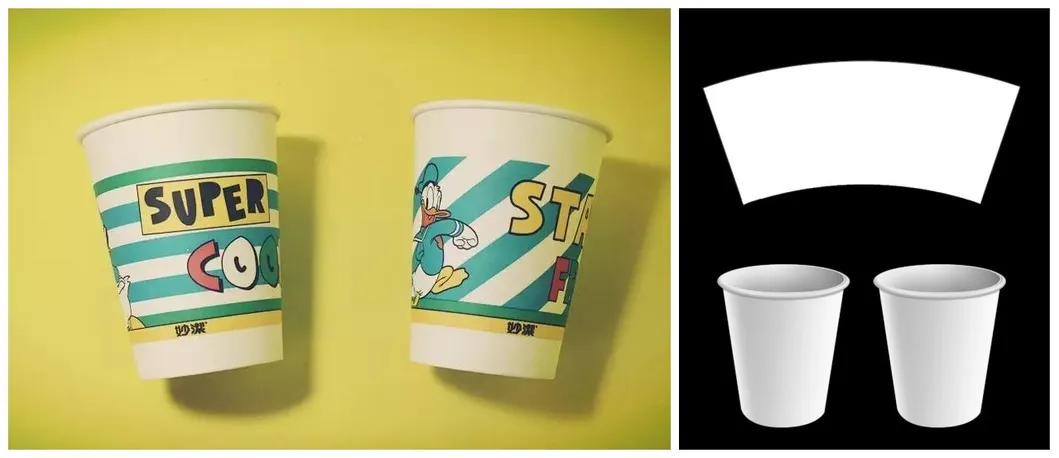

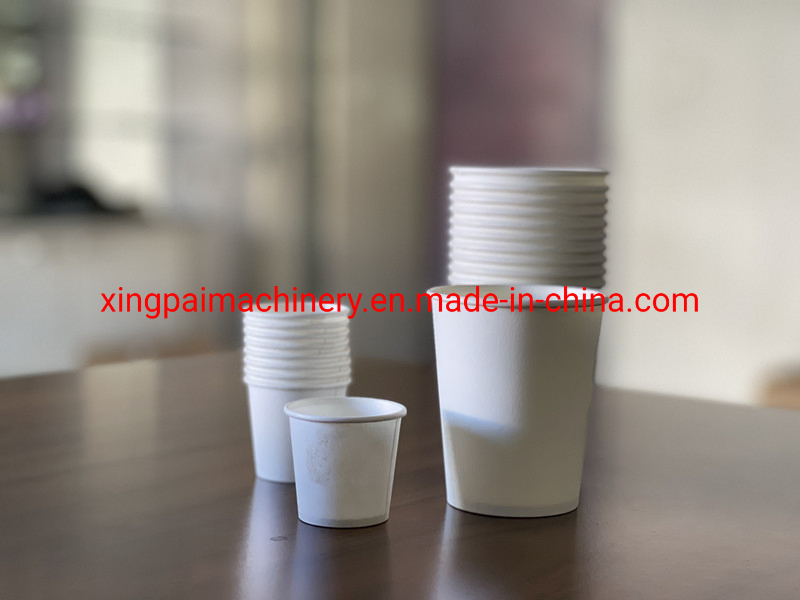

3-16oz single and double coated paper cups can be customized according to customer requirements. It is a fully automatic paper cup forming equipment, through multi-row automatic paper feeding, paper anti return device (to ensure accurate positioning), ultrasonic or copper strip welding, mechanical hand paper tube transfer, oil injection, bottom punching, bottom folding, preheating, and rolling. Continuous processes such as flower and cup unloading can stably produce paper cups of various specifications.
Frequently Asked Questions
What is the production speed of the XP-DP16 machine?
The machine operates at a stable production speed of 80-100 pieces per minute, depending on the cup size and material.
What types of paper can be used with this equipment?
It is compatible with both single and double-sided PE coated paper, with thickness requirements ranging from 150-350g/m2.
Can the cup sizes be customized?
Yes, the machine can be customized to produce paper cups ranging from 3oz to 16oz based on specific customer requirements.
How does the single aluminum plate design benefit the user?
The single aluminum plate design replaces the older three-plate system, which significantly reduces the machine failure rate and simplifies operator training.
What are the main automated processes of this machine?
It features fully automatic paper feeding, ultrasonic or copper strip welding, mechanical hand transfer, oil injection, bottom punching, and rolling.
What are the power and voltage requirements?
The machine requires a power supply of 7.5kw and operates on a voltage of 380V/50hz.
