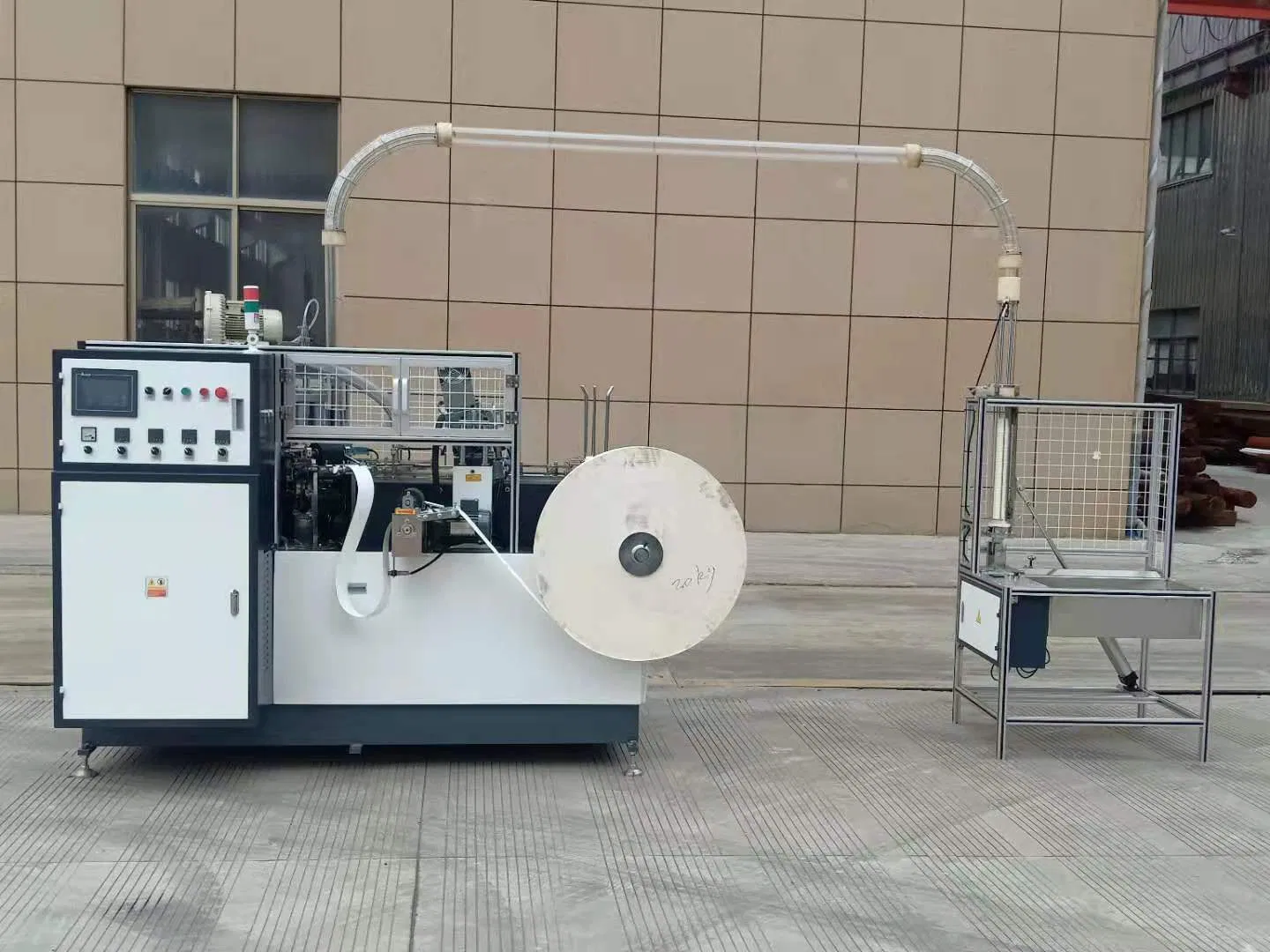

High-Speed Yongbo Yb12 Paper Cup Making Machine at Competitive Prices

1 / 5

High-Speed Yongbo Yb12 Paper Cup Making Machine at Competitive Prices

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

YB12

Cup Size

2-12OZ

Speed

60-80 pcs/min

Required Paper

Single/Double PE Coated

Automation

Automatic

Certification

Condition

New

After-sales

12 Months

Product Overview

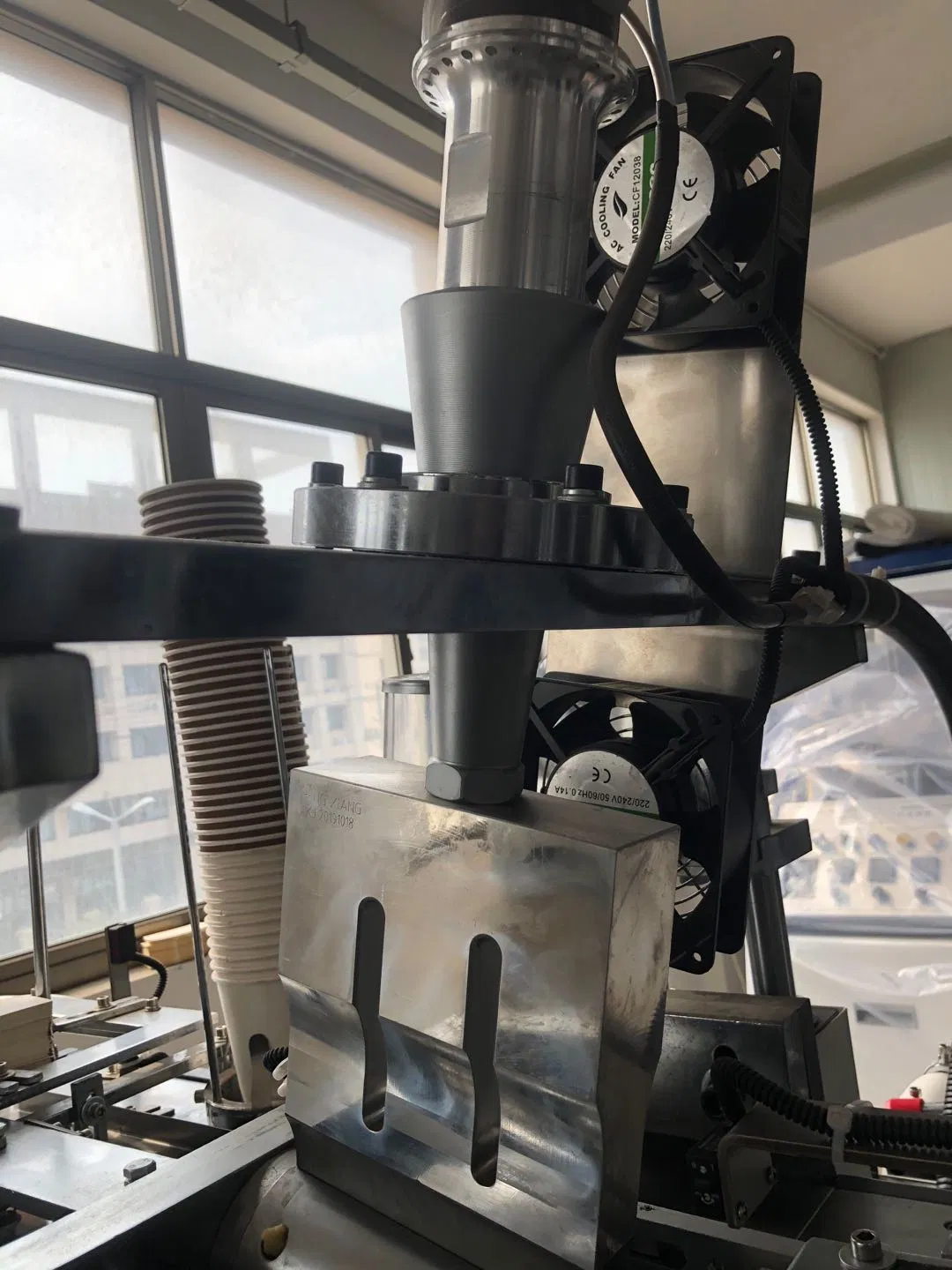

The YB-12 Paper Cup Machine is a fully automatic forming equipment designed for high-efficiency production. It features multiple rows of automatic paper feeding, an anti-backing device for precise positioning, ultrasonic welding, and a continuous process including oil injection, bottoming, pre-heating, and knurling. This machine is engineered for stability and high-speed performance across various paper cup specifications.

Commercial Terms

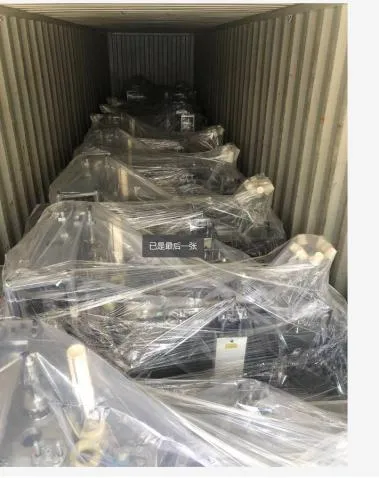

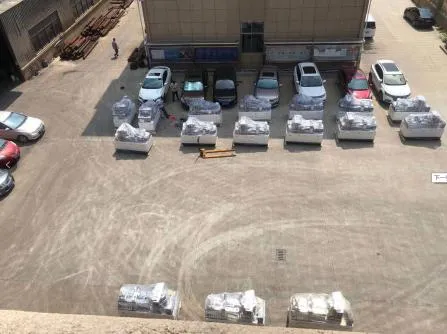

Packing: Wooden base plate, damp proof plastic lining, fully-closed plate-box.
Delivery Time: 30 days after deposit receipt.
Payment: 30% T/T deposit, 70% balance after qualified inspection.
Guarantee: 12-month period after machine receipt.
Installation: Technician support available for setup and training (5-7 working days).

Technical Parameters

Parameter	Details
Paper Cup Size	4ML-16oz (Interchangeable molds)
Paper Weight	150-350 GSM
Production Speed	65-85 pcs/min
Power Voltage	220V 50Hz / 380V 50Hz
Total Power	4KW
Machine Weight	1700KG
Dimensions (LxWxH)	2000 x 1000 x 1700mm

Key Features

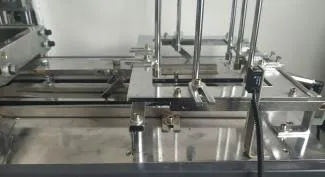

1. Multiple Paper Feeding

Three-stage paper feeding with multiple mediation ensures perfectly even alignment on both sides of the cup.

2. Photoelectric Detection

Dual control via encoder and optical eye. Features fault alarms and automatic shutdown to prevent material waste.

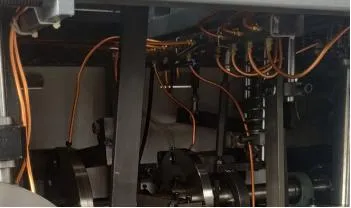

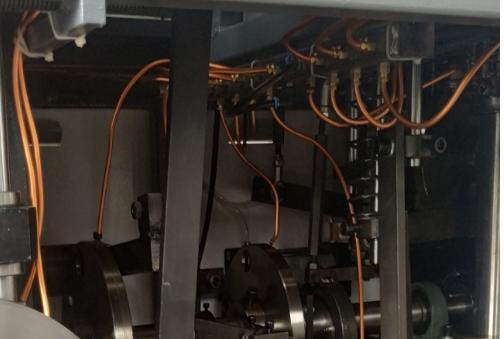

3. Automatic Fueling System

Automated lubrication via copper piping reduces labor and ensures smooth mechanical operation.

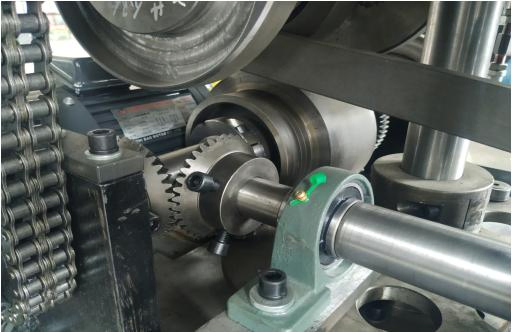

4. Precision Slot Wheel

Internal components are connected by a heavy-duty sheave, ensuring tight integration and preventing loosening during high-speed runs.

Configuration & Accessories

Electrical Components
Photoelectric Sensor (Panasonic)
Frequency Converter (Haipu)
Solid State Relay (Yangming, Taiwan)
AC Contactor & Small Relay (Chint)
Air Switch Control

Standard Delivery Parts

Copper head electric heating rod (1)
10-inch sliding wrench (1)
Heating & Preheating main hot rings (1 set each)
Bearing 5204 + Knurled wheel (1 set)
Full set of Allen and Hexagon wrenches
Foot screws M18 (6)

Machine Gallery

Frequently Asked Questions

Q1: What is the maximum production speed of the YB-12? A: The machine can stably produce between 60 to 80 pieces per minute, depending on the cup size and paper quality.

Q2: Can this machine handle both single and double PE coated paper? A: Yes, it is designed to work with both single and double-side PE coated paper, making it versatile for hot and cold drink cups.

Q3: What range of cup sizes can be manufactured? A: It supports a wide range from 2oz to 12oz (standard) and can be adjusted for 4ml to 16oz capacities by replacing the corresponding molds.

Q4: What is the power requirement for installation? A: The machine operates on either 220V or 380V at 50Hz, with a total power consumption of approximately 4KW.

Q5: How long is the delivery lead time? A: Standard delivery is 30 days after the deposit payment is confirmed.

Q6: Is technical support provided for setup? A: Yes, we provide technician services for installation, debugging, and staff training at the customer's site.
